#include <lte-stats-calculator.h>

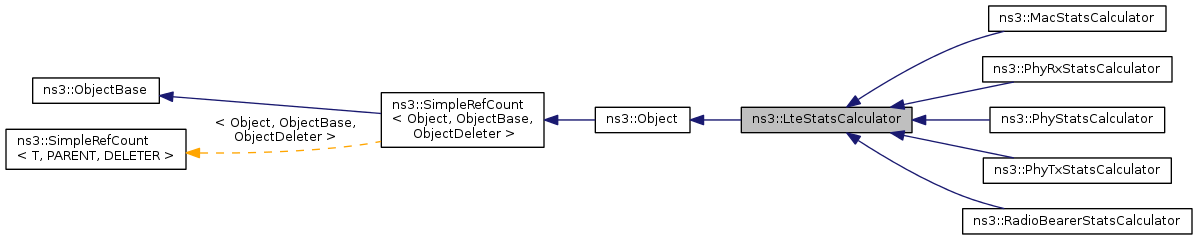

Inheritance diagram for ns3::LteStatsCalculator:

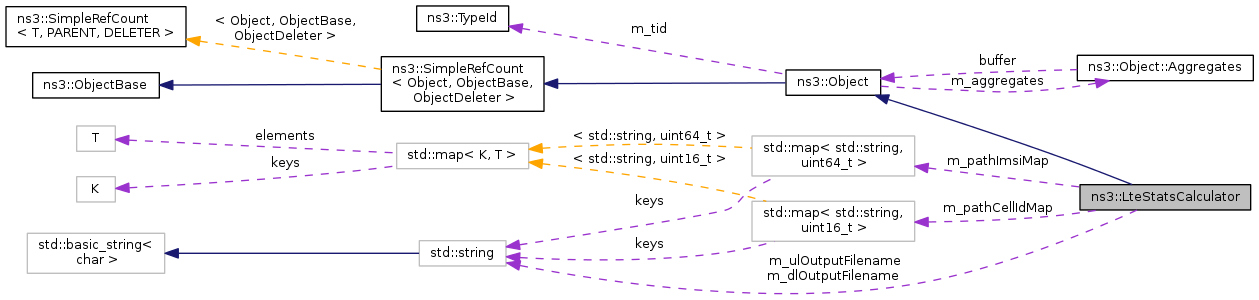

Collaboration diagram for ns3::LteStatsCalculator:

Public Member Functions
	LteStatsCalculator ()
virtual	~LteStatsCalculator ()
bool	ExistsCellIdPath (std::string path)
bool	ExistsImsiPath (std::string path)
uint16_t	GetCellIdPath (std::string path)
std::string	GetDlOutputFilename (void)
uint64_t	GetImsiPath (std::string path)
std::string	GetUlOutputFilename (void)
void	SetCellIdPath (std::string path, uint16_t cellId)
void	SetDlOutputFilename (std::string outputFilename)
void	SetImsiPath (std::string path, uint64_t imsi)
void	SetUlOutputFilename (std::string outputFilename)
Public Member Functions inherited from ns3::Object
	Object ()
virtual	~Object ()
void	AggregateObject (Ptr< Object > other)
void	Dispose (void)
AggregateIterator	GetAggregateIterator (void) const
virtual TypeId	GetInstanceTypeId (void) const
template<typename T >
Ptr< T >	GetObject (void) const
template<typename T >
Ptr< T >	GetObject (TypeId tid) const
void	Initialize (void)
Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	SimpleRefCount (const SimpleRefCount &o)
uint32_t	GetReferenceCount (void) const
SimpleRefCount &	operator= (const SimpleRefCount &o)
void	Ref (void) const
void	Unref (void) const
Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
void	GetAttribute (std::string name, AttributeValue &value) const
bool	GetAttributeFailSafe (std::string name, AttributeValue &attribute) const
void	SetAttribute (std::string name, const AttributeValue &value)
bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)

Static Public Member Functions
static TypeId	GetTypeId (void)

Private Attributes
std::string	m_dlOutputFilename
std::map< std::string, uint16_t >	m_pathCellIdMap
std::map< std::string, uint64_t >	m_pathImsiMap
std::string	m_ulOutputFilename

Additional Inherited Members
Protected Member Functions inherited from ns3::Object
	Object (const Object &o)
virtual void	DoDispose (void)
virtual void	DoInitialize (void)
virtual void	NotifyNewAggregate (void)

Detailed Description

Doxygen introspection did not find any typical Config paths.
No Attributes are defined for this type.
No TraceSources are defined for this type.

Definition at line 30 of file lte-stats-calculator.h.

Constructor & Destructor Documentation

ns3::LteStatsCalculator::LteStatsCalculator ( )

Constructor

Definition at line 28 of file lte-stats-calculator.cc.

ns3::LteStatsCalculator::~LteStatsCalculator ( )

virtual

Destructor

Definition at line 36 of file lte-stats-calculator.cc.

Member Function Documentation

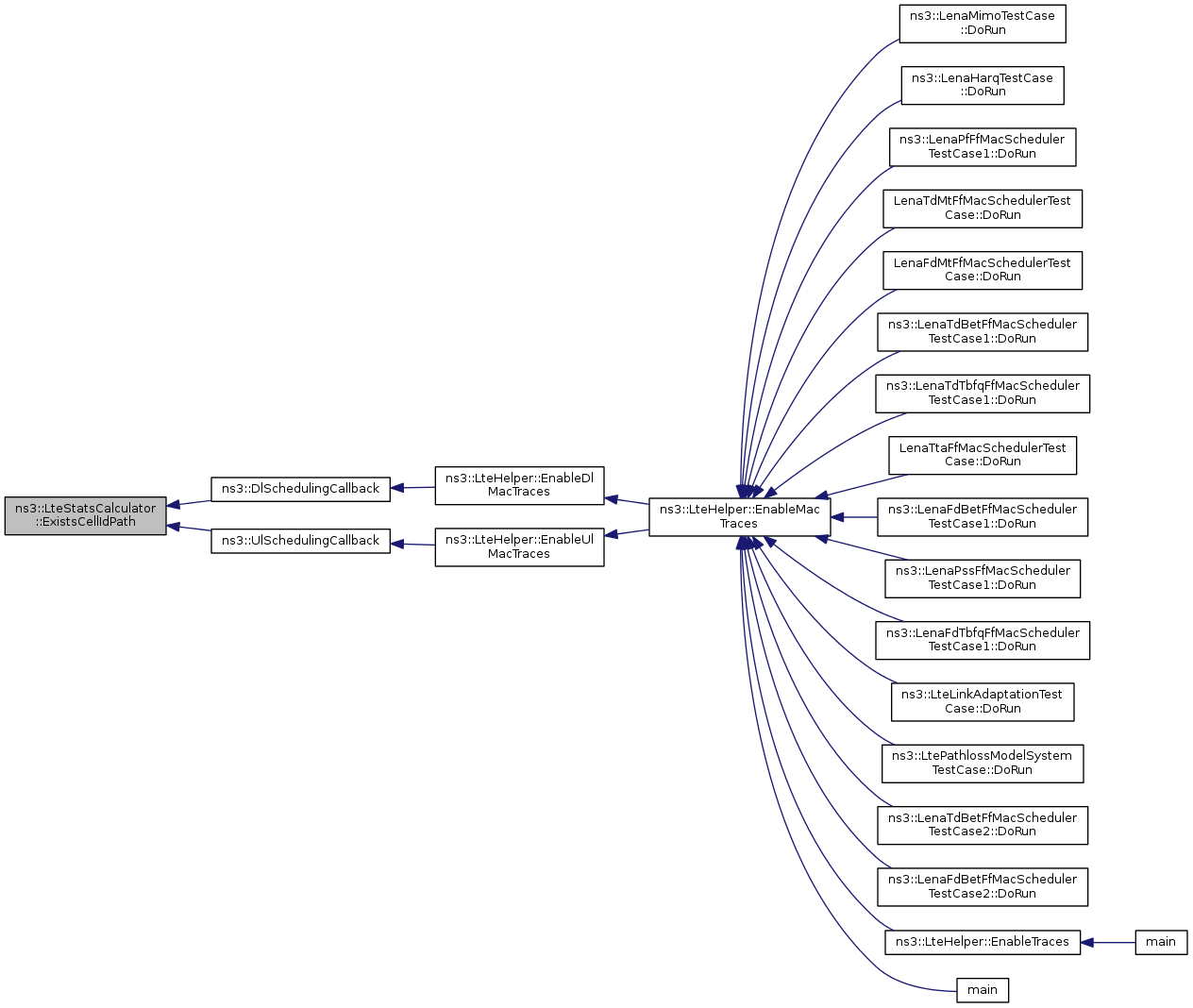

bool ns3::LteStatsCalculator::ExistsCellIdPath ( std::string path )

Checks if there is an already stored cell id for the given path

Parameters

path	Path in the attribute system to check

Definition at line 105 of file lte-stats-calculator.cc.

References m_pathCellIdMap.

Referenced by ns3::DlSchedulingCallback(), and ns3::UlSchedulingCallback().

Here is the caller graph for this function:

bool ns3::LteStatsCalculator::ExistsImsiPath ( std::string path )

Checks if there is an already stored IMSI for the given path

Parameters

path	Path in the attribute system to check

Definition at line 79 of file lte-stats-calculator.cc.

References m_pathImsiMap.

Referenced by ns3::DlPhyReceptionCallback(), ns3::DlPhyTransmissionCallback(), ns3::DlSchedulingCallback(), ns3::ReportCurrentCellRsrpSinrCallback(), ns3::ReportUeSinr(), ns3::UlPhyReceptionCallback(), ns3::UlPhyTransmissionCallback(), and ns3::UlSchedulingCallback().

Here is the caller graph for this function:

uint16_t ns3::LteStatsCalculator::GetCellIdPath ( std::string path )

Retrieves the cell id information for the given path

Parameters

path	Path in the attribute system to get

Definition at line 125 of file lte-stats-calculator.cc.

References m_pathCellIdMap.

Referenced by ns3::DlSchedulingCallback(), and ns3::UlSchedulingCallback().

Here is the caller graph for this function:

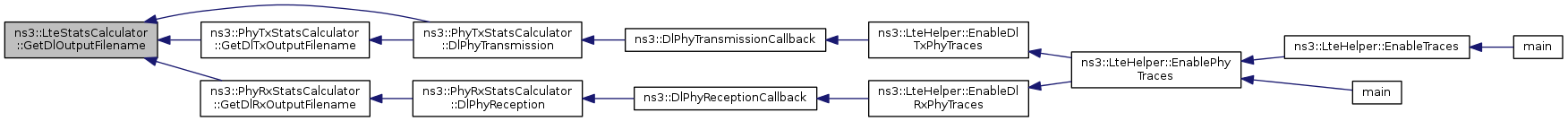

std::string ns3::LteStatsCalculator::GetDlOutputFilename ( void )

Get the name of the file where the downlink statistics will be stored.

Reimplemented in ns3::RadioBearerStatsCalculator, and ns3::MacStatsCalculator.

Definition at line 72 of file lte-stats-calculator.cc.

References m_dlOutputFilename.

Referenced by ns3::PhyTxStatsCalculator::DlPhyTransmission(), ns3::PhyRxStatsCalculator::GetDlRxOutputFilename(), and ns3::PhyTxStatsCalculator::GetDlTxOutputFilename().

Here is the caller graph for this function:

uint64_t ns3::LteStatsCalculator::GetImsiPath ( std::string path )

Retrieves the imsi information for the given path

Parameters

path	Path in the attribute system to get

Definition at line 99 of file lte-stats-calculator.cc.

References m_pathImsiMap.

Referenced by ns3::DlPhyReceptionCallback(), ns3::DlPhyTransmissionCallback(), ns3::DlSchedulingCallback(), ns3::ReportCurrentCellRsrpSinrCallback(), ns3::ReportUeSinr(), ns3::UlPhyReceptionCallback(), ns3::UlPhyTransmissionCallback(), and ns3::UlSchedulingCallback().

Here is the caller graph for this function:

TypeId ns3::LteStatsCalculator::GetTypeId ( void )

static

Reimplemented from ns3::Object.

Reimplemented in ns3::RadioBearerStatsCalculator, ns3::PhyStatsCalculator, ns3::PhyTxStatsCalculator, ns3::PhyRxStatsCalculator, and ns3::MacStatsCalculator.

Definition at line 43 of file lte-stats-calculator.cc.

References ns3::TypeId::SetParent().

Here is the call graph for this function:

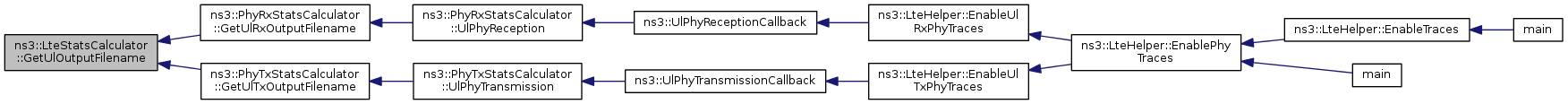

std::string ns3::LteStatsCalculator::GetUlOutputFilename ( void )

Get the name of the file where the uplink statistics will be stored.

Reimplemented in ns3::RadioBearerStatsCalculator, and ns3::MacStatsCalculator.

Definition at line 60 of file lte-stats-calculator.cc.

References m_ulOutputFilename.

Referenced by ns3::PhyRxStatsCalculator::GetUlRxOutputFilename(), and ns3::PhyTxStatsCalculator::GetUlTxOutputFilename().

Here is the caller graph for this function:

void ns3::LteStatsCalculator::SetCellIdPath	(	std::string	path,
		uint16_t	cellId
	)

Stores the (path, cellId) pairs in a map

Parameters

path	Path in the attribute system to store
cellId	cell id value to store

Definition at line 118 of file lte-stats-calculator.cc.

References m_pathCellIdMap, and NS_LOG_FUNCTION.

Referenced by ns3::DlSchedulingCallback(), and ns3::UlSchedulingCallback().

Here is the caller graph for this function:

void ns3::LteStatsCalculator::SetDlOutputFilename ( std::string outputFilename )

Set the name of the file where the downlink statistics will be stored.

Parameters

outputFilename string with the name of the file

Reimplemented in ns3::MacStatsCalculator.

Definition at line 66 of file lte-stats-calculator.cc.

References m_dlOutputFilename.

Referenced by ns3::RadioBearerStatsCalculator::GetTypeId(), ns3::PhyRxStatsCalculator::SetDlRxOutputFilename(), and ns3::PhyTxStatsCalculator::SetDlTxOutputFilename().

Here is the caller graph for this function:

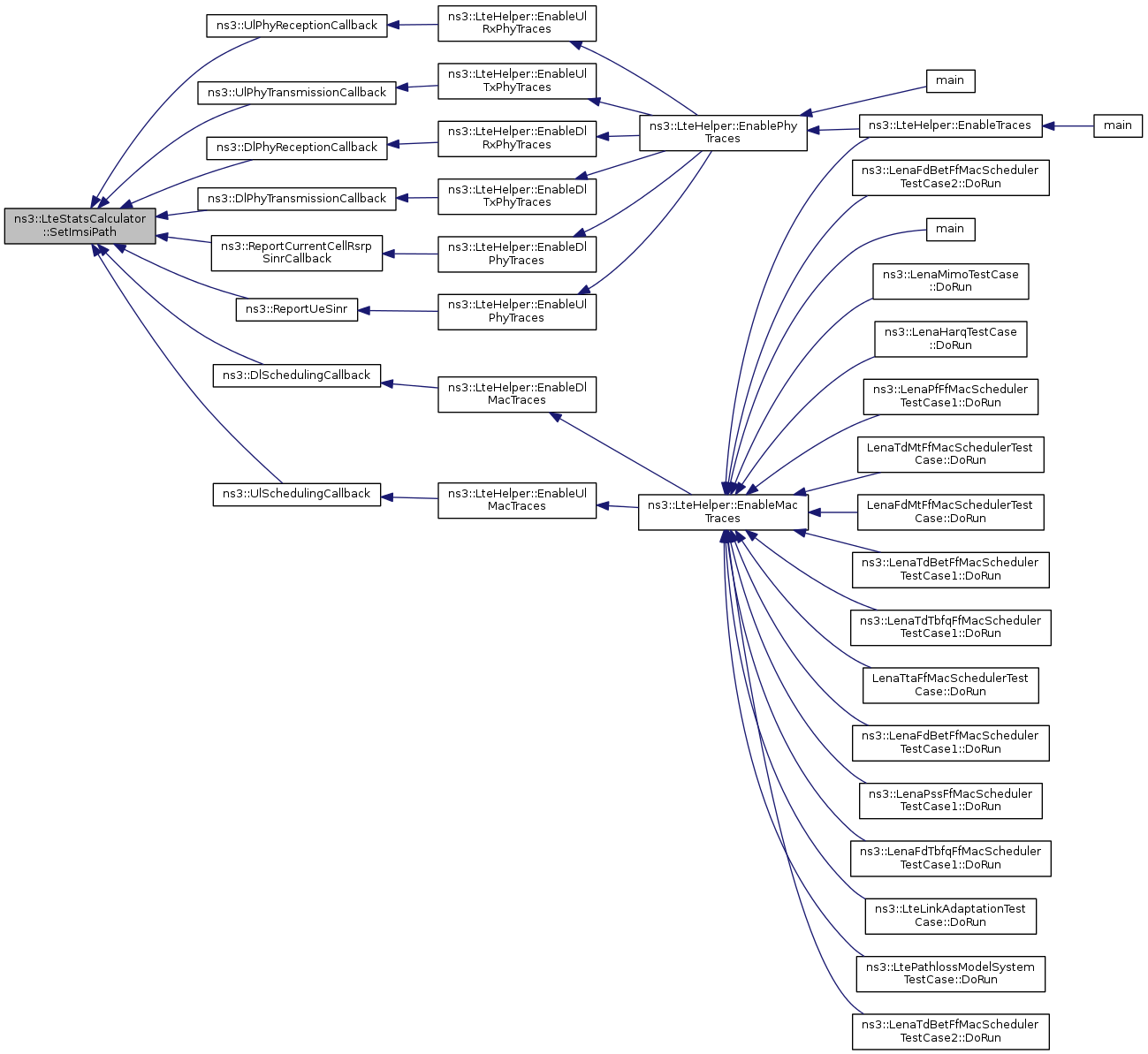

void ns3::LteStatsCalculator::SetImsiPath	(	std::string	path,
		uint64_t	imsi
	)

Stores the (path, imsi) pairs in a map

Parameters

path	Path in the attribute system to store
imsi	IMSI value to store

Definition at line 92 of file lte-stats-calculator.cc.

References m_pathImsiMap, and NS_LOG_FUNCTION.

Referenced by ns3::DlPhyReceptionCallback(), ns3::DlPhyTransmissionCallback(), ns3::DlSchedulingCallback(), ns3::ReportCurrentCellRsrpSinrCallback(), ns3::ReportUeSinr(), ns3::UlPhyReceptionCallback(), ns3::UlPhyTransmissionCallback(), and ns3::UlSchedulingCallback().

Here is the caller graph for this function:

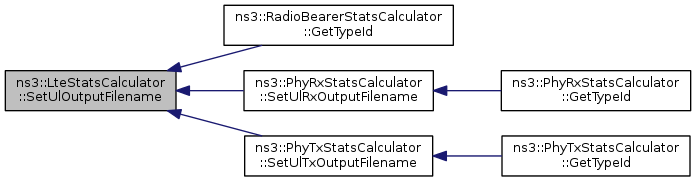

void ns3::LteStatsCalculator::SetUlOutputFilename ( std::string outputFilename )

Set the name of the file where the uplink statistics will be stored.

Parameters

outputFilename string with the name of the file

Reimplemented in ns3::MacStatsCalculator.

Definition at line 54 of file lte-stats-calculator.cc.

References m_ulOutputFilename.

Referenced by ns3::RadioBearerStatsCalculator::GetTypeId(), ns3::PhyRxStatsCalculator::SetUlRxOutputFilename(), and ns3::PhyTxStatsCalculator::SetUlTxOutputFilename().

Here is the caller graph for this function:

Member Data Documentation

std::string ns3::LteStatsCalculator::m_dlOutputFilename

private

Definition at line 112 of file lte-stats-calculator.h.

Referenced by GetDlOutputFilename(), and SetDlOutputFilename().

std::map<std::string, uint16_t> ns3::LteStatsCalculator::m_pathCellIdMap

private

Definition at line 110 of file lte-stats-calculator.h.

Referenced by ExistsCellIdPath(), GetCellIdPath(), and SetCellIdPath().

std::map<std::string, uint64_t> ns3::LteStatsCalculator::m_pathImsiMap

private

Definition at line 109 of file lte-stats-calculator.h.

Referenced by ExistsImsiPath(), GetImsiPath(), and SetImsiPath().

std::string ns3::LteStatsCalculator::m_ulOutputFilename

private

Definition at line 113 of file lte-stats-calculator.h.

Referenced by GetUlOutputFilename(), and SetUlOutputFilename().

The documentation for this class was generated from the following files:

src/lte/helper/lte-stats-calculator.h
src/lte/helper/lte-stats-calculator.cc
