#include <radio-bearer-stats-calculator.h>

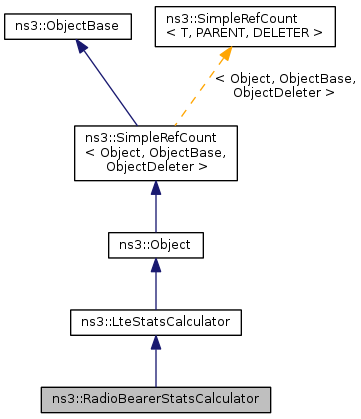

Inheritance diagram for ns3::RadioBearerStatsCalculator:

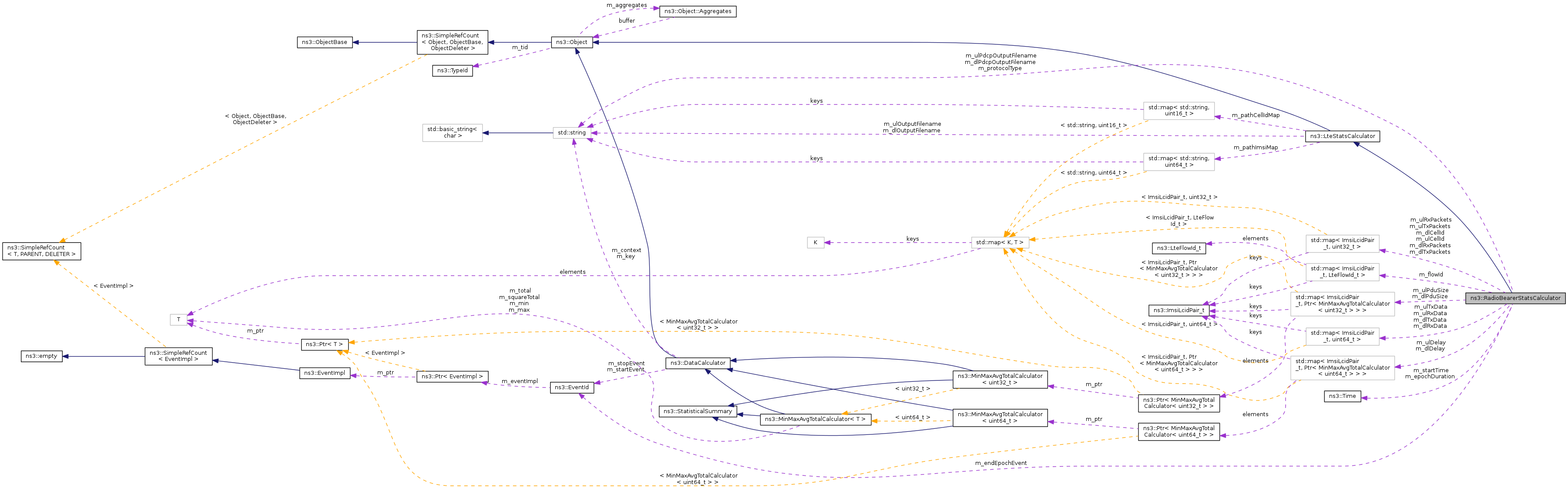

Collaboration diagram for ns3::RadioBearerStatsCalculator:

Public Member Functions
	RadioBearerStatsCalculator ()
	RadioBearerStatsCalculator (std::string protocolType)
virtual	~RadioBearerStatsCalculator ()
void	DlRxPdu (uint16_t cellId, uint64_t imsi, uint16_t rnti, uint8_t lcid, uint32_t packetSize, uint64_t delay)
void	DlTxPdu (uint16_t cellId, uint64_t imsi, uint16_t rnti, uint8_t lcid, uint32_t packetSize)
void	DoDispose ()
uint32_t	GetDlCellId (uint64_t imsi, uint8_t lcid)
double	GetDlDelay (uint64_t imsi, uint8_t lcid)
std::vector< double >	GetDlDelayStats (uint64_t imsi, uint8_t lcid)
std::string	GetDlOutputFilename (void)
std::string	GetDlPdcpOutputFilename (void)
std::vector< double >	GetDlPduSizeStats (uint64_t imsi, uint8_t lcid)
uint64_t	GetDlRxData (uint64_t imsi, uint8_t lcid)
uint32_t	GetDlRxPackets (uint64_t imsi, uint8_t lcid)
uint64_t	GetDlTxData (uint64_t imsi, uint8_t lcid)
uint32_t	GetDlTxPackets (uint64_t imsi, uint8_t lcid)
Time	GetEpoch () const
Time	GetStartTime () const
uint32_t	GetUlCellId (uint64_t imsi, uint8_t lcid)
double	GetUlDelay (uint64_t imsi, uint8_t lcid)
std::vector< double >	GetUlDelayStats (uint64_t imsi, uint8_t lcid)
std::string	GetUlOutputFilename (void)
std::string	GetUlPdcpOutputFilename (void)
std::vector< double >	GetUlPduSizeStats (uint64_t imsi, uint8_t lcid)
uint64_t	GetUlRxData (uint64_t imsi, uint8_t lcid)
uint32_t	GetUlRxPackets (uint64_t imsi, uint8_t lcid)
uint64_t	GetUlTxData (uint64_t imsi, uint8_t lcid)
uint32_t	GetUlTxPackets (uint64_t imsi, uint8_t lcid)
void	SetDlPdcpOutputFilename (std::string outputFilename)
void	SetEpoch (Time e)
void	SetStartTime (Time t)
void	SetUlPdcpOutputFilename (std::string outputFilename)
void	UlRxPdu (uint16_t cellId, uint64_t imsi, uint16_t rnti, uint8_t lcid, uint32_t packetSize, uint64_t delay)
void	UlTxPdu (uint16_t cellId, uint64_t imsi, uint16_t rnti, uint8_t lcid, uint32_t packetSize)
Public Member Functions inherited from ns3::LteStatsCalculator
	LteStatsCalculator ()
virtual	~LteStatsCalculator ()
bool	ExistsCellIdPath (std::string path)
bool	ExistsImsiPath (std::string path)
uint16_t	GetCellIdPath (std::string path)
uint64_t	GetImsiPath (std::string path)
void	SetCellIdPath (std::string path, uint16_t cellId)
void	SetDlOutputFilename (std::string outputFilename)
void	SetImsiPath (std::string path, uint64_t imsi)
void	SetUlOutputFilename (std::string outputFilename)
Public Member Functions inherited from ns3::Object
	Object ()
virtual	~Object ()
void	AggregateObject (Ptr< Object > other)
void	Dispose (void)
AggregateIterator	GetAggregateIterator (void) const
virtual TypeId	GetInstanceTypeId (void) const
template<typename T >
Ptr< T >	GetObject (void) const
template<typename T >
Ptr< T >	GetObject (TypeId tid) const
void	Initialize (void)
Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	SimpleRefCount (const SimpleRefCount &o)
uint32_t	GetReferenceCount (void) const
SimpleRefCount &	operator= (const SimpleRefCount &o)
void	Ref (void) const
void	Unref (void) const
Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
void	GetAttribute (std::string name, AttributeValue &value) const
bool	GetAttributeFailSafe (std::string name, AttributeValue &attribute) const
void	SetAttribute (std::string name, const AttributeValue &value)
bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)

Static Public Member Functions
static TypeId	GetTypeId (void)

Private Member Functions
void	EndEpoch (void)
void	RescheduleEndEpoch ()
void	ResetResults (void)
void	ShowResults (void)
void	WriteDlResults (std::ofstream &outFile)
void	WriteUlResults (std::ofstream &outFile)

Private Attributes
Uint32Map	m_dlCellId
Uint64StatsMap	m_dlDelay
std::string	m_dlPdcpOutputFilename
Uint32StatsMap	m_dlPduSize
Uint64Map	m_dlRxData
Uint32Map	m_dlRxPackets
Uint64Map	m_dlTxData
Uint32Map	m_dlTxPackets
EventId	m_endEpochEvent
Time	m_epochDuration
bool	m_firstWrite
FlowIdMap	m_flowId
bool	m_pendingOutput
std::string	m_protocolType
Time	m_startTime
Uint32Map	m_ulCellId
Uint64StatsMap	m_ulDelay
std::string	m_ulPdcpOutputFilename
Uint32StatsMap	m_ulPduSize
Uint64Map	m_ulRxData
Uint32Map	m_ulRxPackets
Uint64Map	m_ulTxData
Uint32Map	m_ulTxPackets

Additional Inherited Members
Protected Member Functions inherited from ns3::Object
	Object (const Object &o)
virtual void	DoInitialize (void)
virtual void	NotifyNewAggregate (void)

Detailed Description

This class is an ns-3 trace sink that performs the calculation of PDU statistics for uplink and downlink. Statistics are generated on a per radio bearer basis. This class can be used for RLC PDU stats or PDCP PDU stats by connecting to the appropriate trace sources at the RLC or PDCP layer.

The statistics are calculated at consecutive time windows and periodically written to a file. The calculated statistics are:

Number of transmitted PDUs
Number of received PDUs
Number of transmitted bytes
Number of received bytes
Average, min, max and standard deviation of PDU delay (delay is calculated from the generation of the PDU to its reception)
Average, min, max and standard deviation of PDU size

Doxygen introspection did not find any typical Config paths.

Attributes

StartTime: Start time of the on going epoch.
- Set with class: TimeValue
- Underlying type: Time
- Initial value: +0.0ns
- Flags: construct write read
EpochDuration: Epoch duration.
- Set with class: TimeValue
- Underlying type: Time
- Initial value: +250000000.0ns
- Flags: construct write read
DlRlcOutputFilename: Name of the file where the downlink results will be saved.
- Set with class: StringValue
- Underlying type: std::string
- Initial value: DlRlcStats.txt
- Flags: construct write
UlRlcOutputFilename: Name of the file where the uplink results will be saved.
- Set with class: StringValue
- Underlying type: std::string
- Initial value: UlRlcStats.txt
- Flags: construct write
DlPdcpOutputFilename: Name of the file where the downlink results will be saved.
- Set with class: StringValue
- Underlying type: std::string
- Initial value: DlPdcpStats.txt
- Flags: construct write
UlPdcpOutputFilename: Name of the file where the uplink results will be saved.
- Set with class: StringValue
- Underlying type: std::string
- Initial value: UlPdcpStats.txt
- Flags: construct write

No TraceSources are defined for this type.

Definition at line 63 of file radio-bearer-stats-calculator.h.

Constructor & Destructor Documentation

ns3::RadioBearerStatsCalculator::RadioBearerStatsCalculator ( )

Class constructor

Definition at line 36 of file radio-bearer-stats-calculator.cc.

References NS_LOG_FUNCTION.

ns3::RadioBearerStatsCalculator::RadioBearerStatsCalculator ( std::string protocolType )

Class constructor

Definition at line 44 of file radio-bearer-stats-calculator.cc.

References m_protocolType, and NS_LOG_FUNCTION.

ns3::RadioBearerStatsCalculator::~RadioBearerStatsCalculator ( )

virtual

Class destructor

Definition at line 52 of file radio-bearer-stats-calculator.cc.

References NS_LOG_FUNCTION.

Member Function Documentation

void ns3::RadioBearerStatsCalculator::DlRxPdu	(	uint16_t	cellId,
		uint64_t	imsi,
		uint16_t	rnti,
		uint8_t	lcid,
		uint32_t	packetSize,
		uint64_t	delay
	)

Notifies the stats calculator that an downlink reception has occurred.

Parameters

cellId	CellId of the attached Enb
imsi	IMSI of the UE who received the PDU
rnti	C-RNTI of the UE who received the PDU
lcid	LCID through which the PDU has been transmitted
packetSize	size of the PDU in bytes
delay	RLC to RLC delay in nanoseconds

Definition at line 189 of file radio-bearer-stats-calculator.cc.

References m_dlCellId, m_dlDelay, m_dlPduSize, m_dlRxData, m_dlRxPackets, ns3::ImsiLcidPair_t::m_imsi, ns3::ImsiLcidPair_t::m_lcId, m_pendingOutput, m_startTime, ns3::Simulator::Now(), NS_LOG_DEBUG, and NS_LOG_FUNCTION.

Referenced by ns3::DlRxPduCallback(), and ns3::LteSimpleHelperDlRxPduCallback().

Here is the call graph for this function:

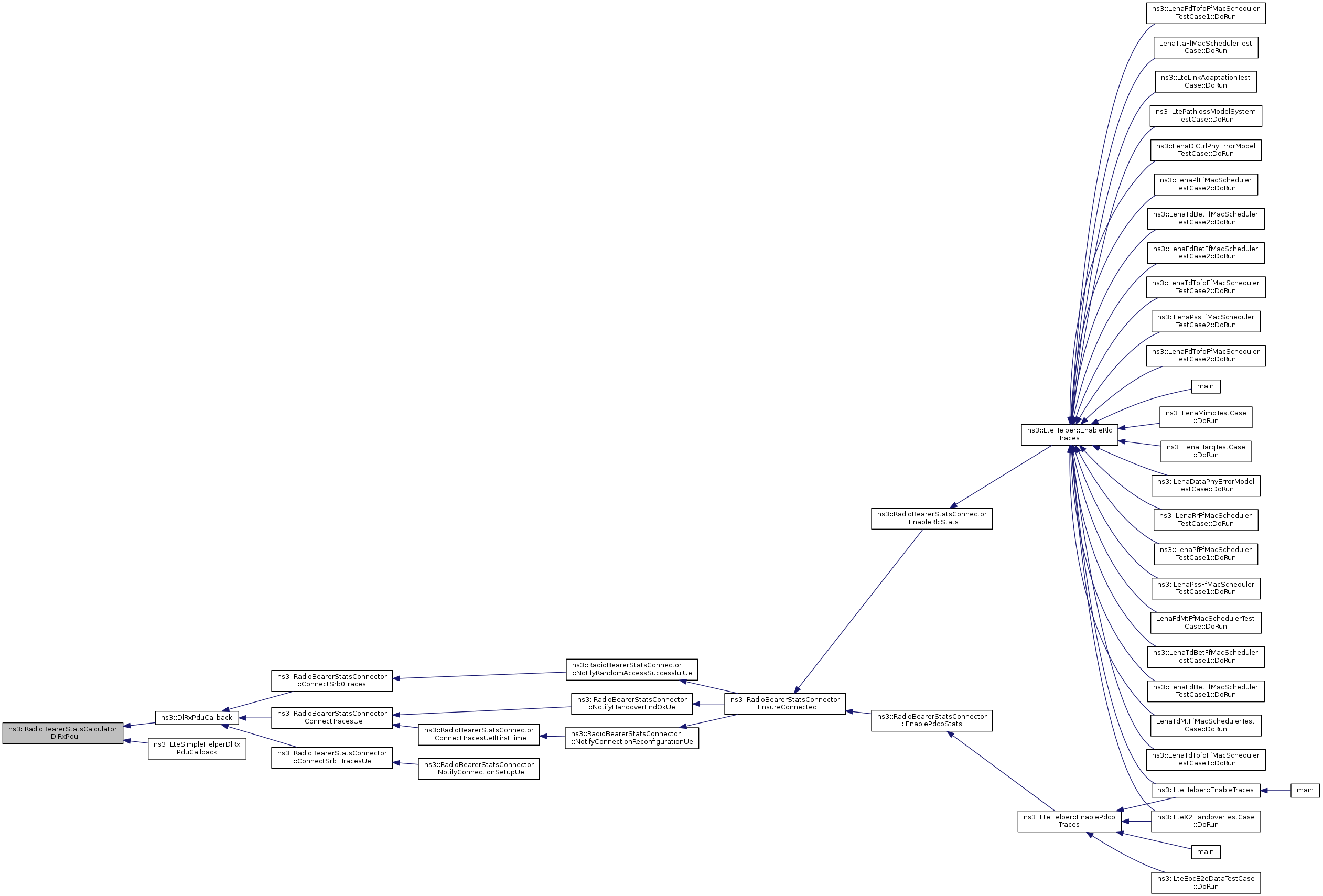

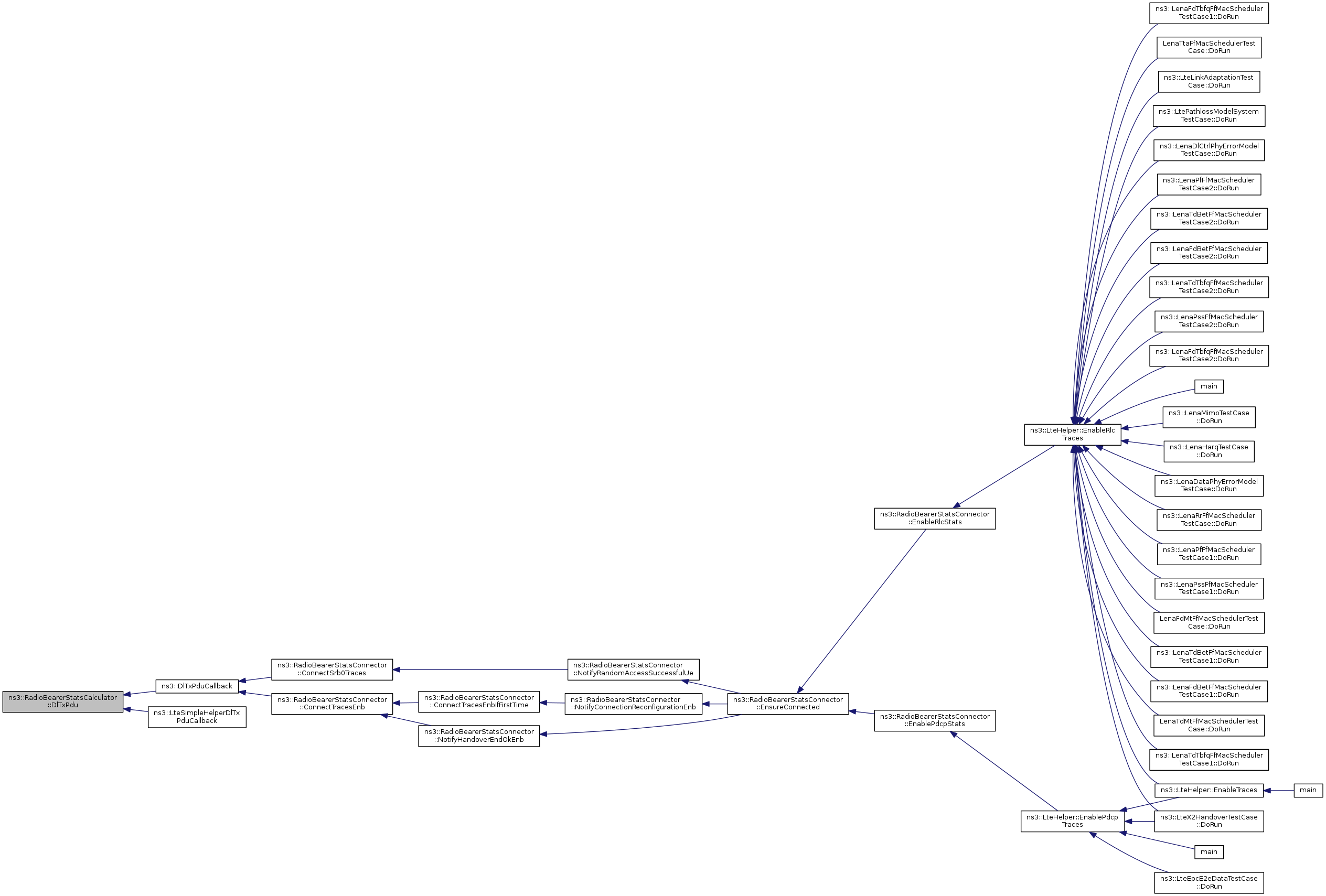

Here is the caller graph for this function:

void ns3::RadioBearerStatsCalculator::DlTxPdu	(	uint16_t	cellId,
		uint64_t	imsi,
		uint16_t	rnti,
		uint8_t	lcid,
		uint32_t	packetSize
	)

Notifies the stats calculator that an downlink transmission has occurred.

Parameters

cellId	CellId of the attached Enb
imsi	IMSI of the UE who is receiving the PDU
rnti	C-RNTI of the UE who is receiving the PDU
lcid	LCID through which the PDU has been transmitted
packetSize	size of the PDU in bytes

Definition at line 149 of file radio-bearer-stats-calculator.cc.

References m_dlCellId, m_dlTxData, m_dlTxPackets, m_flowId, m_pendingOutput, m_startTime, ns3::Simulator::Now(), and NS_LOG_FUNCTION.

Referenced by ns3::DlTxPduCallback(), and ns3::LteSimpleHelperDlTxPduCallback().

Here is the call graph for this function:

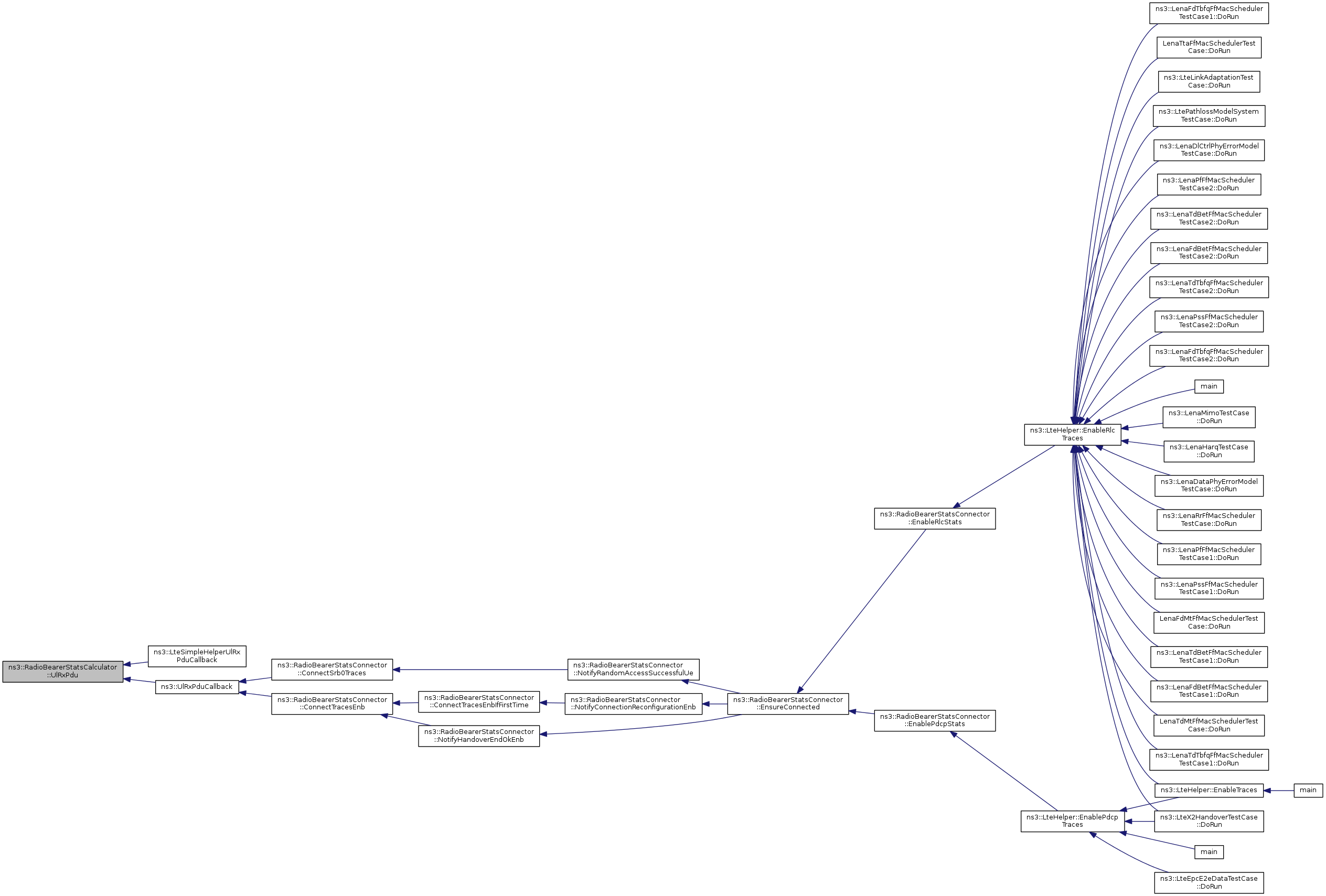

Here is the caller graph for this function:

void ns3::RadioBearerStatsCalculator::DoDispose ( void )

virtual

This method is called by Object::Dispose or by the object's destructor, whichever comes first.

Subclasses are expected to implement their real destruction code in an overriden version of this method and chain up to their parent's implementation once they are done. i.e., for simplicity, the destructor of every subclass should be empty and its content should be moved to the associated DoDispose method.

It is safe to call GetObject from within this method.

Reimplemented from ns3::Object.

Definition at line 98 of file radio-bearer-stats-calculator.cc.

References m_pendingOutput, NS_LOG_FUNCTION, and ShowResults().

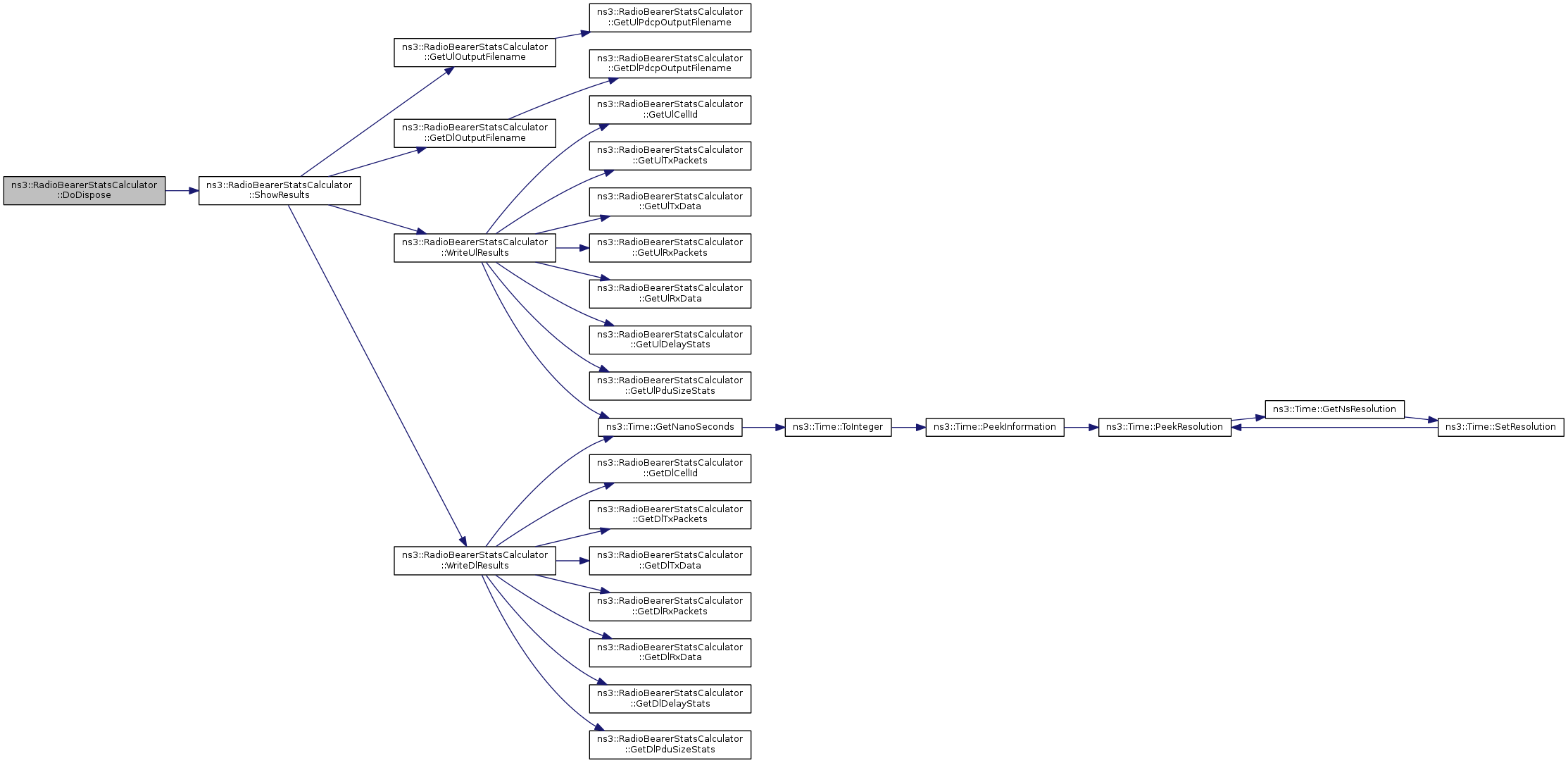

Here is the call graph for this function:

void ns3::RadioBearerStatsCalculator::EndEpoch ( void )

private

Definition at line 391 of file radio-bearer-stats-calculator.cc.

References m_endEpochEvent, m_epochDuration, m_startTime, NS_LOG_FUNCTION, ResetResults(), ns3::Simulator::Schedule(), and ShowResults().

Referenced by RescheduleEndEpoch().

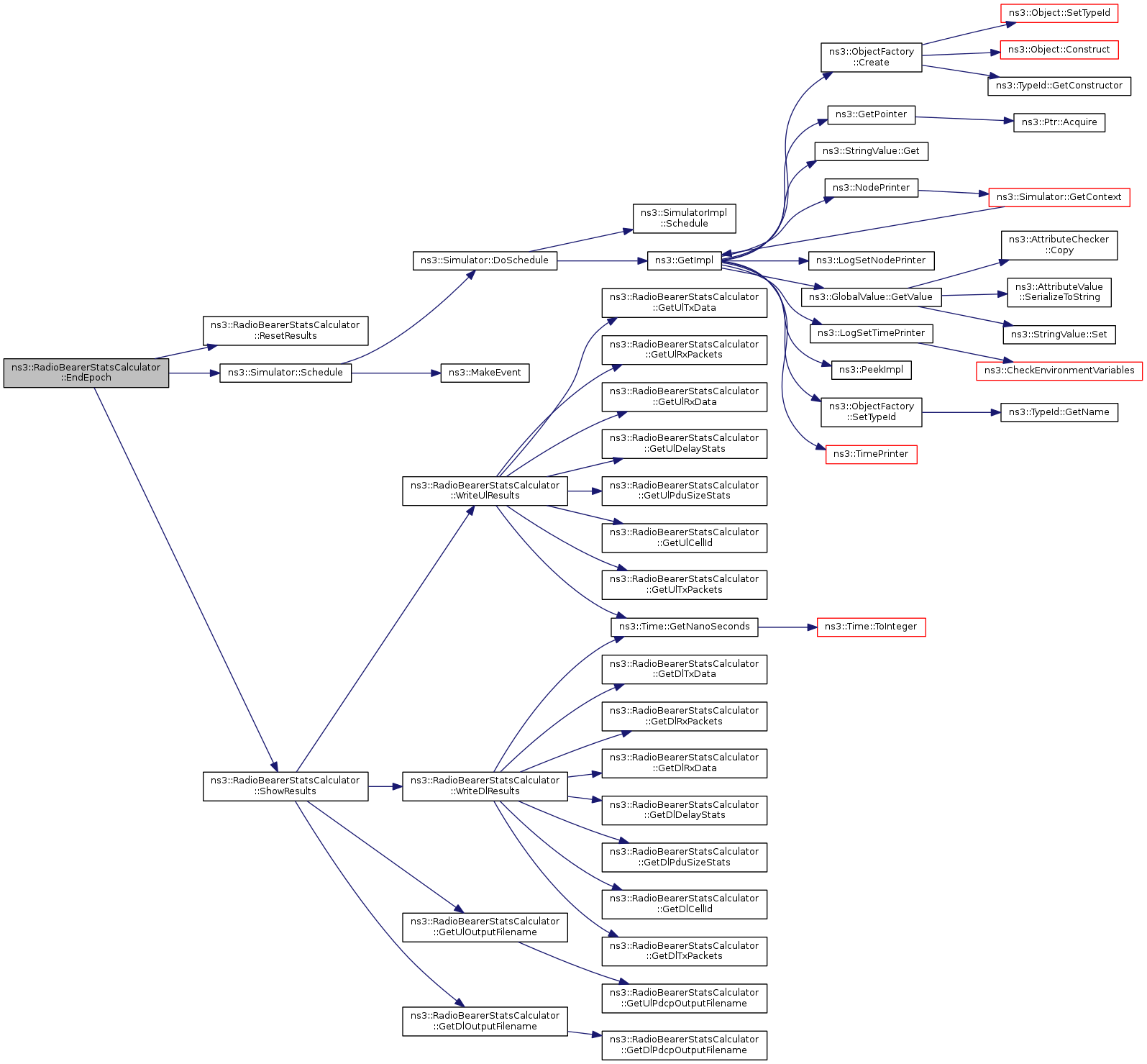

Here is the call graph for this function:

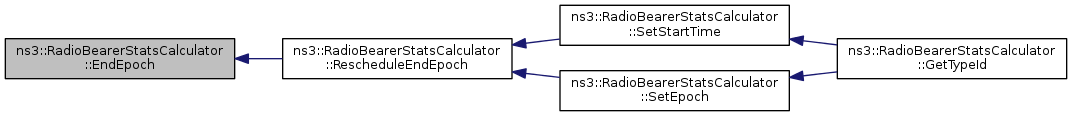

Here is the caller graph for this function:

uint32_t ns3::RadioBearerStatsCalculator::GetDlCellId	(	uint64_t	imsi,
		uint8_t	lcid
	)

Gets the attached Enb cellId.

Parameters

imsi	IMSI of the UE
lcid	LCID

Returns: Enb cellId

Definition at line 534 of file radio-bearer-stats-calculator.cc.

References m_dlCellId, and NS_LOG_FUNCTION.

Referenced by WriteDlResults().

Here is the caller graph for this function:

double ns3::RadioBearerStatsCalculator::GetDlDelay	(	uint64_t	imsi,
		uint8_t	lcid
	)

Gets the downlink RLC to RLC delay

Parameters

imsi	IMSI of the UE
lcid	LCID

Returns: RLC to RLC delay in seconds

Definition at line 542 of file radio-bearer-stats-calculator.cc.

References m_dlDelay, NS_LOG_ERROR, and NS_LOG_FUNCTION.

std::vector< double > ns3::RadioBearerStatsCalculator::GetDlDelayStats	(	uint64_t	imsi,
		uint8_t	lcid
	)

Gets the downlink RLC to RLC statistics: average, min, max and standard deviation.

Parameters

imsi	IMSI of the UE
lcid	LCID

Returns: RLC to RLC delay statistics average, min, max and standard deviation in seconds

Definition at line 556 of file radio-bearer-stats-calculator.cc.

References m_dlDelay, and NS_LOG_FUNCTION.

Referenced by WriteDlResults().

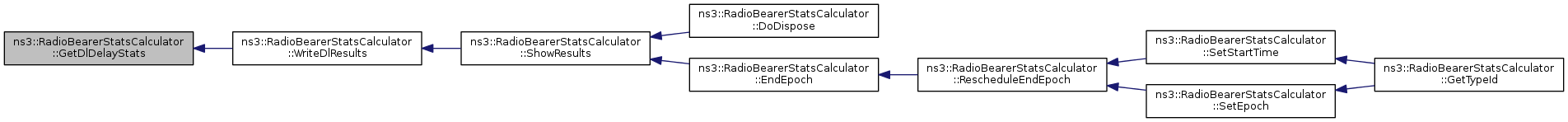

Here is the caller graph for this function:

std::string ns3::RadioBearerStatsCalculator::GetDlOutputFilename ( void )

Get the name of the file where the downlink statistics will be stored.

Reimplemented from ns3::LteStatsCalculator.

Definition at line 615 of file radio-bearer-stats-calculator.cc.

References GetDlPdcpOutputFilename(), and m_protocolType.

Referenced by ShowResults().

Here is the call graph for this function:

Here is the caller graph for this function:

std::string ns3::RadioBearerStatsCalculator::GetDlPdcpOutputFilename ( void )

Get the name of the file where the downlink PDCP statistics will be stored.

Definition at line 645 of file radio-bearer-stats-calculator.cc.

References m_dlPdcpOutputFilename.

Referenced by GetDlOutputFilename().

Here is the caller graph for this function:

std::vector< double > ns3::RadioBearerStatsCalculator::GetDlPduSizeStats	(	uint64_t	imsi,
		uint8_t	lcid
	)

Gets the downlink PDU size statistics: average, min, max and standard deviation.

Parameters

imsi	IMSI of the UE
lcid	LCID

Returns: PDU size statistics average, min, max and standard deviation in seconds

Definition at line 579 of file radio-bearer-stats-calculator.cc.

References m_dlPduSize, and NS_LOG_FUNCTION.

Referenced by WriteDlResults().

Here is the caller graph for this function:

uint64_t ns3::RadioBearerStatsCalculator::GetDlRxData	(	uint64_t	imsi,
		uint8_t	lcid
	)

Gets the number of received downlink data bytes.

Parameters

imsi	IMSI of the UE
lcid	LCID

Returns: number of received data bytes

Definition at line 518 of file radio-bearer-stats-calculator.cc.

References m_dlRxData, and NS_LOG_FUNCTION.

Here is the caller graph for this function:

uint32_t ns3::RadioBearerStatsCalculator::GetDlRxPackets	(	uint64_t	imsi,
		uint8_t	lcid
	)

Gets the number of received downlink data bytes.

Parameters

imsi	IMSI of the UE
lcid	LCID

Returns: number of received data bytes

Definition at line 502 of file radio-bearer-stats-calculator.cc.

References m_dlRxPackets, and NS_LOG_FUNCTION.

Referenced by ns3::LteEpcE2eDataTestCase::DoRun(), and WriteDlResults().

Here is the caller graph for this function:

uint64_t ns3::RadioBearerStatsCalculator::GetDlTxData	(	uint64_t	imsi,
		uint8_t	lcid
	)

Gets the number of transmitted downlink data bytes.

Parameters

imsi	IMSI of the UE
lcid	LCID

Returns: number of transmitted data bytes

Definition at line 510 of file radio-bearer-stats-calculator.cc.

References m_dlTxData, and NS_LOG_FUNCTION.

Referenced by ns3::LenaHarqTestCase::DoRun(), ns3::LenaDataPhyErrorModelTestCase::DoRun(), ns3::LenaDlCtrlPhyErrorModelTestCase::DoRun(), and WriteDlResults().

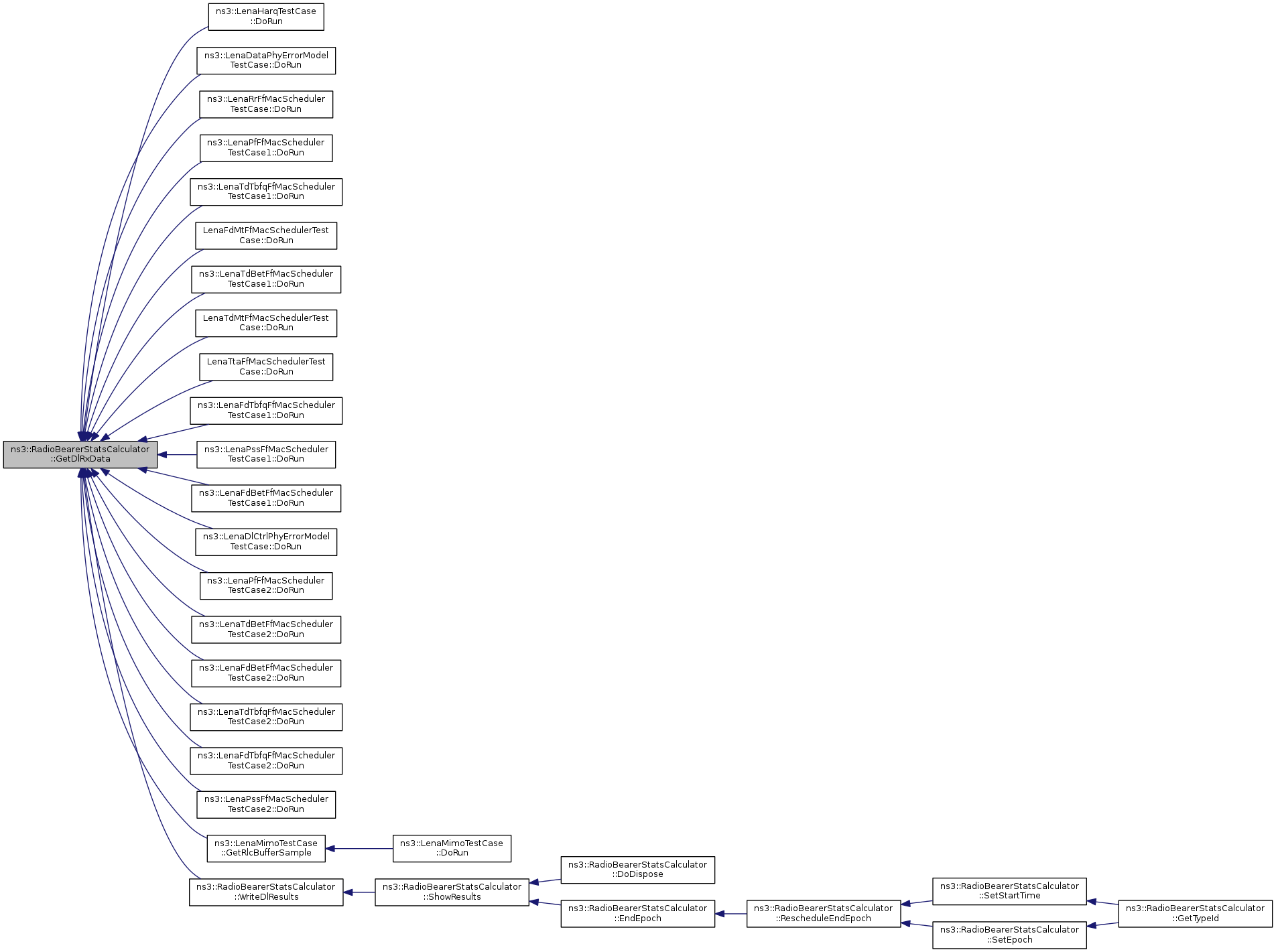

Here is the caller graph for this function:

uint32_t ns3::RadioBearerStatsCalculator::GetDlTxPackets	(	uint64_t	imsi,
		uint8_t	lcid
	)

Gets the number of transmitted downlink data bytes.

Parameters

imsi	IMSI of the UE
lcid	LCID

Returns: number of transmitted data bytes

Definition at line 494 of file radio-bearer-stats-calculator.cc.

References m_dlTxPackets, and NS_LOG_FUNCTION.

Referenced by ns3::LteEpcE2eDataTestCase::DoRun(), and WriteDlResults().

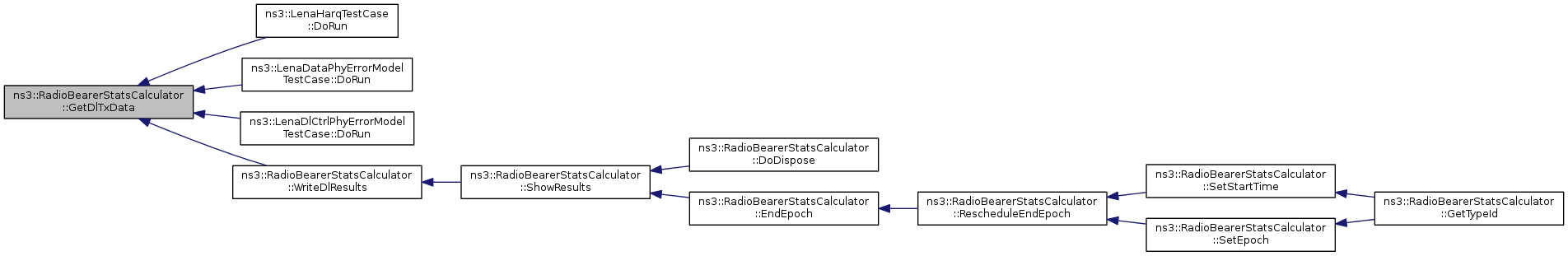

Here is the caller graph for this function:

Time ns3::RadioBearerStatsCalculator::GetEpoch ( ) const

Returns: the epoch duration

Definition at line 128 of file radio-bearer-stats-calculator.cc.

References m_epochDuration.

Referenced by GetTypeId().

Here is the caller graph for this function:

Time ns3::RadioBearerStatsCalculator::GetStartTime ( ) const

Returns: the value of the StartTime attribute

Definition at line 115 of file radio-bearer-stats-calculator.cc.

References m_startTime.

Referenced by GetTypeId().

Here is the caller graph for this function:

TypeId ns3::RadioBearerStatsCalculator::GetTypeId ( void )

static

Inherited from ns3::Object

Reimplemented from ns3::LteStatsCalculator.

Definition at line 58 of file radio-bearer-stats-calculator.cc.

References GetEpoch(), GetStartTime(), ns3::Seconds(), ns3::LteStatsCalculator::SetDlOutputFilename(), SetDlPdcpOutputFilename(), SetEpoch(), ns3::TypeId::SetParent(), SetStartTime(), ns3::LteStatsCalculator::SetUlOutputFilename(), and SetUlPdcpOutputFilename().

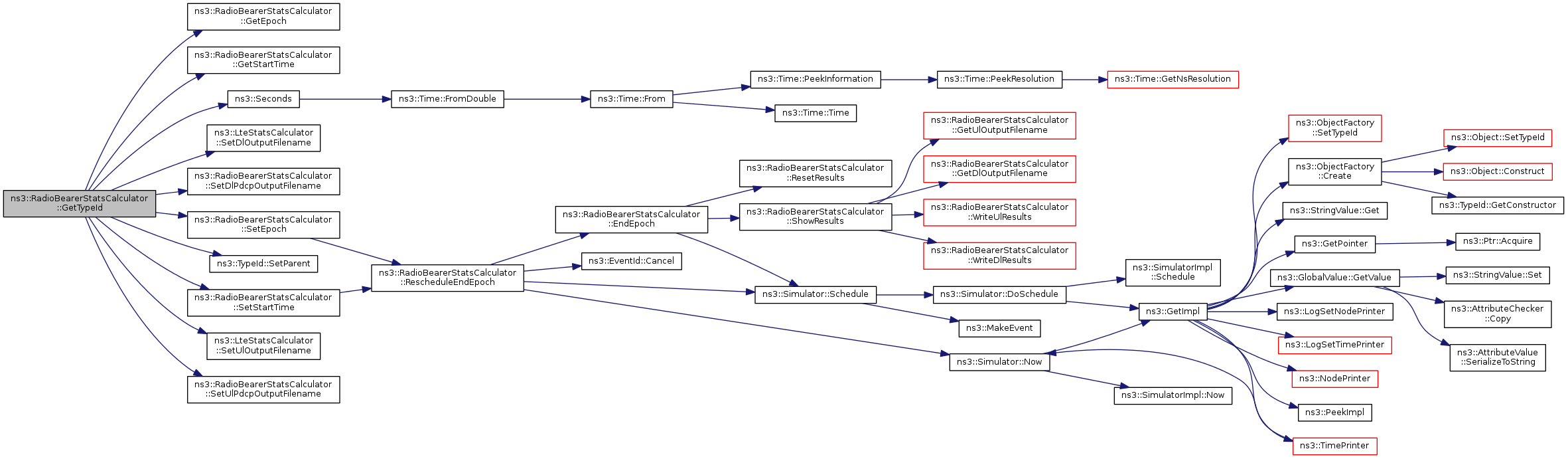

Here is the call graph for this function:

uint32_t ns3::RadioBearerStatsCalculator::GetUlCellId	(	uint64_t	imsi,
		uint8_t	lcid
	)

Gets the attached Enb cellId.

Parameters

imsi	IMSI of the UE
lcid	LCID

Returns: Enb cellId

Definition at line 526 of file radio-bearer-stats-calculator.cc.

References m_ulCellId, and NS_LOG_FUNCTION.

Referenced by WriteUlResults().

Here is the caller graph for this function:

double ns3::RadioBearerStatsCalculator::GetUlDelay	(	uint64_t	imsi,
		uint8_t	lcid
	)

Gets the uplink RLC to RLC delay

Parameters

imsi	IMSI of the UE
lcid	LCID

Returns: RLC to RLC delay in seconds

Definition at line 433 of file radio-bearer-stats-calculator.cc.

References m_ulDelay, NS_LOG_ERROR, and NS_LOG_FUNCTION.

std::vector< double > ns3::RadioBearerStatsCalculator::GetUlDelayStats	(	uint64_t	imsi,
		uint8_t	lcid
	)

Gets the uplink RLC to RLC statistics: average, min, max and standard deviation.

Parameters

imsi	IMSI of the UE
lcid	LCID

Returns: RLC to RLC delay statistics average, min, max and standard deviation in seconds

Definition at line 448 of file radio-bearer-stats-calculator.cc.

References m_ulDelay, and NS_LOG_FUNCTION.

Referenced by WriteUlResults().

Here is the caller graph for this function:

std::string ns3::RadioBearerStatsCalculator::GetUlOutputFilename ( void )

Get the name of the file where the uplink statistics will be stored.

Reimplemented from ns3::LteStatsCalculator.

Definition at line 602 of file radio-bearer-stats-calculator.cc.

References GetUlPdcpOutputFilename(), and m_protocolType.

Referenced by ShowResults().

Here is the call graph for this function:

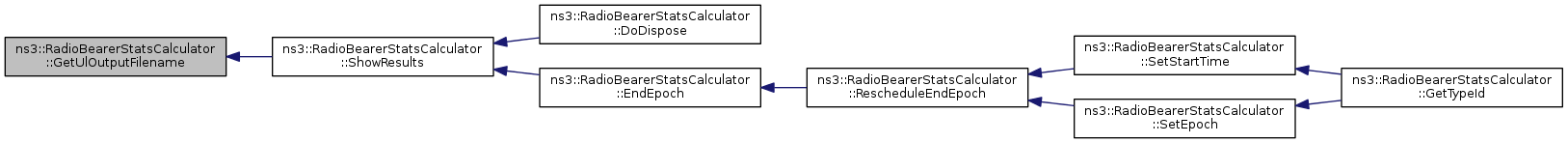

Here is the caller graph for this function:

std::string ns3::RadioBearerStatsCalculator::GetUlPdcpOutputFilename ( void )

Get the name of the file where the uplink PDCP statistics will be stored.

Definition at line 634 of file radio-bearer-stats-calculator.cc.

References m_ulPdcpOutputFilename.

Referenced by GetUlOutputFilename().

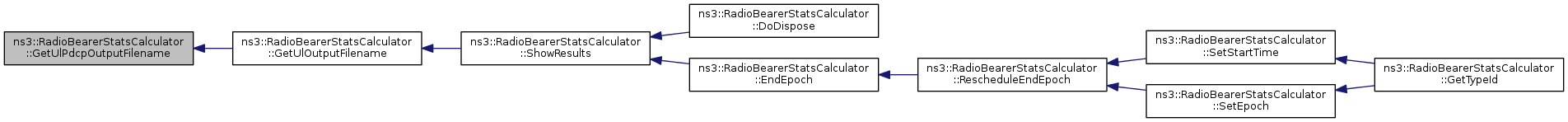

Here is the caller graph for this function:

std::vector< double > ns3::RadioBearerStatsCalculator::GetUlPduSizeStats	(	uint64_t	imsi,
		uint8_t	lcid
	)

Gets the uplink PDU size statistics: average, min, max and standard deviation.

Parameters

imsi	IMSI of the UE
lcid	LCID

Returns: PDU size statistics average, min, max and standard deviation in seconds

Definition at line 471 of file radio-bearer-stats-calculator.cc.

References m_ulPduSize, and NS_LOG_FUNCTION.

Referenced by WriteUlResults().

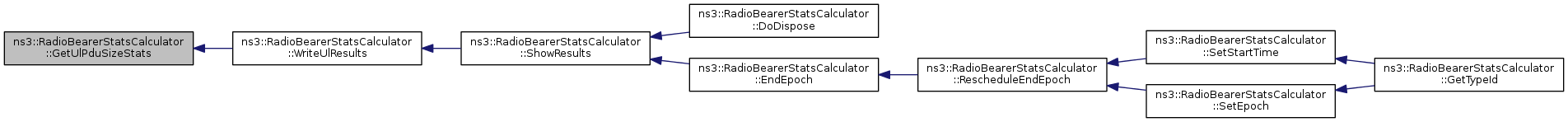

Here is the caller graph for this function:

uint64_t ns3::RadioBearerStatsCalculator::GetUlRxData	(	uint64_t	imsi,
		uint8_t	lcid
	)

Gets the number of received uplink data bytes.

Parameters

imsi	IMSI of the UE
lcid	LCID

Returns: number of received data bytes

Definition at line 425 of file radio-bearer-stats-calculator.cc.

References m_ulRxData, and NS_LOG_FUNCTION.

Here is the caller graph for this function:

uint32_t ns3::RadioBearerStatsCalculator::GetUlRxPackets	(	uint64_t	imsi,
		uint8_t	lcid
	)

Gets the number of received uplink packets.

Parameters

imsi	IMSI of the UE
lcid	LCID

Returns: number of received uplink packets

Definition at line 409 of file radio-bearer-stats-calculator.cc.

References m_ulRxPackets, and NS_LOG_FUNCTION.

Referenced by ns3::LteEpcE2eDataTestCase::DoRun(), and WriteUlResults().

Here is the caller graph for this function:

uint64_t ns3::RadioBearerStatsCalculator::GetUlTxData	(	uint64_t	imsi,
		uint8_t	lcid
	)

Gets the number of transmitted uplink data bytes.

Parameters

imsi	IMSI of the UE
lcid	LCID

Returns: number of transmitted data bytes

Definition at line 417 of file radio-bearer-stats-calculator.cc.

References m_ulTxData, and NS_LOG_FUNCTION.

Referenced by ns3::LenaRrFfMacSchedulerTestCase::DoRun(), and WriteUlResults().

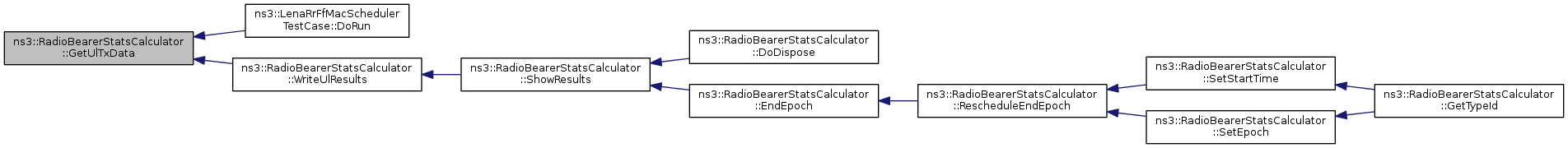

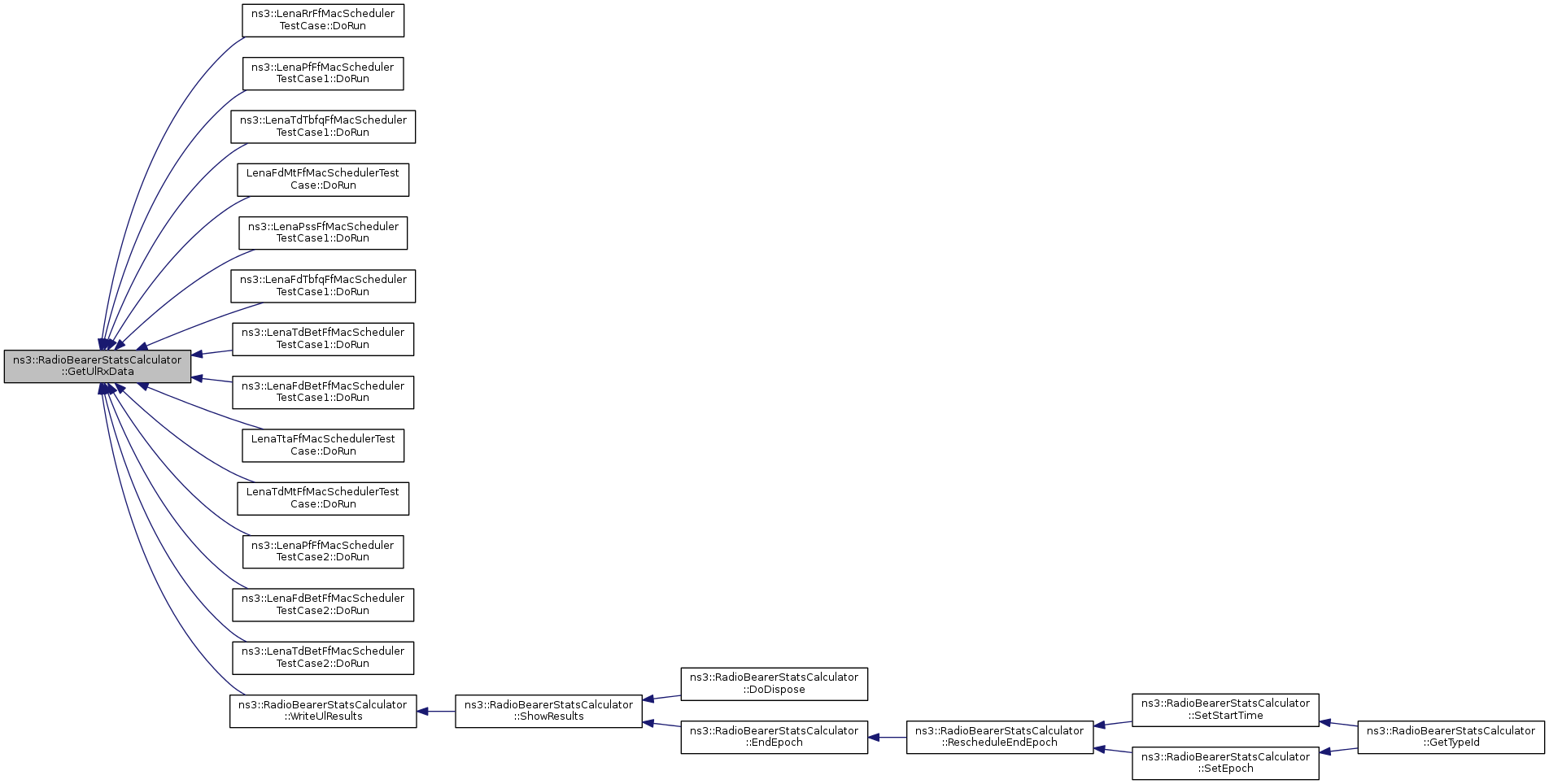

Here is the caller graph for this function:

uint32_t ns3::RadioBearerStatsCalculator::GetUlTxPackets	(	uint64_t	imsi,
		uint8_t	lcid
	)

Gets the number of transmitted uplink packets.

Parameters

imsi	IMSI of the UE
lcid	LCID

Returns: number of transmitted uplink packets

Definition at line 401 of file radio-bearer-stats-calculator.cc.

References m_ulTxPackets, and NS_LOG_FUNCTION.

Referenced by ns3::LteEpcE2eDataTestCase::DoRun(), and WriteUlResults().

Here is the caller graph for this function:

void ns3::RadioBearerStatsCalculator::RescheduleEndEpoch ( void )

private

Definition at line 382 of file radio-bearer-stats-calculator.cc.

References ns3::EventId::Cancel(), EndEpoch(), m_endEpochEvent, m_epochDuration, m_startTime, ns3::Simulator::Now(), NS_ASSERT, NS_LOG_FUNCTION, and ns3::Simulator::Schedule().

Referenced by SetEpoch(), and SetStartTime().

Here is the call graph for this function:

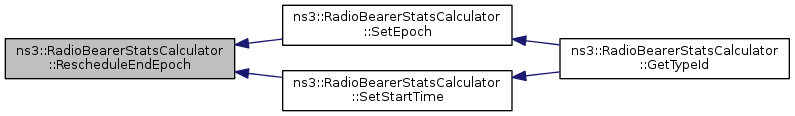

Here is the caller graph for this function:

void ns3::RadioBearerStatsCalculator::ResetResults ( void )

private

Definition at line 362 of file radio-bearer-stats-calculator.cc.

References m_dlDelay, m_dlPduSize, m_dlRxData, m_dlRxPackets, m_dlTxData, m_dlTxPackets, m_ulDelay, m_ulPduSize, m_ulRxData, m_ulRxPackets, m_ulTxData, m_ulTxPackets, and NS_LOG_FUNCTION.

Referenced by EndEpoch().

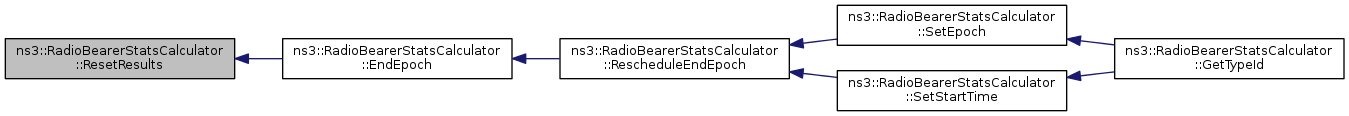

Here is the caller graph for this function:

void ns3::RadioBearerStatsCalculator::SetDlPdcpOutputFilename ( std::string outputFilename )

Set the name of the file where the downlink PDCP statistics will be stored.

Parameters

outputFilename string with the name of the file

Definition at line 639 of file radio-bearer-stats-calculator.cc.

References m_dlPdcpOutputFilename.

Referenced by GetTypeId().

Here is the caller graph for this function:

void ns3::RadioBearerStatsCalculator::SetEpoch ( Time e )

Parameters

e	the epoch duration

Definition at line 121 of file radio-bearer-stats-calculator.cc.

References m_epochDuration, and RescheduleEndEpoch().

Referenced by GetTypeId().

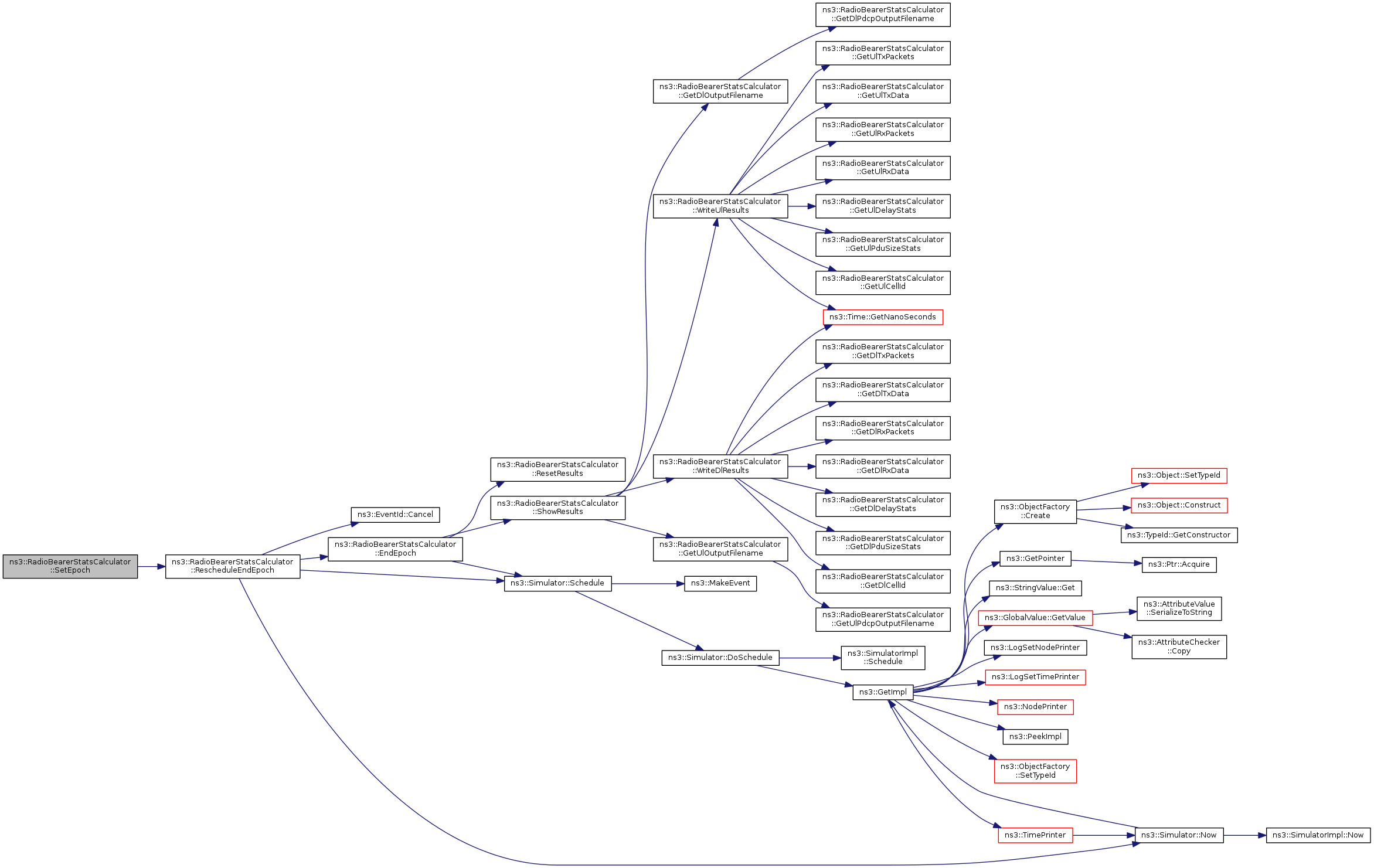

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::RadioBearerStatsCalculator::SetStartTime ( Time t )

Parameters

t	the value of the StartTime attribute

Definition at line 108 of file radio-bearer-stats-calculator.cc.

References m_startTime, and RescheduleEndEpoch().

Referenced by GetTypeId().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::RadioBearerStatsCalculator::SetUlPdcpOutputFilename ( std::string outputFilename )

Set the name of the file where the uplink PDCP statistics will be stored.

Parameters

outputFilename string with the name of the file

Definition at line 628 of file radio-bearer-stats-calculator.cc.

References m_ulPdcpOutputFilename.

Referenced by GetTypeId().

Here is the caller graph for this function:

void ns3::RadioBearerStatsCalculator::ShowResults ( void )

private

Definition at line 213 of file radio-bearer-stats-calculator.cc.

References GetDlOutputFilename(), GetUlOutputFilename(), m_firstWrite, m_pendingOutput, NS_LOG_ERROR, NS_LOG_FUNCTION, NS_LOG_INFO, WriteDlResults(), and WriteUlResults().

Referenced by DoDispose(), and EndEpoch().

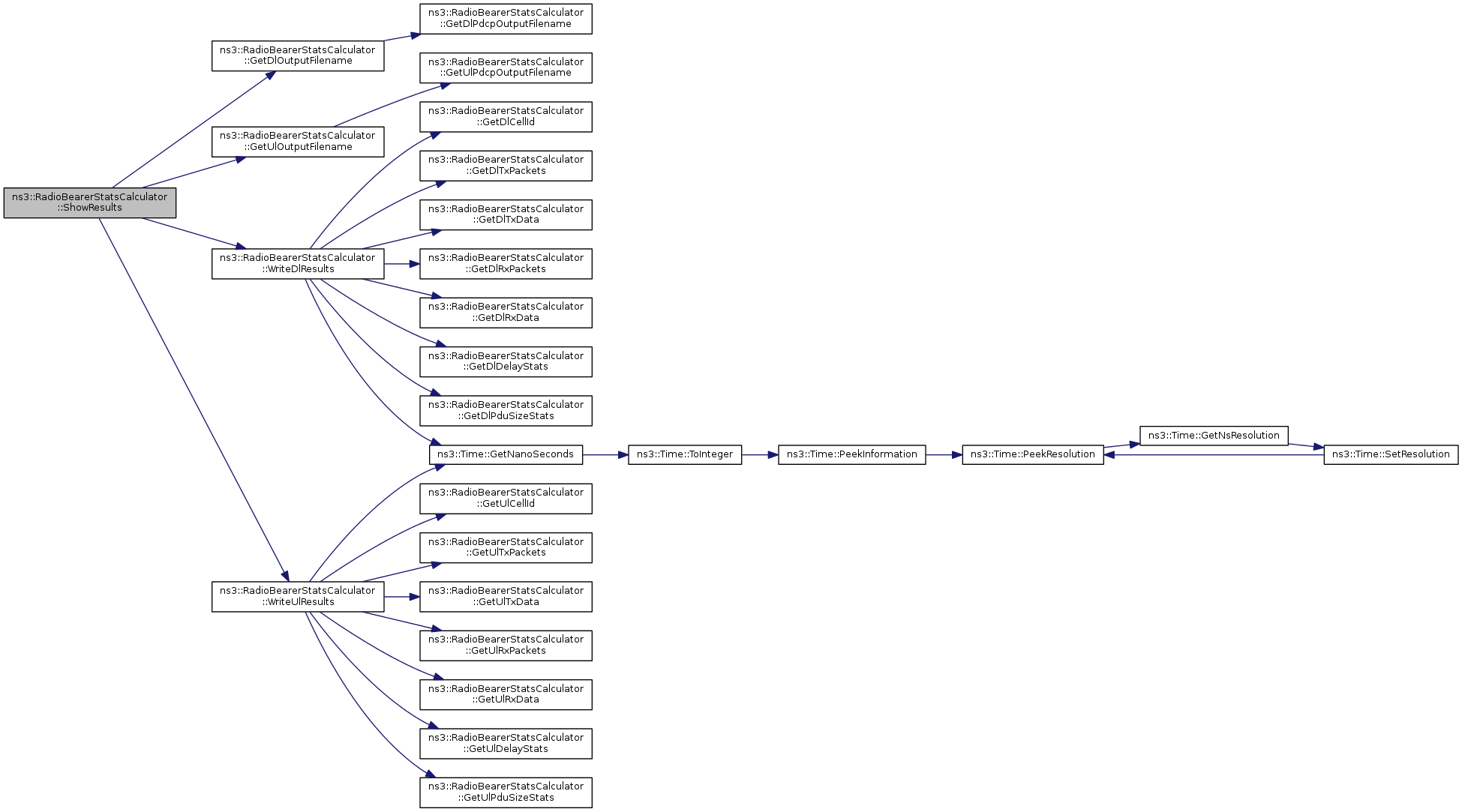

Here is the call graph for this function:

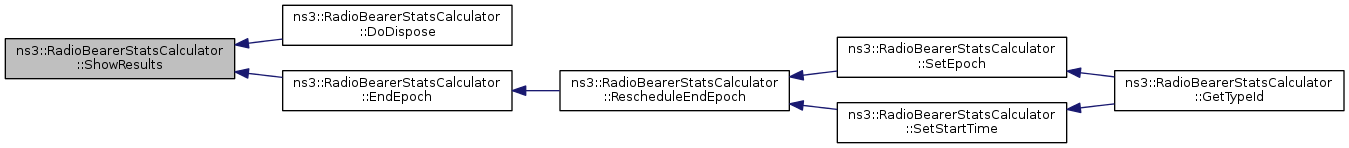

Here is the caller graph for this function:

void ns3::RadioBearerStatsCalculator::UlRxPdu	(	uint16_t	cellId,
		uint64_t	imsi,
		uint16_t	rnti,
		uint8_t	lcid,
		uint32_t	packetSize,
		uint64_t	delay
	)

Notifies the stats calculator that an uplink reception has occurred.

Parameters

cellId	CellId of the attached Enb
imsi	IMSI of the UE who received the PDU
rnti	C-RNTI of the UE who received the PDU
lcid	LCID through which the PDU has been received
packetSize	size of the PDU in bytes
delay	RLC to RLC delay in nanoseconds

Definition at line 164 of file radio-bearer-stats-calculator.cc.

References ns3::ImsiLcidPair_t::m_imsi, ns3::ImsiLcidPair_t::m_lcId, m_pendingOutput, m_startTime, m_ulCellId, m_ulDelay, m_ulPduSize, m_ulRxData, m_ulRxPackets, ns3::Simulator::Now(), NS_LOG_DEBUG, and NS_LOG_FUNCTION.

Referenced by ns3::LteSimpleHelperUlRxPduCallback(), and ns3::UlRxPduCallback().

Here is the call graph for this function:

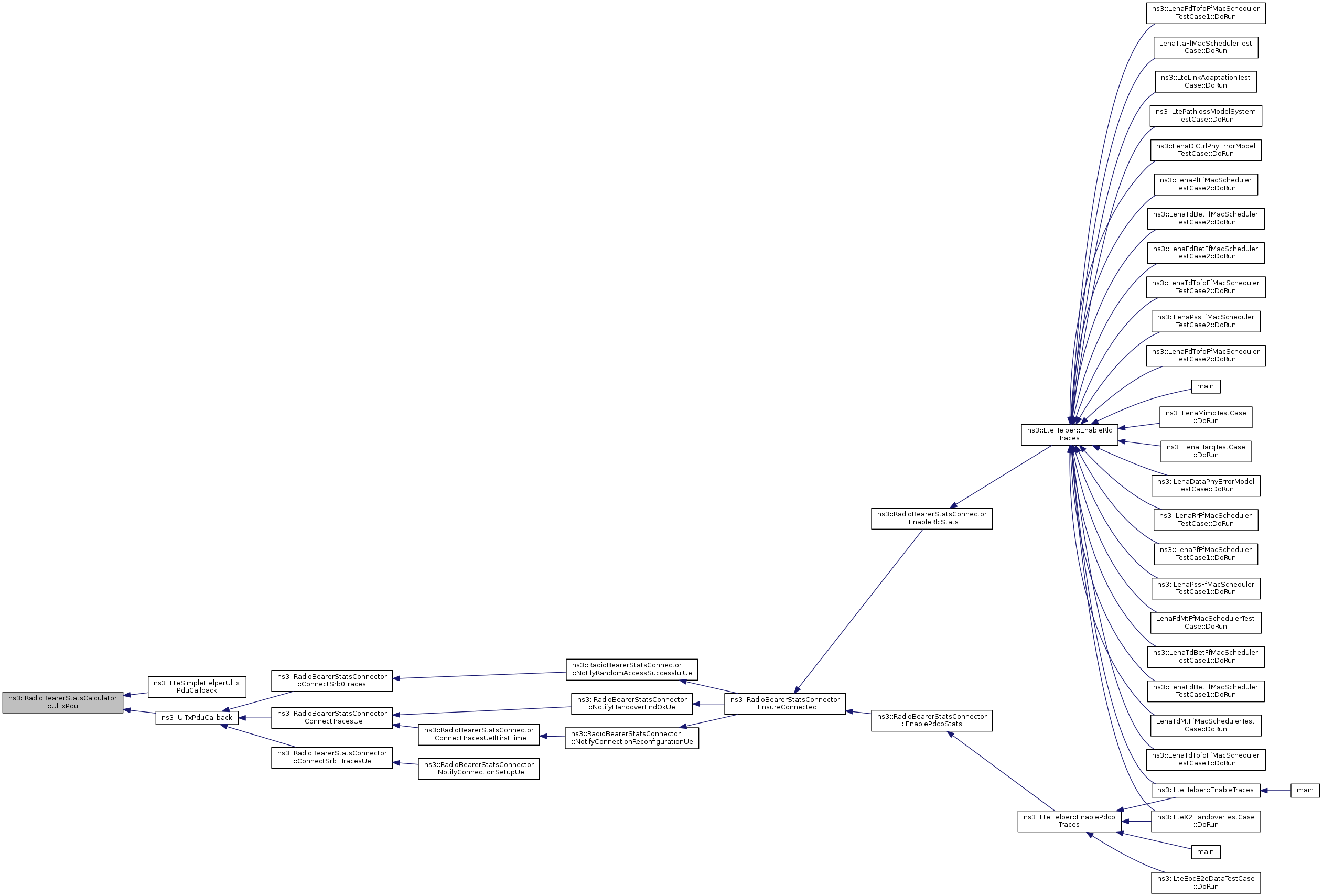

Here is the caller graph for this function:

void ns3::RadioBearerStatsCalculator::UlTxPdu	(	uint16_t	cellId,
		uint64_t	imsi,
		uint16_t	rnti,
		uint8_t	lcid,
		uint32_t	packetSize
	)

Notifies the stats calculator that an uplink transmission has occurred.

Parameters

cellId	CellId of the attached Enb
imsi	IMSI of the UE who transmitted the PDU
rnti	C-RNTI of the UE who transmitted the PDU
lcid	LCID through which the PDU has been transmitted
packetSize	size of the PDU in bytes
