Interface for L2 mesh routing protocol and mesh point communication. More...

#include <mesh-l2-routing-protocol.h>

Inheritance diagram for ns3::MeshL2RoutingProtocol:

Collaboration diagram for ns3::MeshL2RoutingProtocol:

Public Types
typedef Callback< void, bool, Ptr< Packet >, Mac48Address, Mac48Address, uint16_t, uint32_t >	RouteReplyCallback

Public Member Functions
virtual	~MeshL2RoutingProtocol ()
	virtual D-tor for subclasses
Ptr< MeshPointDevice >	GetMeshPoint () const
	Each mesh protocol must be installed on the mesh point to work.
virtual bool	RemoveRoutingStuff (uint32_t fromIface, const Mac48Address source, const Mac48Address destination, Ptr< Packet > packet, uint16_t &protocolType)=0
	When packet is ready to go to upper layer, protocol must remove all its information: tags, header, etc. So, MeshPointDevice must call this method when passing a packet to upper layer.
virtual bool	RequestRoute (uint32_t sourceIface, const Mac48Address source, const Mac48Address destination, Ptr< const Packet > packet, uint16_t protocolType, RouteReplyCallback routeReply)=0
void	SetMeshPoint (Ptr< MeshPointDevice > mp)
	Set host mesh point, analog of SetNode (...) methods for upper layer protocols.
Public Member Functions inherited from ns3::Object
	Object ()
virtual	~Object ()
void	AggregateObject (Ptr< Object > other)
void	Dispose (void)
AggregateIterator	GetAggregateIterator (void) const
virtual TypeId	GetInstanceTypeId (void) const
template<typename T >
Ptr< T >	GetObject (void) const
template<typename T >
Ptr< T >	GetObject (TypeId tid) const
void	Initialize (void)
Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	SimpleRefCount (const SimpleRefCount &o)
uint32_t	GetReferenceCount (void) const
SimpleRefCount &	operator= (const SimpleRefCount &o)
void	Ref (void) const
void	Unref (void) const
Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
void	GetAttribute (std::string name, AttributeValue &value) const
bool	GetAttributeFailSafe (std::string name, AttributeValue &attribute) const
void	SetAttribute (std::string name, const AttributeValue &value)
bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)

Static Public Member Functions
static TypeId	GetTypeId ()
	Never forget to support NS3 object model.

Protected Attributes
Ptr< MeshPointDevice >	m_mp
	Host mesh point.

Additional Inherited Members
Protected Member Functions inherited from ns3::Object
	Object (const Object &o)
virtual void	DoDispose (void)
virtual void	DoInitialize (void)
virtual void	NotifyNewAggregate (void)

Detailed Description

Interface for L2 mesh routing protocol and mesh point communication.

Every mesh routing protocol must implement this interface. Each mesh point (MeshPointDevice) is supposed to know single L2RoutingProtocol to work with, see MeshPointDevice::SetRoutingProtocol ().

This interface is similar to ipv4 routing protocol base class.

Config Paths

ns3::MeshL2RoutingProtocol is accessible through the following paths with Config::Set and Config::Connect:

/NodeList/[i]/DeviceList/[i]/$ns3::MeshPointDevice/RoutingProtocol

No Attributes are defined for this type.
No TraceSources are defined for this type.

Definition at line 44 of file mesh-l2-routing-protocol.h.

Member Typedef Documentation

typedef Callback<void, bool, Ptr<Packet>, Mac48Address, Mac48Address, uint16_t, uint32_t > ns3::MeshL2RoutingProtocol::RouteReplyCallback

Callback to be invoked when route discovery procedure is completed.

Parameters

flag	indicating whether a route was actually found and all needed information is added to the packet successfully
packet	for which the route was resolved. All routing information for MAC layer must be stored in proper tags (like in case of HWMP, when WifiMacHeader needs address of next hop), or must be added as a packet header (if MAC does not need any additional information). So, the packet is returned back to MeshPointDevice looks like a pure packet with ethernet header (i.e data + src +dst + protocol). The only special information addressed to MeshPointDevice is an outcoming interface ID.
src	source address of the packet
dst	destination address of the packet
protocol	ethernet 'Protocol' field, needed to form a proper MAC-layer header
uint32_t	outcoming interface to use or 0xffffffff if packet should be sent by ALL interfaces

Definition at line 80 of file mesh-l2-routing-protocol.h.

Constructor & Destructor Documentation

ns3::MeshL2RoutingProtocol::~MeshL2RoutingProtocol ( )

virtual

virtual D-tor for subclasses

Definition at line 40 of file mesh-l2-routing-protocol.cc.

References m_mp.

Member Function Documentation

Ptr< MeshPointDevice > ns3::MeshL2RoutingProtocol::GetMeshPoint ( ) const

Each mesh protocol must be installed on the mesh point to work.

Definition at line 52 of file mesh-l2-routing-protocol.cc.

References m_mp.

Referenced by ns3::dot11s::HwmpProtocol::ForwardUnicast(), ns3::dot11s::HwmpProtocol::RequestRoute(), and ns3::MeshPointDevice::SetRoutingProtocol().

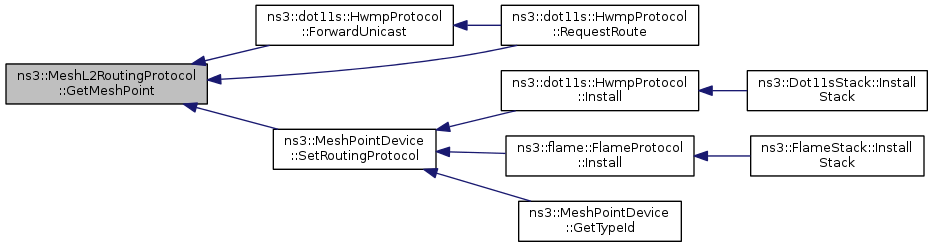

Here is the caller graph for this function:

TypeId ns3::MeshL2RoutingProtocol::GetTypeId ( void )

static

Never forget to support NS3 object model.

Reimplemented from ns3::Object.

Reimplemented in ns3::flame::FlameProtocol, and ns3::dot11s::HwmpProtocol.

Definition at line 33 of file mesh-l2-routing-protocol.cc.

References ns3::TypeId::SetParent().

Here is the call graph for this function:

virtual bool ns3::MeshL2RoutingProtocol::RemoveRoutingStuff	(	uint32_t	fromIface,
		const Mac48Address	source,
		const Mac48Address	destination,
		Ptr< Packet >	packet,
		uint16_t &	protocolType
	)

pure virtual

When packet is ready to go to upper layer, protocol must remove all its information: tags, header, etc. So, MeshPointDevice must call this method when passing a packet to upper layer.

Returns: true if packet shall not be dropped, false otherwise.

Parameters

fromIface	the incoming interface of the packet
source	source address
destination	destination address
packet	the packet to be handled
protocolType	protocol ID, needed to form a proper MAC-layer header

Attention: protocol type is passed by reference, because may be changed

Implemented in ns3::flame::FlameProtocol, and ns3::dot11s::HwmpProtocol.

Referenced by ns3::MeshPointDevice::ReceiveFromDevice().

Here is the caller graph for this function:

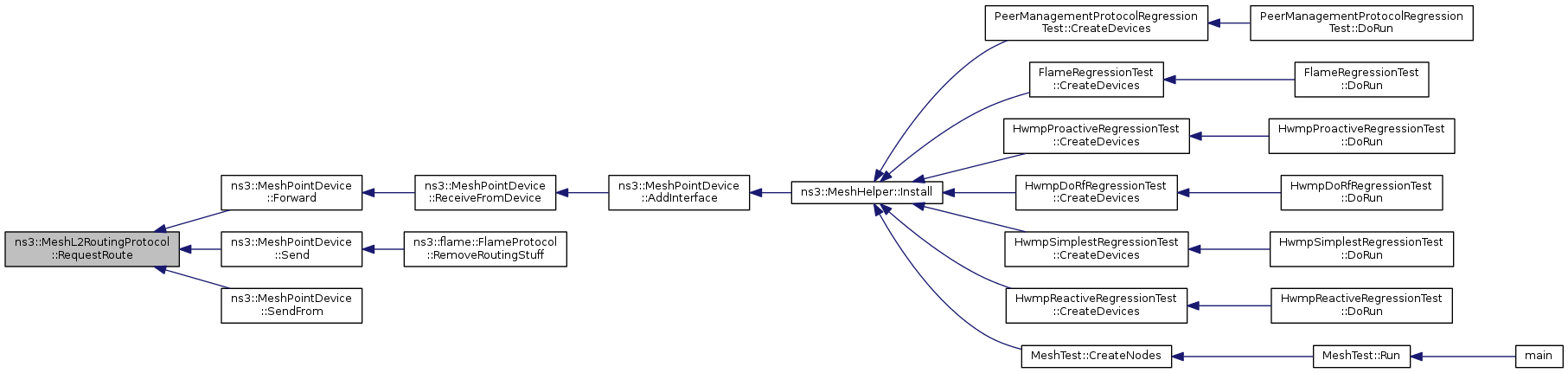

virtual bool ns3::MeshL2RoutingProtocol::RequestRoute	(	uint32_t	sourceIface,
		const Mac48Address	source,
		const Mac48Address	destination,
		Ptr< const Packet >	packet,
		uint16_t	protocolType,
		RouteReplyCallback	routeReply
	)

pure virtual

Request routing information, all packets must go through this request.

Note that route discovery works async. – RequestRoute returns immediately, while reply callback will be called when routing information will be available.

Returns: true if valid route is already known

Parameters

sourceIface	the incoming interface of the packet
source	source address
destination	destination address
packet	the packet to be resolved (needed the whole packet, because routing information is added as tags or headers). The packet will be returned to reply callback.
protocolType	protocol ID, needed to form a proper MAC-layer header
routeReply	callback to be invoked after route discovery procedure, supposed to really send packet using routing information.
