ns3::PointToPointRemoteChannel Class Reference

#include <point-to-point-remote-channel.h>

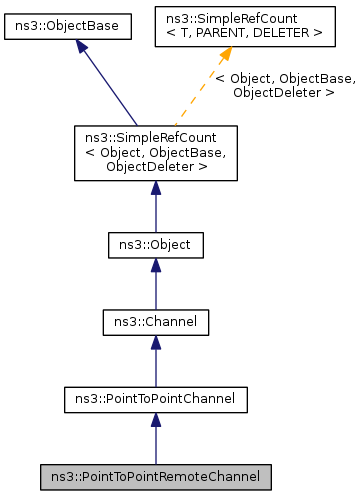

Inheritance diagram for ns3::PointToPointRemoteChannel:

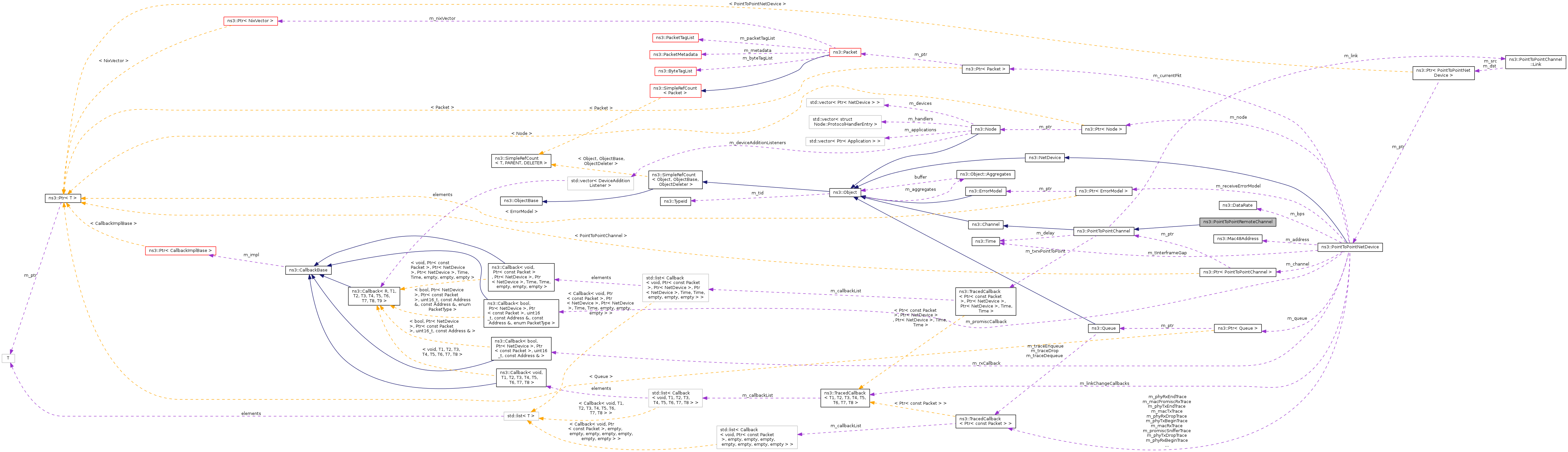

Collaboration diagram for ns3::PointToPointRemoteChannel:

Public Member Functions
	PointToPointRemoteChannel ()
	~PointToPointRemoteChannel ()
virtual bool	TransmitStart (Ptr< Packet > p, Ptr< PointToPointNetDevice > src, Time txTime)
	Transmit a packet over this channel.
Public Member Functions inherited from ns3::PointToPointChannel
	PointToPointChannel ()
	Create a PointToPointChannel.
void	Attach (Ptr< PointToPointNetDevice > device)
	Attach a given netdevice to this channel.
virtual Ptr< NetDevice >	GetDevice (uint32_t i) const
virtual uint32_t	GetNDevices (void) const
	Get number of devices on this channel.
Ptr< PointToPointNetDevice >	GetPointToPointDevice (uint32_t i) const
Public Member Functions inherited from ns3::Channel
	Channel ()
virtual	~Channel ()
uint32_t	GetId (void) const
Public Member Functions inherited from ns3::Object
	Object ()
virtual	~Object ()
void	AggregateObject (Ptr< Object > other)
void	Dispose (void)
AggregateIterator	GetAggregateIterator (void) const
virtual TypeId	GetInstanceTypeId (void) const
template<typename T >
Ptr< T >	GetObject (void) const
template<typename T >
Ptr< T >	GetObject (TypeId tid) const
void	Initialize (void)
Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	SimpleRefCount (const SimpleRefCount &o)
uint32_t	GetReferenceCount (void) const
SimpleRefCount &	operator= (const SimpleRefCount &o)
void	Ref (void) const
void	Unref (void) const
Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
void	GetAttribute (std::string name, AttributeValue &value) const
bool	GetAttributeFailSafe (std::string name, AttributeValue &attribute) const
void	SetAttribute (std::string name, const AttributeValue &value)
bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)

Static Public Member Functions
static TypeId	GetTypeId (void)

Additional Inherited Members
Protected Member Functions inherited from ns3::PointToPointChannel
Time	GetDelay (void) const
Ptr< PointToPointNetDevice >	GetDestination (uint32_t i) const
Ptr< PointToPointNetDevice >	GetSource (uint32_t i) const
bool	IsInitialized (void) const

Detailed Description

Config Paths

ns3::PointToPointRemoteChannel is accessible through the following paths with Config::Set and Config::Connect:

• /ChannelList/[i]/$ns3::PointToPointChannel/$ns3::PointToPointRemoteChannel
• /ChannelList/[i]/$ns3::PointToPointRemoteChannel

No Attributes are defined for this type.
No TraceSources are defined for this type.

TraceSources defined in parent class ns3::PointToPointChannel

• TxRxPointToPoint: Trace source indicating transmission of packet from the PointToPointChannel, used by the Animation interface.

Definition at line 35 of file point-to-point-remote-channel.h.

Constructor & Destructor Documentation

ns3::PointToPointRemoteChannel::PointToPointRemoteChannel

(

)

Definition at line 46 of file point-to-point-remote-channel.cc.

ns3::PointToPointRemoteChannel::~PointToPointRemoteChannel

(

)

Definition at line 50 of file point-to-point-remote-channel.cc.

Member Function Documentation

TypeId ns3::PointToPointRemoteChannel::GetTypeId ( void  )

static

Reimplemented from ns3::PointToPointChannel.

Definition at line 37 of file point-to-point-remote-channel.cc.

References ns3::TypeId::SetParent().

Here is the call graph for this function:

bool ns3::PointToPointRemoteChannel::TransmitStart ( Ptr< Packet >  p, Ptr< PointToPointNetDevice >  src, Time  txTime  )

virtual

Transmit a packet over this channel.

Parameters

p	Packet to transmit
src	Source PointToPointNetDevice
txTime	Transmit time to apply

Returns

true if successful (currently always true)

Reimplemented from ns3::PointToPointChannel.

Definition at line 55 of file point-to-point-remote-channel.cc.

References ns3::PointToPointChannel::GetDelay(), ns3::PointToPointChannel::GetDestination(), ns3::Node::GetId(), ns3::PointToPointNetDevice::GetIfIndex(), ns3::PointToPointNetDevice::GetNode(), ns3::PointToPointChannel::GetSource(), ns3::Packet::GetUid(), ns3::PointToPointChannel::IsInitialized(), ns3::Now(), NS_FATAL_ERROR, NS_LOG_FUNCTION, NS_LOG_LOGIC, and SendPacket().

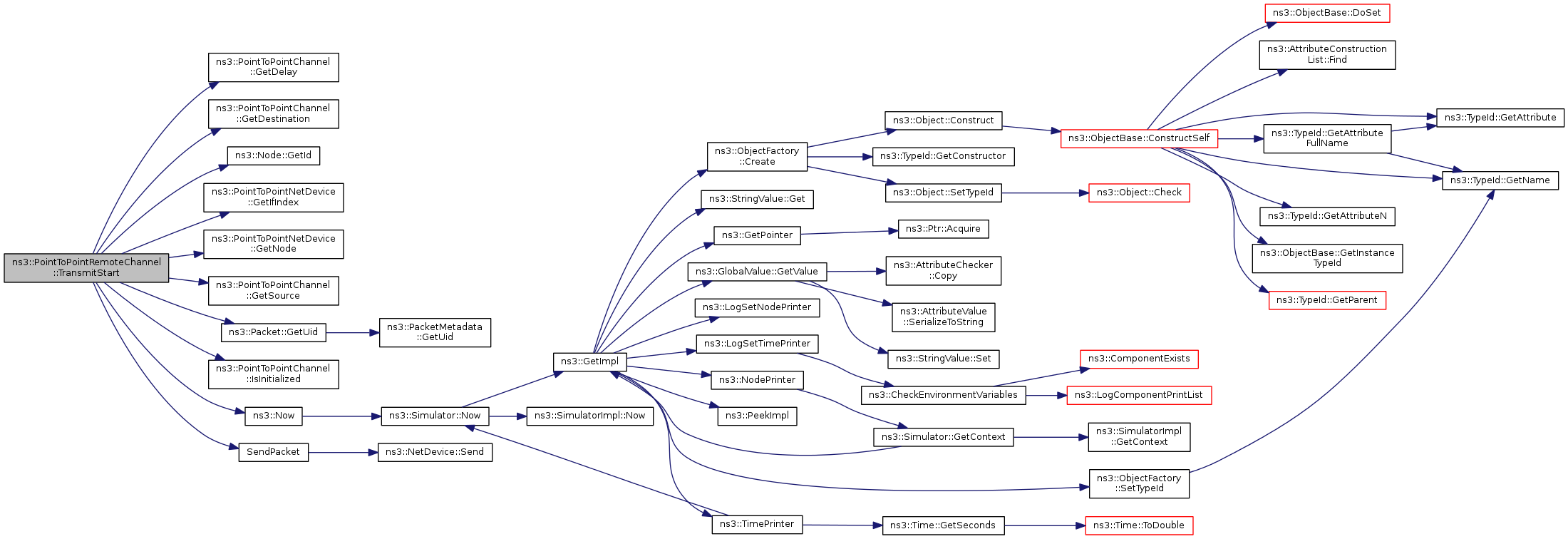

Here is the call graph for this function:

---

The documentation for this class was generated from the following files:

• src/point-to-point/model/point-to-point-remote-channel.h
• src/point-to-point/model/point-to-point-remote-channel.cc
