ns3::TtaSchedulerMemberSchedSapProvider Class Reference

Inheritance diagram for ns3::TtaSchedulerMemberSchedSapProvider:

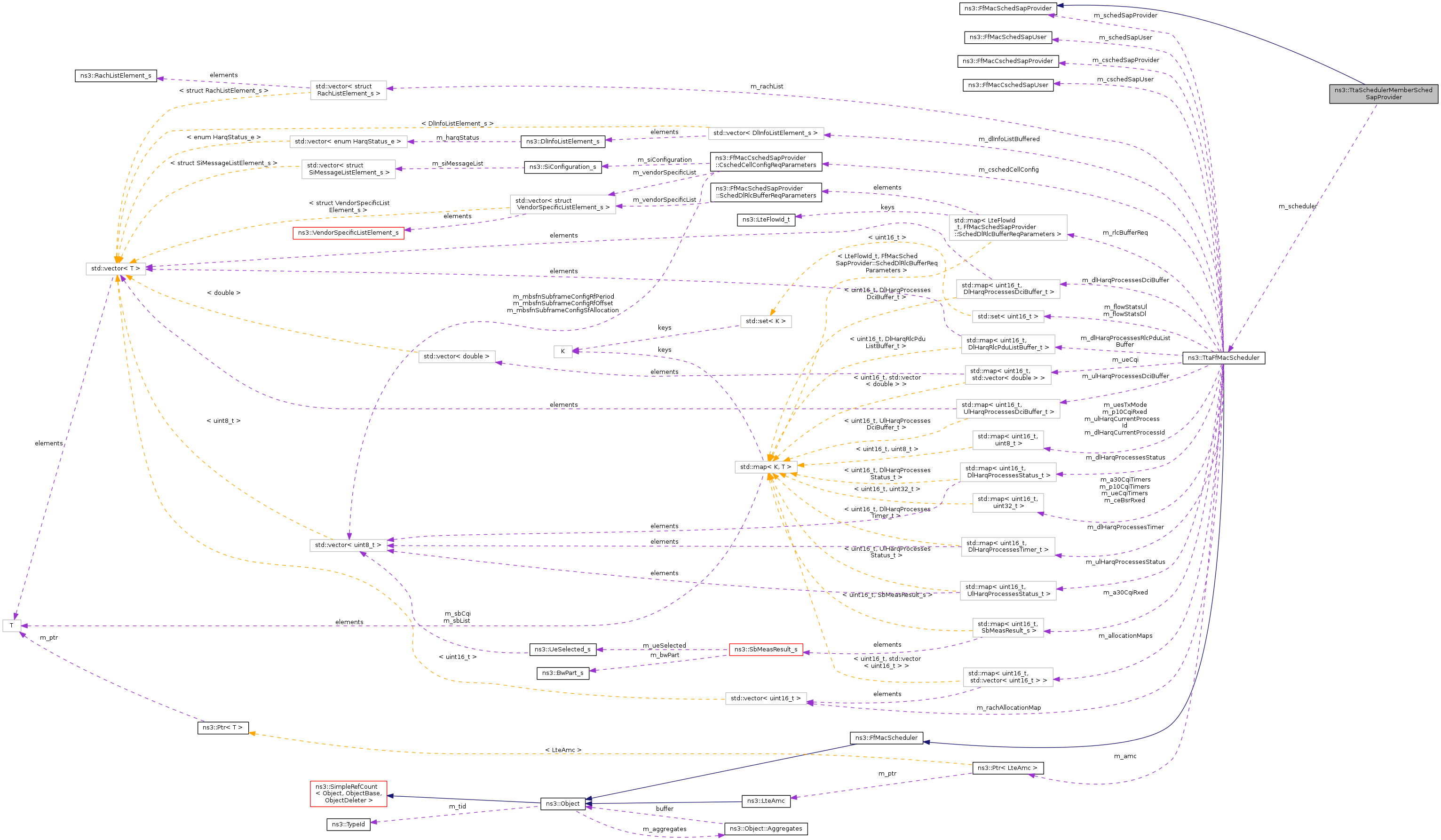

Collaboration diagram for ns3::TtaSchedulerMemberSchedSapProvider:

Public Member Functions
	TtaSchedulerMemberSchedSapProvider (TtaFfMacScheduler *scheduler)
virtual void	SchedDlCqiInfoReq (const struct SchedDlCqiInfoReqParameters &params)
virtual void	SchedDlMacBufferReq (const struct SchedDlMacBufferReqParameters &params)
virtual void	SchedDlPagingBufferReq (const struct SchedDlPagingBufferReqParameters &params)
virtual void	SchedDlRachInfoReq (const struct SchedDlRachInfoReqParameters &params)
virtual void	SchedDlRlcBufferReq (const struct SchedDlRlcBufferReqParameters &params)
virtual void	SchedDlTriggerReq (const struct SchedDlTriggerReqParameters &params)
virtual void	SchedUlCqiInfoReq (const struct SchedUlCqiInfoReqParameters &params)
virtual void	SchedUlMacCtrlInfoReq (const struct SchedUlMacCtrlInfoReqParameters &params)
virtual void	SchedUlNoiseInterferenceReq (const struct SchedUlNoiseInterferenceReqParameters &params)
virtual void	SchedUlSrInfoReq (const struct SchedUlSrInfoReqParameters &params)
virtual void	SchedUlTriggerReq (const struct SchedUlTriggerReqParameters &params)
Public Member Functions inherited from ns3::FfMacSchedSapProvider
virtual	~FfMacSchedSapProvider ()

Private Member Functions
	TtaSchedulerMemberSchedSapProvider ()

Private Attributes
TtaFfMacScheduler *	m_scheduler

Detailed Description

Definition at line 109 of file tta-ff-mac-scheduler.cc.

Constructor & Destructor Documentation

ns3::TtaSchedulerMemberSchedSapProvider::TtaSchedulerMemberSchedSapProvider

(

TtaFfMacScheduler *

scheduler

)

Definition at line 140 of file tta-ff-mac-scheduler.cc.

ns3::TtaSchedulerMemberSchedSapProvider::TtaSchedulerMemberSchedSapProvider ( )

private

Definition at line 135 of file tta-ff-mac-scheduler.cc.

Member Function Documentation

void ns3::TtaSchedulerMemberSchedSapProvider::SchedDlCqiInfoReq ( const struct SchedDlCqiInfoReqParameters &  params )

virtual

Implements ns3::FfMacSchedSapProvider.

Definition at line 176 of file tta-ff-mac-scheduler.cc.

References ns3::TtaFfMacScheduler::DoSchedDlCqiInfoReq(), and m_scheduler.

Here is the call graph for this function:

void ns3::TtaSchedulerMemberSchedSapProvider::SchedDlMacBufferReq ( const struct SchedDlMacBufferReqParameters &  params )

virtual

Implements ns3::FfMacSchedSapProvider.

Definition at line 158 of file tta-ff-mac-scheduler.cc.

References ns3::TtaFfMacScheduler::DoSchedDlMacBufferReq(), and m_scheduler.

Here is the call graph for this function:

void ns3::TtaSchedulerMemberSchedSapProvider::SchedDlPagingBufferReq ( const struct SchedDlPagingBufferReqParameters &  params )

virtual

Implements ns3::FfMacSchedSapProvider.

Definition at line 152 of file tta-ff-mac-scheduler.cc.

References ns3::TtaFfMacScheduler::DoSchedDlPagingBufferReq(), and m_scheduler.

Here is the call graph for this function:

void ns3::TtaSchedulerMemberSchedSapProvider::SchedDlRachInfoReq ( const struct SchedDlRachInfoReqParameters &  params )

virtual

Implements ns3::FfMacSchedSapProvider.

Definition at line 170 of file tta-ff-mac-scheduler.cc.

References ns3::TtaFfMacScheduler::DoSchedDlRachInfoReq(), and m_scheduler.

Here is the call graph for this function:

void ns3::TtaSchedulerMemberSchedSapProvider::SchedDlRlcBufferReq ( const struct SchedDlRlcBufferReqParameters &  params )

virtual

Implements ns3::FfMacSchedSapProvider.

Definition at line 146 of file tta-ff-mac-scheduler.cc.

References ns3::TtaFfMacScheduler::DoSchedDlRlcBufferReq(), and m_scheduler.

Here is the call graph for this function:

void ns3::TtaSchedulerMemberSchedSapProvider::SchedDlTriggerReq ( const struct SchedDlTriggerReqParameters &  params )

virtual

Implements ns3::FfMacSchedSapProvider.

Definition at line 164 of file tta-ff-mac-scheduler.cc.

References ns3::TtaFfMacScheduler::DoSchedDlTriggerReq(), and m_scheduler.

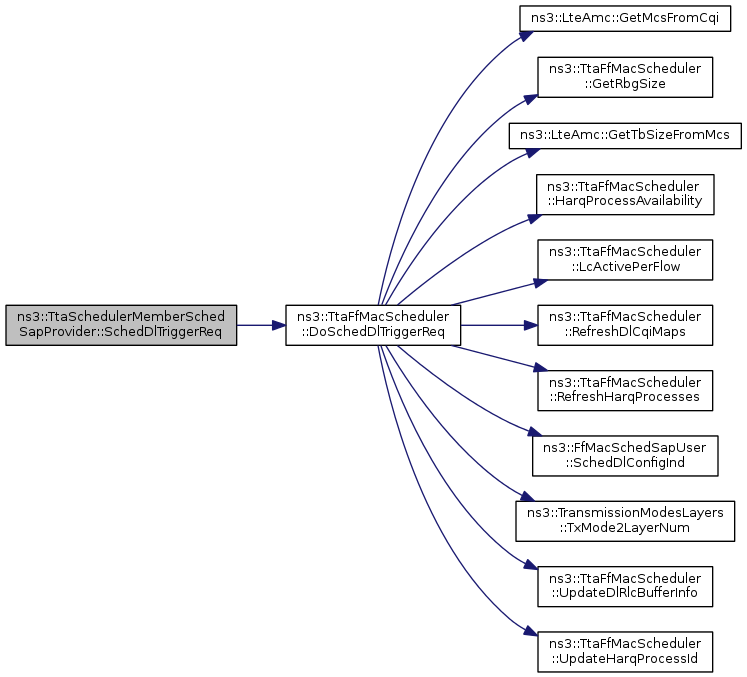

Here is the call graph for this function:

void ns3::TtaSchedulerMemberSchedSapProvider::SchedUlCqiInfoReq ( const struct SchedUlCqiInfoReqParameters &  params )

virtual

Implements ns3::FfMacSchedSapProvider.

Definition at line 206 of file tta-ff-mac-scheduler.cc.

References ns3::TtaFfMacScheduler::DoSchedUlCqiInfoReq(), and m_scheduler.

Here is the call graph for this function:

void ns3::TtaSchedulerMemberSchedSapProvider::SchedUlMacCtrlInfoReq ( const struct SchedUlMacCtrlInfoReqParameters &  params )

virtual

Implements ns3::FfMacSchedSapProvider.

Definition at line 200 of file tta-ff-mac-scheduler.cc.

References ns3::TtaFfMacScheduler::DoSchedUlMacCtrlInfoReq(), and m_scheduler.

Here is the call graph for this function:

void ns3::TtaSchedulerMemberSchedSapProvider::SchedUlNoiseInterferenceReq ( const struct SchedUlNoiseInterferenceReqParameters &  params )

virtual

Implements ns3::FfMacSchedSapProvider.

Definition at line 188 of file tta-ff-mac-scheduler.cc.

References ns3::TtaFfMacScheduler::DoSchedUlNoiseInterferenceReq(), and m_scheduler.

Here is the call graph for this function:

void ns3::TtaSchedulerMemberSchedSapProvider::SchedUlSrInfoReq ( const struct SchedUlSrInfoReqParameters &  params )

virtual

Implements ns3::FfMacSchedSapProvider.

Definition at line 194 of file tta-ff-mac-scheduler.cc.

References ns3::TtaFfMacScheduler::DoSchedUlSrInfoReq(), and m_scheduler.

Here is the call graph for this function:

void ns3::TtaSchedulerMemberSchedSapProvider::SchedUlTriggerReq ( const struct SchedUlTriggerReqParameters &  params )

virtual

Implements ns3::FfMacSchedSapProvider.

Definition at line 182 of file tta-ff-mac-scheduler.cc.

References ns3::TtaFfMacScheduler::DoSchedUlTriggerReq(), and m_scheduler.

Here is the call graph for this function:

Member Data Documentation

TtaFfMacScheduler* ns3::TtaSchedulerMemberSchedSapProvider::m_scheduler

private

Definition at line 130 of file tta-ff-mac-scheduler.cc.

Referenced by SchedDlCqiInfoReq(), SchedDlMacBufferReq(), SchedDlPagingBufferReq(), SchedDlRachInfoReq(), SchedDlRlcBufferReq(), SchedDlTriggerReq(), SchedUlCqiInfoReq(), SchedUlMacCtrlInfoReq(), SchedUlNoiseInterferenceReq(), SchedUlSrInfoReq(), and SchedUlTriggerReq().

---

The documentation for this class was generated from the following file:

• src/lte/model/tta-ff-mac-scheduler.cc
