Implements the SCHED SAP and CSCHED SAP for a Throughput to Average scheduler. More...

#include <tta-ff-mac-scheduler.h>

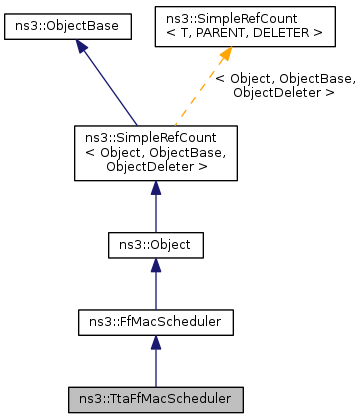

Inheritance diagram for ns3::TtaFfMacScheduler:

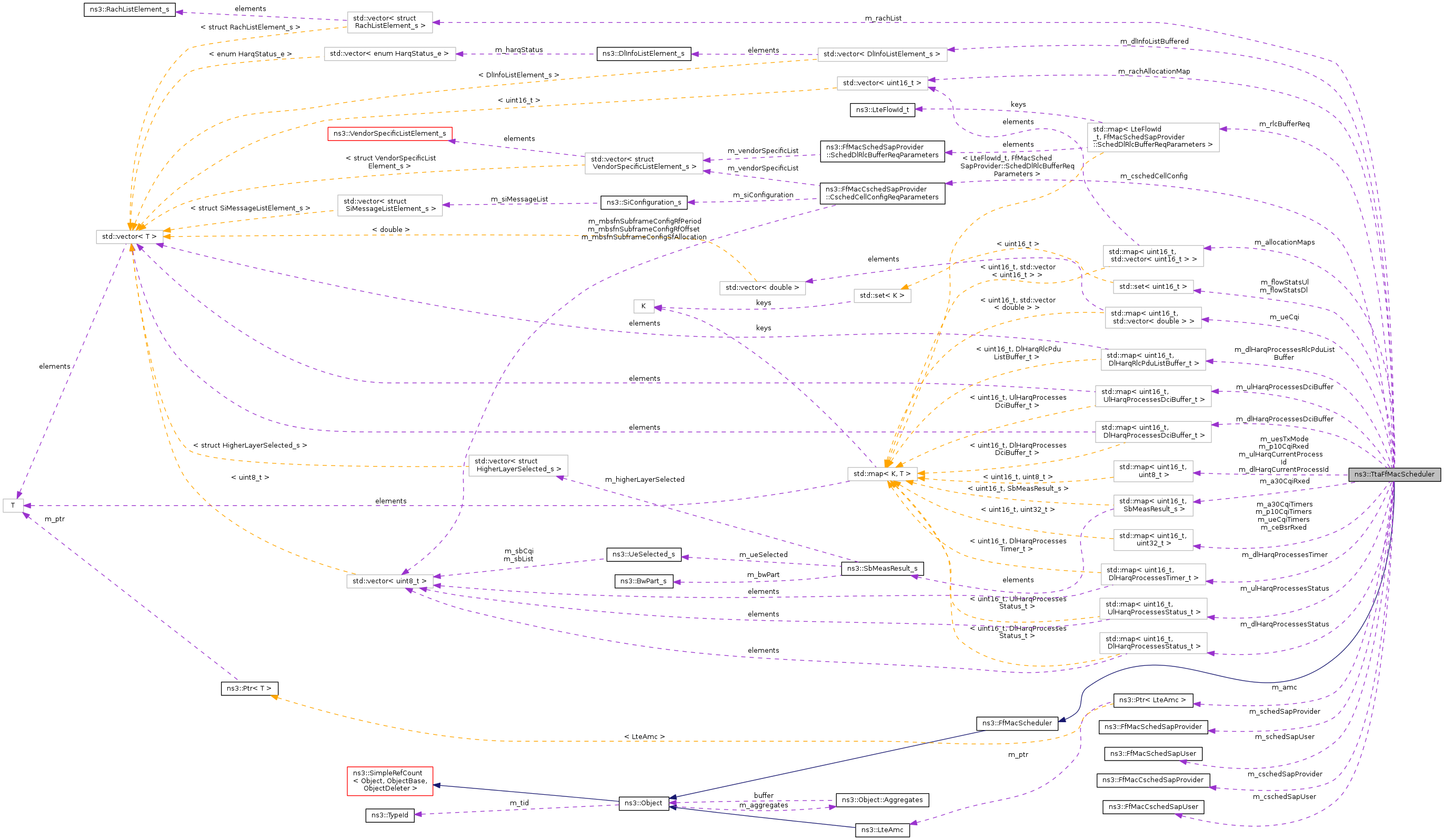

Collaboration diagram for ns3::TtaFfMacScheduler:

Public Member Functions
	TtaFfMacScheduler ()
	Constructor.
virtual	~TtaFfMacScheduler ()
virtual void	DoDispose (void)
virtual FfMacCschedSapProvider *	GetFfMacCschedSapProvider ()
virtual FfMacSchedSapProvider *	GetFfMacSchedSapProvider ()
virtual void	SetFfMacCschedSapUser (FfMacCschedSapUser *s)
virtual void	SetFfMacSchedSapUser (FfMacSchedSapUser *s)
void	TransmissionModeConfigurationUpdate (uint16_t rnti, uint8_t txMode)
Public Member Functions inherited from ns3::FfMacScheduler
	FfMacScheduler ()
virtual	~FfMacScheduler ()
Public Member Functions inherited from ns3::Object
	Object ()
virtual	~Object ()
void	AggregateObject (Ptr< Object > other)
void	Dispose (void)
AggregateIterator	GetAggregateIterator (void) const
virtual TypeId	GetInstanceTypeId (void) const
template<typename T >
Ptr< T >	GetObject (void) const
template<typename T >
Ptr< T >	GetObject (TypeId tid) const
void	Initialize (void)
Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	SimpleRefCount (const SimpleRefCount &o)
uint32_t	GetReferenceCount (void) const
SimpleRefCount &	operator= (const SimpleRefCount &o)
void	Ref (void) const
void	Unref (void) const
Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
void	GetAttribute (std::string name, AttributeValue &value) const
bool	GetAttributeFailSafe (std::string name, AttributeValue &attribute) const
void	SetAttribute (std::string name, const AttributeValue &value)
bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)

Static Public Member Functions
static TypeId	GetTypeId (void)

Private Member Functions
void	DoCschedCellConfigReq (const struct FfMacCschedSapProvider::CschedCellConfigReqParameters &params)
void	DoCschedLcConfigReq (const struct FfMacCschedSapProvider::CschedLcConfigReqParameters &params)
void	DoCschedLcReleaseReq (const struct FfMacCschedSapProvider::CschedLcReleaseReqParameters &params)
void	DoCschedUeConfigReq (const struct FfMacCschedSapProvider::CschedUeConfigReqParameters &params)
void	DoCschedUeReleaseReq (const struct FfMacCschedSapProvider::CschedUeReleaseReqParameters &params)
void	DoSchedDlCqiInfoReq (const struct FfMacSchedSapProvider::SchedDlCqiInfoReqParameters &params)
void	DoSchedDlMacBufferReq (const struct FfMacSchedSapProvider::SchedDlMacBufferReqParameters &params)
void	DoSchedDlPagingBufferReq (const struct FfMacSchedSapProvider::SchedDlPagingBufferReqParameters &params)
void	DoSchedDlRachInfoReq (const struct FfMacSchedSapProvider::SchedDlRachInfoReqParameters &params)
void	DoSchedDlRlcBufferReq (const struct FfMacSchedSapProvider::SchedDlRlcBufferReqParameters &params)
void	DoSchedDlTriggerReq (const struct FfMacSchedSapProvider::SchedDlTriggerReqParameters &params)
void	DoSchedUlCqiInfoReq (const struct FfMacSchedSapProvider::SchedUlCqiInfoReqParameters &params)
void	DoSchedUlMacCtrlInfoReq (const struct FfMacSchedSapProvider::SchedUlMacCtrlInfoReqParameters &params)
void	DoSchedUlNoiseInterferenceReq (const struct FfMacSchedSapProvider::SchedUlNoiseInterferenceReqParameters &params)
void	DoSchedUlSrInfoReq (const struct FfMacSchedSapProvider::SchedUlSrInfoReqParameters &params)
void	DoSchedUlTriggerReq (const struct FfMacSchedSapProvider::SchedUlTriggerReqParameters &params)
double	EstimateUlSinr (uint16_t rnti, uint16_t rb)
int	GetRbgSize (int dlbandwidth)
uint8_t	HarqProcessAvailability (uint16_t rnti)
	Return the availability of free process for the RNTI specified.
int	LcActivePerFlow (uint16_t rnti)
void	RefreshDlCqiMaps (void)
void	RefreshHarqProcesses ()
	Refresh HARQ processes according to the timers.
void	RefreshUlCqiMaps (void)
void	UpdateDlRlcBufferInfo (uint16_t rnti, uint8_t lcid, uint16_t size)
uint8_t	UpdateHarqProcessId (uint16_t rnti)
	Update and return a new process Id for the RNTI specified.
void	UpdateUlRlcBufferInfo (uint16_t rnti, uint16_t size)

Private Attributes
std::map< uint16_t, SbMeasResult_s >	m_a30CqiRxed
std::map< uint16_t, uint32_t >	m_a30CqiTimers
std::map< uint16_t, std::vector< uint16_t > >	m_allocationMaps
Ptr< LteAmc >	m_amc
std::map< uint16_t, uint32_t >	m_ceBsrRxed
uint32_t	m_cqiTimersThreshold
FfMacCschedSapProvider::CschedCellConfigReqParameters	m_cschedCellConfig
FfMacCschedSapProvider *	m_cschedSapProvider
FfMacCschedSapUser *	m_cschedSapUser
std::map< uint16_t, uint8_t >	m_dlHarqCurrentProcessId
std::map< uint16_t, DlHarqProcessesDciBuffer_t >	m_dlHarqProcessesDciBuffer
std::map< uint16_t, DlHarqRlcPduListBuffer_t >	m_dlHarqProcessesRlcPduListBuffer
std::map< uint16_t, DlHarqProcessesStatus_t >	m_dlHarqProcessesStatus
std::map< uint16_t, DlHarqProcessesTimer_t >	m_dlHarqProcessesTimer
std::vector< DlInfoListElement_s >	m_dlInfoListBuffered
std::set< uint16_t >	m_flowStatsDl
std::set< uint16_t >	m_flowStatsUl
bool	m_harqOn
uint16_t	m_nextRntiUl
std::map< uint16_t, uint8_t >	m_p10CqiRxed
std::map< uint16_t, uint32_t >	m_p10CqiTimers
std::vector< uint16_t >	m_rachAllocationMap
std::vector< struct RachListElement_s >	m_rachList
std::map< LteFlowId_t, FfMacSchedSapProvider::SchedDlRlcBufferReqParameters >	m_rlcBufferReq
FfMacSchedSapProvider *	m_schedSapProvider
FfMacSchedSapUser *	m_schedSapUser
std::map< uint16_t, std::vector< double > >	m_ueCqi
std::map< uint16_t, uint32_t >	m_ueCqiTimers
std::map< uint16_t, uint8_t >	m_uesTxMode
uint8_t	m_ulGrantMcs
std::map< uint16_t, uint8_t >	m_ulHarqCurrentProcessId
std::map< uint16_t, UlHarqProcessesDciBuffer_t >	m_ulHarqProcessesDciBuffer
std::map< uint16_t, UlHarqProcessesStatus_t >	m_ulHarqProcessesStatus

Friends
class	TtaSchedulerMemberCschedSapProvider
class	TtaSchedulerMemberSchedSapProvider

Additional Inherited Members
Public Types inherited from ns3::FfMacScheduler
enum	UlCqiFilter_t { SRS_UL_CQI, PUSCH_UL_CQI, ALL_UL_CQI }
Protected Member Functions inherited from ns3::Object
	Object (const Object &o)
virtual void	DoInitialize (void)
virtual void	NotifyNewAggregate (void)
Protected Attributes inherited from ns3::FfMacScheduler
UlCqiFilter_t	m_ulCqiFilter

Detailed Description

Implements the SCHED SAP and CSCHED SAP for a Throughput to Average scheduler.

This class implements the interface defined by the FfMacScheduler abstract class

Config Paths

ns3::TtaFfMacScheduler is accessible through the following paths with Config::Set and Config::Connect:

/NodeList/[i]/DeviceList/[i]/$ns3::LteEnbNetDevice/FfMacScheduler/$ns3::TtaFfMacScheduler
/NodeList/[i]/DeviceList/[i]/$ns3::LteNetDevice/$ns3::LteEnbNetDevice/FfMacScheduler/$ns3::TtaFfMacScheduler

Attributes

CqiTimerThreshold: The number of TTIs a CQI is valid (default 1000 - 1 sec.)
- Set with class: ns3::UintegerValue
- Underlying type: uint32_t 0:4294967295
- Initial value: 1000
- Flags: construct write read
HarqEnabled: Activate/Deactivate the HARQ [by default is active].
- Set with class: BooleanValue
- Underlying type: bool
- Initial value: true
- Flags: construct write read
UlGrantMcs: The MCS of the UL grant, must be [0..15] (default 0)
- Set with class: ns3::UintegerValue
- Underlying type: uint8_t 0:255
- Initial value: 0
- Flags: construct write read

Attributes defined in parent class ns3::FfMacScheduler

UlCqiFilter: The filter to apply on UL CQIs received
- Set with class: ns3::EnumValue
- Underlying type: SRS_UL_CQI|PUSCH_UL_CQI|ALL_UL_CQI
- Initial value: ALL_UL_CQI
- Flags: construct write read

No TraceSources are defined for this type.

Definition at line 68 of file tta-ff-mac-scheduler.h.

Constructor & Destructor Documentation

ns3::TtaFfMacScheduler::TtaFfMacScheduler ( )

Constructor.

Creates the MAC Scheduler interface implementation

Definition at line 215 of file tta-ff-mac-scheduler.cc.

References m_amc, m_cschedSapProvider, m_schedSapProvider, TtaSchedulerMemberCschedSapProvider, and TtaSchedulerMemberSchedSapProvider.

ns3::TtaFfMacScheduler::~TtaFfMacScheduler ( )

virtual

Destructor

Definition at line 225 of file tta-ff-mac-scheduler.cc.

References NS_LOG_FUNCTION.

Member Function Documentation

void ns3::TtaFfMacScheduler::DoCschedCellConfigReq ( const struct FfMacCschedSapProvider::CschedCellConfigReqParameters & params )

private

Definition at line 297 of file tta-ff-mac-scheduler.cc.

References ns3::FfMacCschedSapUser::CschedUeConfigCnf(), m_cschedCellConfig, m_cschedSapUser, m_rachAllocationMap, ns3::FfMacCschedSapUser::CschedUeConfigCnfParameters::m_result, ns3::FfMacCschedSapProvider::CschedCellConfigReqParameters::m_ulBandwidth, NS_LOG_FUNCTION, and ns3::SUCCESS.

Referenced by ns3::TtaSchedulerMemberCschedSapProvider::CschedCellConfigReq().

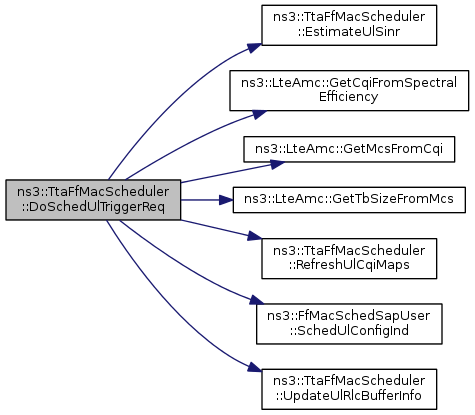

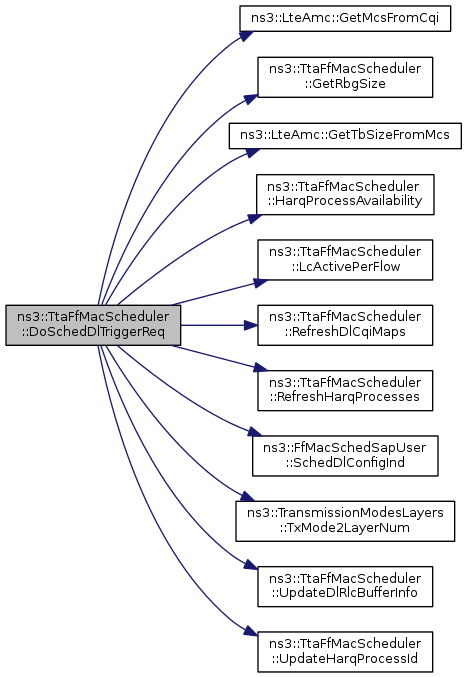

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::TtaFfMacScheduler::DoCschedLcConfigReq ( const struct FfMacCschedSapProvider::CschedLcConfigReqParameters & params )

private

Definition at line 349 of file tta-ff-mac-scheduler.cc.

References m_flowStatsDl, m_flowStatsUl, ns3::FfMacCschedSapProvider::CschedLcConfigReqParameters::m_logicalChannelConfigList, ns3::FfMacCschedSapProvider::CschedLcConfigReqParameters::m_rnti, NS_LOG_ERROR, and NS_LOG_FUNCTION.

Referenced by ns3::TtaSchedulerMemberCschedSapProvider::CschedLcConfigReq().

Here is the caller graph for this function:

void ns3::TtaFfMacScheduler::DoCschedLcReleaseReq ( const struct FfMacCschedSapProvider::CschedLcReleaseReqParameters & params )

private

Definition at line 373 of file tta-ff-mac-scheduler.cc.

References ns3::FfMacCschedSapProvider::CschedLcReleaseReqParameters::m_logicalChannelIdentity, m_rlcBufferReq, ns3::FfMacCschedSapProvider::CschedLcReleaseReqParameters::m_rnti, and NS_LOG_FUNCTION.

Referenced by ns3::TtaSchedulerMemberCschedSapProvider::CschedLcReleaseReq().

Here is the caller graph for this function:

void ns3::TtaFfMacScheduler::DoCschedUeConfigReq ( const struct FfMacCschedSapProvider::CschedUeConfigReqParameters & params )

private

Definition at line 310 of file tta-ff-mac-scheduler.cc.

References m_dlHarqCurrentProcessId, m_dlHarqProcessesDciBuffer, m_dlHarqProcessesRlcPduListBuffer, m_dlHarqProcessesStatus, m_dlHarqProcessesTimer, ns3::FfMacCschedSapProvider::CschedUeConfigReqParameters::m_rnti, ns3::FfMacCschedSapProvider::CschedUeConfigReqParameters::m_transmissionMode, m_uesTxMode, m_ulHarqCurrentProcessId, m_ulHarqProcessesDciBuffer, m_ulHarqProcessesStatus, and NS_LOG_FUNCTION.

Referenced by ns3::TtaSchedulerMemberCschedSapProvider::CschedUeConfigReq().

Here is the caller graph for this function:

void ns3::TtaFfMacScheduler::DoCschedUeReleaseReq ( const struct FfMacCschedSapProvider::CschedUeReleaseReqParameters & params )

private

Definition at line 398 of file tta-ff-mac-scheduler.cc.

References m_ceBsrRxed, m_dlHarqCurrentProcessId, m_dlHarqProcessesDciBuffer, m_dlHarqProcessesRlcPduListBuffer, m_dlHarqProcessesStatus, m_dlHarqProcessesTimer, m_flowStatsDl, m_flowStatsUl, m_nextRntiUl, m_rlcBufferReq, ns3::FfMacCschedSapProvider::CschedUeReleaseReqParameters::m_rnti, m_uesTxMode, m_ulHarqCurrentProcessId, m_ulHarqProcessesDciBuffer, m_ulHarqProcessesStatus, and NS_LOG_FUNCTION.

Referenced by ns3::TtaSchedulerMemberCschedSapProvider::CschedUeReleaseReq().

Here is the caller graph for this function:

void ns3::TtaFfMacScheduler::DoDispose ( void )

virtual

This method is called by Object::Dispose or by the object's destructor, whichever comes first.

Subclasses are expected to implement their real destruction code in an overriden version of this method and chain up to their parent's implementation once they are done. i.e., for simplicity, the destructor of every subclass should be empty and its content should be moved to the associated DoDispose method.

It is safe to call GetObject from within this method.

Reimplemented from ns3::FfMacScheduler.

Definition at line 231 of file tta-ff-mac-scheduler.cc.

References m_cschedSapProvider, m_dlHarqProcessesDciBuffer, m_dlHarqProcessesRlcPduListBuffer, m_dlHarqProcessesTimer, m_dlInfoListBuffered, m_schedSapProvider, m_ulHarqCurrentProcessId, m_ulHarqProcessesDciBuffer, m_ulHarqProcessesStatus, and NS_LOG_FUNCTION.

void ns3::TtaFfMacScheduler::DoSchedDlCqiInfoReq ( const struct FfMacSchedSapProvider::SchedDlCqiInfoReqParameters & params )

private

Definition at line 1256 of file tta-ff-mac-scheduler.cc.

References ns3::CqiListElement_s::A30, m_a30CqiRxed, m_a30CqiTimers, ns3::FfMacSchedSapProvider::SchedDlCqiInfoReqParameters::m_cqiList, m_cqiTimersThreshold, m_p10CqiRxed, m_p10CqiTimers, NS_LOG_ERROR, NS_LOG_FUNCTION, and ns3::CqiListElement_s::P10.

Referenced by ns3::TtaSchedulerMemberSchedSapProvider::SchedDlCqiInfoReq().

Here is the caller graph for this function:

void ns3::TtaFfMacScheduler::DoSchedDlMacBufferReq ( const struct FfMacSchedSapProvider::SchedDlMacBufferReqParameters & params )

private

Definition at line 471 of file tta-ff-mac-scheduler.cc.

References NS_FATAL_ERROR, and NS_LOG_FUNCTION.

Referenced by ns3::TtaSchedulerMemberSchedSapProvider::SchedDlMacBufferReq().

Here is the caller graph for this function:

void ns3::TtaFfMacScheduler::DoSchedDlPagingBufferReq ( const struct FfMacSchedSapProvider::SchedDlPagingBufferReqParameters & params )

private

Definition at line 463 of file tta-ff-mac-scheduler.cc.

References NS_FATAL_ERROR, and NS_LOG_FUNCTION.

Referenced by ns3::TtaSchedulerMemberSchedSapProvider::SchedDlPagingBufferReq().

Here is the caller graph for this function:

void ns3::TtaFfMacScheduler::DoSchedDlRachInfoReq ( const struct FfMacSchedSapProvider::SchedDlRachInfoReqParameters & params )

private

Definition at line 1246 of file tta-ff-mac-scheduler.cc.

References ns3::FfMacSchedSapProvider::SchedDlRachInfoReqParameters::m_rachList, m_rachList, and NS_LOG_FUNCTION.

Referenced by ns3::TtaSchedulerMemberSchedSapProvider::SchedDlRachInfoReq().

Here is the caller graph for this function:

void ns3::TtaFfMacScheduler::DoSchedDlRlcBufferReq ( const struct FfMacSchedSapProvider::SchedDlRlcBufferReqParameters & params )

private

Definition at line 439 of file tta-ff-mac-scheduler.cc.

References ns3::FfMacSchedSapProvider::SchedDlRlcBufferReqParameters::m_logicalChannelIdentity, m_rlcBufferReq, ns3::FfMacSchedSapProvider::SchedDlRlcBufferReqParameters::m_rnti, and NS_LOG_FUNCTION.

Referenced by ns3::TtaSchedulerMemberSchedSapProvider::SchedDlRlcBufferReq().

Here is the caller graph for this function:

void ns3::TtaFfMacScheduler::DoSchedDlTriggerReq ( const struct FfMacSchedSapProvider::SchedDlTriggerReqParameters & params )

private

Definition at line 624 of file tta-ff-mac-scheduler.cc.

References ns3::LteAmc::GetMcsFromCqi(), GetRbgSize(), ns3::LteAmc::GetTbSizeFromMcs(), HarqProcessAvailability(), LcActivePerFlow(), m_a30CqiRxed, m_amc, ns3::FfMacSchedSapUser::SchedDlConfigIndParameters::m_buildDataList, ns3::FfMacSchedSapUser::SchedDlConfigIndParameters::m_buildRarList, m_cschedCellConfig, ns3::BuildDataListElement_s::m_dci, ns3::FfMacCschedSapProvider::CschedCellConfigReqParameters::m_dlBandwidth, m_dlHarqProcessesDciBuffer, m_dlHarqProcessesRlcPduListBuffer, m_dlHarqProcessesStatus, m_dlHarqProcessesTimer, ns3::FfMacSchedSapProvider::SchedDlTriggerReqParameters::m_dlInfoList, m_dlInfoListBuffered, m_flowStatsDl, m_harqOn, ns3::DlDciListElement_s::m_harqProcess, ns3::RlcPduListElement_s::m_logicalChannelIdentity, ns3::DlDciListElement_s::m_mcs, ns3::DlDciListElement_s::m_ndi, ns3::FfMacSchedSapUser::SchedDlConfigIndParameters::m_nrOfPdcchOfdmSymbols, m_p10CqiRxed, m_rachAllocationMap, m_rachList, ns3::DlDciListElement_s::m_rbBitmap, ns3::DlDciListElement_s::m_resAlloc, m_rlcBufferReq, ns3::BuildDataListElement_s::m_rlcPduList, ns3::DlDciListElement_s::m_rnti, ns3::BuildDataListElement_s::m_rnti, ns3::BuildRarListElement_s::m_rnti, ns3::DlDciListElement_s::m_rv, m_schedSapUser, ns3::FfMacSchedSapProvider::SchedDlTriggerReqParameters::m_sfnSf, ns3::RlcPduListElement_s::m_size, ns3::DlDciListElement_s::m_tbsSize, m_uesTxMode, ns3::FfMacCschedSapProvider::CschedCellConfigReqParameters::m_ulBandwidth, m_ulGrantMcs, ns3::DlInfoListElement_s::NACK, NS_ASSERT_MSG, NS_FATAL_ERROR, NS_LOG_DEBUG, NS_LOG_ERROR, NS_LOG_FUNCTION, NS_LOG_INFO, RefreshDlCqiMaps(), RefreshHarqProcesses(), ns3::FfMacSchedSapUser::SchedDlConfigInd(), ns3::TransmissionModesLayers::TxMode2LayerNum(), UpdateDlRlcBufferInfo(), and UpdateHarqProcessId().

Referenced by ns3::TtaSchedulerMemberSchedSapProvider::SchedDlTriggerReq().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::TtaFfMacScheduler::DoSchedUlCqiInfoReq ( const struct FfMacSchedSapProvider::SchedUlCqiInfoReqParameters & params )

private

Definition at line 1758 of file tta-ff-mac-scheduler.cc.

References ns3::FfMacScheduler::ALL_UL_CQI, ns3::LteFfConverter::fpS11dot3toDouble(), m_allocationMaps, m_cqiTimersThreshold, m_cschedCellConfig, ns3::FfMacSchedSapProvider::SchedUlCqiInfoReqParameters::m_sfnSf, ns3::UlCqi_s::m_sinr, ns3::UlCqi_s::m_type, m_ueCqi, m_ueCqiTimers, ns3::FfMacCschedSapProvider::CschedCellConfigReqParameters::m_ulBandwidth, ns3::FfMacSchedSapProvider::SchedUlCqiInfoReqParameters::m_ulCqi, ns3::FfMacScheduler::m_ulCqiFilter, ns3::FfMacSchedSapProvider::SchedUlCqiInfoReqParameters::m_vendorSpecificList, NO_SINR, NS_ASSERT, NS_FATAL_ERROR, NS_LOG_DEBUG, NS_LOG_FUNCTION, NS_LOG_INFO, ns3::UlCqi_s::PRACH, ns3::UlCqi_s::PUCCH_1, ns3::UlCqi_s::PUCCH_2, ns3::UlCqi_s::PUSCH, ns3::FfMacScheduler::PUSCH_UL_CQI, ns3::UlCqi_s::SRS, SRS_CQI_RNTI_VSP, and ns3::FfMacScheduler::SRS_UL_CQI.

Referenced by ns3::TtaSchedulerMemberSchedSapProvider::SchedUlCqiInfoReq().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::TtaFfMacScheduler::DoSchedUlMacCtrlInfoReq ( const struct FfMacSchedSapProvider::SchedUlMacCtrlInfoReqParameters & params )

private

Definition at line 1714 of file tta-ff-mac-scheduler.cc.

References ns3::MacCeListElement_s::BSR, ns3::BufferSizeLevelBsr::BsrId2BufferSize(), m_ceBsrRxed, ns3::FfMacSchedSapProvider::SchedUlMacCtrlInfoReqParameters::m_macCeList, NS_LOG_FUNCTION, and NS_LOG_LOGIC.

Referenced by ns3::TtaSchedulerMemberSchedSapProvider::SchedUlMacCtrlInfoReq().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::TtaFfMacScheduler::DoSchedUlNoiseInterferenceReq ( const struct FfMacSchedSapProvider::SchedUlNoiseInterferenceReqParameters & params )

private

Definition at line 1700 of file tta-ff-mac-scheduler.cc.

References NS_LOG_FUNCTION.

Referenced by ns3::TtaSchedulerMemberSchedSapProvider::SchedUlNoiseInterferenceReq().

Here is the caller graph for this function:

void ns3::TtaFfMacScheduler::DoSchedUlSrInfoReq ( const struct FfMacSchedSapProvider::SchedUlSrInfoReqParameters & params )

private

Definition at line 1707 of file tta-ff-mac-scheduler.cc.

References NS_LOG_FUNCTION.

Referenced by ns3::TtaSchedulerMemberSchedSapProvider::SchedUlSrInfoReq().

Here is the caller graph for this function:

void ns3::TtaFfMacScheduler::DoSchedUlTriggerReq ( const struct FfMacSchedSapProvider::SchedUlTriggerReqParameters & params )

private

Definition at line 1348 of file tta-ff-mac-scheduler.cc.

Referenced by ns3::TtaSchedulerMemberSchedSapProvider::SchedUlTriggerReq().

Here is the call graph for this function:

Here is the caller graph for this function:

double ns3::TtaFfMacScheduler::EstimateUlSinr	(	uint16_t	rnti,
		uint16_t	rb
	)

private

Definition at line 1317 of file tta-ff-mac-scheduler.cc.

References m_cschedCellConfig, m_ueCqi, ns3::FfMacCschedSapProvider::CschedCellConfigReqParameters::m_ulBandwidth, and NO_SINR.

Referenced by DoSchedUlTriggerReq().

Here is the caller graph for this function:

FfMacCschedSapProvider * ns3::TtaFfMacScheduler::GetFfMacCschedSapProvider ( )

virtual

Returns: the Provider part of the FfMacCschedSap provided by the Scheduler

Implements ns3::FfMacScheduler.

Definition at line 285 of file tta-ff-mac-scheduler.cc.

References m_cschedSapProvider.

FfMacSchedSapProvider * ns3::TtaFfMacScheduler::GetFfMacSchedSapProvider ( )

virtual

Returns: the Provider part of the FfMacSchedSap provided by the Scheduler

Implements ns3::FfMacScheduler.

Definition at line 291 of file tta-ff-mac-scheduler.cc.

References m_schedSapProvider.

int ns3::TtaFfMacScheduler::GetRbgSize ( int dlbandwidth )

private

Definition at line 479 of file tta-ff-mac-scheduler.cc.

References ns3::TtaType0AllocationRbg.

Referenced by DoSchedDlTriggerReq().

Here is the caller graph for this function:

TypeId ns3::TtaFfMacScheduler::GetTypeId ( void )

static

Reimplemented from ns3::FfMacScheduler.

Definition at line 246 of file tta-ff-mac-scheduler.cc.

References m_cqiTimersThreshold, m_harqOn, m_ulGrantMcs, and ns3::TypeId::SetParent().

Here is the call graph for this function:

uint8_t ns3::TtaFfMacScheduler::HarqProcessAvailability ( uint16_t rnti )

private

Return the availability of free process for the RNTI specified.

Parameters

rnti	the RNTI of the UE to be updated

Returns: the process id value

Definition at line 517 of file tta-ff-mac-scheduler.cc.

References HARQ_PROC_NUM, m_dlHarqCurrentProcessId, m_dlHarqProcessesStatus, NS_FATAL_ERROR, and NS_LOG_FUNCTION.

Referenced by DoSchedDlTriggerReq().

Here is the caller graph for this function:

int ns3::TtaFfMacScheduler::LcActivePerFlow ( uint16_t rnti )

private

Definition at line 494 of file tta-ff-mac-scheduler.cc.

References m_rlcBufferReq.

Referenced by DoSchedDlTriggerReq().

Here is the caller graph for this function:

void ns3::TtaFfMacScheduler::RefreshDlCqiMaps ( void )

private

Definition at line 1906 of file tta-ff-mac-scheduler.cc.

References m_a30CqiRxed, m_a30CqiTimers, m_cqiTimersThreshold, m_p10CqiRxed, m_p10CqiTimers, NS_ASSERT_MSG, and NS_LOG_INFO.

Referenced by DoSchedDlTriggerReq().

Here is the caller graph for this function:

void ns3::TtaFfMacScheduler::RefreshHarqProcesses ( )

private

Refresh HARQ processes according to the timers.

Definition at line 591 of file tta-ff-mac-scheduler.cc.

References HARQ_DL_TIMEOUT, HARQ_PROC_NUM, m_dlHarqProcessesStatus, m_dlHarqProcessesTimer, NS_FATAL_ERROR, NS_LOG_DEBUG, and NS_LOG_FUNCTION.

Referenced by DoSchedDlTriggerReq().

Here is the caller graph for this function:

void ns3::TtaFfMacScheduler::RefreshUlCqiMaps ( void )

private

Definition at line 1959 of file tta-ff-mac-scheduler.cc.

References m_cqiTimersThreshold, m_ueCqi, m_ueCqiTimers, NS_ASSERT_MSG, and NS_LOG_INFO.

Referenced by DoSchedUlTriggerReq().

Here is the caller graph for this function:

void ns3::TtaFfMacScheduler::SetFfMacCschedSapUser ( FfMacCschedSapUser * s )

virtual

set the user part of the FfMacCschedSap that this Scheduler will interact with. Normally this part of the SAP is exported by the MAC.

Parameters

s

Implements ns3::FfMacScheduler.

Definition at line 273 of file tta-ff-mac-scheduler.cc.

References m_cschedSapUser.

void ns3::TtaFfMacScheduler::SetFfMacSchedSapUser ( FfMacSchedSapUser * s )

virtual

set the user part of the FfMacSchedSap that this Scheduler will interact with. Normally this part of the SAP is exported by the MAC.

Parameters

s

Implements ns3::FfMacScheduler.

Definition at line 279 of file tta-ff-mac-scheduler.cc.

References m_schedSapUser.

void ns3::TtaFfMacScheduler::TransmissionModeConfigurationUpdate	(	uint16_t	rnti,
		uint8_t	txMode
	)

Definition at line 2053 of file tta-ff-mac-scheduler.cc.

References ns3::FfMacCschedSapUser::CschedUeConfigUpdateInd(), m_cschedSapUser, ns3::FfMacCschedSapUser::CschedUeConfigUpdateIndParameters::m_rnti, ns3::FfMacCschedSapUser::CschedUeConfigUpdateIndParameters::m_transmissionMode, and NS_LOG_FUNCTION.

Here is the call graph for this function:

void ns3::TtaFfMacScheduler::UpdateDlRlcBufferInfo	(	uint16_t	rnti,
		uint8_t	lcid,
		uint16_t	size
	)

private

Definition at line 1989 of file tta-ff-mac-scheduler.cc.

References m_rlcBufferReq, NS_LOG_ERROR, and NS_LOG_INFO.

Referenced by DoSchedDlTriggerReq().

Here is the caller graph for this function:

uint8_t ns3::TtaFfMacScheduler::UpdateHarqProcessId ( uint16_t rnti )

private

Update and return a new process Id for the RNTI specified.

Parameters

rnti	the RNTI of the UE to be updated

Returns: the process id value

Definition at line 550 of file tta-ff-mac-scheduler.cc.

References HARQ_PROC_NUM, m_dlHarqCurrentProcessId, m_dlHarqProcessesStatus, m_harqOn, NS_FATAL_ERROR, and NS_LOG_FUNCTION.

Referenced by DoSchedDlTriggerReq().

Here is the caller graph for this function:

void ns3::TtaFfMacScheduler::UpdateUlRlcBufferInfo	(	uint16_t	rnti,
		uint16_t	size
	)

private

Definition at line 2028 of file tta-ff-mac-scheduler.cc.

References m_ceBsrRxed, NS_LOG_ERROR, and NS_LOG_INFO.

Referenced by DoSchedUlTriggerReq().

Here is the caller graph for this function:

Friends And Related Function Documentation

friend class TtaSchedulerMemberCschedSapProvider

friend

Definition at line 93 of file tta-ff-mac-scheduler.h.

Referenced by TtaFfMacScheduler().

friend class TtaSchedulerMemberSchedSapProvider

friend

Definition at line 94 of file tta-ff-mac-scheduler.h.

Referenced by TtaFfMacScheduler().

Member Data Documentation

std::map<uint16_t,SbMeasResult_s> ns3::TtaFfMacScheduler::m_a30CqiRxed

private

Definition at line 207 of file tta-ff-mac-scheduler.h.

Referenced by DoSchedDlCqiInfoReq(), DoSchedDlTriggerReq(), and RefreshDlCqiMaps().

std::map<uint16_t,uint32_t> ns3::TtaFfMacScheduler::m_a30CqiTimers

private

Definition at line 211 of file tta-ff-mac-scheduler.h.

Referenced by DoSchedDlCqiInfoReq(), and RefreshDlCqiMaps().

std::map<uint16_t, std::vector <uint16_t> > ns3::TtaFfMacScheduler::m_allocationMaps

private

Definition at line 217 of file tta-ff-mac-scheduler.h.

Referenced by DoSchedUlCqiInfoReq(), and DoSchedUlTriggerReq().

Ptr<LteAmc> ns3::TtaFfMacScheduler::m_amc

private

Definition at line 176 of file tta-ff-mac-scheduler.h.

Referenced by DoSchedDlTriggerReq(), DoSchedUlTriggerReq(), and TtaFfMacScheduler().

std::map<uint16_t,uint32_t> ns3::TtaFfMacScheduler::m_ceBsrRxed

private

Definition at line 231 of file tta-ff-mac-scheduler.h.

Referenced by DoCschedUeReleaseReq(), DoSchedUlMacCtrlInfoReq(), DoSchedUlTriggerReq(), and UpdateUlRlcBufferInfo().

uint32_t ns3::TtaFfMacScheduler::m_cqiTimersThreshold

private

Definition at line 246 of file tta-ff-mac-scheduler.h.

Referenced by DoSchedDlCqiInfoReq(), DoSchedUlCqiInfoReq(), GetTypeId(), RefreshDlCqiMaps(), and RefreshUlCqiMaps().

FfMacCschedSapProvider::CschedCellConfigReqParameters ns3::TtaFfMacScheduler::m_cschedCellConfig

private

Definition at line 241 of file tta-ff-mac-scheduler.h.

Referenced by DoCschedCellConfigReq(), DoSchedDlTriggerReq(), DoSchedUlCqiInfoReq(), DoSchedUlTriggerReq(), and EstimateUlSinr().

FfMacCschedSapProvider* ns3::TtaFfMacScheduler::m_cschedSapProvider

private

Definition at line 236 of file tta-ff-mac-scheduler.h.

Referenced by DoDispose(), GetFfMacCschedSapProvider(), and TtaFfMacScheduler().

FfMacCschedSapUser* ns3::TtaFfMacScheduler::m_cschedSapUser

private

Definition at line 234 of file tta-ff-mac-scheduler.h.

Referenced by DoCschedCellConfigReq(), SetFfMacCschedSapUser(), and TransmissionModeConfigurationUpdate().

std::map<uint16_t, uint8_t> ns3::TtaFfMacScheduler::m_dlHarqCurrentProcessId

private

Definition at line 255 of file tta-ff-mac-scheduler.h.

Referenced by DoCschedUeConfigReq(), DoCschedUeReleaseReq(), HarqProcessAvailability(), and UpdateHarqProcessId().

std::map<uint16_t, DlHarqProcessesDciBuffer_t> ns3::TtaFfMacScheduler::m_dlHarqProcessesDciBuffer

private

Definition at line 261 of file tta-ff-mac-scheduler.h.

Referenced by DoCschedUeConfigReq(), DoCschedUeReleaseReq(), DoDispose(), and DoSchedDlTriggerReq().

std::map<uint16_t, DlHarqRlcPduListBuffer_t> ns3::TtaFfMacScheduler::m_dlHarqProcessesRlcPduListBuffer

private

Definition at line 262 of file tta-ff-mac-scheduler.h.

Referenced by DoCschedUeConfigReq(), DoCschedUeReleaseReq(), DoDispose(), and DoSchedDlTriggerReq().

std::map<uint16_t, DlHarqProcessesStatus_t> ns3::TtaFfMacScheduler::m_dlHarqProcessesStatus

private

Definition at line 259 of file tta-ff-mac-scheduler.h.

Referenced by DoCschedUeConfigReq(), DoCschedUeReleaseReq(), DoSchedDlTriggerReq(), HarqProcessAvailability(), RefreshHarqProcesses(), and UpdateHarqProcessId().

std::map<uint16_t, DlHarqProcessesTimer_t> ns3::TtaFfMacScheduler::m_dlHarqProcessesTimer

private

Definition at line 260 of file tta-ff-mac-scheduler.h.

Referenced by DoCschedUeConfigReq(), DoCschedUeReleaseReq(), DoDispose(), DoSchedDlTriggerReq(), and RefreshHarqProcesses().

std::vector<DlInfoListElement_s> ns3::TtaFfMacScheduler::m_dlInfoListBuffered

private

Definition at line 263 of file tta-ff-mac-scheduler.h.

Referenced by DoDispose(), and DoSchedDlTriggerReq().

std::set<uint16_t> ns3::TtaFfMacScheduler::m_flowStatsDl

private

Definition at line 187 of file tta-ff-mac-scheduler.h.

Referenced by DoCschedLcConfigReq(), DoCschedUeReleaseReq(), and DoSchedDlTriggerReq().

std::set<uint16_t> ns3::TtaFfMacScheduler::m_flowStatsUl

private

Definition at line 192 of file tta-ff-mac-scheduler.h.

Referenced by DoCschedLcConfigReq(), and DoCschedUeReleaseReq().

bool ns3::TtaFfMacScheduler::m_harqOn

private

m_harqOn when false inhibit te HARQ mechanisms (by default active)

Definition at line 254 of file tta-ff-mac-scheduler.h.

Referenced by DoSchedDlTriggerReq(), DoSchedUlTriggerReq(), GetTypeId(), and UpdateHarqProcessId().

uint16_t ns3::TtaFfMacScheduler::m_nextRntiUl

private

Definition at line 244 of file tta-ff-mac-scheduler.h.

Referenced by DoCschedUeReleaseReq(), and DoSchedUlTriggerReq().

std::map<uint16_t,uint8_t> ns3::TtaFfMacScheduler::m_p10CqiRxed

private

Definition at line 198 of file tta-ff-mac-scheduler.h.

Referenced by DoSchedDlCqiInfoReq(), DoSchedDlTriggerReq(), and RefreshDlCqiMaps().

std::map<uint16_t,uint32_t> ns3::TtaFfMacScheduler::m_p10CqiTimers

private

Definition at line 202 of file tta-ff-mac-scheduler.h.

Referenced by DoSchedDlCqiInfoReq(), and RefreshDlCqiMaps().

std::vector<uint16_t> ns3::TtaFfMacScheduler::m_rachAllocationMap

private

Definition at line 275 of file tta-ff-mac-scheduler.h.

Referenced by DoCschedCellConfigReq(), DoSchedDlTriggerReq(), and DoSchedUlTriggerReq().

std::vector<struct RachListElement_s> ns3::TtaFfMacScheduler::m_rachList

private

Definition at line 274 of file tta-ff-mac-scheduler.h.

Referenced by DoSchedDlRachInfoReq(), and DoSchedDlTriggerReq().

std::map<LteFlowId_t, FfMacSchedSapProvider::SchedDlRlcBufferReqParameters> ns3::TtaFfMacScheduler::m_rlcBufferReq

private

Definition at line 181 of file tta-ff-mac-scheduler.h.

Referenced by DoCschedLcReleaseReq(), DoCschedUeReleaseReq(), DoSchedDlRlcBufferReq(), DoSchedDlTriggerReq(), LcActivePerFlow(), and UpdateDlRlcBufferInfo().

FfMacSchedSapProvider* ns3::TtaFfMacScheduler::m_schedSapProvider

private

Definition at line 237 of file tta-ff-mac-scheduler.h.

Referenced by DoDispose(), GetFfMacSchedSapProvider(), and TtaFfMacScheduler().

FfMacSchedSapUser* ns3::TtaFfMacScheduler::m_schedSapUser

private

Definition at line 235 of file tta-ff-mac-scheduler.h.

Referenced by DoSchedDlTriggerReq(), DoSchedUlTriggerReq(), and SetFfMacSchedSapUser().

std::map<uint16_t, std::vector <double> > ns3::TtaFfMacScheduler::m_ueCqi

private

Definition at line 222 of file tta-ff-mac-scheduler.h.

Referenced by DoSchedUlCqiInfoReq(), DoSchedUlTriggerReq(), EstimateUlSinr(), and RefreshUlCqiMaps().

std::map<uint16_t, uint32_t> ns3::TtaFfMacScheduler::m_ueCqiTimers

private

Definition at line 226 of file tta-ff-mac-scheduler.h.

Referenced by DoSchedUlCqiInfoReq(), and RefreshUlCqiMaps().

std::map<uint16_t,uint8_t> ns3::TtaFfMacScheduler::m_uesTxMode

private

Definition at line 248 of file tta-ff-mac-scheduler.h.

Referenced by DoCschedUeConfigReq(), DoCschedUeReleaseReq(), and DoSchedDlTriggerReq().

uint8_t ns3::TtaFfMacScheduler::m_ulGrantMcs

private

Definition at line 276 of file tta-ff-mac-scheduler.h.

Referenced by DoSchedDlTriggerReq(), and GetTypeId().

std::map<uint16_t, uint8_t> ns3::TtaFfMacScheduler::m_ulHarqCurrentProcessId

private

Definition at line 265 of file tta-ff-mac-scheduler.h.

Referenced by DoCschedUeConfigReq(), DoCschedUeReleaseReq(), DoDispose(), and DoSchedUlTriggerReq().

std::map<uint16_t, UlHarqProcessesDciBuffer_t> ns3::TtaFfMacScheduler::m_ulHarqProcessesDciBuffer

private

Definition at line 270 of file tta-ff-mac-scheduler.h.

Referenced by DoCschedUeConfigReq(), DoCschedUeReleaseReq(), DoDispose(), and DoSchedUlTriggerReq().

std::map<uint16_t, UlHarqProcessesStatus_t> ns3::TtaFfMacScheduler::m_ulHarqProcessesStatus

private

Definition at line 269 of file tta-ff-mac-scheduler.h.

Referenced by DoCschedUeConfigReq(), DoCschedUeReleaseReq(), DoDispose(), and DoSchedUlTriggerReq().

The documentation for this class was generated from the following files:

src/lte/model/tta-ff-mac-scheduler.h
src/lte/model/tta-ff-mac-scheduler.cc

Public Member Functions

Static Public Member Functions

Private Member Functions

Private Attributes

Friends

Additional Inherited Members

Detailed Description

Config Paths

Attributes

Attributes defined in parent class ns3::FfMacScheduler

Constructor & Destructor Documentation

Member Function Documentation

Friends And Related Function Documentation

Member Data Documentation
