Base class for UAN Phy models. More...

#include <uan-phy.h>

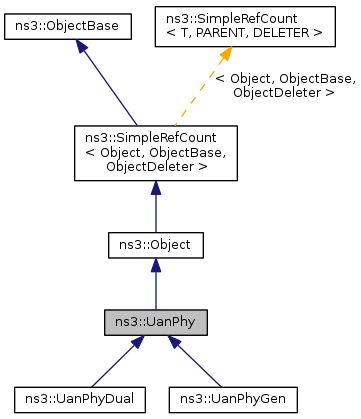

Inheritance diagram for ns3::UanPhy:

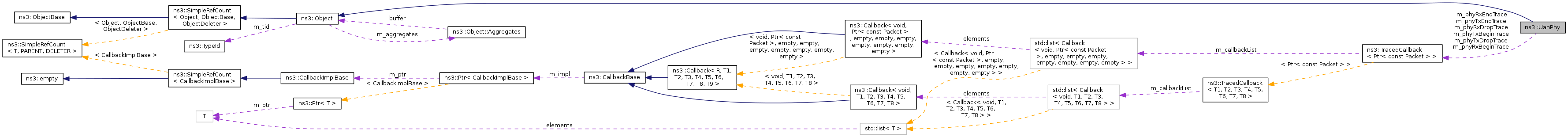

Collaboration diagram for ns3::UanPhy:

Public Types
typedef Callback< void, Ptr < Packet >, double >	RxErrCallback
typedef Callback< void, Ptr < Packet >, double, UanTxMode >	RxOkCallback
enum	State { IDLE, CCABUSY, RX, TX, SLEEP }
	Enum defining possible Phy states. More...

Public Member Functions
virtual int64_t	AssignStreams (int64_t stream)=0
virtual void	Clear (void)=0
virtual void	EnergyDepletionHandler (void)=0
virtual double	GetCcaThresholdDb (void)=0
virtual Ptr< UanChannel >	GetChannel (void) const =0
virtual Ptr< UanNetDevice >	GetDevice (void)=0
virtual UanTxMode	GetMode (uint32_t n)=0
virtual uint32_t	GetNModes (void)=0
virtual Ptr< Packet >	GetPacketRx (void) const =0
virtual double	GetRxGainDb (void)=0
virtual double	GetRxThresholdDb (void)=0
virtual Ptr< UanTransducer >	GetTransducer (void)=0
virtual double	GetTxPowerDb (void)=0
virtual bool	IsStateBusy (void)=0
virtual bool	IsStateCcaBusy (void)=0
virtual bool	IsStateIdle (void)=0
virtual bool	IsStateRx (void)=0
virtual bool	IsStateSleep (void)=0
virtual bool	IsStateTx (void)=0
virtual void	NotifyIntChange (void)=0
void	NotifyRxBegin (Ptr< const Packet > packet)
void	NotifyRxDrop (Ptr< const Packet > packet)
void	NotifyRxEnd (Ptr< const Packet > packet)
virtual void	NotifyTransStartTx (Ptr< Packet > packet, double txPowerDb, UanTxMode txMode)=0
void	NotifyTxBegin (Ptr< const Packet > packet)
void	NotifyTxDrop (Ptr< const Packet > packet)
void	NotifyTxEnd (Ptr< const Packet > packet)
virtual void	RegisterListener (UanPhyListener *listener)=0

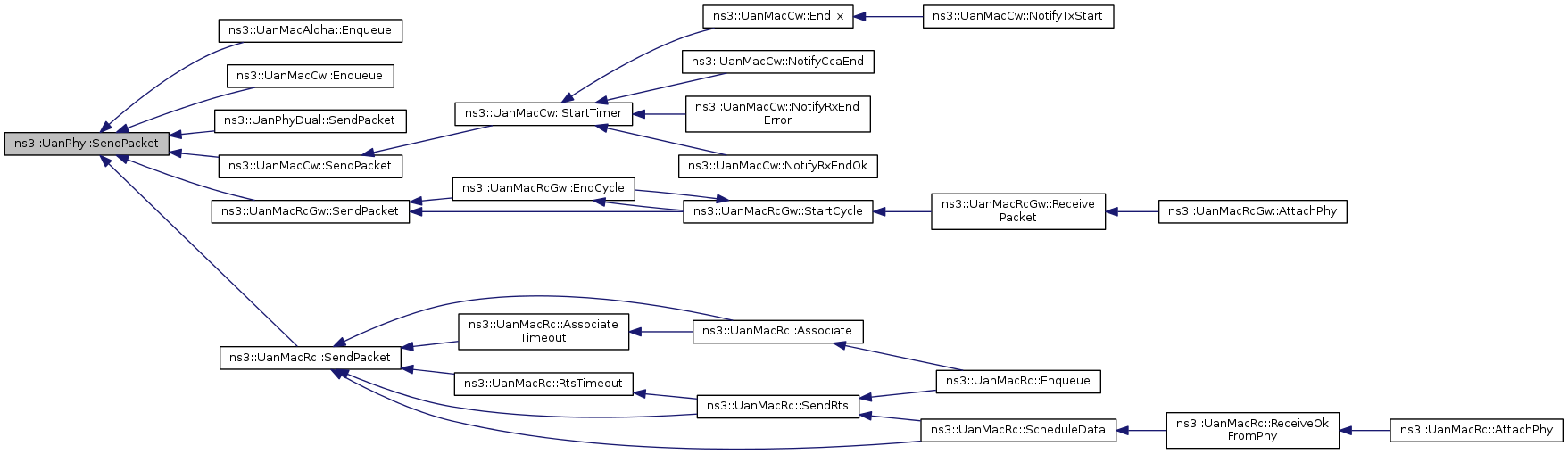

virtual void	SendPacket (Ptr< Packet > pkt, uint32_t modeNum)=0
virtual void	SetCcaThresholdDb (double thresh)=0
virtual void	SetChannel (Ptr< UanChannel > channel)=0

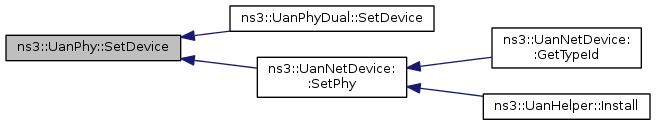

virtual void	SetDevice (Ptr< UanNetDevice > device)=0
virtual void	SetEnergyModelCallback (DeviceEnergyModel::ChangeStateCallback callback)=0

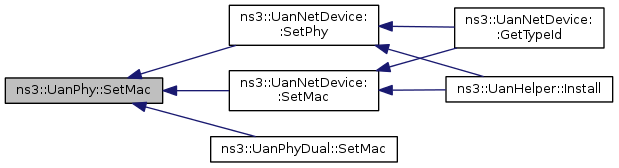

virtual void	SetMac (Ptr< UanMac > mac)=0
virtual void	SetReceiveErrorCallback (RxErrCallback cb)=0

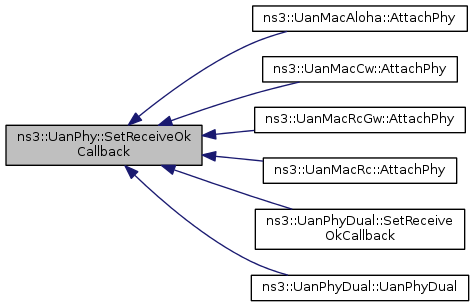

virtual void	SetReceiveOkCallback (RxOkCallback cb)=0
virtual void	SetRxGainDb (double gain)=0
virtual void	SetRxThresholdDb (double thresh)=0
virtual void	SetSleepMode (bool sleep)=0
virtual void	SetTransducer (Ptr< UanTransducer > trans)=0
virtual void	SetTxPowerDb (double txpwr)=0
virtual void	StartRxPacket (Ptr< Packet > pkt, double rxPowerDb, UanTxMode txMode, UanPdp pdp)=0
	Packet arriving from channel: i.e. leading bit of packet has arrived.
Public Member Functions inherited from ns3::Object
	Object ()
virtual	~Object ()
void	AggregateObject (Ptr< Object > other)
void	Dispose (void)
AggregateIterator	GetAggregateIterator (void) const
virtual TypeId	GetInstanceTypeId (void) const
template<typename T >
Ptr< T >	GetObject (void) const
template<typename T >
Ptr< T >	GetObject (TypeId tid) const
void	Initialize (void)
Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	SimpleRefCount (const SimpleRefCount &o)
uint32_t	GetReferenceCount (void) const
SimpleRefCount &	operator= (const SimpleRefCount &o)
void	Ref (void) const
void	Unref (void) const
Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
void	GetAttribute (std::string name, AttributeValue &value) const
bool	GetAttributeFailSafe (std::string name, AttributeValue &attribute) const
void	SetAttribute (std::string name, const AttributeValue &value)
bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)

Static Public Member Functions
static TypeId	GetTypeId (void)

Private Attributes
TracedCallback< Ptr< const Packet > >	m_phyRxBeginTrace
TracedCallback< Ptr< const Packet > >	m_phyRxDropTrace
TracedCallback< Ptr< const Packet > >	m_phyRxEndTrace
TracedCallback< Ptr< const Packet > >	m_phyTxBeginTrace
TracedCallback< Ptr< const Packet > >	m_phyTxDropTrace
TracedCallback< Ptr< const Packet > >	m_phyTxEndTrace

Additional Inherited Members
Protected Member Functions inherited from ns3::Object
	Object (const Object &o)
virtual void	DoDispose (void)
virtual void	DoInitialize (void)
virtual void	NotifyNewAggregate (void)

Detailed Description

Base class for UAN Phy models.

Config Paths

ns3::UanPhy is accessible through the following paths with Config::Set and Config::Connect:

/NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Phy

No Attributes are defined for this type.

TraceSources

PhyTxBegin: Trace source indicating a packet has begun transmitting over the channel medium
PhyTxEnd: Trace source indicating a packet has been completely transmitted over the channel.
PhyTxDrop: Trace source indicating a packet has been dropped by the device during transmission
PhyRxBegin: Trace source indicating a packet has begun being received from the channel medium by the device
PhyRxEnd: Trace source indicating a packet has been completely received from the channel medium by the device
PhyRxDrop: Trace source indicating a packet has been dropped by the device during reception

Definition at line 166 of file uan-phy.h.

Member Typedef Documentation

typedef Callback<void, Ptr<Packet>, double > ns3::UanPhy::RxErrCallback

arg1: packet received successfully arg2: snr of packet

Definition at line 188 of file uan-phy.h.

typedef Callback<void, Ptr<Packet>, double, UanTxMode> ns3::UanPhy::RxOkCallback

arg1: packet received successfully arg2: snr of packet arg3: mode of packet

Definition at line 182 of file uan-phy.h.

Member Enumeration Documentation

enum ns3::UanPhy::State

Enum defining possible Phy states.

Enumerator:

IDLE
CCABUSY
RX
TX
SLEEP

Definition at line 172 of file uan-phy.h.

Member Function Documentation

virtual int64_t ns3::UanPhy::AssignStreams ( int64_t stream )

pure virtual

Assign a fixed random variable stream number to the random variables used by this model. Return the number of streams (possibly zero) that have been assigned.

Parameters

stream first stream index to use

Returns: the number of stream indices assigned by this model

Implemented in ns3::UanPhyDual, and ns3::UanPhyGen.

Referenced by ns3::UanHelper::AssignStreams().

Here is the caller graph for this function:

virtual void ns3::UanPhy::Clear ( void )

pure virtual

Clears all pointer references

Implemented in ns3::UanPhyGen, and ns3::UanPhyDual.

Referenced by ns3::UanMacAloha::Clear(), ns3::UanMacCw::Clear(), ns3::UanMacRcGw::Clear(), ns3::UanNetDevice::Clear(), ns3::UanPhyDual::Clear(), and ns3::UanMacRc::Clear().

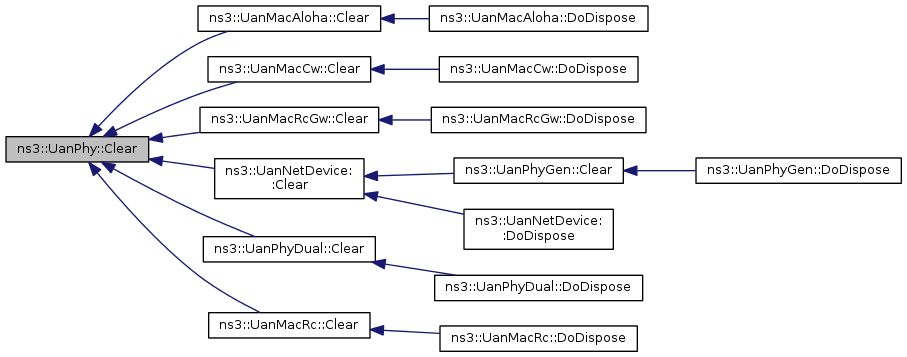

Here is the caller graph for this function:

virtual void ns3::UanPhy::EnergyDepletionHandler ( void )

pure virtual

This function handles the energy depletion event. Must be implemented by UanPhy child classes.

Implemented in ns3::UanPhyGen, and ns3::UanPhyDual.

Referenced by ns3::AcousticModemEnergyModel::HandleEnergyDepletion().

Here is the caller graph for this function:

virtual double ns3::UanPhy::GetCcaThresholdDb ( void )

pure virtual

Returns: Threshold signal strength in dB to enter CCA busy mode

Implemented in ns3::UanPhyGen, and ns3::UanPhyDual.

Referenced by ns3::UanPhyDual::GetCcaThresholdDb(), ns3::UanPhyDual::GetCcaThresholdPhy1(), and ns3::UanPhyDual::GetCcaThresholdPhy2().

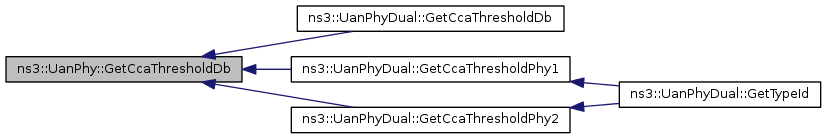

Here is the caller graph for this function:

virtual Ptr<UanChannel> ns3::UanPhy::GetChannel ( void ) const

pure virtual

Returns: Channel this phy is attached to

Implemented in ns3::UanPhyGen, and ns3::UanPhyDual.

Referenced by ns3::UanPhyDual::GetChannel().

Here is the caller graph for this function:

virtual Ptr<UanNetDevice> ns3::UanPhy::GetDevice ( void )

pure virtual

Returns: the Net Device that this Phy is a part of

Implemented in ns3::UanPhyGen, and ns3::UanPhyDual.

Referenced by ns3::UanPhyDual::GetDevice().

Here is the caller graph for this function:

virtual UanTxMode ns3::UanPhy::GetMode ( uint32_t n )

pure virtual

Parameters

n	Mode number of mode to return (place in Modeslist)

Returns: Mode n

Implemented in ns3::UanPhyGen, and ns3::UanPhyDual.

Referenced by ns3::AcousticModemEnergyTestCase::DoRun(), ns3::UanMacRcGw::EndCycle(), ns3::UanPhyDual::GetMode(), ns3::UanPhyDual::RxErrFromSubPhy(), ns3::UanMacRc::ScheduleData(), ns3::UanPhyDual::SendPacket(), ns3::UanMacRc::SendPacket(), and ns3::UanMacRcGw::StartCycle().

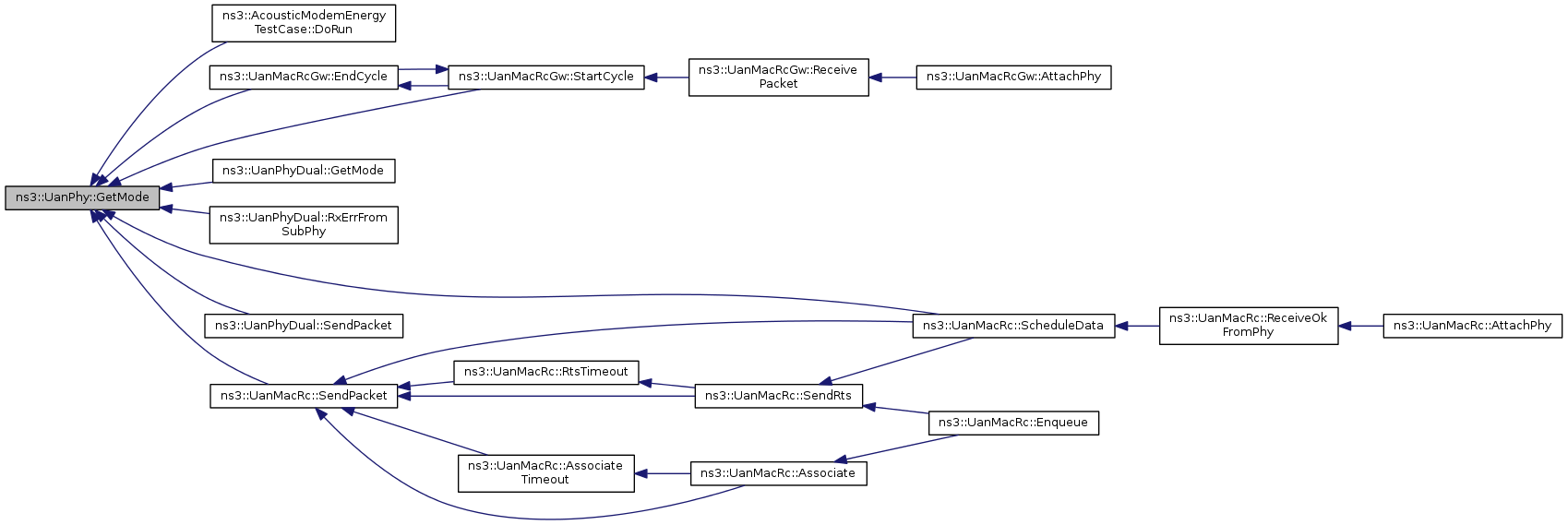

Here is the caller graph for this function:

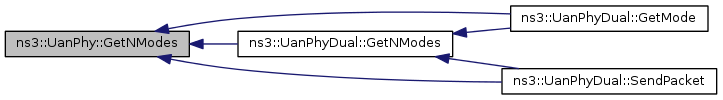

virtual uint32_t ns3::UanPhy::GetNModes ( void )

pure virtual

Returns: Number of TX modes supported by this PHY

Implemented in ns3::UanPhyGen, and ns3::UanPhyDual.

Referenced by ns3::UanPhyDual::GetMode(), ns3::UanPhyDual::GetNModes(), and ns3::UanPhyDual::SendPacket().

Here is the caller graph for this function:

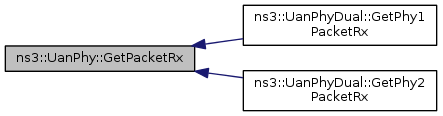

virtual Ptr<Packet> ns3::UanPhy::GetPacketRx ( void ) const

pure virtual

Warning: Returns non-valid pointer if IsStateRx == false

Returns: Packet currently being received in PHY

Implemented in ns3::UanPhyDual, and ns3::UanPhyGen.

Referenced by ns3::UanPhyDual::GetPhy1PacketRx(), and ns3::UanPhyDual::GetPhy2PacketRx().

Here is the caller graph for this function:

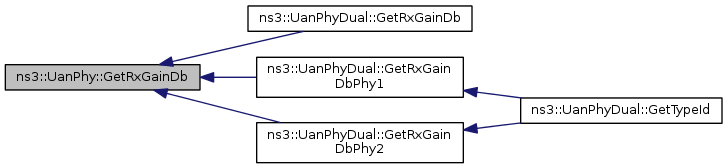

virtual double ns3::UanPhy::GetRxGainDb ( void )

pure virtual

Returns: Gain added to signal at receiver in dB

Implemented in ns3::UanPhyGen, and ns3::UanPhyDual.

Referenced by ns3::UanPhyDual::GetRxGainDb(), ns3::UanPhyDual::GetRxGainDbPhy1(), and ns3::UanPhyDual::GetRxGainDbPhy2().

Here is the caller graph for this function:

virtual double ns3::UanPhy::GetRxThresholdDb ( void )

pure virtual

Returns: Required signal strength, in dB, to begin receiving packet

Implemented in ns3::UanPhyGen, and ns3::UanPhyDual.

Referenced by ns3::UanPhyDual::GetRxThresholdDb().

Here is the caller graph for this function:

virtual Ptr<UanTransducer> ns3::UanPhy::GetTransducer ( void )

pure virtual

Returns: Transducer this Phy outputs to / receives from

Implemented in ns3::UanPhyGen, and ns3::UanPhyDual.

Referenced by ns3::UanMacCw::Enqueue(), and ns3::UanPhyDual::GetTransducer().

Here is the caller graph for this function:

virtual double ns3::UanPhy::GetTxPowerDb ( void )

pure virtual

Returns: Current TX power output

Implemented in ns3::UanPhyGen, and ns3::UanPhyDual.

Referenced by ns3::UanPhyDual::GetTxPowerDb(), ns3::UanPhyDual::GetTxPowerDbPhy1(), ns3::UanPhyDual::GetTxPowerDbPhy2(), and ns3::UanPhyDual::SendPacket().

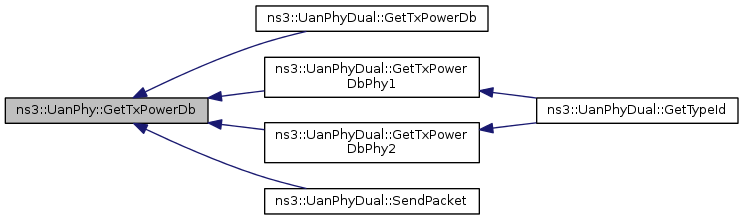

Here is the caller graph for this function:

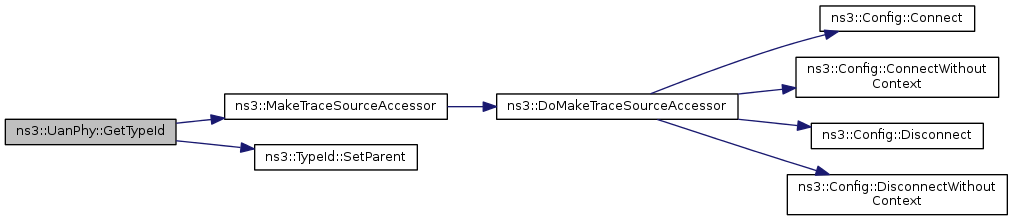

TypeId ns3::UanPhy::GetTypeId ( void )

static

Reimplemented from ns3::Object.

Reimplemented in ns3::UanPhyGen, and ns3::UanPhyDual.

Definition at line 69 of file uan-phy.cc.

References m_phyRxBeginTrace, m_phyRxDropTrace, m_phyRxEndTrace, m_phyTxBeginTrace, m_phyTxDropTrace, m_phyTxEndTrace, ns3::MakeTraceSourceAccessor(), and ns3::TypeId::SetParent().

Here is the call graph for this function:

virtual bool ns3::UanPhy::IsStateBusy ( void )

pure virtual

Returns: True if Phy is not IDLE

Implemented in ns3::UanPhyGen, and ns3::UanPhyDual.

Referenced by ns3::UanMacCw::Enqueue().

Here is the caller graph for this function:

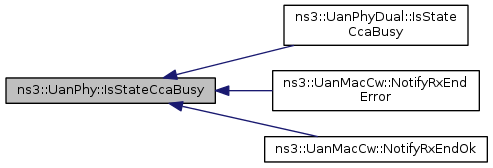

virtual bool ns3::UanPhy::IsStateCcaBusy ( void )

pure virtual

Returns: True if Phy is not TX or RX but the channel is sensed busy

Implemented in ns3::UanPhyGen, and ns3::UanPhyDual.

Referenced by ns3::UanPhyDual::IsStateCcaBusy(), ns3::UanMacCw::NotifyRxEndError(), and ns3::UanMacCw::NotifyRxEndOk().

Here is the caller graph for this function:

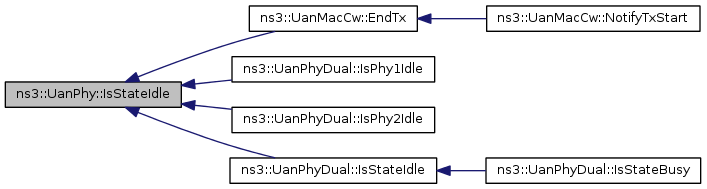

virtual bool ns3::UanPhy::IsStateIdle ( void )

pure virtual

Returns: True if Phy is IDLE

Implemented in ns3::UanPhyGen, and ns3::UanPhyDual.

Referenced by ns3::UanMacCw::EndTx(), ns3::UanPhyDual::IsPhy1Idle(), ns3::UanPhyDual::IsPhy2Idle(), and ns3::UanPhyDual::IsStateIdle().

Here is the caller graph for this function:

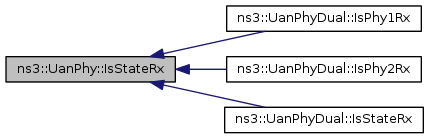

virtual bool ns3::UanPhy::IsStateRx ( void )

pure virtual

Returns: True if Phy is currently in receive mode

Implemented in ns3::UanPhyGen, and ns3::UanPhyDual.

Referenced by ns3::UanPhyDual::IsPhy1Rx(), ns3::UanPhyDual::IsPhy2Rx(), and ns3::UanPhyDual::IsStateRx().

Here is the caller graph for this function:

virtual bool ns3::UanPhy::IsStateSleep ( void )

pure virtual

Returns: True if Phy is SLEEP

Implemented in ns3::UanPhyGen, and ns3::UanPhyDual.

Referenced by ns3::UanPhyDual::IsStateSleep().

Here is the caller graph for this function:

virtual bool ns3::UanPhy::IsStateTx ( void )

pure virtual

Returns: True if Phy is busy transmitting

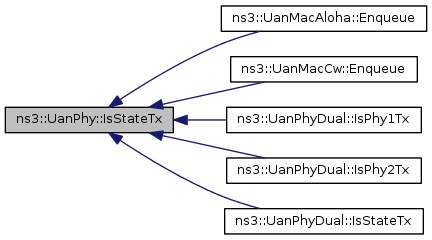

Implemented in ns3::UanPhyGen, and ns3::UanPhyDual.

Referenced by ns3::UanMacAloha::Enqueue(), ns3::UanMacCw::Enqueue(), ns3::UanPhyDual::IsPhy1Tx(), ns3::UanPhyDual::IsPhy2Tx(), and ns3::UanPhyDual::IsStateTx().

Here is the caller graph for this function:

virtual void ns3::UanPhy::NotifyIntChange ( void )

pure virtual

Function called when there has been a change in the ammount of interference this node is experiencing from other transmissions

Implemented in ns3::UanPhyGen, and ns3::UanPhyDual.

Referenced by ns3::UanPhyDual::NotifyIntChange().

Here is the caller graph for this function:

void ns3::UanPhy::NotifyRxBegin ( Ptr< const Packet > packet )

Public method used to fire a PhyRxBegin trace. Implemented for encapsulation purposes.

Definition at line 115 of file uan-phy.cc.

References m_phyRxBeginTrace.

Referenced by ns3::UanPhyGen::StartRxPacket().

Here is the caller graph for this function:

void ns3::UanPhy::NotifyRxDrop ( Ptr< const Packet > packet )

Public method used to fire a PhyRxDrop trace. Implemented for encapsulation purposes.

Definition at line 127 of file uan-phy.cc.

References m_phyRxDropTrace.

Referenced by ns3::UanPhyGen::RxEndEvent(), and ns3::UanPhyGen::StartRxPacket().

Here is the caller graph for this function:

void ns3::UanPhy::NotifyRxEnd ( Ptr< const Packet > packet )

Public method used to fire a PhyRxEnd trace. Implemented for encapsulation purposes.

Definition at line 121 of file uan-phy.cc.

References m_phyRxEndTrace.

Referenced by ns3::UanPhyGen::RxEndEvent().

Here is the caller graph for this function:

virtual void ns3::UanPhy::NotifyTransStartTx	(	Ptr< Packet >	packet,
		double	txPowerDb,
		UanTxMode	txMode
	)

pure virtual

Parameters

packet	Packet that is beginning transmission
txPowerDb	Transmit power of packet
txMode	Transmission mode of packet

Notification that there is a transmission beginning on the transducer that this Phy is attached to.

Implemented in ns3::UanPhyGen, and ns3::UanPhyDual.

void ns3::UanPhy::NotifyTxBegin ( Ptr< const Packet > packet )

Public method used to fire a PhyTxBegin trace. Implemented for encapsulation purposes.

Definition at line 97 of file uan-phy.cc.

References m_phyTxBeginTrace.

Referenced by ns3::UanTransducerHd::Transmit().

Here is the caller graph for this function:

void ns3::UanPhy::NotifyTxDrop ( Ptr< const Packet > packet )

Public method used to fire a PhyTxDrop trace. Implemented for encapsulation purposes.

Definition at line 109 of file uan-phy.cc.

References m_phyTxDropTrace.

Referenced by ns3::UanTransducerHd::Transmit().

Here is the caller graph for this function:

void ns3::UanPhy::NotifyTxEnd ( Ptr< const Packet > packet )

Public method used to fire a PhyTxEnd trace. Implemented for encapsulation purposes.

Definition at line 103 of file uan-phy.cc.

References m_phyTxEndTrace.

Referenced by ns3::UanTransducerHd::Transmit().

Here is the caller graph for this function:

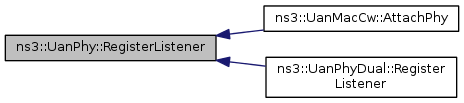

virtual void ns3::UanPhy::RegisterListener ( UanPhyListener * listener )

pure virtual

Parameters

listener New listener to register

Register an object to be notified of common Phy events

Implemented in ns3::UanPhyGen, and ns3::UanPhyDual.

Referenced by ns3::UanMacCw::AttachPhy(), and ns3::UanPhyDual::RegisterListener().

Here is the caller graph for this function:

virtual void ns3::UanPhy::SendPacket	(	Ptr< Packet >	pkt,
		uint32_t	modeNum
	)

pure virtual

Parameters

pkt	Packet to transmit
modeNum	Index of mode in SupportedModes list to use for transmission

Implemented in ns3::UanPhyGen, and ns3::UanPhyDual.

Referenced by ns3::UanMacAloha::Enqueue(), ns3::UanMacCw::Enqueue(), ns3::UanPhyDual::SendPacket(), ns3::UanMacCw::SendPacket(), ns3::UanMacRcGw::SendPacket(), and ns3::UanMacRc::SendPacket().

Here is the caller graph for this function:

virtual void ns3::UanPhy::SetCcaThresholdDb ( double thresh )

pure virtual

Parameters

thresh Signal power at receiver required for CCA busy state

Implemented in ns3::UanPhyGen, and ns3::UanPhyDual.

Referenced by ns3::UanPhyDual::SetCcaThresholdDb(), ns3::UanPhyDual::SetCcaThresholdPhy1(), and ns3::UanPhyDual::SetCcaThresholdPhy2().

Here is the caller graph for this function:

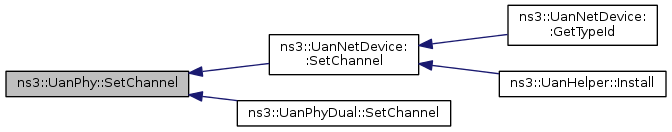

virtual void ns3::UanPhy::SetChannel ( Ptr< UanChannel > channel )

pure virtual

Parameters

channel The channel this Phy is attached to

Implemented in ns3::UanPhyGen, and ns3::UanPhyDual.

Referenced by ns3::UanNetDevice::SetChannel(), and ns3::UanPhyDual::SetChannel().

Here is the caller graph for this function:

virtual void ns3::UanPhy::SetDevice ( Ptr< UanNetDevice > device )

pure virtual

Parameters

device The Net Device this Phy is a part of

Implemented in ns3::UanPhyGen, and ns3::UanPhyDual.

Referenced by ns3::UanPhyDual::SetDevice(), and ns3::UanNetDevice::SetPhy().

Here is the caller graph for this function:

virtual void ns3::UanPhy::SetEnergyModelCallback ( DeviceEnergyModel::ChangeStateCallback callback )

pure virtual

Parameters

callback DeviceEnergyModel change state callback.

This function sets the DeviceEnergyModel callback for UanPhy device. Must be implemented by UanPhy child classes.

Implemented in ns3::UanPhyGen, and ns3::UanPhyDual.

virtual void ns3::UanPhy::SetMac ( Ptr< UanMac > mac )

pure virtual

Parameters

mac	The MAC forwarding messages to this Phy

Implemented in ns3::UanPhyGen, and ns3::UanPhyDual.

Referenced by ns3::UanNetDevice::SetMac(), ns3::UanPhyDual::SetMac(), and ns3::UanNetDevice::SetPhy().

Here is the caller graph for this function:

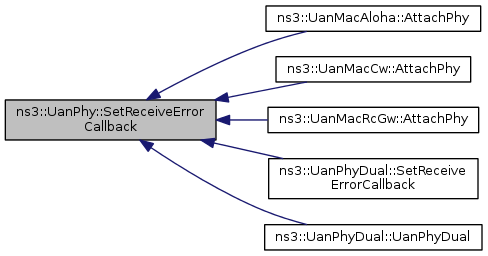

virtual void ns3::UanPhy::SetReceiveErrorCallback ( RxErrCallback cb )

pure virtual

Parameters

cb	Callback to be enabled when a packet is received with errors

Implemented in ns3::UanPhyGen.

Referenced by ns3::UanMacAloha::AttachPhy(), ns3::UanMacCw::AttachPhy(), ns3::UanMacRcGw::AttachPhy(), ns3::UanPhyDual::SetReceiveErrorCallback(), and ns3::UanPhyDual::UanPhyDual().

Here is the caller graph for this function:

virtual void ns3::UanPhy::SetReceiveOkCallback ( RxOkCallback cb )

pure virtual

Parameters

cb	Callback to be enabled when packet is received without error

Implemented in ns3::UanPhyGen.

Referenced by ns3::UanMacAloha::AttachPhy(), ns3::UanMacCw::AttachPhy(), ns3::UanMacRcGw::AttachPhy(), ns3::UanMacRc::AttachPhy(), ns3::UanPhyDual::SetReceiveOkCallback(), and ns3::UanPhyDual::UanPhyDual().

Here is the caller graph for this function:

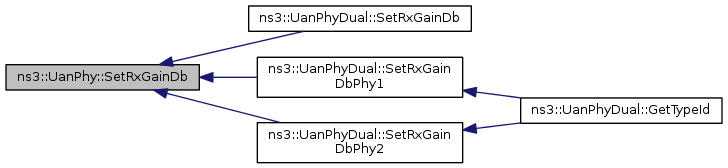

virtual void ns3::UanPhy::SetRxGainDb ( double gain )

pure virtual

Parameters

gain	Gain added at receiver

Implemented in ns3::UanPhyGen, and ns3::UanPhyDual.

Referenced by ns3::UanPhyDual::SetRxGainDb(), ns3::UanPhyDual::SetRxGainDbPhy1(), and ns3::UanPhyDual::SetRxGainDbPhy2().

Here is the caller graph for this function:

virtual void ns3::UanPhy::SetRxThresholdDb ( double thresh )

pure virtual

Parameters

thresh Threshold SINR for propper reception in dB

Implemented in ns3::UanPhyGen, and ns3::UanPhyDual.

Referenced by ns3::UanPhyDual::SetRxThresholdDb().

Here is the caller graph for this function:

virtual void ns3::UanPhy::SetSleepMode ( bool sleep )

pure virtual

Implemented in ns3::UanPhyDual, and ns3::UanPhyGen.

Referenced by ns3::UanNetDevice::SetSleepMode().

Here is the caller graph for this function:

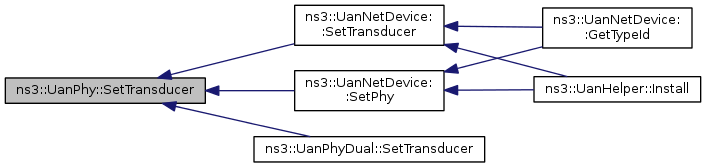

virtual void ns3::UanPhy::SetTransducer ( Ptr< UanTransducer > trans )

pure virtual

Parameters

trans Transducer this Phy outputs to / receives from

Implemented in ns3::UanPhyGen, and ns3::UanPhyDual.

Referenced by ns3::UanNetDevice::SetPhy(), ns3::UanNetDevice::SetTransducer(), and ns3::UanPhyDual::SetTransducer().

Here is the caller graph for this function:

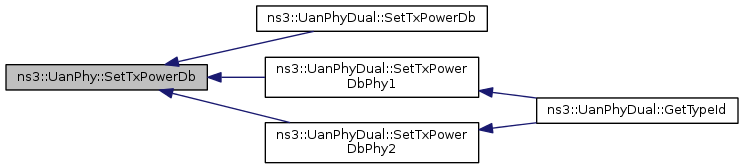

virtual void ns3::UanPhy::SetTxPowerDb ( double txpwr )

pure virtual

Parameters

txpwr Final output transmission power in dB

Implemented in ns3::UanPhyGen, and ns3::UanPhyDual.

Referenced by ns3::UanPhyDual::SetTxPowerDb(), ns3::UanPhyDual::SetTxPowerDbPhy1(), and ns3::UanPhyDual::SetTxPowerDbPhy2().

Here is the caller graph for this function:

virtual void ns3::UanPhy::StartRxPacket	(	Ptr< Packet >	pkt,
		double	rxPowerDb,
		UanTxMode	txMode,
		UanPdp	pdp
	)

pure virtual

Packet arriving from channel: i.e. leading bit of packet has arrived.

Parameters

pkt	Packet which is arriving
rxPowerDb	Signal power of incoming packet in dB
txMode	Transmission mode defining modulation of incoming packet
pdp	Power delay profile of incoming packet

Implemented in ns3::UanPhyGen, and ns3::UanPhyDual.

Member Data Documentation

TracedCallback<Ptr<const Packet> > ns3::UanPhy::m_phyRxBeginTrace

private

The trace source fired when a packet begins the reception process from the medium.

See Also: class CallBackTraceSource

Definition at line 463 of file uan-phy.h.

Referenced by GetTypeId(), and NotifyRxBegin().

TracedCallback<Ptr<const Packet> > ns3::UanPhy::m_phyRxDropTrace

private

The trace source fired when the phy layer drops a packet it has received.

See Also: class CallBackTraceSource

Definition at line 478 of file uan-phy.h.

Referenced by GetTypeId(), and NotifyRxDrop().

TracedCallback<Ptr<const Packet> > ns3::UanPhy::m_phyRxEndTrace

private

The trace source fired when a packet ends the reception process from the medium.

See Also: class CallBackTraceSource

Definition at line 471 of file uan-phy.h.

Referenced by GetTypeId(), and NotifyRxEnd().

TracedCallback<Ptr<const Packet> > ns3::UanPhy::m_phyTxBeginTrace

private

The trace source fired when a packet begins the transmission process on the medium.

See Also: class CallBackTraceSource

Definition at line 439 of file uan-phy.h.

Referenced by GetTypeId(), and NotifyTxBegin().

TracedCallback<Ptr<const Packet> > ns3::UanPhy::m_phyTxDropTrace

private

The trace source fired when the phy layer drops a packet as it tries to transmit it.

See Also: class CallBackTraceSource

Definition at line 455 of file uan-phy.h.

Referenced by GetTypeId(), and NotifyTxDrop().

TracedCallback<Ptr<const Packet> > ns3::UanPhy::m_phyTxEndTrace

private

The trace source fired when a packet ends the transmission process on the medium.

See Also: class CallBackTraceSource

Definition at line 447 of file uan-phy.h.

Referenced by GetTypeId(), and NotifyTxEnd().

The documentation for this class was generated from the following files:

src/uan/model/uan-phy.h
src/uan/model/uan-phy.cc

Public Types

Public Member Functions

Static Public Member Functions

Private Attributes

Additional Inherited Members

Detailed Description

Config Paths

TraceSources

Member Typedef Documentation

Member Enumeration Documentation

Member Function Documentation

Member Data Documentation
