#include <uan-phy-dual.h>

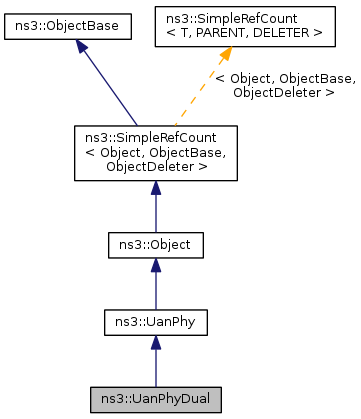

Inheritance diagram for ns3::UanPhyDual:

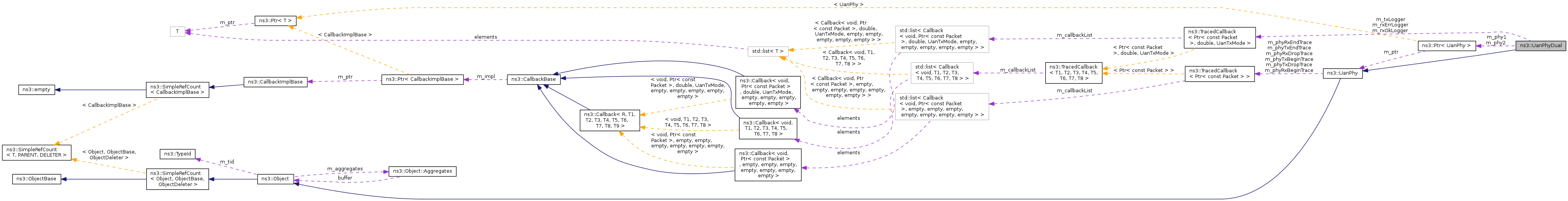

Collaboration diagram for ns3::UanPhyDual:

Public Member Functions
	UanPhyDual ()
virtual	~UanPhyDual ()
int64_t	AssignStreams (int64_t stream)
virtual void	Clear (void)
virtual void	EnergyDepletionHandler (void)
virtual double	GetCcaThresholdDb (void)
double	GetCcaThresholdPhy1 (void) const
double	GetCcaThresholdPhy2 (void) const
virtual Ptr< UanChannel >	GetChannel (void) const
virtual Ptr< UanNetDevice >	GetDevice (void)
virtual UanTxMode	GetMode (uint32_t n)
UanModesList	GetModesPhy1 (void) const
UanModesList	GetModesPhy2 (void) const
virtual uint32_t	GetNModes (void)
Ptr< Packet >	GetPacketRx (void) const
Ptr< UanPhyPer >	GetPerModelPhy1 (void) const
Ptr< UanPhyPer >	GetPerModelPhy2 (void) const
Ptr< Packet >	GetPhy1PacketRx (void) const
Ptr< Packet >	GetPhy2PacketRx (void) const
virtual double	GetRxGainDb (void)
double	GetRxGainDbPhy1 (void) const
double	GetRxGainDbPhy2 (void) const
virtual double	GetRxThresholdDb (void)
Ptr< UanPhyCalcSinr >	GetSinrModelPhy1 (void) const
Ptr< UanPhyCalcSinr >	GetSinrModelPhy2 (void) const
virtual Ptr< UanTransducer >	GetTransducer (void)
virtual double	GetTxPowerDb (void)
double	GetTxPowerDbPhy1 (void) const
double	GetTxPowerDbPhy2 (void) const
bool	IsPhy1Idle (void)
bool	IsPhy1Rx (void)
bool	IsPhy1Tx (void)
bool	IsPhy2Idle (void)
bool	IsPhy2Rx (void)
bool	IsPhy2Tx (void)
virtual bool	IsStateBusy (void)
virtual bool	IsStateCcaBusy (void)
virtual bool	IsStateIdle (void)
virtual bool	IsStateRx (void)
virtual bool	IsStateSleep (void)
virtual bool	IsStateTx (void)
virtual void	NotifyIntChange (void)
virtual void	NotifyTransStartTx (Ptr< Packet > packet, double txPowerDb, UanTxMode txMode)
virtual void	RegisterListener (UanPhyListener *listener)
	Register a class to receive phy state change notifications.
virtual void	SendPacket (Ptr< Packet > pkt, uint32_t modeNum)
virtual void	SetCcaThresholdDb (double thresh)
void	SetCcaThresholdPhy1 (double thresh)
void	SetCcaThresholdPhy2 (double thresh)
virtual void	SetChannel (Ptr< UanChannel > channel)
virtual void	SetDevice (Ptr< UanNetDevice > device)
virtual void	SetEnergyModelCallback (DeviceEnergyModel::ChangeStateCallback callback)
virtual void	SetMac (Ptr< UanMac > mac)
void	SetModesPhy1 (UanModesList modes)
void	SetModesPhy2 (UanModesList modes)
void	SetPerModelPhy1 (Ptr< UanPhyPer > per)
void	SetPerModelPhy2 (Ptr< UanPhyPer > per)
virtual void	SetReceiveErrorCallback (RxErrCallback cb)
virtual void	SetReceiveOkCallback (RxOkCallback cb)
virtual void	SetRxGainDb (double gain)
void	SetRxGainDbPhy1 (double gain)
void	SetRxGainDbPhy2 (double gain)
virtual void	SetRxThresholdDb (double thresh)
void	SetSinrModelPhy1 (Ptr< UanPhyCalcSinr > calcSinr)
void	SetSinrModelPhy2 (Ptr< UanPhyCalcSinr > calcSinr)
virtual void	SetSleepMode (bool sleep)
virtual void	SetTransducer (Ptr< UanTransducer > trans)
virtual void	SetTxPowerDb (double txpwr)
void	SetTxPowerDbPhy1 (double)
void	SetTxPowerDbPhy2 (double)
virtual void	StartRxPacket (Ptr< Packet > pkt, double rxPowerDb, UanTxMode txMode, UanPdp pdp)
	Packet arriving from channel: i.e. leading bit of packet has arrived.
Public Member Functions inherited from ns3::UanPhy
void	NotifyRxBegin (Ptr< const Packet > packet)
void	NotifyRxDrop (Ptr< const Packet > packet)
void	NotifyRxEnd (Ptr< const Packet > packet)
void	NotifyTxBegin (Ptr< const Packet > packet)
void	NotifyTxDrop (Ptr< const Packet > packet)
void	NotifyTxEnd (Ptr< const Packet > packet)
virtual void	SetReceiveErrorCallback (RxErrCallback cb)=0
virtual void	SetReceiveOkCallback (RxOkCallback cb)=0
Public Member Functions inherited from ns3::Object
	Object ()
virtual	~Object ()
void	AggregateObject (Ptr< Object > other)
void	Dispose (void)
AggregateIterator	GetAggregateIterator (void) const
virtual TypeId	GetInstanceTypeId (void) const
template<typename T >
Ptr< T >	GetObject (void) const
template<typename T >
Ptr< T >	GetObject (TypeId tid) const
void	Initialize (void)
Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	SimpleRefCount (const SimpleRefCount &o)
uint32_t	GetReferenceCount (void) const
SimpleRefCount &	operator= (const SimpleRefCount &o)
void	Ref (void) const
void	Unref (void) const
Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
void	GetAttribute (std::string name, AttributeValue &value) const
bool	GetAttributeFailSafe (std::string name, AttributeValue &attribute) const
void	SetAttribute (std::string name, const AttributeValue &value)
bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)

Static Public Member Functions
static TypeId	GetTypeId ()

Protected Member Functions
virtual void	DoDispose ()

Private Member Functions
void	RxErrFromSubPhy (Ptr< Packet > pkt, double sinr)
void	RxOkFromSubPhy (Ptr< Packet > pkt, double sinr, UanTxMode mode)

Private Attributes
Ptr< UanPhy >	m_phy1
Ptr< UanPhy >	m_phy2
RxErrCallback	m_recErrCb
RxOkCallback	m_recOkCb
TracedCallback< Ptr< const Packet >, double, UanTxMode >	m_rxErrLogger
TracedCallback< Ptr< const Packet >, double, UanTxMode >	m_rxOkLogger
TracedCallback< Ptr< const Packet >, double, UanTxMode >	m_txLogger

Additional Inherited Members
Public Types inherited from ns3::UanPhy
typedef Callback< void, Ptr < Packet >, double >	RxErrCallback
typedef Callback< void, Ptr < Packet >, double, UanTxMode >	RxOkCallback
enum	State { IDLE, CCABUSY, RX, TX, SLEEP }
	Enum defining possible Phy states. More...

Detailed Description

Config Paths

ns3::UanPhyDual is accessible through the following paths with Config::Set and Config::Connect:

/NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Phy/$ns3::UanPhyDual

Attributes

CcaThresholdPhy1: Aggregate energy of incoming signals to move to CCA Busy state dB of Phy1
- Set with class: ns3::DoubleValue
- Underlying type: double -1.79769e+308:1.79769e+308
- Initial value: 10
- Flags: construct write read
CcaThresholdPhy2: Aggregate energy of incoming signals to move to CCA Busy state dB of Phy2
- Set with class: ns3::DoubleValue
- Underlying type: double -1.79769e+308:1.79769e+308
- Initial value: 10
- Flags: construct write read
TxPowerPhy1: Transmission output power in dB of Phy1
- Set with class: ns3::DoubleValue
- Underlying type: double -1.79769e+308:1.79769e+308
- Initial value: 190
- Flags: construct write read
TxPowerPhy2: Transmission output power in dB of Phy2
- Set with class: ns3::DoubleValue
- Underlying type: double -1.79769e+308:1.79769e+308
- Initial value: 190
- Flags: construct write read
RxGainPhy1: Gain added to incoming signal at receiver of Phy1
- Set with class: ns3::DoubleValue
- Underlying type: double -1.79769e+308:1.79769e+308
- Initial value: 0
- Flags: construct write read
RxGainPhy2: Gain added to incoming signal at receiver of Phy2
- Set with class: ns3::DoubleValue
- Underlying type: double -1.79769e+308:1.79769e+308
- Initial value: 0
- Flags: construct write read
SupportedModesPhy1: List of modes supported by Phy1
- Set with class: UanModesListValue
- Underlying type: UanModesList
- Initial value: 2|0|1|
- Flags: construct write read
SupportedModesPhy2: List of modes supported by Phy2
- Set with class: UanModesListValue
- Underlying type: UanModesList
- Initial value: 2|0|1|
- Flags: construct write read
PerModelPhy1: Functor to calculate PER based on SINR and TxMode for Phy1
- Set with class: ns3::PointerValue
- Underlying type: ns3::Ptr< ns3::UanPhyPer >
- Initial value: 0xa28c10
- Flags: construct write read
PerModelPhy2: Functor to calculate PER based on SINR and TxMode for Phy2
- Set with class: ns3::PointerValue
- Underlying type: ns3::Ptr< ns3::UanPhyPer >
- Initial value: 0xa28ad0
- Flags: construct write read
SinrModelPhy1: Functor to calculate SINR based on pkt arrivals and modes for Phy1
- Set with class: ns3::PointerValue
- Underlying type: ns3::Ptr< ns3::UanPhyCalcSinr >
- Initial value: 0xa28980
- Flags: construct write read
SinrModelPhy2: Functor to calculate SINR based on pkt arrivals and modes for Phy2
- Set with class: ns3::PointerValue
- Underlying type: ns3::Ptr< ns3::UanPhyCalcSinr >
- Initial value: 0xa287d0
- Flags: construct write read

TraceSources

RxOk: A packet was received successfully
RxError: A packet was received unsuccessfully
Tx: Packet transmission beginning

TraceSources defined in parent class ns3::UanPhy

PhyTxBegin: Trace source indicating a packet has begun transmitting over the channel medium
PhyTxEnd: Trace source indicating a packet has been completely transmitted over the channel.
PhyTxDrop: Trace source indicating a packet has been dropped by the device during transmission
PhyRxBegin: Trace source indicating a packet has begun being received from the channel medium by the device
PhyRxEnd: Trace source indicating a packet has been completely received from the channel medium by the device
PhyRxDrop: Trace source indicating a packet has been dropped by the device during reception

A class that wraps two generic UAN Phy layers (UanPhyGen) into a single PHY. This is used to simulate two receivers (and transmitters) that use the same front end hardware. When attached to a UanTransducerHd, this results in a net device able to transmit on one or two channels simultaneously or receive on one or two channels simultaneously but that cannot transmit and receive simultaneously.

Many of the standard PHY functions here become ambiguous. In most cases information for "Phy1" are returned.

Definition at line 72 of file uan-phy-dual.h.

Constructor & Destructor Documentation

ns3::UanPhyDual::UanPhyDual ( )

Definition at line 116 of file uan-phy-dual.cc.

References m_phy1, m_phy2, m_recErrCb, m_recOkCb, ns3::UanPhy::SetReceiveErrorCallback(), and ns3::UanPhy::SetReceiveOkCallback().

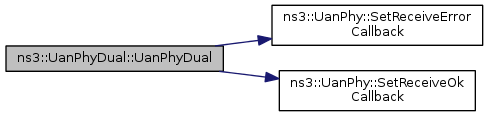

Here is the call graph for this function:

ns3::UanPhyDual::~UanPhyDual ( )

virtual

Definition at line 131 of file uan-phy-dual.cc.

Member Function Documentation

int64_t ns3::UanPhyDual::AssignStreams ( int64_t stream )

virtual

Assign a fixed random variable stream number to the random variables used by this model. Return the number of streams (possibly zero) that have been assigned.

Parameters

stream first stream index to use

Returns: the number of stream indices assigned by this model

Implements ns3::UanPhy.

Definition at line 667 of file uan-phy-dual.cc.

References NS_LOG_FUNCTION.

void ns3::UanPhyDual::Clear ( void )

virtual

Clears all pointer references

Implements ns3::UanPhy.

Definition at line 136 of file uan-phy-dual.cc.

References ns3::UanPhy::Clear(), m_phy1, and m_phy2.

Referenced by DoDispose().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::UanPhyDual::DoDispose ( void )

protectedvirtual

This method is called by Object::Dispose or by the object's destructor, whichever comes first.

Subclasses are expected to implement their real destruction code in an overriden version of this method and chain up to their parent's implementation once they are done. i.e., for simplicity, the destructor of every subclass should be empty and its content should be moved to the associated DoDispose method.

It is safe to call GetObject from within this method.

Reimplemented from ns3::Object.

Definition at line 150 of file uan-phy-dual.cc.

References Clear().

Here is the call graph for this function:

void ns3::UanPhyDual::EnergyDepletionHandler ( void )

virtual

This function handles the energy depletion event. Must be implemented by UanPhy child classes.

Implements ns3::UanPhy.

Definition at line 244 of file uan-phy-dual.cc.

References NS_LOG_DEBUG.

double ns3::UanPhyDual::GetCcaThresholdDb ( void )

virtual

Returns: Threshold signal strength in dB to enter CCA busy mode

Implements ns3::UanPhy.

Definition at line 397 of file uan-phy-dual.cc.

References ns3::UanPhy::GetCcaThresholdDb(), m_phy1, and NS_LOG_WARN.

Here is the call graph for this function:

double ns3::UanPhyDual::GetCcaThresholdPhy1 ( void ) const

Returns: Clear channel assessment threshold of Phy1

Definition at line 403 of file uan-phy-dual.cc.

References ns3::UanPhy::GetCcaThresholdDb(), and m_phy1.

Referenced by GetTypeId().

Here is the call graph for this function:

Here is the caller graph for this function:

double ns3::UanPhyDual::GetCcaThresholdPhy2 ( void ) const

Returns: Clear channel assessment threshold of Phy2

Definition at line 408 of file uan-phy-dual.cc.

References ns3::UanPhy::GetCcaThresholdDb(), and m_phy2.

Referenced by GetTypeId().

Here is the call graph for this function:

Here is the caller graph for this function:

Ptr< UanChannel > ns3::UanPhyDual::GetChannel ( void ) const

virtual

Returns: Channel this phy is attached to

Implements ns3::UanPhy.

Definition at line 490 of file uan-phy-dual.cc.

References ns3::UanPhy::GetChannel(), and m_phy1.

Here is the call graph for this function:

Ptr< UanNetDevice > ns3::UanPhyDual::GetDevice ( void )

virtual

Returns: the Net Device that this Phy is a part of

Implements ns3::UanPhy.

Definition at line 495 of file uan-phy-dual.cc.

References ns3::UanPhy::GetDevice(), and m_phy1.

Here is the call graph for this function:

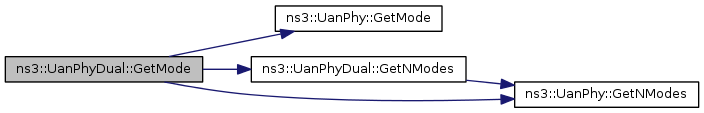

UanTxMode ns3::UanPhyDual::GetMode ( uint32_t n )

virtual

Parameters

n	Mode number of mode to return (place in Modeslist)

Returns: Mode n

Implements ns3::UanPhy.

Definition at line 547 of file uan-phy-dual.cc.

References ns3::UanPhy::GetMode(), GetNModes(), ns3::UanPhy::GetNModes(), m_phy1, and m_phy2.

Here is the call graph for this function:

UanModesList ns3::UanPhyDual::GetModesPhy1 ( void ) const

Returns: List of available modes on Phy1

Definition at line 560 of file uan-phy-dual.cc.

References ns3::ObjectBase::GetAttribute(), and m_phy1.

Referenced by GetTypeId().

Here is the call graph for this function:

Here is the caller graph for this function:

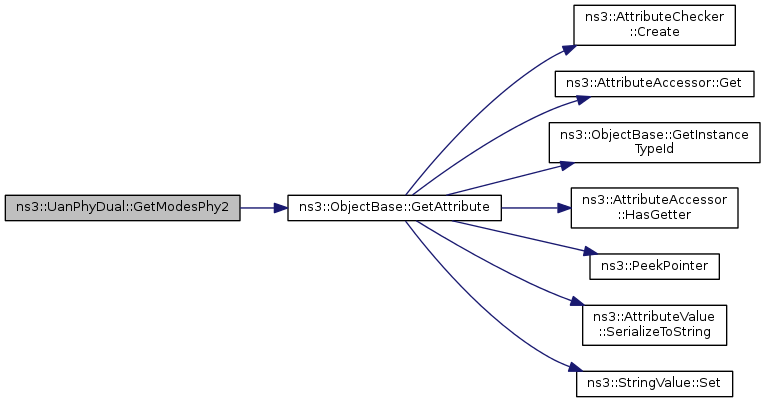

UanModesList ns3::UanPhyDual::GetModesPhy2 ( void ) const

Returns: List of available modes on Phy2

Definition at line 569 of file uan-phy-dual.cc.

References ns3::ObjectBase::GetAttribute(), and m_phy2.

Referenced by GetTypeId().

Here is the call graph for this function:

Here is the caller graph for this function:

uint32_t ns3::UanPhyDual::GetNModes ( void )

virtual

Returns: Number of TX modes supported by this PHY

Implements ns3::UanPhy.

Definition at line 542 of file uan-phy-dual.cc.

References ns3::UanPhy::GetNModes(), m_phy1, and m_phy2.

Referenced by GetMode(), and SendPacket().

Here is the call graph for this function:

Here is the caller graph for this function:

Ptr< Packet > ns3::UanPhyDual::GetPacketRx ( void ) const

virtual

Returns: Packet currenty being received on Phy1 (Null Ptr if none)

Implements ns3::UanPhy.

Definition at line 660 of file uan-phy-dual.cc.

References NS_FATAL_ERROR.

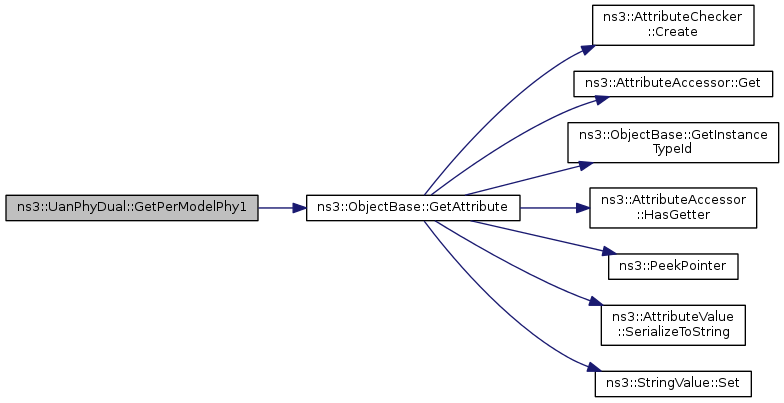

Ptr< UanPhyPer > ns3::UanPhyDual::GetPerModelPhy1 ( void ) const

Returns: Ptr to PER model for Phy1

Definition at line 589 of file uan-phy-dual.cc.

References ns3::ObjectBase::GetAttribute(), and m_phy1.

Referenced by GetTypeId().

Here is the call graph for this function:

Here is the caller graph for this function:

Ptr< UanPhyPer > ns3::UanPhyDual::GetPerModelPhy2 ( void ) const

Returns: Ptr to PER model for Phy2

Definition at line 597 of file uan-phy-dual.cc.

References ns3::ObjectBase::GetAttribute(), and m_phy2.

Referenced by GetTypeId().

Here is the call graph for this function:

Here is the caller graph for this function:

Ptr< Packet > ns3::UanPhyDual::GetPhy1PacketRx ( void ) const

Returns: Packet currently being received on Phy1 (Null Ptr if none)

Definition at line 443 of file uan-phy-dual.cc.

References ns3::UanPhy::GetPacketRx(), and m_phy1.

Here is the call graph for this function:

Ptr< Packet > ns3::UanPhyDual::GetPhy2PacketRx ( void ) const

Returns: Packet currently being received on Phy2 (Null Ptr if none)

Definition at line 449 of file uan-phy-dual.cc.

References ns3::UanPhy::GetPacketRx(), and m_phy2.

Here is the call graph for this function:

double ns3::UanPhyDual::GetRxGainDb ( void )

virtual

Returns: Gain added to signal at receiver in dB

Implements ns3::UanPhy.

Definition at line 355 of file uan-phy-dual.cc.

References ns3::UanPhy::GetRxGainDb(), m_phy1, and NS_LOG_WARN.

Here is the call graph for this function:

double ns3::UanPhyDual::GetRxGainDbPhy1 ( void ) const

Returns: RX gain of Phy1 in dB

Definition at line 361 of file uan-phy-dual.cc.

References ns3::UanPhy::GetRxGainDb(), and m_phy1.

Referenced by GetTypeId().

Here is the call graph for this function:

Here is the caller graph for this function:

double ns3::UanPhyDual::GetRxGainDbPhy2 ( void ) const

Returns: RX gain of Phy2 in dB

Definition at line 366 of file uan-phy-dual.cc.

References ns3::UanPhy::GetRxGainDb(), and m_phy2.

Referenced by GetTypeId().

Here is the call graph for this function:

Here is the caller graph for this function:

double ns3::UanPhyDual::GetRxThresholdDb ( void )

virtual

Returns: Required signal strength, in dB, to begin receiving packet

Implements ns3::UanPhy.

Definition at line 391 of file uan-phy-dual.cc.

References ns3::UanPhy::GetRxThresholdDb(), and m_phy1.

Here is the call graph for this function:

Ptr< UanPhyCalcSinr > ns3::UanPhyDual::GetSinrModelPhy1 ( void ) const

Returns: Ptr to SINR model for Phy1

Definition at line 617 of file uan-phy-dual.cc.

References ns3::ObjectBase::GetAttribute(), and m_phy1.

Referenced by GetTypeId().

Here is the call graph for this function:

Here is the caller graph for this function:

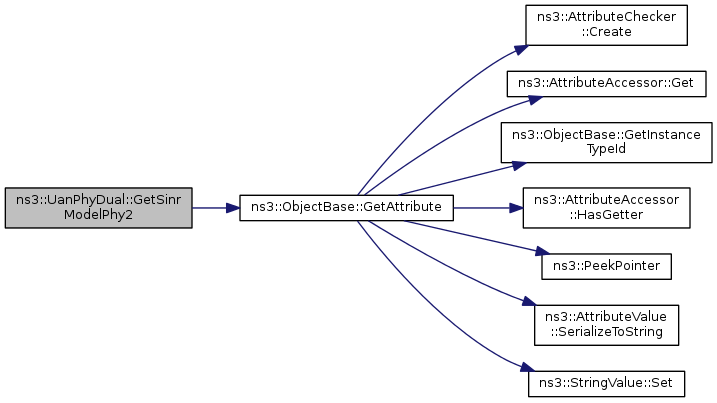

Ptr< UanPhyCalcSinr > ns3::UanPhyDual::GetSinrModelPhy2 ( void ) const

Returns: Ptr to SINR model for Phy2

Definition at line 625 of file uan-phy-dual.cc.

References ns3::ObjectBase::GetAttribute(), and m_phy2.

Referenced by GetTypeId().

Here is the call graph for this function:

Here is the caller graph for this function:

Ptr< UanTransducer > ns3::UanPhyDual::GetTransducer ( void )

virtual

Returns: Transducer this Phy outputs to / receives from

Implements ns3::UanPhy.

Definition at line 536 of file uan-phy-dual.cc.

References ns3::UanPhy::GetTransducer(), m_phy1, and NS_LOG_WARN.

Here is the call graph for this function:

double ns3::UanPhyDual::GetTxPowerDb ( void )

virtual

Returns: Current TX power output

Implements ns3::UanPhy.

Definition at line 372 of file uan-phy-dual.cc.

References ns3::UanPhy::GetTxPowerDb(), m_phy1, and NS_LOG_WARN.

Here is the call graph for this function:

double ns3::UanPhyDual::GetTxPowerDbPhy1 ( void ) const

Returns: Current TX power setting of Phy 1 in dB

Definition at line 379 of file uan-phy-dual.cc.

References ns3::UanPhy::GetTxPowerDb(), and m_phy1.

Referenced by GetTypeId().

Here is the call graph for this function:

Here is the caller graph for this function:

double ns3::UanPhyDual::GetTxPowerDbPhy2 ( void ) const

Returns: Current TX power setting of Phy 2 in dB

Definition at line 385 of file uan-phy-dual.cc.

References ns3::UanPhy::GetTxPowerDb(), and m_phy2.

Referenced by GetTypeId().

Here is the call graph for this function:

Here is the caller graph for this function:

TypeId ns3::UanPhyDual::GetTypeId ( void )

static

Reimplemented from ns3::UanPhy.

Definition at line 157 of file uan-phy-dual.cc.

References GetCcaThresholdPhy1(), GetCcaThresholdPhy2(), ns3::UanPhyGen::GetDefaultModes(), GetModesPhy1(), GetModesPhy2(), GetPerModelPhy1(), GetPerModelPhy2(), GetRxGainDbPhy1(), GetRxGainDbPhy2(), GetSinrModelPhy1(), GetSinrModelPhy2(), GetTxPowerDbPhy1(), GetTxPowerDbPhy2(), m_rxErrLogger, m_rxOkLogger, m_txLogger, ns3::MakeTraceSourceAccessor(), SetCcaThresholdPhy1(), SetCcaThresholdPhy2(), SetModesPhy1(), SetModesPhy2(), ns3::TypeId::SetParent(), SetPerModelPhy1(), SetPerModelPhy2(), SetRxGainDbPhy1(), SetRxGainDbPhy2(), SetSinrModelPhy1(), SetSinrModelPhy2(), SetTxPowerDbPhy1(), and SetTxPowerDbPhy2().

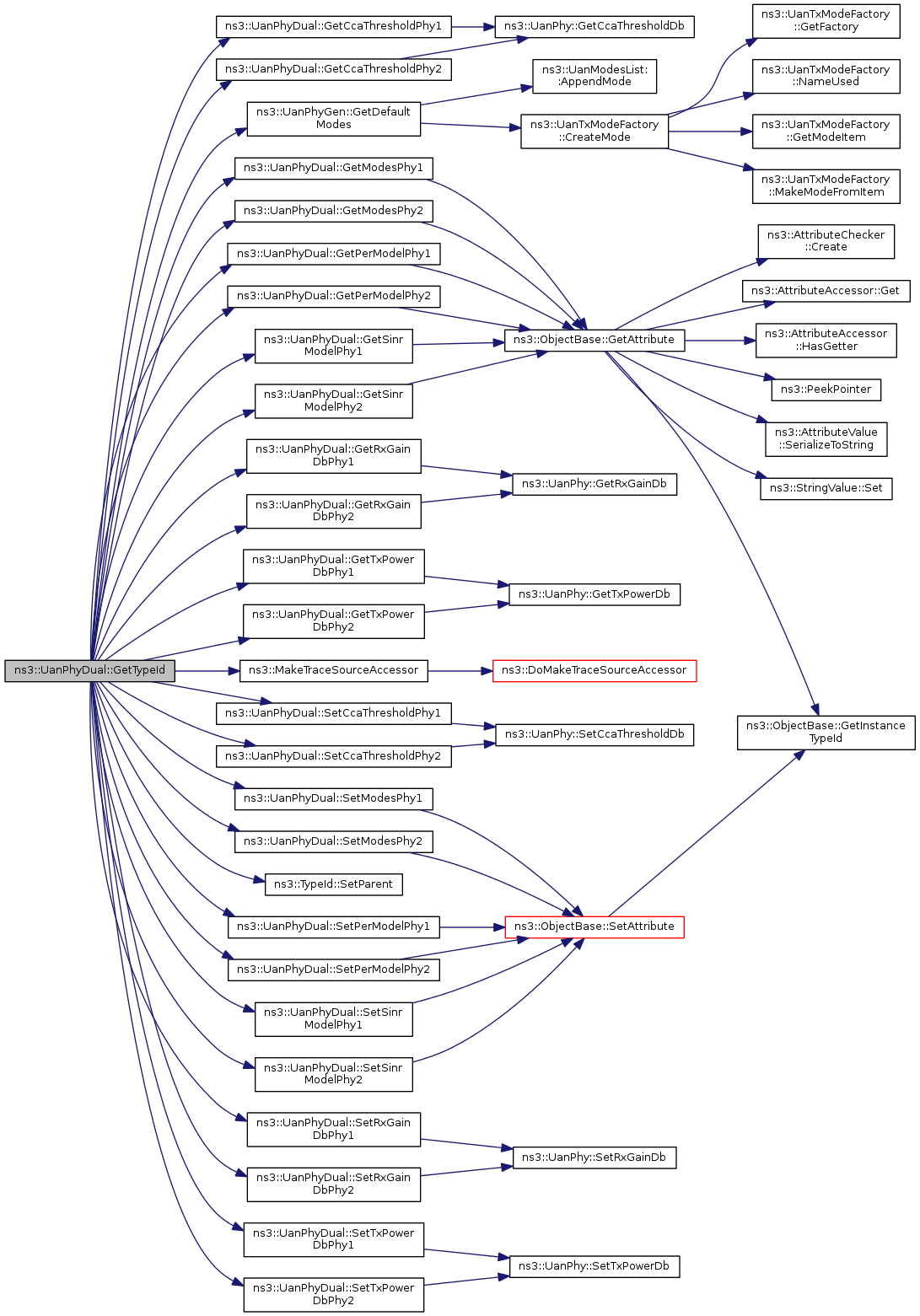

Here is the call graph for this function:

bool ns3::UanPhyDual::IsPhy1Idle ( void )

/returns True if Phy1 is Idle

Definition at line 414 of file uan-phy-dual.cc.

References ns3::UanPhy::IsStateIdle(), and m_phy1.

Here is the call graph for this function:

bool ns3::UanPhyDual::IsPhy1Rx ( void )

/returns True if Phy1 is currently in RX mode

Definition at line 425 of file uan-phy-dual.cc.

References ns3::UanPhy::IsStateRx(), and m_phy1.

Here is the call graph for this function:

bool ns3::UanPhyDual::IsPhy1Tx ( void )

/returns True if Phy1 is in TX mode

Definition at line 437 of file uan-phy-dual.cc.

References ns3::UanPhy::IsStateTx(), and m_phy1.

Here is the call graph for this function:

bool ns3::UanPhyDual::IsPhy2Idle ( void )

/returns True if Phy2 is Idle

Definition at line 419 of file uan-phy-dual.cc.

References ns3::UanPhy::IsStateIdle(), and m_phy2.

Here is the call graph for this function:

bool ns3::UanPhyDual::IsPhy2Rx ( void )

/returns True if Phy2 is currently in RX mode

Definition at line 431 of file uan-phy-dual.cc.

References ns3::UanPhy::IsStateRx(), and m_phy2.

Here is the call graph for this function:

bool ns3::UanPhyDual::IsPhy2Tx ( void )

/returns True if Phy2 is in TX mode

Definition at line 455 of file uan-phy-dual.cc.

References ns3::UanPhy::IsStateTx(), and m_phy2.

Here is the call graph for this function:

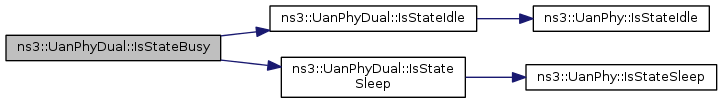

bool ns3::UanPhyDual::IsStateBusy ( void )

virtual

Returns: True if Phy is not IDLE

Implements ns3::UanPhy.

Definition at line 470 of file uan-phy-dual.cc.

References IsStateIdle(), and IsStateSleep().

Here is the call graph for this function:

bool ns3::UanPhyDual::IsStateCcaBusy ( void )

virtual

Returns: True if Phy is not TX or RX but the channel is sensed busy

Implements ns3::UanPhy.

Definition at line 485 of file uan-phy-dual.cc.

References ns3::UanPhy::IsStateCcaBusy(), m_phy1, and m_phy2.

Here is the call graph for this function:

bool ns3::UanPhyDual::IsStateIdle ( void )

virtual

Returns: True if Phy is IDLE

Implements ns3::UanPhy.

Definition at line 465 of file uan-phy-dual.cc.

References ns3::UanPhy::IsStateIdle(), m_phy1, and m_phy2.

Referenced by IsStateBusy().

Here is the call graph for this function:

Here is the caller graph for this function:

bool ns3::UanPhyDual::IsStateRx ( void )

virtual

Returns: True if Phy is currently in receive mode

Implements ns3::UanPhy.

Definition at line 475 of file uan-phy-dual.cc.

References ns3::UanPhy::IsStateRx(), m_phy1, and m_phy2.

Here is the call graph for this function:

bool ns3::UanPhyDual::IsStateSleep ( void )

virtual

Returns: True if Phy is SLEEP

Implements ns3::UanPhy.

Definition at line 460 of file uan-phy-dual.cc.

References ns3::UanPhy::IsStateSleep(), m_phy1, and m_phy2.

Referenced by IsStateBusy().

Here is the call graph for this function:

Here is the caller graph for this function:

bool ns3::UanPhyDual::IsStateTx ( void )

virtual

Returns: True if Phy is busy transmitting

Implements ns3::UanPhy.

Definition at line 480 of file uan-phy-dual.cc.

References ns3::UanPhy::IsStateTx(), m_phy1, and m_phy2.

Here is the call graph for this function:

void ns3::UanPhyDual::NotifyIntChange ( void )

virtual

Function called when there has been a change in the ammount of interference this node is experiencing from other transmissions

Implements ns3::UanPhy.

Definition at line 523 of file uan-phy-dual.cc.

References m_phy1, m_phy2, and ns3::UanPhy::NotifyIntChange().

Here is the call graph for this function:

void ns3::UanPhyDual::NotifyTransStartTx	(	Ptr< Packet >	packet,
		double	txPowerDb,
		UanTxMode	txMode
	)

virtual

Parameters

packet	Packet that is beginning transmission
txPowerDb	Transmit power of packet
txMode	Transmission mode of packet

Notification that there is a transmission beginning on the transducer that this Phy is attached to.

Implements ns3::UanPhy.

Definition at line 518 of file uan-phy-dual.cc.

void ns3::UanPhyDual::RegisterListener ( UanPhyListener * listener )

virtual

Register a class to receive phy state change notifications.

Parameters

listener Class derived from UanPhyListener to receive notifications

Note that, from UanPhyDual, you may receive duplicate messages as underneath there are two generic phys here. Each will notify of state changes independently.

Implements ns3::UanPhy.

Definition at line 267 of file uan-phy-dual.cc.

References m_phy1, m_phy2, and ns3::UanPhy::RegisterListener().

Here is the call graph for this function:

void ns3::UanPhyDual::RxErrFromSubPhy	(	Ptr< Packet >	pkt,
		double	sinr
	)

private

Definition at line 653 of file uan-phy-dual.cc.

References ns3::UanPhy::GetMode(), m_phy1, m_recErrCb, and m_rxErrLogger.

Here is the call graph for this function:

void ns3::UanPhyDual::RxOkFromSubPhy	(	Ptr< Packet >	pkt,
		double	sinr,
		UanTxMode	mode
	)

private

Definition at line 645 of file uan-phy-dual.cc.

References m_recOkCb, m_rxOkLogger, ns3::Simulator::Now(), and NS_LOG_DEBUG.

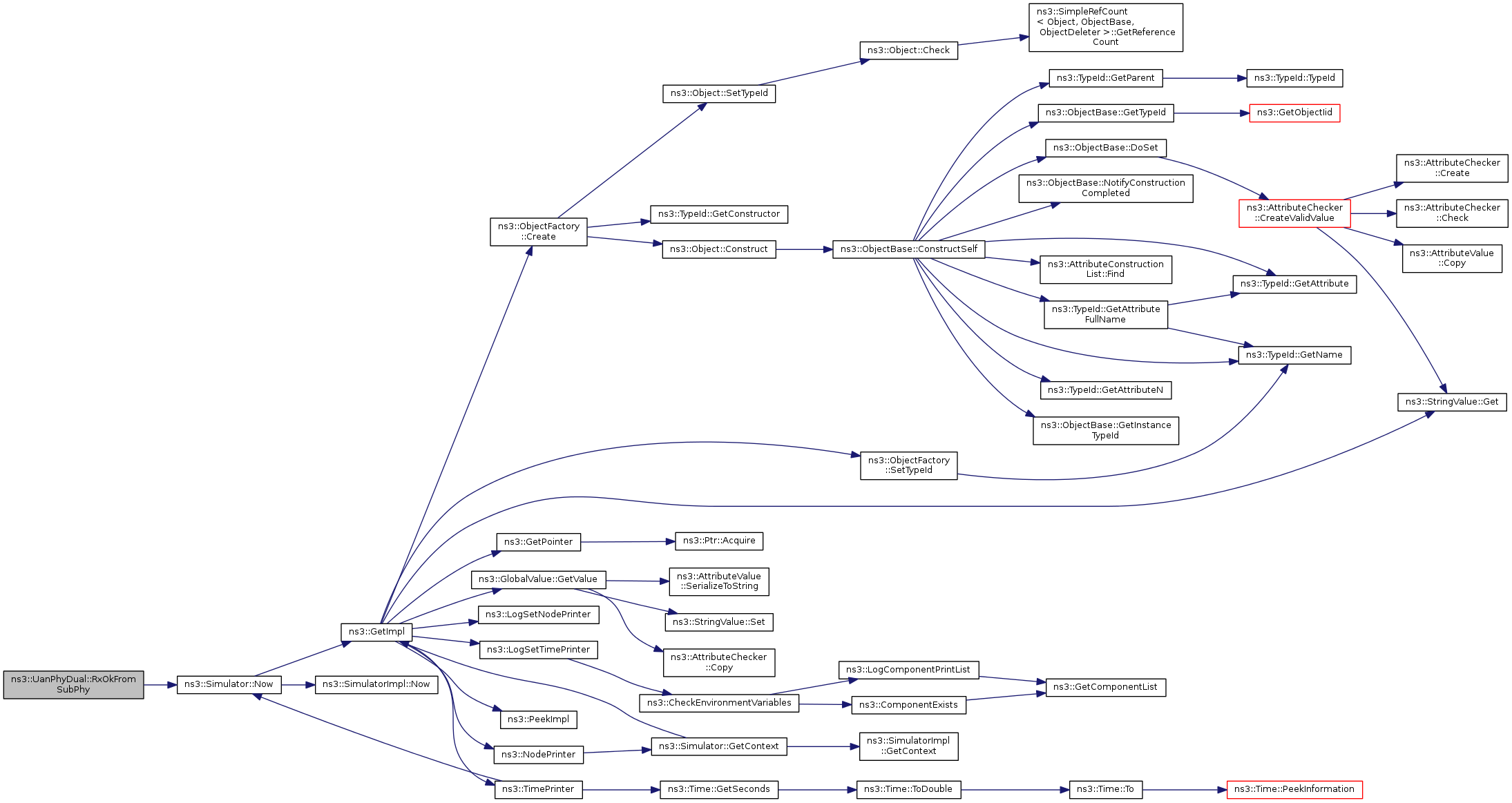

Here is the call graph for this function:

void ns3::UanPhyDual::SendPacket	(	Ptr< Packet >	pkt,
		uint32_t	modeNum
	)

virtual

Parameters

pkt	Packet to transmit
modeNum	Index of mode in SupportedModes list to use for transmission

Implements ns3::UanPhy.

Definition at line 250 of file uan-phy-dual.cc.

References ns3::UanPhy::GetMode(), GetNModes(), ns3::UanPhy::GetNModes(), ns3::UanPhy::GetTxPowerDb(), m_phy1, m_phy2, m_txLogger, ns3::Simulator::Now(), NS_LOG_DEBUG, and ns3::UanPhy::SendPacket().

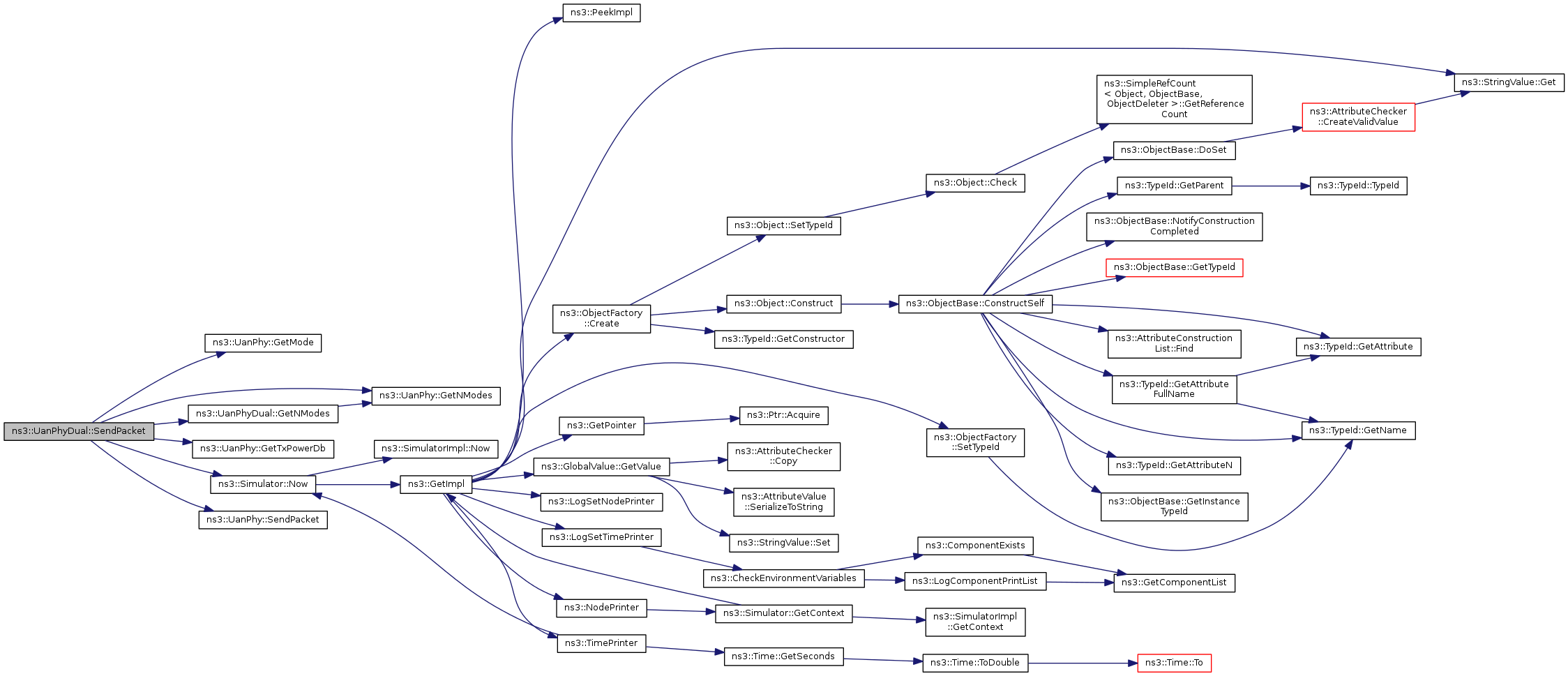

Here is the call graph for this function:

void ns3::UanPhyDual::SetCcaThresholdDb ( double thresh )

virtual

Parameters

thresh Signal power at receiver required for CCA busy state

Implements ns3::UanPhy.

Definition at line 337 of file uan-phy-dual.cc.

References m_phy1, m_phy2, and ns3::UanPhy::SetCcaThresholdDb().

Here is the call graph for this function:

void ns3::UanPhyDual::SetCcaThresholdPhy1 ( double thresh )

Parameters

thresh Signal power threshold in dB to set Phy1 to

Definition at line 344 of file uan-phy-dual.cc.

References m_phy1, and ns3::UanPhy::SetCcaThresholdDb().

Referenced by GetTypeId().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::UanPhyDual::SetCcaThresholdPhy2 ( double thresh )

Parameters

thresh Signal power threshold in dB to set Phy2 to

Definition at line 349 of file uan-phy-dual.cc.

References m_phy2, and ns3::UanPhy::SetCcaThresholdDb().

Referenced by GetTypeId().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::UanPhyDual::SetChannel ( Ptr< UanChannel > channel )

virtual

Parameters

channel The channel this Phy is attached to

Implements ns3::UanPhy.

Definition at line 500 of file uan-phy-dual.cc.

References m_phy1, m_phy2, and ns3::UanPhy::SetChannel().

Here is the call graph for this function:

void ns3::UanPhyDual::SetDevice ( Ptr< UanNetDevice > device )

virtual

Parameters

device The Net Device this Phy is a part of

Implements ns3::UanPhy.

Definition at line 506 of file uan-phy-dual.cc.

References m_phy1, m_phy2, and ns3::UanPhy::SetDevice().

Here is the call graph for this function:

void ns3::UanPhyDual::SetEnergyModelCallback ( DeviceEnergyModel::ChangeStateCallback callback )

virtual

Parameters

callback DeviceEnergyModel change state callback.

This function sets the DeviceEnergyModel callback for UanPhy device. Must be implemented by UanPhy child classes.

Implements ns3::UanPhy.

Definition at line 238 of file uan-phy-dual.cc.

References NS_LOG_DEBUG.

void ns3::UanPhyDual::SetMac ( Ptr< UanMac > mac )

virtual

Parameters

mac	The MAC forwarding messages to this Phy

Implements ns3::UanPhy.

Definition at line 512 of file uan-phy-dual.cc.

References m_phy1, m_phy2, and ns3::UanPhy::SetMac().

Here is the call graph for this function:

void ns3::UanPhyDual::SetModesPhy1 ( UanModesList modes )

Parameters

modes List of modes to use on Phy1 (index corresponds to mode #)

Definition at line 577 of file uan-phy-dual.cc.

References m_phy1, and ns3::ObjectBase::SetAttribute().

Referenced by GetTypeId().

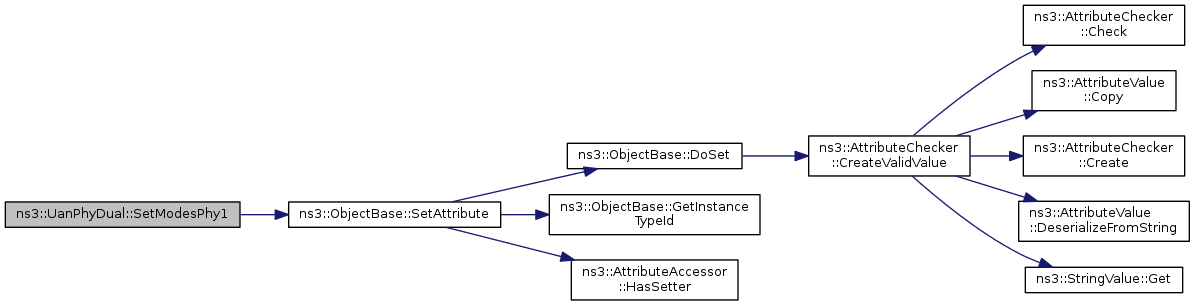

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::UanPhyDual::SetModesPhy2 ( UanModesList modes )

Parameters

modes List of modes to use on Phy2 (index corresponds to mode #)

Definition at line 583 of file uan-phy-dual.cc.

References m_phy2, and ns3::ObjectBase::SetAttribute().

Referenced by GetTypeId().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::UanPhyDual::SetPerModelPhy1 ( Ptr< UanPhyPer > per )

Parameters

per	Ptr to PER model to use on Phy1

Definition at line 605 of file uan-phy-dual.cc.

References m_phy1, and ns3::ObjectBase::SetAttribute().

Referenced by GetTypeId().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::UanPhyDual::SetPerModelPhy2 ( Ptr< UanPhyPer > per )

Parameters

per	Ptr to PER model to use on Phy2

Definition at line 611 of file uan-phy-dual.cc.

References m_phy2, and ns3::ObjectBase::SetAttribute().

Referenced by GetTypeId().

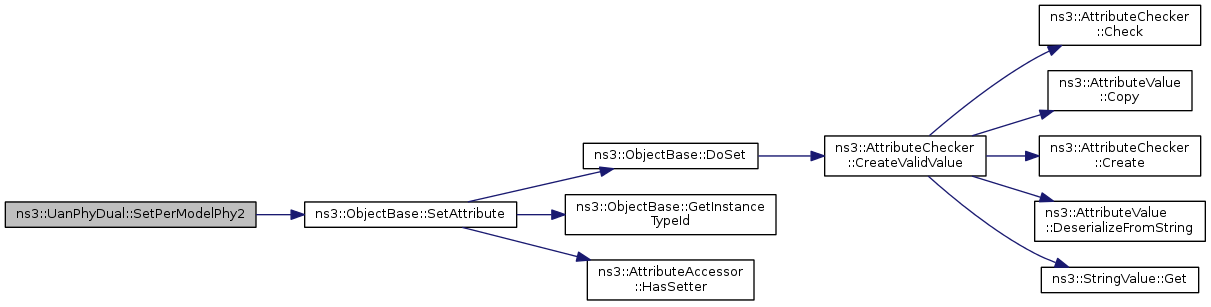

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::UanPhyDual::SetReceiveErrorCallback ( RxErrCallback cb )

virtual

Definition at line 287 of file uan-phy-dual.cc.

References m_phy1, m_phy2, and ns3::UanPhy::SetReceiveErrorCallback().

Here is the call graph for this function:

void ns3::UanPhyDual::SetReceiveOkCallback ( RxOkCallback cb )

virtual

Definition at line 280 of file uan-phy-dual.cc.

References m_phy1, m_phy2, and ns3::UanPhy::SetReceiveOkCallback().

Here is the call graph for this function:

void ns3::UanPhyDual::SetRxGainDb ( double gain )

virtual

Parameters

gain	Gain added at receiver

Implements ns3::UanPhy.

Definition at line 294 of file uan-phy-dual.cc.

References m_phy1, m_phy2, and ns3::UanPhy::SetRxGainDb().

Here is the call graph for this function:

void ns3::UanPhyDual::SetRxGainDbPhy1 ( double gain )

Parameters

gain	value in dB to apply to RX gain of Phy1

Definition at line 300 of file uan-phy-dual.cc.

References m_phy1, and ns3::UanPhy::SetRxGainDb().

Referenced by GetTypeId().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::UanPhyDual::SetRxGainDbPhy2 ( double gain )

Parameters

gain	value in dB to apply to RX gain of Phy2

Definition at line 306 of file uan-phy-dual.cc.

References m_phy2, and ns3::UanPhy::SetRxGainDb().

Referenced by GetTypeId().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::UanPhyDual::SetRxThresholdDb ( double thresh )

virtual

Parameters

thresh Threshold SINR for propper reception in dB

Implements ns3::UanPhy.

Definition at line 330 of file uan-phy-dual.cc.

References m_phy1, m_phy2, NS_LOG_WARN, and ns3::UanPhy::SetRxThresholdDb().

Here is the call graph for this function:

void ns3::UanPhyDual::SetSinrModelPhy1 ( Ptr< UanPhyCalcSinr > calcSinr )

Parameters

calcSinr Ptr to SINR model to use on Phy1

Definition at line 633 of file uan-phy-dual.cc.

References m_phy1, and ns3::ObjectBase::SetAttribute().

Referenced by GetTypeId().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::UanPhyDual::SetSinrModelPhy2 ( Ptr< UanPhyCalcSinr > calcSinr )

Parameters

calcSinr Ptr to SINR model to use on Phy2

Definition at line 639 of file uan-phy-dual.cc.

References m_phy2, and ns3::ObjectBase::SetAttribute().

Referenced by GetTypeId().

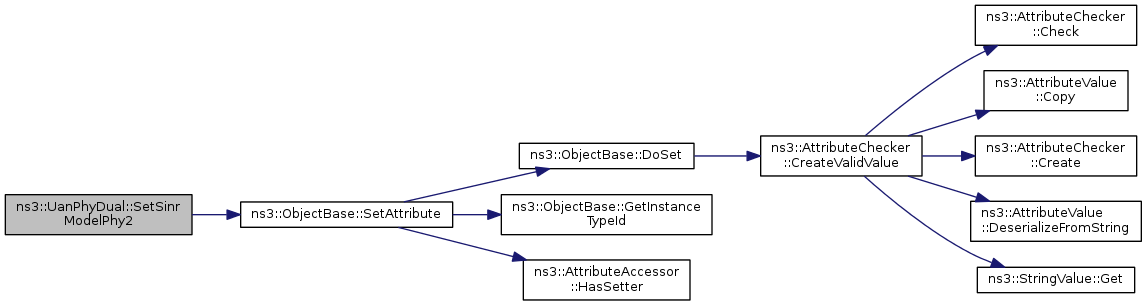

Here is the call graph for this function:

Here is the caller graph for this function:

virtual void ns3::UanPhyDual::SetSleepMode ( bool sleep )

inlinevirtual

Implements ns3::UanPhy.

Definition at line 251 of file uan-phy-dual.h.

void ns3::UanPhyDual::SetTransducer ( Ptr< UanTransducer > trans )

virtual

Parameters

trans Transducer this Phy outputs to / receives from

Implements ns3::UanPhy.

Definition at line 530 of file uan-phy-dual.cc.

References m_phy1, m_phy2, and ns3::UanPhy::SetTransducer().

Here is the call graph for this function:

void ns3::UanPhyDual::SetTxPowerDb ( double txpwr )

virtual

Parameters

txpwr Final output transmission power in dB

Implements ns3::UanPhy.

Definition at line 312 of file uan-phy-dual.cc.

References m_phy1, m_phy2, and ns3::UanPhy::SetTxPowerDb().

Here is the call graph for this function:

void ns3::UanPhyDual::SetTxPowerDbPhy1 ( double txpwr )

Returns: TX power setting of Phy1 in dB

Definition at line 319 of file uan-phy-dual.cc.

References m_phy1, and ns3::UanPhy::SetTxPowerDb().

Referenced by GetTypeId().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::UanPhyDual::SetTxPowerDbPhy2 ( double txpwr )

Returns: TX power setting of Phy2 in dB

Definition at line 324 of file uan-phy-dual.cc.

References m_phy2, and ns3::UanPhy::SetTxPowerDb().

Referenced by GetTypeId().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::UanPhyDual::StartRxPacket	(	Ptr< Packet >	pkt,
		double	rxPowerDb,
		UanTxMode	txMode,
		UanPdp	pdp
	)

virtual

Packet arriving from channel: i.e. leading bit of packet has arrived.

Parameters

pkt	Packet which is arriving
rxPowerDb	Signal power of incoming packet in dB
txMode	Transmission mode defining modulation of incoming packet
pdp	Power delay profile of incoming packet

Implements ns3::UanPhy.

Definition at line 274 of file uan-phy-dual.cc.

Member Data Documentation

Ptr<UanPhy> ns3::UanPhyDual::m_phy1

private

Definition at line 280 of file uan-phy-dual.h.

Referenced by Clear(), GetCcaThresholdDb(), GetCcaThresholdPhy1(), GetChannel(), GetDevice(), GetMode(), GetModesPhy1(), GetNModes(), GetPerModelPhy1(), GetPhy1PacketRx(), GetRxGainDb(), GetRxGainDbPhy1(), GetRxThresholdDb(), GetSinrModelPhy1(), GetTransducer(), GetTxPowerDb(), GetTxPowerDbPhy1(), IsPhy1Idle(), IsPhy1Rx(), IsPhy1Tx(), IsStateCcaBusy(), IsStateIdle(), IsStateRx(), IsStateSleep(), IsStateTx(), NotifyIntChange(), RegisterListener(), RxErrFromSubPhy(), SendPacket(), SetCcaThresholdDb(), SetCcaThresholdPhy1(), SetChannel(), SetDevice(), SetMac(), SetModesPhy1(), SetPerModelPhy1(), SetReceiveErrorCallback(), SetReceiveOkCallback(), SetRxGainDb(), SetRxGainDbPhy1(), SetRxThresholdDb(), SetSinrModelPhy1(), SetTransducer(), SetTxPowerDb(), SetTxPowerDbPhy1(), and UanPhyDual().

Ptr<UanPhy> ns3::UanPhyDual::m_phy2

private

RxErrCallback ns3::UanPhyDual::m_recErrCb

private

Definition at line 286 of file uan-phy-dual.h.

Referenced by RxErrFromSubPhy(), and UanPhyDual().

RxOkCallback ns3::UanPhyDual::m_recOkCb

private

Definition at line 285 of file uan-phy-dual.h.

Referenced by RxOkFromSubPhy(), and UanPhyDual().

TracedCallback<Ptr<const Packet>, double, UanTxMode > ns3::UanPhyDual::m_rxErrLogger

private

Definition at line 283 of file uan-phy-dual.h.

Referenced by GetTypeId(), and RxErrFromSubPhy().

TracedCallback<Ptr<const Packet>, double, UanTxMode > ns3::UanPhyDual::m_rxOkLogger

private

Definition at line 282 of file uan-phy-dual.h.

Referenced by GetTypeId(), and RxOkFromSubPhy().

TracedCallback<Ptr<const Packet>, double, UanTxMode > ns3::UanPhyDual::m_txLogger

private

Definition at line 284 of file uan-phy-dual.h.

Referenced by GetTypeId(), and SendPacket().

The documentation for this class was generated from the following files:

src/uan/model/uan-phy-dual.h
src/uan/model/uan-phy-dual.cc

Public Member Functions

Static Public Member Functions

Protected Member Functions

Private Member Functions

Private Attributes

Additional Inherited Members

Detailed Description

Config Paths

Attributes

TraceSources

TraceSources defined in parent class ns3::UanPhy

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation
