ns3::UeMemberLteUeCmacSapUser Class Reference

Inheritance diagram for ns3::UeMemberLteUeCmacSapUser:

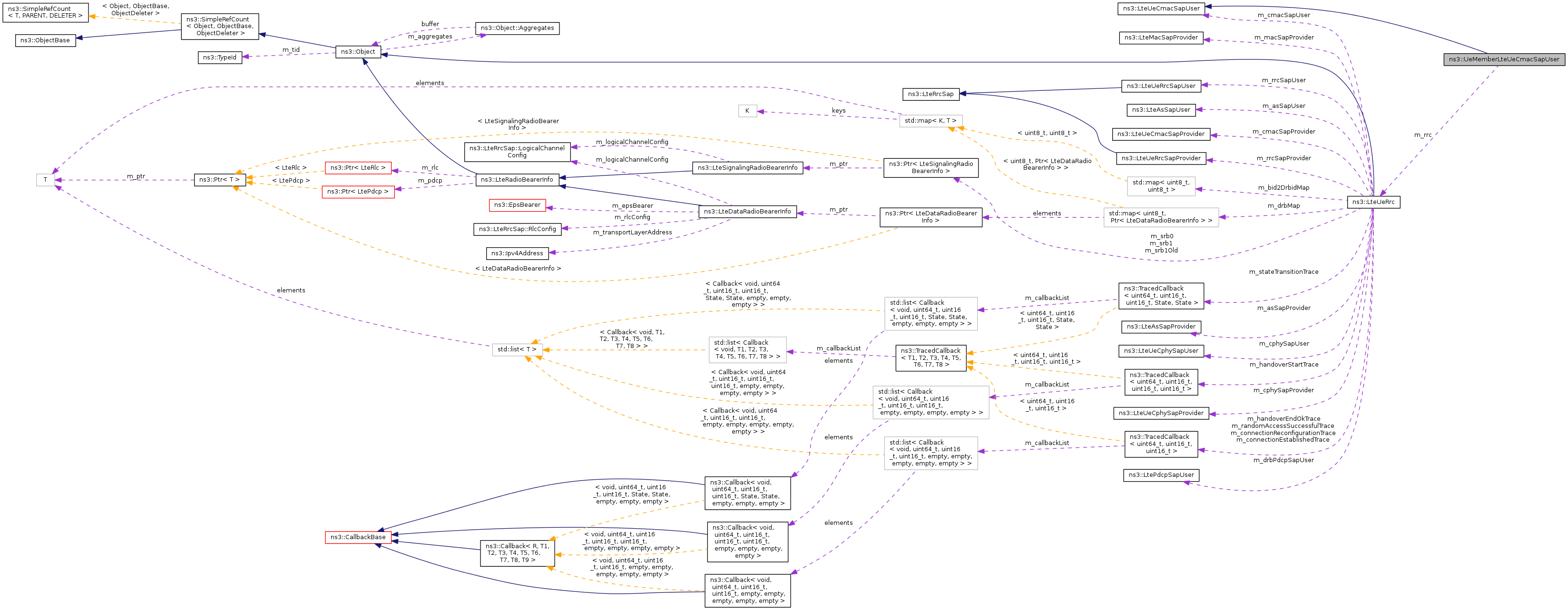

Collaboration diagram for ns3::UeMemberLteUeCmacSapUser:

Public Member Functions
	UeMemberLteUeCmacSapUser (LteUeRrc *rrc)
virtual void	NotifyRandomAccessFailed ()
virtual void	NotifyRandomAccessSuccessful ()
virtual void	SetTemporaryCellRnti (uint16_t rnti)
Public Member Functions inherited from ns3::LteUeCmacSapUser
virtual	~LteUeCmacSapUser ()

Private Attributes
LteUeRrc *	m_rrc

Detailed Description

Definition at line 51 of file lte-ue-rrc.cc.

Constructor & Destructor Documentation

ns3::UeMemberLteUeCmacSapUser::UeMemberLteUeCmacSapUser

(

LteUeRrc *

rrc

)

Definition at line 64 of file lte-ue-rrc.cc.

Member Function Documentation

void ns3::UeMemberLteUeCmacSapUser::NotifyRandomAccessFailed ( )

virtual

Notify the RRC that the MAC Random Access procedure failed

Implements ns3::LteUeCmacSapUser.

Definition at line 83 of file lte-ue-rrc.cc.

References ns3::LteUeRrc::DoNotifyRandomAccessFailed(), and m_rrc.

Here is the call graph for this function:

void ns3::UeMemberLteUeCmacSapUser::NotifyRandomAccessSuccessful ( )

virtual

Notify the RRC that the MAC Random Access procedure completed successfully

Implements ns3::LteUeCmacSapUser.

Definition at line 77 of file lte-ue-rrc.cc.

References ns3::LteUeRrc::DoNotifyRandomAccessSuccessful(), and m_rrc.

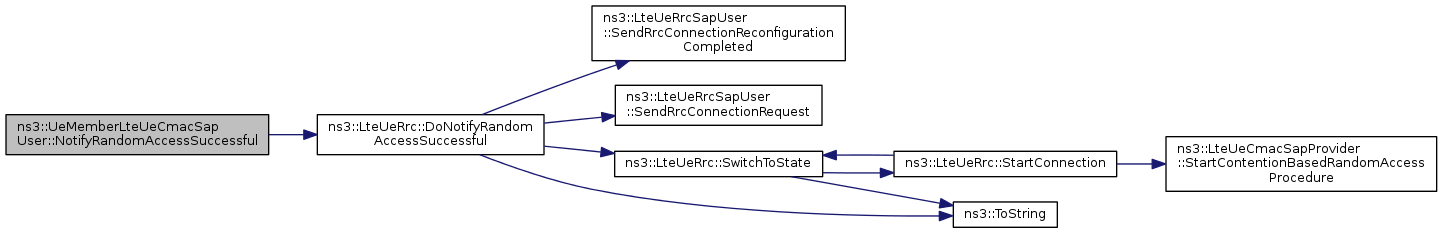

Here is the call graph for this function:

void ns3::UeMemberLteUeCmacSapUser::SetTemporaryCellRnti ( uint16_t  rnti )

virtual

Parameters

rnti	the T-C-RNTI, which will eventually become the C-RNTI after contention resolution

Implements ns3::LteUeCmacSapUser.

Definition at line 70 of file lte-ue-rrc.cc.

References ns3::LteUeRrc::DoSetTemporaryCellRnti(), and m_rrc.

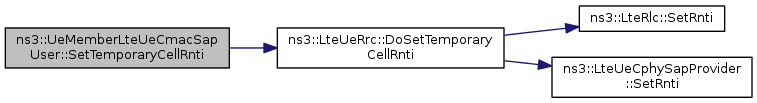

Here is the call graph for this function:

Member Data Documentation

LteUeRrc* ns3::UeMemberLteUeCmacSapUser::m_rrc

private

Definition at line 61 of file lte-ue-rrc.cc.

Referenced by NotifyRandomAccessFailed(), NotifyRandomAccessSuccessful(), and SetTemporaryCellRnti().

---

The documentation for this class was generated from the following file:

• src/lte/model/lte-ue-rrc.cc
