#include <lte-ue-rrc.h>

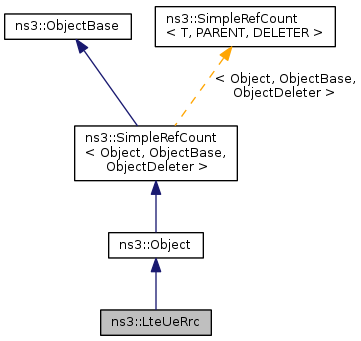

Inheritance diagram for ns3::LteUeRrc:

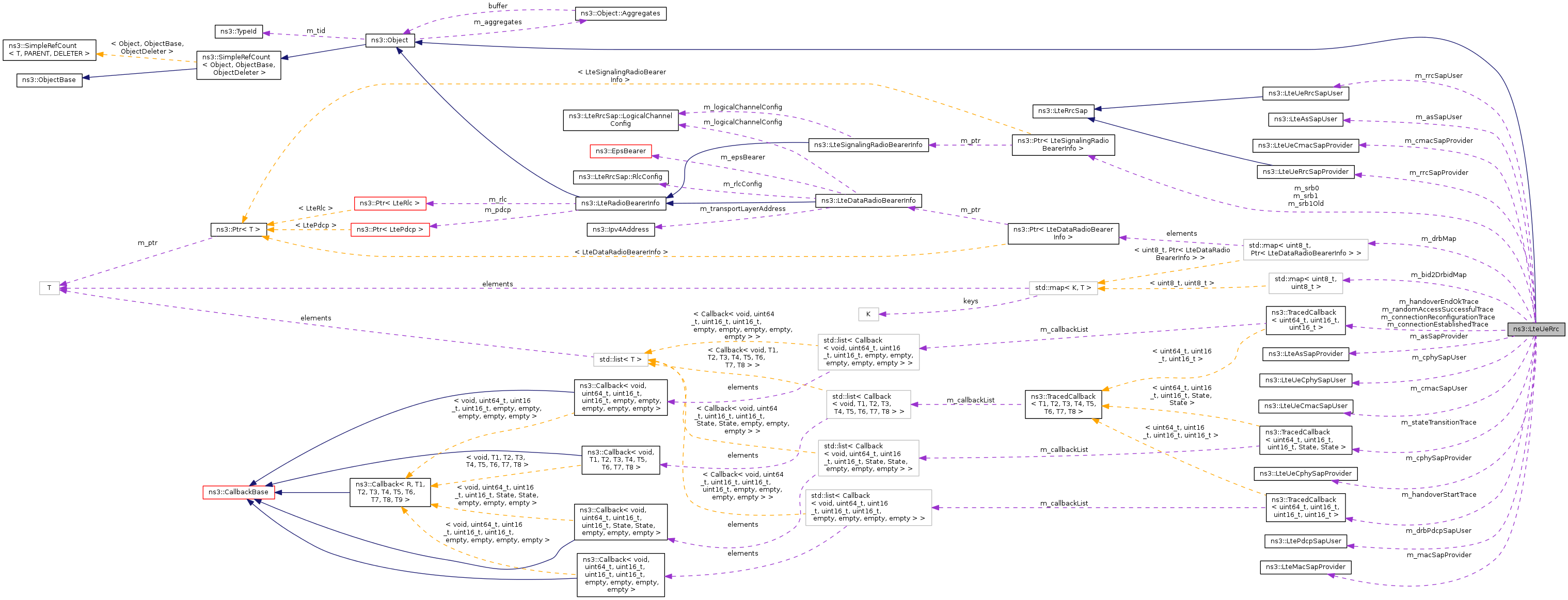

Collaboration diagram for ns3::LteUeRrc:

Public Types
enum	State { IDLE_CELL_SELECTION = 0, IDLE_WAIT_SYSTEM_INFO, IDLE_CAMPED_NORMALLY, IDLE_RANDOM_ACCESS, IDLE_CONNECTING, CONNECTED_NORMALLY, CONNECTED_REESTABLISHING, CONNECTED_HANDOVER, NUM_STATES }

Public Member Functions
	LteUeRrc ()
virtual	~LteUeRrc ()
LteAsSapProvider *	GetAsSapProvider ()
uint16_t	GetCellId () const
uint8_t	GetDlBandwidth () const
uint16_t	GetDlEarfcn () const
uint64_t	GetImsi (void)
LteUeCmacSapUser *	GetLteUeCmacSapUser ()
LteUeCphySapUser *	GetLteUeCphySapUser ()
LteUeRrcSapProvider *	GetLteUeRrcSapProvider ()
uint16_t	GetRnti () const
State	GetState ()
uint8_t	GetUlBandwidth () const
uint16_t	GetUlEarfcn () const
void	SetAsSapUser (LteAsSapUser *s)
void	SetImsi (uint64_t imsi)
void	SetLteMacSapProvider (LteMacSapProvider *s)
void	SetLteUeCmacSapProvider (LteUeCmacSapProvider *s)
void	SetLteUeCphySapProvider (LteUeCphySapProvider *s)
void	SetLteUeRrcSapUser (LteUeRrcSapUser *s)
void	SetUseRlcSm (bool val)
Public Member Functions inherited from ns3::Object
	Object ()
virtual	~Object ()
void	AggregateObject (Ptr< Object > other)
void	Dispose (void)
AggregateIterator	GetAggregateIterator (void) const
virtual TypeId	GetInstanceTypeId (void) const
template<typename T >
Ptr< T >	GetObject (void) const
template<typename T >
Ptr< T >	GetObject (TypeId tid) const
void	Initialize (void)
Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	SimpleRefCount (const SimpleRefCount &o)
uint32_t	GetReferenceCount (void) const
SimpleRefCount &	operator= (const SimpleRefCount &o)
void	Ref (void) const
void	Unref (void) const
Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
void	GetAttribute (std::string name, AttributeValue &value) const
bool	GetAttributeFailSafe (std::string name, AttributeValue &attribute) const
void	SetAttribute (std::string name, const AttributeValue &value)
bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)

Static Public Member Functions
static TypeId	GetTypeId (void)

Private Member Functions
void	ApplyRadioResourceConfigDedicated (LteRrcSap::RadioResourceConfigDedicated rrcd)
uint8_t	Bid2Drbid (uint8_t bid)
void	DisposeOldSrb1 ()
void	DoCompleteSetup (LteUeRrcSapProvider::CompleteSetupParameters params)
void	DoConnect ()
void	DoDisconnect ()
virtual void	DoDispose (void)
void	DoForceCampedOnEnb (uint16_t cellId, uint16_t earfcn)
virtual void	DoInitialize (void)
void	DoNotifyRandomAccessFailed ()
void	DoNotifyRandomAccessSuccessful ()
void	DoReceivePdcpSdu (LtePdcpSapUser::ReceivePdcpSduParameters params)
void	DoRecvMasterInformationBlock (LteRrcSap::MasterInformationBlock msg)
void	DoRecvRrcConnectionReconfiguration (LteRrcSap::RrcConnectionReconfiguration msg)
void	DoRecvRrcConnectionReestablishment (LteRrcSap::RrcConnectionReestablishment msg)
void	DoRecvRrcConnectionReestablishmentReject (LteRrcSap::RrcConnectionReestablishmentReject msg)
void	DoRecvRrcConnectionReject (LteRrcSap::RrcConnectionReject msg)
void	DoRecvRrcConnectionRelease (LteRrcSap::RrcConnectionRelease msg)
void	DoRecvRrcConnectionSetup (LteRrcSap::RrcConnectionSetup msg)
void	DoRecvSystemInformation (LteRrcSap::SystemInformation msg)
void	DoRecvSystemInformationBlockType1 (LteRrcSap::SystemInformationBlockType1 msg)
void	DoSendData (Ptr< Packet > packet, uint8_t bid)
void	DoSetTemporaryCellRnti (uint16_t rnti)
void	LeaveConnectedMode ()
void	StartConnection ()
void	SwitchToState (State s)

Private Attributes
LteAsSapProvider *	m_asSapProvider
LteAsSapUser *	m_asSapUser
std::map< uint8_t, uint8_t >	m_bid2DrbidMap
uint16_t	m_cellId
LteUeCmacSapProvider *	m_cmacSapProvider
LteUeCmacSapUser *	m_cmacSapUser
TracedCallback< uint64_t, uint16_t, uint16_t >	m_connectionEstablishedTrace
bool	m_connectionPending
TracedCallback< uint64_t, uint16_t, uint16_t >	m_connectionReconfigurationTrace
LteUeCphySapProvider *	m_cphySapProvider
LteUeCphySapUser *	m_cphySapUser
uint8_t	m_dlBandwidth
uint16_t	m_dlEarfcn
std::map< uint8_t, Ptr < LteDataRadioBearerInfo > >	m_drbMap
LtePdcpSapUser *	m_drbPdcpSapUser
TracedCallback< uint64_t, uint16_t, uint16_t >	m_handoverEndOkTrace
TracedCallback< uint64_t, uint16_t, uint16_t, uint16_t >	m_handoverStartTrace
uint64_t	m_imsi
uint8_t	m_lastRrcTransactionIdentifier
LteMacSapProvider *	m_macSapProvider
TracedCallback< uint64_t, uint16_t, uint16_t >	m_randomAccessSuccessfulTrace
bool	m_receivedMib
bool	m_receivedSib2
uint16_t	m_rnti
LteUeRrcSapProvider *	m_rrcSapProvider
LteUeRrcSapUser *	m_rrcSapUser
Ptr< LteSignalingRadioBearerInfo >	m_srb0
Ptr< LteSignalingRadioBearerInfo >	m_srb1
Ptr< LteSignalingRadioBearerInfo >	m_srb1Old
State	m_state
TracedCallback< uint64_t, uint16_t, uint16_t, State, State >	m_stateTransitionTrace
uint8_t	m_ulBandwidth
uint16_t	m_ulEarfcn
bool	m_useRlcSm

Friends
class	LtePdcpSpecificLtePdcpSapUser< LteUeRrc >
class	MemberLteAsSapProvider< LteUeRrc >
class	MemberLteUeCphySapUser< LteUeRrc >
class	MemberLteUeRrcSapProvider< LteUeRrc >
class	UeMemberLteUeCmacSapUser
class	UeRrcMemberLteEnbCmacSapUser

Additional Inherited Members
Protected Member Functions inherited from ns3::Object
	Object (const Object &o)
virtual void	DoDispose (void)
virtual void	DoInitialize (void)
virtual void	NotifyNewAggregate (void)

Detailed Description

Config Paths

ns3::LteUeRrc is accessible through the following paths with Config::Set and Config::Connect:

/NodeList/[i]/DeviceList/[i]/$ns3::LteNetDevice/$ns3::LteUeNetDevice/LteUeRrc
/NodeList/[i]/DeviceList/[i]/$ns3::LteUeNetDevice/LteUeRrc

Attributes

DataRadioBearerMap: List of UE RadioBearerInfo for Data Radio Bearers by LCID.
- Set with class: ns3::ObjectPtrContainerValue
- Underlying type: ns3::Ptr< ns3::LteDataRadioBearerInfo >
- Flags: read
Srb0: SignalingRadioBearerInfo for SRB0
- Set with class: ns3::PointerValue
- Underlying type: ns3::Ptr< ns3::LteSignalingRadioBearerInfo >
- Initial value: 0
- Flags: construct write read
Srb1: SignalingRadioBearerInfo for SRB1
- Set with class: ns3::PointerValue
- Underlying type: ns3::Ptr< ns3::LteSignalingRadioBearerInfo >
- Initial value: 0
- Flags: construct write read
CellId: Serving cell identifier
- Set with class: ns3::UintegerValue
- Underlying type: uint16_t 0:65535
- Flags: read
C-RNTI: Cell Radio Network Temporary Identifier
- Set with class: ns3::UintegerValue
- Underlying type: uint16_t 0:65535
- Flags: read

TraceSources

StateTransition: trace fired upon every UE RRC state transition
RandomAccessSuccessful: trace fired upon successful completion of the random access procedure
ConnectionEstablished: trace fired upon successful RRC connection establishment
ConnectionReconfiguration: trace fired upon RRC connection reconfiguration
HandoverStart: trace fired upon start of a handover procedure
HandoverEndOk: trace fired upon successful termination of a handover procedure

Definition at line 49 of file lte-ue-rrc.h.

Member Enumeration Documentation

enum ns3::LteUeRrc::State

The states of the UE RRC entity

Enumerator:

IDLE_CELL_SELECTION
IDLE_WAIT_SYSTEM_INFO
IDLE_CAMPED_NORMALLY
IDLE_RANDOM_ACCESS
IDLE_CONNECTING
CONNECTED_NORMALLY
CONNECTED_REESTABLISHING
CONNECTED_HANDOVER
NUM_STATES

Definition at line 65 of file lte-ue-rrc.h.

Constructor & Destructor Documentation

ns3::LteUeRrc::LteUeRrc ( )

create an RRC instance for use within an ue

Definition at line 119 of file lte-ue-rrc.cc.

References m_asSapProvider, m_cmacSapUser, m_cphySapUser, m_drbPdcpSapUser, m_rrcSapProvider, NS_LOG_FUNCTION, and UeMemberLteUeCmacSapUser.

ns3::LteUeRrc::~LteUeRrc ( )

virtual

Destructor

Definition at line 144 of file lte-ue-rrc.cc.

References NS_LOG_FUNCTION.

Member Function Documentation

void ns3::LteUeRrc::ApplyRadioResourceConfigDedicated ( LteRrcSap::RadioResourceConfigDedicated rrcd )

private

Definition at line 730 of file lte-ue-rrc.cc.

Referenced by DoRecvRrcConnectionReconfiguration(), and DoRecvRrcConnectionSetup().

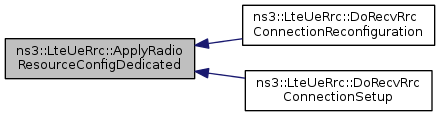

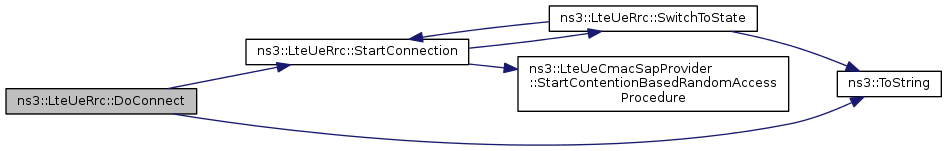

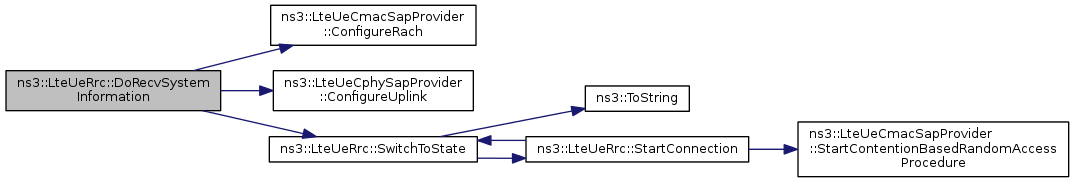

Here is the call graph for this function:

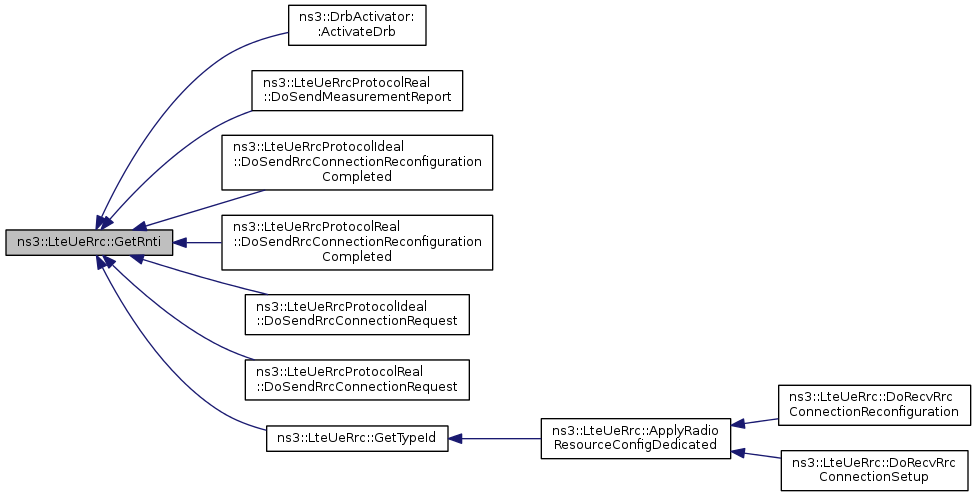

Here is the caller graph for this function:

uint8_t ns3::LteUeRrc::Bid2Drbid ( uint8_t bid )

private

Definition at line 937 of file lte-ue-rrc.cc.

References m_bid2DrbidMap, and NS_ASSERT_MSG.

Referenced by DoSendData().

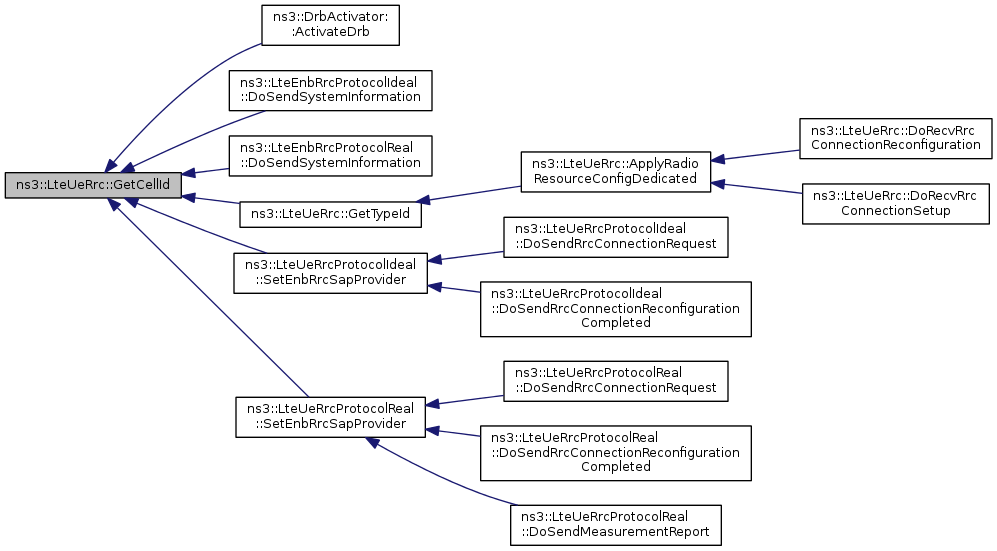

Here is the caller graph for this function:

void ns3::LteUeRrc::DisposeOldSrb1 ( )

private

Definition at line 930 of file lte-ue-rrc.cc.

References m_srb1Old, and NS_LOG_FUNCTION.

Referenced by DoRecvRrcConnectionReconfiguration().

Here is the caller graph for this function:

void ns3::LteUeRrc::DoCompleteSetup ( LteUeRrcSapProvider::CompleteSetupParameters params )

private

Definition at line 551 of file lte-ue-rrc.cc.

References ns3::LteRadioBearerInfo::m_pdcp, ns3::LteRadioBearerInfo::m_rlc, m_srb0, m_srb1, NS_LOG_FUNCTION, ns3::LtePdcp::SetLtePdcpSapUser(), ns3::LteRlc::SetLteRlcSapUser(), ns3::LteUeRrcSapProvider::CompleteSetupParameters::srb0SapUser, and ns3::LteUeRrcSapProvider::CompleteSetupParameters::srb1SapUser.

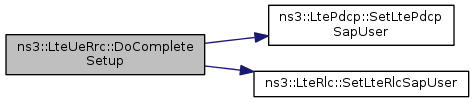

Here is the call graph for this function:

void ns3::LteUeRrc::DoConnect ( void )

private

Definition at line 496 of file lte-ue-rrc.cc.

References CONNECTED_HANDOVER, CONNECTED_NORMALLY, CONNECTED_REESTABLISHING, IDLE_CAMPED_NORMALLY, IDLE_CELL_SELECTION, IDLE_CONNECTING, IDLE_RANDOM_ACCESS, IDLE_WAIT_SYSTEM_INFO, m_connectionPending, m_state, NS_FATAL_ERROR, NS_LOG_FUNCTION, NS_LOG_WARN, StartConnection(), and ns3::ToString().

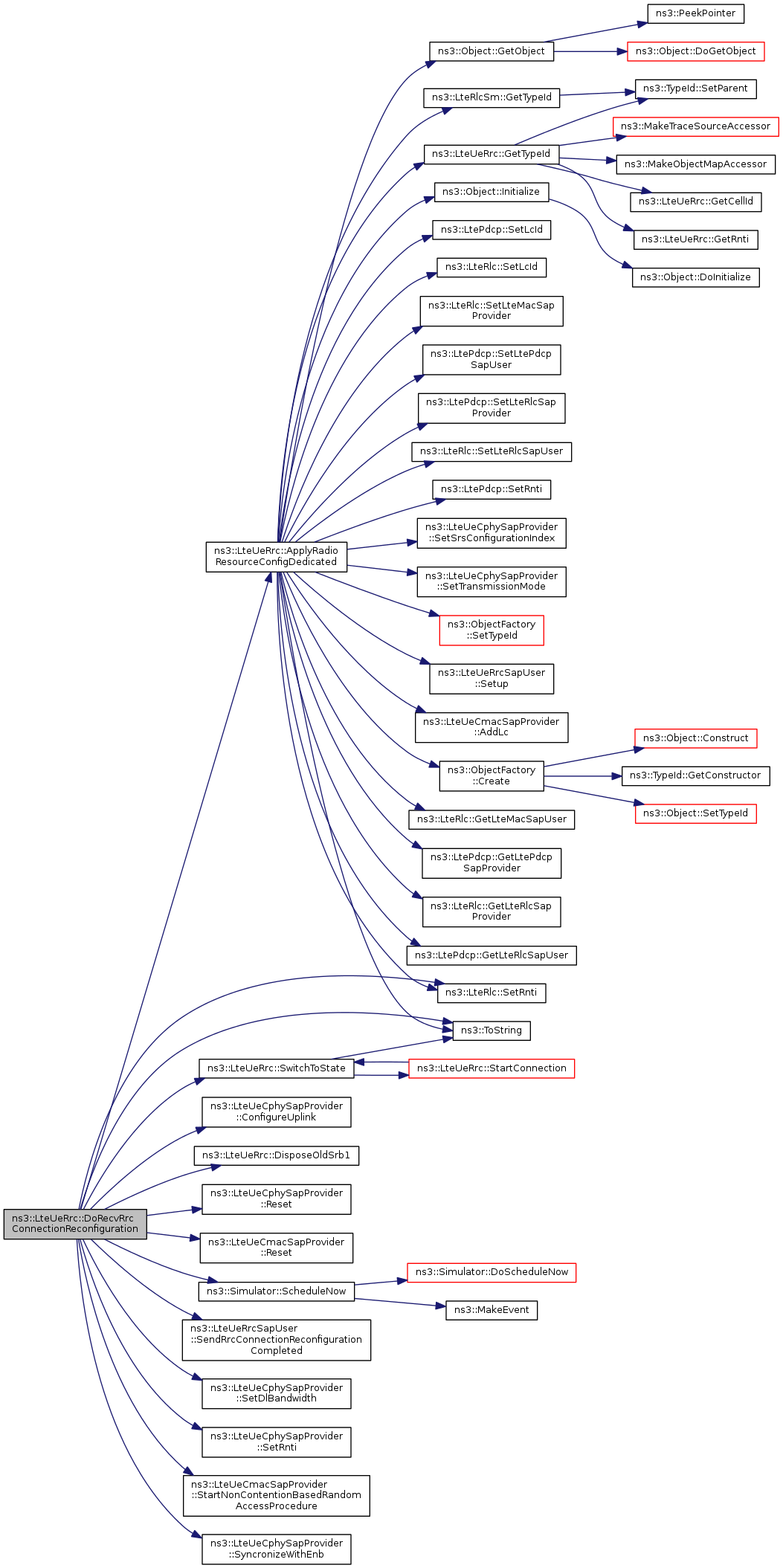

Here is the call graph for this function:

void ns3::LteUeRrc::DoDisconnect ( )

private

Definition at line 398 of file lte-ue-rrc.cc.

References CONNECTED_HANDOVER, CONNECTED_NORMALLY, CONNECTED_REESTABLISHING, IDLE_CAMPED_NORMALLY, IDLE_CELL_SELECTION, IDLE_CONNECTING, LeaveConnectedMode(), m_state, NS_FATAL_ERROR, NS_LOG_FUNCTION, NS_LOG_INFO, SwitchToState(), and ns3::ToString().

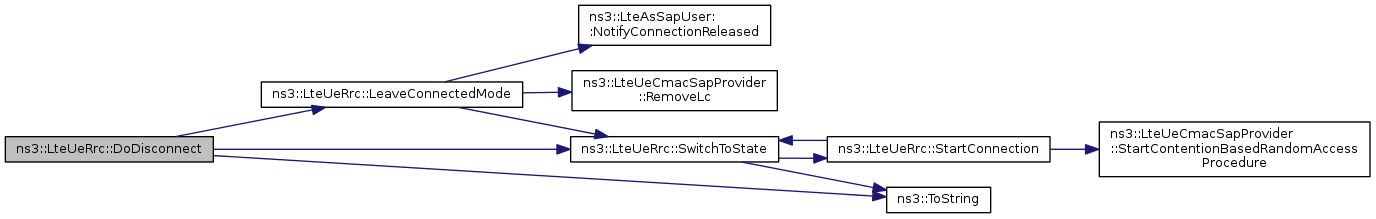

Here is the call graph for this function:

void ns3::LteUeRrc::DoDispose ( void )

privatevirtual

Definition at line 150 of file lte-ue-rrc.cc.

References m_asSapProvider, m_cmacSapUser, m_cphySapUser, m_drbMap, m_drbPdcpSapUser, m_rrcSapProvider, and NS_LOG_FUNCTION.

void ns3::LteUeRrc::DoForceCampedOnEnb	(	uint16_t	cellId,
		uint16_t	earfcn
	)

private

Definition at line 485 of file lte-ue-rrc.cc.

References IDLE_WAIT_SYSTEM_INFO, m_cellId, m_cphySapProvider, m_dlEarfcn, NS_LOG_FUNCTION, SwitchToState(), and ns3::LteUeCphySapProvider::SyncronizeWithEnb().

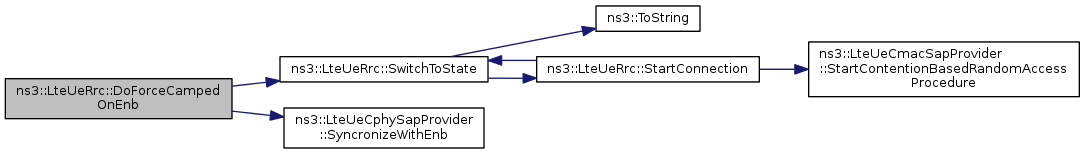

Here is the call graph for this function:

void ns3::LteUeRrc::DoInitialize ( void )

privatevirtual

Definition at line 345 of file lte-ue-rrc.cc.

References ns3::LteUeCmacSapProvider::AddLc(), ns3::LteUeCmacSapProvider::LogicalChannelConfig::bucketSizeDurationMs, ns3::LteRlc::GetLteMacSapUser(), ns3::LteRlc::GetLteRlcSapProvider(), ns3::LteUeCmacSapProvider::LogicalChannelConfig::logicalChannelGroup, m_cmacSapProvider, m_macSapProvider, ns3::LteRadioBearerInfo::m_rlc, m_rnti, m_rrcSapUser, m_srb0, ns3::LteSignalingRadioBearerInfo::m_srbIdentity, NS_LOG_FUNCTION, ns3::LteUeCmacSapProvider::LogicalChannelConfig::prioritizedBitRateKbps, ns3::LteUeCmacSapProvider::LogicalChannelConfig::priority, ns3::LteRlc::SetLcId(), ns3::LteRlc::SetLteMacSapProvider(), ns3::LteRlc::SetRnti(), ns3::LteUeRrcSapUser::Setup(), ns3::LteUeRrcSapUser::SetupParameters::srb0SapProvider, and ns3::LteUeRrcSapUser::SetupParameters::srb1SapProvider.

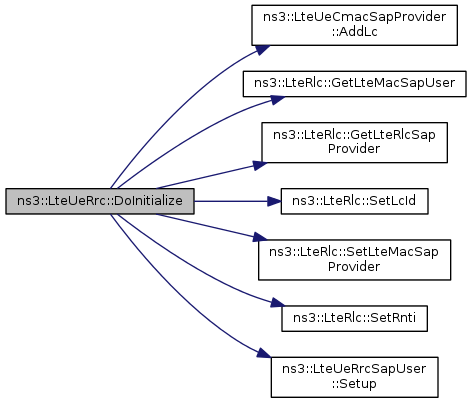

Here is the call graph for this function:

void ns3::LteUeRrc::DoNotifyRandomAccessFailed ( )

private

Definition at line 478 of file lte-ue-rrc.cc.

References NS_LOG_FUNCTION.

Referenced by ns3::UeMemberLteUeCmacSapUser::NotifyRandomAccessFailed().

Here is the caller graph for this function:

void ns3::LteUeRrc::DoNotifyRandomAccessSuccessful ( )

private

Definition at line 444 of file lte-ue-rrc.cc.

References CONNECTED_HANDOVER, CONNECTED_NORMALLY, IDLE_CONNECTING, IDLE_RANDOM_ACCESS, m_cellId, m_handoverEndOkTrace, m_imsi, m_lastRrcTransactionIdentifier, m_randomAccessSuccessfulTrace, m_rnti, m_rrcSapUser, m_state, NS_FATAL_ERROR, NS_LOG_FUNCTION, ns3::LteRrcSap::RrcConnectionReconfigurationCompleted::rrcTransactionIdentifier, ns3::LteUeRrcSapUser::SendRrcConnectionReconfigurationCompleted(), ns3::LteUeRrcSapUser::SendRrcConnectionRequest(), SwitchToState(), ns3::ToString(), and ns3::LteRrcSap::RrcConnectionRequest::ueIdentity.

Referenced by ns3::UeMemberLteUeCmacSapUser::NotifyRandomAccessSuccessful().

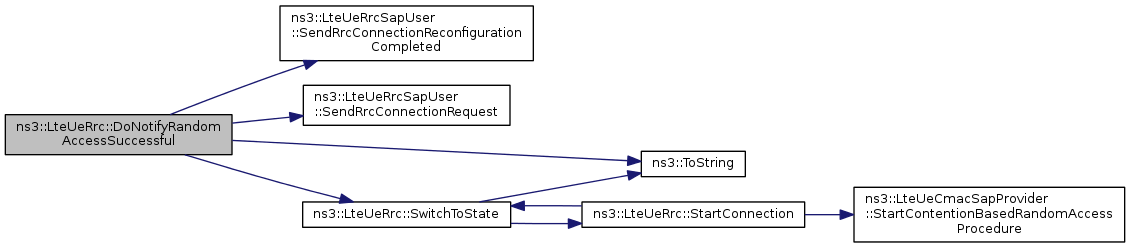

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::LteUeRrc::DoReceivePdcpSdu ( LtePdcpSapUser::ReceivePdcpSduParameters params )

private

Definition at line 427 of file lte-ue-rrc.cc.

References m_asSapUser, NS_LOG_FUNCTION, ns3::LtePdcpSapUser::ReceivePdcpSduParameters::pdcpSdu, and ns3::LteAsSapUser::RecvData().

Here is the call graph for this function:

void ns3::LteUeRrc::DoRecvMasterInformationBlock ( LteRrcSap::MasterInformationBlock msg )

private

Definition at line 534 of file lte-ue-rrc.cc.

References ns3::LteRrcSap::MasterInformationBlock::dlBandwidth, IDLE_CAMPED_NORMALLY, IDLE_WAIT_SYSTEM_INFO, m_cphySapProvider, m_dlBandwidth, m_receivedMib, m_receivedSib2, m_state, NS_LOG_FUNCTION, ns3::LteUeCphySapProvider::SetDlBandwidth(), and SwitchToState().

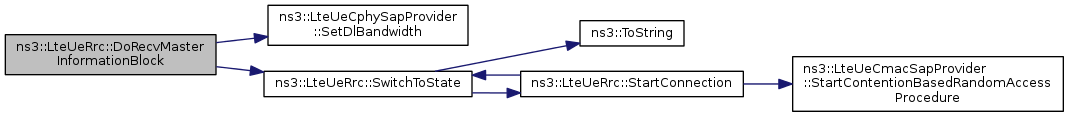

Here is the call graph for this function:

void ns3::LteUeRrc::DoRecvRrcConnectionReconfiguration ( LteRrcSap::RrcConnectionReconfiguration msg )

private

Definition at line 618 of file lte-ue-rrc.cc.

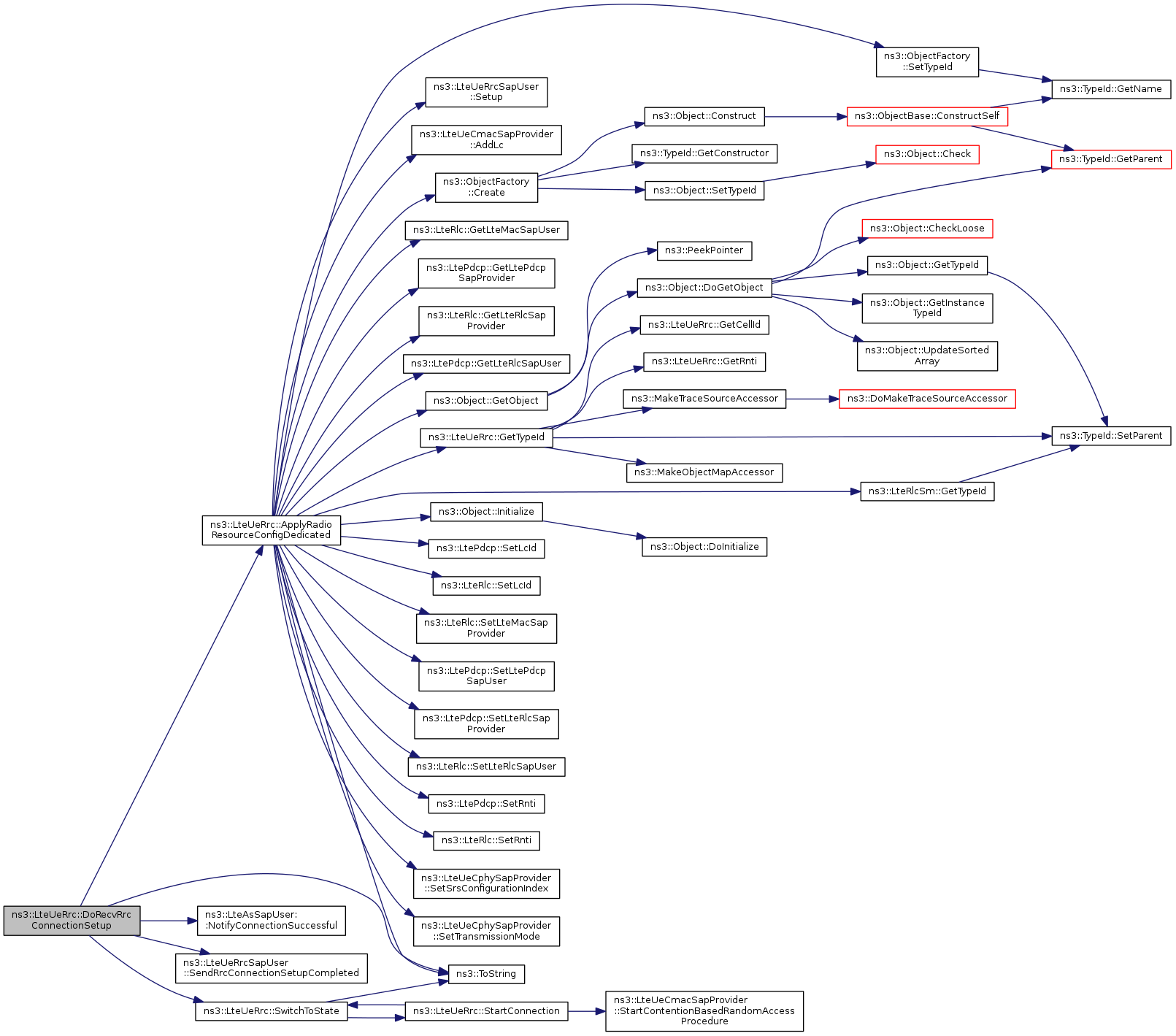

Here is the call graph for this function:

void ns3::LteUeRrc::DoRecvRrcConnectionReestablishment ( LteRrcSap::RrcConnectionReestablishment msg )

private

Definition at line 680 of file lte-ue-rrc.cc.

References CONNECTED_REESTABLISHING, m_state, NS_FATAL_ERROR, and ns3::ToString().

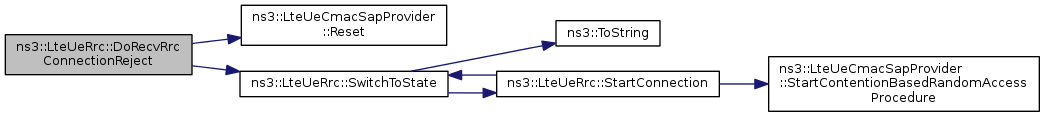

Here is the call graph for this function:

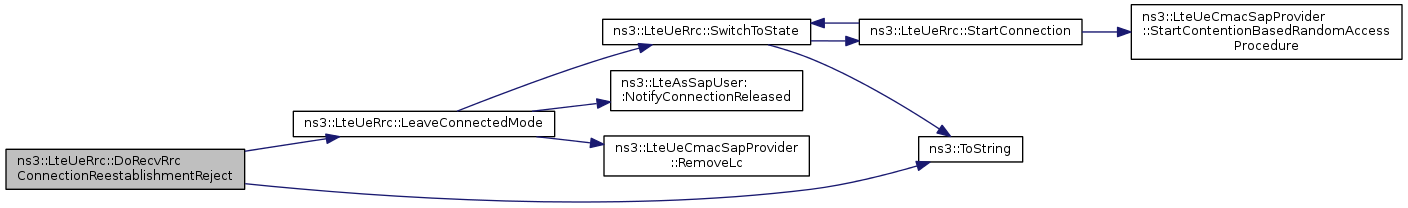

void ns3::LteUeRrc::DoRecvRrcConnectionReestablishmentReject ( LteRrcSap::RrcConnectionReestablishmentReject msg )

private

Definition at line 696 of file lte-ue-rrc.cc.

References CONNECTED_REESTABLISHING, LeaveConnectedMode(), m_state, NS_FATAL_ERROR, NS_LOG_FUNCTION, and ns3::ToString().

Here is the call graph for this function:

void ns3::LteUeRrc::DoRecvRrcConnectionReject ( LteRrcSap::RrcConnectionReject msg )

private

Definition at line 720 of file lte-ue-rrc.cc.

References IDLE_CAMPED_NORMALLY, m_cmacSapProvider, NS_LOG_FUNCTION, ns3::LteUeCmacSapProvider::Reset(), and SwitchToState().

Here is the call graph for this function:

void ns3::LteUeRrc::DoRecvRrcConnectionRelease ( LteRrcSap::RrcConnectionRelease msg )

private

Definition at line 714 of file lte-ue-rrc.cc.

References NS_LOG_FUNCTION.

void ns3::LteUeRrc::DoRecvRrcConnectionSetup ( LteRrcSap::RrcConnectionSetup msg )

private

void ns3::LteUeRrc::DoRecvSystemInformation ( LteRrcSap::SystemInformation msg )

private

Definition at line 571 of file lte-ue-rrc.cc.

References ns3::LteUeCmacSapProvider::ConfigureRach(), ns3::LteUeCphySapProvider::ConfigureUplink(), ns3::LteRrcSap::SystemInformationBlockType2::freqInfo, ns3::LteRrcSap::SystemInformation::haveSib2, IDLE_CAMPED_NORMALLY, IDLE_WAIT_SYSTEM_INFO, m_cmacSapProvider, m_cphySapProvider, m_receivedMib, m_receivedSib2, m_state, m_ulBandwidth, m_ulEarfcn, NS_LOG_FUNCTION, ns3::LteUeCmacSapProvider::RachConfig::numberOfRaPreambles, ns3::LteRrcSap::PreambleInfo::numberOfRaPreambles, ns3::LteRrcSap::RachConfigCommon::preambleInfo, ns3::LteUeCmacSapProvider::RachConfig::preambleTransMax, ns3::LteRrcSap::RaSupervisionInfo::preambleTransMax, ns3::LteRrcSap::RadioResourceConfigCommonSib::rachConfigCommon, ns3::LteRrcSap::SystemInformationBlockType2::radioResourceConfigCommon, ns3::LteUeCmacSapProvider::RachConfig::raResponseWindowSize, ns3::LteRrcSap::RaSupervisionInfo::raResponseWindowSize, ns3::LteRrcSap::RachConfigCommon::raSupervisionInfo, ns3::LteRrcSap::SystemInformation::sib2, SwitchToState(), ns3::LteRrcSap::FreqInfo::ulBandwidth, and ns3::LteRrcSap::FreqInfo::ulCarrierFreq.

Here is the call graph for this function:

void ns3::LteUeRrc::DoRecvSystemInformationBlockType1 ( LteRrcSap::SystemInformationBlockType1 msg )

private

Definition at line 563 of file lte-ue-rrc.cc.

References NS_LOG_FUNCTION.

void ns3::LteUeRrc::DoSendData	(	Ptr< Packet >	packet,
		uint8_t	bid
	)

private

Definition at line 378 of file lte-ue-rrc.cc.

References Bid2Drbid(), ns3::Packet::GetSize(), m_drbMap, m_rnti, NS_ASSERT_MSG, NS_LOG_FUNCTION, NS_LOG_LOGIC, and ns3::LtePdcpSapProvider::TransmitPdcpSduParameters::pdcpSdu.

Here is the call graph for this function:

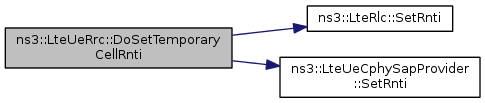

void ns3::LteUeRrc::DoSetTemporaryCellRnti ( uint16_t rnti )

private

Definition at line 435 of file lte-ue-rrc.cc.

References m_cphySapProvider, ns3::LteRadioBearerInfo::m_rlc, m_rnti, m_srb0, NS_LOG_FUNCTION, ns3::LteRlc::SetRnti(), and ns3::LteUeCphySapProvider::SetRnti().

Referenced by ns3::UeMemberLteUeCmacSapUser::SetTemporaryCellRnti().

Here is the call graph for this function:

Here is the caller graph for this function:

LteAsSapProvider * ns3::LteUeRrc::GetAsSapProvider ( )

Returns: the AS SAP provider exported by this RRC

Definition at line 268 of file lte-ue-rrc.cc.

References m_asSapProvider.

uint16_t ns3::LteUeRrc::GetCellId ( ) const

Returns: the CellId of the attached Enb

Definition at line 294 of file lte-ue-rrc.cc.

References m_cellId, and NS_LOG_FUNCTION.

Referenced by ns3::DrbActivator::ActivateDrb(), ns3::LteEnbRrcProtocolIdeal::DoSendSystemInformation(), ns3::LteEnbRrcProtocolReal::DoSendSystemInformation(), GetTypeId(), ns3::LteUeRrcProtocolIdeal::SetEnbRrcSapProvider(), and ns3::LteUeRrcProtocolReal::SetEnbRrcSapProvider().

Here is the caller graph for this function:

uint8_t ns3::LteUeRrc::GetDlBandwidth ( ) const

Returns: the downlink bandwidth in RBs

Definition at line 309 of file lte-ue-rrc.cc.

References m_dlBandwidth, and NS_LOG_FUNCTION.

uint16_t ns3::LteUeRrc::GetDlEarfcn ( ) const

Returns: the downlink carrier frequency (EARFCN)

Definition at line 316 of file lte-ue-rrc.cc.

References m_dlEarfcn.

uint64_t ns3::LteUeRrc::GetImsi ( void )

Returns: imsi the unique UE identifier

Definition at line 281 of file lte-ue-rrc.cc.

References m_imsi.

LteUeCmacSapUser * ns3::LteUeRrc::GetLteUeCmacSapUser ( )

Returns: s the CMAC SAP User interface offered to the MAC by this RRC

Definition at line 234 of file lte-ue-rrc.cc.

References m_cmacSapUser, and NS_LOG_FUNCTION.

LteUeCphySapUser * ns3::LteUeRrc::GetLteUeCphySapUser ( )

Returns: s the CPHY SAP User interface offered to the PHY by this RRC

Definition at line 220 of file lte-ue-rrc.cc.

References m_cphySapUser, and NS_LOG_FUNCTION.

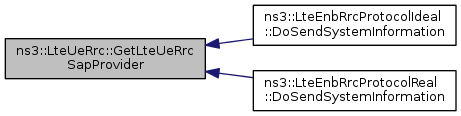

LteUeRrcSapProvider * ns3::LteUeRrc::GetLteUeRrcSapProvider ( )

Returns: s the RRC SAP Provider interface offered to the MAC by this RRC

Definition at line 248 of file lte-ue-rrc.cc.

References m_rrcSapProvider, and NS_LOG_FUNCTION.

Referenced by ns3::LteEnbRrcProtocolIdeal::DoSendSystemInformation(), and ns3::LteEnbRrcProtocolReal::DoSendSystemInformation().

Here is the caller graph for this function:

uint16_t ns3::LteUeRrc::GetRnti ( void ) const

Returns: the C-RNTI of the user

Definition at line 287 of file lte-ue-rrc.cc.

References m_rnti, and NS_LOG_FUNCTION.

Referenced by ns3::DrbActivator::ActivateDrb(), ns3::LteUeRrcProtocolReal::DoSendMeasurementReport(), ns3::LteUeRrcProtocolIdeal::DoSendRrcConnectionReconfigurationCompleted(), ns3::LteUeRrcProtocolReal::DoSendRrcConnectionReconfigurationCompleted(), ns3::LteUeRrcProtocolIdeal::DoSendRrcConnectionRequest(), ns3::LteUeRrcProtocolReal::DoSendRrcConnectionRequest(), and GetTypeId().

Here is the caller graph for this function:

LteUeRrc::State ns3::LteUeRrc::GetState ( void )

Returns: the current state

Definition at line 330 of file lte-ue-rrc.cc.

References m_state, and NS_LOG_FUNCTION.

Referenced by ns3::DrbActivator::ActivateDrb().

Here is the caller graph for this function:

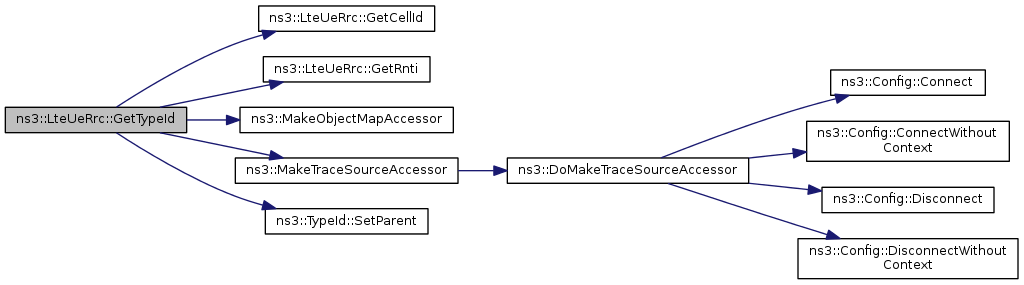

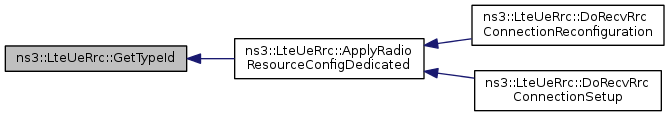

TypeId ns3::LteUeRrc::GetTypeId ( void )

static

Reimplemented from ns3::Object.

Definition at line 162 of file lte-ue-rrc.cc.

References GetCellId(), GetRnti(), m_connectionEstablishedTrace, m_connectionReconfigurationTrace, m_drbMap, m_handoverEndOkTrace, m_handoverStartTrace, m_randomAccessSuccessfulTrace, m_srb0, m_srb1, m_stateTransitionTrace, ns3::MakeObjectMapAccessor(), ns3::MakeTraceSourceAccessor(), and ns3::TypeId::SetParent().

Referenced by ApplyRadioResourceConfigDedicated().

Here is the call graph for this function:

Here is the caller graph for this function:

uint8_t ns3::LteUeRrc::GetUlBandwidth ( ) const

Returns: the uplink bandwidth in RBs

Definition at line 302 of file lte-ue-rrc.cc.

References m_ulBandwidth, and NS_LOG_FUNCTION.

uint16_t ns3::LteUeRrc::GetUlEarfcn ( ) const

Returns: the uplink carrier frequency (EARFCN)

Definition at line 322 of file lte-ue-rrc.cc.

References m_ulEarfcn, and NS_LOG_FUNCTION.

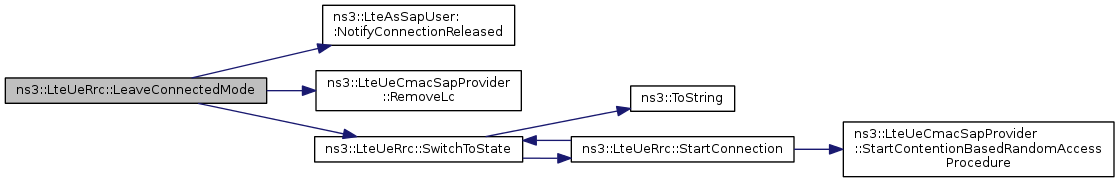

void ns3::LteUeRrc::LeaveConnectedMode ( )

private

Definition at line 913 of file lte-ue-rrc.cc.

References IDLE_CAMPED_NORMALLY, m_asSapUser, m_bid2DrbidMap, m_cmacSapProvider, m_drbMap, m_imsi, m_srb1, ns3::LteAsSapUser::NotifyConnectionReleased(), NS_LOG_FUNCTION, ns3::LteUeCmacSapProvider::RemoveLc(), and SwitchToState().

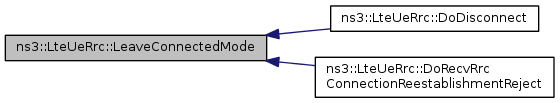

Referenced by DoDisconnect(), and DoRecvRrcConnectionReestablishmentReject().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::LteUeRrc::SetAsSapUser ( LteAsSapUser * s )

Set the AS SAP user to interact with the NAS entity

Parameters

s	the AS SAP user

Definition at line 262 of file lte-ue-rrc.cc.

References m_asSapUser.

void ns3::LteUeRrc::SetImsi ( uint64_t imsi )

Parameters

imsi	the unique UE identifier

Definition at line 274 of file lte-ue-rrc.cc.

References m_imsi, and NS_LOG_FUNCTION.

Referenced by ns3::LteUeNetDevice::UpdateConfig().

Here is the caller graph for this function:

void ns3::LteUeRrc::SetLteMacSapProvider ( LteMacSapProvider * s )

set the MAC SAP provider. The ue RRC does not use this directly, but it needs to provide it to newly created RLC instances.

Parameters

s	the MAC SAP provider that will be used by all newly created RLC instances

Definition at line 255 of file lte-ue-rrc.cc.

References m_macSapProvider, and NS_LOG_FUNCTION.

void ns3::LteUeRrc::SetLteUeCmacSapProvider ( LteUeCmacSapProvider * s )

set the CMAC SAP this RRC should interact with

Parameters

s	the CMAC SAP Provider to be used by this RRC

Definition at line 227 of file lte-ue-rrc.cc.

References m_cmacSapProvider, and NS_LOG_FUNCTION.

void ns3::LteUeRrc::SetLteUeCphySapProvider ( LteUeCphySapProvider * s )

set the CPHY SAP this RRC should use to interact with the PHY

Parameters

s	the CPHY SAP Provider

Definition at line 213 of file lte-ue-rrc.cc.

References m_cphySapProvider, and NS_LOG_FUNCTION.

void ns3::LteUeRrc::SetLteUeRrcSapUser ( LteUeRrcSapUser * s )

set the RRC SAP this RRC should interact with

Parameters

s	the RRC SAP User to be used by this RRC

Definition at line 241 of file lte-ue-rrc.cc.

References m_rrcSapUser, and NS_LOG_FUNCTION.

void ns3::LteUeRrc::SetUseRlcSm ( bool val )

Parameters

val	true if RLC SM is to be used, false if RLC UM/AM are to be used

Definition at line 337 of file lte-ue-rrc.cc.

References m_useRlcSm, and NS_LOG_FUNCTION.

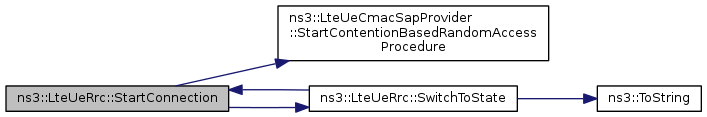

void ns3::LteUeRrc::StartConnection ( )

private

Definition at line 904 of file lte-ue-rrc.cc.

References IDLE_RANDOM_ACCESS, m_cmacSapProvider, m_connectionPending, NS_LOG_FUNCTION, ns3::LteUeCmacSapProvider::StartContentionBasedRandomAccessProcedure(), and SwitchToState().

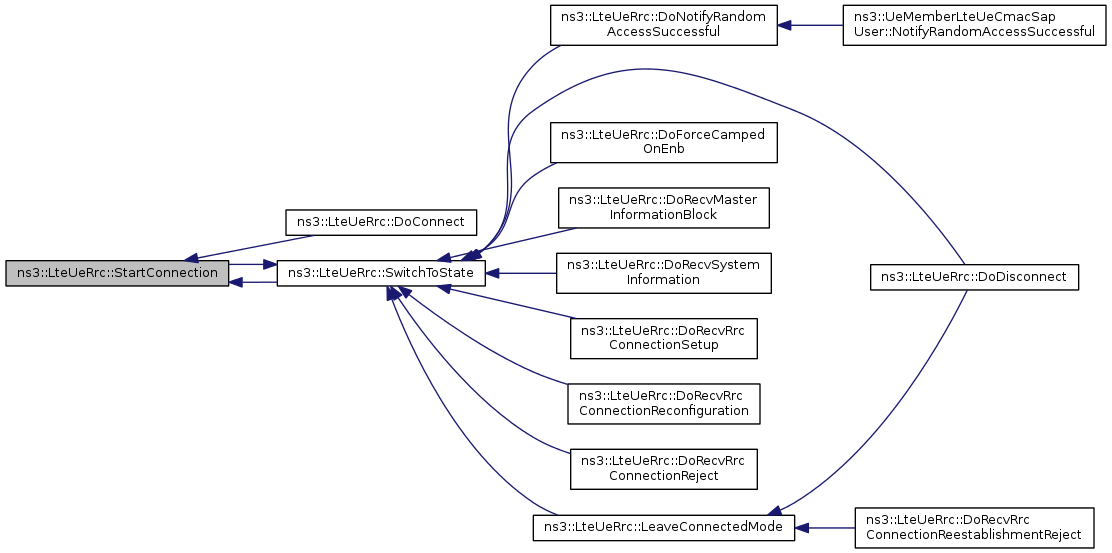

Referenced by DoConnect(), and SwitchToState().

Here is the call graph for this function:

Here is the caller graph for this function:

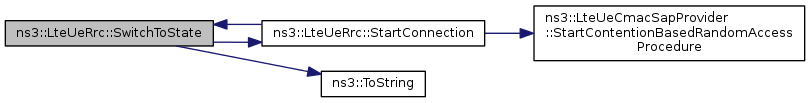

void ns3::LteUeRrc::SwitchToState ( State s )

private

Definition at line 946 of file lte-ue-rrc.cc.

References CONNECTED_HANDOVER, CONNECTED_NORMALLY, CONNECTED_REESTABLISHING, IDLE_CAMPED_NORMALLY, IDLE_CELL_SELECTION, IDLE_CONNECTING, IDLE_RANDOM_ACCESS, IDLE_WAIT_SYSTEM_INFO, m_cellId, m_connectionPending, m_imsi, m_rnti, m_state, m_stateTransitionTrace, NS_LOG_FUNCTION, NS_LOG_INFO, StartConnection(), and ns3::ToString().

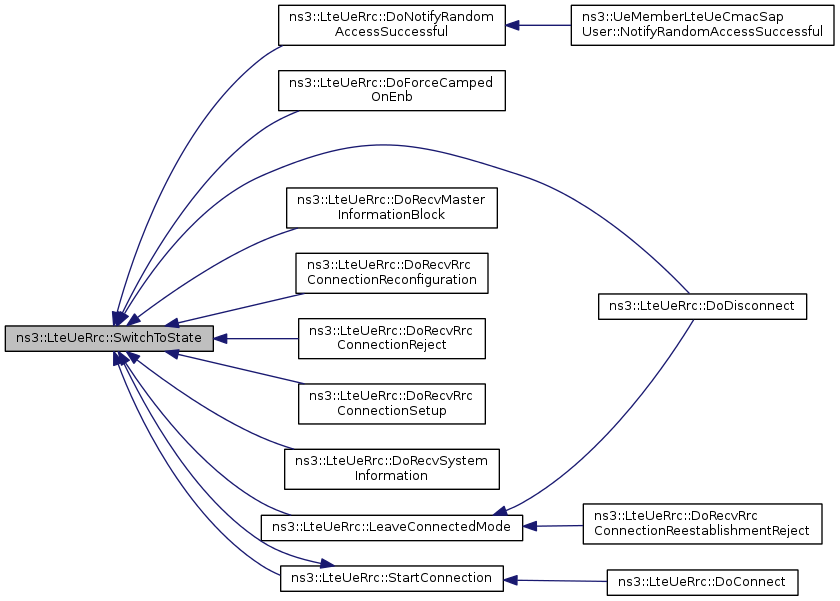

Referenced by DoDisconnect(), DoForceCampedOnEnb(), DoNotifyRandomAccessSuccessful(), DoRecvMasterInformationBlock(), DoRecvRrcConnectionReconfiguration(), DoRecvRrcConnectionReject(), DoRecvRrcConnectionSetup(), DoRecvSystemInformation(), LeaveConnectedMode(), and StartConnection().

Here is the call graph for this function:

Here is the caller graph for this function:

Friends And Related Function Documentation

friend class LtePdcpSpecificLtePdcpSapUser< LteUeRrc >

friend

Definition at line 54 of file lte-ue-rrc.h.

friend class MemberLteAsSapProvider< LteUeRrc >

friend

Definition at line 55 of file lte-ue-rrc.h.

friend class MemberLteUeCphySapUser< LteUeRrc >

friend

Definition at line 56 of file lte-ue-rrc.h.

friend class MemberLteUeRrcSapProvider< LteUeRrc >

friend

Definition at line 57 of file lte-ue-rrc.h.

friend class UeMemberLteUeCmacSapUser

friend

Definition at line 52 of file lte-ue-rrc.h.

Referenced by LteUeRrc().

friend class UeRrcMemberLteEnbCmacSapUser

friend

Definition at line 53 of file lte-ue-rrc.h.

Member Data Documentation

LteAsSapProvider* ns3::LteUeRrc::m_asSapProvider

private

Definition at line 281 of file lte-ue-rrc.h.

Referenced by DoDispose(), GetAsSapProvider(), and LteUeRrc().

LteAsSapUser* ns3::LteUeRrc::m_asSapUser

private

Definition at line 282 of file lte-ue-rrc.h.

Referenced by DoReceivePdcpSdu(), DoRecvRrcConnectionSetup(), LeaveConnectedMode(), and SetAsSapUser().

std::map<uint8_t, uint8_t> ns3::LteUeRrc::m_bid2DrbidMap

private

Definition at line 267 of file lte-ue-rrc.h.

Referenced by ApplyRadioResourceConfigDedicated(), Bid2Drbid(), and LeaveConnectedMode().

uint16_t ns3::LteUeRrc::m_cellId

private

Definition at line 288 of file lte-ue-rrc.h.

Referenced by DoForceCampedOnEnb(), DoNotifyRandomAccessSuccessful(), DoRecvRrcConnectionReconfiguration(), DoRecvRrcConnectionSetup(), GetCellId(), and SwitchToState().

LteUeCmacSapProvider* ns3::LteUeRrc::m_cmacSapProvider

private

Definition at line 273 of file lte-ue-rrc.h.

Referenced by ApplyRadioResourceConfigDedicated(), DoInitialize(), DoRecvRrcConnectionReconfiguration(), DoRecvRrcConnectionReject(), DoRecvSystemInformation(), LeaveConnectedMode(), SetLteUeCmacSapProvider(), and StartConnection().

LteUeCmacSapUser* ns3::LteUeRrc::m_cmacSapUser

private

Definition at line 272 of file lte-ue-rrc.h.

Referenced by DoDispose(), GetLteUeCmacSapUser(), and LteUeRrc().

TracedCallback<uint64_t, uint16_t, uint16_t> ns3::LteUeRrc::m_connectionEstablishedTrace

private

Definition at line 310 of file lte-ue-rrc.h.

Referenced by DoRecvRrcConnectionSetup(), and GetTypeId().

bool ns3::LteUeRrc::m_connectionPending

private

true if a connection request by upper layers is pending

Definition at line 318 of file lte-ue-rrc.h.

Referenced by DoConnect(), StartConnection(), and SwitchToState().

TracedCallback<uint64_t, uint16_t, uint16_t> ns3::LteUeRrc::m_connectionReconfigurationTrace

private

Definition at line 312 of file lte-ue-rrc.h.

Referenced by DoRecvRrcConnectionReconfiguration(), and GetTypeId().

LteUeCphySapProvider* ns3::LteUeRrc::m_cphySapProvider

private

Definition at line 270 of file lte-ue-rrc.h.

Referenced by ApplyRadioResourceConfigDedicated(), DoForceCampedOnEnb(), DoRecvMasterInformationBlock(), DoRecvRrcConnectionReconfiguration(), DoRecvSystemInformation(), DoSetTemporaryCellRnti(), and SetLteUeCphySapProvider().

LteUeCphySapUser* ns3::LteUeRrc::m_cphySapUser

private

Definition at line 269 of file lte-ue-rrc.h.

Referenced by DoDispose(), GetLteUeCphySapUser(), and LteUeRrc().

uint8_t ns3::LteUeRrc::m_dlBandwidth

private

downlink bandwidth in RBs

Definition at line 299 of file lte-ue-rrc.h.

Referenced by DoRecvMasterInformationBlock(), and GetDlBandwidth().

uint16_t ns3::LteUeRrc::m_dlEarfcn

private

downlink carrier frequency

Definition at line 302 of file lte-ue-rrc.h.

Referenced by DoForceCampedOnEnb(), and GetDlEarfcn().

std::map<uint8_t, Ptr<LteDataRadioBearerInfo> > ns3::LteUeRrc::m_drbMap

private

Definition at line 293 of file lte-ue-rrc.h.

Referenced by ApplyRadioResourceConfigDedicated(), DoDispose(), DoRecvRrcConnectionReconfiguration(), DoSendData(), GetTypeId(), and LeaveConnectedMode().

LtePdcpSapUser* ns3::LteUeRrc::m_drbPdcpSapUser

private

Definition at line 279 of file lte-ue-rrc.h.

Referenced by ApplyRadioResourceConfigDedicated(), DoDispose(), and LteUeRrc().

TracedCallback<uint64_t, uint16_t, uint16_t> ns3::LteUeRrc::m_handoverEndOkTrace

private

Definition at line 316 of file lte-ue-rrc.h.

Referenced by DoNotifyRandomAccessSuccessful(), and GetTypeId().

TracedCallback<uint64_t, uint16_t, uint16_t, uint16_t> ns3::LteUeRrc::m_handoverStartTrace

private

Definition at line 314 of file lte-ue-rrc.h.

Referenced by DoRecvRrcConnectionReconfiguration(), and GetTypeId().

uint64_t ns3::LteUeRrc::m_imsi

private

Definition at line 286 of file lte-ue-rrc.h.

Referenced by ApplyRadioResourceConfigDedicated(), DoNotifyRandomAccessSuccessful(), DoRecvRrcConnectionReconfiguration(), DoRecvRrcConnectionSetup(), GetImsi(), LeaveConnectedMode(), SetImsi(), and SwitchToState().

uint8_t ns3::LteUeRrc::m_lastRrcTransactionIdentifier

private

Definition at line 297 of file lte-ue-rrc.h.

Referenced by DoNotifyRandomAccessSuccessful(), and DoRecvRrcConnectionReconfiguration().

LteMacSapProvider* ns3::LteUeRrc::m_macSapProvider

private

Definition at line 278 of file lte-ue-rrc.h.

Referenced by ApplyRadioResourceConfigDedicated(), DoInitialize(), and SetLteMacSapProvider().

TracedCallback<uint64_t, uint16_t, uint16_t> ns3::LteUeRrc::m_randomAccessSuccessfulTrace

private

Definition at line 308 of file lte-ue-rrc.h.

Referenced by DoNotifyRandomAccessSuccessful(), and GetTypeId().

bool ns3::LteUeRrc::m_receivedMib

private

true if MIB was received for the current cell

Definition at line 319 of file lte-ue-rrc.h.

Referenced by DoRecvMasterInformationBlock(), and DoRecvSystemInformation().

bool ns3::LteUeRrc::m_receivedSib2

private

true if SIB2 was received for the current cell

Definition at line 320 of file lte-ue-rrc.h.

Referenced by DoRecvMasterInformationBlock(), and DoRecvSystemInformation().

uint16_t ns3::LteUeRrc::m_rnti

private

Definition at line 287 of file lte-ue-rrc.h.

Referenced by ApplyRadioResourceConfigDedicated(), DoInitialize(), DoNotifyRandomAccessSuccessful(), DoRecvRrcConnectionReconfiguration(), DoRecvRrcConnectionSetup(), DoSendData(), DoSetTemporaryCellRnti(), GetRnti(), and SwitchToState().

LteUeRrcSapProvider* ns3::LteUeRrc::m_rrcSapProvider

private

Definition at line 276 of file lte-ue-rrc.h.

Referenced by DoDispose(), GetLteUeRrcSapProvider(), and LteUeRrc().

LteUeRrcSapUser* ns3::LteUeRrc::m_rrcSapUser

private

Definition at line 275 of file lte-ue-rrc.h.

Referenced by ApplyRadioResourceConfigDedicated(), DoInitialize(), DoNotifyRandomAccessSuccessful(), DoRecvRrcConnectionReconfiguration(), DoRecvRrcConnectionSetup(), and SetLteUeRrcSapUser().

Ptr<LteSignalingRadioBearerInfo> ns3::LteUeRrc::m_srb0

private

Definition at line 290 of file lte-ue-rrc.h.

Referenced by ApplyRadioResourceConfigDedicated(), DoCompleteSetup(), DoInitialize(), DoRecvRrcConnectionReconfiguration(), DoSetTemporaryCellRnti(), and GetTypeId().

Ptr<LteSignalingRadioBearerInfo> ns3::LteUeRrc::m_srb1

private

Definition at line 291 of file lte-ue-rrc.h.

Referenced by ApplyRadioResourceConfigDedicated(), DoCompleteSetup(), DoRecvRrcConnectionReconfiguration(), GetTypeId(), and LeaveConnectedMode().

Ptr<LteSignalingRadioBearerInfo> ns3::LteUeRrc::m_srb1Old

private

Definition at line 292 of file lte-ue-rrc.h.

Referenced by DisposeOldSrb1(), and DoRecvRrcConnectionReconfiguration().

State ns3::LteUeRrc::m_state

private

Definition at line 284 of file lte-ue-rrc.h.

Referenced by ApplyRadioResourceConfigDedicated(), DoConnect(), DoDisconnect(), DoNotifyRandomAccessSuccessful(), DoRecvMasterInformationBlock(), DoRecvRrcConnectionReconfiguration(), DoRecvRrcConnectionReestablishment(), DoRecvRrcConnectionReestablishmentReject(), DoRecvRrcConnectionSetup(), DoRecvSystemInformation(), GetState(), and SwitchToState().

TracedCallback<uint64_t, uint16_t, uint16_t, State, State> ns3::LteUeRrc::m_stateTransitionTrace

private

Definition at line 306 of file lte-ue-rrc.h.

Referenced by GetTypeId(), and SwitchToState().

uint8_t ns3::LteUeRrc::m_ulBandwidth

private

uplink bandwidth in RBs

Definition at line 300 of file lte-ue-rrc.h.

Referenced by DoRecvSystemInformation(), and GetUlBandwidth().

uint16_t ns3::LteUeRrc::m_ulEarfcn

private

uplink carrier frequency

Definition at line 303 of file lte-ue-rrc.h.

Referenced by DoRecvSystemInformation(), and GetUlEarfcn().

bool ns3::LteUeRrc::m_useRlcSm

private

Definition at line 295 of file lte-ue-rrc.h.

Referenced by ApplyRadioResourceConfigDedicated(), and SetUseRlcSm().

The documentation for this class was generated from the following files:

src/lte/model/lte-ue-rrc.h
src/lte/model/lte-ue-rrc.cc

Public Types

Public Member Functions

Static Public Member Functions

Private Member Functions

Private Attributes

Friends

Additional Inherited Members

Detailed Description

Config Paths

Attributes

TraceSources

Member Enumeration Documentation

Constructor & Destructor Documentation

Member Function Documentation

Friends And Related Function Documentation

Member Data Documentation
