ns3::dsr::DsrOptionAckReqHeader Class Reference

Acknowledgement Request (ACK_RREQ) Message Format. More...

#include <dsr-option-header.h>

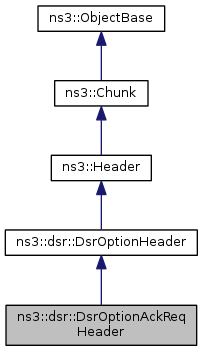

Inheritance diagram for ns3::dsr::DsrOptionAckReqHeader:

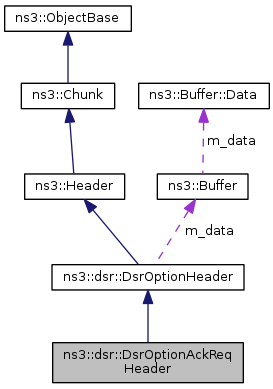

Collaboration diagram for ns3::dsr::DsrOptionAckReqHeader:

Public Member Functions
	DsrOptionAckReqHeader ()
	Constructor.
virtual	~DsrOptionAckReqHeader ()
	Destructor.
virtual uint32_t	Deserialize (Buffer::Iterator start)
	Deserialize the packet.
uint16_t	GetAckId () const
	Set the Ack request id number.
virtual Alignment	GetAlignment () const
	Get the Alignment requirement of this option header.
virtual TypeId	GetInstanceTypeId () const
	Get the instance type ID.
virtual uint32_t	GetSerializedSize () const
	Get the serialized size of the packet.
virtual void	Print (std::ostream &os) const
	Print some informations about the packet.
virtual void	Serialize (Buffer::Iterator start) const
	Serialize the packet.
void	SetAckId (uint16_t identification)
	Set the Ack request id number.
Public Member Functions inherited from ns3::dsr::DsrOptionHeader
	DsrOptionHeader ()
	Constructor.
virtual	~DsrOptionHeader ()
	Destructor.
uint8_t	GetLength () const
	Get the option length.
uint8_t	GetType () const
	Get the type of the option.
void	SetLength (uint8_t length)
	Set the option length.
void	SetType (uint8_t type)
	Set the type of the option.
Public Member Functions inherited from ns3::Header
virtual	~Header ()

Static Public Member Functions
static TypeId	GetTypeId ()
	Get the type identificator.

Private Attributes
uint16_t	m_identification
uint8_t	m_optDataLen

Additional Inherited Members
Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
virtual void	NotifyConstructionCompleted (void)

Detailed Description

Acknowledgement Request (ACK_RREQ) Message Format.

Header of Dsr Option ack request.

 |      0        |      1        |      2        |      3        |
 0 1 2 3 4 5 6 7 0 1 2 3 4 5 6 7 0 1 2 3 4 5 6 7 0 1 2 3 4 5 6 7
 +-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+
 |  Option Type |  Opt Data Len |         Identification         |
 +-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+

Doxygen introspection did not find any typical Config paths.
No Attributes are defined for this type.
No TraceSources are defined for this type.

Definition at line 1203 of file dsr-option-header.h.

Constructor & Destructor Documentation

ns3::dsr::DsrOptionAckReqHeader::DsrOptionAckReqHeader

(

)

Constructor.

Definition at line 1045 of file dsr-option-header.cc.

References ns3::dsr::DsrOptionHeader::SetLength(), and ns3::dsr::DsrOptionHeader::SetType().

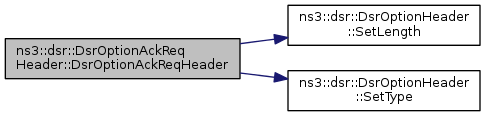

Here is the call graph for this function:

ns3::dsr::DsrOptionAckReqHeader::~DsrOptionAckReqHeader ( )

virtual

Destructor.

Definition at line 1053 of file dsr-option-header.cc.

Member Function Documentation

uint32_t ns3::dsr::DsrOptionAckReqHeader::Deserialize ( Buffer::Iterator  start )

virtual

Deserialize the packet.

Parameters

start

Buffer iterator

Returns

size of the packet

Reimplemented from ns3::dsr::DsrOptionHeader.

Definition at line 1087 of file dsr-option-header.cc.

References GetSerializedSize(), m_identification, ns3::Buffer::Iterator::ReadU16(), ns3::Buffer::Iterator::ReadU8(), ns3::dsr::DsrOptionHeader::SetLength(), ns3::dsr::DsrOptionHeader::SetType(), and visualizer.core::start().

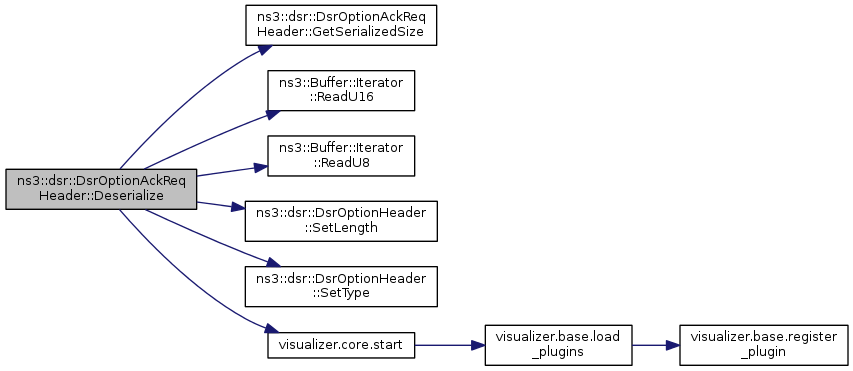

Here is the call graph for this function:

uint16_t ns3::dsr::DsrOptionAckReqHeader::GetAckId

(

)

const

Set the Ack request id number.

Returns

request id number

Definition at line 1062 of file dsr-option-header.cc.

References m_identification.

Referenced by ns3::dsr::DsrAckReqHeaderTest::DoRun(), and ns3::dsr::DsrOptionSR::Process().

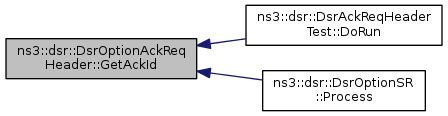

Here is the caller graph for this function:

DsrOptionHeader::Alignment ns3::dsr::DsrOptionAckReqHeader::GetAlignment ( ) const

virtual

Get the Alignment requirement of this option header.

Returns

The required alignment

Reimplemented from ns3::dsr::DsrOptionHeader.

Definition at line 1098 of file dsr-option-header.cc.

TypeId ns3::dsr::DsrOptionAckReqHeader::GetInstanceTypeId ( void  ) const

virtual

Get the instance type ID.

Returns

instance type ID

Reimplemented from ns3::dsr::DsrOptionHeader.

Definition at line 1040 of file dsr-option-header.cc.

References GetTypeId().

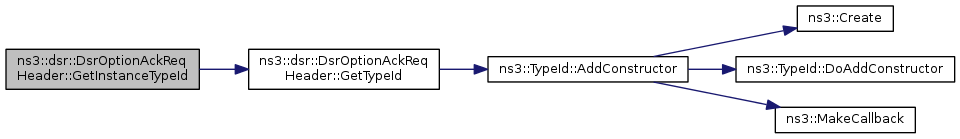

Here is the call graph for this function:

uint32_t ns3::dsr::DsrOptionAckReqHeader::GetSerializedSize ( void  ) const

virtual

Get the serialized size of the packet.

Returns

size

Reimplemented from ns3::dsr::DsrOptionHeader.

Definition at line 1073 of file dsr-option-header.cc.

Referenced by Deserialize(), and ns3::dsr::DsrOptionAckReq::Process().

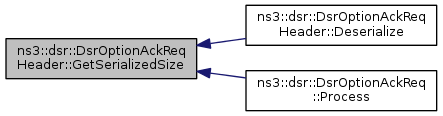

Here is the caller graph for this function:

TypeId ns3::dsr::DsrOptionAckReqHeader::GetTypeId ( void  )

static

Get the type identificator.

Returns

type identificator

Reimplemented from ns3::dsr::DsrOptionHeader.

Definition at line 1031 of file dsr-option-header.cc.

References ns3::TypeId::AddConstructor().

Referenced by GetInstanceTypeId().

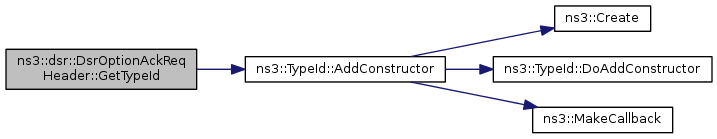

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::dsr::DsrOptionAckReqHeader::Print ( std::ostream &  os ) const

virtual

Print some informations about the packet.

Parameters

os	output stream

Returns

info about this packet

Reimplemented from ns3::dsr::DsrOptionHeader.

Definition at line 1067 of file dsr-option-header.cc.

References ns3::dsr::DsrOptionHeader::GetLength(), ns3::dsr::DsrOptionHeader::GetType(), and m_identification.

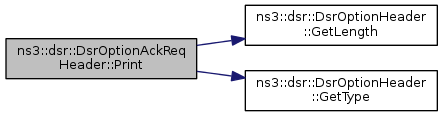

Here is the call graph for this function:

void ns3::dsr::DsrOptionAckReqHeader::Serialize ( Buffer::Iterator  start ) const

virtual

Serialize the packet.

Parameters

start

Buffer iterator

Reimplemented from ns3::dsr::DsrOptionHeader.

Definition at line 1078 of file dsr-option-header.cc.

References ns3::dsr::DsrOptionHeader::GetLength(), ns3::dsr::DsrOptionHeader::GetType(), m_identification, visualizer.core::start(), ns3::Buffer::Iterator::WriteU16(), and ns3::Buffer::Iterator::WriteU8().

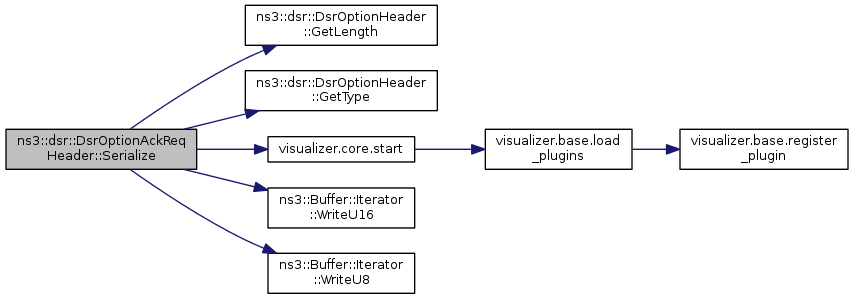

Here is the call graph for this function:

void ns3::dsr::DsrOptionAckReqHeader::SetAckId

(

uint16_t

identification

)

Set the Ack request id number.

Parameters

the	identification number

Definition at line 1057 of file dsr-option-header.cc.

References m_identification.

Referenced by ns3::dsr::DsrRouting::AddAckReqHeader(), and ns3::dsr::DsrAckReqHeaderTest::DoRun().

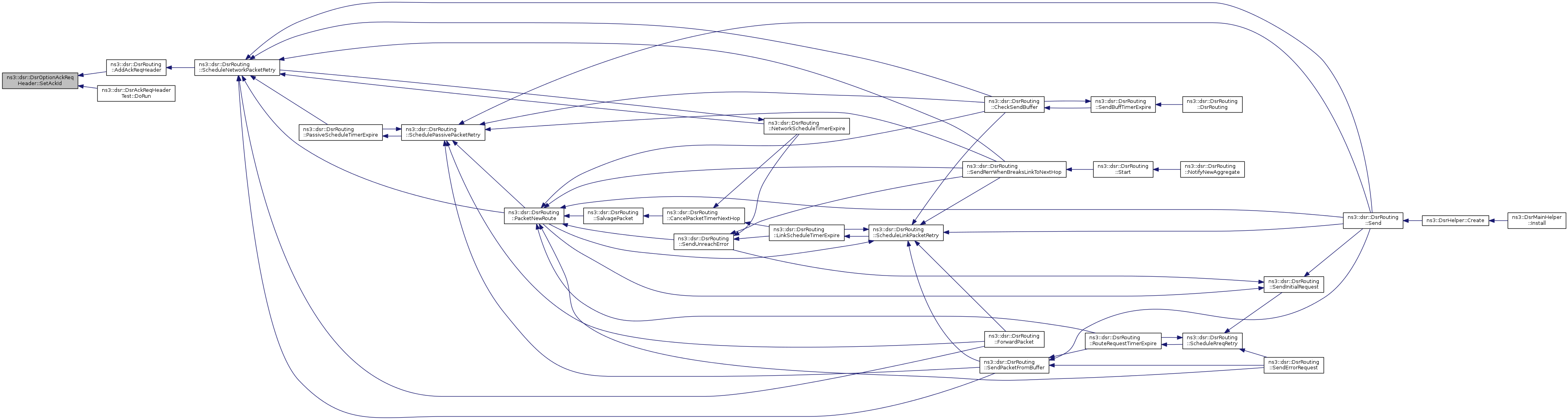

Here is the caller graph for this function:

Member Data Documentation

uint16_t ns3::dsr::DsrOptionAckReqHeader::m_identification

private

Definition at line 1270 of file dsr-option-header.h.

Referenced by Deserialize(), GetAckId(), Print(), Serialize(), and SetAckId().

uint8_t ns3::dsr::DsrOptionAckReqHeader::m_optDataLen

private

Definition at line 1266 of file dsr-option-header.h.

---

The documentation for this class was generated from the following files:

• src/dsr/model/dsr-option-header.h
• src/dsr/model/dsr-option-header.cc
