ns3::dsr::DsrOptionHeader Class Reference

Header for Dsr Options. More...

#include <dsr-option-header.h>

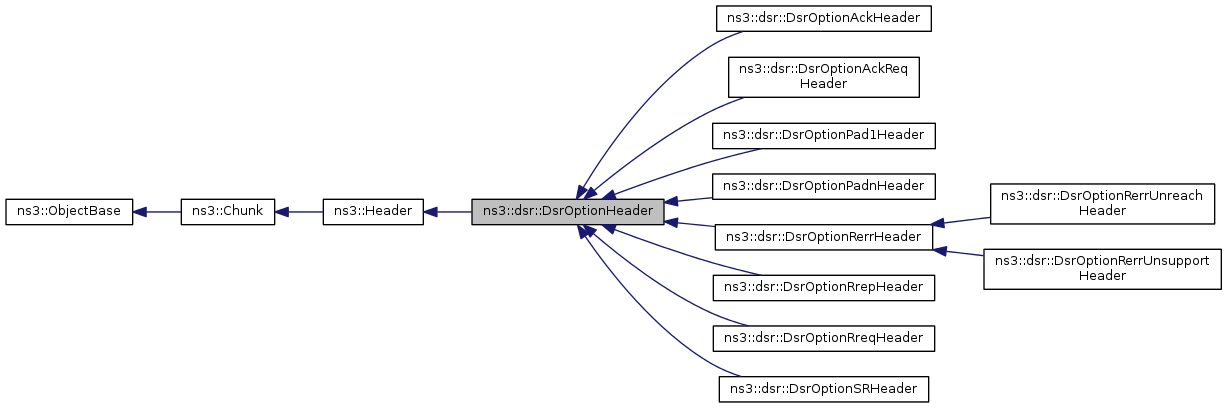

Inheritance diagram for ns3::dsr::DsrOptionHeader:

Collaboration diagram for ns3::dsr::DsrOptionHeader:

Classes
struct	Alignment
	represents the alignment requirements of an option header More...

Public Member Functions
	DsrOptionHeader ()
	Constructor.
virtual	~DsrOptionHeader ()
	Destructor.
virtual uint32_t	Deserialize (Buffer::Iterator start)
	Deserialize the packet.
virtual Alignment	GetAlignment () const
	Get the Alignment requirement of this option header.
virtual TypeId	GetInstanceTypeId () const
	Get the instance type ID.
uint8_t	GetLength () const
	Get the option length.
virtual uint32_t	GetSerializedSize () const
	Get the serialized size of the packet.
uint8_t	GetType () const
	Get the type of the option.
virtual void	Print (std::ostream &os) const
	Print some informations about the packet.
virtual void	Serialize (Buffer::Iterator start) const
	Serialize the packet.
void	SetLength (uint8_t length)
	Set the option length.
void	SetType (uint8_t type)
	Set the type of the option.
Public Member Functions inherited from ns3::Header
virtual	~Header ()

Static Public Member Functions
static TypeId	GetTypeId ()
	Get the type identificator.

Private Attributes
Buffer	m_data
	The anonymous data of this option.
uint8_t	m_length
	The option length.
uint8_t	m_type
	The type of the option.

Additional Inherited Members
Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
virtual void	NotifyConstructionCompleted (void)

Detailed Description

Header for Dsr Options.

Doxygen introspection did not find any typical Config paths.
No Attributes are defined for this type.
No TraceSources are defined for this type.

Definition at line 50 of file dsr-option-header.h.

Constructor & Destructor Documentation

ns3::dsr::DsrOptionHeader::DsrOptionHeader

(

)

Constructor.

Definition at line 61 of file dsr-option-header.cc.

ns3::dsr::DsrOptionHeader::~DsrOptionHeader ( )

virtual

Destructor.

Definition at line 67 of file dsr-option-header.cc.

Member Function Documentation

uint32_t ns3::dsr::DsrOptionHeader::Deserialize ( Buffer::Iterator  start )

virtual

Deserialize the packet.

Parameters

start

Buffer iterator

Returns

size of the packet

Implements ns3::Header.

Reimplemented in ns3::dsr::DsrOptionAckHeader, ns3::dsr::DsrOptionAckReqHeader, ns3::dsr::DsrOptionRerrUnsupportHeader, ns3::dsr::DsrOptionRerrUnreachHeader, ns3::dsr::DsrOptionRerrHeader, ns3::dsr::DsrOptionSRHeader, ns3::dsr::DsrOptionRrepHeader, ns3::dsr::DsrOptionRreqHeader, ns3::dsr::DsrOptionPadnHeader, and ns3::dsr::DsrOptionPad1Header.

Definition at line 110 of file dsr-option-header.cc.

References ns3::Buffer::AddAtEnd(), ns3::Buffer::Begin(), GetSerializedSize(), m_data, m_length, m_type, ns3::Buffer::Iterator::Next(), ns3::Buffer::Iterator::ReadU8(), visualizer.core::start(), and ns3::Buffer::Iterator::Write().

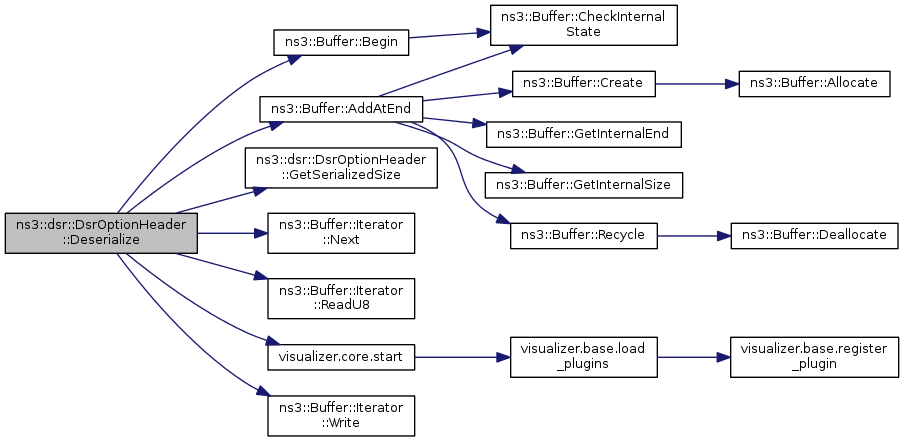

Here is the call graph for this function:

DsrOptionHeader::Alignment ns3::dsr::DsrOptionHeader::GetAlignment ( ) const

virtual

Get the Alignment requirement of this option header.

Returns

The required alignment

Subclasses should only implement this method, if special alignment is required. Default is no alignment (1n+0).

Reimplemented in ns3::dsr::DsrOptionAckHeader, ns3::dsr::DsrOptionAckReqHeader, ns3::dsr::DsrOptionRerrUnsupportHeader, ns3::dsr::DsrOptionRerrUnreachHeader, ns3::dsr::DsrOptionRerrHeader, ns3::dsr::DsrOptionSRHeader, ns3::dsr::DsrOptionRrepHeader, and ns3::dsr::DsrOptionRreqHeader.

Definition at line 127 of file dsr-option-header.cc.

Referenced by ns3::dsr::DsrOptionField::AddDsrOption().

Here is the caller graph for this function:

TypeId ns3::dsr::DsrOptionHeader::GetInstanceTypeId ( void  ) const

virtual

Get the instance type ID.

Returns

instance type ID

Implements ns3::ObjectBase.

Reimplemented in ns3::dsr::DsrOptionAckHeader, ns3::dsr::DsrOptionAckReqHeader, ns3::dsr::DsrOptionRerrUnsupportHeader, ns3::dsr::DsrOptionRerrUnreachHeader, ns3::dsr::DsrOptionRerrHeader, ns3::dsr::DsrOptionSRHeader, ns3::dsr::DsrOptionRrepHeader, ns3::dsr::DsrOptionRreqHeader, ns3::dsr::DsrOptionPadnHeader, and ns3::dsr::DsrOptionPad1Header.

Definition at line 56 of file dsr-option-header.cc.

References GetTypeId().

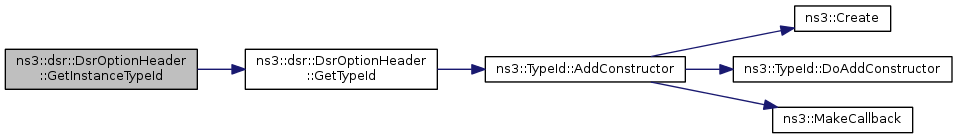

Here is the call graph for this function:

uint8_t ns3::dsr::DsrOptionHeader::GetLength

(

)

const

Get the option length.

Returns

the option length

Definition at line 86 of file dsr-option-header.cc.

References m_length.

Referenced by ns3::dsr::DsrRouting::AddAckReqHeader(), ns3::dsr::DsrRouting::CheckSendBuffer(), ns3::dsr::DsrOptionRerr::DoSendError(), ns3::dsr::DsrRouting::ForwardErrPacket(), ns3::dsr::DsrRouting::ForwardPacket(), ns3::dsr::DsrOptionPadnHeader::GetSerializedSize(), ns3::dsr::DsrRouting::PacketNewRoute(), ns3::dsr::DsrOptionPadnHeader::Print(), ns3::dsr::DsrOptionRreqHeader::Print(), ns3::dsr::DsrOptionRrepHeader::Print(), ns3::dsr::DsrOptionSRHeader::Print(), ns3::dsr::DsrOptionRerrHeader::Print(), ns3::dsr::DsrOptionRerrUnreachHeader::Print(), ns3::dsr::DsrOptionRerrUnsupportHeader::Print(), ns3::dsr::DsrOptionAckReqHeader::Print(), ns3::dsr::DsrOptionAckHeader::Print(), ns3::dsr::DsrOptionRreq::Process(), ns3::dsr::DsrOptionRrep::Process(), ns3::dsr::DsrOptionSR::Process(), ns3::dsr::DsrRouting::SalvagePacket(), ns3::dsr::DsrRouting::Send(), ns3::dsr::DsrRouting::SendAck(), ns3::dsr::DsrRouting::SendErrorRequest(), ns3::dsr::DsrRouting::SendGratuitousReply(), ns3::dsr::DsrRouting::SendInitialRequest(), ns3::dsr::DsrRouting::SendPacketFromBuffer(), ns3::dsr::DsrRouting::SendUnreachError(), ns3::dsr::DsrOptionPadnHeader::Serialize(), ns3::dsr::DsrOptionRreqHeader::Serialize(), ns3::dsr::DsrOptionRrepHeader::Serialize(), ns3::dsr::DsrOptionSRHeader::Serialize(), ns3::dsr::DsrOptionRerrHeader::Serialize(), ns3::dsr::DsrOptionRerrUnreachHeader::Serialize(), ns3::dsr::DsrOptionRerrUnsupportHeader::Serialize(), ns3::dsr::DsrOptionAckReqHeader::Serialize(), and ns3::dsr::DsrOptionAckHeader::Serialize().

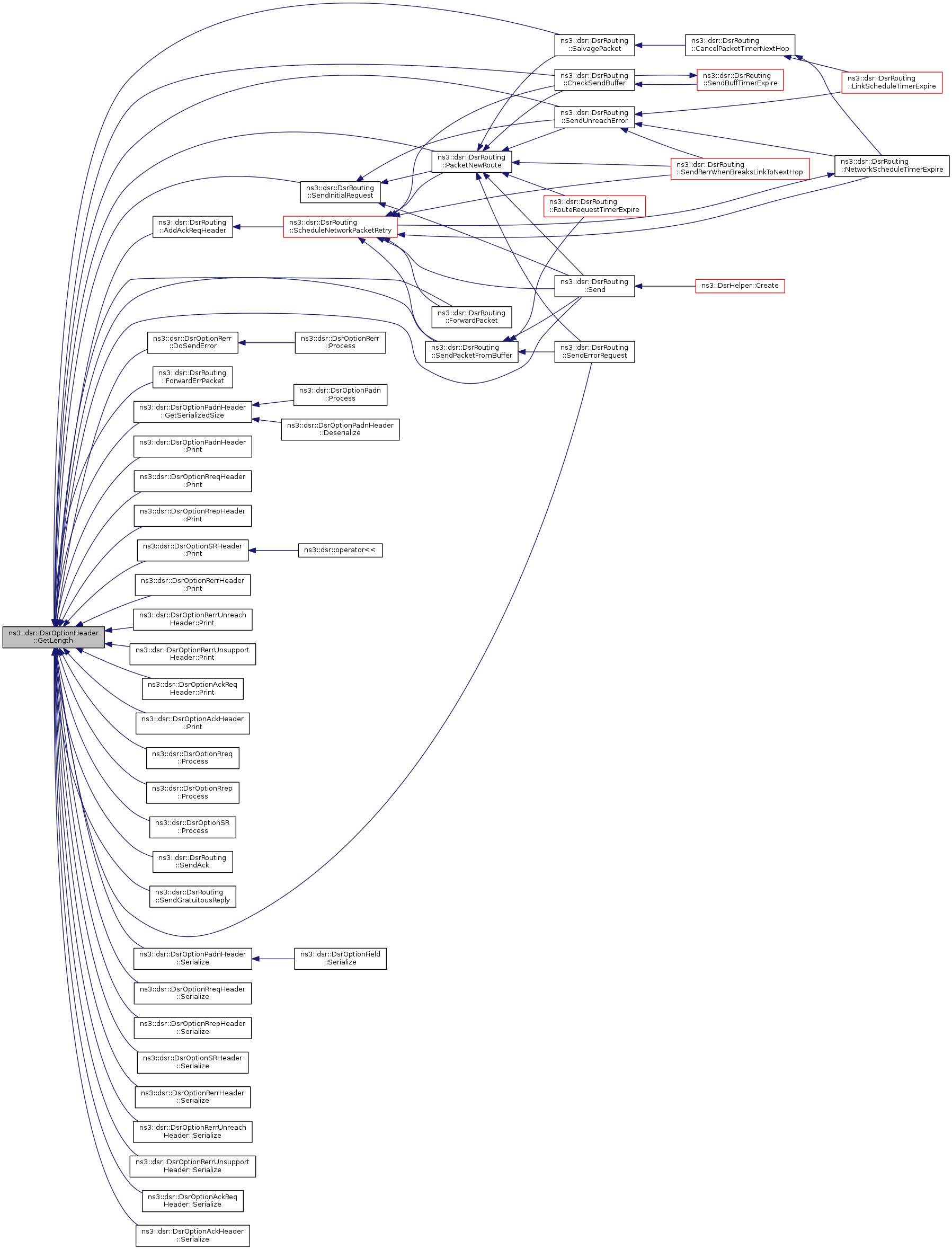

Here is the caller graph for this function:

uint32_t ns3::dsr::DsrOptionHeader::GetSerializedSize ( void  ) const

virtual

Get the serialized size of the packet.

Returns

size

Implements ns3::Header.

Reimplemented in ns3::dsr::DsrOptionAckHeader, ns3::dsr::DsrOptionAckReqHeader, ns3::dsr::DsrOptionRerrUnsupportHeader, ns3::dsr::DsrOptionRerrUnreachHeader, ns3::dsr::DsrOptionRerrHeader, ns3::dsr::DsrOptionSRHeader, ns3::dsr::DsrOptionRrepHeader, ns3::dsr::DsrOptionRreqHeader, ns3::dsr::DsrOptionPadnHeader, and ns3::dsr::DsrOptionPad1Header.

Definition at line 96 of file dsr-option-header.cc.

References m_length.

Referenced by ns3::dsr::DsrOptionField::AddDsrOption(), and Deserialize().

Here is the caller graph for this function:

uint8_t ns3::dsr::DsrOptionHeader::GetType

(

)

const

Get the type of the option.

Returns

the type of the option

Definition at line 76 of file dsr-option-header.cc.

References m_type.

Referenced by ns3::dsr::DsrFsHeaderTest::DoRun(), ns3::dsr::DsrOptionPad1Header::Print(), ns3::dsr::DsrOptionPadnHeader::Print(), ns3::dsr::DsrOptionRreqHeader::Print(), ns3::dsr::DsrOptionRrepHeader::Print(), ns3::dsr::DsrOptionSRHeader::Print(), ns3::dsr::DsrOptionRerrHeader::Print(), ns3::dsr::DsrOptionRerrUnreachHeader::Print(), ns3::dsr::DsrOptionRerrUnsupportHeader::Print(), ns3::dsr::DsrOptionAckReqHeader::Print(), ns3::dsr::DsrOptionAckHeader::Print(), ns3::dsr::DsrOptionPad1Header::Serialize(), ns3::dsr::DsrOptionPadnHeader::Serialize(), ns3::dsr::DsrOptionRreqHeader::Serialize(), ns3::dsr::DsrOptionRrepHeader::Serialize(), ns3::dsr::DsrOptionSRHeader::Serialize(), ns3::dsr::DsrOptionRerrHeader::Serialize(), ns3::dsr::DsrOptionRerrUnreachHeader::Serialize(), ns3::dsr::DsrOptionRerrUnsupportHeader::Serialize(), ns3::dsr::DsrOptionAckReqHeader::Serialize(), and ns3::dsr::DsrOptionAckHeader::Serialize().

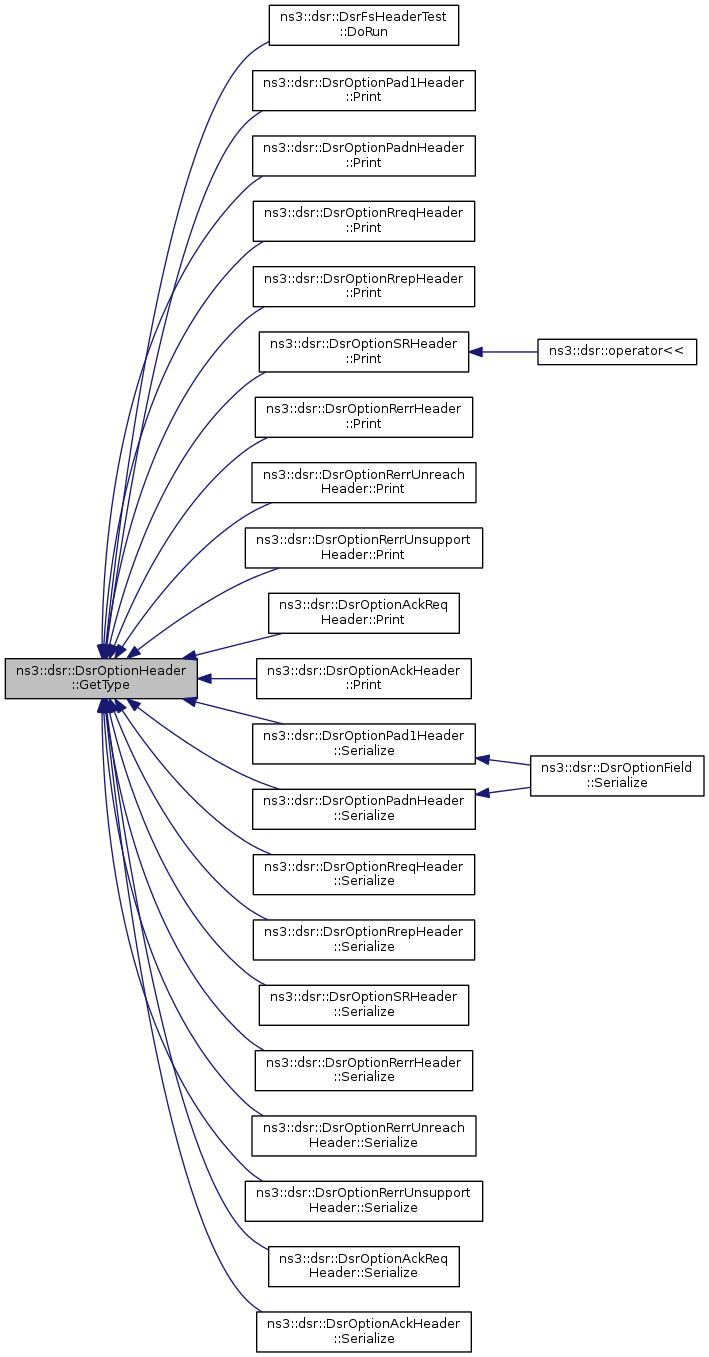

Here is the caller graph for this function:

TypeId ns3::dsr::DsrOptionHeader::GetTypeId ( void  )

static

Get the type identificator.

Returns

type identificator

Reimplemented from ns3::Header.

Reimplemented in ns3::dsr::DsrOptionAckHeader, ns3::dsr::DsrOptionAckReqHeader, ns3::dsr::DsrOptionRerrUnsupportHeader, ns3::dsr::DsrOptionRerrUnreachHeader, ns3::dsr::DsrOptionRerrHeader, ns3::dsr::DsrOptionSRHeader, ns3::dsr::DsrOptionRrepHeader, ns3::dsr::DsrOptionRreqHeader, ns3::dsr::DsrOptionPadnHeader, and ns3::dsr::DsrOptionPad1Header.

Definition at line 47 of file dsr-option-header.cc.

References ns3::TypeId::AddConstructor().

Referenced by GetInstanceTypeId().

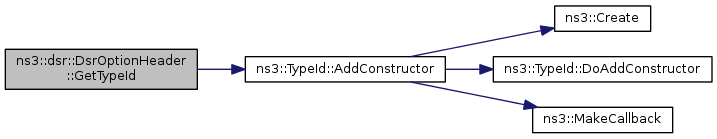

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::dsr::DsrOptionHeader::Print ( std::ostream &  os ) const

virtual

Print some informations about the packet.

Parameters

os	output stream

Returns

info about this packet

Implements ns3::Header.

Reimplemented in ns3::dsr::DsrOptionAckHeader, ns3::dsr::DsrOptionAckReqHeader, ns3::dsr::DsrOptionRerrUnsupportHeader, ns3::dsr::DsrOptionRerrUnreachHeader, ns3::dsr::DsrOptionRerrHeader, ns3::dsr::DsrOptionSRHeader, ns3::dsr::DsrOptionRrepHeader, ns3::dsr::DsrOptionRreqHeader, ns3::dsr::DsrOptionPadnHeader, and ns3::dsr::DsrOptionPad1Header.

Definition at line 91 of file dsr-option-header.cc.

References m_length, and m_type.

void ns3::dsr::DsrOptionHeader::Serialize ( Buffer::Iterator  start ) const

virtual

Serialize the packet.

Parameters

start

Buffer iterator

Implements ns3::Header.

Reimplemented in ns3::dsr::DsrOptionAckHeader, ns3::dsr::DsrOptionAckReqHeader, ns3::dsr::DsrOptionRerrUnsupportHeader, ns3::dsr::DsrOptionRerrUnreachHeader, ns3::dsr::DsrOptionRerrHeader, ns3::dsr::DsrOptionSRHeader, ns3::dsr::DsrOptionRrepHeader, ns3::dsr::DsrOptionRreqHeader, ns3::dsr::DsrOptionPadnHeader, and ns3::dsr::DsrOptionPad1Header.

Definition at line 101 of file dsr-option-header.cc.

References ns3::Buffer::Begin(), ns3::Buffer::End(), m_data, m_length, m_type, visualizer.core::start(), ns3::Buffer::Iterator::Write(), and ns3::Buffer::Iterator::WriteU8().

Referenced by ns3::dsr::DsrOptionField::AddDsrOption().

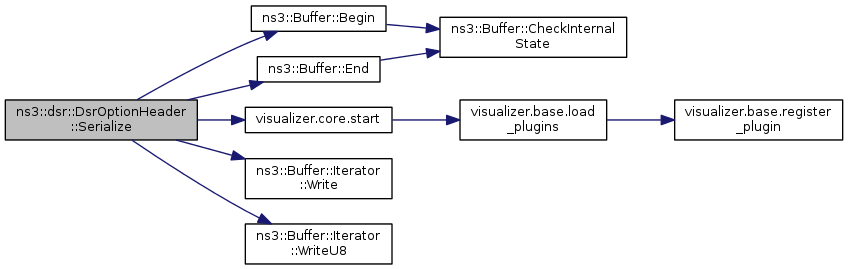

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::dsr::DsrOptionHeader::SetLength

(

uint8_t

length

)

Set the option length.

Parameters

length

the option length

Definition at line 81 of file dsr-option-header.cc.

References m_length.

Referenced by ns3::dsr::DsrOptionRreqHeader::AddNodeAddress(), ns3::dsr::DsrOptionPadnHeader::Deserialize(), ns3::dsr::DsrOptionRreqHeader::Deserialize(), ns3::dsr::DsrOptionRrepHeader::Deserialize(), ns3::dsr::DsrOptionSRHeader::Deserialize(), ns3::dsr::DsrOptionRerrHeader::Deserialize(), ns3::dsr::DsrOptionRerrUnreachHeader::Deserialize(), ns3::dsr::DsrOptionRerrUnsupportHeader::Deserialize(), ns3::dsr::DsrOptionAckReqHeader::Deserialize(), ns3::dsr::DsrOptionAckHeader::Deserialize(), ns3::dsr::DsrOptionAckHeader::DsrOptionAckHeader(), ns3::dsr::DsrOptionAckReqHeader::DsrOptionAckReqHeader(), ns3::dsr::DsrOptionPadnHeader::DsrOptionPadnHeader(), ns3::dsr::DsrOptionRerrHeader::DsrOptionRerrHeader(), ns3::dsr::DsrOptionRerrUnreachHeader::DsrOptionRerrUnreachHeader(), ns3::dsr::DsrOptionRerrUnsupportHeader::DsrOptionRerrUnsupportHeader(), ns3::dsr::DsrOptionRrepHeader::DsrOptionRrepHeader(), ns3::dsr::DsrOptionRreqHeader::DsrOptionRreqHeader(), ns3::dsr::DsrOptionSRHeader::DsrOptionSRHeader(), ns3::dsr::DsrOptionRreqHeader::SetNodesAddress(), ns3::dsr::DsrOptionRrepHeader::SetNodesAddress(), and ns3::dsr::DsrOptionSRHeader::SetNodesAddress().

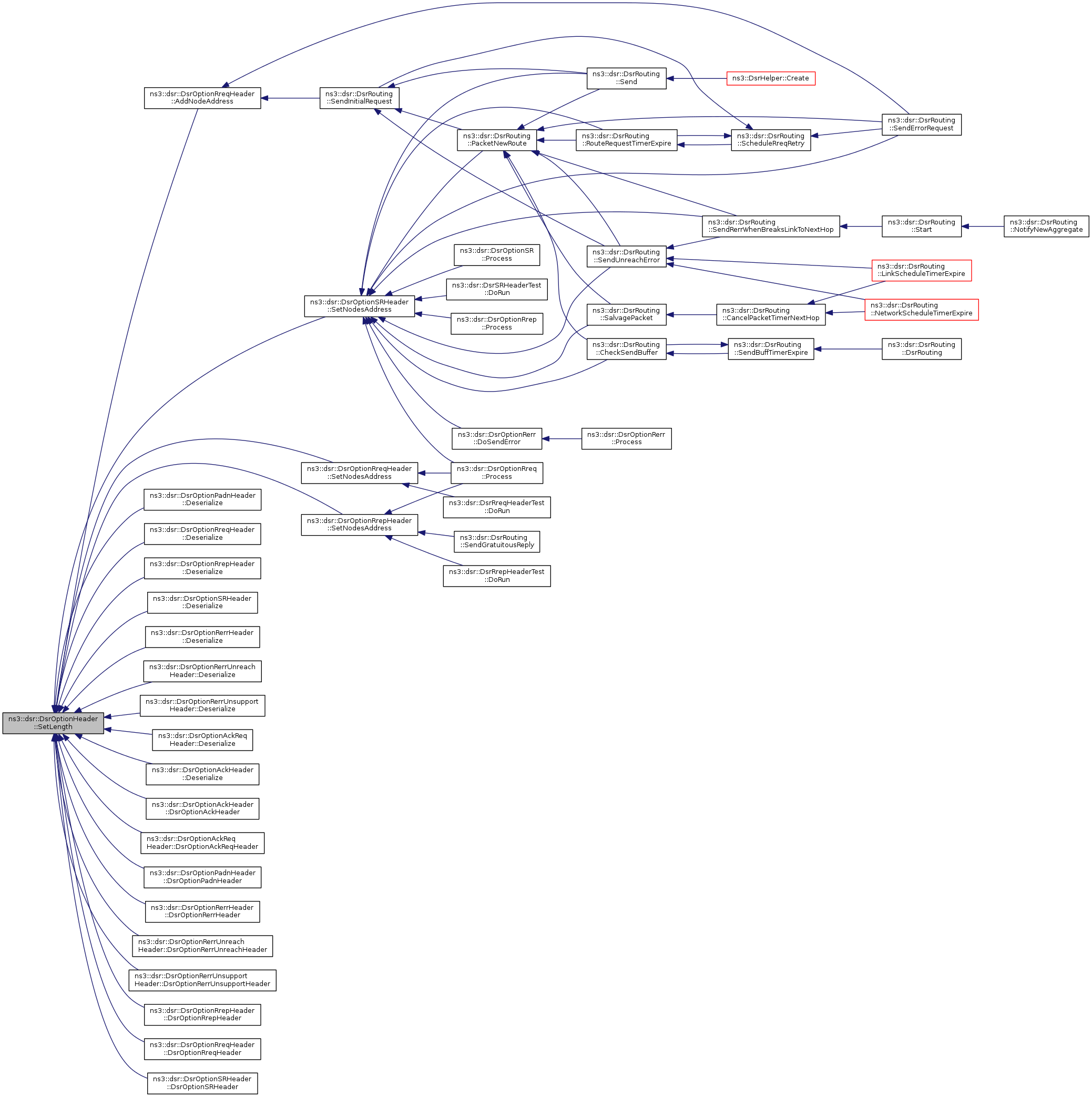

Here is the caller graph for this function:

void ns3::dsr::DsrOptionHeader::SetType

(

uint8_t

type

)

Set the type of the option.

Parameters

type	the type of the option

Definition at line 71 of file dsr-option-header.cc.

References m_type.

Referenced by ns3::dsr::DsrOptionPad1Header::Deserialize(), ns3::dsr::DsrOptionPadnHeader::Deserialize(), ns3::dsr::DsrOptionRreqHeader::Deserialize(), ns3::dsr::DsrOptionRrepHeader::Deserialize(), ns3::dsr::DsrOptionSRHeader::Deserialize(), ns3::dsr::DsrOptionRerrHeader::Deserialize(), ns3::dsr::DsrOptionRerrUnreachHeader::Deserialize(), ns3::dsr::DsrOptionRerrUnsupportHeader::Deserialize(), ns3::dsr::DsrOptionAckReqHeader::Deserialize(), ns3::dsr::DsrOptionAckHeader::Deserialize(), ns3::dsr::DsrOptionAckHeader::DsrOptionAckHeader(), ns3::dsr::DsrOptionAckReqHeader::DsrOptionAckReqHeader(), ns3::dsr::DsrOptionPad1Header::DsrOptionPad1Header(), ns3::dsr::DsrOptionPadnHeader::DsrOptionPadnHeader(), ns3::dsr::DsrOptionRerrHeader::DsrOptionRerrHeader(), ns3::dsr::DsrOptionRerrUnreachHeader::DsrOptionRerrUnreachHeader(), ns3::dsr::DsrOptionRerrUnsupportHeader::DsrOptionRerrUnsupportHeader(), ns3::dsr::DsrOptionRrepHeader::DsrOptionRrepHeader(), ns3::dsr::DsrOptionRreqHeader::DsrOptionRreqHeader(), and ns3::dsr::DsrOptionSRHeader::DsrOptionSRHeader().

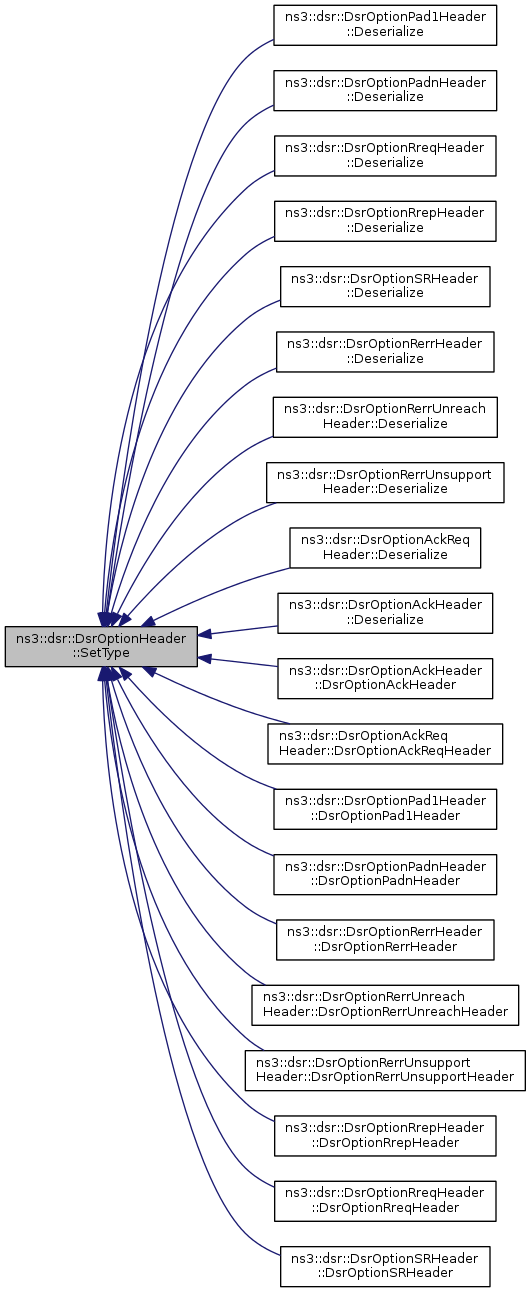

Here is the caller graph for this function:

Member Data Documentation

Buffer ns3::dsr::DsrOptionHeader::m_data

private

The anonymous data of this option.

Definition at line 143 of file dsr-option-header.h.

Referenced by Deserialize(), and Serialize().

uint8_t ns3::dsr::DsrOptionHeader::m_length

private

The option length.

Definition at line 139 of file dsr-option-header.h.

Referenced by Deserialize(), GetLength(), GetSerializedSize(), Print(), Serialize(), and SetLength().

uint8_t ns3::dsr::DsrOptionHeader::m_type

private

The type of the option.

Definition at line 135 of file dsr-option-header.h.

Referenced by Deserialize(), GetType(), Print(), Serialize(), and SetType().

---

The documentation for this class was generated from the following files:

• src/dsr/model/dsr-option-header.h
• src/dsr/model/dsr-option-header.cc
