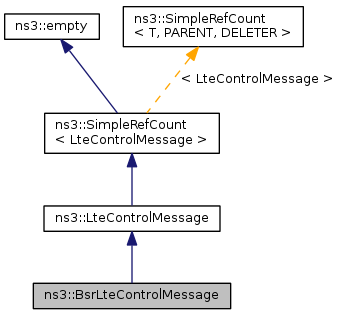

Inheritance diagram for ns3::BsrLteControlMessage:

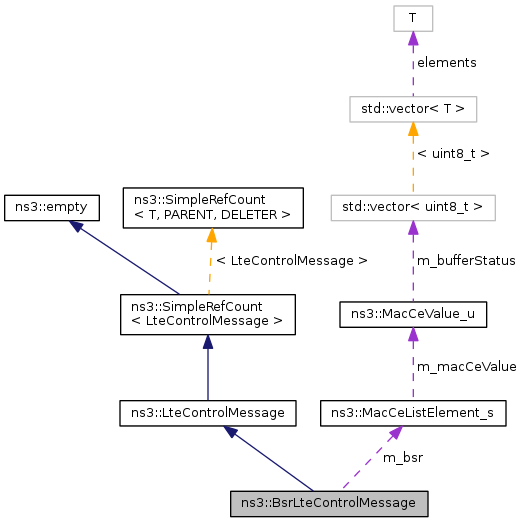

Collaboration diagram for ns3::BsrLteControlMessage:

Public Member Functions
	BsrLteControlMessage (void)
virtual	~BsrLteControlMessage (void)
MacCeListElement_s	GetBsr (void)
	Get BSR informations.
void	SetBsr (MacCeListElement_s ulcqi)
	add a BSR feedback record into the message.
Public Member Functions inherited from ns3::LteControlMessage
	LteControlMessage (void)
virtual	~LteControlMessage (void)
MessageType	GetMessageType (void)
	Get the type of the message.
void	SetMessageType (MessageType type)
	Set the type of the message.
Public Member Functions inherited from ns3::SimpleRefCount< LteControlMessage >
	SimpleRefCount ()
	SimpleRefCount (const SimpleRefCount &o)
uint32_t	GetReferenceCount (void) const
SimpleRefCount &	operator= (const SimpleRefCount &o)
void	Ref (void) const
void	Unref (void) const

Private Attributes
MacCeListElement_s	m_bsr

Additional Inherited Members
Public Types inherited from ns3::LteControlMessage
enum	MessageType { DL_DCI, UL_DCI, DL_CQI, UL_CQI, BSR, DL_HARQ, RACH_PREAMBLE, RAR, MIB }
Static Public Member Functions inherited from ns3::SimpleRefCount< LteControlMessage >
static void	Cleanup (void)

Detailed Description

The uplink BsrLteControlMessage defines the specific extension of the CE element for reporting the buffer status report

Definition at line 237 of file lte-control-messages.h.

Constructor & Destructor Documentation

ns3::BsrLteControlMessage::BsrLteControlMessage ( void )

Definition at line 149 of file lte-control-messages.cc.

Here is the call graph for this function:

ns3::BsrLteControlMessage::~BsrLteControlMessage ( void )

virtual

Definition at line 155 of file lte-control-messages.cc.

MacCeListElement_s ns3::BsrLteControlMessage::GetBsr ( void )

Get BSR informations.

Definition at line 169 of file lte-control-messages.cc.

References m_bsr.

void ns3::BsrLteControlMessage::SetBsr ( MacCeListElement_s ulcqi )

add a BSR feedback record into the message.

Parameters

bsr	the BSR feedback

Definition at line 161 of file lte-control-messages.cc.

References m_bsr.

MacCeListElement_s ns3::BsrLteControlMessage::m_bsr

private

Definition at line 257 of file lte-control-messages.h.

Referenced by GetBsr(), and SetBsr().

The documentation for this class was generated from the following files:
