ns3::MsduAggregator Class Reference
Wifi Models

Abstract class that concrete msdu aggregators have to implement. More...

#include <msdu-aggregator.h>

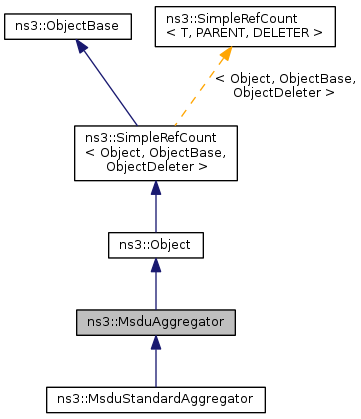

+ Inheritance diagram for ns3::MsduAggregator:

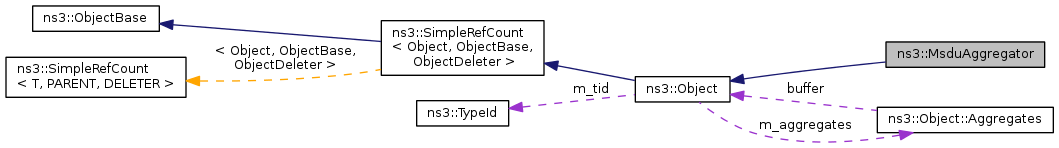

+ Collaboration diagram for ns3::MsduAggregator:

Public Types

typedef std::list< std::pair
< Ptr< Packet >
, AmsduSubframeHeader > > 		DeaggregatedMsdus
typedef std::list< std::pair
< Ptr< Packet >
, AmsduSubframeHeader >
>::const_iterator 		DeaggregatedMsdusCI

Public Member Functions

virtual bool Aggregate (Ptr< const Packet > packet, Ptr< Packet > aggregatedPacket, Mac48Address src, Mac48Address dest)=0
- Public Member Functions inherited from ns3::Object
 Object ()
virtual ~Object ()
void AggregateObject (Ptr< Object > other)
void Dispose (void)
AggregateIterator GetAggregateIterator (void) const
virtual TypeId GetInstanceTypeId (void) const
template<typename T >
Ptr< T > GetObject (void) const
template<typename T >
Ptr< T > GetObject (TypeId tid) const
void Initialize (void)
- Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
 SimpleRefCount ()
 SimpleRefCount (const SimpleRefCount &o)
uint32_t GetReferenceCount (void) const
SimpleRefCount & operator= (const SimpleRefCount &o)
void Ref (void) const
void Unref (void) const
- Public Member Functions inherited from ns3::ObjectBase
virtual ~ObjectBase ()
void GetAttribute (std::string name, AttributeValue &value) const
bool GetAttributeFailSafe (std::string name, AttributeValue &attribute) const
void SetAttribute (std::string name, const AttributeValue &value)
bool SetAttributeFailSafe (std::string name, const AttributeValue &value)
bool TraceConnect (std::string name, std::string context, const CallbackBase &cb)
bool TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
bool TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
bool TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)

Static Public Member Functions

static DeaggregatedMsdus Deaggregate (Ptr< Packet > aggregatedPacket)
static TypeId GetTypeId (void)

Additional Inherited Members

- Protected Member Functions inherited from ns3::Object
 Object (const Object &o)
virtual void DoDispose (void)
virtual void DoInitialize (void)
virtual void NotifyNewAggregate (void)

Detailed Description

Abstract class that concrete msdu aggregators have to implement.

Doxygen introspection did not find any typical Config paths.
No Attributes are defined for this type.
No TraceSources are defined for this type.

Definition at line 39 of file msdu-aggregator.h.

Member Typedef Documentation

typedef std::list<std::pair<Ptr<Packet>, AmsduSubframeHeader> > ns3::MsduAggregator::DeaggregatedMsdus

Definition at line 42 of file msdu-aggregator.h.

typedef std::list<std::pair<Ptr<Packet>, AmsduSubframeHeader> >::const_iterator ns3::MsduAggregator::DeaggregatedMsdusCI

Definition at line 43 of file msdu-aggregator.h.

Member Function Documentation

virtual bool ns3::MsduAggregator::Aggregate ( Ptr< const Packet >  packet,
Ptr< Packet >  aggregatedPacket,
Mac48Address  src,
Mac48Address  dest
)
pure virtual

Implemented in ns3::MsduStandardAggregator.

Referenced by ns3::EdcaTxopN::NotifyAccessGranted().

+ Here is the caller graph for this function:

MsduAggregator::DeaggregatedMsdus ns3::MsduAggregator::Deaggregate ( Ptr< Packet >  aggregatedPacket)
static

Definition at line 41 of file msdu-aggregator.cc.

References ns3::Packet::CreateFragment(), ns3::AmsduSubframeHeader::GetLength(), ns3::Packet::GetSize(), NS_LOG_FUNCTION_NOARGS, NS_LOG_INFO, ns3::Packet::RemoveAtStart(), and ns3::Packet::RemoveHeader().

Referenced by ns3::ApWifiMac::DeaggregateAmsduAndForward(), and ns3::RegularWifiMac::DeaggregateAmsduAndForward().

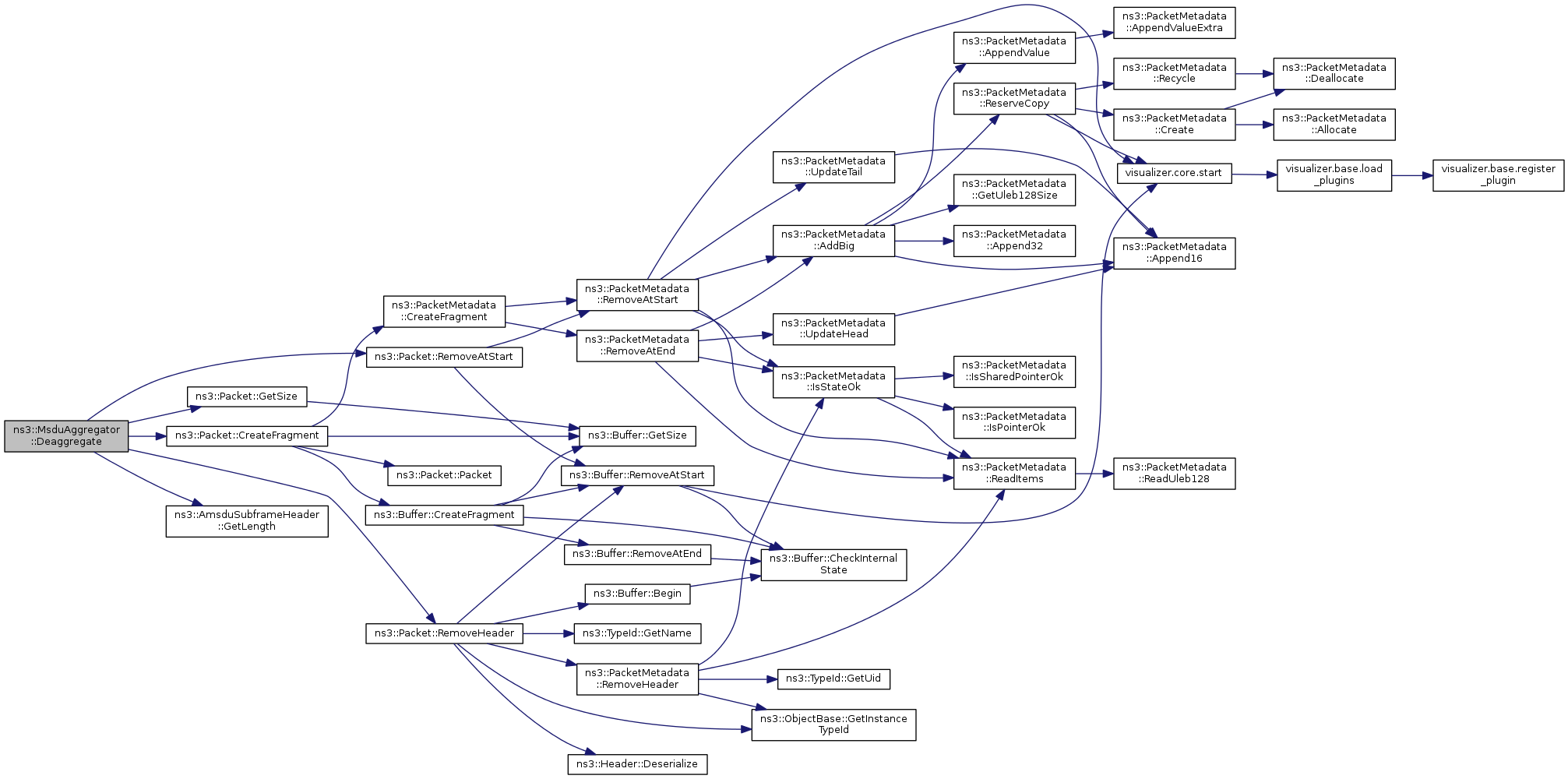

+ Here is the call graph for this function:

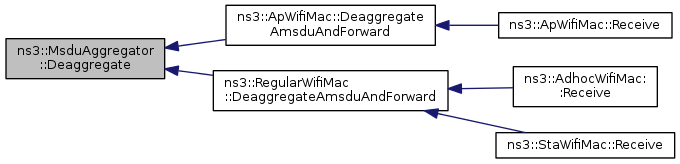

+ Here is the caller graph for this function:

TypeId ns3::MsduAggregator::GetTypeId ( void  )
static

Get the type ID.

Reimplemented from ns3::Object.

Reimplemented in ns3::MsduStandardAggregator.

Definition at line 32 of file msdu-aggregator.cc.

References ns3::TypeId::SetParent().

+ Here is the call graph for this function:

The documentation for this class was generated from the following files:
