Classes
class	ns3::AarfcdWifiManager
	an implementation of the AARF-CD algorithmThis algorithm was first described in "Efficient Collision Detection for Auto Rate Fallback Algorithm". The implementation available here was done by Federico Maguolo for a very early development version of ns-3. Federico died before merging this work in ns-3 itself so his code was ported to ns-3 later without his supervision. More...
class	ns3::AarfWifiManager
	AARF Rate control algorithmThis class implements the AARF rate control algorithm which was initially described in IEEE 802.11 Rate Adaptation: A Practical Approach, by M. Lacage, M.H. Manshaei, and T. Turletti. More...
class	ns3::AdhocWifiMac
class	ns3::AmrrWifiManager
	AMRR Rate control algorithmThis class implements the AMRR rate control algorithm which was initially described in IEEE 802.11 Rate Adaptation: A Practical Approach, by M. Lacage, M.H. Manshaei, and T. Turletti. More...
class	ns3::AmsduSubframeHeader
class	ns3::ApWifiMac
	Wi-Fi AP state machineHandle association, dis-association and authentication, of STAs within an infrastructure BSS. More...
class	ns3::ArfWifiManager
	ARF Rate control algorithm. More...
struct	ns3::Bar
	Block Ack Request. More...
class	ns3::BlockAckAgreement
	Maintains information for a block ack agreement. More...
class	ns3::BlockAckCache
class	ns3::BlockAckManager
	Manages all block ack agreements for an originator station. More...
class	ns3::CapabilityInformation
class	ns3::CaraWifiManager
	implement the CARA rate control algorithmImplement the CARA algorithm from: J. Kim, S. Kim, S. Choi, and D. Qiao. "CARA: Collision-Aware Rate Adaptation for IEEE 802.11 WLANs." More...
class	ns3::ConstantRateWifiManager
	use constant rates for data and control transmissions More...
class	ns3::CtrlBAckRequestHeader
	Headers for Block ack request. More...
class	ns3::CtrlBAckResponseHeader
	Headers for Block ack response. More...
class	ns3::DcaTxop
	handle packet fragmentation and retransmissions.This class implements the packet fragmentation and retransmission policy. It uses the ns3::MacLow and ns3::DcfManager helper classes to respectively send packets and decide when to send them. Packets are stored in a ns3::WifiMacQueue until they can be sent. More...
class	ns3::Dcf
class	ns3::DcfManager
	Manage a set of ns3::DcfStateHandle a set of independent ns3::DcfState, each of which represents a single DCF within a MAC stack. Each ns3::DcfState has a priority implicitely associated with it (the priority is determined when the ns3::DcfState is added to the DcfManager: the first DcfState to be added gets the highest priority, the second, the second highest priority, and so on.) which is used to handle "internal" collisions. i.e., when two local DcfState are expected to get access to the medium at the same time, the highest priority local DcfState wins access to the medium and the other DcfState suffers a "internal" collision. More...
class	ns3::DcfState
	keep track of the state needed for a single DCF function.Multiple instances of a DcfState can be registered in a single DcfManager to implement 802.11e-style relative QoS. DcfState::SetAifsn and DcfState::SetCwBounds allow the user to control the relative QoS differentiation. More...
class	ns3::DsssErrorRateModel
	an implementation of DSSS error rate modelThe 802.11b modulations: More...
class	ns3::EdcaTxopN
class	ns3::ErrorRateModel
	the interface for Wifi's error models More...
class	ns3::ExtendedSupportedRatesIE
	The Extended Supported Rates Information ElementThis class knows how to serialise and deserialise the Extended Supported Rates Element that holds (non-HT) rates beyond the 8 that the original Supported Rates element can carry. More...
class	ns3::HtCapabilities
	The Ht Capabilities Information ElementThis class knows how to serialise and deserialise the Ht Capabilities Information Element. More...
class	ns3::IdealWifiManager
	Ideal rate control algorithmThis class implements an 'ideal' rate control algorithm similar to RBAR in spirit (see A rate-adaptive MAC protocol for multihop wireless networks by G. Holland, N. Vaidya, and P. Bahl.): every station keeps track of the snr of every packet received and sends back this snr to the original transmitter by an out-of-band mechanism. Each transmitter keeps track of the last snr sent back by a receiver and uses it to pick a transmission mode based on a set of snr thresholds built from a target ber and transmission mode-specific snr/ber curves. More...
class	ns3::InterferenceHelper
	handles interference calculations More...
class	ns3::MacLow
	handle RTS/CTS/DATA/ACK transactions. More...
class	ns3::MacLowBlockAckEventListener
	listen for block ack events. More...
class	ns3::MacLowDcfListener
	listen to NAV eventsThis class is typically connected to an instance of ns3::Dcf and calls to its methods are forwards to the corresponding ns3::Dcf methods. More...
class	ns3::MacLowTransmissionListener
	listen to events coming from ns3::MacLow. More...
class	ns3::MacLowTransmissionParameters
	control how a packet is transmitted.The ns3::MacLow::StartTransmission method expects an instance of this class to describe how the packet should be transmitted. More...
class	ns3::MacRxMiddle
class	ns3::MacTxMiddle
class	ns3::MgtAddBaRequestHeader
class	ns3::MgtAddBaResponseHeader
class	ns3::MgtAssocRequestHeader
class	ns3::MgtAssocResponseHeader
class	ns3::MgtBeaconHeader
class	ns3::MgtDelBaHeader
class	ns3::MgtProbeRequestHeader
class	ns3::MgtProbeResponseHeader
class	ns3::MinstrelWifiManager
	Implementation of Minstrel Rate Control AlgorithmPorting Minstrel from Madwifi and Linux Kernel http://linuxwireless.org/en/developers/Documentation/mac80211/RateControl/minstrel. More...
class	ns3::MsduAggregator
	Abstract class that concrete msdu aggregators have to implement. More...
class	ns3::MsduStandardAggregator
class	ns3::NistErrorRateModel
class	ns3::OnoeWifiManager
	an implementation of the rate control algorithm developed by Atsushi Onoe More...
class	ns3::OriginatorBlockAckAgreement
class	ns3::QosTag
class	ns3::RegularWifiMac
	base class for all MAC-level wifi objects.This class encapsulates all the low-level MAC functionality DCA, EDCA, etc) and all the high-level MAC functionality (association/disassociation state machines). More...
class	ns3::RraaWifiManager
	Robust Rate Adaptation AlgorithmThis is an implementation of RRAA as described in "Robust rate adaptation for 802.11 wireless networks" by "Starsky H. Y. Wong", "Hao Yang", "Songwu Lu", and, "Vaduvur Bharghavan" published in Mobicom 06. More...
class	ns3::Ssid
class	ns3::StaWifiMac
class	ns3::SupportedRates
	The Supported Rates Information ElementThis class knows how to serialise and deserialise the Supported Rates Element that holds the first 8 (non-HT) supported rates. More...
class	ns3::WifiActionHeader
class	ns3::WifiChannel
	Wifi Channel interface specificationThis class works in tandem with the ns3::WifiPhy class. If you want to provide a new Wifi PHY layer, you have to subclass both ns3::WifiChannel and ns3::WifiPhy. More...
class	ns3::WifiInformationElement
	Information element, as defined in 802.11-2007 standardThe IEEE 802.11 standard includes the notion of Information Elements, which are encodings of management information to be communicated between STAs in the payload of various frames of type Management. Information Elements (IEs) have a common format, each starting with a single octet - the Element ID, which indicates the specific type of IE (a type to represent the options here is defined as WifiInformationElementId). The next octet is a length field and encodes the number of octets in the third and final field, which is the IE Information field. More...
class	ns3::WifiInformationElementVector
	Information element vectorImplements a vector of WifiInformationElements. Information elements typically come in groups, and the WifiInformationElementVector class provides a representation of a series of IEs, and the facility for serialisation to and deserialisation from the over-the-air format. More...
class	ns3::WifiMac
	base class for all MAC-level wifi objects.This class encapsulates all the low-level MAC functionality DCA, EDCA, etc) and all the high-level MAC functionality (association/disassociation state machines). More...
class	ns3::WifiMacHeader
class	ns3::WifiMacQueue
class	ns3::WifiMacTrailer
class	ns3::WifiMode
	represent a single transmission modeA WifiMode is implemented by a single integer which is used to lookup in a global array the characteristics of the associated transmission mode. It is thus extremely cheap to keep a WifiMode variable around. More...
class	ns3::WifiNetDevice
	Hold together all Wifi-related objects.This class holds together ns3::WifiChannel, ns3::WifiPhy, ns3::WifiMac, and, ns3::WifiRemoteStationManager. More...
class	ns3::WifiPhy
	802.11 PHY layer model More...
class	ns3::WifiPhyStateHelper
class	ns3::WifiRemoteStationManager
	hold a list of per-remote-station state. More...
class	ns3::YansErrorRateModel
	Model the error rate for different modulations.A packet of interest (e.g., a packet can potentially be received by the MAC) is divided into chunks. Each chunk is related to an start/end receiving event. For each chunk, it calculates the ratio (SINR) between received power of packet of interest and summation of noise and interfering power of all the other incoming packets. Then, it will calculate the success rate of the chunk based on BER of the modulation. The success reception rate of the packet is derived from the success rate of all chunks. More...
class	ns3::YansWifiChannel
	A Yans wifi channelThis wifi channel implements the propagation model described in "Yet Another Network Simulator", (http://cutebugs.net/files/wns2-yans.pdf). More...
class	ns3::YansWifiPhy
	802.11 PHY layer modelThis PHY implements a model of 802.11a. The model implemented here is based on the model described in "Yet Another Network Simulator", (http://cutebugs.net/files/wns2-yans.pdf). More...

Functions
uint8_t	ns3::QosUtilsGetTidForPacket (Ptr< const Packet > packet)
bool	ns3::QosUtilsIsOldPacket (uint16_t startingSeq, uint16_t seqNumber)
uint32_t	ns3::QosUtilsMapSeqControlToUniqueInteger (uint16_t seqControl, uint16_t endSequence)
AcIndex	ns3::QosUtilsMapTidToAc (uint8_t tid)

Detailed Description

This section documents the API of the ns-3 Wifi module. For a generic functional description, please refer to the ns-3 manual.

Enumeration Type Documentation

enum ns3::AcIndex

This enumeration defines the Access Categories as an enumeration with values corresponding to the AC index (ACI) values specified in Table 7-36 of IEEE 802.11-2007.

Enumerator:

AC_BE	Best Effort
AC_BK	Background
AC_VI	Video
AC_VO	Voice
AC_BE_NQOS	Total number of ACs
AC_UNDEF

Definition at line 35 of file qos-utils.h.

enum ns3::WifiPhyStandard

Identifies the PHY specification that a Wifi device is configured to use.

Enumerator:

WIFI_PHY_STANDARD_80211a	OFDM PHY for the 5 GHz band (Clause 17)
WIFI_PHY_STANDARD_80211b	DSSS PHY (Clause 15) and HR/DSSS PHY (Clause 18)
WIFI_PHY_STANDARD_80211g	ERP-OFDM PHY (Clause 19, Section 19.5)
WIFI_PHY_STANDARD_80211_10MHZ	OFDM PHY for the 5 GHz band (Clause 17 with 10 MHz channel bandwidth)
WIFI_PHY_STANDARD_80211_5MHZ	OFDM PHY for the 5 GHz band (Clause 17 with 5 MHz channel bandwidth)
WIFI_PHY_STANDARD_holland	This is intended to be the configuration used in this paper: Gavin Holland, Nitin Vaidya and Paramvir Bahl, "A Rate-Adaptive MAC Protocol for Multi-Hop Wireless Networks", in Proc. of ACM MOBICOM, 2001.
WIFI_PHY_STANDARD_80211p_CCH	Deprecated: see bug 945
WIFI_PHY_STANDARD_80211p_SCH	Deprecated: see bug 945
WIFI_PHY_STANDARD_80211n_2_4GHZ
WIFI_PHY_STANDARD_80211n_5GHZ

Definition at line 30 of file wifi-phy-standard.h.

enum ns3::WifiPreamble

The type of preamble to be used by an IEEE 802.11 transmission

Enumerator:

WIFI_PREAMBLE_LONG
WIFI_PREAMBLE_SHORT
WIFI_PREAMBLE_HT_MF
WIFI_PREAMBLE_HT_GF

Definition at line 29 of file wifi-preamble.h.

Function Documentation

uint8_t ns3::QosUtilsGetTidForPacket ( Ptr< const Packet > packet )

If a qos tag is attached to the packet, returns a value < 8. A value >= 8 is returned otherwise.

Definition at line 60 of file qos-utils.cc.

References ns3::QosTag::GetTid(), and ns3::Packet::PeekPacketTag().

Referenced by ns3::StaWifiMac::Enqueue(), ns3::AdhocWifiMac::Enqueue(), and ns3::ApWifiMac::ForwardDown().

Here is the call graph for this function:

Here is the caller graph for this function:

bool ns3::QosUtilsIsOldPacket	(	uint16_t	startingSeq,
		uint16_t	seqNumber
	)

This function checks if packet with sequence number seqNumber is an "old" packet. The sequence number space is considered divided into two parts, one of which is "old" and one of which is "new" by means of a boundary created by adding half the sequence number range to the starting sequence number startingSeq. So this function works fine also when seqNumber is smaller than startingSeq and startingSeq + 2048 is greater than 4096 because all comparison are circular modulo 2^12. The following are possible scenarios:

--— = old packets +++++ = new packets

CASE A:

0 4095 |++++++|-------------—|++++++| ^ ^ | endSeq | startingSeq

CASE B:

0 4095 |---—|++++++++++++++++|--—| ^ ^ | startingSeq | endSeq

Here in the examples endSeq is the sequenceNumber of the "last" new packet. So this function, when specified a starting sequence and a sequence number, returns true if that packet (with sequence number numberSeq)) belongs to the section of the sequence number space marked with '-' characters. The function returns false otherwise.

Definition at line 86 of file qos-utils.cc.

References NS_ASSERT.

Referenced by ns3::QosUtilsIsOldPacketTest::DoRun(), ns3::BlockAckCache::UpdateWithBlockAckReq(), and ns3::BlockAckCache::UpdateWithMpdu().

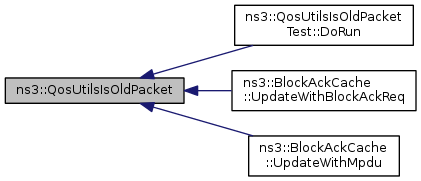

Here is the caller graph for this function:

uint32_t ns3::QosUtilsMapSeqControlToUniqueInteger	(	uint16_t	seqControl,
		uint16_t	endSequence
	)

Next function is useful to correctly sort buffered packets under block ack. When an BAR is received from originator station, completed "old" (see section 9.10.3 in IEEE802.11e) packets must be forwarded up before "new" packets.

Definition at line 75 of file qos-utils.cc.

Referenced by PacketBufferingCaseA::DoRun(), PacketBufferingCaseB::DoRun(), ns3::MacLow::RxCompleteBufferedPacketsWithSmallerSequence(), and ns3::MacLow::StoreMpduIfNeeded().

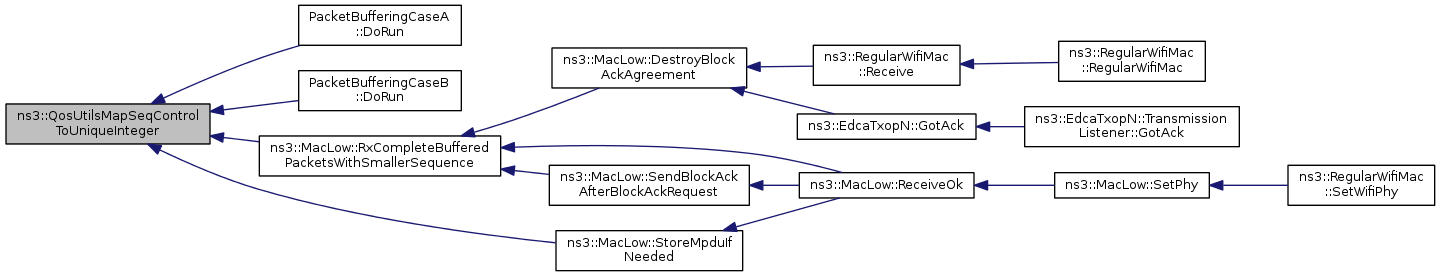

Here is the caller graph for this function:

AcIndex ns3::QosUtilsMapTidToAc ( uint8_t tid )

Maps TID (Traffic ID) to Access classes. For more details see table 9-1 of IEEE802.11 standard.

Definition at line 27 of file qos-utils.cc.

References ns3::AC_BE, ns3::AC_BK, ns3::AC_UNDEF, ns3::AC_VI, and ns3::AC_VO.

Referenced by ns3::MacLow::CreateBlockAckAgreement(), ns3::StaWifiMac::Enqueue(), ns3::AdhocWifiMac::Enqueue(), ns3::ApWifiMac::ForwardDown(), ns3::MeshWifiInterfaceMac::ForwardDown(), ns3::RegularWifiMac::Receive(), ns3::MacLow::ReceiveOk(), ns3::MacLow::ResetBlockAckInactivityTimerIfNeeded(), and ns3::RegularWifiMac::SendAddBaResponse().

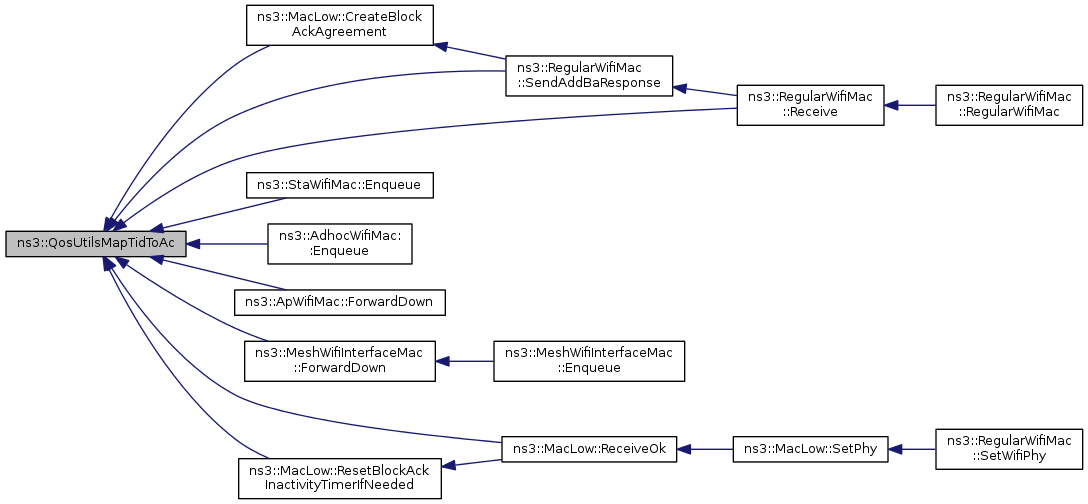

Here is the caller graph for this function:

Enumerations
enum	ns3::AcIndex { ns3::AC_BE = 0, ns3::AC_BK = 1, ns3::AC_VI = 2, ns3::AC_VO = 3, ns3::AC_BE_NQOS = 4, ns3::AC_UNDEF }
enum	ns3::WifiPhyStandard { ns3::WIFI_PHY_STANDARD_80211a, ns3::WIFI_PHY_STANDARD_80211b, ns3::WIFI_PHY_STANDARD_80211g, ns3::WIFI_PHY_STANDARD_80211_10MHZ, ns3::WIFI_PHY_STANDARD_80211_5MHZ, ns3::WIFI_PHY_STANDARD_holland, ns3::WIFI_PHY_STANDARD_80211p_CCH, ns3::WIFI_PHY_STANDARD_80211p_SCH, ns3::WIFI_PHY_STANDARD_80211n_2_4GHZ, ns3::WIFI_PHY_STANDARD_80211n_5GHZ }
enum	ns3::WifiPreamble { ns3::WIFI_PREAMBLE_LONG, ns3::WIFI_PREAMBLE_SHORT, ns3::WIFI_PREAMBLE_HT_MF, ns3::WIFI_PREAMBLE_HT_GF }
