ns3::IdealWifiManager Class Reference

Ideal rate control algorithmThis class implements an 'ideal' rate control algorithm similar to RBAR in spirit (see A rate-adaptive MAC protocol for multihop wireless networks by G. Holland, N. Vaidya, and P. Bahl.): every station keeps track of the snr of every packet received and sends back this snr to the original transmitter by an out-of-band mechanism. Each transmitter keeps track of the last snr sent back by a receiver and uses it to pick a transmission mode based on a set of snr thresholds built from a target ber and transmission mode-specific snr/ber curves. More...

#include <ideal-wifi-manager.h>

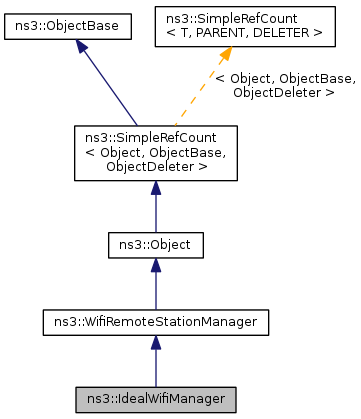

Inheritance diagram for ns3::IdealWifiManager:

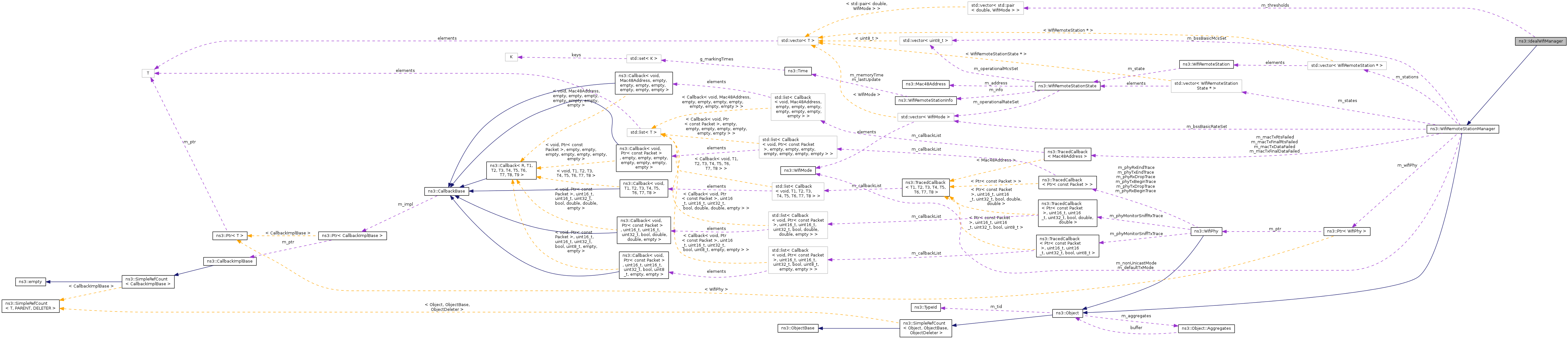

Collaboration diagram for ns3::IdealWifiManager:

Public Member Functions
	IdealWifiManager ()
virtual	~IdealWifiManager ()
virtual void	SetupPhy (Ptr< WifiPhy > phy)
Public Member Functions inherited from ns3::WifiRemoteStationManager
	WifiRemoteStationManager ()
virtual	~WifiRemoteStationManager ()
void	AddBasicMcs (uint8_t mcs)
void	AddBasicMode (WifiMode mode)
void	AddStationHtCapabilities (Mac48Address from, HtCapabilities htcapabilities)
void	AddSupportedMcs (Mac48Address address, uint8_t mcs)
void	AddSupportedMode (Mac48Address address, WifiMode mode)
WifiTxVector	DoGetCtsToSelfTxVector (void)
WifiTxVector	GetAckTxVector (Mac48Address address, WifiMode dataMode)
uint8_t	GetBasicMcs (uint32_t i) const
WifiMode	GetBasicMode (uint32_t i) const
WifiTxVector	GetBlockAckTxVector (Mac48Address address, WifiMode dataMode)
WifiTxVector	GetCtsToSelfTxVector (const WifiMacHeader *header, Ptr< const Packet > packet)
WifiTxVector	GetCtsTxVector (Mac48Address address, WifiMode rtsMode)
WifiTxVector	GetDataTxVector (Mac48Address address, const WifiMacHeader *header, Ptr< const Packet > packet, uint32_t fullPacketSize)
uint8_t	GetDefaultMcs (void) const
WifiMode	GetDefaultMode (void) const
uint8_t	GetDefaultTxPowerLevel (void) const
uint32_t	GetFragmentationThreshold (void) const
uint32_t	GetFragmentOffset (Mac48Address address, const WifiMacHeader *header, Ptr< const Packet > packet, uint32_t fragmentNumber)
uint32_t	GetFragmentSize (Mac48Address address, const WifiMacHeader *header, Ptr< const Packet > packet, uint32_t fragmentNumber)
bool	GetGreenfieldSupported (Mac48Address address) const
WifiRemoteStationInfo	GetInfo (Mac48Address address)
uint32_t	GetMaxSlrc (void) const
uint32_t	GetMaxSsrc (void) const
uint32_t	GetNBasicMcs (void) const
uint32_t	GetNBasicModes (void) const
WifiMode	GetNonUnicastMode (void) const
uint32_t	GetNumberOfTransmitAntennas (void)
uint32_t	GetRtsCtsThreshold (void) const
WifiTxVector	GetRtsTxVector (Mac48Address address, const WifiMacHeader *header, Ptr< const Packet > packet)
bool	HasHtSupported (void) const
bool	IsAssociated (Mac48Address address) const
bool	IsBrandNew (Mac48Address address) const
bool	IsLastFragment (Mac48Address address, const WifiMacHeader *header, Ptr< const Packet > packet, uint32_t fragmentNumber)
bool	IsWaitAssocTxOk (Mac48Address address) const
bool	NeedCtsToSelf (WifiTxVector txVector)
bool	NeedDataRetransmission (Mac48Address address, const WifiMacHeader *header, Ptr< const Packet > packet)
bool	NeedFragmentation (Mac48Address address, const WifiMacHeader *header, Ptr< const Packet > packet)
bool	NeedRts (Mac48Address address, const WifiMacHeader *header, Ptr< const Packet > packet)
bool	NeedRtsRetransmission (Mac48Address address, const WifiMacHeader *header, Ptr< const Packet > packet)
void	PrepareForQueue (Mac48Address address, const WifiMacHeader *header, Ptr< const Packet > packet, uint32_t fullPacketSize)
void	RecordDisassociated (Mac48Address address)
void	RecordGotAssocTxFailed (Mac48Address address)
void	RecordGotAssocTxOk (Mac48Address address)
void	RecordWaitAssocTxOk (Mac48Address address)
void	ReportDataFailed (Mac48Address address, const WifiMacHeader *header)
void	ReportDataOk (Mac48Address address, const WifiMacHeader *header, double ackSnr, WifiMode ackMode, double dataSnr)
void	ReportFinalDataFailed (Mac48Address address, const WifiMacHeader *header)
void	ReportFinalRtsFailed (Mac48Address address, const WifiMacHeader *header)
void	ReportRtsFailed (Mac48Address address, const WifiMacHeader *header)
void	ReportRtsOk (Mac48Address address, const WifiMacHeader *header, double ctsSnr, WifiMode ctsMode, double rtsSnr)
void	ReportRxOk (Mac48Address address, const WifiMacHeader *header, double rxSnr, WifiMode txMode)
void	Reset (void)
void	Reset (Mac48Address address)
void	SetDefaultTxPowerLevel (uint8_t txPower)
void	SetFragmentationThreshold (uint32_t threshold)
void	SetHtSupported (bool enable)
void	SetMaxSlrc (uint32_t maxSlrc)
void	SetMaxSsrc (uint32_t maxSsrc)
void	SetRtsCtsThreshold (uint32_t threshold)
Public Member Functions inherited from ns3::Object
	Object ()
virtual	~Object ()
void	AggregateObject (Ptr< Object > other)
void	Dispose (void)
AggregateIterator	GetAggregateIterator (void) const
virtual TypeId	GetInstanceTypeId (void) const
template<typename T >
Ptr< T >	GetObject (void) const
template<typename T >
Ptr< T >	GetObject (TypeId tid) const
void	Initialize (void)
Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	SimpleRefCount (const SimpleRefCount &o)
uint32_t	GetReferenceCount (void) const
SimpleRefCount &	operator= (const SimpleRefCount &o)
void	Ref (void) const
void	Unref (void) const
Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
void	GetAttribute (std::string name, AttributeValue &value) const
bool	GetAttributeFailSafe (std::string name, AttributeValue &attribute) const
void	SetAttribute (std::string name, const AttributeValue &value)
bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)

Static Public Member Functions
static TypeId	GetTypeId (void)

Private Types
typedef std::vector< std::pair < double, WifiMode > >	Thresholds

Private Member Functions
void	AddModeSnrThreshold (WifiMode mode, double ber)
virtual WifiRemoteStation *	DoCreateStation (void) const
virtual WifiTxVector	DoGetDataTxVector (WifiRemoteStation *station, uint32_t size)
virtual WifiTxVector	DoGetRtsTxVector (WifiRemoteStation *station)
virtual void	DoReportDataFailed (WifiRemoteStation *station)
virtual void	DoReportDataOk (WifiRemoteStation *station, double ackSnr, WifiMode ackMode, double dataSnr)
virtual void	DoReportFinalDataFailed (WifiRemoteStation *station)
virtual void	DoReportFinalRtsFailed (WifiRemoteStation *station)
virtual void	DoReportRtsFailed (WifiRemoteStation *station)
virtual void	DoReportRtsOk (WifiRemoteStation *station, double ctsSnr, WifiMode ctsMode, double rtsSnr)
virtual void	DoReportRxOk (WifiRemoteStation *station, double rxSnr, WifiMode txMode)
double	GetSnrThreshold (WifiMode mode) const
virtual bool	IsLowLatency (void) const

Private Attributes
double	m_ber
double	m_maxSnr
double	m_minSnr
Thresholds	m_thresholds

Additional Inherited Members
Protected Member Functions inherited from ns3::WifiRemoteStationManager
virtual void	DoDispose (void)
bool	GetGreenfield (const WifiRemoteStation *station) const
uint32_t	GetLongRetryCount (const WifiRemoteStation *station) const
uint8_t	GetMcsSupported (const WifiRemoteStation *station, uint32_t i) const
uint32_t	GetNMcsSupported (const WifiRemoteStation *station) const
uint32_t	GetNSupported (const WifiRemoteStation *station) const
uint32_t	GetNumberOfReceiveAntennas (const WifiRemoteStation *station) const
uint32_t	GetNumberOfTransmitAntennas (const WifiRemoteStation *station) const
bool	GetShortGuardInterval (const WifiRemoteStation *station) const
uint32_t	GetShortRetryCount (const WifiRemoteStation *station) const
bool	GetStbc (const WifiRemoteStation *station) const
WifiMode	GetSupported (const WifiRemoteStation *station, uint32_t i) const

Detailed Description

Ideal rate control algorithm

This class implements an 'ideal' rate control algorithm similar to RBAR in spirit (see A rate-adaptive MAC protocol for multihop wireless networks by G. Holland, N. Vaidya, and P. Bahl.): every station keeps track of the snr of every packet received and sends back this snr to the original transmitter by an out-of-band mechanism. Each transmitter keeps track of the last snr sent back by a receiver and uses it to pick a transmission mode based on a set of snr thresholds built from a target ber and transmission mode-specific snr/ber curves.

Config Paths

ns3::IdealWifiManager is accessible through the following paths with Config::Set and Config::Connect:

• /NodeList/[i]/DeviceList/[i]/$ns3::WifiNetDevice/RemoteStationManager/$ns3::IdealWifiManager

Attributes

• BerThreshold: The maximum Bit Error Rate acceptable at any transmission mode
  • Set with class: ns3::DoubleValue
  • Underlying type: double -1.79769e+308:1.79769e+308
  • Initial value: 1e-05
  • Flags: construct write read

Attributes defined in parent class ns3::WifiRemoteStationManager

• IsLowLatency: If true, we attempt to modelize a so-called low-latency device: a device where decisions about tx parameters can be made on a per-packet basis and feedback about the transmission of each packet is obtained before sending the next. Otherwise, we modelize a high-latency device, that is a device where we cannot update our decision about tx parameters after every packet transmission.
  • Set with class: BooleanValue
  • Underlying type: bool
  • Flags: read
• MaxSsrc: The maximum number of retransmission attempts for an RTS. This value will not have any effect on some rate control algorithms.
  • Set with class: ns3::UintegerValue
  • Underlying type: uint32_t 0:4294967295
  • Initial value: 7
  • Flags: construct write read
• MaxSlrc: The maximum number of retransmission attempts for a DATA packet. This value will not have any effect on some rate control algorithms.
  • Set with class: ns3::UintegerValue
  • Underlying type: uint32_t 0:4294967295
  • Initial value: 7
  • Flags: construct write read
• RtsCtsThreshold: If the size of the data packet + LLC header + MAC header + FCS trailer is bigger than this value, we use an RTS/CTS handshake before sending the data, as per IEEE Std. 802.11-2007, Section 9.2.6. This value will not have any effect on some rate control algorithms.
  • Set with class: ns3::UintegerValue
  • Underlying type: uint32_t 0:4294967295
  • Initial value: 2346
  • Flags: construct write read
• FragmentationThreshold: If the size of the data packet + LLC header + MAC header + FCS trailer is biggerthan this value, we fragment it such that the size of the fragments are equal or smaller than this value, as per IEEE Std. 802.11-2007, Section 9.4. This value will not have any effect on some rate control algorithms.
  • Set with class: ns3::UintegerValue
  • Underlying type: uint32_t 0:4294967295
  • Initial value: 2346
  • Flags: construct write read
• NonUnicastMode: Wifi mode used for non-unicast transmissions.
  • Set with class: WifiModeValue
  • Underlying type: WifiMode
  • Initial value: Invalid-WifiMode
  • Flags: construct write read
• DefaultTxPowerLevel: Default power level to be used for transmissions. This is the power level that is used by all those WifiManagers that do notimplement TX power control.
  • Set with class: ns3::UintegerValue
  • Underlying type: uint8_t 0:255
  • Initial value: 0
  • Flags: construct write read

No TraceSources are defined for this type.

TraceSources defined in parent class ns3::WifiRemoteStationManager

• MacTxRtsFailed: The transmission of a RTS by the MAC layer has failed
• MacTxDataFailed: The transmission of a data packet by the MAC layer has failed
• MacTxFinalRtsFailed: The transmission of a RTS has exceeded the maximum number of attempts
• MacTxFinalDataFailed: The transmission of a data packet has exceeded the maximum number of attempts

Definition at line 45 of file ideal-wifi-manager.h.

Member Typedef Documentation

typedef std::vector<std::pair<double,WifiMode> > ns3::IdealWifiManager::Thresholds

private

Definition at line 76 of file ideal-wifi-manager.h.

Constructor & Destructor Documentation

ns3::IdealWifiManager::IdealWifiManager

(

)

Definition at line 52 of file ideal-wifi-manager.cc.

ns3::IdealWifiManager::~IdealWifiManager ( )

virtual

Definition at line 55 of file ideal-wifi-manager.cc.

Member Function Documentation

void ns3::IdealWifiManager::AddModeSnrThreshold ( WifiMode  mode, double  ber  )

private

Definition at line 87 of file ideal-wifi-manager.cc.

References m_thresholds.

Referenced by SetupPhy().

Here is the caller graph for this function:

WifiRemoteStation * ns3::IdealWifiManager::DoCreateStation ( void  ) const

privatevirtual

Definition at line 93 of file ideal-wifi-manager.cc.

References ns3::IdealWifiRemoteStation::m_lastSnr.

WifiTxVector ns3::IdealWifiManager::DoGetDataTxVector ( WifiRemoteStation *  station, uint32_t  size  )

privatevirtual

Definition at line 138 of file ideal-wifi-manager.cc.

References ns3::WifiRemoteStationManager::GetDefaultMode(), ns3::WifiRemoteStationManager::GetDefaultTxPowerLevel(), ns3::WifiRemoteStationManager::GetLongRetryCount(), ns3::WifiRemoteStationManager::GetNSupported(), ns3::WifiRemoteStationManager::GetNumberOfReceiveAntennas(), ns3::WifiRemoteStationManager::GetNumberOfTransmitAntennas(), ns3::WifiRemoteStationManager::GetShortGuardInterval(), GetSnrThreshold(), ns3::WifiRemoteStationManager::GetStbc(), ns3::WifiRemoteStationManager::GetSupported(), and ns3::Min().

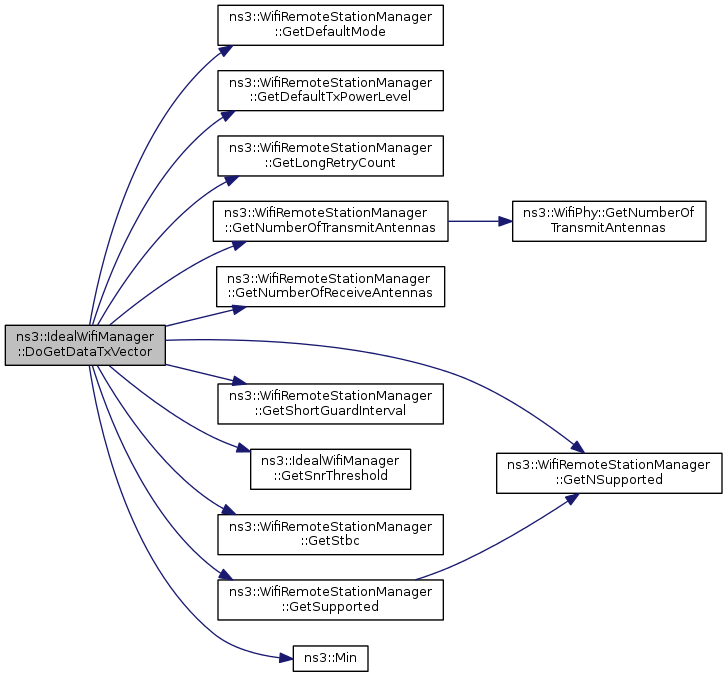

Here is the call graph for this function:

WifiTxVector ns3::IdealWifiManager::DoGetRtsTxVector ( WifiRemoteStation *  station )

privatevirtual

Definition at line 160 of file ideal-wifi-manager.cc.

References ns3::WifiRemoteStationManager::GetBasicMode(), ns3::WifiRemoteStationManager::GetDefaultMode(), ns3::WifiRemoteStationManager::GetDefaultTxPowerLevel(), ns3::WifiRemoteStationManager::GetNBasicModes(), ns3::WifiRemoteStationManager::GetNumberOfReceiveAntennas(), ns3::WifiRemoteStationManager::GetNumberOfTransmitAntennas(), ns3::WifiRemoteStationManager::GetShortGuardInterval(), ns3::WifiRemoteStationManager::GetShortRetryCount(), GetSnrThreshold(), ns3::WifiRemoteStationManager::GetStbc(), and ns3::Min().

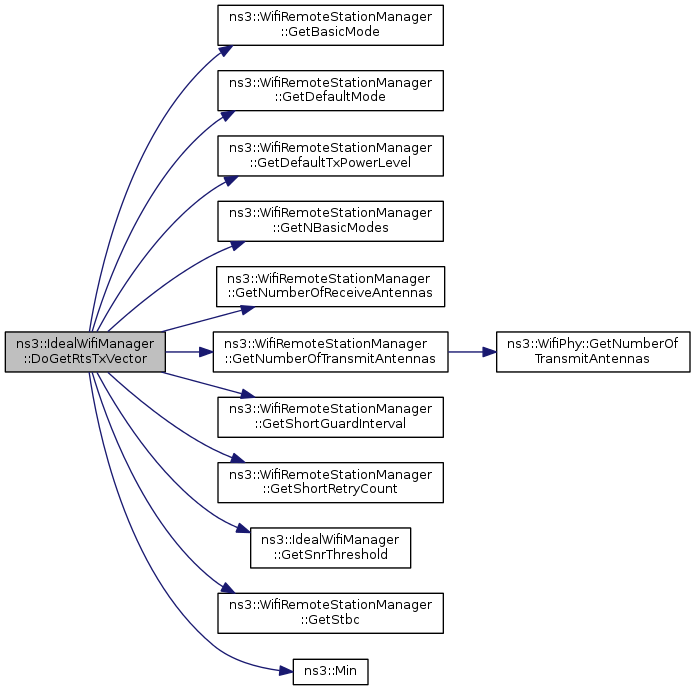

Here is the call graph for this function:

void ns3::IdealWifiManager::DoReportDataFailed ( WifiRemoteStation *  station )

privatevirtual

Definition at line 111 of file ideal-wifi-manager.cc.

void ns3::IdealWifiManager::DoReportDataOk ( WifiRemoteStation *  station, double  ackSnr, WifiMode  ackMode, double  dataSnr  )

privatevirtual

Definition at line 122 of file ideal-wifi-manager.cc.

References ns3::IdealWifiRemoteStation::m_lastSnr.

void ns3::IdealWifiManager::DoReportFinalDataFailed ( WifiRemoteStation *  station )

privatevirtual

Definition at line 133 of file ideal-wifi-manager.cc.

void ns3::IdealWifiManager::DoReportFinalRtsFailed ( WifiRemoteStation *  station )

privatevirtual

Definition at line 129 of file ideal-wifi-manager.cc.

void ns3::IdealWifiManager::DoReportRtsFailed ( WifiRemoteStation *  station )

privatevirtual

Definition at line 107 of file ideal-wifi-manager.cc.

void ns3::IdealWifiManager::DoReportRtsOk ( WifiRemoteStation *  station, double  ctsSnr, WifiMode  ctsMode, double  rtsSnr  )

privatevirtual

Definition at line 115 of file ideal-wifi-manager.cc.

References ns3::IdealWifiRemoteStation::m_lastSnr.

void ns3::IdealWifiManager::DoReportRxOk ( WifiRemoteStation *  station, double  rxSnr, WifiMode  txMode  )

privatevirtual

Definition at line 102 of file ideal-wifi-manager.cc.

double ns3::IdealWifiManager::GetSnrThreshold ( WifiMode  mode ) const

private

Definition at line 73 of file ideal-wifi-manager.cc.

References m_thresholds, and NS_ASSERT.

Referenced by DoGetDataTxVector(), and DoGetRtsTxVector().

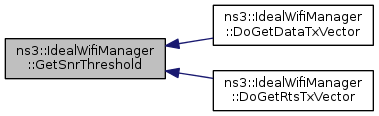

Here is the caller graph for this function:

TypeId ns3::IdealWifiManager::GetTypeId ( void  )

static

Get the type ID.

Reimplemented from ns3::WifiRemoteStationManager.

Definition at line 38 of file ideal-wifi-manager.cc.

References m_ber, and ns3::TypeId::SetParent().

Here is the call graph for this function:

bool ns3::IdealWifiManager::IsLowLatency ( void  ) const

privatevirtual

Definition at line 183 of file ideal-wifi-manager.cc.

void ns3::IdealWifiManager::SetupPhy ( Ptr< WifiPhy >  phy )

virtual

Reimplemented from ns3::WifiRemoteStationManager.

Definition at line 60 of file ideal-wifi-manager.cc.

References AddModeSnrThreshold(), ns3::WifiPhy::CalculateSnr(), ns3::WifiPhy::GetMode(), ns3::WifiPhy::GetNModes(), and m_ber.

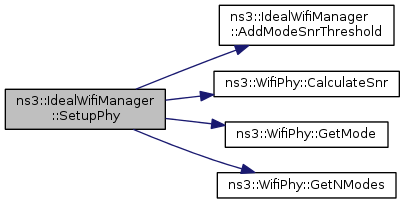

Here is the call graph for this function:

Member Data Documentation

double ns3::IdealWifiManager::m_ber

private

Definition at line 78 of file ideal-wifi-manager.h.

Referenced by GetTypeId(), and SetupPhy().

double ns3::IdealWifiManager::m_maxSnr

private

Definition at line 81 of file ideal-wifi-manager.h.

double ns3::IdealWifiManager::m_minSnr

private

Definition at line 80 of file ideal-wifi-manager.h.

Thresholds ns3::IdealWifiManager::m_thresholds

private

Definition at line 79 of file ideal-wifi-manager.h.

Referenced by AddModeSnrThreshold(), and GetSnrThreshold().

---

The documentation for this class was generated from the following files:

• src/wifi/model/ideal-wifi-manager.h
• src/wifi/model/ideal-wifi-manager.cc
