ns3::AarfcdWifiManager Class Reference

an implementation of the AARF-CD algorithmThis algorithm was first described in "Efficient Collision Detection for Auto Rate Fallback Algorithm". The implementation available here was done by Federico Maguolo for a very early development version of ns-3. Federico died before merging this work in ns-3 itself so his code was ported to ns-3 later without his supervision. More...

#include <aarfcd-wifi-manager.h>

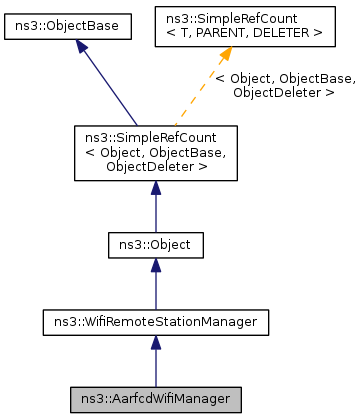

+ Inheritance diagram for ns3::AarfcdWifiManager:

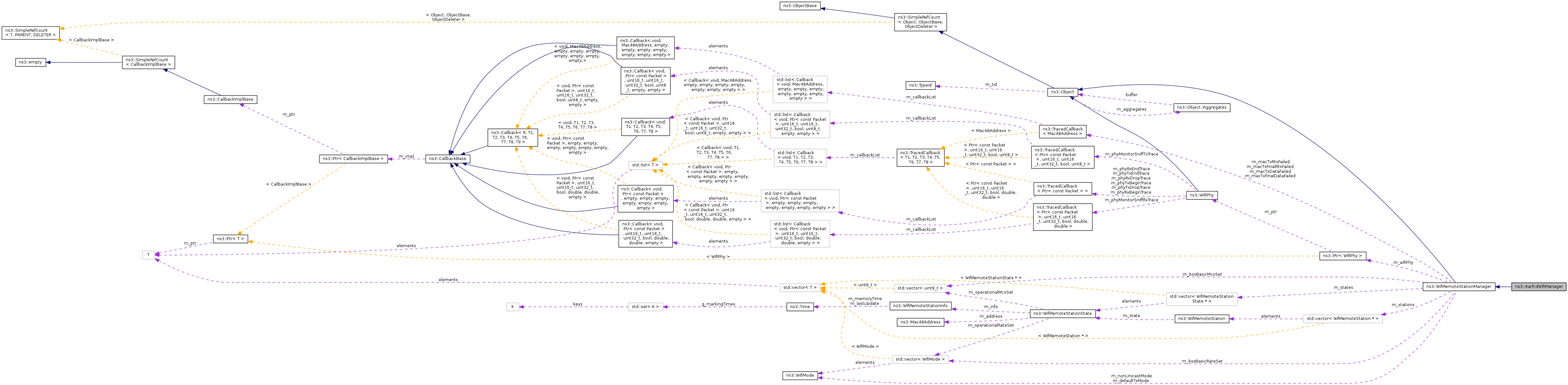

+ Collaboration diagram for ns3::AarfcdWifiManager:

Public Member Functions

 AarfcdWifiManager ()
virtual ~AarfcdWifiManager ()
- Public Member Functions inherited from ns3::WifiRemoteStationManager
 WifiRemoteStationManager ()
virtual ~WifiRemoteStationManager ()
void AddBasicMcs (uint8_t mcs)
void AddBasicMode (WifiMode mode)
void AddStationHtCapabilities (Mac48Address from, HtCapabilities htcapabilities)
void AddSupportedMcs (Mac48Address address, uint8_t mcs)
void AddSupportedMode (Mac48Address address, WifiMode mode)
WifiTxVector DoGetCtsToSelfTxVector (void)
WifiTxVector GetAckTxVector (Mac48Address address, WifiMode dataMode)
uint8_t GetBasicMcs (uint32_t i) const
WifiMode GetBasicMode (uint32_t i) const
WifiTxVector GetBlockAckTxVector (Mac48Address address, WifiMode dataMode)
WifiTxVector GetCtsToSelfTxVector (const WifiMacHeader *header, Ptr< const Packet > packet)
WifiTxVector GetCtsTxVector (Mac48Address address, WifiMode rtsMode)
WifiTxVector GetDataTxVector (Mac48Address address, const WifiMacHeader *header, Ptr< const Packet > packet, uint32_t fullPacketSize)
uint8_t GetDefaultMcs (void) const
WifiMode GetDefaultMode (void) const
uint8_t GetDefaultTxPowerLevel (void) const
uint32_t GetFragmentationThreshold (void) const
uint32_t GetFragmentOffset (Mac48Address address, const WifiMacHeader *header, Ptr< const Packet > packet, uint32_t fragmentNumber)
uint32_t GetFragmentSize (Mac48Address address, const WifiMacHeader *header, Ptr< const Packet > packet, uint32_t fragmentNumber)
bool GetGreenfieldSupported (Mac48Address address) const
WifiRemoteStationInfo GetInfo (Mac48Address address)
uint32_t GetMaxSlrc (void) const
uint32_t GetMaxSsrc (void) const
uint32_t GetNBasicMcs (void) const
uint32_t GetNBasicModes (void) const
WifiMode GetNonUnicastMode (void) const
uint32_t GetNumberOfTransmitAntennas (void)
uint32_t GetRtsCtsThreshold (void) const
WifiTxVector GetRtsTxVector (Mac48Address address, const WifiMacHeader *header, Ptr< const Packet > packet)
bool HasHtSupported (void) const
bool IsAssociated (Mac48Address address) const
bool IsBrandNew (Mac48Address address) const
bool IsLastFragment (Mac48Address address, const WifiMacHeader *header, Ptr< const Packet > packet, uint32_t fragmentNumber)
bool IsWaitAssocTxOk (Mac48Address address) const
bool NeedCtsToSelf (WifiTxVector txVector)
bool NeedDataRetransmission (Mac48Address address, const WifiMacHeader *header, Ptr< const Packet > packet)
bool NeedFragmentation (Mac48Address address, const WifiMacHeader *header, Ptr< const Packet > packet)
bool NeedRts (Mac48Address address, const WifiMacHeader *header, Ptr< const Packet > packet)
bool NeedRtsRetransmission (Mac48Address address, const WifiMacHeader *header, Ptr< const Packet > packet)
void PrepareForQueue (Mac48Address address, const WifiMacHeader *header, Ptr< const Packet > packet, uint32_t fullPacketSize)
void RecordDisassociated (Mac48Address address)
void RecordGotAssocTxFailed (Mac48Address address)
void RecordGotAssocTxOk (Mac48Address address)
void RecordWaitAssocTxOk (Mac48Address address)
void ReportDataFailed (Mac48Address address, const WifiMacHeader *header)
void ReportDataOk (Mac48Address address, const WifiMacHeader *header, double ackSnr, WifiMode ackMode, double dataSnr)
void ReportFinalDataFailed (Mac48Address address, const WifiMacHeader *header)
void ReportFinalRtsFailed (Mac48Address address, const WifiMacHeader *header)
void ReportRtsFailed (Mac48Address address, const WifiMacHeader *header)
void ReportRtsOk (Mac48Address address, const WifiMacHeader *header, double ctsSnr, WifiMode ctsMode, double rtsSnr)
void ReportRxOk (Mac48Address address, const WifiMacHeader *header, double rxSnr, WifiMode txMode)
void Reset (void)
void Reset (Mac48Address address)
void SetDefaultTxPowerLevel (uint8_t txPower)
void SetFragmentationThreshold (uint32_t threshold)
void SetHtSupported (bool enable)
void SetMaxSlrc (uint32_t maxSlrc)
void SetMaxSsrc (uint32_t maxSsrc)
void SetRtsCtsThreshold (uint32_t threshold)
virtual void SetupPhy (Ptr< WifiPhy > phy)
- Public Member Functions inherited from ns3::Object
 Object ()
virtual ~Object ()
void AggregateObject (Ptr< Object > other)
void Dispose (void)
AggregateIterator GetAggregateIterator (void) const
virtual TypeId GetInstanceTypeId (void) const
template<typename T >
Ptr< T > GetObject (void) const
template<typename T >
Ptr< T > GetObject (TypeId tid) const
void Initialize (void)
- Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
 SimpleRefCount ()
 SimpleRefCount (const SimpleRefCount &o)
uint32_t GetReferenceCount (void) const
SimpleRefCountoperator= (const SimpleRefCount &o)
void Ref (void) const
void Unref (void) const
- Public Member Functions inherited from ns3::ObjectBase
virtual ~ObjectBase ()
void GetAttribute (std::string name, AttributeValue &value) const
bool GetAttributeFailSafe (std::string name, AttributeValue &attribute) const
void SetAttribute (std::string name, const AttributeValue &value)
bool SetAttributeFailSafe (std::string name, const AttributeValue &value)
bool TraceConnect (std::string name, std::string context, const CallbackBase &cb)
bool TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
bool TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
bool TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)

Static Public Member Functions

static TypeId GetTypeId (void)

Private Member Functions

void CheckRts (AarfcdWifiRemoteStation *station)
virtual WifiRemoteStationDoCreateStation (void) const
virtual WifiTxVector DoGetDataTxVector (WifiRemoteStation *station, uint32_t size)
virtual WifiTxVector DoGetRtsTxVector (WifiRemoteStation *station)
virtual bool DoNeedRts (WifiRemoteStation *station, Ptr< const Packet > packet, bool normally)
virtual void DoReportDataFailed (WifiRemoteStation *station)
virtual void DoReportDataOk (WifiRemoteStation *station, double ackSnr, WifiMode ackMode, double dataSnr)
virtual void DoReportFinalDataFailed (WifiRemoteStation *station)
virtual void DoReportFinalRtsFailed (WifiRemoteStation *station)
virtual void DoReportRtsFailed (WifiRemoteStation *station)
virtual void DoReportRtsOk (WifiRemoteStation *station, double ctsSnr, WifiMode ctsMode, double rtsSnr)
virtual void DoReportRxOk (WifiRemoteStation *station, double rxSnr, WifiMode txMode)
void IncreaseRtsWnd (AarfcdWifiRemoteStation *station)
virtual bool IsLowLatency (void) const
void ResetRtsWnd (AarfcdWifiRemoteStation *station)
void TurnOffRts (AarfcdWifiRemoteStation *station)
void TurnOnRts (AarfcdWifiRemoteStation *station)

Private Attributes

uint32_t m_maxRtsWnd
uint32_t m_maxSuccessThreshold
uint32_t m_minRtsWnd
uint32_t m_minSuccessThreshold
uint32_t m_minTimerThreshold
bool m_rtsFailsAsDataFails
double m_successK
double m_timerK
bool m_turnOffRtsAfterRateDecrease
bool m_turnOnRtsAfterRateIncrease

Additional Inherited Members

- Protected Member Functions inherited from ns3::WifiRemoteStationManager
virtual void DoDispose (void)
bool GetGreenfield (const WifiRemoteStation *station) const
uint32_t GetLongRetryCount (const WifiRemoteStation *station) const
uint8_t GetMcsSupported (const WifiRemoteStation *station, uint32_t i) const
uint32_t GetNMcsSupported (const WifiRemoteStation *station) const
uint32_t GetNSupported (const WifiRemoteStation *station) const
uint32_t GetNumberOfReceiveAntennas (const WifiRemoteStation *station) const
uint32_t GetNumberOfTransmitAntennas (const WifiRemoteStation *station) const
bool GetShortGuardInterval (const WifiRemoteStation *station) const
uint32_t GetShortRetryCount (const WifiRemoteStation *station) const
bool GetStbc (const WifiRemoteStation *station) const
WifiMode GetSupported (const WifiRemoteStation *station, uint32_t i) const

Detailed Description

an implementation of the AARF-CD algorithm

This algorithm was first described in "Efficient Collision Detection for Auto Rate Fallback Algorithm". The implementation available here was done by Federico Maguolo for a very early development version of ns-3. Federico died before merging this work in ns-3 itself so his code was ported to ns-3 later without his supervision.

Config Paths

ns3::AarfcdWifiManager is accessible through the following paths with Config::Set and Config::Connect:

  • /NodeList/[i]/DeviceList/[i]/$ns3::WifiNetDevice/RemoteStationManager/$ns3::AarfcdWifiManager

Attributes

  • SuccessK: Multiplication factor for the success threshold in the AARF algorithm.
    • Set with class: ns3::DoubleValue
    • Underlying type: double -1.79769e+308:1.79769e+308
    • Initial value: 2
    • Flags: construct write read
  • TimerK: Multiplication factor for the timer threshold in the AARF algorithm.
    • Set with class: ns3::DoubleValue
    • Underlying type: double -1.79769e+308:1.79769e+308
    • Initial value: 2
    • Flags: construct write read
  • MaxSuccessThreshold: Maximum value of the success threshold in the AARF algorithm.
  • MinTimerThreshold: The minimum value for the 'timer' threshold in the AARF algorithm.
  • MinSuccessThreshold: The minimum value for the success threshold in the AARF algorithm.
  • MinRtsWnd: Minimum value for Rts window of Aarf-CD
  • MaxRtsWnd: Maximum value for Rts window of Aarf-CD
  • TurnOffRtsAfterRateDecrease: If true the RTS mechanism will be turned off when the rate will be decreased
    • Set with class: BooleanValue
    • Underlying type: bool
    • Initial value: true
    • Flags: construct write read
  • TurnOnRtsAfterRateIncrease: If true the RTS mechanism will be turned on when the rate will be increased
    • Set with class: BooleanValue
    • Underlying type: bool
    • Initial value: true
    • Flags: construct write read

Attributes defined in parent class ns3::WifiRemoteStationManager

  • IsLowLatency: If true, we attempt to modelize a so-called low-latency device: a device where decisions about tx parameters can be made on a per-packet basis and feedback about the transmission of each packet is obtained before sending the next. Otherwise, we modelize a high-latency device, that is a device where we cannot update our decision about tx parameters after every packet transmission.
  • MaxSsrc: The maximum number of retransmission attempts for an RTS. This value will not have any effect on some rate control algorithms.
  • MaxSlrc: The maximum number of retransmission attempts for a DATA packet. This value will not have any effect on some rate control algorithms.
  • RtsCtsThreshold: If the size of the data packet + LLC header + MAC header + FCS trailer is bigger than this value, we use an RTS/CTS handshake before sending the data, as per IEEE Std. 802.11-2007, Section 9.2.6. This value will not have any effect on some rate control algorithms.
  • FragmentationThreshold: If the size of the data packet + LLC header + MAC header + FCS trailer is biggerthan this value, we fragment it such that the size of the fragments are equal or smaller than this value, as per IEEE Std. 802.11-2007, Section 9.4. This value will not have any effect on some rate control algorithms.
  • NonUnicastMode: Wifi mode used for non-unicast transmissions.
    • Set with class: WifiModeValue
    • Underlying type: WifiMode
    • Initial value: Invalid-WifiMode
    • Flags: construct write read
  • DefaultTxPowerLevel: Default power level to be used for transmissions. This is the power level that is used by all those WifiManagers that do notimplement TX power control.

No TraceSources are defined for this type.

TraceSources defined in parent class ns3::WifiRemoteStationManager

  • MacTxRtsFailed: The transmission of a RTS by the MAC layer has failed
  • MacTxDataFailed: The transmission of a data packet by the MAC layer has failed
  • MacTxFinalRtsFailed: The transmission of a RTS has exceeded the maximum number of attempts
  • MacTxFinalDataFailed: The transmission of a data packet has exceeded the maximum number of attempts

Definition at line 38 of file aarfcd-wifi-manager.h.

Constructor & Destructor Documentation

ns3::AarfcdWifiManager::AarfcdWifiManager ( )

Definition at line 111 of file aarfcd-wifi-manager.cc.

References NS_LOG_FUNCTION.

ns3::AarfcdWifiManager::~AarfcdWifiManager ( )
virtual

Definition at line 116 of file aarfcd-wifi-manager.cc.

References NS_LOG_FUNCTION.

Member Function Documentation

void ns3::AarfcdWifiManager::CheckRts ( AarfcdWifiRemoteStation station)
private

Definition at line 333 of file aarfcd-wifi-manager.cc.

References ns3::AarfcdWifiRemoteStation::m_rtsCounter, ns3::AarfcdWifiRemoteStation::m_rtsOn, NS_LOG_FUNCTION, and TurnOffRts().

Referenced by DoReportDataFailed(), and DoReportDataOk().

+ Here is the call graph for this function:

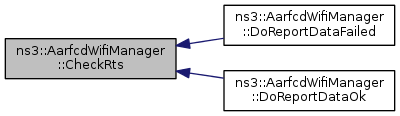

+ Here is the caller graph for this function:

bool ns3::AarfcdWifiManager::DoNeedRts ( WifiRemoteStation station,
Ptr< const Packet packet,
bool  normally
)
privatevirtual
void ns3::AarfcdWifiManager::DoReportDataFailed ( WifiRemoteStation st)
privatevirtual

It is important to realize that "recovery" mode starts after failure of the first transmission after a rate increase and ends at the first successful transmission. Specifically, recovery mode transcends retransmissions boundaries. Fundamentally, ARF handles each data transmission independently, whether it is the initial transmission of a packet or the retransmission of a packet. The fundamental reason for this is that there is a backoff between each data transmission, be it an initial transmission or a retransmission.

Definition at line 161 of file aarfcd-wifi-manager.cc.

References CheckRts(), IncreaseRtsWnd(), ns3::AarfcdWifiRemoteStation::m_failed, ns3::AarfcdWifiRemoteStation::m_haveASuccess, ns3::AarfcdWifiRemoteStation::m_justModifyRate, m_maxSuccessThreshold, m_minSuccessThreshold, m_minTimerThreshold, ns3::AarfcdWifiRemoteStation::m_rate, ns3::AarfcdWifiRemoteStation::m_recovery, ns3::AarfcdWifiRemoteStation::m_retry, ns3::AarfcdWifiRemoteStation::m_rtsCounter, ns3::AarfcdWifiRemoteStation::m_rtsOn, ns3::AarfcdWifiRemoteStation::m_rtsWnd, ns3::AarfcdWifiRemoteStation::m_success, m_successK, ns3::AarfcdWifiRemoteStation::m_successThreshold, ns3::AarfcdWifiRemoteStation::m_timer, m_timerK, ns3::AarfcdWifiRemoteStation::m_timerTimeout, m_turnOffRtsAfterRateDecrease, ns3::Max(), ns3::Min(), NS_ASSERT, NS_LOG_FUNCTION, ResetRtsWnd(), TurnOffRts(), and TurnOnRts().

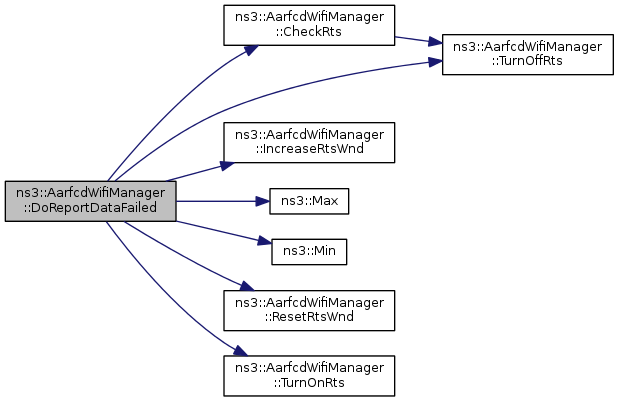

+ Here is the call graph for this function:

void ns3::AarfcdWifiManager::DoReportFinalDataFailed ( WifiRemoteStation station)
privatevirtual

Definition at line 292 of file aarfcd-wifi-manager.cc.

References NS_LOG_FUNCTION.

void ns3::AarfcdWifiManager::DoReportFinalRtsFailed ( WifiRemoteStation station)
privatevirtual

Definition at line 287 of file aarfcd-wifi-manager.cc.

References NS_LOG_FUNCTION.

void ns3::AarfcdWifiManager::DoReportRtsFailed ( WifiRemoteStation station)
privatevirtual

Definition at line 147 of file aarfcd-wifi-manager.cc.

References NS_LOG_FUNCTION.

void ns3::AarfcdWifiManager::DoReportRtsOk ( WifiRemoteStation station,
double  ctsSnr,
WifiMode  ctsMode,
double  rtsSnr
)
privatevirtual
void ns3::AarfcdWifiManager::DoReportRxOk ( WifiRemoteStation station,
double  rxSnr,
WifiMode  txMode
)
privatevirtual

Definition at line 239 of file aarfcd-wifi-manager.cc.

References NS_LOG_FUNCTION.

TypeId ns3::AarfcdWifiManager::GetTypeId ( void  )
static
void ns3::AarfcdWifiManager::IncreaseRtsWnd ( AarfcdWifiRemoteStation station)
private

Definition at line 358 of file aarfcd-wifi-manager.cc.

References m_maxRtsWnd, ns3::AarfcdWifiRemoteStation::m_rtsWnd, and NS_LOG_FUNCTION.

Referenced by DoReportDataFailed().

+ Here is the caller graph for this function:

bool ns3::AarfcdWifiManager::IsLowLatency ( void  ) const
privatevirtual

Definition at line 326 of file aarfcd-wifi-manager.cc.

References NS_LOG_FUNCTION.

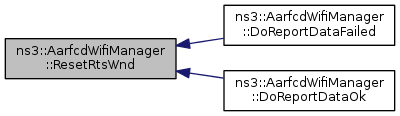

void ns3::AarfcdWifiManager::ResetRtsWnd ( AarfcdWifiRemoteStation station)
private

Definition at line 374 of file aarfcd-wifi-manager.cc.

References m_minRtsWnd, ns3::AarfcdWifiRemoteStation::m_rtsWnd, and NS_LOG_FUNCTION.

Referenced by DoReportDataFailed(), and DoReportDataOk().

+ Here is the caller graph for this function:

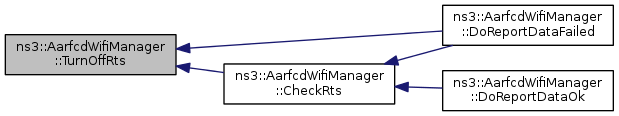

void ns3::AarfcdWifiManager::TurnOffRts ( AarfcdWifiRemoteStation station)
private

Definition at line 343 of file aarfcd-wifi-manager.cc.

References ns3::AarfcdWifiRemoteStation::m_haveASuccess, ns3::AarfcdWifiRemoteStation::m_rtsOn, and NS_LOG_FUNCTION.

Referenced by CheckRts(), and DoReportDataFailed().

+ Here is the caller graph for this function:

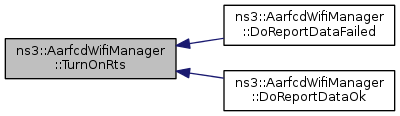

void ns3::AarfcdWifiManager::TurnOnRts ( AarfcdWifiRemoteStation station)
private

Definition at line 351 of file aarfcd-wifi-manager.cc.

References ns3::AarfcdWifiRemoteStation::m_rtsOn, and NS_LOG_FUNCTION.

Referenced by DoReportDataFailed(), and DoReportDataOk().

+ Here is the caller graph for this function:

Member Data Documentation

uint32_t ns3::AarfcdWifiManager::m_maxRtsWnd
private

Definition at line 79 of file aarfcd-wifi-manager.h.

Referenced by GetTypeId(), and IncreaseRtsWnd().

uint32_t ns3::AarfcdWifiManager::m_maxSuccessThreshold
private

Definition at line 74 of file aarfcd-wifi-manager.h.

Referenced by DoReportDataFailed(), and GetTypeId().

uint32_t ns3::AarfcdWifiManager::m_minRtsWnd
private

Definition at line 78 of file aarfcd-wifi-manager.h.

Referenced by DoCreateStation(), GetTypeId(), and ResetRtsWnd().

uint32_t ns3::AarfcdWifiManager::m_minSuccessThreshold
private

Definition at line 72 of file aarfcd-wifi-manager.h.

Referenced by DoCreateStation(), DoReportDataFailed(), and GetTypeId().

uint32_t ns3::AarfcdWifiManager::m_minTimerThreshold
private

Definition at line 71 of file aarfcd-wifi-manager.h.

Referenced by DoCreateStation(), DoReportDataFailed(), and GetTypeId().

bool ns3::AarfcdWifiManager::m_rtsFailsAsDataFails
private

Definition at line 80 of file aarfcd-wifi-manager.h.

double ns3::AarfcdWifiManager::m_successK
private

Definition at line 73 of file aarfcd-wifi-manager.h.

Referenced by DoReportDataFailed(), and GetTypeId().

double ns3::AarfcdWifiManager::m_timerK
private

Definition at line 75 of file aarfcd-wifi-manager.h.

Referenced by DoReportDataFailed(), and GetTypeId().

bool ns3::AarfcdWifiManager::m_turnOffRtsAfterRateDecrease
private

Definition at line 81 of file aarfcd-wifi-manager.h.

Referenced by DoReportDataFailed(), and GetTypeId().

bool ns3::AarfcdWifiManager::m_turnOnRtsAfterRateIncrease
private

Definition at line 82 of file aarfcd-wifi-manager.h.

Referenced by DoReportDataOk(), and GetTypeId().


The documentation for this class was generated from the following files:
