#include <adhoc-wifi-mac.h>

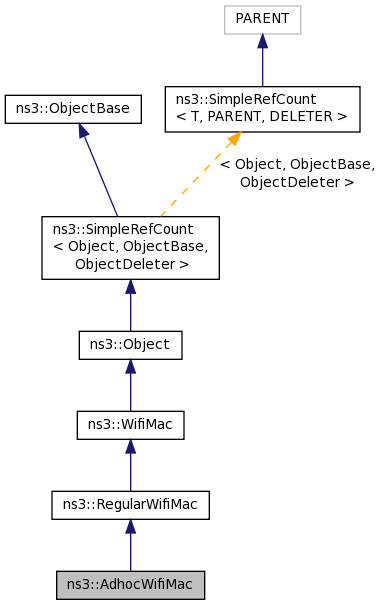

Inheritance diagram for ns3::AdhocWifiMac:

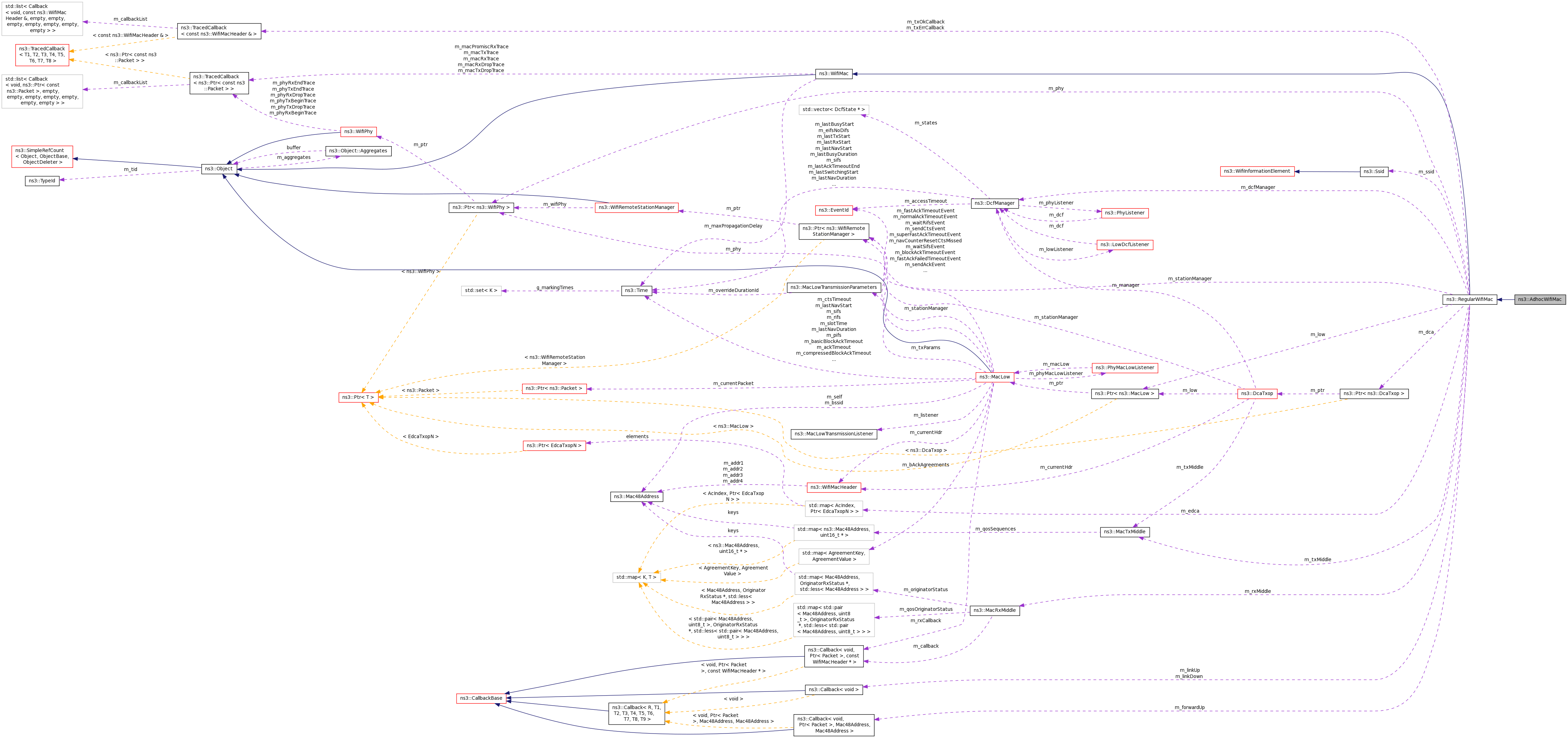

Collaboration diagram for ns3::AdhocWifiMac:

Public Member Functions
	AdhocWifiMac ()

virtual	~AdhocWifiMac ()

virtual void	Enqueue (Ptr< const Packet > packet, Mac48Address to)

virtual void	SetAddress (Mac48Address address)

virtual void	SetLinkUpCallback (Callback< void > linkUp)

Public Member Functions inherited from ns3::RegularWifiMac
	RegularWifiMac ()

virtual	~RegularWifiMac ()

virtual void	Enqueue (Ptr< const Packet > packet, Mac48Address to, Mac48Address from)

Time	GetAckTimeout (void) const

virtual Mac48Address	GetAddress (void) const

virtual Time	GetBasicBlockAckTimeout (void) const

virtual Mac48Address	GetBssid (void) const

virtual Time	GetCompressedBlockAckTimeout (void) const

Time	GetCtsTimeout (void) const

bool	GetCtsToSelfSupported () const

Time	GetEifsNoDifs (void) const

Time	GetPifs (void) const

Time	GetRifs (void) const

Time	GetSifs (void) const

Time	GetSlot (void) const

virtual Ssid	GetSsid (void) const

virtual Ptr< WifiPhy >	GetWifiPhy () const

virtual Ptr < WifiRemoteStationManager >	GetWifiRemoteStationManager () const

void	SetAckTimeout (Time ackTimeout)

virtual void	SetBasicBlockAckTimeout (Time blockAckTimeout)

virtual void	SetBssid (Mac48Address bssid)

virtual void	SetCompressedBlockAckTimeout (Time blockAckTimeout)

void	SetCtsTimeout (Time ctsTimeout)

void	SetCtsToSelfSupported (bool enable)

void	SetEifsNoDifs (Time eifsNoDifs)

virtual void	SetForwardUpCallback (ForwardUpCallback upCallback)

virtual void	SetLinkDownCallback (Callback< void > linkDown)

void	SetPifs (Time pifs)

virtual void	SetPromisc (void)
	Sets the interface in promiscuous mode. More...

void	SetRifs (Time rifs)

void	SetSifs (Time sifs)

void	SetSlot (Time slotTime)

virtual void	SetSsid (Ssid ssid)

virtual void	SetWifiPhy (Ptr< WifiPhy > phy)

virtual void	SetWifiRemoteStationManager (Ptr< WifiRemoteStationManager > stationManager)

virtual bool	SupportsSendFrom (void) const

Public Member Functions inherited from ns3::WifiMac
void	ConfigureStandard (enum WifiPhyStandard standard)

Time	GetMaxPropagationDelay (void) const

Time	GetMsduLifetime (void) const

void	NotifyPromiscRx (Ptr< const Packet > packet)

void	NotifyRx (Ptr< const Packet > packet)

void	NotifyRxDrop (Ptr< const Packet > packet)

void	NotifyTx (Ptr< const Packet > packet)

void	NotifyTxDrop (Ptr< const Packet > packet)

virtual void	SetForwardUpCallback (Callback< void, Ptr< Packet >, Mac48Address, Mac48Address > upCallback)=0

void	SetMaxPropagationDelay (Time delay)

Public Member Functions inherited from ns3::Object
	Object ()

virtual	~Object ()

void	AggregateObject (Ptr< Object > other)

void	Dispose (void)

AggregateIterator	GetAggregateIterator (void) const

virtual TypeId	GetInstanceTypeId (void) const

template<typename T >
Ptr< T >	GetObject (void) const

template<typename T >
Ptr< T >	GetObject (TypeId tid) const

void	Initialize (void)

Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()

	SimpleRefCount (const SimpleRefCount &o)

uint32_t	GetReferenceCount (void) const

SimpleRefCount &	operator= (const SimpleRefCount &o)

void	Ref (void) const

void	Unref (void) const

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()

void	GetAttribute (std::string name, AttributeValue &value) const

bool	GetAttributeFailSafe (std::string name, AttributeValue &attribute) const

void	SetAttribute (std::string name, const AttributeValue &value)

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)

Static Public Member Functions
static TypeId	GetTypeId (void)

Static Public Member Functions inherited from ns3::RegularWifiMac
static TypeId	GetTypeId (void)

Static Public Member Functions inherited from ns3::WifiMac
static TypeId	GetTypeId (void)

Static Public Member Functions inherited from ns3::Object
static TypeId	GetTypeId (void)

Static Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
static void	Cleanup (void)

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)

Private Member Functions
virtual void	Receive (Ptr< Packet > packet, const WifiMacHeader *hdr)

Additional Inherited Members
Public Types inherited from ns3::RegularWifiMac
typedef Callback< void, Ptr < Packet >, Mac48Address, Mac48Address >	ForwardUpCallback

Protected Types inherited from ns3::RegularWifiMac
typedef std::map< AcIndex, Ptr < EdcaTxopN > >	EdcaQueues

Protected Member Functions inherited from ns3::RegularWifiMac
virtual void	DeaggregateAmsduAndForward (Ptr< Packet > aggregatedPacket, const WifiMacHeader *hdr)

virtual void	DoDispose ()

virtual void	DoInitialize ()

virtual void	FinishConfigureStandard (enum WifiPhyStandard standard)

void	ForwardUp (Ptr< Packet > packet, Mac48Address from, Mac48Address to)

bool	GetHtSupported () const

bool	GetQosSupported () const

virtual void	SendAddBaResponse (const MgtAddBaRequestHeader *reqHdr, Mac48Address originator)

void	SetHtSupported (bool enable)

void	SetQosSupported (bool enable)

void	SetTypeOfStation (TypeOfStation type)

virtual void	TxFailed (const WifiMacHeader &hdr)

virtual void	TxOk (const WifiMacHeader &hdr)

Protected Member Functions inherited from ns3::WifiMac
void	ConfigureDcf (Ptr< Dcf > dcf, uint32_t cwmin, uint32_t cwmax, enum AcIndex ac)

Protected Member Functions inherited from ns3::Object
	Object (const Object &o)

virtual void	NotifyNewAggregate (void)

Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)

virtual void	NotifyConstructionCompleted (void)

Protected Attributes inherited from ns3::RegularWifiMac
Ptr< DcaTxop >	m_dca

DcfManager *	m_dcfManager

EdcaQueues	m_edca

ForwardUpCallback	m_forwardUp

bool	m_htSupported

Callback< void >	m_linkDown

Callback< void >	m_linkUp

Ptr< MacLow >	m_low

Ptr< WifiPhy >	m_phy

bool	m_qosSupported

MacRxMiddle *	m_rxMiddle

Ssid	m_ssid

Ptr< WifiRemoteStationManager >	m_stationManager

MacTxMiddle *	m_txMiddle

Detailed Description

Config Paths

ns3::AdhocWifiMac is accessible through the following paths with Config::Set and Config::Connect:

/NodeList/[i]/DeviceList/[i]/$ns3::WifiNetDevice/Mac/$ns3::AdhocWifiMac
/NodeList/[i]/DeviceList/[i]/$ns3::WifiNetDevice/Mac/$ns3::RegularWifiMac/$ns3::AdhocWifiMac

No Attributes are defined for this type.
No TraceSources are defined for this type.

TraceSources defined in parent class ns3::RegularWifiMac

TxOkHeader: The header of successfully transmitted packet
TxErrHeader: The header of unsuccessfully transmitted packet

TraceSources defined in parent class ns3::WifiMac

MacTx: A packet has been received from higher layers and is being processed in preparation for queueing for transmission.
MacTxDrop: A packet has been dropped in the MAC layer before being queued for transmission.
MacPromiscRx: A packet has been received by this device, has been passed up from the physical layer and is being forwarded up the local protocol stack. This is a promiscuous trace,
MacRx: A packet has been received by this device, has been passed up from the physical layer and is being forwarded up the local protocol stack. This is a non-promiscuous trace,
MacRxDrop: A packet has been dropped in the MAC layer after it has been passed up from the physical layer.

Definition at line 36 of file adhoc-wifi-mac.h.

Constructor & Destructor Documentation

ns3::AdhocWifiMac::AdhocWifiMac ( )

Definition at line 55 of file adhoc-wifi-mac.cc.

References ns3::ADHOC_STA, NS_LOG_FUNCTION, and ns3::RegularWifiMac::SetTypeOfStation().

Here is the call graph for this function:

ns3::AdhocWifiMac::~AdhocWifiMac ( )

virtual

Definition at line 63 of file adhoc-wifi-mac.cc.

References NS_LOG_FUNCTION.

Member Function Documentation

void ns3::AdhocWifiMac::Enqueue	(	Ptr< const Packet >	packet,
		Mac48Address	to
	)

virtual

Parameters

packet	the packet to send.
to	the address to which the packet should be sent.

The packet should be enqueued in a tx queue, and should be dequeued as soon as the channel access function determines that access is granted to this MAC.

Implements ns3::RegularWifiMac.

Definition at line 83 of file adhoc-wifi-mac.cc.

Here is the call graph for this function:

TypeId ns3::AdhocWifiMac::GetTypeId ( void )

static

Definition at line 46 of file adhoc-wifi-mac.cc.

References ns3::TypeId::SetParent().

Here is the call graph for this function:

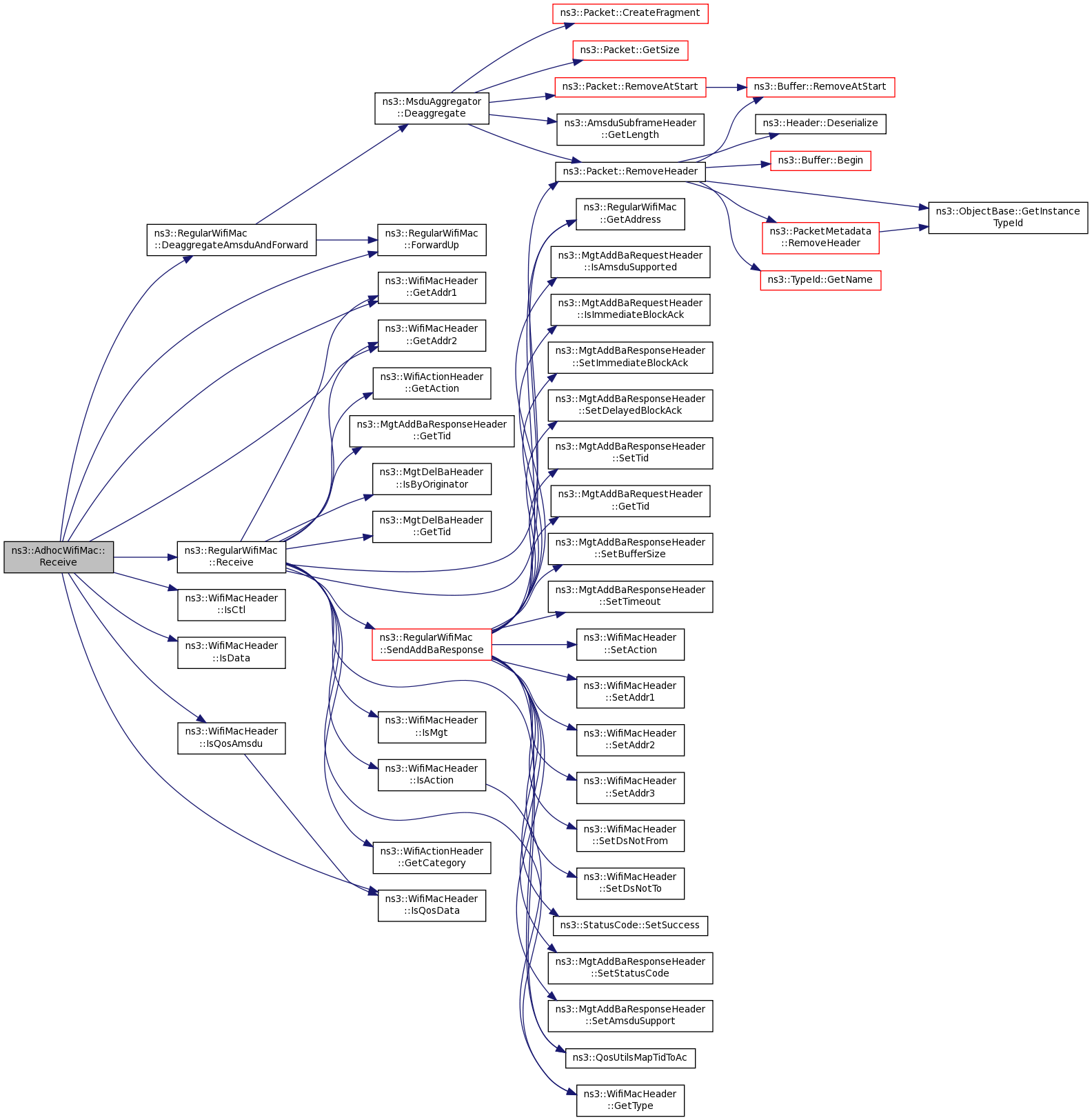

void ns3::AdhocWifiMac::Receive	(	Ptr< Packet >	packet,
		const WifiMacHeader *	hdr
	)

privatevirtual

This method acts as the MacRxMiddle receive callback and is invoked to notify us that a frame has been received. The implementation is intended to capture logic that is going to be common to all (or most) derived classes. Specifically, handling of Block Ack managment frames is dealt with here.

This method will need, however, to be overriden by derived classes so that they can perform their data handling before invoking the base version.

Parameters
