A Yans wifi channelThis wifi channel implements the propagation model described in "Yet Another Network Simulator", (http://cutebugs.net/files/wns2-yans.pdf). More...

#include <yans-wifi-channel.h>

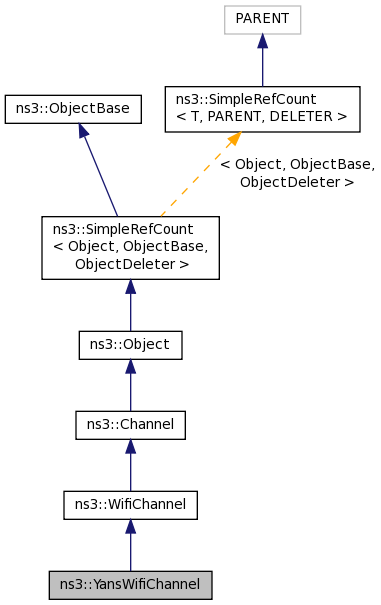

Inheritance diagram for ns3::YansWifiChannel:

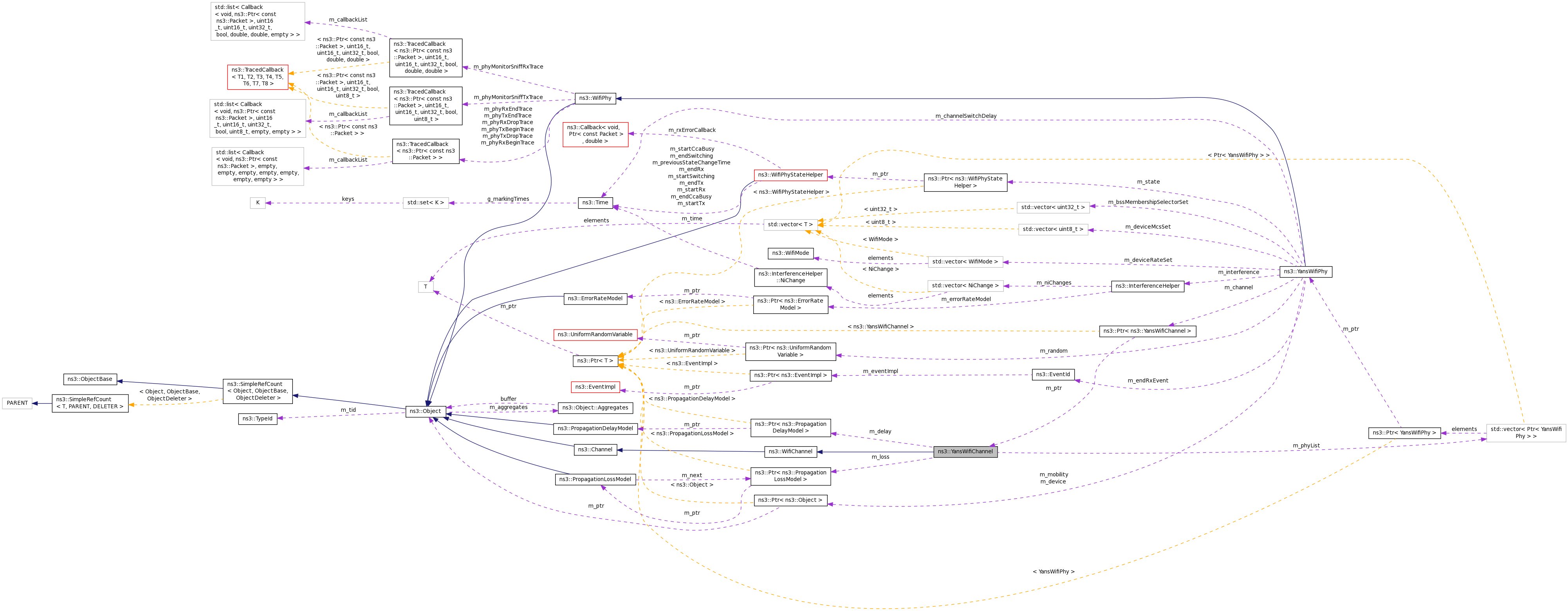

Collaboration diagram for ns3::YansWifiChannel:

Public Member Functions
	YansWifiChannel ()

virtual	~YansWifiChannel ()

void	Add (Ptr< YansWifiPhy > phy)

int64_t	AssignStreams (int64_t stream)

virtual Ptr< NetDevice >	GetDevice (uint32_t i) const

virtual uint32_t	GetNDevices (void) const

void	Send (Ptr< YansWifiPhy > sender, Ptr< const Packet > packet, double txPowerDbm, WifiTxVector txVector, WifiPreamble preamble) const

void	SetPropagationDelayModel (Ptr< PropagationDelayModel > delay)

void	SetPropagationLossModel (Ptr< PropagationLossModel > loss)

Public Member Functions inherited from ns3::Channel
	Channel ()

virtual	~Channel ()

uint32_t	GetId (void) const

Public Member Functions inherited from ns3::Object
	Object ()

virtual	~Object ()

void	AggregateObject (Ptr< Object > other)

void	Dispose (void)

AggregateIterator	GetAggregateIterator (void) const

virtual TypeId	GetInstanceTypeId (void) const

template<typename T >
Ptr< T >	GetObject (void) const

template<typename T >
Ptr< T >	GetObject (TypeId tid) const

void	Initialize (void)

Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()

	SimpleRefCount (const SimpleRefCount &o)

uint32_t	GetReferenceCount (void) const

SimpleRefCount &	operator= (const SimpleRefCount &o)

void	Ref (void) const

void	Unref (void) const

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()

void	GetAttribute (std::string name, AttributeValue &value) const

bool	GetAttributeFailSafe (std::string name, AttributeValue &attribute) const

void	SetAttribute (std::string name, const AttributeValue &value)

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)

Static Public Member Functions
static TypeId	GetTypeId (void)

Static Public Member Functions inherited from ns3::WifiChannel
static TypeId	GetTypeId (void)

Static Public Member Functions inherited from ns3::Channel
static TypeId	GetTypeId (void)

Static Public Member Functions inherited from ns3::Object
static TypeId	GetTypeId (void)

Static Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
static void	Cleanup (void)

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)

Private Types
typedef std::vector< Ptr < YansWifiPhy > >	PhyList

Private Member Functions
	YansWifiChannel (const YansWifiChannel &)

YansWifiChannel &	operator= (const YansWifiChannel &)

void	Receive (uint32_t i, Ptr< Packet > packet, double rxPowerDbm, WifiTxVector txVector, WifiPreamble preamble) const

Private Attributes
Ptr< PropagationDelayModel >	m_delay

Ptr< PropagationLossModel >	m_loss

PhyList	m_phyList

Additional Inherited Members
Protected Member Functions inherited from ns3::Object
	Object (const Object &o)

virtual void	DoDispose (void)

virtual void	DoInitialize (void)

virtual void	NotifyNewAggregate (void)

Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)

virtual void	NotifyConstructionCompleted (void)

Detailed Description

A Yans wifi channel

This wifi channel implements the propagation model described in "Yet Another Network Simulator", (http://cutebugs.net/files/wns2-yans.pdf).

This class is expected to be used in tandem with the ns3::YansWifiPhy class and contains a ns3::PropagationLossModel and a ns3::PropagationDelayModel. By default, no propagation models are set so, it is the caller's responsability to set them before using the channel.

Config Paths

ns3::YansWifiChannel is accessible through the following paths with Config::Set and Config::Connect:

/ChannelList/[i]/$ns3::WifiChannel/$ns3::YansWifiChannel
/ChannelList/[i]/$ns3::YansWifiChannel
/NodeList/[i]/DeviceList/[i]/$ns3::WifiNetDevice/Channel/$ns3::YansWifiChannel

Attributes

PropagationLossModel: A pointer to the propagation loss model attached to this channel.
- Set with class: ns3::PointerValue
- Underlying type: ns3::Ptr< ns3::PropagationLossModel >
- Initial value: 0
- Flags: construct write read
PropagationDelayModel: A pointer to the propagation delay model attached to this channel.
- Set with class: ns3::PointerValue
- Underlying type: ns3::Ptr< ns3::PropagationDelayModel >
- Initial value: 0
- Flags: construct write read

Attributes defined in parent class ns3::Channel

Id: The id (unique integer) of this Channel.
- Set with class: ns3::UintegerValue
- Underlying type: uint32_t 0:4294967295
- Flags: read

No TraceSources are defined for this type.

Definition at line 50 of file yans-wifi-channel.h.

Member Typedef Documentation

typedef std::vector<Ptr<YansWifiPhy> > ns3::YansWifiChannel::PhyList

private

Definition at line 102 of file yans-wifi-channel.h.

Constructor & Destructor Documentation

ns3::YansWifiChannel::YansWifiChannel ( )

Definition at line 57 of file yans-wifi-channel.cc.

ns3::YansWifiChannel::~YansWifiChannel ( )

virtual

Definition at line 60 of file yans-wifi-channel.cc.

References m_phyList, and NS_LOG_FUNCTION_NOARGS.

ns3::YansWifiChannel::YansWifiChannel ( const YansWifiChannel & )

private

Member Function Documentation

void ns3::YansWifiChannel::Add ( Ptr< YansWifiPhy > phy )

Definition at line 136 of file yans-wifi-channel.cc.

References m_phyList.

int64_t ns3::YansWifiChannel::AssignStreams ( int64_t stream )

Assign a fixed random variable stream number to the random variables used by this model. Return the number of streams (possibly zero) that have been assigned.

Parameters

stream first stream index to use

Returns: the number of stream indices assigned by this model

Definition at line 142 of file yans-wifi-channel.cc.

References ns3::PropagationLossModel::AssignStreams(), and m_loss.

Here is the call graph for this function:

Ptr< NetDevice > ns3::YansWifiChannel::GetDevice ( uint32_t i ) const

virtual

Parameters

i	index of NetDevice to retrieve

Returns: one of the NetDevices connected to this channel.

This method must be implemented by subclasses.

Implements ns3::Channel.

Definition at line 130 of file yans-wifi-channel.cc.

References m_phyList.

uint32_t ns3::YansWifiChannel::GetNDevices ( void ) const

virtual

Returns: the number of NetDevices connected to this Channel.

This method must be implemented by subclasses.

Implements ns3::Channel.

Definition at line 125 of file yans-wifi-channel.cc.

References m_phyList.

TypeId ns3::YansWifiChannel::GetTypeId ( void )

static

Definition at line 40 of file yans-wifi-channel.cc.

References m_delay, m_loss, and ns3::TypeId::SetParent().

Here is the call graph for this function:

YansWifiChannel& ns3::YansWifiChannel::operator= ( const YansWifiChannel & )

private

void ns3::YansWifiChannel::Receive	(	uint32_t	i,
		Ptr< Packet >	packet,
		double	rxPowerDbm,
		WifiTxVector	txVector,
		WifiPreamble	preamble
	)		const

private

Definition at line 118 of file yans-wifi-channel.cc.

References m_phyList.

Referenced by Send().

Here is the caller graph for this function:

void ns3::YansWifiChannel::Send	(	Ptr< YansWifiPhy >	sender,
		Ptr< const Packet >	packet,
		double	txPowerDbm,
		WifiTxVector	txVector,
		WifiPreamble	preamble
	)		const

Parameters

sender	the device from which the packet is originating.
packet	the packet to send
txPowerDbm	the tx power associated to the packet
wifiMode	the tx mode associated to the packet
preamble	the preamble associated to the packet

This method should not be invoked by normal users. It is currently invoked only from WifiPhy::Send. YansWifiChannel delivers packets only between PHYs with the same m_channelNumber, e.g. PHYs that are operating on the same channel.

Definition at line 78 of file yans-wifi-channel.cc.

References ns3::PropagationLossModel::CalcRxPower(), ns3::Packet::Copy(), ns3::YansWifiPhy::GetChannelNumber(), ns3::MobilityModel::GetDistanceFrom(), ns3::YansWifiPhy::GetMobility(), ns3::Object::GetObject(), m_delay, m_loss, m_phyList, NS_ASSERT, NS_LOG_DEBUG, Receive(), and ns3::Simulator::ScheduleWithContext().
