Receiver Class Reference

#include <wifi-example-apps.h>

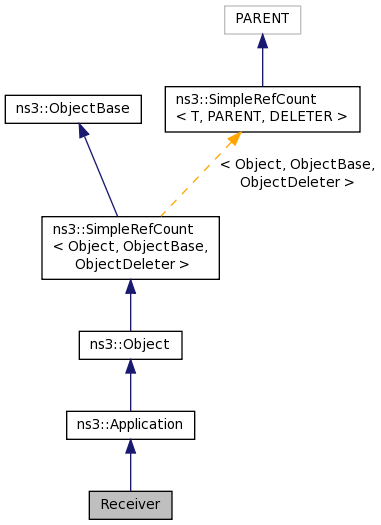

+ Inheritance diagram for Receiver:

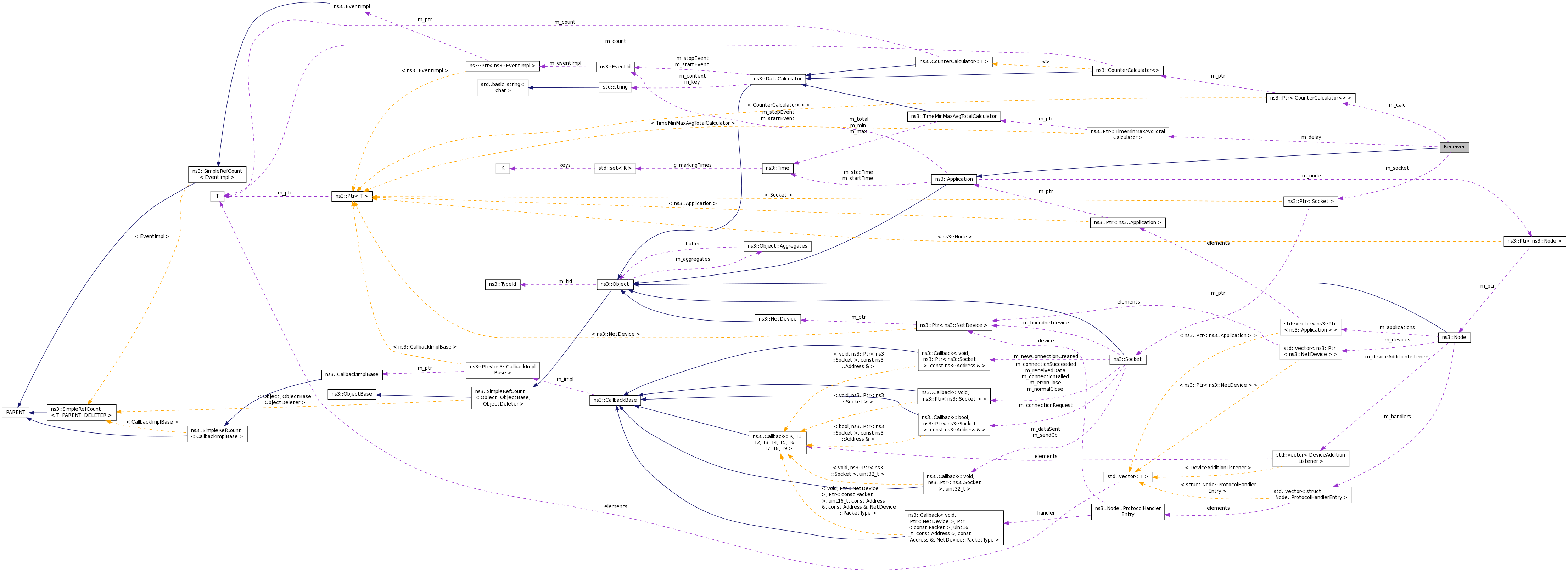

+ Collaboration diagram for Receiver:

Public Member Functions

 Receiver ()

virtual ~Receiver ()

void SetCounter (Ptr< CounterCalculator<> > calc)

void SetDelayTracker (Ptr< TimeMinMaxAvgTotalCalculator > delay)

- Public Member Functions inherited from ns3::Application
 Application ()

virtual ~Application ()

Ptr< Node > GetNode () const

void SetNode (Ptr< Node > node)

void SetStartTime (Time start)
 Specify application start time. More...

void SetStopTime (Time stop)
 Specify application stop time. More...

- Public Member Functions inherited from ns3::Object
 Object ()

virtual ~Object ()

void AggregateObject (Ptr< Object > other)

void Dispose (void)

AggregateIterator GetAggregateIterator (void) const

virtual TypeId GetInstanceTypeId (void) const

template<typename T >
Ptr< T > GetObject (void) const

template<typename T >
Ptr< T > GetObject (TypeId tid) const

void Initialize (void)

- Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
 SimpleRefCount ()

 SimpleRefCount (const SimpleRefCount &o)

uint32_t GetReferenceCount (void) const

SimpleRefCount & operator= (const SimpleRefCount &o)

void Ref (void) const

void Unref (void) const

- Public Member Functions inherited from ns3::ObjectBase
virtual ~ObjectBase ()

void GetAttribute (std::string name, AttributeValue &value) const

bool GetAttributeFailSafe (std::string name, AttributeValue &attribute) const

void SetAttribute (std::string name, const AttributeValue &value)

bool SetAttributeFailSafe (std::string name, const AttributeValue &value)

bool TraceConnect (std::string name, std::string context, const CallbackBase &cb)

bool TraceConnectWithoutContext (std::string name, const CallbackBase &cb)

bool TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)

bool TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)


Static Public Member Functions

static TypeId GetTypeId (void)

- Static Public Member Functions inherited from ns3::Application
static TypeId GetTypeId (void)

- Static Public Member Functions inherited from ns3::Object
static TypeId GetTypeId (void)

- Static Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
static void Cleanup (void)

- Static Public Member Functions inherited from ns3::ObjectBase
static TypeId GetTypeId (void)


Protected Member Functions

virtual void DoDispose (void)

- Protected Member Functions inherited from ns3::Application
virtual void DoInitialize (void)

- Protected Member Functions inherited from ns3::Object
 Object (const Object &o)

virtual void NotifyNewAggregate (void)

- Protected Member Functions inherited from ns3::ObjectBase
void ConstructSelf (const AttributeConstructionList &attributes)

virtual void NotifyConstructionCompleted (void)


Private Member Functions

void Receive (Ptr< Socket > socket)

virtual void StartApplication (void)
 Application specific startup code. More...

virtual void StopApplication (void)
 Application specific shutdown code. More...


Private Attributes

Ptr< CounterCalculator<> > m_calc

Ptr< TimeMinMaxAvgTotalCalculator > m_delay

uint32_t m_port

Ptr< Socket > m_socket


Additional Inherited Members

- Protected Attributes inherited from ns3::Application
Ptr< Node > m_node

EventId m_startEvent

Time m_startTime

EventId m_stopEvent

Time m_stopTime


Detailed Description

Definition at line 73 of file wifi-example-apps.h.

Constructor & Destructor Documentation

Receiver::Receiver ( )

Definition at line 170 of file wifi-example-apps.cc.

References m_socket, and NS_LOG_FUNCTION_NOARGS.

Receiver::~Receiver ( )
virtual

Definition at line 178 of file wifi-example-apps.cc.

References NS_LOG_FUNCTION_NOARGS.

Member Function Documentation

void Receiver::DoDispose ( void  )
protectedvirtual

This method is called by Object::Dispose or by the object's destructor, whichever comes first.

Subclasses are expected to implement their real destruction code in an overriden version of this method and chain up to their parent's implementation once they are done. i.e., for simplicity, the destructor of every subclass should be empty and its content should be moved to the associated DoDispose method.

It is safe to call GetObject from within this method.

Reimplemented from ns3::Application.

Definition at line 184 of file wifi-example-apps.cc.

References m_socket, and NS_LOG_FUNCTION_NOARGS.

TypeId Receiver::GetTypeId ( void  )
static

Definition at line 157 of file wifi-example-apps.cc.

References m_port, and ns3::TypeId::SetParent().

+ Here is the call graph for this function:

void Receiver::Receive ( Ptr< Socket >  socket)
private

Definition at line 238 of file wifi-example-apps.cc.

References ns3::Packet::FindFirstMatchingByteTag(), ns3::Packet::GetSize(), TimestampTag::GetTimestamp(), m_calc, m_delay, ns3::Now(), NS_LOG_INFO, ns3::Socket::RecvFrom(), ns3::TimeMinMaxAvgTotalCalculator::Update(), and ns3::CounterCalculator< T >::Update().

Referenced by StartApplication().

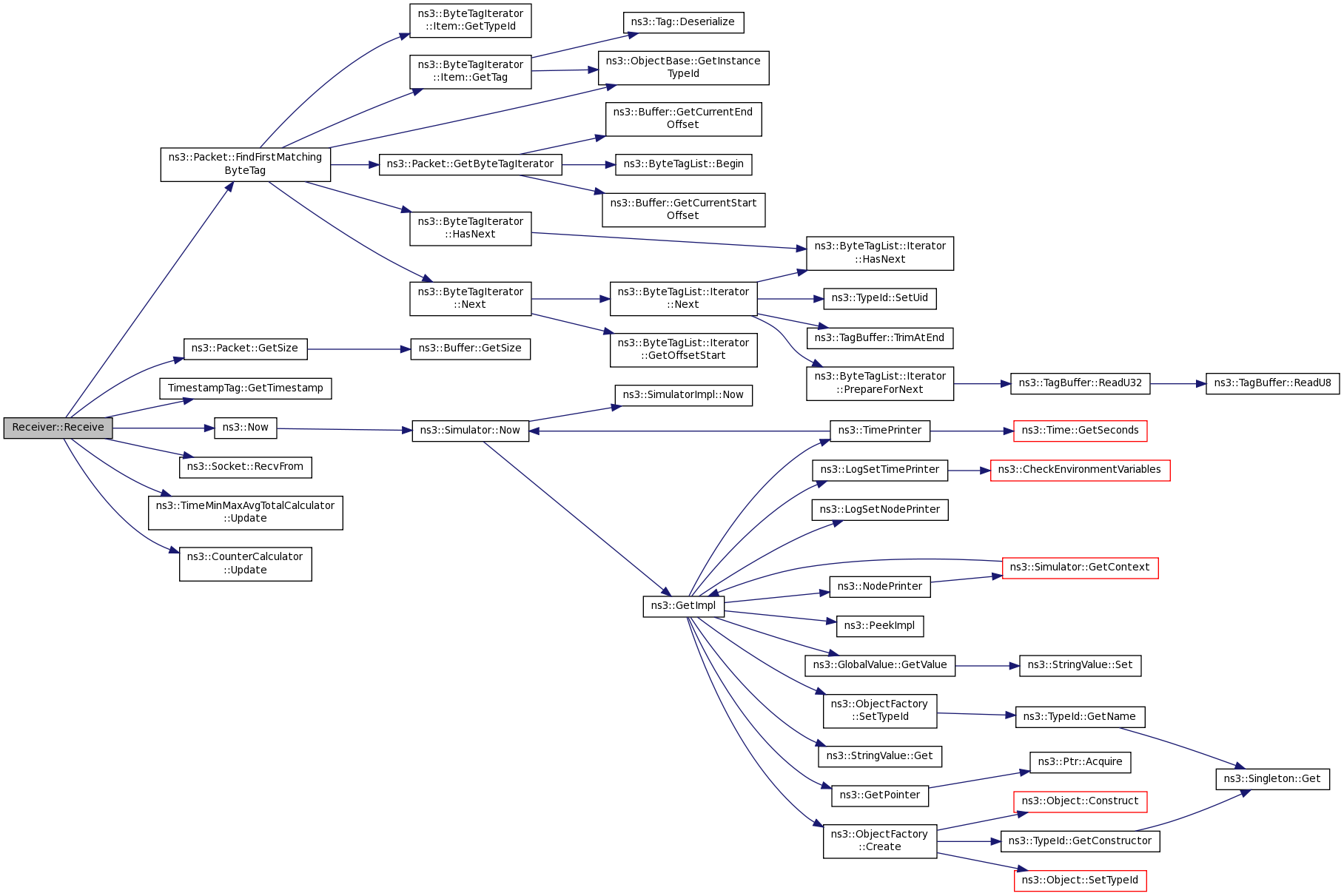

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

void Receiver::SetCounter ( Ptr< CounterCalculator<> >  calc)

Definition at line 225 of file wifi-example-apps.cc.

References m_calc.

Referenced by main().

+ Here is the caller graph for this function:

void Receiver::SetDelayTracker ( Ptr< TimeMinMaxAvgTotalCalculator >  delay)

Definition at line 231 of file wifi-example-apps.cc.

References m_delay.

Referenced by main().

+ Here is the caller graph for this function:

void Receiver::StartApplication ( void  )
privatevirtual

Application specific startup code.

The StartApplication method is called at the start time specified by Start This method should be overridden by all or most application subclasses.

Reimplemented from ns3::Application.

Definition at line 194 of file wifi-example-apps.cc.

References ns3::SocketFactory::CreateSocket(), ns3::Application::GetNode(), ns3::Object::GetObject(), m_port, m_socket, ns3::MakeCallback(), NS_LOG_FUNCTION_NOARGS, Receive(), and ns3::Socket::SetRecvCallback().

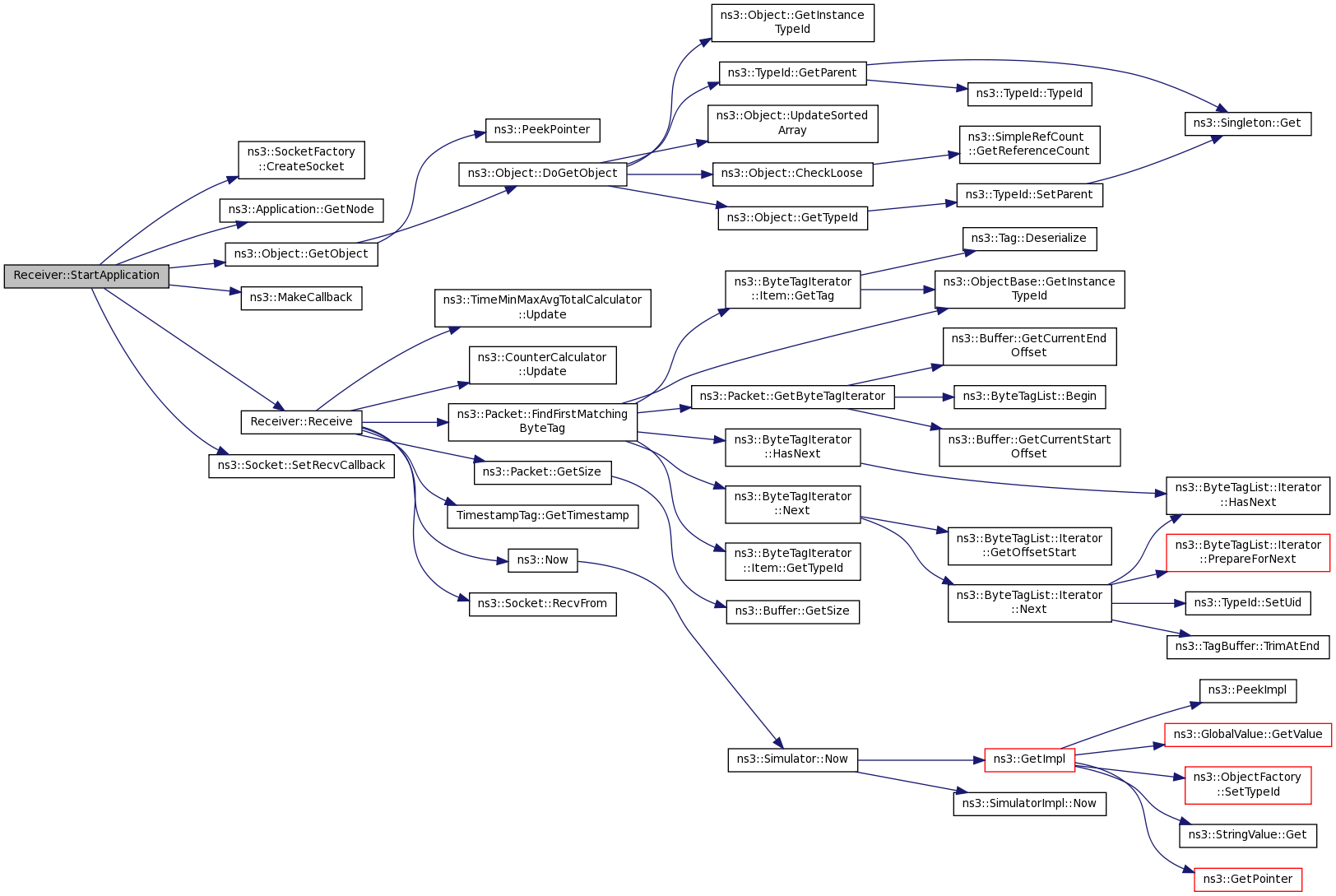

+ Here is the call graph for this function:

void Receiver::StopApplication ( void  )
privatevirtual

Application specific shutdown code.

The StopApplication method is called at the stop time specified by Stop This method should be overridden by all or most application subclasses.

Reimplemented from ns3::Application.

Definition at line 213 of file wifi-example-apps.cc.

References m_socket, ns3::MakeNullCallback(), NS_LOG_FUNCTION_NOARGS, and ns3::Socket::SetRecvCallback().

+ Here is the call graph for this function:

Member Data Documentation

Ptr<CounterCalculator<> > Receiver::m_calc
private

Definition at line 95 of file wifi-example-apps.h.

Referenced by Receive(), and SetCounter().

Ptr<TimeMinMaxAvgTotalCalculator> Receiver::m_delay
private

Definition at line 96 of file wifi-example-apps.h.

Referenced by Receive(), and SetDelayTracker().

uint32_t Receiver::m_port
private

Definition at line 93 of file wifi-example-apps.h.

Referenced by GetTypeId(), and StartApplication().

Ptr<Socket> Receiver::m_socket
private

Definition at line 91 of file wifi-example-apps.h.

Referenced by DoDispose(), Receiver(), StartApplication(), and StopApplication().

The documentation for this class was generated from the following files:
