WHOI micro-modem energy model. More...

#include <acoustic-modem-energy-model.h>

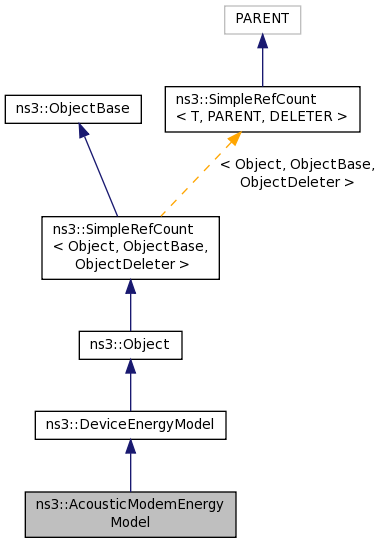

Inheritance diagram for ns3::AcousticModemEnergyModel:

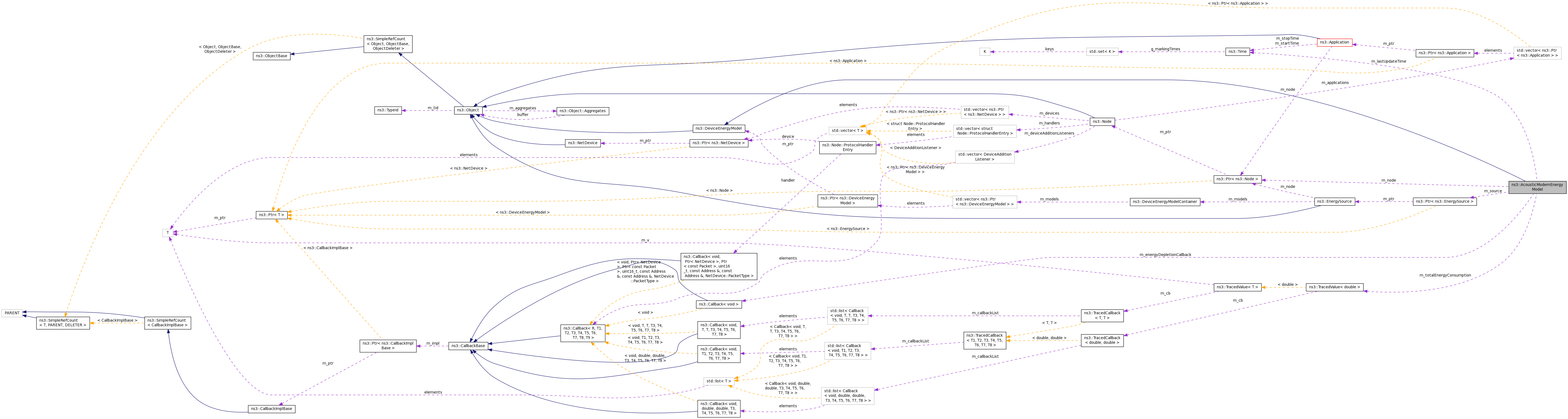

Collaboration diagram for ns3::AcousticModemEnergyModel:

Public Types
typedef Callback< void >	AcousticModemEnergyDepletionCallback

Public Types inherited from ns3::DeviceEnergyModel
typedef Callback< void, int >	ChangeStateCallback

Public Member Functions
	AcousticModemEnergyModel ()

virtual	~AcousticModemEnergyModel ()

virtual void	ChangeState (int newState)
	Changes state of the AcousticModemEnergyModel. More...

int	GetCurrentState (void) const

double	GetIdlePowerW (void) const

virtual Ptr< Node >	GetNode (void) const
	Gets pointer to node. More...

double	GetRxPowerW (void) const

double	GetSleepPowerW (void) const

virtual double	GetTotalEnergyConsumption (void) const

double	GetTxPowerW (void) const

virtual void	HandleEnergyDepletion (void)
	Handles energy depletion. More...

void	SetEnergyDepletionCallback (AcousticModemEnergyDepletionCallback callback)

virtual void	SetEnergySource (Ptr< EnergySource > source)
	Sets pointer to EnergySouce installed on node. More...

void	SetIdlePowerW (double idlePowerW)

virtual void	SetNode (Ptr< Node > node)
	Sets pointer to node. More...

void	SetRxPowerW (double rxPowerW)

void	SetSleepPowerW (double sleepPowerW)

void	SetTxPowerW (double txPowerW)

Public Member Functions inherited from ns3::DeviceEnergyModel
	DeviceEnergyModel ()

virtual	~DeviceEnergyModel ()

double	GetCurrentA (void) const

Public Member Functions inherited from ns3::Object
	Object ()

virtual	~Object ()

void	AggregateObject (Ptr< Object > other)

void	Dispose (void)

AggregateIterator	GetAggregateIterator (void) const

virtual TypeId	GetInstanceTypeId (void) const

template<typename T >
Ptr< T >	GetObject (void) const

template<typename T >
Ptr< T >	GetObject (TypeId tid) const

void	Initialize (void)

Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()

	SimpleRefCount (const SimpleRefCount &o)

uint32_t	GetReferenceCount (void) const

SimpleRefCount &	operator= (const SimpleRefCount &o)

void	Ref (void) const

void	Unref (void) const

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()

void	GetAttribute (std::string name, AttributeValue &value) const

bool	GetAttributeFailSafe (std::string name, AttributeValue &attribute) const

void	SetAttribute (std::string name, const AttributeValue &value)

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)

Static Public Member Functions
static TypeId	GetTypeId (void)

Static Public Member Functions inherited from ns3::DeviceEnergyModel
static TypeId	GetTypeId (void)

Static Public Member Functions inherited from ns3::Object
static TypeId	GetTypeId (void)

Static Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
static void	Cleanup (void)

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)

Private Member Functions
void	DoDispose (void)

virtual double	DoGetCurrentA (void) const

bool	IsStateTransitionValid (const int destState)

void	SetMicroModemState (const int state)

Private Attributes
int	m_currentState

AcousticModemEnergyDepletionCallback	m_energyDepletionCallback

double	m_idlePowerW

Time	m_lastUpdateTime

Ptr< Node >	m_node

double	m_rxPowerW

double	m_sleepPowerW

Ptr< EnergySource >	m_source

TracedValue< double >	m_totalEnergyConsumption

double	m_txPowerW

Additional Inherited Members
Protected Member Functions inherited from ns3::Object
	Object (const Object &o)

virtual void	DoInitialize (void)

virtual void	NotifyNewAggregate (void)

Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)

virtual void	NotifyConstructionCompleted (void)

Detailed Description

WHOI micro-modem energy model.

Basing on the Device Energy Model interface, has been implemented a specific energy model for the WHOI micro modem. The class follows pretty closely the RadioEnergyModel class as the transducer behaviour is pretty close to the one of a wifi radio, with identical states (rx, tx, idle, sleep).

The power consumption values implemented into the model are as follows [1]:

Modem State Power Consumption TX 50 W RX 158 mW Idle 158 mW Sleep 5.8 mW

References: [1] Freitag et al., The whoi micro-modem: an acoustic communications and navigation system for multiple platforms, in In Proc. IEEE OCEANS05 Conf, 2005. URL: http://ieeexplore.ieee.org/iel5/10918/34367/01639901.pdf

Doxygen introspection did not find any typical Config paths.

Attributes

TxPowerW: The modem Tx power in Watts
- Set with class: ns3::DoubleValue
- Underlying type: double -1.79769e+308:1.79769e+308
- Initial value: 50
- Flags: construct write read
RxPowerW: The modem Rx power in Watts
- Set with class: ns3::DoubleValue
- Underlying type: double -1.79769e+308:1.79769e+308
- Initial value: 0.158
- Flags: construct write read
IdlePowerW: The modem Idle power in Watts
- Set with class: ns3::DoubleValue
- Underlying type: double -1.79769e+308:1.79769e+308
- Initial value: 0.158
- Flags: construct write read
SleepPowerW: The modem Sleep power in Watts
- Set with class: ns3::DoubleValue
- Underlying type: double -1.79769e+308:1.79769e+308
- Initial value: 0.0058
- Flags: construct write read

TraceSources

TotalEnergyConsumption: Total energy consumption of the modem device.

Definition at line 52 of file acoustic-modem-energy-model.h.

Member Typedef Documentation

typedef Callback<void> ns3::AcousticModemEnergyModel::AcousticModemEnergyDepletionCallback

Callback type for energy depletion handling.

Definition at line 58 of file acoustic-modem-energy-model.h.

Constructor & Destructor Documentation

ns3::AcousticModemEnergyModel::AcousticModemEnergyModel ( )

Definition at line 73 of file acoustic-modem-energy-model.cc.

References ns3::UanPhy::IDLE, m_currentState, m_energyDepletionCallback, m_lastUpdateTime, m_node, m_source, NS_LOG_FUNCTION, and ns3::Callback< R, T1, T2, T3, T4, T5, T6, T7, T8, T9 >::Nullify().

Here is the call graph for this function:

ns3::AcousticModemEnergyModel::~AcousticModemEnergyModel ( )

virtual

Definition at line 83 of file acoustic-modem-energy-model.cc.

Member Function Documentation

void ns3::AcousticModemEnergyModel::ChangeState ( int newState )

virtual

Changes state of the AcousticModemEnergyModel.

Parameters

newState New state the modem is in.

Implements DeviceEnergyModel::ChangeState.

Implements ns3::DeviceEnergyModel.

Definition at line 192 of file acoustic-modem-energy-model.cc.

References ns3::Node::GetId(), ns3::Time::GetNanoSeconds(), ns3::Time::GetSeconds(), ns3::UanPhy::IDLE, m_currentState, m_idlePowerW, m_lastUpdateTime, m_node, m_rxPowerW, m_sleepPowerW, m_source, m_totalEnergyConsumption, m_txPowerW, ns3::Simulator::Now(), NS_ASSERT, NS_FATAL_ERROR, NS_LOG_DEBUG, NS_LOG_FUNCTION, ns3::UanPhy::RX, SetMicroModemState(), ns3::UanPhy::SLEEP, and ns3::UanPhy::TX.

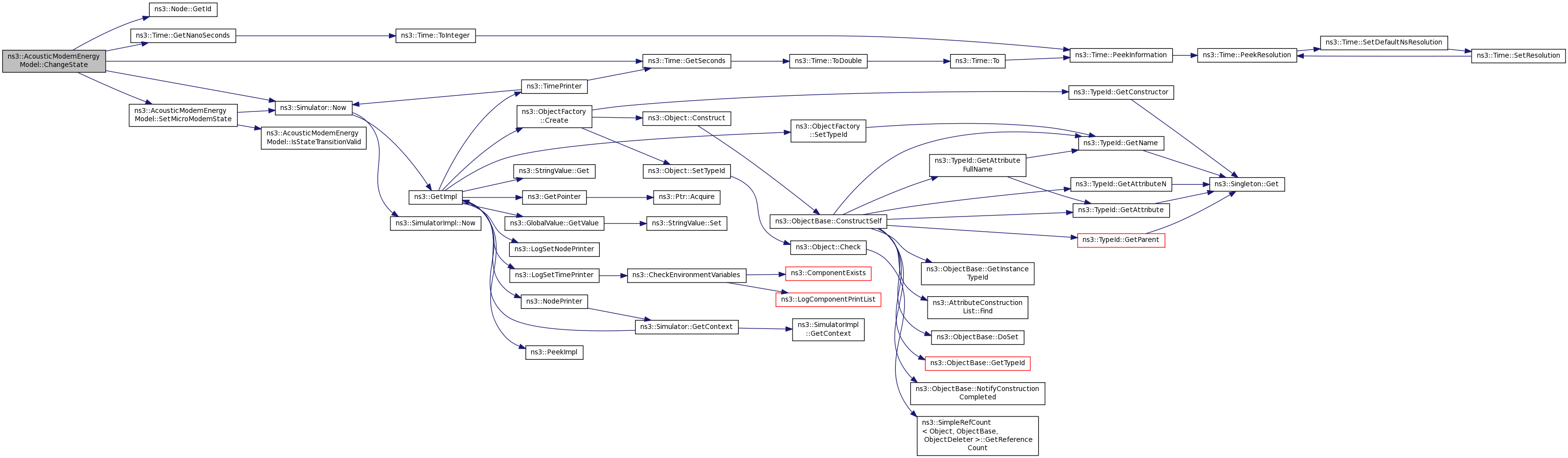

Here is the call graph for this function:

void ns3::AcousticModemEnergyModel::DoDispose ( void )

privatevirtual

This method is called by Object::Dispose or by the object's destructor, whichever comes first.

Subclasses are expected to implement their real destruction code in an overriden version of this method and chain up to their parent's implementation once they are done. i.e., for simplicity, the destructor of every subclass should be empty and its content should be moved to the associated DoDispose method.

It is safe to call GetObject from within this method.

Reimplemented from ns3::Object.

Definition at line 259 of file acoustic-modem-energy-model.cc.

References m_energyDepletionCallback, m_node, m_source, NS_LOG_FUNCTION, and ns3::Callback< R, T1, T2, T3, T4, T5, T6, T7, T8, T9 >::Nullify().

Here is the call graph for this function:

double ns3::AcousticModemEnergyModel::DoGetCurrentA ( void ) const

privatevirtual

Returns: Current draw of device, at current state.

Implements DeviceEnergyModel::GetCurrentA.

Reimplemented from ns3::DeviceEnergyModel.

Definition at line 268 of file acoustic-modem-energy-model.cc.

References ns3::UanPhy::IDLE, m_currentState, m_idlePowerW, m_rxPowerW, m_sleepPowerW, m_source, m_txPowerW, NS_ASSERT, NS_FATAL_ERROR, NS_LOG_FUNCTION, ns3::UanPhy::RX, ns3::UanPhy::SLEEP, and ns3::UanPhy::TX.

int ns3::AcousticModemEnergyModel::GetCurrentState ( void ) const

Returns: Current state.

Definition at line 173 of file acoustic-modem-energy-model.cc.

References m_currentState, and NS_LOG_FUNCTION.

double ns3::AcousticModemEnergyModel::GetIdlePowerW ( void ) const

Returns: The idle power of the modem in Watts

Definition at line 145 of file acoustic-modem-energy-model.cc.

References m_idlePowerW, and NS_LOG_FUNCTION.

Referenced by GetTypeId().

Here is the caller graph for this function:

Ptr< Node > ns3::AcousticModemEnergyModel::GetNode ( void ) const

virtual

Gets pointer to node.

Returns: Pointer to node.

Implements DeviceEnergyModel::GetNode.

Definition at line 96 of file acoustic-modem-energy-model.cc.

References m_node.

double ns3::AcousticModemEnergyModel::GetRxPowerW ( void ) const

Returns: The receiving power of the modem in Watts

Definition at line 131 of file acoustic-modem-energy-model.cc.

References m_rxPowerW, and NS_LOG_FUNCTION.

Referenced by GetTypeId().

Here is the caller graph for this function:

double ns3::AcousticModemEnergyModel::GetSleepPowerW ( void ) const

Returns: The sleep power of the modem in Watts

Definition at line 159 of file acoustic-modem-energy-model.cc.

References m_sleepPowerW, and NS_LOG_FUNCTION.

Referenced by GetTypeId().

Here is the caller graph for this function:

double ns3::AcousticModemEnergyModel::GetTotalEnergyConsumption ( void ) const

virtual

Returns: Total energy consumption of the modem

Implements DeviceEnergyModel::GetTotalEnergyConsumption.

Implements ns3::DeviceEnergyModel.

Definition at line 110 of file acoustic-modem-energy-model.cc.

References m_totalEnergyConsumption, and NS_LOG_FUNCTION.

double ns3::AcousticModemEnergyModel::GetTxPowerW ( void ) const

Returns: The transmission power of the modem in Watts

Definition at line 117 of file acoustic-modem-energy-model.cc.

References m_txPowerW, and NS_LOG_FUNCTION.

Referenced by GetTypeId().

Here is the caller graph for this function:

TypeId ns3::AcousticModemEnergyModel::GetTypeId ( void )

static

Definition at line 37 of file acoustic-modem-energy-model.cc.

References GetIdlePowerW(), GetRxPowerW(), GetSleepPowerW(), GetTxPowerW(), m_totalEnergyConsumption, ns3::MakeTraceSourceAccessor(), SetIdlePowerW(), ns3::TypeId::SetParent(), SetRxPowerW(), SetSleepPowerW(), and SetTxPowerW().

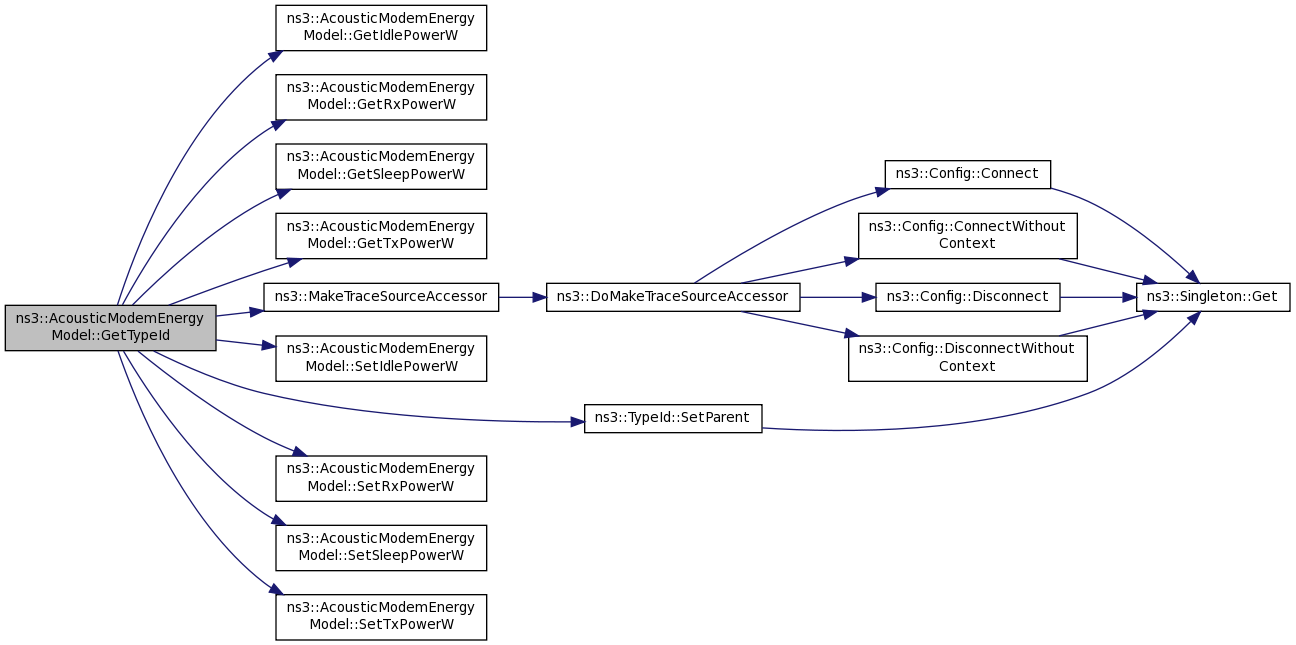

Here is the call graph for this function:

void ns3::AcousticModemEnergyModel::HandleEnergyDepletion ( void )

virtual

Handles energy depletion.

Implements DeviceEnergyModel::HandleEnergyDepletion

Implements ns3::DeviceEnergyModel.

Definition at line 239 of file acoustic-modem-energy-model.cc.

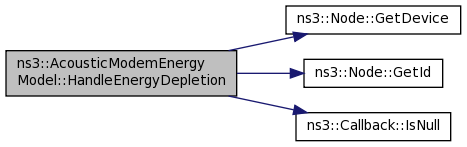

References ns3::Node::GetDevice(), ns3::Node::GetId(), ns3::Callback< R, T1, T2, T3, T4, T5, T6, T7, T8, T9 >::IsNull(), m_energyDepletionCallback, m_node, NS_LOG_DEBUG, and NS_LOG_FUNCTION.

Here is the call graph for this function:

bool ns3::AcousticModemEnergyModel::IsStateTransitionValid ( const int destState )

private

Parameters

destState Modem state to switch to.

Returns: True if the transition is allowed.

This function checks if a given modem state transition is allowed.

Definition at line 297 of file acoustic-modem-energy-model.cc.

References NS_LOG_FUNCTION.

Referenced by SetMicroModemState().

Here is the caller graph for this function:

void ns3::AcousticModemEnergyModel::SetEnergyDepletionCallback ( AcousticModemEnergyDepletionCallback callback )

Parameters

callback Callback function.

Sets callback for energy depletion handling.

Definition at line 180 of file acoustic-modem-energy-model.cc.

References ns3::Callback< R, T1, T2, T3, T4, T5, T6, T7, T8, T9 >::IsNull(), m_energyDepletionCallback, NS_LOG_DEBUG, and NS_LOG_FUNCTION.

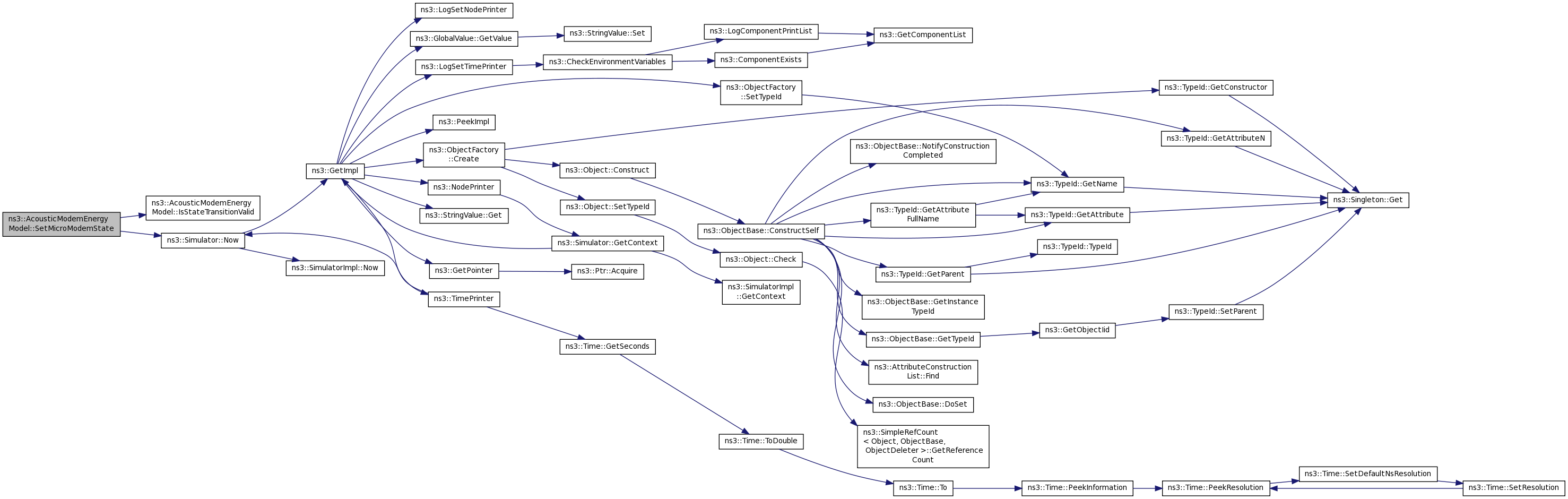

Here is the call graph for this function:

void ns3::AcousticModemEnergyModel::SetEnergySource ( Ptr< EnergySource > source )

virtual

Sets pointer to EnergySouce installed on node.

Parameters

source Pointer to EnergySource installed on node.

Implements DeviceEnergyModel::SetEnergySource.

Implements ns3::DeviceEnergyModel.

Definition at line 102 of file acoustic-modem-energy-model.cc.

References m_source, NS_ASSERT, and NS_LOG_FUNCTION.

void ns3::AcousticModemEnergyModel::SetIdlePowerW ( double idlePowerW )

Set the idle power of the modem

Parameters

idlePowerW Idle power of the modem in watts

Definition at line 152 of file acoustic-modem-energy-model.cc.

References m_idlePowerW, and NS_LOG_FUNCTION.

Referenced by GetTypeId().

Here is the caller graph for this function:

void ns3::AcousticModemEnergyModel::SetMicroModemState ( const int state )

private

Parameters

state New state the modem is currently in.

Sets current state. This function is private so that only the energy model can change its own state.

Definition at line 304 of file acoustic-modem-energy-model.cc.

References ns3::UanPhy::IDLE, IsStateTransitionValid(), m_currentState, ns3::Simulator::Now(), NS_FATAL_ERROR, NS_LOG_DEBUG, NS_LOG_FUNCTION, ns3::UanPhy::RX, ns3::UanPhy::SLEEP, and ns3::UanPhy::TX.

Referenced by ChangeState().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::AcousticModemEnergyModel::SetNode ( Ptr< Node > node )

virtual

Sets pointer to node.

Parameters

node	Pointer to node.

Implements DeviceEnergyModel::SetNode.

Definition at line 88 of file acoustic-modem-energy-model.cc.

References m_node, NS_ASSERT, and NS_LOG_FUNCTION.

void ns3::AcousticModemEnergyModel::SetRxPowerW ( double rxPowerW )

Set the receiving power of the modem

Parameters

rxPowerW Receiving power of the modem in watts

Definition at line 138 of file acoustic-modem-energy-model.cc.

References m_rxPowerW, and NS_LOG_FUNCTION.

Referenced by GetTypeId().

Here is the caller graph for this function:

void ns3::AcousticModemEnergyModel::SetSleepPowerW ( double sleepPowerW )

Set the sleep power of the modem

Parameters

sleepPowerW Sleep power of the modem in watts

Definition at line 166 of file acoustic-modem-energy-model.cc.

References m_sleepPowerW, and NS_LOG_FUNCTION.

Referenced by GetTypeId().

Here is the caller graph for this function:

void ns3::AcousticModemEnergyModel::SetTxPowerW ( double txPowerW )

Set the transmission power of the modem

Parameters

txPowerW Transmission power of the modem in watts

Definition at line 124 of file acoustic-modem-energy-model.cc.

References m_txPowerW, and NS_LOG_FUNCTION.

Referenced by GetTypeId().

Here is the caller graph for this function:

Member Data Documentation

int ns3::AcousticModemEnergyModel::m_currentState

private

Definition at line 220 of file acoustic-modem-energy-model.h.

Referenced by AcousticModemEnergyModel(), ChangeState(), DoGetCurrentA(), GetCurrentState(), and SetMicroModemState().

AcousticModemEnergyDepletionCallback ns3::AcousticModemEnergyModel::m_energyDepletionCallback

private

Definition at line 224 of file acoustic-modem-energy-model.h.

Referenced by AcousticModemEnergyModel(), DoDispose(), HandleEnergyDepletion(), and SetEnergyDepletionCallback().

double ns3::AcousticModemEnergyModel::m_idlePowerW

private

Definition at line 213 of file acoustic-modem-energy-model.h.

Referenced by ChangeState(), DoGetCurrentA(), GetIdlePowerW(), and SetIdlePowerW().

Time ns3::AcousticModemEnergyModel::m_lastUpdateTime

private

Definition at line 221 of file acoustic-modem-energy-model.h.

Referenced by AcousticModemEnergyModel(), and ChangeState().

Ptr<Node> ns3::AcousticModemEnergyModel::m_node

private

Definition at line 207 of file acoustic-modem-energy-model.h.

Referenced by AcousticModemEnergyModel(), ChangeState(), DoDispose(), GetNode(), HandleEnergyDepletion(), and SetNode().

double ns3::AcousticModemEnergyModel::m_rxPowerW

private

Definition at line 212 of file acoustic-modem-energy-model.h.

Referenced by ChangeState(), DoGetCurrentA(), GetRxPowerW(), and SetRxPowerW().

double ns3::AcousticModemEnergyModel::m_sleepPowerW

private

Definition at line 214 of file acoustic-modem-energy-model.h.

Referenced by ChangeState(), DoGetCurrentA(), GetSleepPowerW(), and SetSleepPowerW().

Ptr<EnergySource> ns3::AcousticModemEnergyModel::m_source

private

Definition at line 208 of file acoustic-modem-energy-model.h.

Referenced by AcousticModemEnergyModel(), ChangeState(), DoDispose(), DoGetCurrentA(), and SetEnergySource().

TracedValue<double> ns3::AcousticModemEnergyModel::m_totalEnergyConsumption

private

Definition at line 217 of file acoustic-modem-energy-model.h.

Referenced by ChangeState(), GetTotalEnergyConsumption(), and GetTypeId().

double ns3::AcousticModemEnergyModel::m_txPowerW

private

Definition at line 211 of file acoustic-modem-energy-model.h.

Referenced by ChangeState(), DoGetCurrentA(), GetTxPowerW(), and SetTxPowerW().

The documentation for this class was generated from the following files:

src/uan/model/acoustic-modem-energy-model.h
src/uan/model/acoustic-modem-energy-model.cc

Public Types

Public Member Functions

Static Public Member Functions

Private Member Functions

Private Attributes

Additional Inherited Members

Detailed Description

Attributes

TraceSources

Member Typedef Documentation

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation
