An ARP cache. More...

#include <arp-cache.h>

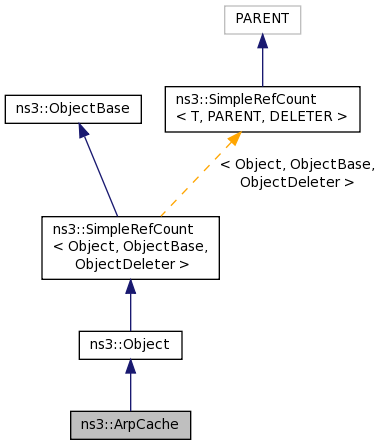

Inheritance diagram for ns3::ArpCache:

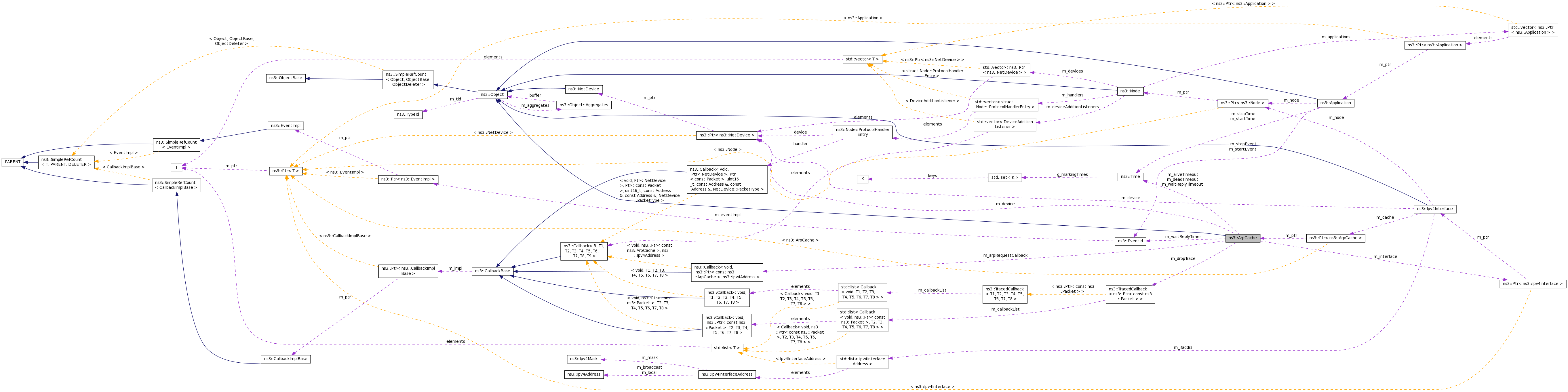

Collaboration diagram for ns3::ArpCache:

Classes
class	Entry
	A record that that holds information about an ArpCache entry. More...

Public Member Functions
	ArpCache ()

	~ArpCache ()

ArpCache::Entry *	Add (Ipv4Address to)
	Add an Ipv4Address to this ARP cache. More...

void	Flush (void)
	Clear the ArpCache of all entries. More...

Time	GetAliveTimeout (void) const

Time	GetDeadTimeout (void) const

Ptr< NetDevice >	GetDevice (void) const

Ptr< Ipv4Interface >	GetInterface (void) const

Time	GetWaitReplyTimeout (void) const

ArpCache::Entry *	Lookup (Ipv4Address destination)
	Do lookup in the ARP cache against an IP address. More...

void	SetAliveTimeout (Time aliveTimeout)

void	SetArpRequestCallback (Callback< void, Ptr< const ArpCache >, Ipv4Address > arpRequestCallback)

void	SetDeadTimeout (Time deadTimeout)

void	SetDevice (Ptr< NetDevice > device, Ptr< Ipv4Interface > interface)

void	SetWaitReplyTimeout (Time waitReplyTimeout)

void	StartWaitReplyTimer (void)

Public Member Functions inherited from ns3::Object
	Object ()

virtual	~Object ()

void	AggregateObject (Ptr< Object > other)

void	Dispose (void)

AggregateIterator	GetAggregateIterator (void) const

virtual TypeId	GetInstanceTypeId (void) const

template<typename T >
Ptr< T >	GetObject (void) const

template<typename T >
Ptr< T >	GetObject (TypeId tid) const

void	Initialize (void)

Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()

	SimpleRefCount (const SimpleRefCount &o)

uint32_t	GetReferenceCount (void) const

SimpleRefCount &	operator= (const SimpleRefCount &o)

void	Ref (void) const

void	Unref (void) const

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()

void	GetAttribute (std::string name, AttributeValue &value) const

bool	GetAttributeFailSafe (std::string name, AttributeValue &attribute) const

void	SetAttribute (std::string name, const AttributeValue &value)

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)

Static Public Member Functions
static TypeId	GetTypeId (void)

Static Public Member Functions inherited from ns3::Object
static TypeId	GetTypeId (void)

Static Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
static void	Cleanup (void)

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)

Private Types
typedef sgi::hash_map < Ipv4Address, ArpCache::Entry *, Ipv4AddressHash >	Cache

typedef sgi::hash_map < Ipv4Address, ArpCache::Entry *, Ipv4AddressHash >::iterator	CacheI

Private Member Functions
	ArpCache (ArpCache const &)

virtual void	DoDispose (void)

void	HandleWaitReplyTimeout (void)

ArpCache &	operator= (ArpCache const &)

Private Attributes
Time	m_aliveTimeout

Cache	m_arpCache

Callback< void, Ptr< const ArpCache >, Ipv4Address >	m_arpRequestCallback

Time	m_deadTimeout

Ptr< NetDevice >	m_device

TracedCallback< Ptr< const Packet > >	m_dropTrace

Ptr< Ipv4Interface >	m_interface

uint32_t	m_maxRetries

uint32_t	m_pendingQueueSize

Time	m_waitReplyTimeout

EventId	m_waitReplyTimer

Additional Inherited Members
Protected Member Functions inherited from ns3::Object
	Object (const Object &o)

virtual void	DoInitialize (void)

virtual void	NotifyNewAggregate (void)

Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)

virtual void	NotifyConstructionCompleted (void)

Detailed Description

An ARP cache.

A cached lookup table for translating layer 3 addresses to layer 2. This implementation does lookups from IPv4 to a MAC address

Config Paths

ns3::ArpCache is accessible through the following paths with Config::Set and Config::Connect:

/NodeList/[i]/$ns3::ArpL3Protocol/CacheList/[i]
/NodeList/[i]/$ns3::Ipv4L3Protocol/InterfaceList/[i]/ArpCache

Attributes

AliveTimeout: When this timeout expires, the matching cache entry needs refreshing
- Set with class: ns3::TimeValue
- Underlying type: Time -9223372036854775808.0ns:+9223372036854775807.0ns
- Initial value: +120000000000.0ns
- Flags: construct write read
DeadTimeout: When this timeout expires, a new attempt to resolve the matching entry is made
- Set with class: ns3::TimeValue
- Underlying type: Time -9223372036854775808.0ns:+9223372036854775807.0ns
- Initial value: +100000000000.0ns
- Flags: construct write read
WaitReplyTimeout: When this timeout expires, the cache entries will be scanned and entries in WaitReply state will resend ArpRequest unless MaxRetries has been exceeded, in which case the entry is marked dead
- Set with class: ns3::TimeValue
- Underlying type: Time -9223372036854775808.0ns:+9223372036854775807.0ns
- Initial value: +1000000000.0ns
- Flags: construct write read
MaxRetries: Number of retransmissions of ArpRequest before marking dead
- Set with class: ns3::UintegerValue
- Underlying type: uint32_t 0:4294967295
- Initial value: 3
- Flags: construct write read
PendingQueueSize: The size of the queue for packets pending an arp reply.
- Set with class: ns3::UintegerValue
- Underlying type: uint32_t 0:4294967295
- Initial value: 3
- Flags: construct write read

TraceSources

Drop: Packet dropped due to ArpCache entry in WaitReply expiring.

Definition at line 49 of file arp-cache.h.

Member Typedef Documentation

typedef sgi::hash_map<Ipv4Address, ArpCache::Entry *, Ipv4AddressHash> ns3::ArpCache::Cache

private

Definition at line 211 of file arp-cache.h.

typedef sgi::hash_map<Ipv4Address, ArpCache::Entry *, Ipv4AddressHash>::iterator ns3::ArpCache::CacheI

private

Definition at line 212 of file arp-cache.h.

Constructor & Destructor Documentation

ns3::ArpCache::ArpCache ( ArpCache const & )

private

ns3::ArpCache::ArpCache ( )

Definition at line 75 of file arp-cache.cc.

References NS_LOG_FUNCTION.

ns3::ArpCache::~ArpCache ( )

Definition at line 82 of file arp-cache.cc.

References NS_LOG_FUNCTION.

Member Function Documentation

ArpCache::Entry * ns3::ArpCache::Add ( Ipv4Address to )

Add an Ipv4Address to this ARP cache.

Definition at line 258 of file arp-cache.cc.

References m_arpCache, NS_ASSERT, and NS_LOG_FUNCTION.

Referenced by ns3::EpcS1uUlTestCase::DoRun(), and ns3::ArpL3Protocol::Lookup().

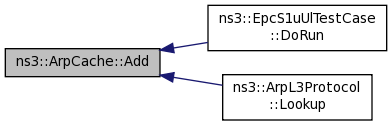

Here is the caller graph for this function:

void ns3::ArpCache::DoDispose ( void )

privatevirtual

This method is called by Object::Dispose or by the object's destructor, whichever comes first.

Subclasses are expected to implement their real destruction code in an overriden version of this method and chain up to their parent's implementation once they are done. i.e., for simplicity, the destructor of every subclass should be empty and its content should be moved to the associated DoDispose method.

It is safe to call GetObject from within this method.

Reimplemented from ns3::Object.

Definition at line 88 of file arp-cache.cc.

References ns3::Object::DoDispose(), Flush(), ns3::EventId::IsRunning(), m_device, m_interface, m_waitReplyTimer, NS_LOG_FUNCTION, and ns3::Simulator::Remove().

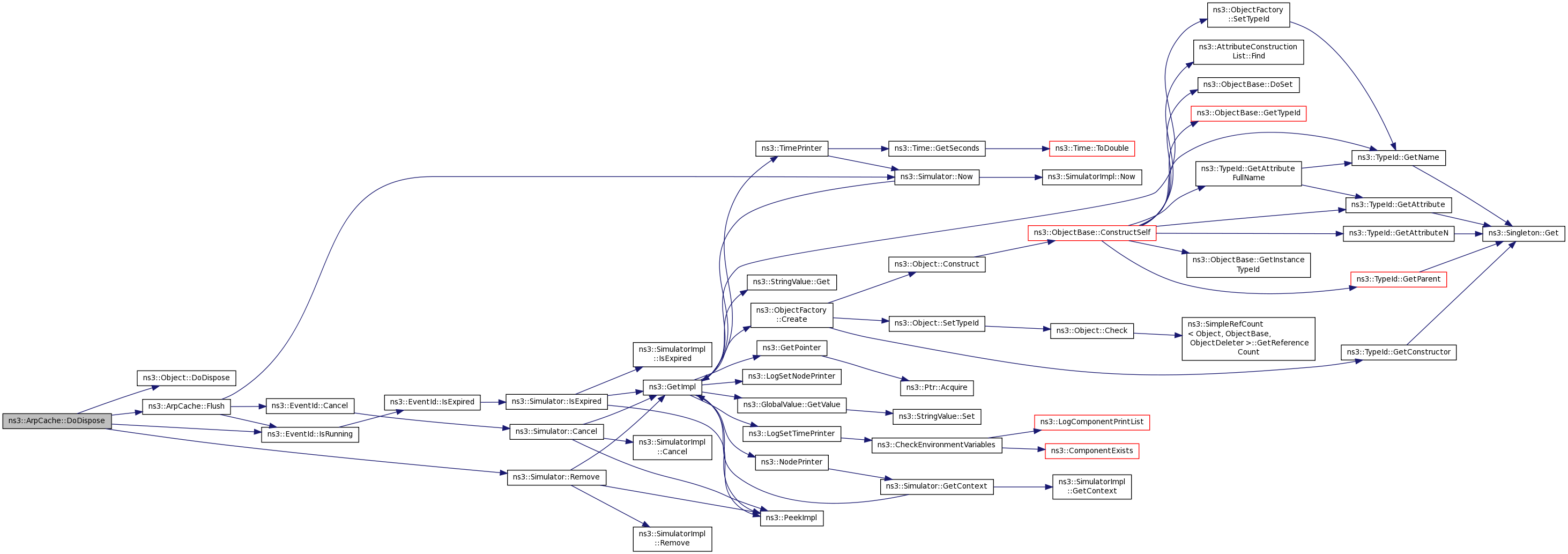

Here is the call graph for this function:

void ns3::ArpCache::Flush ( void )

Clear the ArpCache of all entries.

Definition at line 230 of file arp-cache.cc.

References ns3::EventId::Cancel(), ns3::EventId::IsRunning(), m_arpCache, m_waitReplyTimer, ns3::Simulator::Now(), NS_LOG_FUNCTION, and NS_LOG_LOGIC.

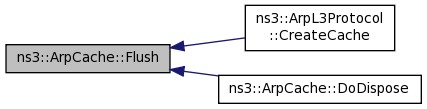

Referenced by ns3::ArpL3Protocol::CreateCache(), and DoDispose().

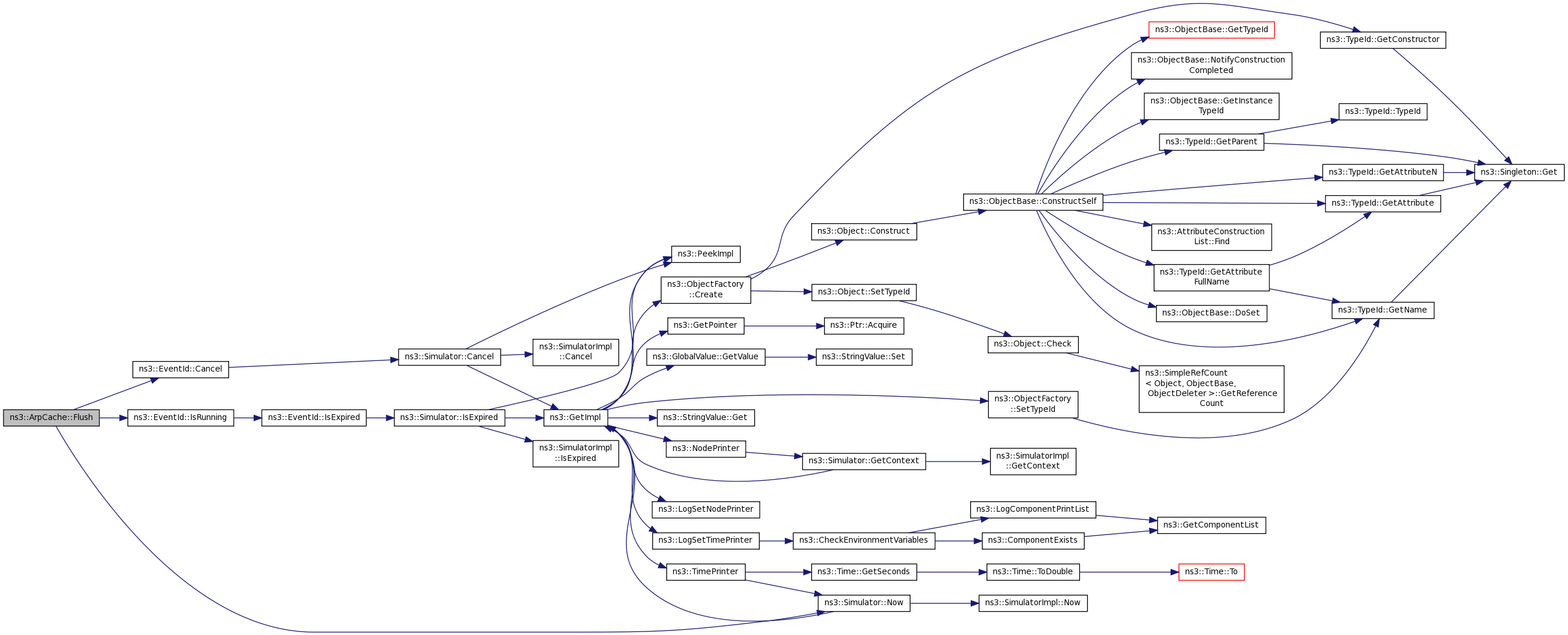

Here is the call graph for this function:

Here is the caller graph for this function:

Time ns3::ArpCache::GetAliveTimeout ( void ) const

Definition at line 143 of file arp-cache.cc.

References m_aliveTimeout, and NS_LOG_FUNCTION.

Time ns3::ArpCache::GetDeadTimeout ( void ) const

Definition at line 149 of file arp-cache.cc.

References m_deadTimeout, and NS_LOG_FUNCTION.

Ptr< NetDevice > ns3::ArpCache::GetDevice ( void ) const

Returns: The NetDevice that this ARP cache is associated with

Definition at line 110 of file arp-cache.cc.

References m_device, and NS_LOG_FUNCTION.

Ptr< Ipv4Interface > ns3::ArpCache::GetInterface ( void ) const

Returns: the Ipv4Interface that this ARP cache is associated with

Definition at line 117 of file arp-cache.cc.

References m_interface, and NS_LOG_FUNCTION.

TypeId ns3::ArpCache::GetTypeId ( void )

static

Definition at line 39 of file arp-cache.cc.

References m_aliveTimeout, m_deadTimeout, m_dropTrace, m_maxRetries, m_pendingQueueSize, m_waitReplyTimeout, ns3::MakeTimeChecker(), ns3::MakeTraceSourceAccessor(), and ns3::TypeId::SetParent().

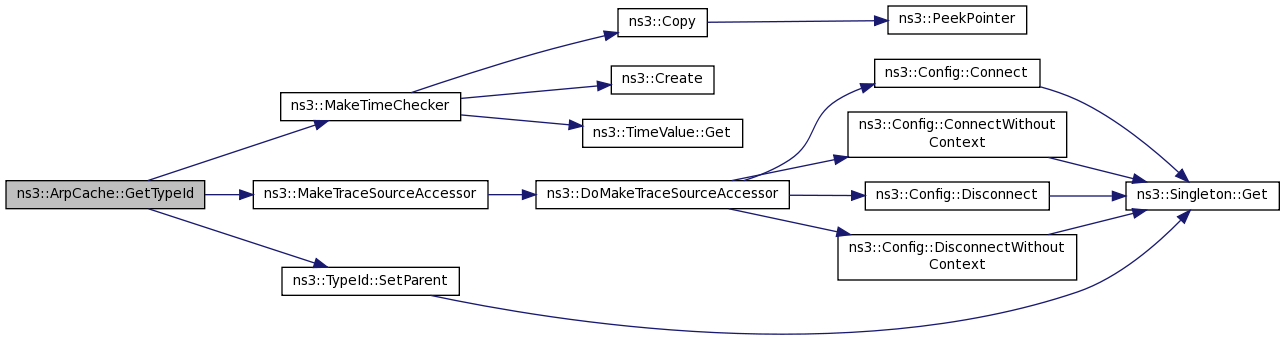

Here is the call graph for this function:

Time ns3::ArpCache::GetWaitReplyTimeout ( void ) const

Definition at line 155 of file arp-cache.cc.

References m_waitReplyTimeout, and NS_LOG_FUNCTION.

void ns3::ArpCache::HandleWaitReplyTimeout ( void )

private

This function is an event handler for the event that the ArpCache wants to check whether it must retry any Arp requests. If there are no Arp requests pending, this event is not scheduled.

Definition at line 183 of file arp-cache.cc.

References ns3::ArpCache::Entry::ClearRetries(), ns3::ArpCache::Entry::DequeuePending(), ns3::ArpCache::Entry::GetIpv4Address(), ns3::ArpCache::Entry::GetRetries(), ns3::ArpCache::Entry::IncrementRetries(), ns3::ArpCache::Entry::IsWaitReply(), m_arpCache, m_arpRequestCallback, m_device, m_dropTrace, m_maxRetries, m_waitReplyTimeout, m_waitReplyTimer, ns3::ArpCache::Entry::MarkDead(), ns3::Simulator::Now(), NS_LOG_FUNCTION, NS_LOG_LOGIC, and ns3::Simulator::Schedule().

Referenced by StartWaitReplyTimer().

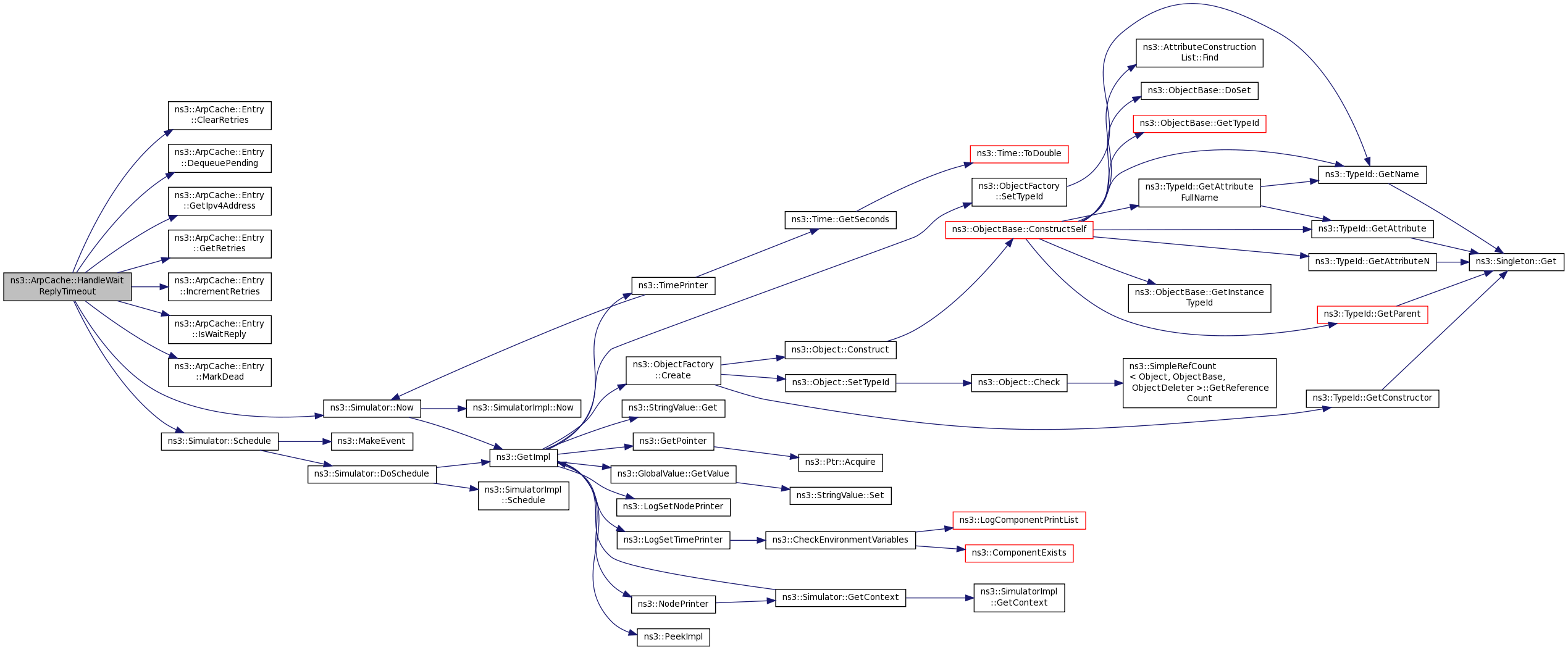

Here is the call graph for this function:

Here is the caller graph for this function:

ArpCache::Entry * ns3::ArpCache::Lookup ( Ipv4Address destination )

Do lookup in the ARP cache against an IP address.

Parameters

destination The destination IPv4 address to lookup the MAC address of

Returns: An ArpCache::Entry with info about layer 2

Definition at line 246 of file arp-cache.cc.

References m_arpCache, and NS_LOG_FUNCTION.

Referenced by ns3::ArpL3Protocol::Lookup().

Here is the caller graph for this function:

ArpCache& ns3::ArpCache::operator= ( ArpCache const & )

private

void ns3::ArpCache::SetAliveTimeout ( Time aliveTimeout )

Definition at line 124 of file arp-cache.cc.

References m_aliveTimeout, and NS_LOG_FUNCTION.

Referenced by ns3::EpcS1uUlTestCase::DoRun().

Here is the caller graph for this function:

void ns3::ArpCache::SetArpRequestCallback ( Callback< void, Ptr< const ArpCache >, Ipv4Address > arpRequestCallback )

This callback is set when the ArpCache is set up and allows the cache to generate an Arp request when the WaitReply time expires and a retransmission must be sent

Parameters

arpRequestCallback Callback for transmitting an Arp request.

Definition at line 162 of file arp-cache.cc.

References m_arpRequestCallback, and NS_LOG_FUNCTION.

void ns3::ArpCache::SetDeadTimeout ( Time deadTimeout )

Definition at line 130 of file arp-cache.cc.

References m_deadTimeout, and NS_LOG_FUNCTION.

void ns3::ArpCache::SetDevice	(	Ptr< NetDevice >	device,
		Ptr< Ipv4Interface >	interface
	)

Parameters

device	The hardware NetDevice associated with this ARP chache
interface	the Ipv4Interface associated with this ARP chache

Definition at line 102 of file arp-cache.cc.

References m_device, m_interface, and NS_LOG_FUNCTION.

Referenced by ns3::ArpL3Protocol::CreateCache().

Here is the caller graph for this function:

void ns3::ArpCache::SetWaitReplyTimeout ( Time waitReplyTimeout )

Definition at line 136 of file arp-cache.cc.

References m_waitReplyTimeout, and NS_LOG_FUNCTION.

void ns3::ArpCache::StartWaitReplyTimer ( void )

This method will schedule a timeout at WaitReplyTimeout interval in the future, unless a timer is already running for the cache, in which case this method does nothing.

Definition at line 170 of file arp-cache.cc.

References HandleWaitReplyTimeout(), ns3::EventId::IsRunning(), m_waitReplyTimeout, m_waitReplyTimer, ns3::Simulator::Now(), NS_LOG_FUNCTION, NS_LOG_LOGIC, and ns3::Simulator::Schedule().

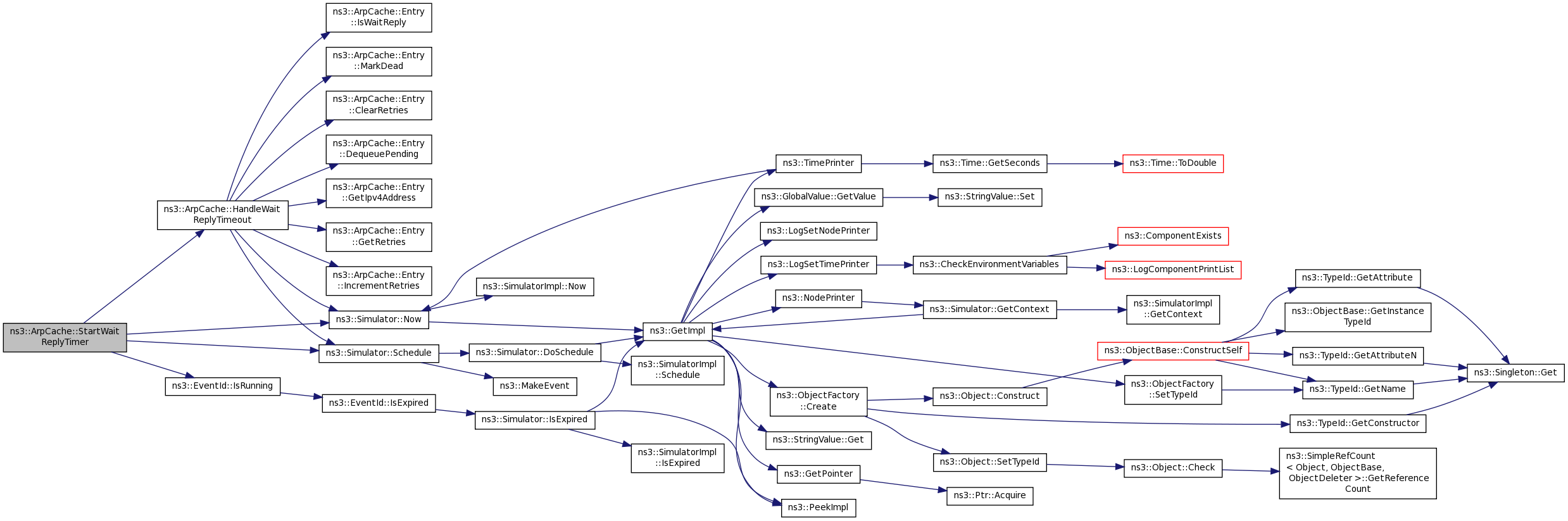

Here is the call graph for this function:
