trace sink for wifi device that mimics madwifi's athstats tool. More...

#include <athstats-helper.h>

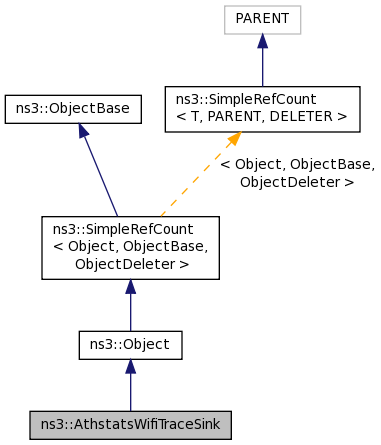

Inheritance diagram for ns3::AthstatsWifiTraceSink:

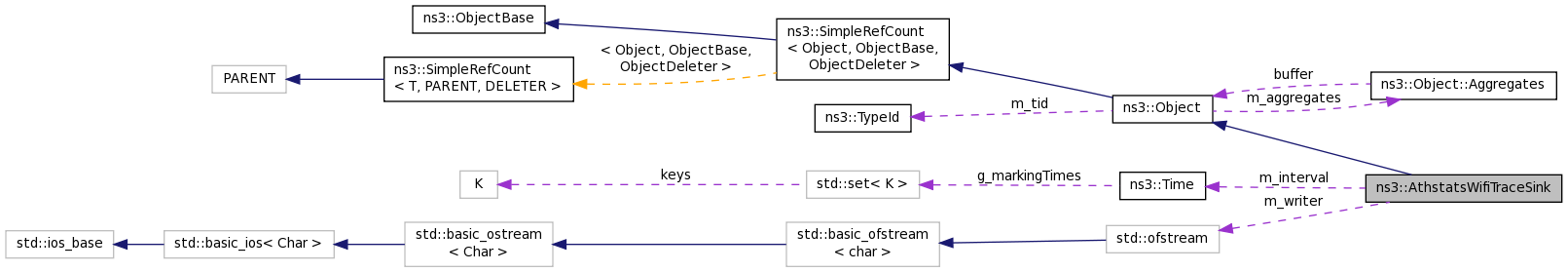

Collaboration diagram for ns3::AthstatsWifiTraceSink:

Public Member Functions
	AthstatsWifiTraceSink ()

virtual	~AthstatsWifiTraceSink ()

void	DevRxTrace (std::string context, Ptr< const Packet > p)

void	DevTxTrace (std::string context, Ptr< const Packet > p)

void	Open (std::string const &name)

void	PhyRxErrorTrace (std::string context, Ptr< const Packet > packet, double snr)

void	PhyRxOkTrace (std::string context, Ptr< const Packet > packet, double snr, WifiMode mode, enum WifiPreamble preamble)

void	PhyStateTrace (std::string context, Time start, Time duration, enum WifiPhy::State state)

void	PhyTxTrace (std::string context, Ptr< const Packet > packet, WifiMode mode, WifiPreamble preamble, uint8_t txPower)

void	TxDataFailedTrace (std::string context, Mac48Address address)

void	TxFinalDataFailedTrace (std::string context, Mac48Address address)

void	TxFinalRtsFailedTrace (std::string context, Mac48Address address)

void	TxRtsFailedTrace (std::string context, Mac48Address address)

Public Member Functions inherited from ns3::Object
	Object ()

virtual	~Object ()

void	AggregateObject (Ptr< Object > other)

void	Dispose (void)

AggregateIterator	GetAggregateIterator (void) const

virtual TypeId	GetInstanceTypeId (void) const

template<typename T >
Ptr< T >	GetObject (void) const

template<typename T >
Ptr< T >	GetObject (TypeId tid) const

void	Initialize (void)

Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()

	SimpleRefCount (const SimpleRefCount &o)

uint32_t	GetReferenceCount (void) const

SimpleRefCount &	operator= (const SimpleRefCount &o)

void	Ref (void) const

void	Unref (void) const

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()

void	GetAttribute (std::string name, AttributeValue &value) const

bool	GetAttributeFailSafe (std::string name, AttributeValue &attribute) const

void	SetAttribute (std::string name, const AttributeValue &value)

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)

Static Public Member Functions
static TypeId	GetTypeId (void)

Static Public Member Functions inherited from ns3::Object
static TypeId	GetTypeId (void)

Static Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
static void	Cleanup (void)

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)

Private Member Functions
void	ResetCounters ()

void	WriteStats ()

Private Attributes
uint32_t	m_exceededRetryCount

Time	m_interval

uint32_t	m_longRetryCount

uint32_t	m_phyRxErrorCount

uint32_t	m_phyRxOkCount

uint32_t	m_phyTxCount

uint32_t	m_rxCount

uint32_t	m_shortRetryCount

uint32_t	m_txCount

std::ofstream *	m_writer

Additional Inherited Members
Protected Member Functions inherited from ns3::Object
	Object (const Object &o)

virtual void	DoDispose (void)

virtual void	DoInitialize (void)

virtual void	NotifyNewAggregate (void)

Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)

virtual void	NotifyConstructionCompleted (void)

Detailed Description

trace sink for wifi device that mimics madwifi's athstats tool.

The AthstatsWifiTraceSink class is a trace sink to be connected to several of the traces available within a wifi device. The purpose of AthstatsWifiTraceSink is to mimic the behavior of the athstats tool distributed wih the madwifi driver. In particular, the reproduced behavior is that obtained when executing athstats without parameters: a report written in text format is produced every fixed interval, based on the events observed by the wifi device.

Differences with the "real" athstats:

AthstatsWifiTraceSink is expected to write its output to a file (not to stdout).
only a subset of the metrics supported by athstats is supported by AthstatsWifiTraceSink
AthstatsWifiTraceSink does never produce a cumulative report.

Doxygen introspection did not find any typical Config paths.

Attributes

Interval: Time interval between reports
- Set with class: ns3::TimeValue
- Underlying type: Time -9223372036854775808.0ns:+9223372036854775807.0ns
- Initial value: +1000000000.0ns
- Flags: construct write read

No TraceSources are defined for this type.

Definition at line 82 of file athstats-helper.h.

Constructor & Destructor Documentation

ns3::AthstatsWifiTraceSink::AthstatsWifiTraceSink ( )

Definition at line 125 of file athstats-helper.cc.

References ns3::Simulator::ScheduleNow(), and WriteStats().

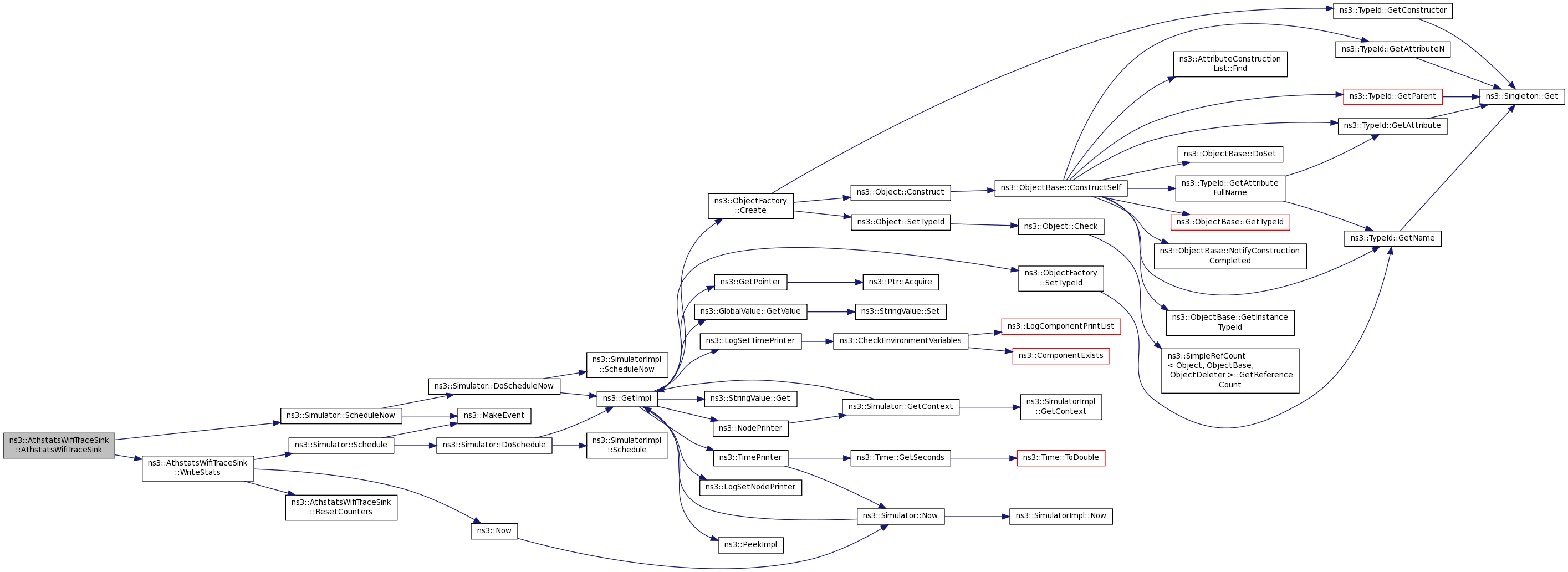

Here is the call graph for this function:

ns3::AthstatsWifiTraceSink::~AthstatsWifiTraceSink ( )

virtual

Definition at line 139 of file athstats-helper.cc.

References m_writer, NS_LOG_FUNCTION, and NS_LOG_LOGIC.

Member Function Documentation

void ns3::AthstatsWifiTraceSink::DevRxTrace	(	std::string	context,
		Ptr< const Packet >	p
	)

function to be called when the net device receives a packet

Parameters

context
p	the packet being received

Definition at line 185 of file athstats-helper.cc.

References m_rxCount, and NS_LOG_FUNCTION.

Referenced by ns3::AthstatsHelper::EnableAthstats().

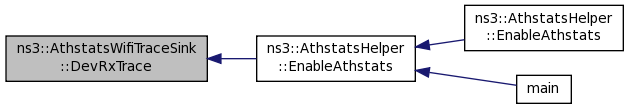

Here is the caller graph for this function:

void ns3::AthstatsWifiTraceSink::DevTxTrace	(	std::string	context,
		Ptr< const Packet >	p
	)

function to be called when the net device transmits a packet

Parameters

context
p	the packet being transmitted

Definition at line 178 of file athstats-helper.cc.

References m_txCount, and NS_LOG_FUNCTION.

Referenced by ns3::AthstatsHelper::EnableAthstats().

Here is the caller graph for this function:

TypeId ns3::AthstatsWifiTraceSink::GetTypeId ( void )

static

Definition at line 111 of file athstats-helper.cc.

References m_interval, ns3::MakeTimeChecker(), and ns3::TypeId::SetParent().

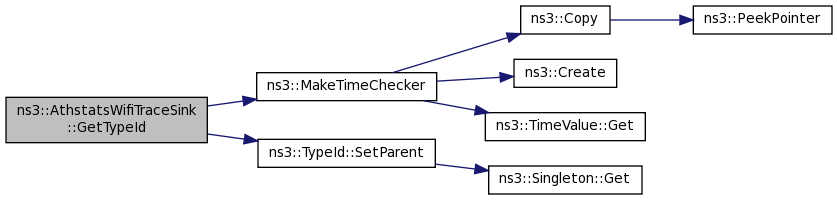

Here is the call graph for this function:

void ns3::AthstatsWifiTraceSink::Open ( std::string const & name )

Open a file for output

Parameters

name	the name of the file to be opened.

Definition at line 254 of file athstats-helper.cc.

References m_writer, NS_ABORT_MSG_IF, NS_ABORT_MSG_UNLESS, NS_ASSERT_MSG, NS_LOG_FUNCTION, and NS_LOG_LOGIC.

void ns3::AthstatsWifiTraceSink::PhyRxErrorTrace	(	std::string	context,
		Ptr< const Packet >	packet,
		double	snr
	)

Function to be called when a frame reception by the PHY layer of the considered device resulted in an error due to a failure in the CRC check of the frame

Parameters

context
packet
snr

Definition at line 230 of file athstats-helper.cc.

References m_phyRxErrorCount, and NS_LOG_FUNCTION.

Referenced by ns3::AthstatsHelper::EnableAthstats().

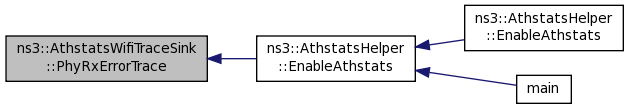

Here is the caller graph for this function:

void ns3::AthstatsWifiTraceSink::PhyRxOkTrace	(	std::string	context,
		Ptr< const Packet >	packet,
		double	snr,
		WifiMode	mode,
		enum WifiPreamble	preamble
	)
