ns3::BooleanProbe Class Reference

#include <boolean-probe.h>

+ Inheritance diagram for ns3::BooleanProbe:
+ Collaboration diagram for ns3::BooleanProbe:

Public Member Functions

 BooleanProbe ()

virtual ~BooleanProbe ()

virtual bool ConnectByObject (std::string traceSource, Ptr< Object > obj)
 connect to a trace source attribute provided by a given object More...

virtual void ConnectByPath (std::string path)
 connect to a trace source provided by a config path More...

bool GetValue (void) const

void SetValue (bool value)

- Public Member Functions inherited from ns3::Probe
 Probe ()

virtual ~Probe ()

virtual bool IsEnabled (void) const

- Public Member Functions inherited from ns3::DataCollectionObject
 DataCollectionObject ()

virtual ~DataCollectionObject ()

void Disable (void)

void Enable (void)
 Set the status of an individual object. More...

std::string GetName (void) const
 Get the object's name. More...

void SetName (std::string name)
 Set the object's name. All spaces are replaced by underscores. More...

- Public Member Functions inherited from ns3::Object
 Object ()

virtual ~Object ()

void AggregateObject (Ptr< Object > other)

void Dispose (void)

AggregateIterator GetAggregateIterator (void) const

virtual TypeId GetInstanceTypeId (void) const

template<typename T >
Ptr< T > GetObject (void) const

template<typename T >
Ptr< T > GetObject (TypeId tid) const

void Initialize (void)

- Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
 SimpleRefCount ()

 SimpleRefCount (const SimpleRefCount &o)

uint32_t GetReferenceCount (void) const

SimpleRefCount & operator= (const SimpleRefCount &o)

void Ref (void) const

void Unref (void) const

- Public Member Functions inherited from ns3::ObjectBase
virtual ~ObjectBase ()

void GetAttribute (std::string name, AttributeValue &value) const

bool GetAttributeFailSafe (std::string name, AttributeValue &attribute) const

void SetAttribute (std::string name, const AttributeValue &value)

bool SetAttributeFailSafe (std::string name, const AttributeValue &value)

bool TraceConnect (std::string name, std::string context, const CallbackBase &cb)

bool TraceConnectWithoutContext (std::string name, const CallbackBase &cb)

bool TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)

bool TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)


Static Public Member Functions

static TypeId GetTypeId ()

static void SetValueByPath (std::string path, bool value)
 Set a probe value by its name in the Config system. More...

- Static Public Member Functions inherited from ns3::Probe
static TypeId GetTypeId ()

- Static Public Member Functions inherited from ns3::DataCollectionObject
static TypeId GetTypeId ()

- Static Public Member Functions inherited from ns3::Object
static TypeId GetTypeId (void)

- Static Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
static void Cleanup (void)

- Static Public Member Functions inherited from ns3::ObjectBase
static TypeId GetTypeId (void)


Private Member Functions

void TraceSink (bool oldData, bool newData)
 Method to connect to an underlying ns3::TraceSource of type bool. More...


Private Attributes

TracedValue< bool > m_output


Additional Inherited Members

- Protected Member Functions inherited from ns3::Object
 Object (const Object &o)

virtual void DoDispose (void)

virtual void DoInitialize (void)

virtual void NotifyNewAggregate (void)

- Protected Member Functions inherited from ns3::ObjectBase
void ConstructSelf (const AttributeConstructionList &attributes)

virtual void NotifyConstructionCompleted (void)

- Protected Attributes inherited from ns3::Probe
Time m_start
 Time when logging starts. More...

Time m_stop
 Time when logging stops. More...

- Protected Attributes inherited from ns3::DataCollectionObject
bool m_enabled
 Object's activation state. More...

std::string m_name
 Name of the object within the data collection framework. More...


Detailed Description

This class is designed to probe an underlying ns3 TraceSource exporting a bool. This probe exports a trace source "Output" of type bool. The Output trace source emits a value when either the trace source emits a new value, or when SetValue () is called.

The current value of the probe can be polled with the GetValue () method.

Doxygen introspection did not find any typical Config paths.
No Attributes are defined for this type.

TraceSources

  • Output: The bool that serves as output for this probe

Definition at line 45 of file boolean-probe.h.

Constructor & Destructor Documentation

ns3::BooleanProbe::BooleanProbe ( )

Definition at line 50 of file boolean-probe.cc.

References m_output, and NS_LOG_FUNCTION.

ns3::BooleanProbe::~BooleanProbe ( )
virtual

Definition at line 56 of file boolean-probe.cc.

References NS_LOG_FUNCTION.

Member Function Documentation

bool ns3::BooleanProbe::ConnectByObject ( std::string  traceSource,
Ptr< Object >  obj
)
virtual

connect to a trace source attribute provided by a given object

Parameters
traceSourcethe name of the attribute TraceSource to connect to
objns3::Object to connect to
Returns
true if the trace source was successfully connected

Implements ns3::Probe.

Definition at line 84 of file boolean-probe.cc.

References ns3::Names::FindPath(), ns3::MakeCallback(), NS_LOG_DEBUG, NS_LOG_FUNCTION, ns3::ObjectBase::TraceConnectWithoutContext(), and TraceSink().

+ Here is the call graph for this function:

void ns3::BooleanProbe::ConnectByPath ( std::string  path)
virtual

connect to a trace source provided by a config path

Parameters
pathConfig path to bind to

Note, if an invalid path is provided, the probe will not be connected to anything.

Implements ns3::Probe.

Definition at line 93 of file boolean-probe.cc.

References ns3::Config::ConnectWithoutContext(), ns3::MakeCallback(), NS_LOG_DEBUG, NS_LOG_FUNCTION, and TraceSink().

+ Here is the call graph for this function:

TypeId ns3::BooleanProbe::GetTypeId ( void  )
static

Definition at line 38 of file boolean-probe.cc.

References m_output, ns3::MakeTraceSourceAccessor(), and ns3::TypeId::SetParent().

+ Here is the call graph for this function:

bool ns3::BooleanProbe::GetValue ( void  ) const
Returns
the most recent value

Definition at line 62 of file boolean-probe.cc.

References m_output, and NS_LOG_FUNCTION.

void ns3::BooleanProbe::SetValue ( bool  value)
Parameters
valueset the traced bool to a new value

Definition at line 68 of file boolean-probe.cc.

References m_output, and NS_LOG_FUNCTION.

void ns3::BooleanProbe::SetValueByPath ( std::string  path,
bool  value
)
static

Set a probe value by its name in the Config system.

Parameters
pathConfig path to access the probe
valueset the traced bool to a new value

Definition at line 75 of file boolean-probe.cc.

References NS_ASSERT_MSG, and NS_LOG_FUNCTION.

void ns3::BooleanProbe::TraceSink ( bool  oldData,
bool  newData
)
private

Method to connect to an underlying ns3::TraceSource of type bool.

Parameters
oldDataprevious value of the bool
newDatanew value of the bool
Internal:

Definition at line 101 of file boolean-probe.cc.

References ns3::Probe::IsEnabled(), m_output, and NS_LOG_FUNCTION.

Referenced by ConnectByObject(), and ConnectByPath().

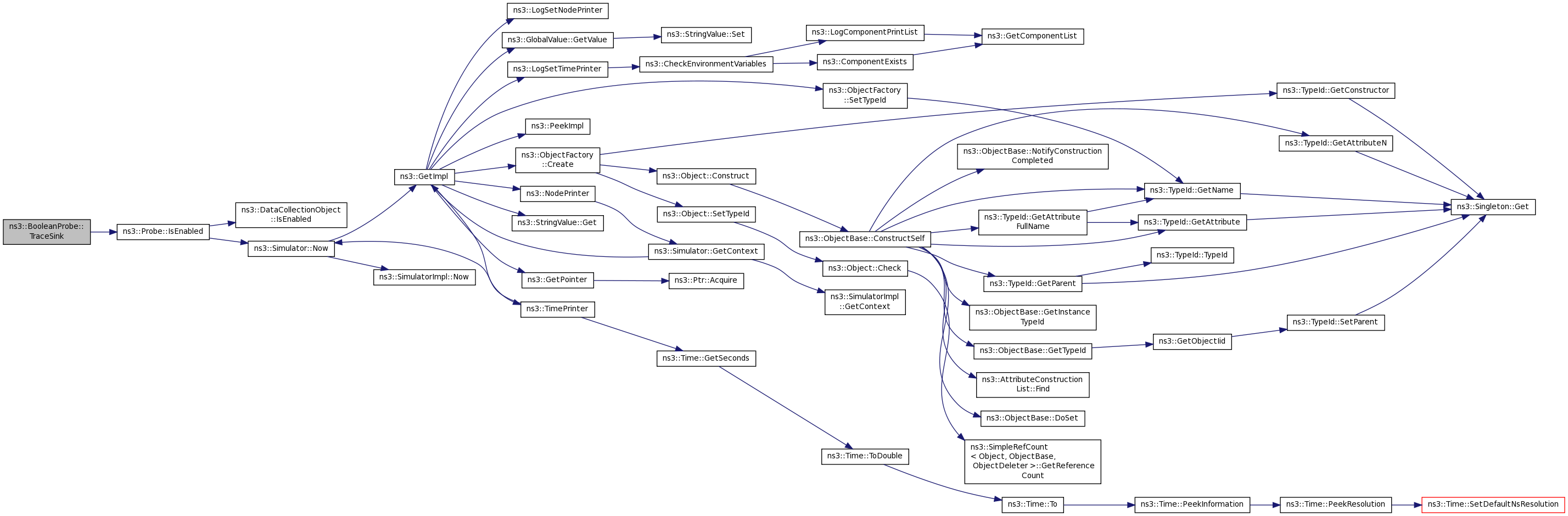

+ Here is the call graph for this function:

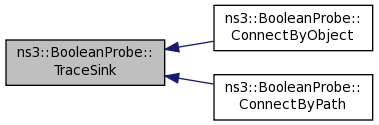

+ Here is the caller graph for this function:

Member Data Documentation

TracedValue<bool> ns3::BooleanProbe::m_output
private

Definition at line 100 of file boolean-probe.h.

Referenced by BooleanProbe(), GetTypeId(), GetValue(), SetValue(), and TraceSink().

The documentation for this class was generated from the following files:
