#include <data-calculator.h>

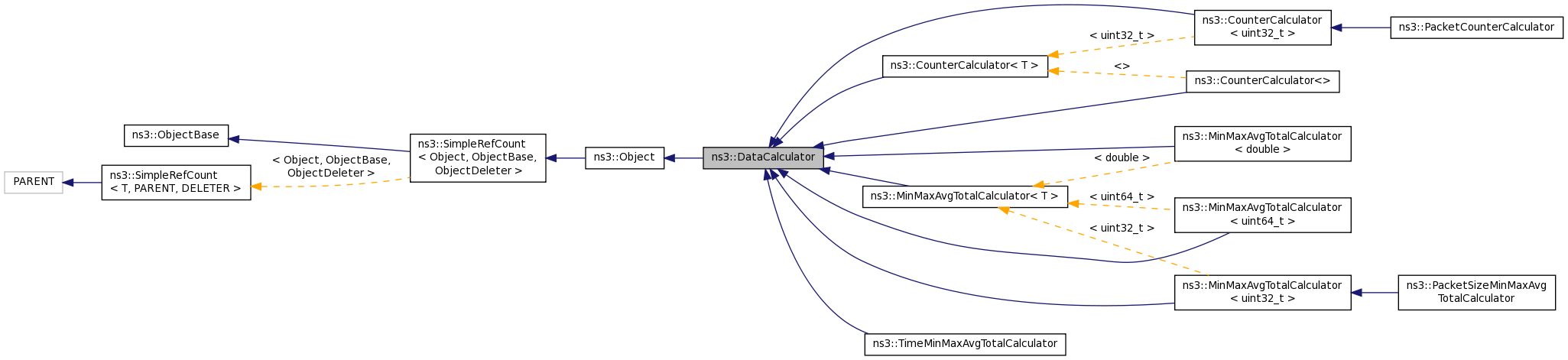

Inheritance diagram for ns3::DataCalculator:

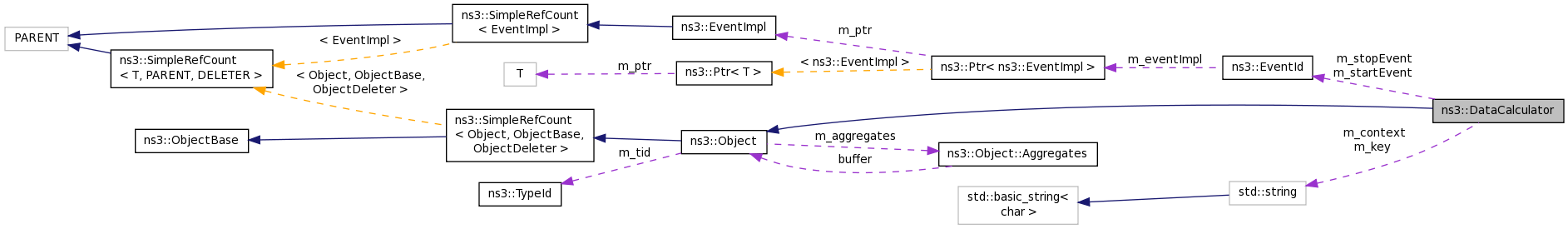

Collaboration diagram for ns3::DataCalculator:

Public Member Functions
	DataCalculator ()

virtual	~DataCalculator ()

void	Disable ()

void	Enable ()

std::string	GetContext () const

bool	GetEnabled () const

std::string	GetKey () const

virtual void	Output (DataOutputCallback &callback) const =0

void	SetContext (const std::string context)

void	SetKey (const std::string key)

virtual void	Start (const Time &startTime)

virtual void	Stop (const Time &stopTime)

Public Member Functions inherited from ns3::Object
	Object ()

virtual	~Object ()

void	AggregateObject (Ptr< Object > other)

void	Dispose (void)

AggregateIterator	GetAggregateIterator (void) const

virtual TypeId	GetInstanceTypeId (void) const

template<typename T >
Ptr< T >	GetObject (void) const

template<typename T >
Ptr< T >	GetObject (TypeId tid) const

void	Initialize (void)

Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()

	SimpleRefCount (const SimpleRefCount &o)

uint32_t	GetReferenceCount (void) const

SimpleRefCount &	operator= (const SimpleRefCount &o)

void	Ref (void) const

void	Unref (void) const

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()

void	GetAttribute (std::string name, AttributeValue &value) const

bool	GetAttributeFailSafe (std::string name, AttributeValue &attribute) const

void	SetAttribute (std::string name, const AttributeValue &value)

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)

Protected Member Functions
virtual void	DoDispose (void)

Protected Member Functions inherited from ns3::Object
	Object (const Object &o)

virtual void	DoInitialize (void)

virtual void	NotifyNewAggregate (void)

Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)

virtual void	NotifyConstructionCompleted (void)

Protected Attributes
std::string	m_context

bool	m_enabled

std::string	m_key

Private Attributes
EventId	m_startEvent

EventId	m_stopEvent

Additional Inherited Members
Static Public Member Functions inherited from ns3::Object
static TypeId	GetTypeId (void)

Static Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
static void	Cleanup (void)

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)

Detailed Description

Definition at line 87 of file data-calculator.h.

Constructor & Destructor Documentation

DataCalculator::DataCalculator ( )

Definition at line 35 of file data-calculator.cc.

References NS_LOG_FUNCTION_NOARGS.

DataCalculator::~DataCalculator ( )

virtual

Definition at line 41 of file data-calculator.cc.

References NS_LOG_FUNCTION_NOARGS.

Member Function Documentation

void DataCalculator::Disable ( void )

Definition at line 96 of file data-calculator.cc.

References m_enabled.

Referenced by Stop().

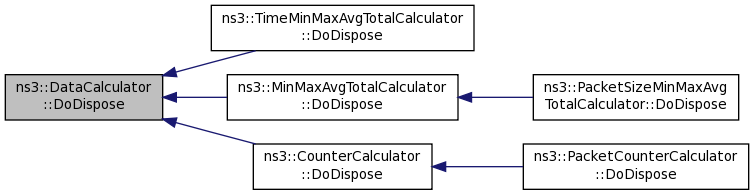

Here is the caller graph for this function:

void DataCalculator::DoDispose ( void )

protectedvirtual

This method is called by Object::Dispose or by the object's destructor, whichever comes first.

Subclasses are expected to implement their real destruction code in an overriden version of this method and chain up to their parent's implementation once they are done. i.e., for simplicity, the destructor of every subclass should be empty and its content should be moved to the associated DoDispose method.

It is safe to call GetObject from within this method.

Reimplemented from ns3::Object.

Reimplemented in ns3::CounterCalculator< T >, ns3::CounterCalculator< uint32_t >, ns3::CounterCalculator<>, ns3::PacketSizeMinMaxAvgTotalCalculator, ns3::MinMaxAvgTotalCalculator< T >, ns3::MinMaxAvgTotalCalculator< uint32_t >, ns3::MinMaxAvgTotalCalculator< double >, ns3::MinMaxAvgTotalCalculator< uint64_t >, ns3::TimeMinMaxAvgTotalCalculator, and ns3::PacketCounterCalculator.

Definition at line 47 of file data-calculator.cc.

References ns3::Simulator::Cancel(), ns3::Object::DoDispose(), m_startEvent, m_stopEvent, and NS_LOG_FUNCTION_NOARGS.

Referenced by ns3::TimeMinMaxAvgTotalCalculator::DoDispose(), ns3::MinMaxAvgTotalCalculator< T >::DoDispose(), and ns3::CounterCalculator< T >::DoDispose().

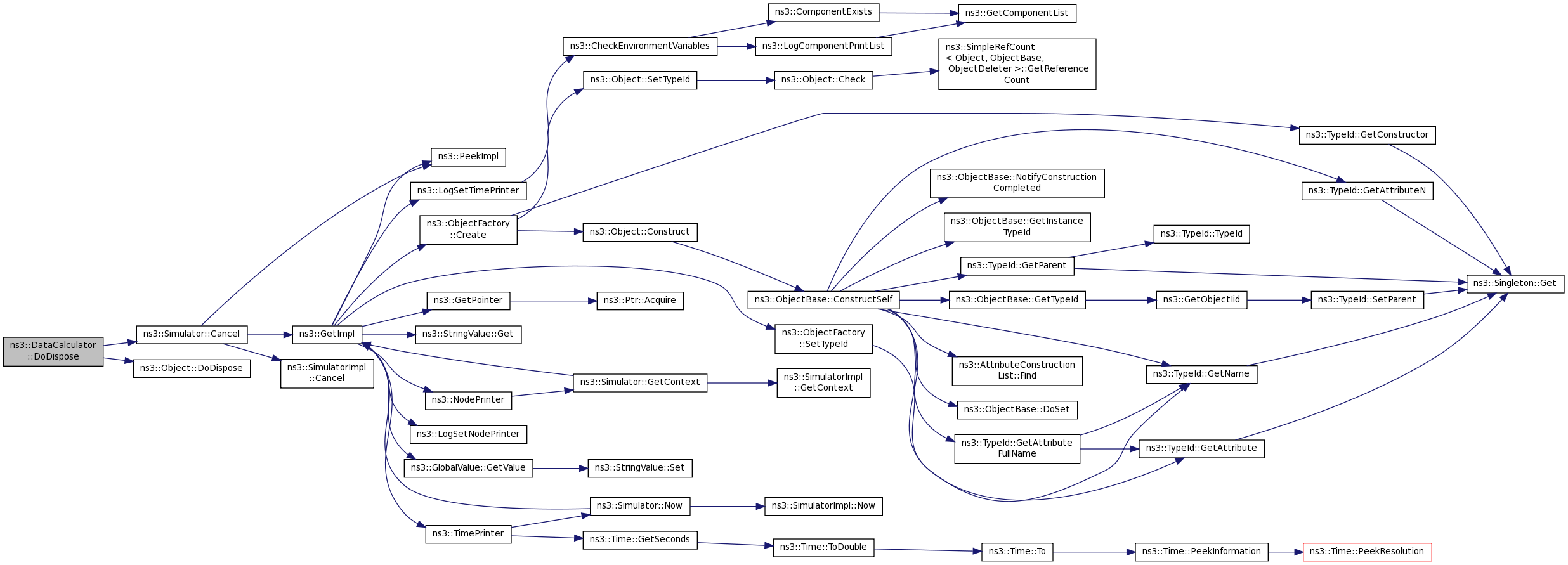

Here is the call graph for this function:
