An object that monitors and reports back packet flows observed during a simulation. More...

#include <flow-monitor.h>

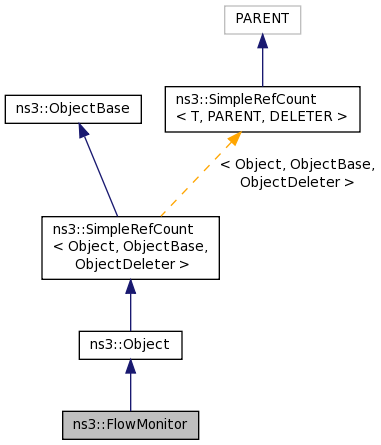

Inheritance diagram for ns3::FlowMonitor:

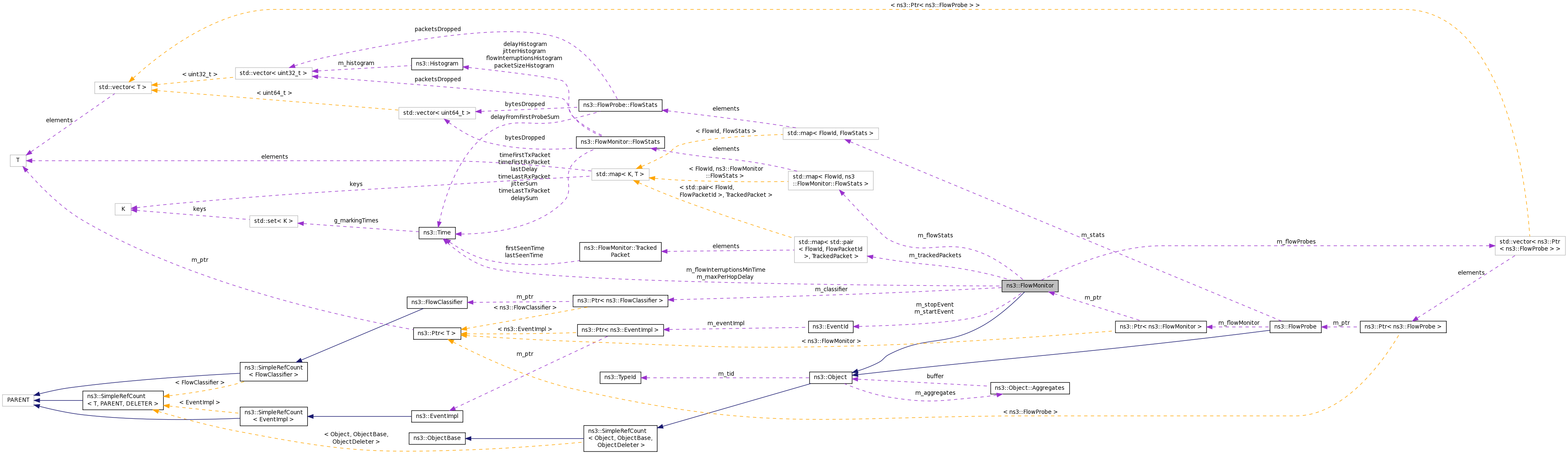

Collaboration diagram for ns3::FlowMonitor:

Classes
struct	FlowStats
	Structure that represents the measured metrics of an individual packet flow. More...

struct	TrackedPacket

Public Member Functions
	FlowMonitor ()

void	AddProbe (Ptr< FlowProbe > probe)

void	CheckForLostPackets ()
	Check right now for packets that appear to be lost. More...

void	CheckForLostPackets (Time maxDelay)

std::vector< Ptr< FlowProbe > >	GetAllProbes () const
	Get a list of all FlowProbe's associated with this FlowMonitor. More...

std::map< FlowId, FlowStats >	GetFlowStats () const

TypeId	GetInstanceTypeId () const

void	ReportDrop (Ptr< FlowProbe > probe, FlowId flowId, FlowPacketId packetId, uint32_t packetSize, uint32_t reasonCode)

void	ReportFirstTx (Ptr< FlowProbe > probe, FlowId flowId, FlowPacketId packetId, uint32_t packetSize)

void	ReportForwarding (Ptr< FlowProbe > probe, FlowId flowId, FlowPacketId packetId, uint32_t packetSize)

void	ReportLastRx (Ptr< FlowProbe > probe, FlowId flowId, FlowPacketId packetId, uint32_t packetSize)

void	SerializeToXmlFile (std::string fileName, bool enableHistograms, bool enableProbes)

void	SerializeToXmlStream (std::ostream &os, int indent, bool enableHistograms, bool enableProbes)

std::string	SerializeToXmlString (int indent, bool enableHistograms, bool enableProbes)

void	SetFlowClassifier (Ptr< FlowClassifier > classifier)
	Set the FlowClassifier to be used by the flow monitor. More...

void	Start (const Time &time)
	Set the time, counting from the current time, from which to start monitoring flows. More...

void	StartRightNow ()
	Begin monitoring flows right now More...

void	Stop (const Time &time)
	Set the time, counting from the current time, from which to stop monitoring flows. More...

void	StopRightNow ()
	End monitoring flows right now More...

Public Member Functions inherited from ns3::Object
	Object ()

virtual	~Object ()

void	AggregateObject (Ptr< Object > other)

void	Dispose (void)

AggregateIterator	GetAggregateIterator (void) const

template<typename T >
Ptr< T >	GetObject (void) const

template<typename T >
Ptr< T >	GetObject (TypeId tid) const

void	Initialize (void)

Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()

	SimpleRefCount (const SimpleRefCount &o)

uint32_t	GetReferenceCount (void) const

SimpleRefCount &	operator= (const SimpleRefCount &o)

void	Ref (void) const

void	Unref (void) const

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()

void	GetAttribute (std::string name, AttributeValue &value) const

bool	GetAttributeFailSafe (std::string name, AttributeValue &attribute) const

void	SetAttribute (std::string name, const AttributeValue &value)

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)

Static Public Member Functions
static TypeId	GetTypeId ()

Static Public Member Functions inherited from ns3::Object
static TypeId	GetTypeId (void)

Static Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
static void	Cleanup (void)

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)

Protected Member Functions
virtual void	DoDispose (void)

virtual void	NotifyConstructionCompleted ()

Protected Member Functions inherited from ns3::Object
	Object (const Object &o)

virtual void	DoInitialize (void)

virtual void	NotifyNewAggregate (void)

Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)

Private Types
typedef std::map< std::pair < FlowId, FlowPacketId > , TrackedPacket >	TrackedPacketMap

Private Member Functions
FlowStats &	GetStatsForFlow (FlowId flowId)

void	PeriodicCheckForLostPackets ()

Private Attributes
Ptr< FlowClassifier >	m_classifier

double	m_delayBinWidth

bool	m_enabled

double	m_flowInterruptionsBinWidth

Time	m_flowInterruptionsMinTime

std::vector< Ptr< FlowProbe > >	m_flowProbes

std::map< FlowId, FlowStats >	m_flowStats

double	m_jitterBinWidth

Time	m_maxPerHopDelay

double	m_packetSizeBinWidth

EventId	m_startEvent

EventId	m_stopEvent

TrackedPacketMap	m_trackedPackets

Detailed Description

An object that monitors and reports back packet flows observed during a simulation.

The FlowMonitor class is responsible forcoordinating efforts regarding probes, and collects end-to-end flowstatistics.

Doxygen introspection did not find any typical Config paths.

Attributes

MaxPerHopDelay: The maximum per-hop delay that should be considered. Packets still not received after this delay are to be considered lost.
- Set with class: ns3::TimeValue
- Underlying type: Time -9223372036854775808.0ns:+9223372036854775807.0ns
- Initial value: +10000000000.0ns
- Flags: construct write read
StartTime: The time when the monitoring starts.
- Set with class: ns3::TimeValue
- Underlying type: Time -9223372036854775808.0ns:+9223372036854775807.0ns
- Initial value: +0.0ns
- Flags: construct write
DelayBinWidth: The width used in the delay histogram.
- Set with class: ns3::DoubleValue
- Underlying type: double -1.79769e+308:1.79769e+308
- Initial value: 0.001
- Flags: construct write read
JitterBinWidth: The width used in the jitter histogram.
- Set with class: ns3::DoubleValue
- Underlying type: double -1.79769e+308:1.79769e+308
- Initial value: 0.001
- Flags: construct write read
PacketSizeBinWidth: The width used in the packetSize histogram.
- Set with class: ns3::DoubleValue
- Underlying type: double -1.79769e+308:1.79769e+308
- Initial value: 20
- Flags: construct write read
FlowInterruptionsBinWidth: The width used in the flowInterruptions histogram.
- Set with class: ns3::DoubleValue
- Underlying type: double -1.79769e+308:1.79769e+308
- Initial value: 0.25
- Flags: construct write read
FlowInterruptionsMinTime: The minimum inter-arrival time that is considered a flow interruption.
- Set with class: ns3::TimeValue
- Underlying type: Time -9223372036854775808.0ns:+9223372036854775807.0ns
- Initial value: +500000000.0ns
- Flags: construct write read

No TraceSources are defined for this type.

Definition at line 41 of file flow-monitor.h.

Member Typedef Documentation

typedef std::map< std::pair<FlowId, FlowPacketId>, TrackedPacket> ns3::FlowMonitor::TrackedPacketMap

private

Definition at line 223 of file flow-monitor.h.

Constructor & Destructor Documentation

ns3::FlowMonitor::FlowMonitor ( )

Definition at line 84 of file flow-monitor.cc.

Member Function Documentation

void ns3::FlowMonitor::AddProbe ( Ptr< FlowProbe > probe )

Register a new FlowProbe that will begin monitoring and report events to this monitor. This method is normally only used by FlowProbe implementations.

Definition at line 334 of file flow-monitor.cc.

References m_flowProbes.

void ns3::FlowMonitor::CheckForLostPackets ( )

Check right now for packets that appear to be lost.

Definition at line 314 of file flow-monitor.cc.

References m_maxPerHopDelay.

Referenced by experiment(), PeriodicCheckForLostPackets(), SerializeToXmlStream(), and StopRightNow().

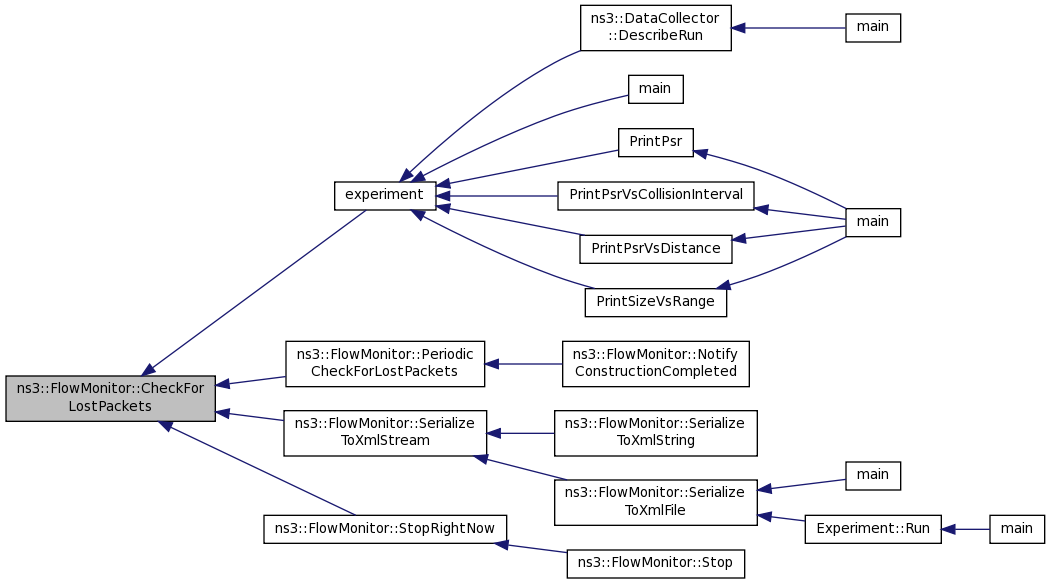

Here is the caller graph for this function:

void ns3::FlowMonitor::CheckForLostPackets ( Time maxDelay )

Check right now for packets that appear to be lost, considering packets as lost if not seen in the network for a time larger than maxDelay

Definition at line 288 of file flow-monitor.cc.

References m_flowStats, m_trackedPackets, ns3::Simulator::Now(), and NS_ASSERT.

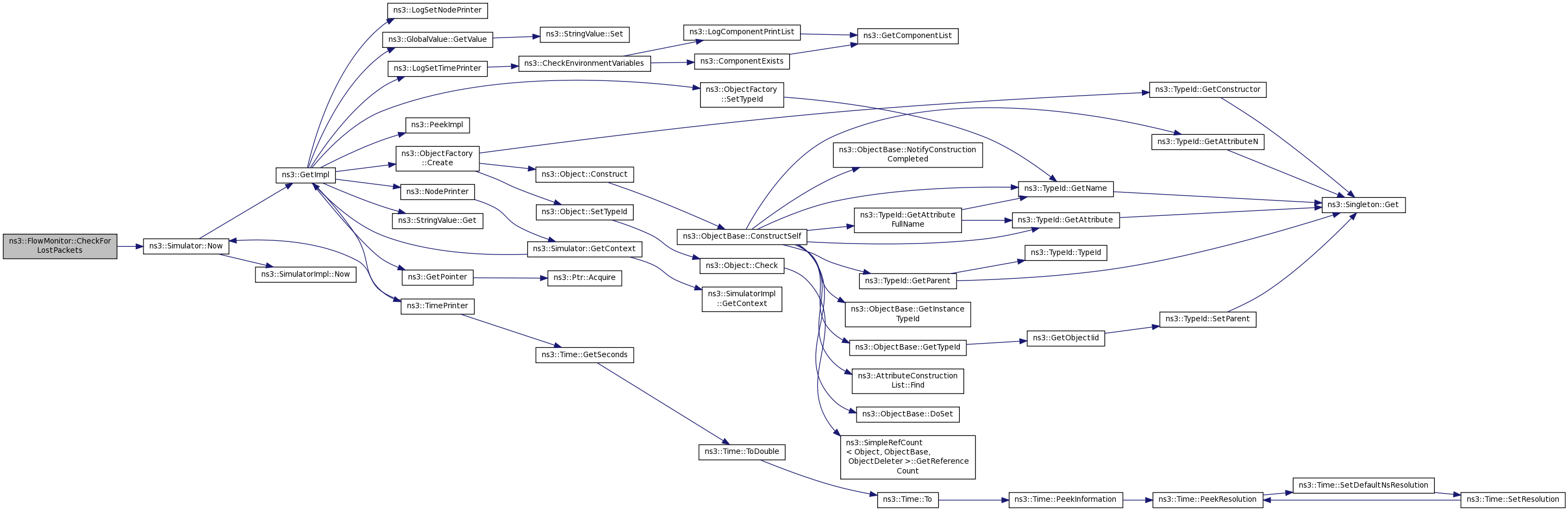

Here is the call graph for this function:

void ns3::FlowMonitor::DoDispose ( void )

protectedvirtual

This method is called by Object::Dispose or by the object's destructor, whichever comes first.

Subclasses are expected to implement their real destruction code in an overriden version of this method and chain up to their parent's implementation once they are done. i.e., for simplicity, the destructor of every subclass should be empty and its content should be moved to the associated DoDispose method.

It is safe to call GetObject from within this method.

Reimplemented from ns3::Object.

Definition at line 91 of file flow-monitor.cc.

References ns3::Object::DoDispose(), m_classifier, and m_flowProbes.

Here is the call graph for this function:

std::vector< Ptr< FlowProbe > > ns3::FlowMonitor::GetAllProbes ( ) const

Get a list of all FlowProbe's associated with this FlowMonitor.

Definition at line 340 of file flow-monitor.cc.

References m_flowProbes.

std::map< FlowId, FlowMonitor::FlowStats > ns3::FlowMonitor::GetFlowStats ( ) const

Retrieve all collected the flow statistics. Note, if the FlowMonitor has not stopped monitoring yet, you should call CheckForLostPackets() to make sure all possibly lost packets are accounted for.

Definition at line 281 of file flow-monitor.cc.

References m_flowStats.

Referenced by experiment().

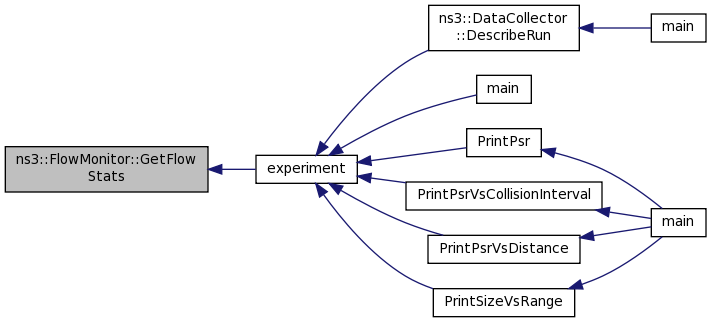

Here is the caller graph for this function:

TypeId ns3::FlowMonitor::GetInstanceTypeId ( ) const

virtual

Returns: the TypeId associated to the most-derived type of this instance.

This method is typically implemented by ns3::Object::GetInstanceTypeId but some classes which derive from ns3::ObjectBase directly have to implement it themselves.

Reimplemented from ns3::Object.

Definition at line 79 of file flow-monitor.cc.

References GetTypeId().

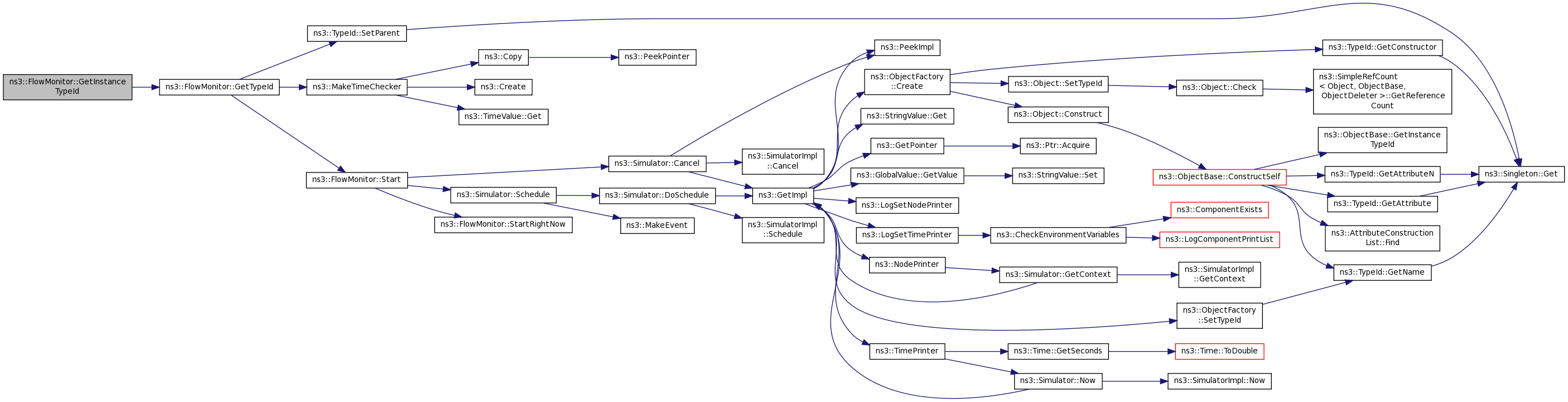

Here is the call graph for this function:

FlowMonitor::FlowStats & ns3::FlowMonitor::GetStatsForFlow ( FlowId flowId )

inlineprivate

Definition at line 103 of file flow-monitor.cc.

Referenced by ReportDrop(), ReportFirstTx(), and ReportLastRx().

Here is the call graph for this function:

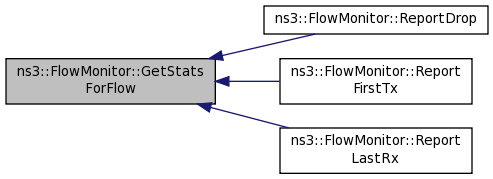

Here is the caller graph for this function:

TypeId ns3::FlowMonitor::GetTypeId ( void )

static

Definition at line 40 of file flow-monitor.cc.

References m_delayBinWidth, m_flowInterruptionsBinWidth, m_flowInterruptionsMinTime, m_jitterBinWidth, m_maxPerHopDelay, m_packetSizeBinWidth, ns3::MakeTimeChecker(), ns3::TypeId::SetParent(), and Start().

Referenced by GetInstanceTypeId().

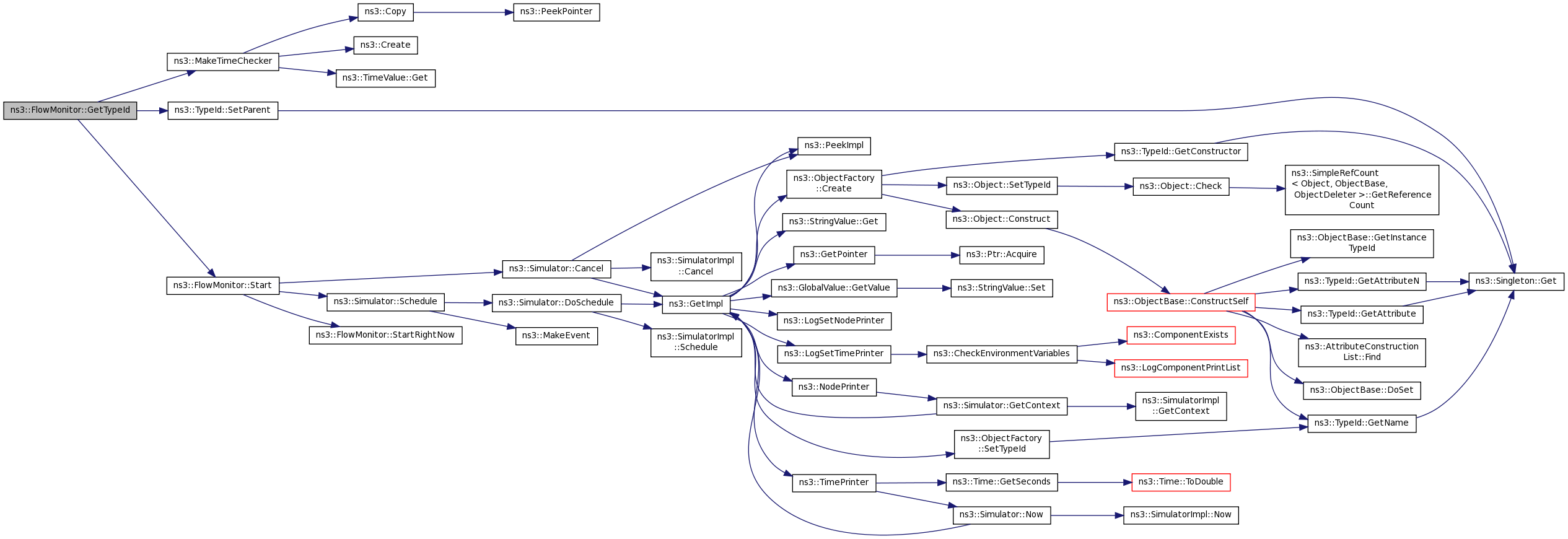

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::FlowMonitor::NotifyConstructionCompleted ( void )

protectedvirtual

This method is invoked once all member attributes have been initialized. Subclasses can override this method to be notified of this event but if they do this, they must chain up to their parent's NotifyConstructionCompleted method.

Reimplemented from ns3::ObjectBase.

Definition at line 327 of file flow-monitor.cc.

References ns3::ObjectBase::NotifyConstructionCompleted(), PERIODIC_CHECK_INTERVAL, PeriodicCheckForLostPackets(), and ns3::Simulator::Schedule().

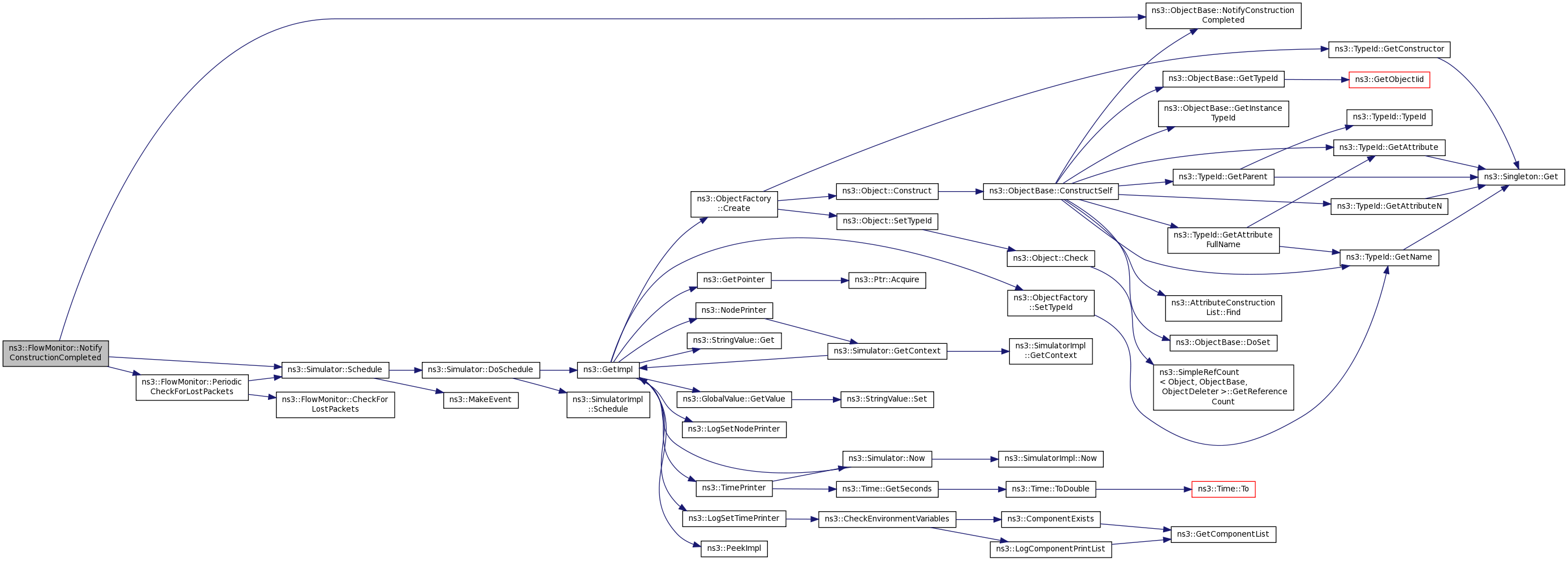

Here is the call graph for this function:

void ns3::FlowMonitor::PeriodicCheckForLostPackets ( )

private

Definition at line 320 of file flow-monitor.cc.

References CheckForLostPackets(), PERIODIC_CHECK_INTERVAL, and ns3::Simulator::Schedule().

Referenced by NotifyConstructionCompleted().

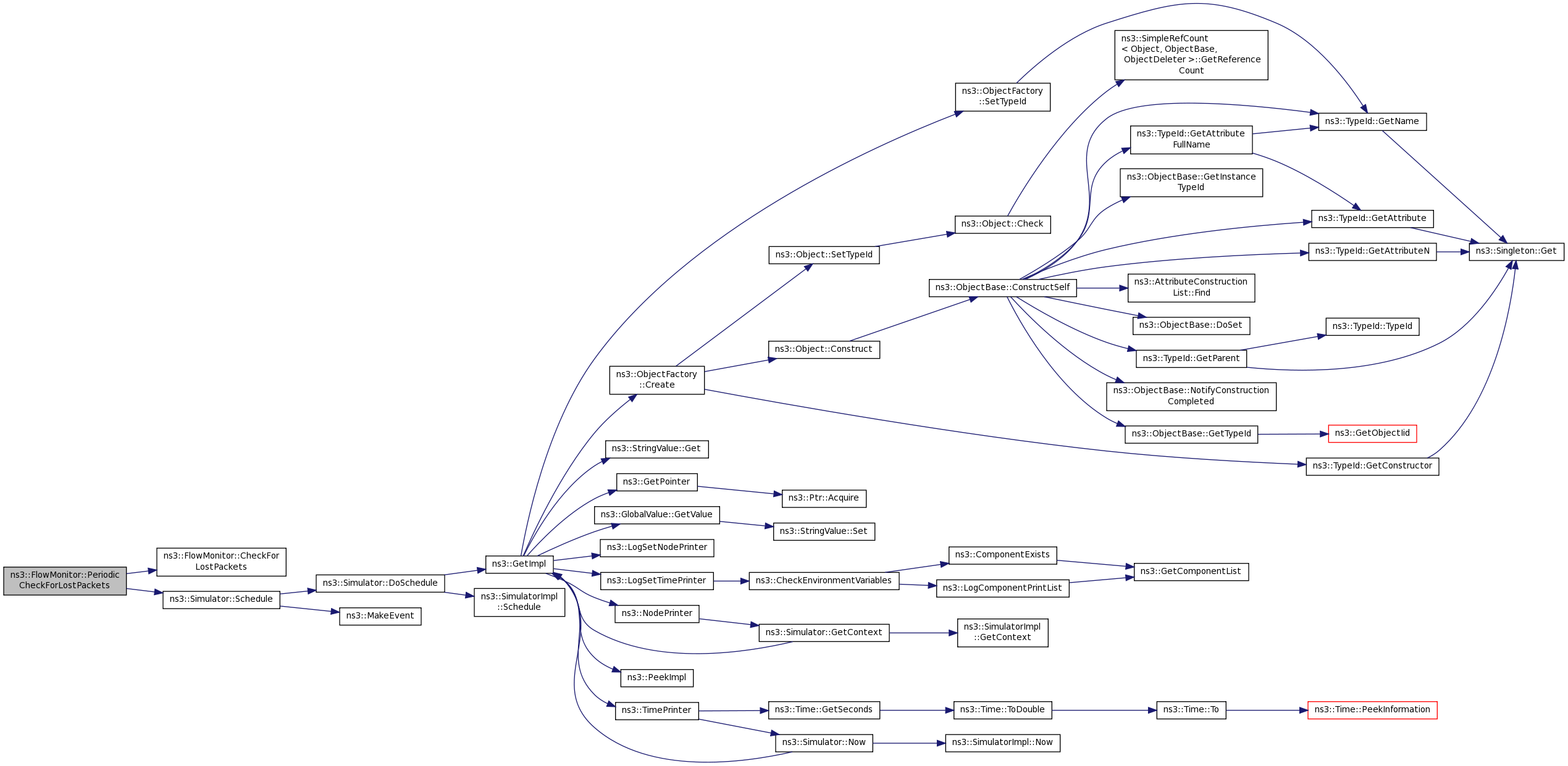

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::FlowMonitor::ReportDrop	(	Ptr< FlowProbe >	probe,
		FlowId	flowId,
		FlowPacketId	packetId,
		uint32_t	packetSize,
		uint32_t	reasonCode
	)

FlowProbe implementations are supposed to call this method to report that a known packet is being dropped due to some reason.

Definition at line 248 of file flow-monitor.cc.

References ns3::FlowMonitor::FlowStats::bytesDropped, GetStatsForFlow(), ns3::FlowMonitor::FlowStats::lostPackets, m_enabled, m_trackedPackets, NS_LOG_DEBUG, and ns3::FlowMonitor::FlowStats::packetsDropped.

Here is the call graph for this function:

void ns3::FlowMonitor::ReportFirstTx	(	Ptr< FlowProbe >	probe,
		FlowId	flowId,
		FlowPacketId	packetId,
		uint32_t	packetSize
	)

FlowProbe implementations are supposed to call this method to report that a new packet was transmitted (but keep in mind the distinction between a new packet entering the system and a packet that is already known and is only being forwarded).

Definition at line 133 of file flow-monitor.cc.

References ns3::FlowMonitor::TrackedPacket::firstSeenTime, GetStatsForFlow(), ns3::FlowMonitor::TrackedPacket::lastSeenTime, m_enabled, m_trackedPackets, ns3::Simulator::Now(), NS_LOG_DEBUG, ns3::FlowMonitor::FlowStats::timeFirstTxPacket, ns3::FlowMonitor::FlowStats::timeLastTxPacket, ns3::FlowMonitor::TrackedPacket::timesForwarded, ns3::FlowMonitor::FlowStats::txBytes, and ns3::FlowMonitor::FlowStats::txPackets.

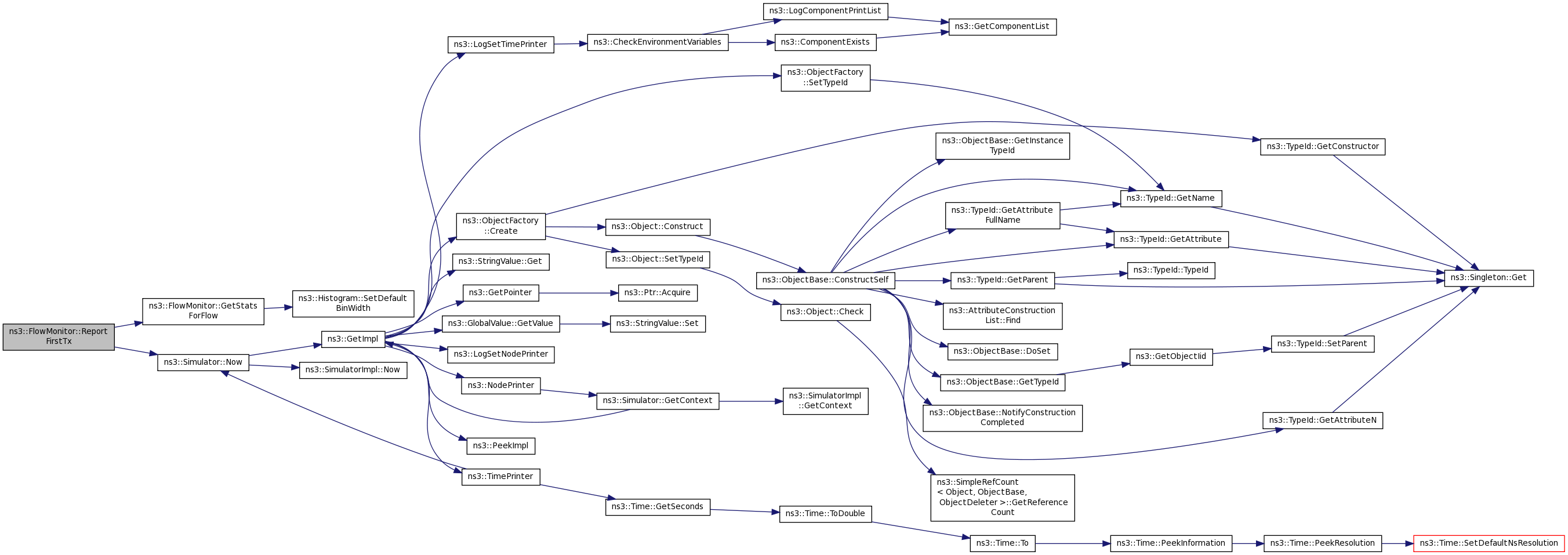

Here is the call graph for this function:

void ns3::FlowMonitor::ReportForwarding	(	Ptr< FlowProbe >	probe,
		FlowId	flowId,
		FlowPacketId	packetId,
		uint32_t	packetSize
	)

FlowProbe implementations are supposed to call this method to report that a known packet is being forwarded.

Definition at line 161 of file flow-monitor.cc.

References m_enabled, m_trackedPackets, ns3::Simulator::Now(), and NS_LOG_WARN.

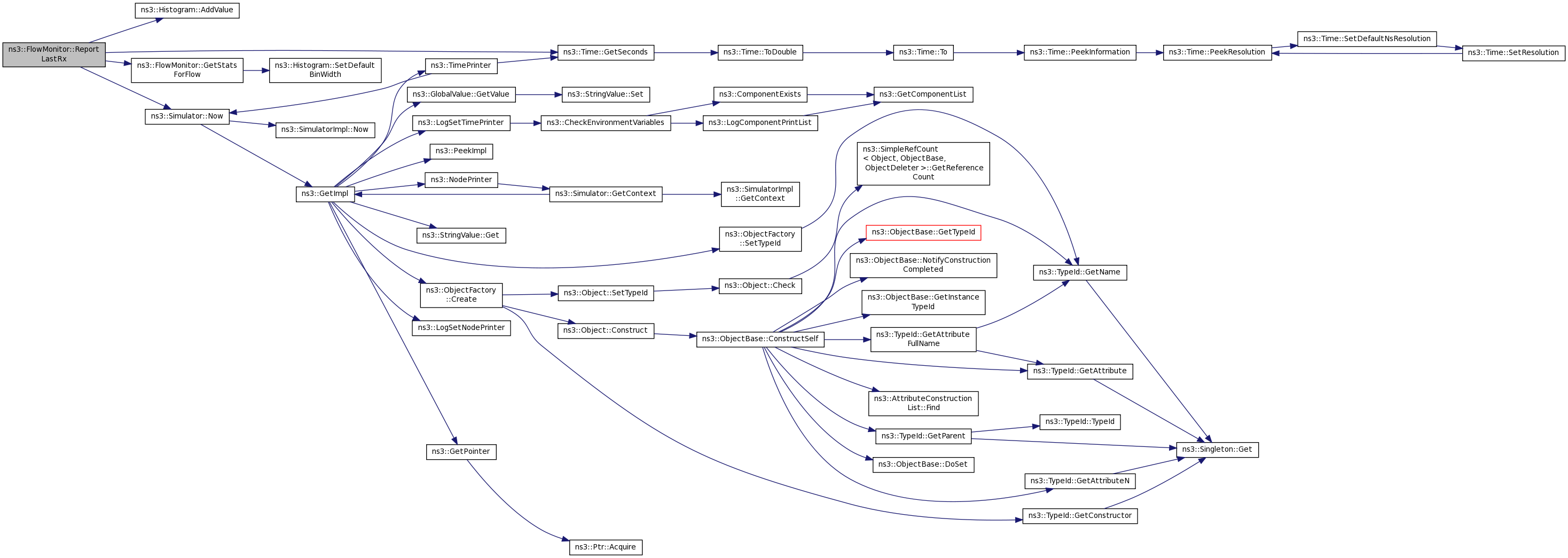

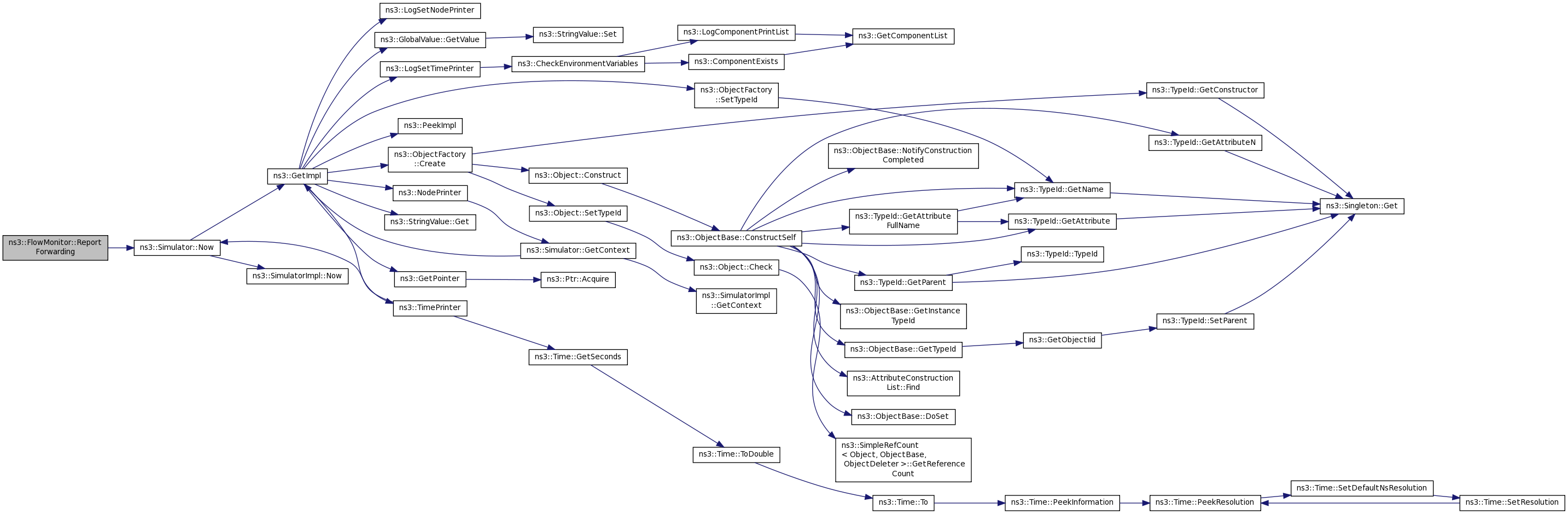

Here is the call graph for this function:

void ns3::FlowMonitor::ReportLastRx	(	Ptr< FlowProbe >	probe,
		FlowId	flowId,
		FlowPacketId	packetId,
		uint32_t	packetSize
	)

FlowProbe implementations are supposed to call this method to report that a known packet is being received.

Definition at line 185 of file flow-monitor.cc.

Here is the call graph for this function:

void ns3::FlowMonitor::SerializeToXmlFile	(	std::string	fileName,
		bool	enableHistograms,
		bool	enableProbes
	)

Same as SerializeToXmlStream, but writes to a file instead

Parameters

fileName	name or path of the output file that will be created
enableHistograms	if true, include also the histograms in the output
enableProbes	if true, include also the per-probe/flow pair statistics in the output

Definition at line 488 of file flow-monitor.cc.

References SerializeToXmlStream().

Referenced by main(), and Experiment::Run().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::FlowMonitor::SerializeToXmlStream	(	std::ostream &	os,
		int	indent,
		bool	enableHistograms,
		bool	enableProbes
	)

Serializes the results to an std::ostream in XML format

Parameters

os	the output stream
indent	number of spaces to use as base indentation level
enableHistograms	if true, include also the histograms in the output
enableProbes	if true, include also the per-probe/flow pair statistics in the output

Definition at line 398 of file flow-monitor.cc.

References ATTRIB, CheckForLostPackets(), INDENT, m_classifier, m_flowProbes, and m_flowStats.

Referenced by SerializeToXmlFile(), and SerializeToXmlString().

Here is the call graph for this function:

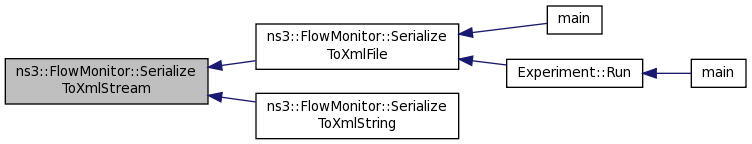

Here is the caller graph for this function:

std::string ns3::FlowMonitor::SerializeToXmlString	(	int	indent,
		bool	enableHistograms,
		bool	enableProbes
	)

Same as SerializeToXmlStream, but returns the output as a std::string

Parameters

indent	number of spaces to use as base indentation level
enableHistograms	if true, include also the histograms in the output
enableProbes	if true, include also the per-probe/flow pair statistics in the output
