ns3::Icmpv6ParameterError Class Reference

ICMPv6 Error Parameter Error header. More...

#include <icmpv6-header.h>

+ Inheritance diagram for ns3::Icmpv6ParameterError:
+ Collaboration diagram for ns3::Icmpv6ParameterError:

Public Member Functions

 Icmpv6ParameterError ()
 Constructor. More...

virtual ~Icmpv6ParameterError ()
 Destructor. More...

virtual uint32_t Deserialize (Buffer::Iterator start)
 Deserialize the packet. More...

virtual TypeId GetInstanceTypeId () const
 Get the instance type ID. More...

Ptr< Packet > GetPacket () const
 Get the incorrect packet. More...

uint32_t GetPtr () const
 Get the pointer field. More...

virtual uint32_t GetSerializedSize () const
 Get the serialized size. More...

virtual void Print (std::ostream &os) const
 Print informations. More...

virtual void Serialize (Buffer::Iterator start) const
 Serialize the packet. More...

void SetPacket (Ptr< Packet > p)
 Set the incorrect packet. More...

void SetPtr (uint32_t ptr)
 Set the pointer field. More...

- Public Member Functions inherited from ns3::Icmpv6Header
 Icmpv6Header ()
 Constructor. More...

virtual ~Icmpv6Header ()
 Destructor. More...

void CalculatePseudoHeaderChecksum (Ipv6Address src, Ipv6Address dst, uint16_t length, uint8_t protocol)
 Calculate pseudo header checksum for IPv6. More...

uint16_t GetChecksum () const
 Get the checksum. More...

uint8_t GetCode () const
 Get the code field. More...

uint8_t GetType () const
 Get the type field. More...

void SetChecksum (uint16_t checksum)
 Set the checksum. More...

void SetCode (uint8_t code)
 Set the code field. More...

void SetType (uint8_t type)
 Set the type. More...

- Public Member Functions inherited from ns3::Header
virtual ~Header ()

- Public Member Functions inherited from ns3::ObjectBase
virtual ~ObjectBase ()

void GetAttribute (std::string name, AttributeValue &value) const

bool GetAttributeFailSafe (std::string name, AttributeValue &attribute) const

void SetAttribute (std::string name, const AttributeValue &value)

bool SetAttributeFailSafe (std::string name, const AttributeValue &value)

bool TraceConnect (std::string name, std::string context, const CallbackBase &cb)

bool TraceConnectWithoutContext (std::string name, const CallbackBase &cb)

bool TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)

bool TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)


Static Public Member Functions

static TypeId GetTypeId ()
 Get the UID of this class. More...

- Static Public Member Functions inherited from ns3::Icmpv6Header
static TypeId GetTypeId ()
 Get the UID of this class. More...

- Static Public Member Functions inherited from ns3::Header
static TypeId GetTypeId (void)

- Static Public Member Functions inherited from ns3::Chunk
static TypeId GetTypeId (void)

- Static Public Member Functions inherited from ns3::ObjectBase
static TypeId GetTypeId (void)


Private Attributes

Ptr< Packet > m_packet
 The incorrect packet. More...

uint32_t m_ptr
 The pointer field. More...


Additional Inherited Members

- Public Types inherited from ns3::Icmpv6Header
enum  ErrorDestinationUnreachable_e {
  ICMPV6_NO_ROUTE = 0, ICMPV6_ADM_PROHIBITED, ICMPV6_NOT_NEIGHBOUR, ICMPV6_ADDR_UNREACHABLE,
  ICMPV6_PORT_UNREACHABLE
}
 ICMPv6 error code : Destination Unreachable. More...

enum  ErrorParameterError_e { ICMPV6_MALFORMED_HEADER = 0, ICMPV6_UNKNOWN_NEXT_HEADER, ICMPV6_UNKNOWN_OPTION }
 ICMPv6 error code : Parameter Error. More...

enum  ErrorTimeExceeded_e { ICMPV6_HOPLIMIT = 0, ICMPV6_FRAGTIME }
 ICMPv6 error code : Time Exceeded. More...

enum  OptionType_e {
  ICMPV6_OPT_LINK_LAYER_SOURCE = 1, ICMPV6_OPT_LINK_LAYER_TARGET, ICMPV6_OPT_PREFIX, ICMPV6_OPT_REDIRECTED,
  ICMPV6_OPT_MTU
}
 ICMPv6 Option type code. More...

enum  Type_e {
  ICMPV6_ERROR_DESTINATION_UNREACHABLE = 1, ICMPV6_ERROR_PACKET_TOO_BIG, ICMPV6_ERROR_TIME_EXCEEDED, ICMPV6_ERROR_PARAMETER_ERROR,
  ICMPV6_ECHO_REQUEST = 128, ICMPV6_ECHO_REPLY, ICMPV6_SUBSCRIBE_REQUEST, ICMPV6_SUBSCRIBE_REPORT,
  ICMPV6_SUBSCRIVE_END, ICMPV6_ND_ROUTER_SOLICITATION, ICMPV6_ND_ROUTER_ADVERTISEMENT, ICMPV6_ND_NEIGHBOR_SOLICITATION,
  ICMPV6_ND_NEIGHBOR_ADVERTISEMENT, ICMPV6_ND_REDIRECTION, ICMPV6_ROUTER_RENUMBER, ICMPV6_INFORMATION_REQUEST,
  ICMPV6_INFORMATION_RESPONSE, ICMPV6_INVERSE_ND_SOLICITATION, ICMPV6_INVERSE_ND_ADVERSTISEMENT, ICMPV6_MLDV2_SUBSCRIBE_REPORT,
  ICMPV6_MOBILITY_HA_DISCOVER_REQUEST, ICMPV6_MOBILITY_HA_DISCOVER_RESPONSE, ICMPV6_MOBILITY_MOBILE_PREFIX_SOLICITATION, ICMPV6_SECURE_ND_CERTIFICATE_PATH_SOLICITATION,
  ICMPV6_SECURE_ND_CERTIFICATE_PATH_ADVERTISEMENT, ICMPV6_EXPERIMENTAL_MOBILITY
}
 ICMPv6 type code. More...

- Protected Member Functions inherited from ns3::ObjectBase
void ConstructSelf (const AttributeConstructionList &attributes)

virtual void NotifyConstructionCompleted (void)

- Protected Attributes inherited from ns3::Icmpv6Header
bool m_calcChecksum
 Checksum enable or not. More...

uint16_t m_checksum
 The checksum. More...


Detailed Description

ICMPv6 Error Parameter Error header.

Doxygen introspection did not find any typical Config paths.
No Attributes are defined for this type.
No TraceSources are defined for this type.

Definition at line 1275 of file icmpv6-header.h.

Constructor & Destructor Documentation

ns3::Icmpv6ParameterError::Icmpv6ParameterError ( )

Constructor.

Definition at line 1359 of file icmpv6-header.cc.

References ns3::Icmpv6Header::ICMPV6_ERROR_PARAMETER_ERROR, NS_LOG_FUNCTION, and ns3::Icmpv6Header::SetType().

+ Here is the call graph for this function:

ns3::Icmpv6ParameterError::~Icmpv6ParameterError ( )
virtual

Destructor.

Definition at line 1367 of file icmpv6-header.cc.

References NS_LOG_FUNCTION.

Member Function Documentation

uint32_t ns3::Icmpv6ParameterError::Deserialize ( Buffer::Iterator  start)
virtual

Deserialize the packet.

Parameters
startstart offset
Returns
length of packet

Reimplemented from ns3::Icmpv6Header.

Definition at line 1434 of file icmpv6-header.cc.

References data, GetSerializedSize(), ns3::Buffer::Iterator::GetSize(), ns3::Icmpv6Header::m_checksum, m_packet, NS_LOG_FUNCTION, ns3::Buffer::Iterator::Read(), ns3::Buffer::Iterator::ReadNtohU32(), ns3::Buffer::Iterator::ReadU16(), ns3::Buffer::Iterator::ReadU8(), ns3::Icmpv6Header::SetCode(), SetPtr(), ns3::Icmpv6Header::SetType(), and visualizer.core::start().

+ Here is the call graph for this function:

TypeId ns3::Icmpv6ParameterError::GetInstanceTypeId ( void  ) const
virtual

Get the instance type ID.

Returns
instance type ID

Reimplemented from ns3::Icmpv6Header.

Definition at line 1353 of file icmpv6-header.cc.

References GetTypeId(), and NS_LOG_FUNCTION.

+ Here is the call graph for this function:

Ptr< Packet > ns3::Icmpv6ParameterError::GetPacket ( ) const

Get the incorrect packet.

Returns
the incorrect packet

Definition at line 1372 of file icmpv6-header.cc.

References m_packet, and NS_LOG_FUNCTION.

Referenced by ns3::Icmpv6L4Protocol::HandleParameterError().

+ Here is the caller graph for this function:

uint32_t ns3::Icmpv6ParameterError::GetPtr ( ) const

Get the pointer field.

Returns
pointer value

Definition at line 1385 of file icmpv6-header.cc.

References m_ptr, and NS_LOG_FUNCTION.

Referenced by Print(), and Serialize().

+ Here is the caller graph for this function:

uint32_t ns3::Icmpv6ParameterError::GetSerializedSize ( void  ) const
virtual

Get the serialized size.

Returns
serialized size

Reimplemented from ns3::Icmpv6Header.

Definition at line 1403 of file icmpv6-header.cc.

References ns3::Packet::GetSize(), m_packet, and NS_LOG_FUNCTION.

Referenced by Deserialize().

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

TypeId ns3::Icmpv6ParameterError::GetTypeId ( void  )
static

Get the UID of this class.

Returns
UID

Definition at line 1344 of file icmpv6-header.cc.

References ns3::TypeId::SetParent().

Referenced by GetInstanceTypeId().

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

void ns3::Icmpv6ParameterError::Print ( std::ostream &  os) const
virtual

Print informations.

Parameters
osoutput stream

Reimplemented from ns3::Icmpv6Header.

Definition at line 1397 of file icmpv6-header.cc.

References ns3::Icmpv6Header::GetChecksum(), ns3::Icmpv6Header::GetCode(), GetPtr(), ns3::Icmpv6Header::GetType(), and NS_LOG_FUNCTION.

+ Here is the call graph for this function:

void ns3::Icmpv6ParameterError::Serialize ( Buffer::Iterator  start) const
virtual

Serialize the packet.

Parameters
startstart offset

Reimplemented from ns3::Icmpv6Header.

Definition at line 1409 of file icmpv6-header.cc.

References ns3::Buffer::Iterator::CalculateIpChecksum(), ns3::Packet::CopyData(), ns3::Icmpv6Header::GetChecksum(), ns3::Icmpv6Header::GetCode(), GetPtr(), ns3::Packet::GetSize(), ns3::Buffer::Iterator::GetSize(), ns3::Icmpv6Header::GetType(), m_packet, ns3::Buffer::Iterator::Next(), NS_LOG_FUNCTION, visualizer.core::start(), ns3::Buffer::Iterator::Write(), ns3::Buffer::Iterator::WriteHtonU16(), ns3::Buffer::Iterator::WriteHtonU32(), ns3::Buffer::Iterator::WriteU16(), and ns3::Buffer::Iterator::WriteU8().

+ Here is the call graph for this function:

void ns3::Icmpv6ParameterError::SetPacket ( Ptr< Packet >  p)

Set the incorrect packet.

Parameters
pthe incorrect packet

Definition at line 1378 of file icmpv6-header.cc.

References ns3::Packet::GetSize(), m_packet, NS_ASSERT, and NS_LOG_FUNCTION.

Referenced by ns3::Icmpv6L4Protocol::SendErrorParameterError().

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

void ns3::Icmpv6ParameterError::SetPtr ( uint32_t  ptr)

Set the pointer field.

Parameters
ptrbyte where the error is located in the incorrect packet

Definition at line 1391 of file icmpv6-header.cc.

References m_ptr, and NS_LOG_FUNCTION.

Referenced by Deserialize(), and ns3::Icmpv6L4Protocol::SendErrorParameterError().

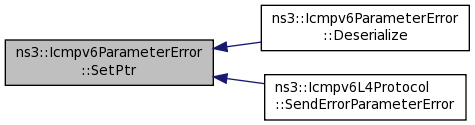

+ Here is the caller graph for this function:

Member Data Documentation

Ptr<Packet> ns3::Icmpv6ParameterError::m_packet
private

The incorrect packet.

Definition at line 1354 of file icmpv6-header.h.

Referenced by Deserialize(), GetPacket(), GetSerializedSize(), Serialize(), and SetPacket().

uint32_t ns3::Icmpv6ParameterError::m_ptr
private

The pointer field.

Definition at line 1359 of file icmpv6-header.h.

Referenced by GetPtr(), and SetPtr().

The documentation for this class was generated from the following files:
