handles interference calculations More...

#include <interference-helper.h>

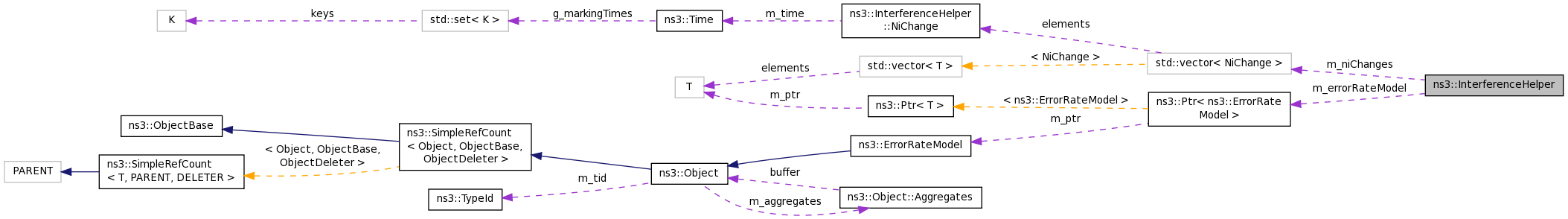

Collaboration diagram for ns3::InterferenceHelper:

Classes
class	Event

class	NiChange

struct	SnrPer

Public Member Functions
	InterferenceHelper ()

	~InterferenceHelper ()

Ptr< InterferenceHelper::Event >	Add (uint32_t size, WifiMode payloadMode, enum WifiPreamble preamble, Time duration, double rxPower, WifiTxVector txvector)

struct InterferenceHelper::SnrPer	CalculateSnrPer (Ptr< InterferenceHelper::Event > event)

void	EraseEvents (void)

Time	GetEnergyDuration (double energyW)

Ptr< ErrorRateModel >	GetErrorRateModel (void) const

double	GetNoiseFigure (void) const

void	NotifyRxEnd ()

void	NotifyRxStart ()

void	SetErrorRateModel (Ptr< ErrorRateModel > rate)

void	SetNoiseFigure (double value)

Private Types
typedef std::list< Ptr< Event > >	Events

typedef std::vector< NiChange >	NiChanges

Private Member Functions
	InterferenceHelper (const InterferenceHelper &o)

void	AddNiChangeEvent (NiChange change)

void	AppendEvent (Ptr< Event > event)

double	CalculateChunkSuccessRate (double snir, Time delay, WifiMode mode) const

double	CalculateNoiseInterferenceW (Ptr< Event > event, NiChanges *ni) const

double	CalculatePer (Ptr< const Event > event, NiChanges *ni) const

double	CalculateSnr (double signal, double noiseInterference, WifiMode mode) const

NiChanges::iterator	GetPosition (Time moment)
	Returns an iterator to the first nichange, which is later than moment. More...

InterferenceHelper &	operator= (const InterferenceHelper &o)

Private Attributes
Ptr< ErrorRateModel >	m_errorRateModel

double	m_firstPower

NiChanges	m_niChanges
	Experimental: needed for energy duration calculation. More...

double	m_noiseFigure

bool	m_rxing

Detailed Description

handles interference calculations

Definition at line 41 of file interference-helper.h.

Member Typedef Documentation

typedef std::list<Ptr<Event> > ns3::InterferenceHelper::Events

private

Definition at line 115 of file interference-helper.h.

typedef std::vector<NiChange> ns3::InterferenceHelper::NiChanges

private

Definition at line 114 of file interference-helper.h.

Constructor & Destructor Documentation

ns3::InterferenceHelper::InterferenceHelper ( )

Definition at line 124 of file interference-helper.cc.

ns3::InterferenceHelper::~InterferenceHelper ( )

Definition at line 130 of file interference-helper.cc.

References EraseEvents(), and m_errorRateModel.

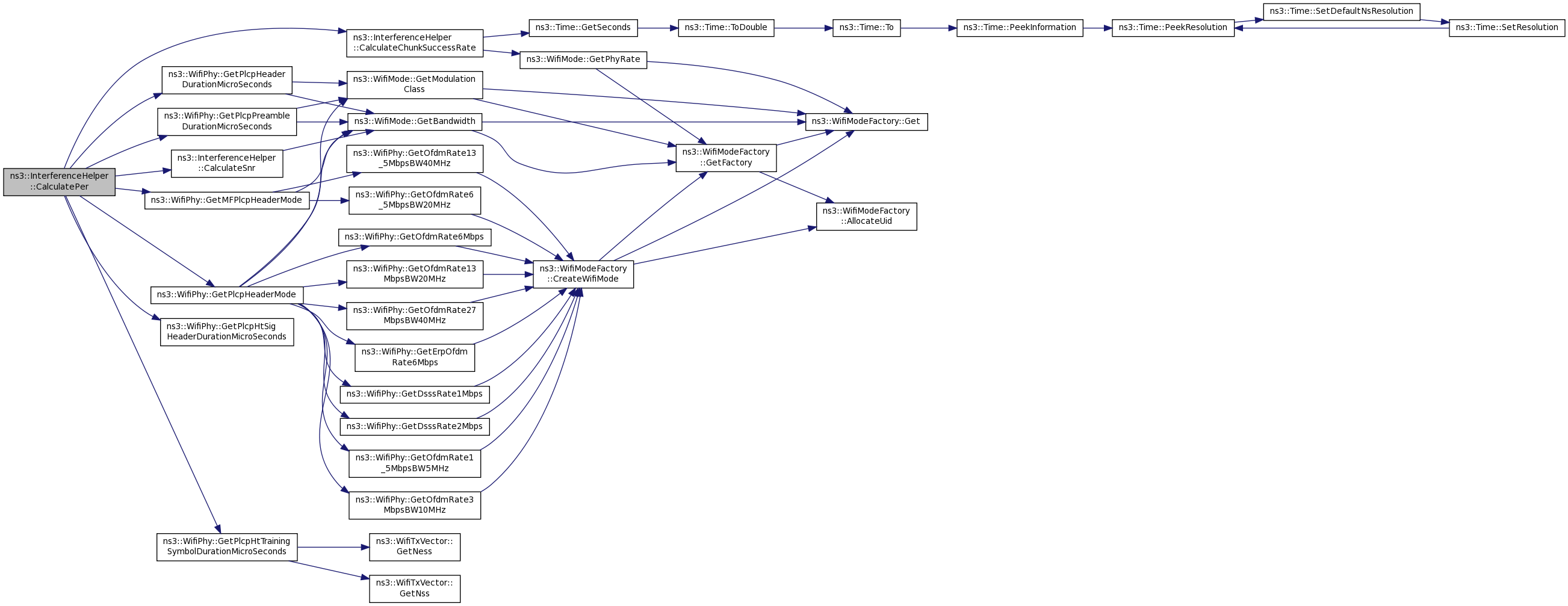

Here is the call graph for this function:

ns3::InterferenceHelper::InterferenceHelper ( const InterferenceHelper & o )

private

Member Function Documentation

Ptr< InterferenceHelper::Event > ns3::InterferenceHelper::Add	(	uint32_t	size,
		WifiMode	payloadMode,
		enum WifiPreamble	preamble,
		Time	duration,
		double	rxPower,
		WifiTxVector	txvector
	)

Definition at line 137 of file interference-helper.cc.

References AppendEvent().

Referenced by ns3::YansWifiPhy::StartReceivePacket().

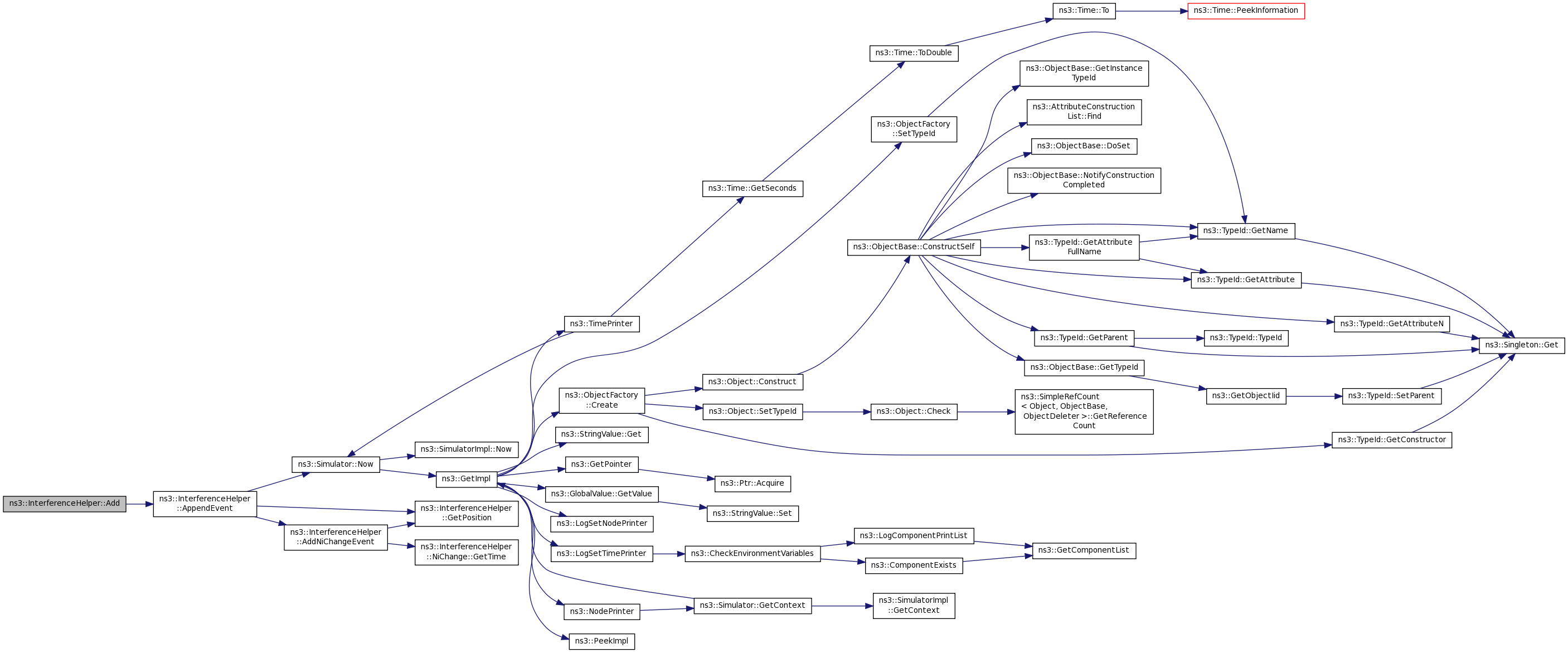

Here is the call graph for this function:

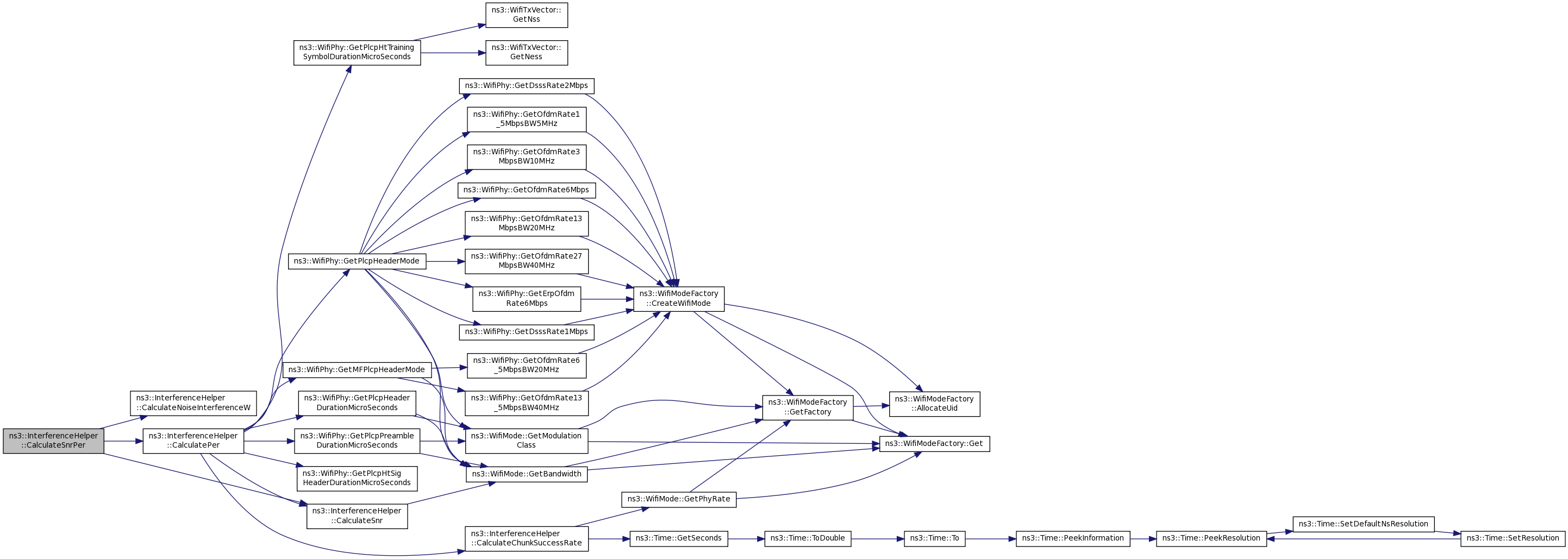

Here is the caller graph for this function:

void ns3::InterferenceHelper::AddNiChangeEvent ( NiChange change )

private

Definition at line 575 of file interference-helper.cc.

References GetPosition(), ns3::InterferenceHelper::NiChange::GetTime(), and m_niChanges.

Referenced by AppendEvent().

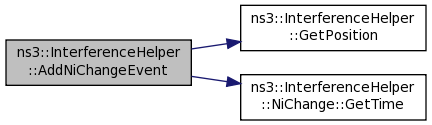

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::InterferenceHelper::AppendEvent ( Ptr< Event > event )

private

Definition at line 202 of file interference-helper.cc.

References AddNiChangeEvent(), GetPosition(), m_firstPower, m_niChanges, m_rxing, and ns3::Simulator::Now().

Referenced by Add().

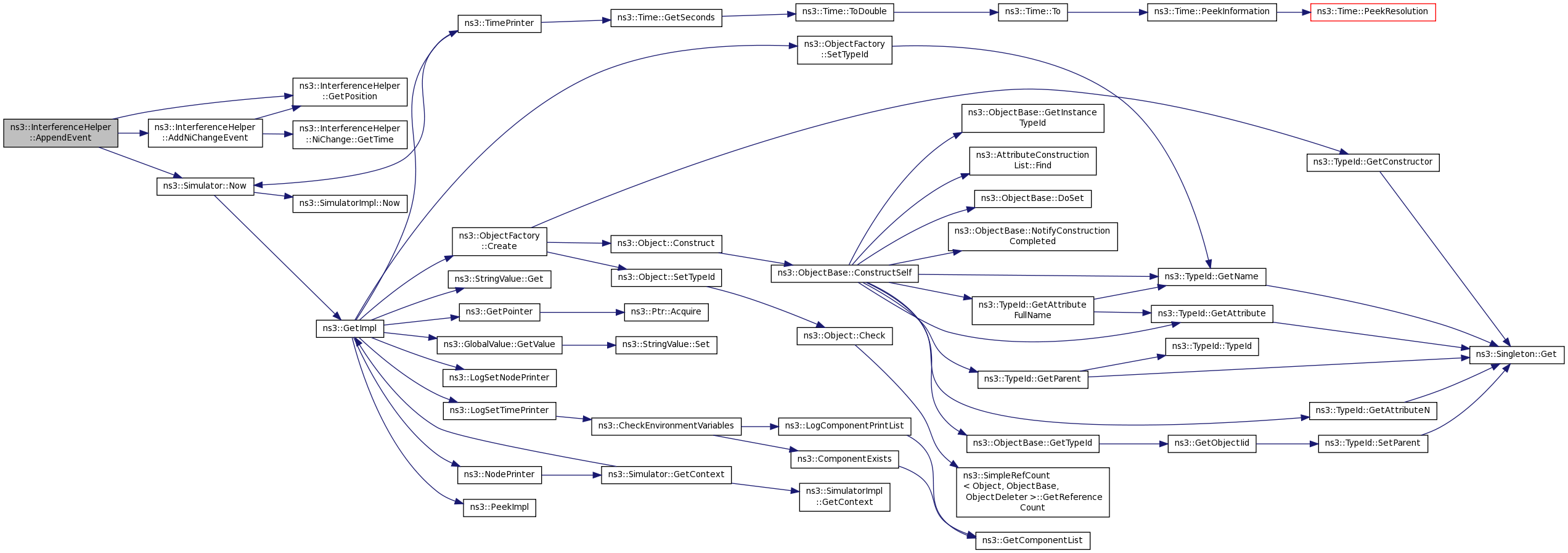

Here is the call graph for this function:

Here is the caller graph for this function:

double ns3::InterferenceHelper::CalculateChunkSuccessRate	(	double	snir,
		Time	delay,
		WifiMode	mode
	)		const

private

Definition at line 257 of file interference-helper.cc.

References ns3::WifiMode::GetPhyRate(), ns3::Time::GetSeconds(), and m_errorRateModel.

Referenced by CalculatePer().

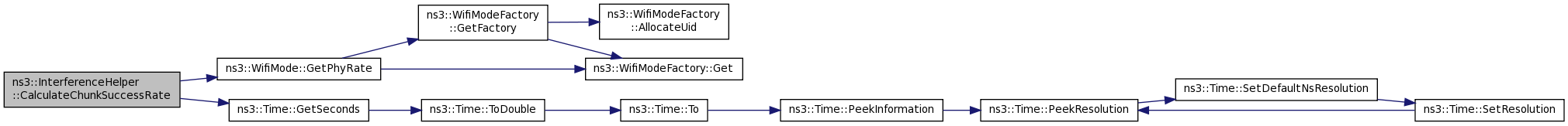

Here is the call graph for this function:

Here is the caller graph for this function:

double ns3::InterferenceHelper::CalculateNoiseInterferenceW	(	Ptr< Event >	event,
		NiChanges *	ni
	)		const

private

Definition at line 239 of file interference-helper.cc.

References m_firstPower, m_niChanges, m_rxing, and NS_ASSERT.

Referenced by CalculateSnrPer().

Here is the caller graph for this function:

double ns3::InterferenceHelper::CalculatePer	(	Ptr< const Event >	event,
		NiChanges *	ni
	)		const

private

Definition at line 270 of file interference-helper.cc.

References CalculateChunkSuccessRate(), CalculateSnr(), current, ns3::WifiPhy::GetMFPlcpHeaderMode(), ns3::WifiPhy::GetPlcpHeaderDurationMicroSeconds(), ns3::WifiPhy::GetPlcpHeaderMode(), ns3::WifiPhy::GetPlcpHtSigHeaderDurationMicroSeconds(), ns3::WifiPhy::GetPlcpHtTrainingSymbolDurationMicroSeconds(), ns3::WifiPhy::GetPlcpPreambleDurationMicroSeconds(), NS_ASSERT, ns3::WIFI_PREAMBLE_HT_GF, ns3::WIFI_PREAMBLE_HT_MF, ns3::WIFI_PREAMBLE_LONG, and ns3::WIFI_PREAMBLE_SHORT.

Referenced by CalculateSnrPer().

Here is the call graph for this function:

Here is the caller graph for this function:

double ns3::InterferenceHelper::CalculateSnr	(	double	signal,
		double	noiseInterference,
		WifiMode	mode
	)		const

private

Definition at line 225 of file interference-helper.cc.

References ns3::WifiMode::GetBandwidth(), and m_noiseFigure.

Referenced by CalculatePer(), and CalculateSnrPer().

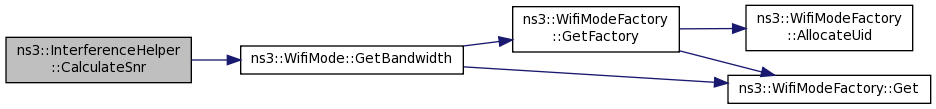

Here is the call graph for this function:

Here is the caller graph for this function:

struct InterferenceHelper::SnrPer ns3::InterferenceHelper::CalculateSnrPer ( Ptr< InterferenceHelper::Event > event )

Definition at line 542 of file interference-helper.cc.

References CalculateNoiseInterferenceW(), CalculatePer(), CalculateSnr(), ns3::InterferenceHelper::SnrPer::per, and ns3::InterferenceHelper::SnrPer::snr.

Referenced by ns3::YansWifiPhy::EndReceive().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::InterferenceHelper::EraseEvents ( void )

Definition at line 562 of file interference-helper.cc.

References m_firstPower, m_niChanges, and m_rxing.

Referenced by ns3::YansWifiPhy::SetChannelNumber(), and ~InterferenceHelper().

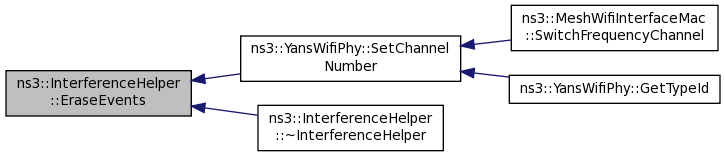

Here is the caller graph for this function:

Time ns3::InterferenceHelper::GetEnergyDuration ( double energyW )

Parameters

energyW the minimum energy (W) requested

Returns: the expected amount of time the observed energy on the medium will be higher than the requested threshold.

Definition at line 179 of file interference-helper.cc.

References m_firstPower, m_niChanges, and ns3::Simulator::Now().

Referenced by ns3::YansWifiPhy::StartReceivePacket().

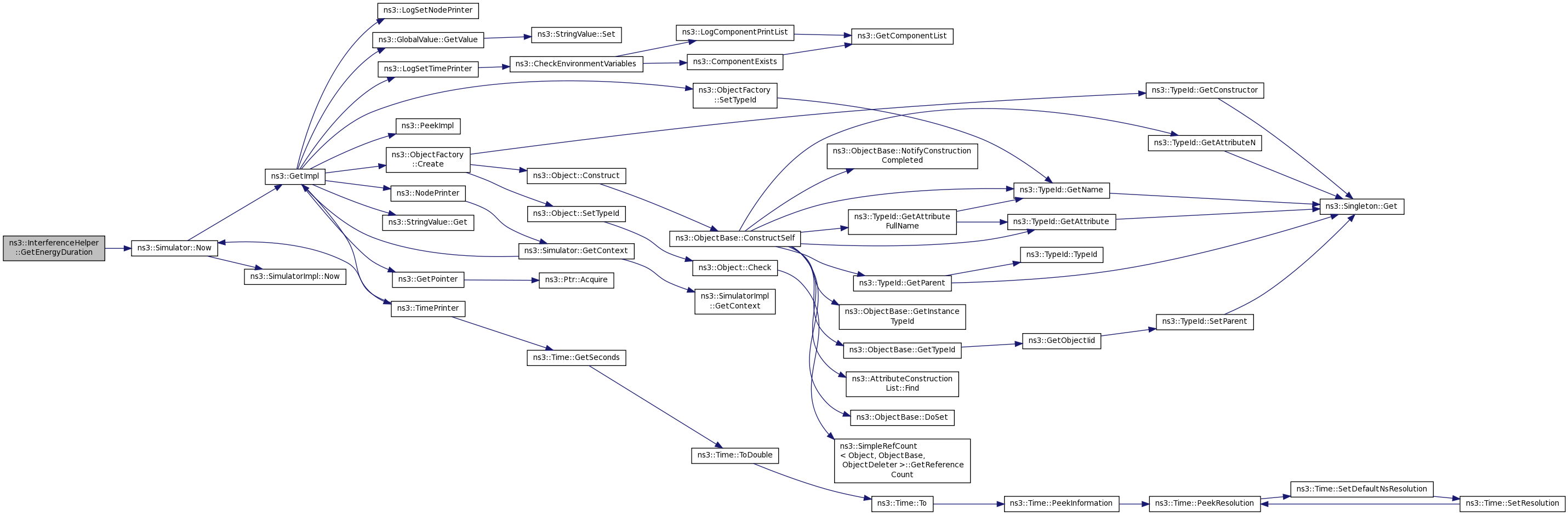

Here is the call graph for this function:

Here is the caller graph for this function:

Ptr< ErrorRateModel > ns3::InterferenceHelper::GetErrorRateModel ( void ) const

Definition at line 173 of file interference-helper.cc.

References m_errorRateModel.

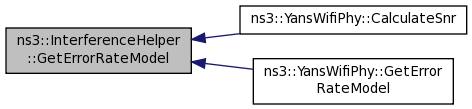

Referenced by ns3::YansWifiPhy::CalculateSnr(), and ns3::YansWifiPhy::GetErrorRateModel().

Here is the caller graph for this function:

double ns3::InterferenceHelper::GetNoiseFigure ( void ) const

Definition at line 161 of file interference-helper.cc.

References m_noiseFigure.

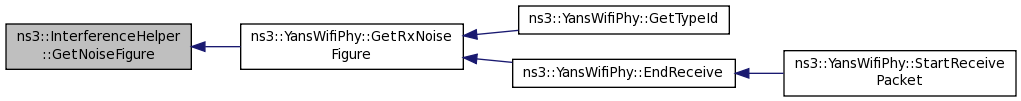

Referenced by ns3::YansWifiPhy::GetRxNoiseFigure().

Here is the caller graph for this function:

InterferenceHelper::NiChanges::iterator ns3::InterferenceHelper::GetPosition ( Time moment )

private

Returns an iterator to the first nichange, which is later than moment.

Definition at line 569 of file interference-helper.cc.

References m_niChanges.

Referenced by AddNiChangeEvent(), and AppendEvent().

Here is the caller graph for this function:

void ns3::InterferenceHelper::NotifyRxEnd ( )

Definition at line 585 of file interference-helper.cc.

References m_rxing.

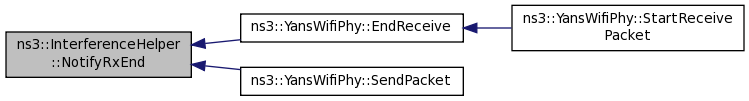

Referenced by ns3::YansWifiPhy::EndReceive(), and ns3::YansWifiPhy::SendPacket().

Here is the caller graph for this function:

void ns3::InterferenceHelper::NotifyRxStart ( void )

Definition at line 580 of file interference-helper.cc.

References m_rxing.

Referenced by ns3::YansWifiPhy::StartReceivePacket().

Here is the caller graph for this function:

InterferenceHelper& ns3::InterferenceHelper::operator= ( const InterferenceHelper & o )

private

void ns3::InterferenceHelper::SetErrorRateModel ( Ptr< ErrorRateModel > rate )

Definition at line 167 of file interference-helper.cc.

References m_errorRateModel.

Referenced by ns3::YansWifiPhy::SetErrorRateModel().

Here is the caller graph for this function:

void ns3::InterferenceHelper::SetNoiseFigure ( double value )

Definition at line 155 of file interference-helper.cc.

References m_noiseFigure.

Referenced by ns3::YansWifiPhy::SetRxNoiseFigure().

Here is the caller graph for this function:

Member Data Documentation

Ptr<ErrorRateModel> ns3::InterferenceHelper::m_errorRateModel

private

Definition at line 126 of file interference-helper.h.

Referenced by CalculateChunkSuccessRate(), GetErrorRateModel(), SetErrorRateModel(), and ~InterferenceHelper().

double ns3::InterferenceHelper::m_firstPower

private

Definition at line 129 of file interference-helper.h.

Referenced by AppendEvent(), CalculateNoiseInterferenceW(), EraseEvents(), and GetEnergyDuration().

NiChanges ns3::InterferenceHelper::m_niChanges

private

Experimental: needed for energy duration calculation.

Definition at line 128 of file interference-helper.h.

Referenced by AddNiChangeEvent(), AppendEvent(), CalculateNoiseInterferenceW(), EraseEvents(), GetEnergyDuration(), and GetPosition().

double ns3::InterferenceHelper::m_noiseFigure

private

noise figure (linear)

Definition at line 125 of file interference-helper.h.

Referenced by CalculateSnr(), GetNoiseFigure(), and SetNoiseFigure().

bool ns3::InterferenceHelper::m_rxing

private

Definition at line 130 of file interference-helper.h.

Referenced by AppendEvent(), CalculateNoiseInterferenceW(), EraseEvents(), NotifyRxEnd(), and NotifyRxStart().

The documentation for this class was generated from the following files:

src/wifi/model/interference-helper.h
src/wifi/model/interference-helper.cc
