ns3::LteEnbRrcProtocolReal Class Reference

#include <lte-rrc-protocol-real.h>

+ Inheritance diagram for ns3::LteEnbRrcProtocolReal:
+ Collaboration diagram for ns3::LteEnbRrcProtocolReal:

Public Member Functions

 LteEnbRrcProtocolReal ()

virtual ~LteEnbRrcProtocolReal ()

virtual void DoDispose (void)

LteEnbRrcSapUser * GetLteEnbRrcSapUser ()

LteUeRrcSapProvider * GetUeRrcSapProvider (uint16_t rnti)

void SetCellId (uint16_t cellId)

void SetLteEnbRrcSapProvider (LteEnbRrcSapProvider *p)

void SetUeRrcSapProvider (uint16_t rnti, LteUeRrcSapProvider *p)

- Public Member Functions inherited from ns3::Object
 Object ()

virtual ~Object ()

void AggregateObject (Ptr< Object > other)

void Dispose (void)

AggregateIterator GetAggregateIterator (void) const

virtual TypeId GetInstanceTypeId (void) const

template<typename T >
Ptr< T > GetObject (void) const

template<typename T >
Ptr< T > GetObject (TypeId tid) const

void Initialize (void)

- Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
 SimpleRefCount ()

 SimpleRefCount (const SimpleRefCount &o)

uint32_t GetReferenceCount (void) const

SimpleRefCount & operator= (const SimpleRefCount &o)

void Ref (void) const

void Unref (void) const

- Public Member Functions inherited from ns3::ObjectBase
virtual ~ObjectBase ()

void GetAttribute (std::string name, AttributeValue &value) const

bool GetAttributeFailSafe (std::string name, AttributeValue &attribute) const

void SetAttribute (std::string name, const AttributeValue &value)

bool SetAttributeFailSafe (std::string name, const AttributeValue &value)

bool TraceConnect (std::string name, std::string context, const CallbackBase &cb)

bool TraceConnectWithoutContext (std::string name, const CallbackBase &cb)

bool TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)

bool TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)


Static Public Member Functions

static TypeId GetTypeId (void)

- Static Public Member Functions inherited from ns3::Object
static TypeId GetTypeId (void)

- Static Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
static void Cleanup (void)

- Static Public Member Functions inherited from ns3::ObjectBase
static TypeId GetTypeId (void)


Private Member Functions

LteRrcSap::RrcConnectionReconfiguration DoDecodeHandoverCommand (Ptr< Packet > p)

LteRrcSap::HandoverPreparationInfo DoDecodeHandoverPreparationInformation (Ptr< Packet > p)

Ptr< Packet > DoEncodeHandoverCommand (LteRrcSap::RrcConnectionReconfiguration msg)

Ptr< Packet > DoEncodeHandoverPreparationInformation (LteRrcSap::HandoverPreparationInfo msg)

void DoReceivePdcpPdu (uint16_t rnti, Ptr< Packet > p)

void DoReceivePdcpSdu (LtePdcpSapUser::ReceivePdcpSduParameters params)

void DoRemoveUe (uint16_t rnti)

void DoSendMasterInformationBlock (LteRrcSap::MasterInformationBlock msg)

void DoSendRrcConnectionReconfiguration (uint16_t rnti, LteRrcSap::RrcConnectionReconfiguration msg)

void DoSendRrcConnectionReestablishment (uint16_t rnti, LteRrcSap::RrcConnectionReestablishment msg)

void DoSendRrcConnectionReestablishmentReject (uint16_t rnti, LteRrcSap::RrcConnectionReestablishmentReject msg)

void DoSendRrcConnectionReject (uint16_t rnti, LteRrcSap::RrcConnectionReject msg)

void DoSendRrcConnectionRelease (uint16_t rnti, LteRrcSap::RrcConnectionRelease msg)

void DoSendRrcConnectionSetup (uint16_t rnti, LteRrcSap::RrcConnectionSetup msg)

void DoSendSystemInformation (LteRrcSap::SystemInformation msg)

void DoSendSystemInformationBlockType1 (LteRrcSap::SystemInformationBlockType1 msg)

void DoSetupUe (uint16_t rnti, LteEnbRrcSapUser::SetupUeParameters params)

void SendSystemInformation (LteRrcSap::SystemInformation msg)


Private Attributes

uint16_t m_cellId

std::map< uint16_t,
LteEnbRrcSapProvider::CompleteSetupUeParameters > 		m_completeSetupUeParametersMap

LteEnbRrcSapProvider * m_enbRrcSapProvider

std::map< uint16_t,
LteUeRrcSapProvider * > 		m_enbRrcSapProviderMap

LteEnbRrcSapUser * m_enbRrcSapUser

uint16_t m_rnti

std::map< uint16_t,
LteEnbRrcSapUser::SetupUeParameters > 		m_setupUeParametersMap


Friends

class LtePdcpSpecificLtePdcpSapUser< LteEnbRrcProtocolReal >

class LteRlcSpecificLteRlcSapUser< LteEnbRrcProtocolReal >

class MemberLteEnbRrcSapUser< LteEnbRrcProtocolReal >

class RealProtocolRlcSapUser


Additional Inherited Members

- Protected Member Functions inherited from ns3::Object
 Object (const Object &o)

virtual void DoInitialize (void)

virtual void NotifyNewAggregate (void)

- Protected Member Functions inherited from ns3::ObjectBase
void ConstructSelf (const AttributeConstructionList &attributes)

virtual void NotifyConstructionCompleted (void)


Detailed Description

Models the transmission of RRC messages from the UE to the eNB in a real fashion, by creating real RRC PDUs and transmitting them over Signaling Radio Bearers using radio resources allocated by the LTE MAC scheduler.

Doxygen introspection did not find any typical Config paths.
No Attributes are defined for this type.
No TraceSources are defined for this type.

Definition at line 104 of file lte-rrc-protocol-real.h.

Constructor & Destructor Documentation

ns3::LteEnbRrcProtocolReal::LteEnbRrcProtocolReal ( )

Definition at line 355 of file lte-rrc-protocol-real.cc.

References m_enbRrcSapUser, and NS_LOG_FUNCTION.

ns3::LteEnbRrcProtocolReal::~LteEnbRrcProtocolReal ( )
virtual

Definition at line 362 of file lte-rrc-protocol-real.cc.

References NS_LOG_FUNCTION.

Member Function Documentation

LteRrcSap::RrcConnectionReconfiguration ns3::LteEnbRrcProtocolReal::DoDecodeHandoverCommand ( Ptr< Packet >  p)
private

Definition at line 800 of file lte-rrc-protocol-real.cc.

References ns3::RrcConnectionReconfigurationHeader::GetMessage(), and ns3::Packet::RemoveHeader().

+ Here is the call graph for this function:

LteRrcSap::HandoverPreparationInfo ns3::LteEnbRrcProtocolReal::DoDecodeHandoverPreparationInformation ( Ptr< Packet >  p)
private

Definition at line 781 of file lte-rrc-protocol-real.cc.

References ns3::HandoverPreparationInfoHeader::GetMessage(), and ns3::Packet::RemoveHeader().

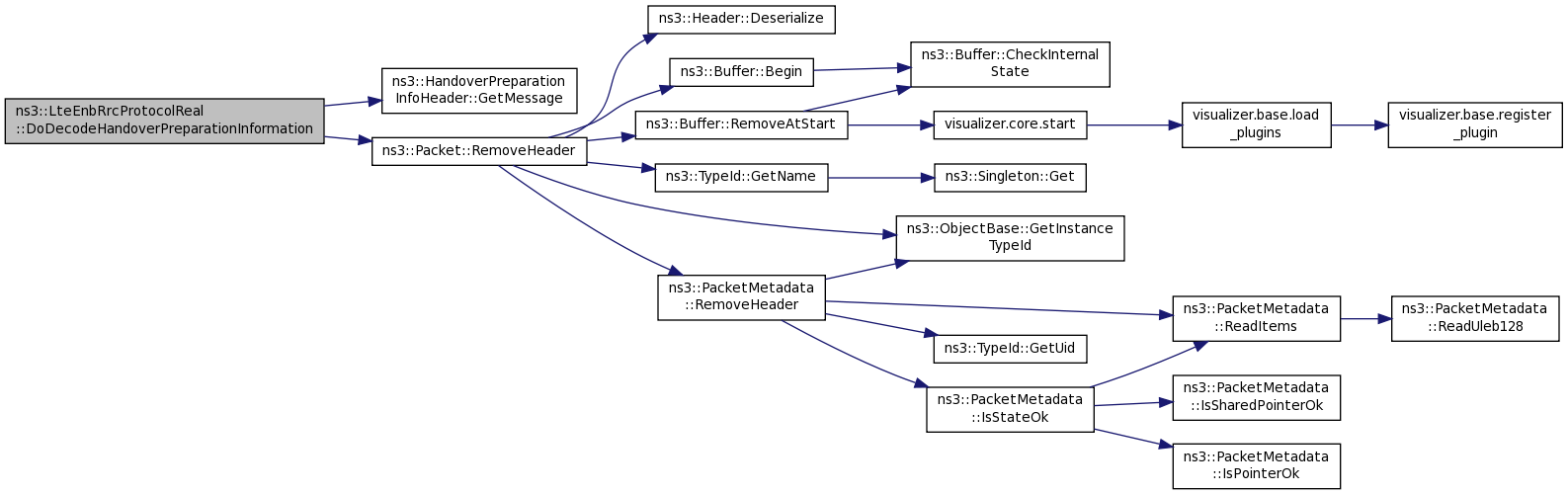

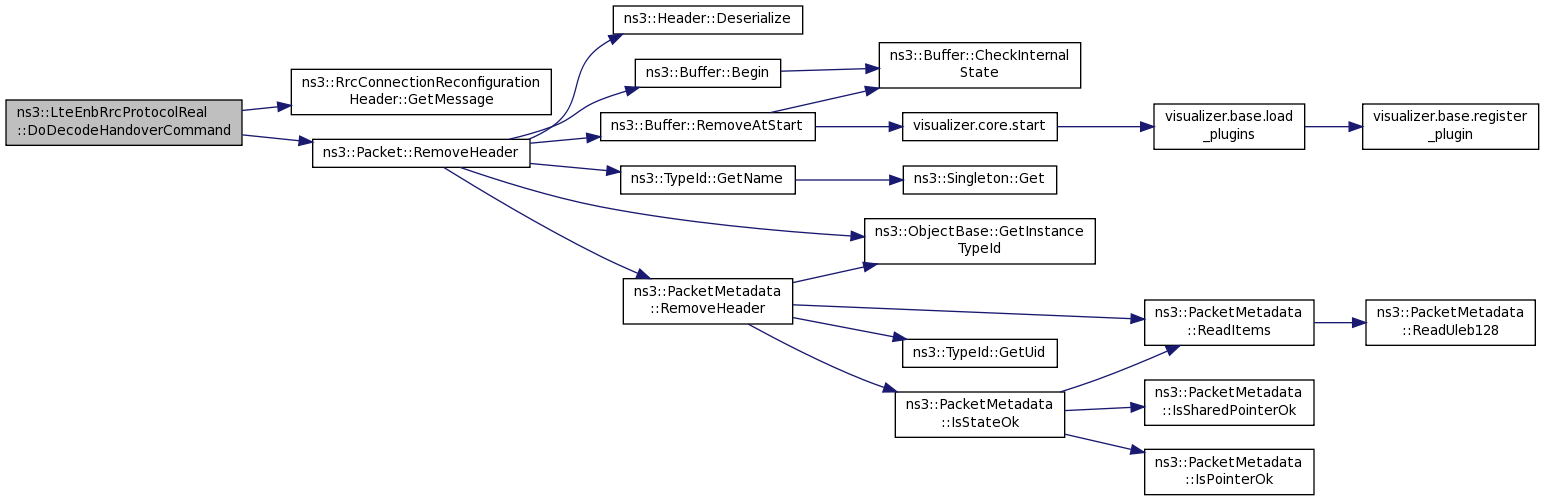

+ Here is the call graph for this function:

void ns3::LteEnbRrcProtocolReal::DoDispose ( void  )
virtual

This method is called by Object::Dispose or by the object's destructor, whichever comes first.

Subclasses are expected to implement their real destruction code in an overriden version of this method and chain up to their parent's implementation once they are done. i.e., for simplicity, the destructor of every subclass should be empty and its content should be moved to the associated DoDispose method.

It is safe to call GetObject from within this method.

Reimplemented from ns3::Object.

Definition at line 368 of file lte-rrc-protocol-real.cc.

References m_completeSetupUeParametersMap, m_enbRrcSapUser, and NS_LOG_FUNCTION.

Ptr< Packet > ns3::LteEnbRrcProtocolReal::DoEncodeHandoverCommand ( LteRrcSap::RrcConnectionReconfiguration  msg)
private

Definition at line 790 of file lte-rrc-protocol-real.cc.

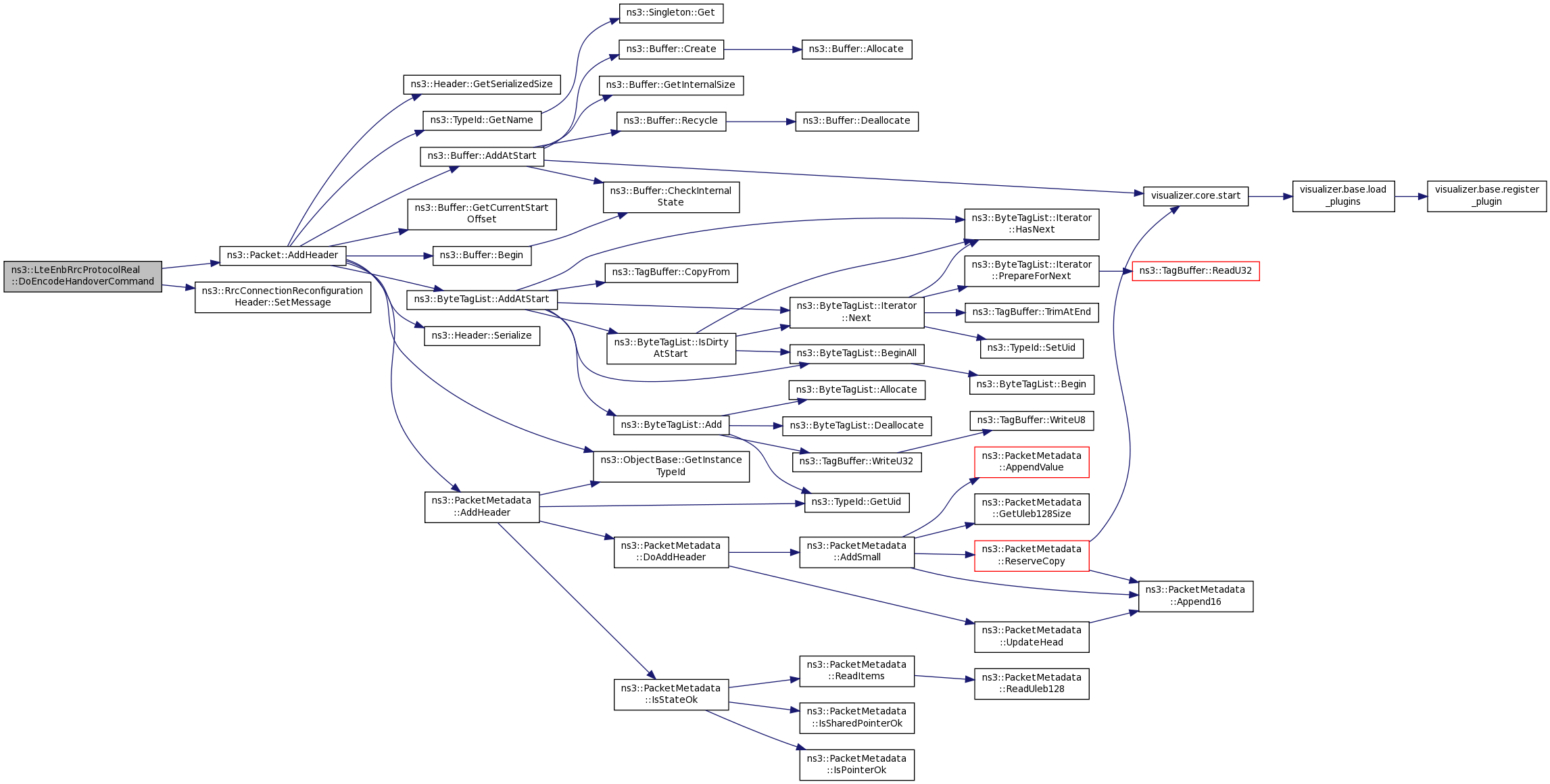

References ns3::Packet::AddHeader(), and ns3::RrcConnectionReconfigurationHeader::SetMessage().

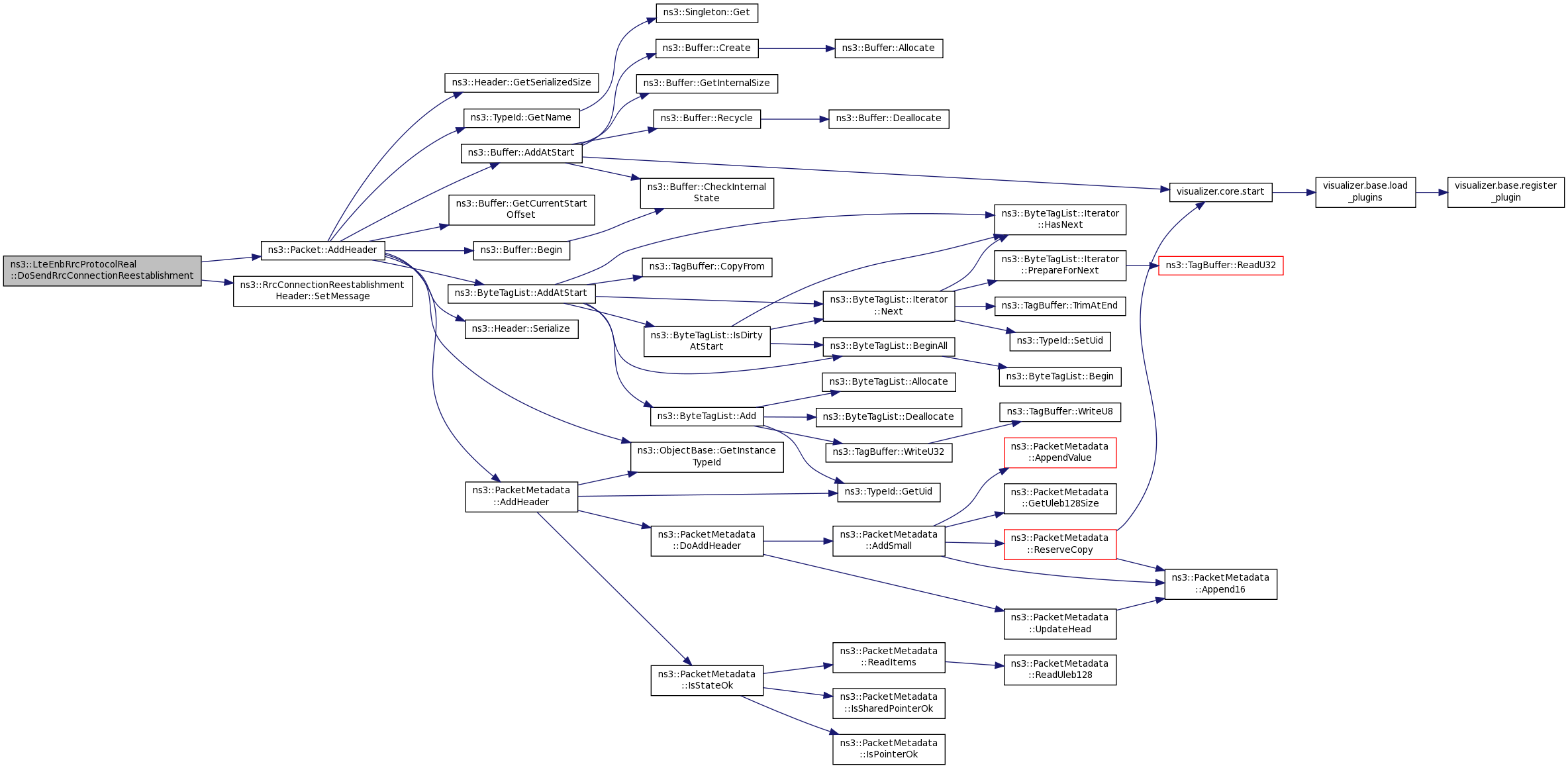

+ Here is the call graph for this function:

Ptr< Packet > ns3::LteEnbRrcProtocolReal::DoEncodeHandoverPreparationInformation ( LteRrcSap::HandoverPreparationInfo  msg)
private

Definition at line 770 of file lte-rrc-protocol-real.cc.

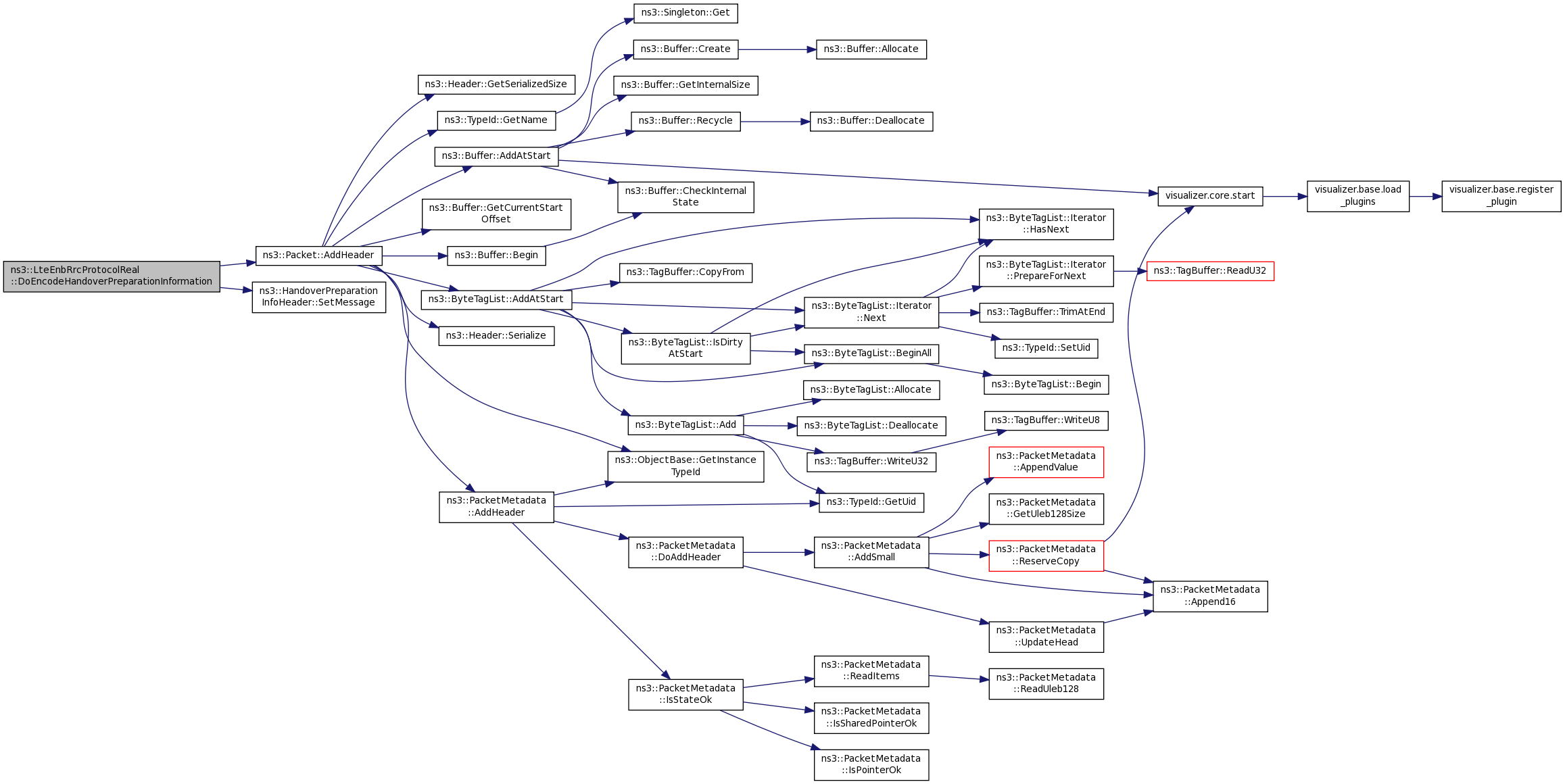

References ns3::Packet::AddHeader(), and ns3::HandoverPreparationInfoHeader::SetMessage().

+ Here is the call graph for this function:

void ns3::LteEnbRrcProtocolReal::DoReceivePdcpPdu ( uint16_t  rnti,
Ptr< Packet >  p
)
private

Definition at line 696 of file lte-rrc-protocol-real.cc.

References ns3::RrcConnectionRequestHeader::GetMessage(), ns3::RrcConnectionReestablishmentRequestHeader::GetMessage(), ns3::RrcAsn1Header::GetMessageType(), m_enbRrcSapProvider, ns3::Packet::PeekHeader(), ns3::LteEnbRrcSapProvider::RecvRrcConnectionReestablishmentRequest(), ns3::LteEnbRrcSapProvider::RecvRrcConnectionRequest(), and ns3::Packet::RemoveHeader().

Referenced by ns3::RealProtocolRlcSapUser::ReceivePdcpPdu().

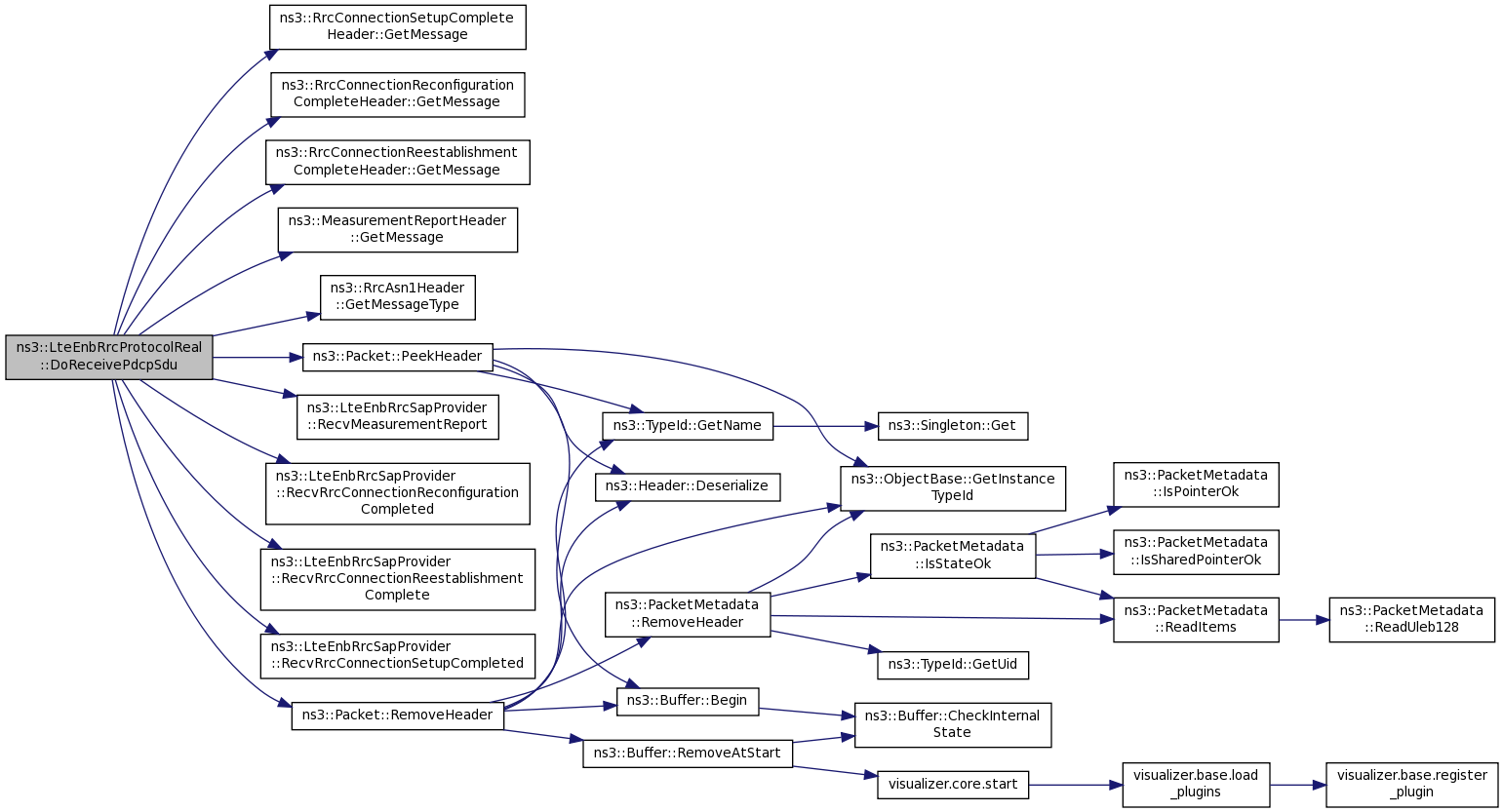

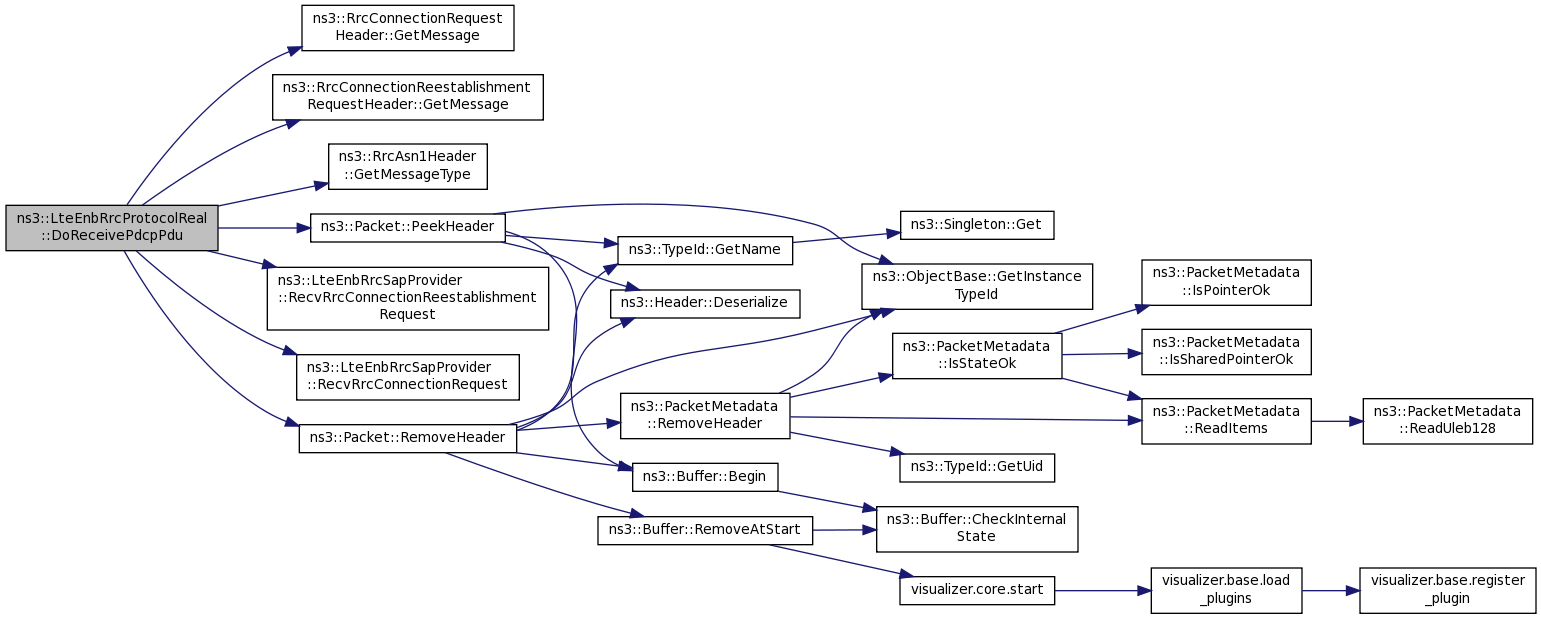

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

void ns3::LteEnbRrcProtocolReal::DoReceivePdcpSdu ( LtePdcpSapUser::ReceivePdcpSduParameters  params)
private

Definition at line 725 of file lte-rrc-protocol-real.cc.

References ns3::RrcConnectionSetupCompleteHeader::GetMessage(), ns3::RrcConnectionReconfigurationCompleteHeader::GetMessage(), ns3::RrcConnectionReestablishmentCompleteHeader::GetMessage(), ns3::MeasurementReportHeader::GetMessage(), ns3::RrcAsn1Header::GetMessageType(), m_enbRrcSapProvider, ns3::LtePdcpSapUser::ReceivePdcpSduParameters::pdcpSdu, ns3::Packet::PeekHeader(), ns3::LteEnbRrcSapProvider::RecvMeasurementReport(), ns3::LteEnbRrcSapProvider::RecvRrcConnectionReconfigurationCompleted(), ns3::LteEnbRrcSapProvider::RecvRrcConnectionReestablishmentComplete(), ns3::LteEnbRrcSapProvider::RecvRrcConnectionSetupCompleted(), ns3::Packet::RemoveHeader(), and ns3::LtePdcpSapUser::ReceivePdcpSduParameters::rnti.

+ Here is the call graph for this function:

void ns3::LteEnbRrcProtocolReal::DoRemoveUe ( uint16_t  rnti)
private

Definition at line 492 of file lte-rrc-protocol-real.cc.

References m_completeSetupUeParametersMap, m_enbRrcSapProviderMap, m_setupUeParametersMap, NS_ASSERT, and NS_LOG_FUNCTION.

void ns3::LteEnbRrcProtocolReal::DoSendMasterInformationBlock ( LteRrcSap::MasterInformationBlock  msg)
private

Definition at line 506 of file lte-rrc-protocol-real.cc.

References m_enbRrcSapProviderMap, NS_LOG_FUNCTION, ns3::LteUeRrcSapProvider::RecvMasterInformationBlock(), ns3::RRC_REAL_MSG_DELAY, and ns3::Simulator::Schedule().

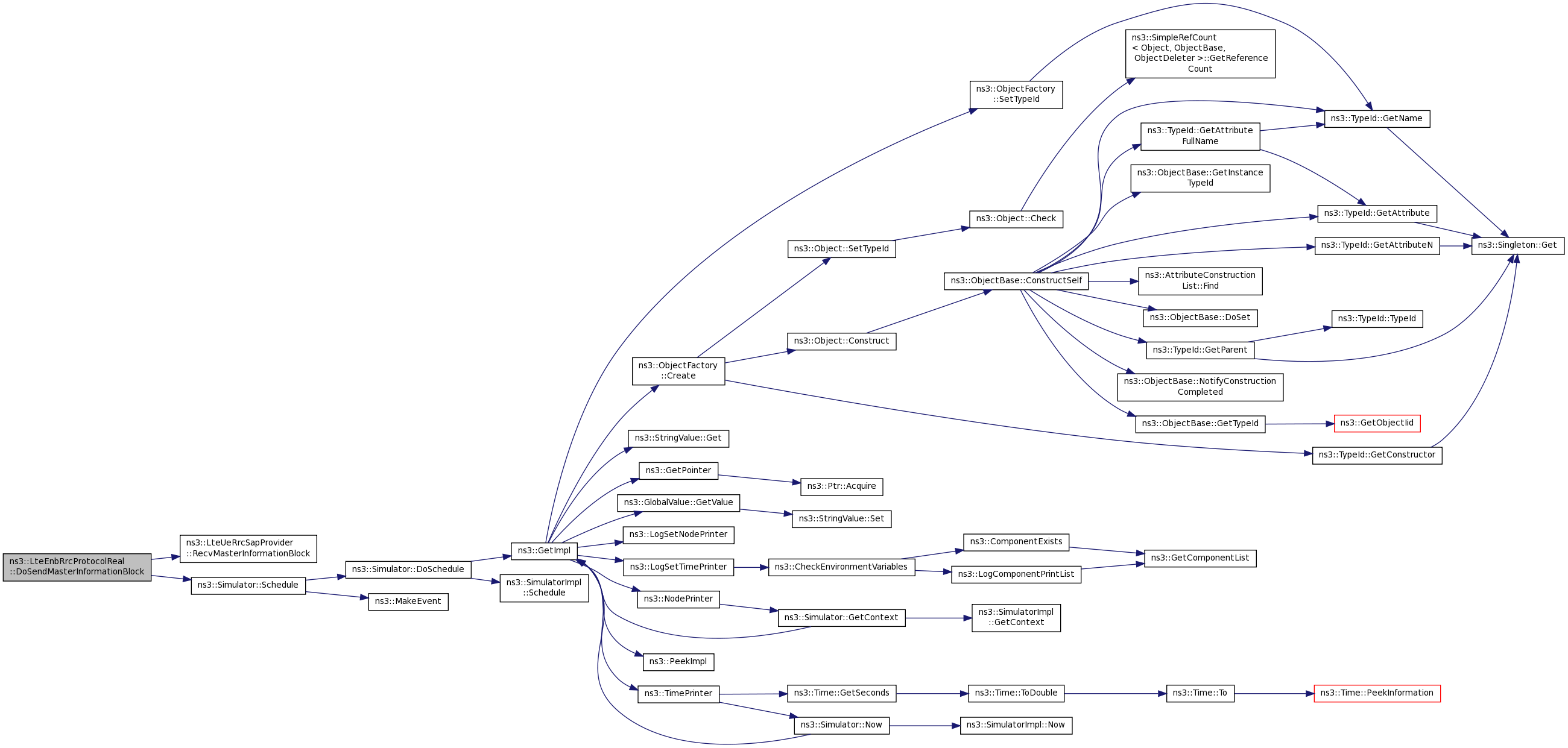

+ Here is the call graph for this function:

void ns3::LteEnbRrcProtocolReal::DoSendRrcConnectionReconfiguration ( uint16_t  rnti,
LteRrcSap::RrcConnectionReconfiguration  msg
)
private

Definition at line 624 of file lte-rrc-protocol-real.cc.

References ns3::Packet::AddHeader(), ns3::LtePdcpSapProvider::TransmitPdcpSduParameters::lcid, m_setupUeParametersMap, ns3::LtePdcpSapProvider::TransmitPdcpSduParameters::pdcpSdu, ns3::LtePdcpSapProvider::TransmitPdcpSduParameters::rnti, and ns3::RrcConnectionReconfigurationHeader::SetMessage().

+ Here is the call graph for this function:

void ns3::LteEnbRrcProtocolReal::DoSendRrcConnectionReestablishment ( uint16_t  rnti,
LteRrcSap::RrcConnectionReestablishment  msg
)
private

Definition at line 642 of file lte-rrc-protocol-real.cc.

References ns3::Packet::AddHeader(), ns3::LteRlcSapProvider::TransmitPdcpPduParameters::lcid, m_setupUeParametersMap, ns3::LteRlcSapProvider::TransmitPdcpPduParameters::pdcpPdu, ns3::LteRlcSapProvider::TransmitPdcpPduParameters::rnti, and ns3::RrcConnectionReestablishmentHeader::SetMessage().

+ Here is the call graph for this function:

void ns3::LteEnbRrcProtocolReal::DoSendRrcConnectionReestablishmentReject ( uint16_t  rnti,
LteRrcSap::RrcConnectionReestablishmentReject  msg
)
private

Definition at line 660 of file lte-rrc-protocol-real.cc.

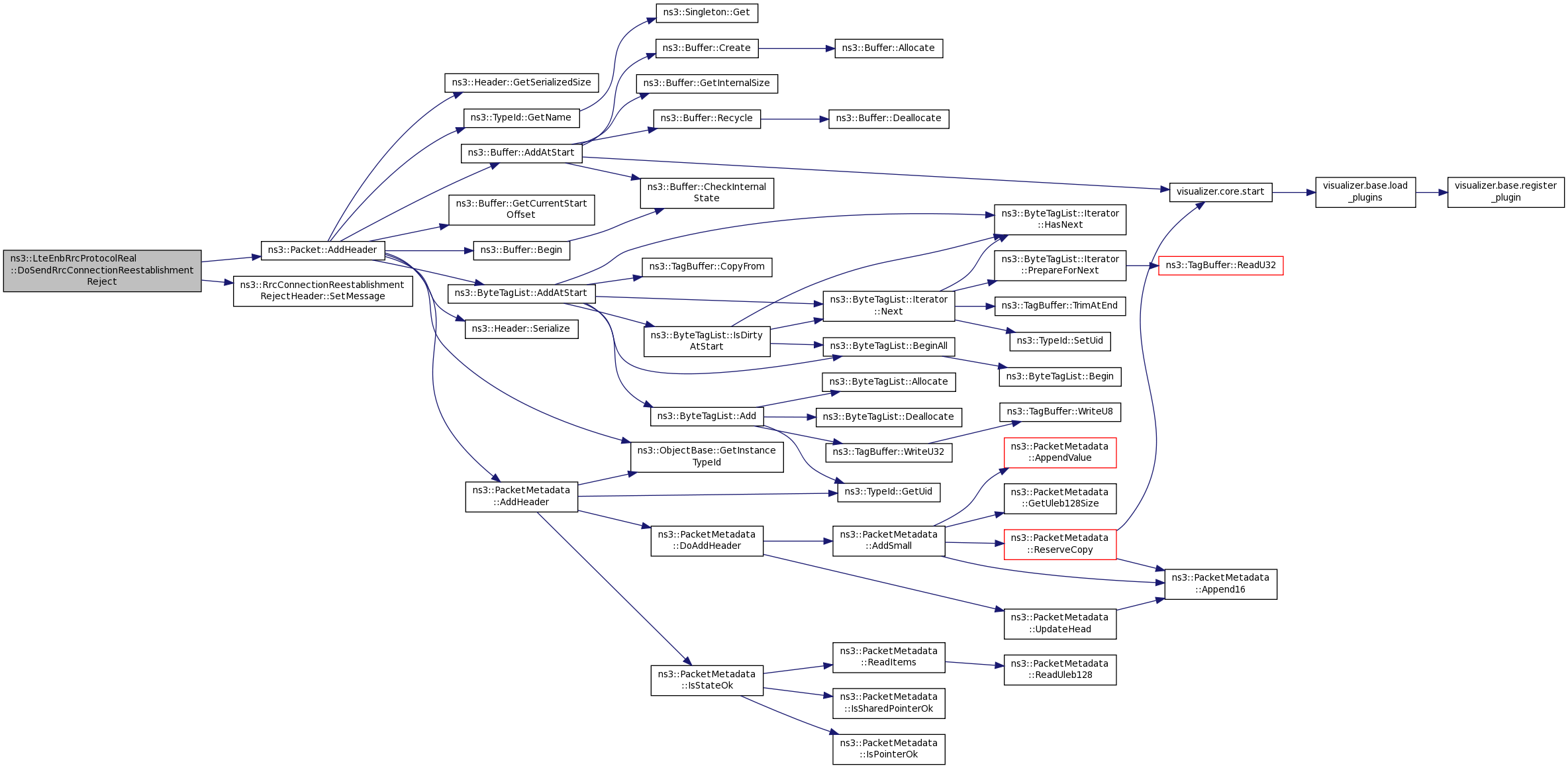

References ns3::Packet::AddHeader(), ns3::LteRlcSapProvider::TransmitPdcpPduParameters::lcid, m_setupUeParametersMap, ns3::LteRlcSapProvider::TransmitPdcpPduParameters::pdcpPdu, ns3::LteRlcSapProvider::TransmitPdcpPduParameters::rnti, and ns3::RrcConnectionReestablishmentRejectHeader::SetMessage().

+ Here is the call graph for this function:

void ns3::LteEnbRrcProtocolReal::DoSendRrcConnectionReject ( uint16_t  rnti,
LteRrcSap::RrcConnectionReject  msg
)
private

Definition at line 606 of file lte-rrc-protocol-real.cc.

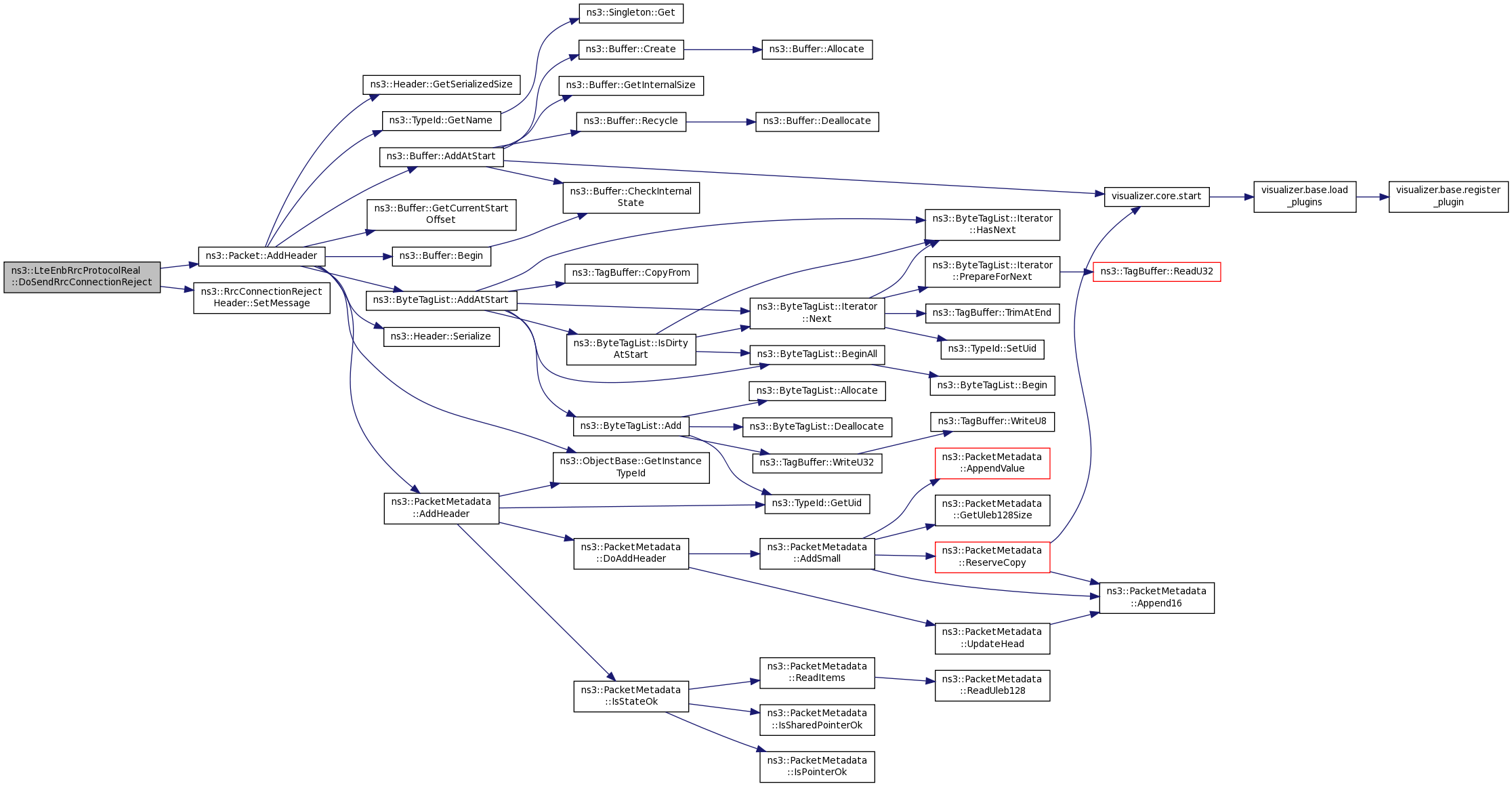

References ns3::Packet::AddHeader(), ns3::LteRlcSapProvider::TransmitPdcpPduParameters::lcid, m_setupUeParametersMap, ns3::LteRlcSapProvider::TransmitPdcpPduParameters::pdcpPdu, ns3::LteRlcSapProvider::TransmitPdcpPduParameters::rnti, and ns3::RrcConnectionRejectHeader::SetMessage().

+ Here is the call graph for this function:

void ns3::LteEnbRrcProtocolReal::DoSendRrcConnectionRelease ( uint16_t  rnti,
LteRrcSap::RrcConnectionRelease  msg
)
private

Definition at line 678 of file lte-rrc-protocol-real.cc.

References ns3::Packet::AddHeader(), ns3::LtePdcpSapProvider::TransmitPdcpSduParameters::lcid, m_setupUeParametersMap, ns3::LtePdcpSapProvider::TransmitPdcpSduParameters::pdcpSdu, ns3::LtePdcpSapProvider::TransmitPdcpSduParameters::rnti, and ns3::RrcConnectionReleaseHeader::SetMessage().

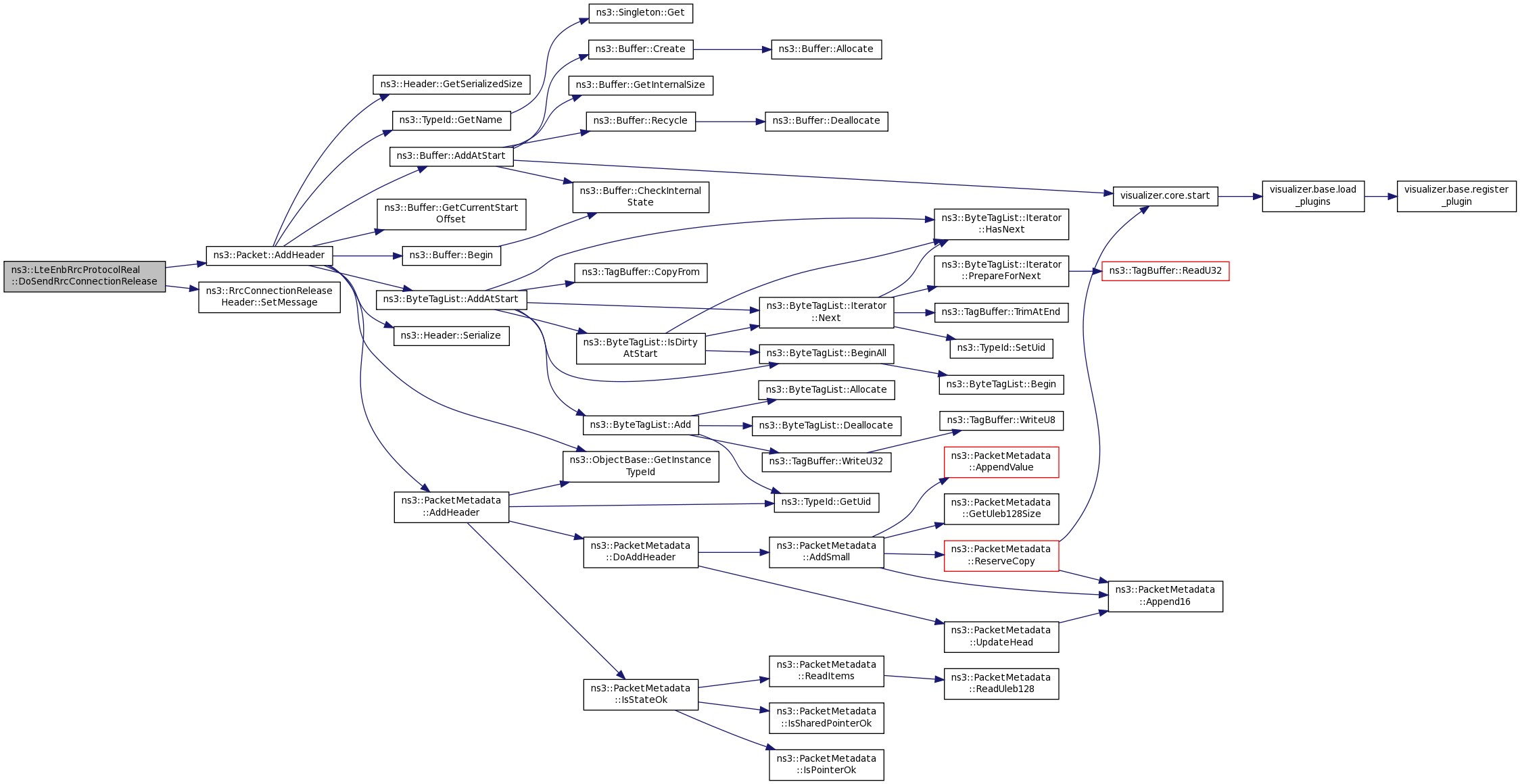

+ Here is the call graph for this function:

void ns3::LteEnbRrcProtocolReal::DoSendRrcConnectionSetup ( uint16_t  rnti,
LteRrcSap::RrcConnectionSetup  msg
)
private

Definition at line 581 of file lte-rrc-protocol-real.cc.

References ns3::Packet::AddHeader(), ns3::LteRlcSapProvider::TransmitPdcpPduParameters::lcid, m_setupUeParametersMap, ns3::LteRlcSapProvider::TransmitPdcpPduParameters::pdcpPdu, ns3::LteRlcSapProvider::TransmitPdcpPduParameters::rnti, and ns3::RrcConnectionSetupHeader::SetMessage().

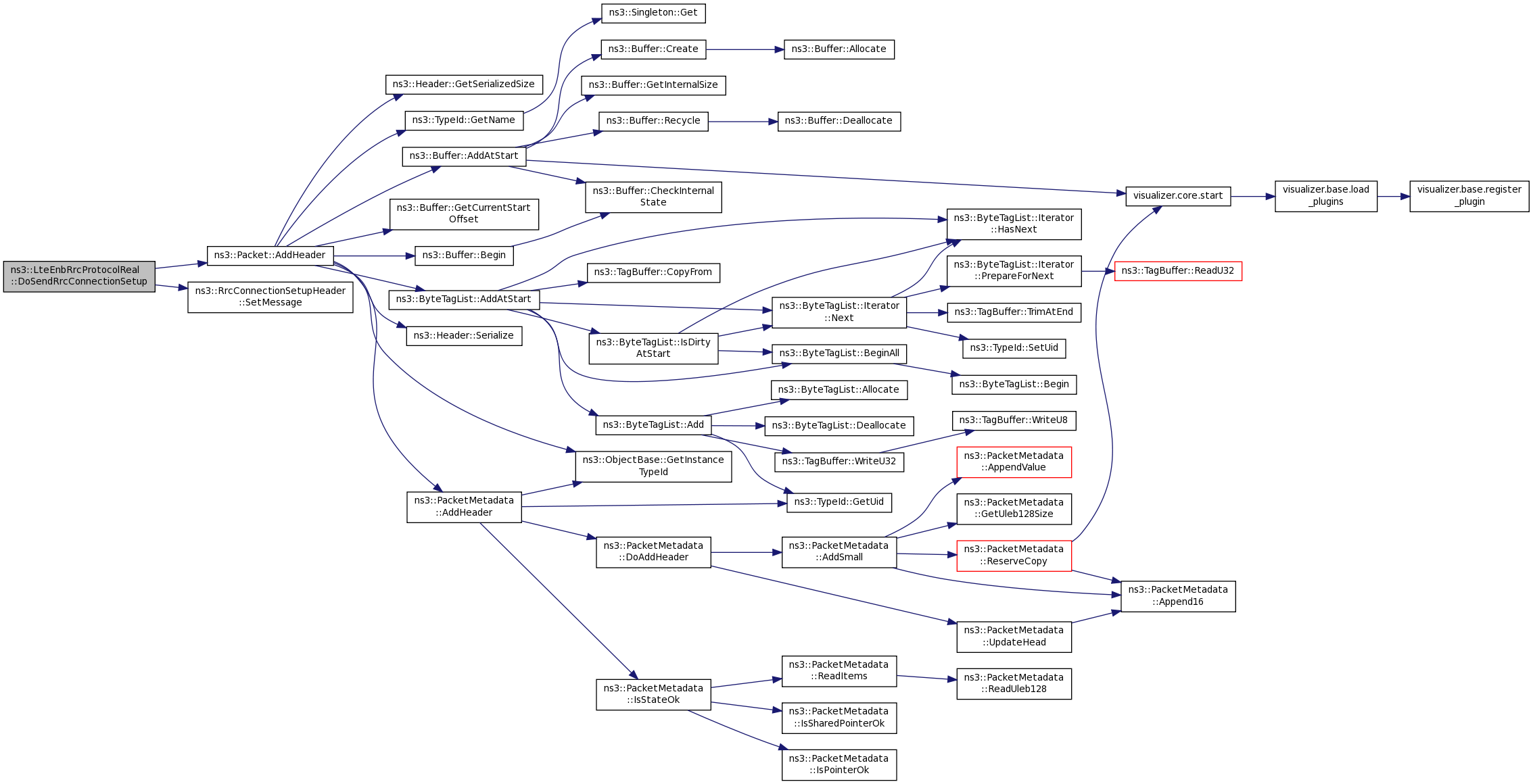

+ Here is the call graph for this function:

void ns3::LteEnbRrcProtocolReal::DoSendSystemInformation ( LteRrcSap::SystemInformation  msg)
private

Definition at line 550 of file lte-rrc-protocol-real.cc.

References ns3::NodeList::Begin(), ns3::NodeList::End(), ns3::Node::GetDevice(), ns3::Node::GetNDevices(), m_cellId, NS_LOG_FUNCTION, NS_LOG_LOGIC, ns3::LteUeRrcSapProvider::RecvSystemInformation(), ns3::RRC_REAL_MSG_DELAY, and ns3::Simulator::Schedule().

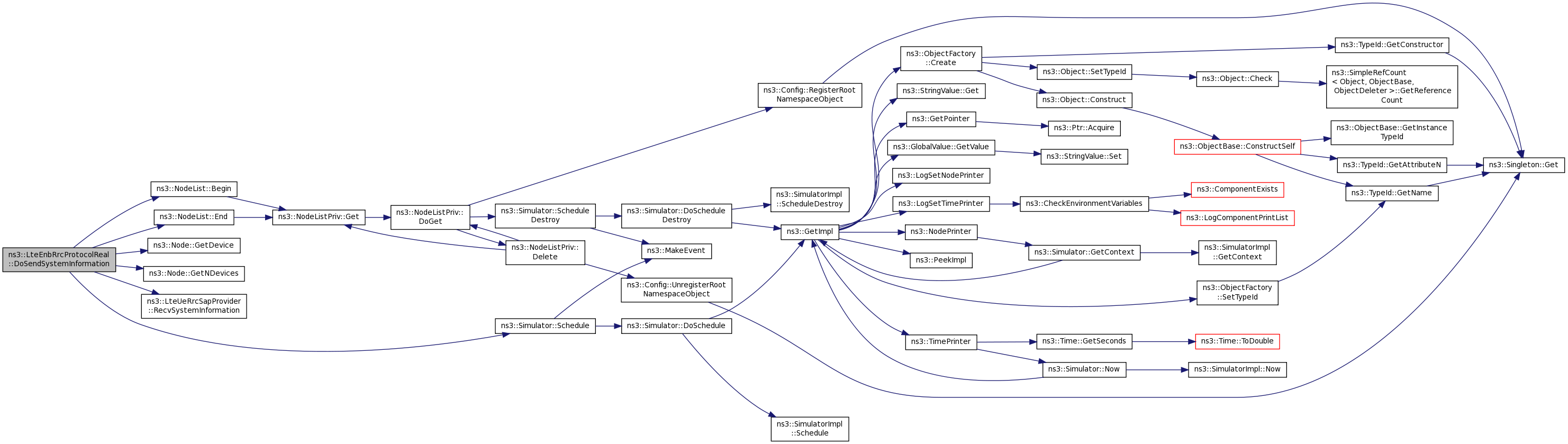

+ Here is the call graph for this function:

void ns3::LteEnbRrcProtocolReal::DoSendSystemInformationBlockType1 ( LteRrcSap::SystemInformationBlockType1  msg)
private

Definition at line 521 of file lte-rrc-protocol-real.cc.

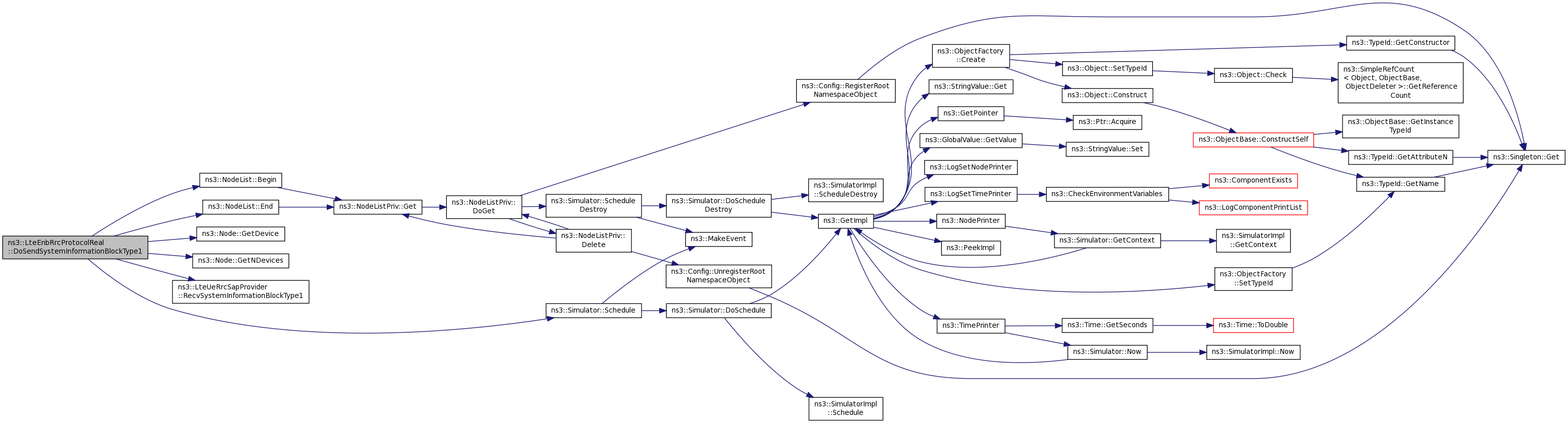

References ns3::NodeList::Begin(), ns3::NodeList::End(), ns3::Node::GetDevice(), ns3::Node::GetNDevices(), m_cellId, NS_LOG_FUNCTION, NS_LOG_LOGIC, ns3::LteUeRrcSapProvider::RecvSystemInformationBlockType1(), ns3::RRC_REAL_MSG_DELAY, and ns3::Simulator::Schedule().

+ Here is the call graph for this function:

void ns3::LteEnbRrcProtocolReal::DoSetupUe ( uint16_t  rnti,
LteEnbRrcSapUser::SetupUeParameters  params
)
private

Definition at line 430 of file lte-rrc-protocol-real.cc.

References ns3::LteEnbRrcSapProvider::CompleteSetupUe(), m_completeSetupUeParametersMap, m_enbRrcSapProvider, m_enbRrcSapProviderMap, m_setupUeParametersMap, NS_LOG_FUNCTION, RealProtocolRlcSapUser, ns3::LteEnbRrcSapProvider::CompleteSetupUeParameters::srb0SapUser, and ns3::LteEnbRrcSapProvider::CompleteSetupUeParameters::srb1SapUser.

+ Here is the call graph for this function:

LteEnbRrcSapUser * ns3::LteEnbRrcProtocolReal::GetLteEnbRrcSapUser ( )

Definition at line 400 of file lte-rrc-protocol-real.cc.

References m_enbRrcSapUser.

TypeId ns3::LteEnbRrcProtocolReal::GetTypeId ( void  )
static

Definition at line 384 of file lte-rrc-protocol-real.cc.

References ns3::TypeId::SetParent().

+ Here is the call graph for this function:

LteUeRrcSapProvider * ns3::LteEnbRrcProtocolReal::GetUeRrcSapProvider ( uint16_t  rnti)

Definition at line 412 of file lte-rrc-protocol-real.cc.

References m_enbRrcSapProviderMap, and NS_ASSERT_MSG.

void ns3::LteEnbRrcProtocolReal::SendSystemInformation ( LteRrcSap::SystemInformation  msg)
private
void ns3::LteEnbRrcProtocolReal::SetCellId ( uint16_t  cellId)

Definition at line 406 of file lte-rrc-protocol-real.cc.

References m_cellId.

void ns3::LteEnbRrcProtocolReal::SetLteEnbRrcSapProvider ( LteEnbRrcSapProvider *  p)

Definition at line 394 of file lte-rrc-protocol-real.cc.

References m_enbRrcSapProvider.

void ns3::LteEnbRrcProtocolReal::SetUeRrcSapProvider ( uint16_t  rnti,
LteUeRrcSapProvider *  p
)

Definition at line 421 of file lte-rrc-protocol-real.cc.

References m_enbRrcSapProviderMap, and NS_ASSERT_MSG.

Friends And Related Function Documentation

friend class LtePdcpSpecificLtePdcpSapUser< LteEnbRrcProtocolReal >
friend

Definition at line 107 of file lte-rrc-protocol-real.h.

friend class LteRlcSpecificLteRlcSapUser< LteEnbRrcProtocolReal >
friend

Definition at line 108 of file lte-rrc-protocol-real.h.

friend class MemberLteEnbRrcSapUser< LteEnbRrcProtocolReal >
friend

Definition at line 106 of file lte-rrc-protocol-real.h.

friend class RealProtocolRlcSapUser
friend

Definition at line 109 of file lte-rrc-protocol-real.h.

Referenced by DoSetupUe().

Member Data Documentation

uint16_t ns3::LteEnbRrcProtocolReal::m_cellId
private

Definition at line 150 of file lte-rrc-protocol-real.h.

Referenced by DoSendSystemInformation(), DoSendSystemInformationBlockType1(), and SetCellId().

std::map<uint16_t, LteEnbRrcSapProvider::CompleteSetupUeParameters> ns3::LteEnbRrcProtocolReal::m_completeSetupUeParametersMap
private

Definition at line 155 of file lte-rrc-protocol-real.h.

Referenced by DoDispose(), DoRemoveUe(), and DoSetupUe().

LteEnbRrcSapProvider* ns3::LteEnbRrcProtocolReal::m_enbRrcSapProvider
private

Definition at line 151 of file lte-rrc-protocol-real.h.

Referenced by DoReceivePdcpPdu(), DoReceivePdcpSdu(), DoSetupUe(), and SetLteEnbRrcSapProvider().

std::map<uint16_t, LteUeRrcSapProvider*> ns3::LteEnbRrcProtocolReal::m_enbRrcSapProviderMap
private

Definition at line 153 of file lte-rrc-protocol-real.h.

Referenced by DoRemoveUe(), DoSendMasterInformationBlock(), DoSetupUe(), GetUeRrcSapProvider(), and SetUeRrcSapProvider().

LteEnbRrcSapUser* ns3::LteEnbRrcProtocolReal::m_enbRrcSapUser
private

Definition at line 152 of file lte-rrc-protocol-real.h.

Referenced by DoDispose(), GetLteEnbRrcSapUser(), and LteEnbRrcProtocolReal().

uint16_t ns3::LteEnbRrcProtocolReal::m_rnti
private

Definition at line 149 of file lte-rrc-protocol-real.h.

std::map<uint16_t, LteEnbRrcSapUser::SetupUeParameters> ns3::LteEnbRrcProtocolReal::m_setupUeParametersMap
private

Definition at line 154 of file lte-rrc-protocol-real.h.

Referenced by DoRemoveUe(), DoSendRrcConnectionReconfiguration(), DoSendRrcConnectionReestablishment(), DoSendRrcConnectionReestablishmentReject(), DoSendRrcConnectionReject(), DoSendRrcConnectionRelease(), DoSendRrcConnectionSetup(), and DoSetupUe().

The documentation for this class was generated from the following files:
