#include <mpi-interface.h>

Collaboration diagram for ns3::MpiInterface:

Static Public Member Functions
static void	Destroy ()

static void	Disable ()

static void	Enable (int pargc, char **pargv)

static uint32_t	GetRxCount ()

static uint32_t	GetSize ()

static uint32_t	GetSystemId ()

static uint32_t	GetTxCount ()

static bool	IsEnabled ()

static void	ReceiveMessages ()

static void	SendPacket (Ptr< Packet > p, const Time &rxTime, uint32_t node, uint32_t dev)

static void	TestSendComplete ()

Static Private Attributes
static bool	m_enabled = false

static bool	m_initialized = false

static std::list< SentBuffer >	m_pendingTx

static char **	m_pRxBuffers

static MPI_Request *	m_requests

static uint32_t	m_rxCount = 0

static uint32_t	m_sid = 0

static uint32_t	m_size = 1

static uint32_t	m_txCount = 0

Detailed Description

Interface between ns-3 and MPI

Definition at line 89 of file mpi-interface.h.

Member Function Documentation

void ns3::MpiInterface::Destroy ( void )

static

Delete all buffers

Definition at line 87 of file mpi-interface.cc.

References GetSize(), m_pendingTx, m_pRxBuffers, and m_requests.

Referenced by ns3::DistributedSimulatorImpl::Destroy().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::MpiInterface::Disable ( )

static

Terminates the MPI environment by calling MPI_Finalize This function must be called after Destroy () It also resets m_initialized, m_enabled

Definition at line 288 of file mpi-interface.cc.

References m_enabled, m_initialized, and NS_FATAL_ERROR.

Referenced by main().

Here is the caller graph for this function:

void ns3::MpiInterface::Enable	(	int *	pargc,
		char ***	pargv
	)

static

Parameters

pargc	number of command line arguments
pargv	command line arguments

Sets up MPI interface

Definition at line 147 of file mpi-interface.cc.

References GetSize(), m_enabled, m_initialized, m_pRxBuffers, m_requests, m_sid, m_size, ns3::MAX_MPI_MSG_SIZE, and NS_FATAL_ERROR.

Referenced by main().

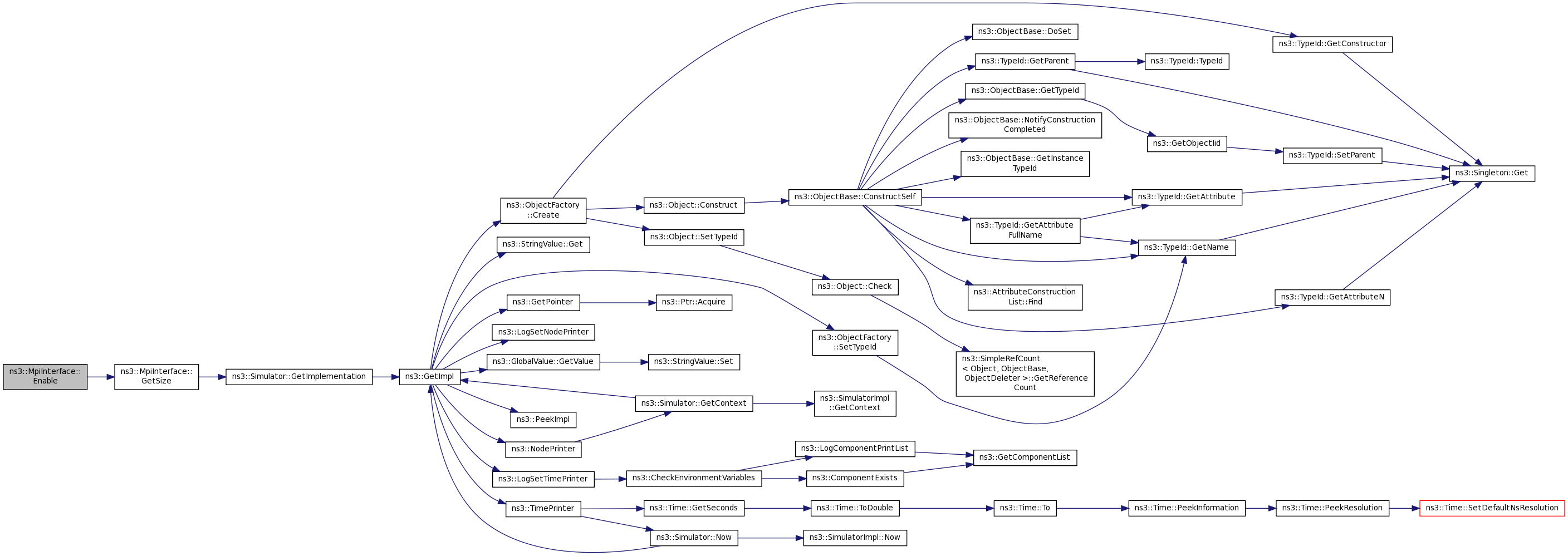

Here is the call graph for this function:

Here is the caller graph for this function:

uint32_t ns3::MpiInterface::GetRxCount ( )

static

Returns: received count in packets

Definition at line 102 of file mpi-interface.cc.

References m_rxCount.

Referenced by ns3::DistributedSimulatorImpl::Run().

Here is the caller graph for this function:

uint32_t ns3::MpiInterface::GetSize ( )

static

Returns: MPI size (number of systems)

Definition at line 125 of file mpi-interface.cc.

References ns3::Simulator::GetImplementation(), m_initialized, and m_size.

Referenced by ns3::DistributedSimulatorImpl::CalculateLookAhead(), Destroy(), ns3::DistributedSimulatorImpl::DistributedSimulatorImpl(), Enable(), main(), and ReceiveMessages().

Here is the call graph for this function:

Here is the caller graph for this function:

uint32_t ns3::MpiInterface::GetSystemId ( void )

static

Returns: MPI rank

Definition at line 114 of file mpi-interface.cc.

References ns3::Simulator::GetImplementation(), m_initialized, and m_sid.

Referenced by ns3::DistributedSimulatorImpl::CalculateLookAhead(), ns3::DistributedSimulatorImpl::DistributedSimulatorImpl(), ns3::GlobalRouteManagerImpl::InitializeRoutes(), ns3::PointToPointHelper::Install(), and main().

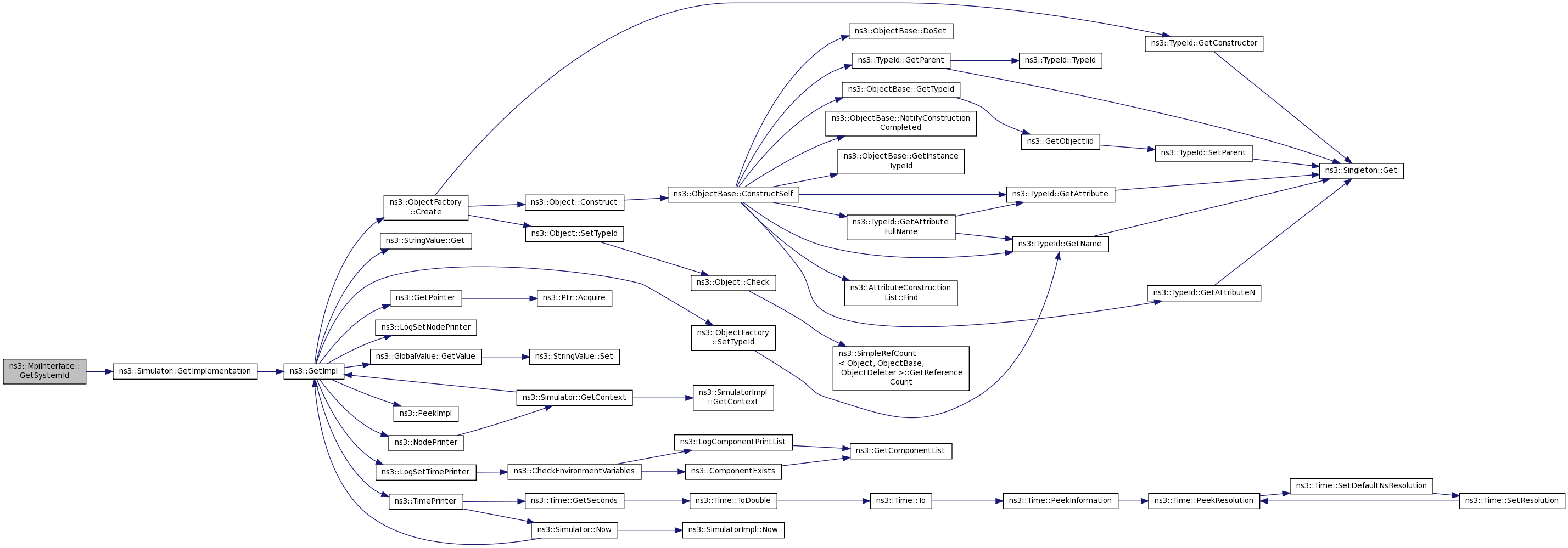

Here is the call graph for this function:

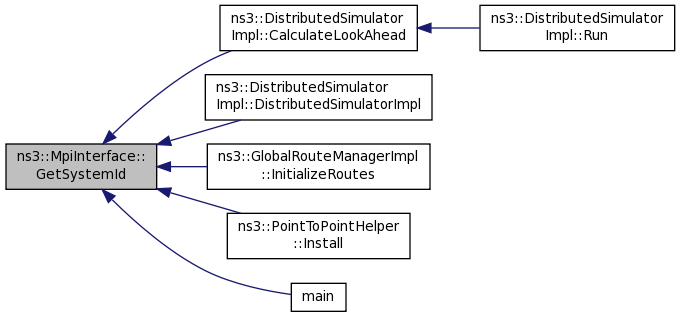

Here is the caller graph for this function:

uint32_t ns3::MpiInterface::GetTxCount ( )

static

Returns: transmitted count in packets

Definition at line 108 of file mpi-interface.cc.

References m_txCount.

Referenced by ns3::DistributedSimulatorImpl::Run().

Here is the caller graph for this function:

bool ns3::MpiInterface::IsEnabled ( )

static

Returns: true if using MPI

Definition at line 136 of file mpi-interface.cc.

References ns3::Simulator::GetImplementation(), m_enabled, and m_initialized.

Referenced by ns3::PointToPointHelper::Install().

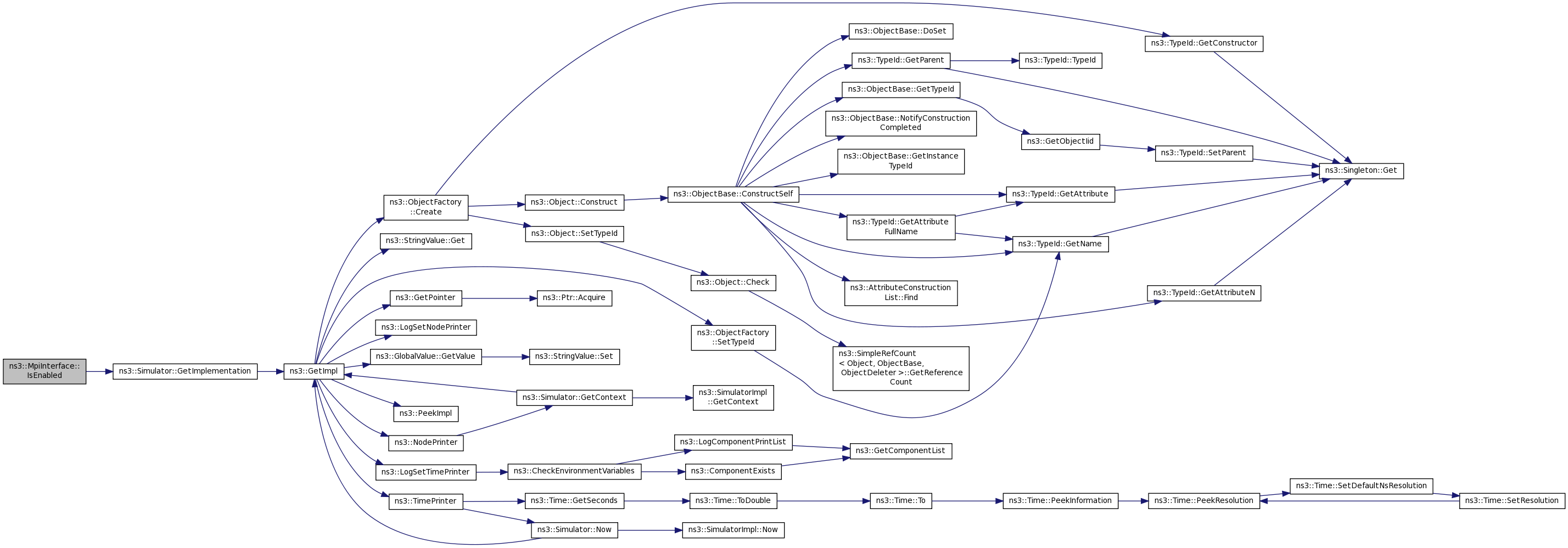

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::MpiInterface::ReceiveMessages ( )

static

Check for received messages complete

Definition at line 205 of file mpi-interface.cc.

References ns3::Node::GetDevice(), ns3::Node::GetId(), ns3::Node::GetNDevices(), ns3::NodeList::GetNode(), GetSize(), m_pRxBuffers, m_requests, m_rxCount, ns3::MAX_MPI_MSG_SIZE, ns3::Simulator::Now(), NS_ASSERT, NS_FATAL_ERROR, ns3::MpiReceiver::Receive(), and ns3::Simulator::ScheduleWithContext().

Referenced by ns3::DistributedSimulatorImpl::Run().

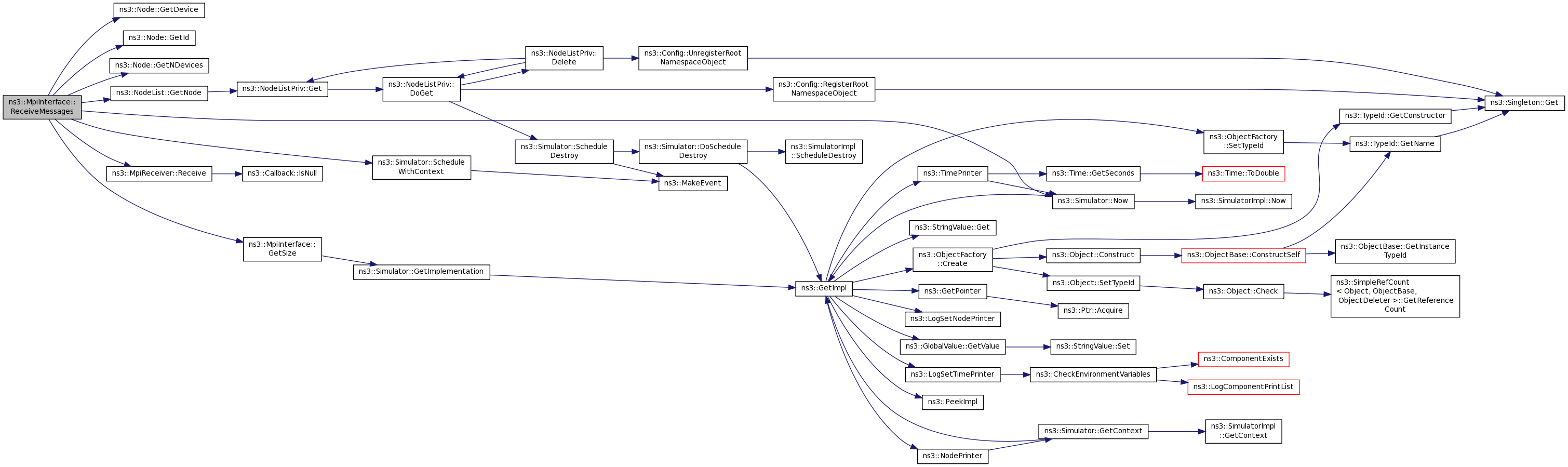

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::MpiInterface::SendPacket	(	Ptr< Packet >	p,
		const Time &	rxTime,
		uint32_t	node,
		uint32_t	dev
	)

static

Parameters

p	packet to send
rxTime	received time at destination node
node	destination node
dev	destination device

Serialize and send a packet to the specified node and net device

Definition at line 172 of file mpi-interface.cc.

References ns3::Time::GetNanoSeconds(), ns3::NodeList::GetNode(), ns3::Packet::GetSerializedSize(), ns3::Node::GetSystemId(), m_pendingTx, m_txCount, NS_FATAL_ERROR, and ns3::Packet::Serialize().

Referenced by ns3::PointToPointRemoteChannel::TransmitStart().

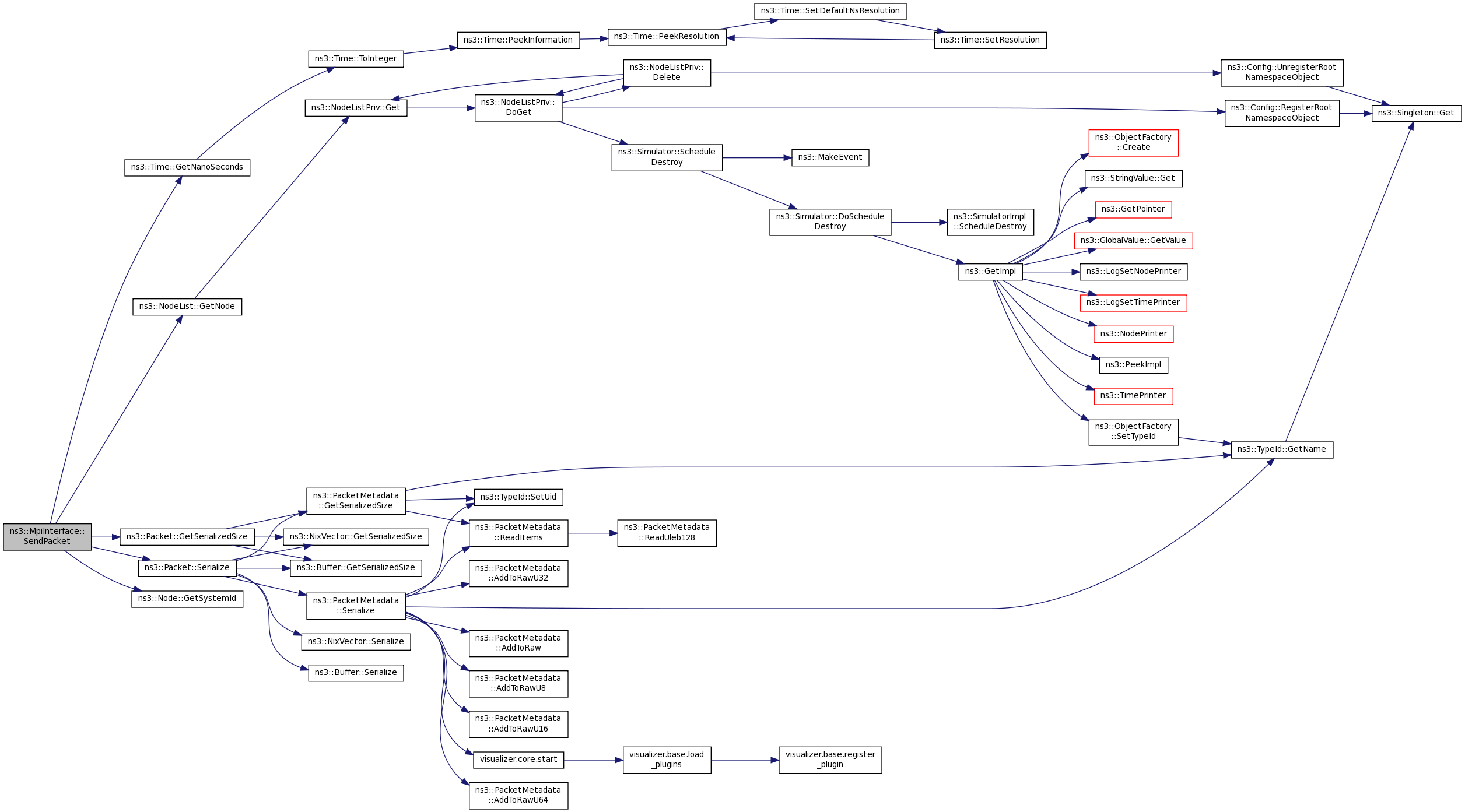

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::MpiInterface::TestSendComplete ( )

static

Check for completed sends

Definition at line 266 of file mpi-interface.cc.

References current, m_pendingTx, and NS_FATAL_ERROR.

Referenced by ns3::DistributedSimulatorImpl::Run().

Here is the caller graph for this function:

Member Data Documentation

bool ns3::MpiInterface::m_enabled = false

staticprivate

Definition at line 157 of file mpi-interface.h.

Referenced by Disable(), Enable(), and IsEnabled().

bool ns3::MpiInterface::m_initialized = false

staticprivate

Definition at line 156 of file mpi-interface.h.

Referenced by Disable(), Enable(), GetSize(), GetSystemId(), and IsEnabled().

std::list< SentBuffer > ns3::MpiInterface::m_pendingTx

staticprivate

Definition at line 166 of file mpi-interface.h.

Referenced by Destroy(), SendPacket(), and TestSendComplete().

char** ns3::MpiInterface::m_pRxBuffers

staticprivate

Definition at line 163 of file mpi-interface.h.

Referenced by Destroy(), Enable(), and ReceiveMessages().

MPI_Request* ns3::MpiInterface::m_requests

staticprivate

Definition at line 160 of file mpi-interface.h.

Referenced by Destroy(), Enable(), and ReceiveMessages().

uint32_t ns3::MpiInterface::m_rxCount = 0

staticprivate

Definition at line 152 of file mpi-interface.h.

Referenced by GetRxCount(), and ReceiveMessages().

uint32_t ns3::MpiInterface::m_sid = 0

staticprivate

Definition at line 148 of file mpi-interface.h.

Referenced by Enable(), and GetSystemId().

uint32_t ns3::MpiInterface::m_size = 1

staticprivate

Definition at line 149 of file mpi-interface.h.

Referenced by Enable(), and GetSize().

uint32_t ns3::MpiInterface::m_txCount = 0

staticprivate

Definition at line 155 of file mpi-interface.h.

Referenced by GetTxCount(), and SendPacket().

The documentation for this class was generated from the following files:

src/mpi/model/mpi-interface.h
src/mpi/model/mpi-interface.cc
