Generate traffic to a single destination according to an OnOff pattern. More...

#include <onoff-application.h>

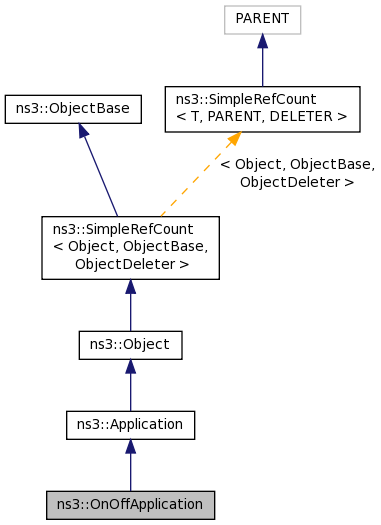

Inheritance diagram for ns3::OnOffApplication:

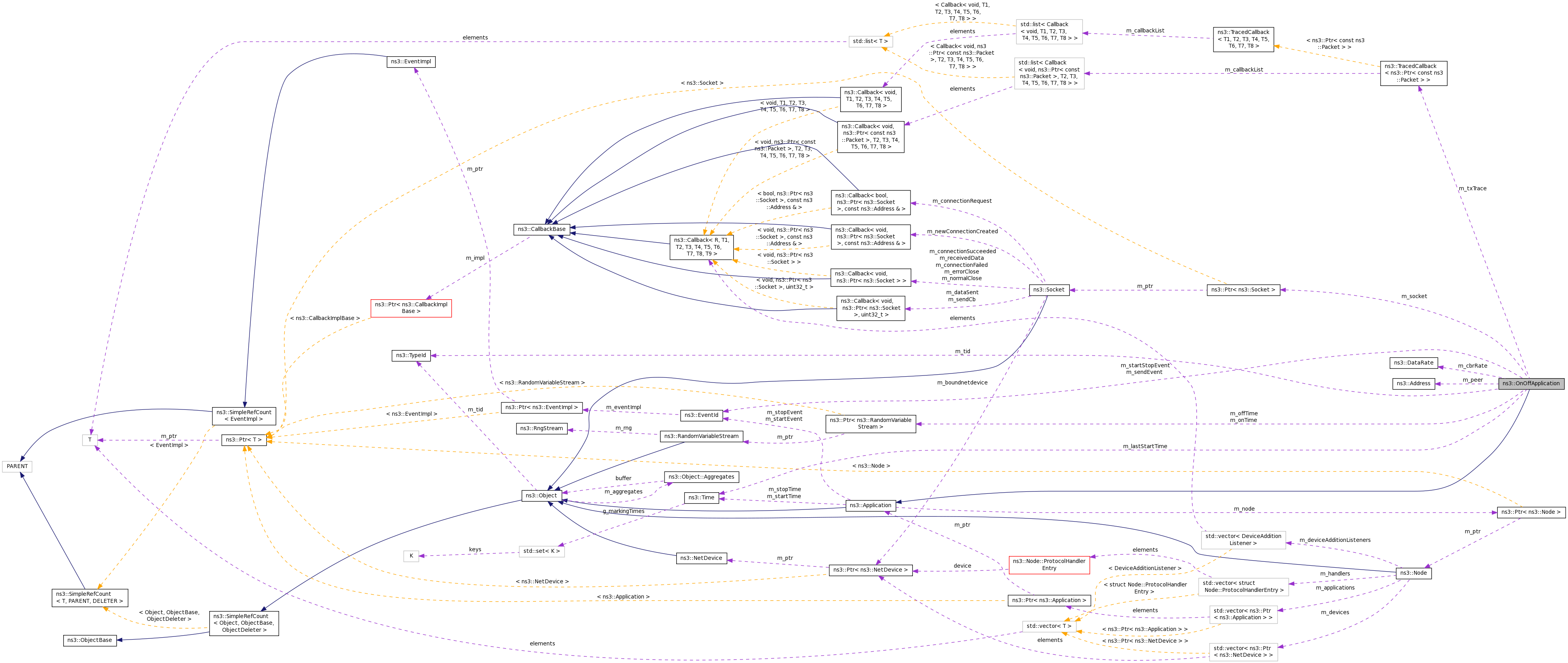

Collaboration diagram for ns3::OnOffApplication:

Public Member Functions
	OnOffApplication ()

virtual	~OnOffApplication ()

int64_t	AssignStreams (int64_t stream)

Ptr< Socket >	GetSocket (void) const

void	SetMaxBytes (uint32_t maxBytes)

Public Member Functions inherited from ns3::Application
	Application ()

virtual	~Application ()

Ptr< Node >	GetNode () const

void	SetNode (Ptr< Node > node)

void	SetStartTime (Time start)
	Specify application start time. More...

void	SetStopTime (Time stop)
	Specify application stop time. More...

Public Member Functions inherited from ns3::Object
	Object ()

virtual	~Object ()

void	AggregateObject (Ptr< Object > other)

void	Dispose (void)

AggregateIterator	GetAggregateIterator (void) const

virtual TypeId	GetInstanceTypeId (void) const

template<typename T >
Ptr< T >	GetObject (void) const

template<typename T >
Ptr< T >	GetObject (TypeId tid) const

void	Initialize (void)

Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()

	SimpleRefCount (const SimpleRefCount &o)

uint32_t	GetReferenceCount (void) const

SimpleRefCount &	operator= (const SimpleRefCount &o)

void	Ref (void) const

void	Unref (void) const

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()

void	GetAttribute (std::string name, AttributeValue &value) const

bool	GetAttributeFailSafe (std::string name, AttributeValue &attribute) const

void	SetAttribute (std::string name, const AttributeValue &value)

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)

Static Public Member Functions
static TypeId	GetTypeId (void)

Static Public Member Functions inherited from ns3::Application
static TypeId	GetTypeId (void)

Static Public Member Functions inherited from ns3::Object
static TypeId	GetTypeId (void)

Static Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
static void	Cleanup (void)

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)

Protected Member Functions
virtual void	DoDispose (void)

Protected Member Functions inherited from ns3::Application
virtual void	DoInitialize (void)

Protected Member Functions inherited from ns3::Object
	Object (const Object &o)

virtual void	NotifyNewAggregate (void)

Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)

virtual void	NotifyConstructionCompleted (void)

Private Member Functions
void	CancelEvents ()

void	ConnectionFailed (Ptr< Socket > socket)

void	ConnectionSucceeded (Ptr< Socket > socket)

void	Construct (Ptr< Node > n, const Address &remote, std::string tid, const RandomVariable &ontime, const RandomVariable &offtime, uint32_t size)

void	ScheduleNextTx ()

void	ScheduleStartEvent ()

void	ScheduleStopEvent ()

void	SendPacket ()

virtual void	StartApplication (void)
	Application specific startup code. More...

void	StartSending ()

virtual void	StopApplication (void)
	Application specific shutdown code. More...

void	StopSending ()

Private Attributes
DataRate	m_cbrRate

bool	m_connected

Time	m_lastStartTime

uint32_t	m_maxBytes

Ptr< RandomVariableStream >	m_offTime

Ptr< RandomVariableStream >	m_onTime

Address	m_peer

uint32_t	m_pktSize

uint32_t	m_residualBits

EventId	m_sendEvent

bool	m_sending

Ptr< Socket >	m_socket

EventId	m_startStopEvent

TypeId	m_tid

uint32_t	m_totBytes

TracedCallback< Ptr< const Packet > >	m_txTrace

Additional Inherited Members
Protected Attributes inherited from ns3::Application
Ptr< Node >	m_node

EventId	m_startEvent

Time	m_startTime

EventId	m_stopEvent

Time	m_stopTime

Detailed Description

Generate traffic to a single destination according to an OnOff pattern.

This traffic generator follows an On/Off pattern: after Application::StartApplication is called, "On" and "Off" states alternate. The duration of each of these states is determined with the onTime and the offTime random variables. During the "Off" state, no traffic is generated. During the "On" state, cbr traffic is generated. This cbr traffic is characterized by the specified "data rate" and "packet size".

Note: When an application is started, the first packet transmission occurs after a delay equal to (packet size/bit rate). Note also, when an application transitions into an off state in between packet transmissions, the remaining time until when the next transmission would have occurred is cached and is used when the application starts up again. Example: packet size = 1000 bits, bit rate = 500 bits/sec. If the application is started at time 3 seconds, the first packet transmission will be scheduled for time 5 seconds (3 + 1000/500) and subsequent transmissions at 2 second intervals. If the above application were instead stopped at time 4 seconds, and restarted at time 5.5 seconds, then the first packet would be sent at time 6.5 seconds, because when it was stopped at 4 seconds, there was only 1 second remaining until the originally scheduled transmission, and this time remaining information is cached and used to schedule the next transmission upon restarting.

If the underlying socket type supports broadcast, this application will automatically enable the SetAllowBroadcast(true) socket option.

Config Paths

ns3::OnOffApplication is accessible through the following paths with Config::Set and Config::Connect:

/NodeList/[i]/ApplicationList/[i]/$ns3::OnOffApplication

Attributes

DataRate: The data rate in on state.
- Set with class: DataRateValue
- Underlying type: DataRate
- Initial value: 500000bps
- Flags: construct write read
PacketSize: The size of packets sent in on state
- Set with class: ns3::UintegerValue
- Underlying type: uint32_t 1:4294967295
- Initial value: 512
- Flags: construct write read
Remote: The address of the destination
- Set with class: AddressValue
- Underlying type: Address
- Initial value: 00-00-00
- Flags: construct write read
OnTime: A RandomVariableStream used to pick the duration of the 'On' state.
- Set with class: ns3::PointerValue
- Underlying type: ns3::Ptr< ns3::RandomVariableStream >
- Initial value: ns3::ConstantRandomVariable[Constant=1.0]
- Flags: construct write read
OffTime: A RandomVariableStream used to pick the duration of the 'Off' state.
- Set with class: ns3::PointerValue
- Underlying type: ns3::Ptr< ns3::RandomVariableStream >
- Initial value: ns3::ConstantRandomVariable[Constant=1.0]
- Flags: construct write read
MaxBytes: The total number of bytes to send. Once these bytes are sent, no packet is sent again, even in on state. The value zero means that there is no limit.
- Set with class: ns3::UintegerValue
- Underlying type: uint32_t 0:4294967295
- Initial value: 0
- Flags: construct write read
Protocol: The type of protocol to use.
- Set with class: TypeIdValue
- Underlying type: TypeId
- Initial value: ns3::UdpSocketFactory
- Flags: construct write read

Attributes defined in parent class ns3::Application

StartTime: Time at which the application will start
- Set with class: ns3::TimeValue
- Underlying type: Time -9223372036854775808.0ns:+9223372036854775807.0ns
- Initial value: +0.0ns
- Flags: construct write read
StopTime: Time at which the application will stop
- Set with class: ns3::TimeValue
- Underlying type: Time -9223372036854775808.0ns:+9223372036854775807.0ns
- Initial value: +0.0ns
- Flags: construct write read

TraceSources

Tx: A new packet is created and is sent

Definition at line 86 of file onoff-application.h.

Constructor & Destructor Documentation

ns3::OnOffApplication::OnOffApplication ( )

Definition at line 95 of file onoff-application.cc.

References NS_LOG_FUNCTION.

ns3::OnOffApplication::~OnOffApplication ( )

virtual

Definition at line 105 of file onoff-application.cc.

References NS_LOG_FUNCTION.

Member Function Documentation

int64_t ns3::OnOffApplication::AssignStreams ( int64_t stream )

Assign a fixed random variable stream number to the random variables used by this model. Return the number of streams (possibly zero) that have been assigned.

Parameters

stream first stream index to use

Returns: the number of stream indices assigned by this model

Definition at line 125 of file onoff-application.cc.

References m_offTime, m_onTime, NS_LOG_FUNCTION, and ns3::RandomVariableStream::SetStream().

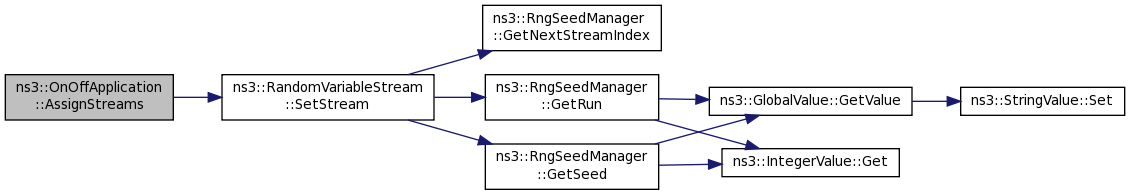

Here is the call graph for this function:

void ns3::OnOffApplication::CancelEvents ( )

private

Definition at line 192 of file onoff-application.cc.

References ns3::Simulator::Cancel(), ns3::DataRate::GetBitRate(), ns3::EventId::IsRunning(), m_cbrRate, m_lastStartTime, m_residualBits, m_sendEvent, m_startStopEvent, ns3::Simulator::Now(), NS_LOG_FUNCTION, ns3::Time::S, and ns3::Time::To().

Referenced by StartApplication(), StopApplication(), and StopSending().

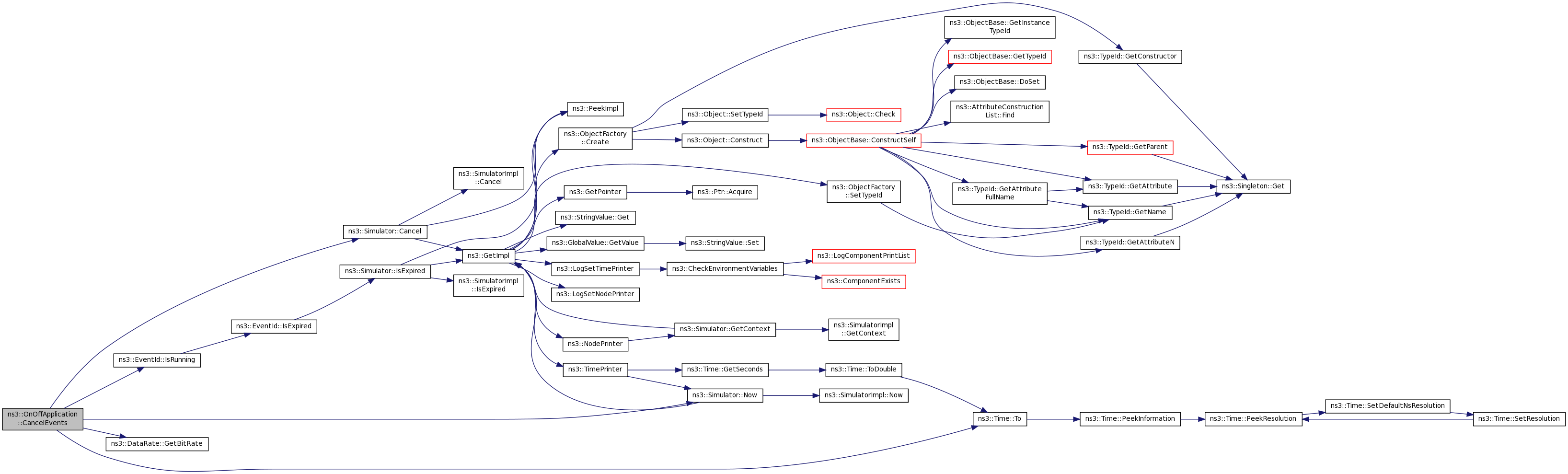

Here is the call graph for this function:

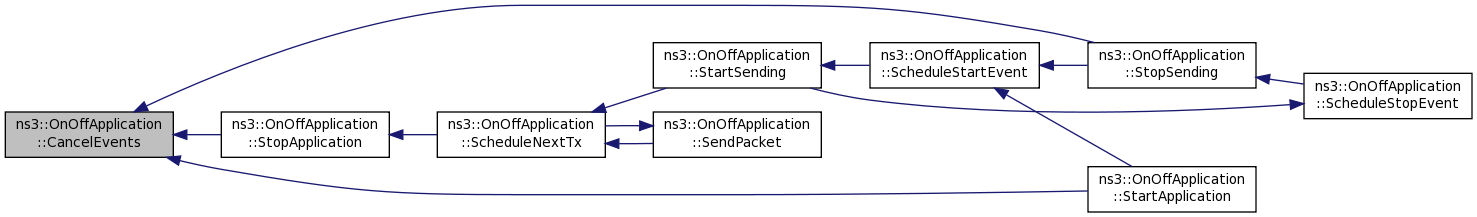

Here is the caller graph for this function:

void ns3::OnOffApplication::ConnectionFailed ( Ptr< Socket > socket )

private

Definition at line 303 of file onoff-application.cc.

References NS_LOG_FUNCTION.

Referenced by StartApplication().

Here is the caller graph for this function:

void ns3::OnOffApplication::ConnectionSucceeded ( Ptr< Socket > socket )

private

Definition at line 297 of file onoff-application.cc.

References m_connected, and NS_LOG_FUNCTION.

Referenced by StartApplication().

Here is the caller graph for this function:

void ns3::OnOffApplication::Construct	(	Ptr< Node >	n,
		const Address &	remote,
		std::string	tid,
		const RandomVariable &	ontime,
		const RandomVariable &	offtime,
		uint32_t	size
	)

private

void ns3::OnOffApplication::DoDispose ( void )

protectedvirtual

This method is called by Object::Dispose or by the object's destructor, whichever comes first.

Subclasses are expected to implement their real destruction code in an overriden version of this method and chain up to their parent's implementation once they are done. i.e., for simplicity, the destructor of every subclass should be empty and its content should be moved to the associated DoDispose method.

It is safe to call GetObject from within this method.

Reimplemented from ns3::Application.

Definition at line 134 of file onoff-application.cc.

References ns3::Application::DoDispose(), m_socket, and NS_LOG_FUNCTION.

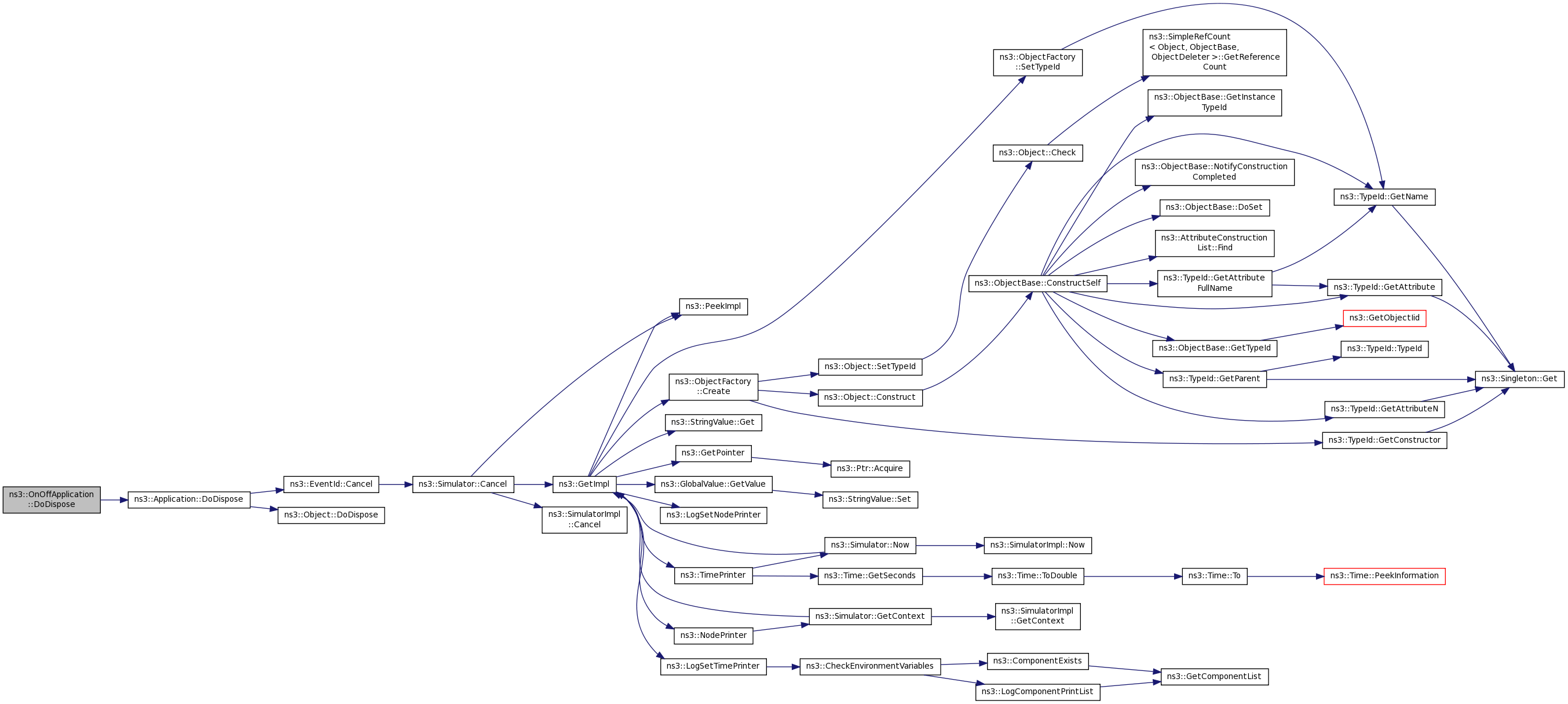

Here is the call graph for this function:

Ptr< Socket > ns3::OnOffApplication::GetSocket ( void ) const

Returns: pointer to associated socket

Definition at line 118 of file onoff-application.cc.

References m_socket, and NS_LOG_FUNCTION.

TypeId ns3::OnOffApplication::GetTypeId ( void )

static

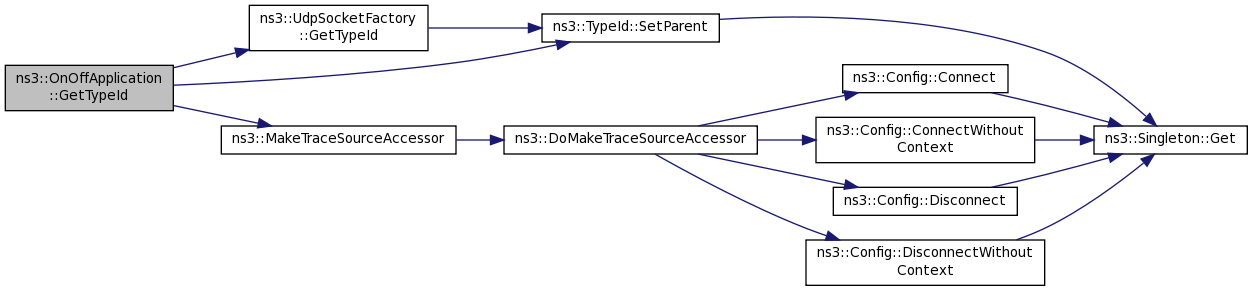

Definition at line 52 of file onoff-application.cc.

References ns3::UdpSocketFactory::GetTypeId(), m_cbrRate, m_maxBytes, m_offTime, m_onTime, m_peer, m_pktSize, m_tid, m_txTrace, ns3::MakeTraceSourceAccessor(), and ns3::TypeId::SetParent().

Here is the call graph for this function:

void ns3::OnOffApplication::ScheduleNextTx ( )

private

Definition at line 225 of file onoff-application.cc.

References ns3::DataRate::GetBitRate(), m_cbrRate, m_maxBytes, m_pktSize, m_residualBits, m_sendEvent, m_totBytes, NS_LOG_FUNCTION, NS_LOG_LOGIC, ns3::Simulator::Schedule(), SendPacket(), and StopApplication().

Referenced by SendPacket(), and StartSending().

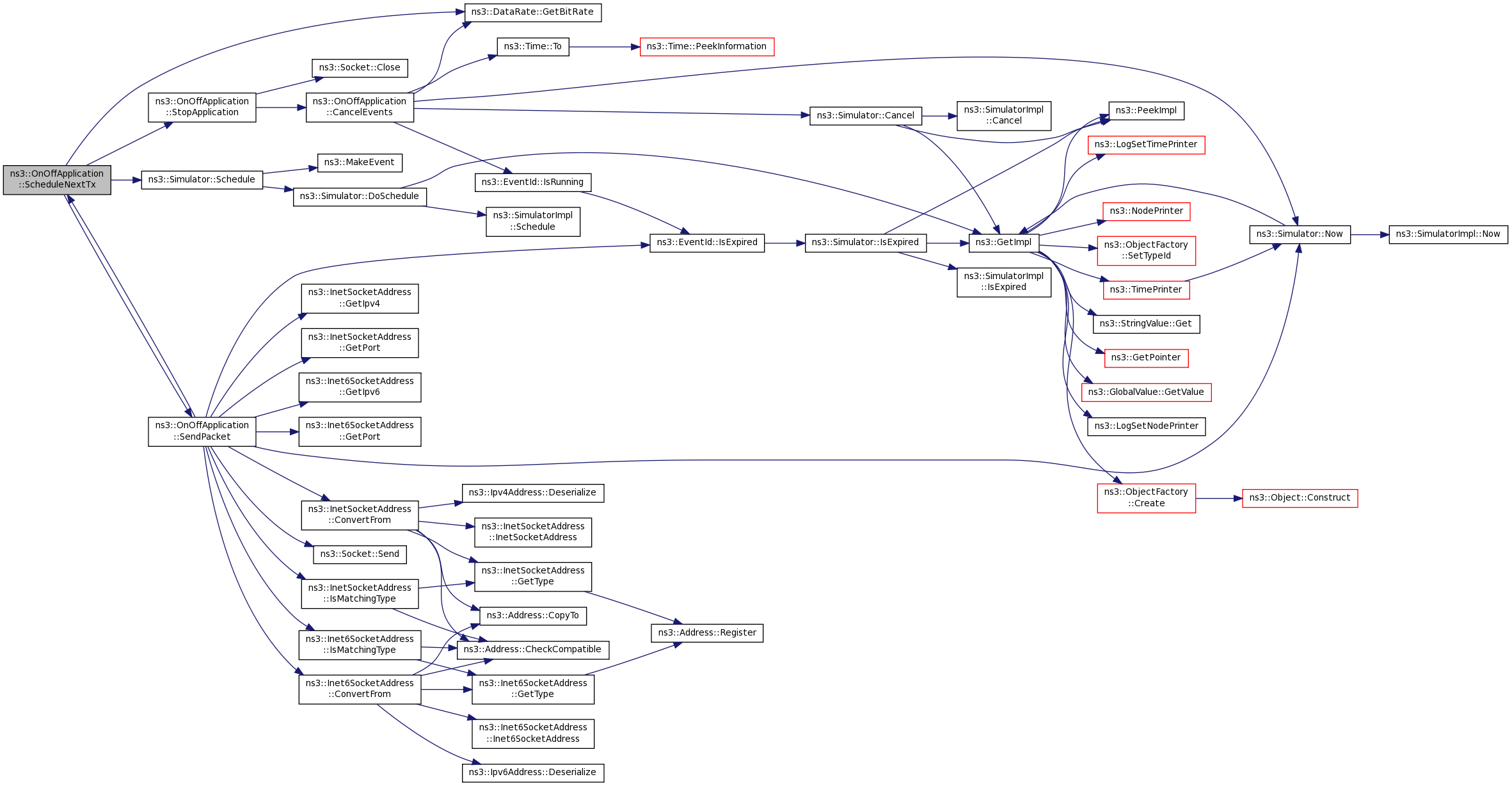

Here is the call graph for this function:

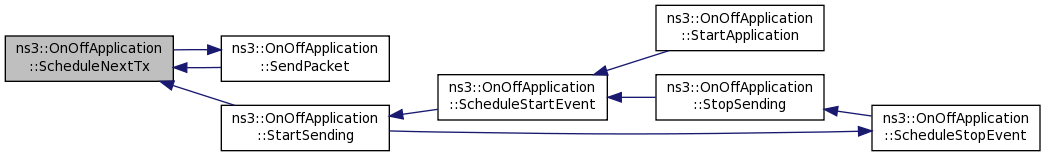

Here is the caller graph for this function:

void ns3::OnOffApplication::ScheduleStartEvent ( )

private

Definition at line 245 of file onoff-application.cc.

References ns3::RandomVariableStream::GetValue(), m_offTime, m_startStopEvent, NS_LOG_FUNCTION, NS_LOG_LOGIC, ns3::Simulator::Schedule(), and StartSending().

Referenced by StartApplication(), and StopSending().

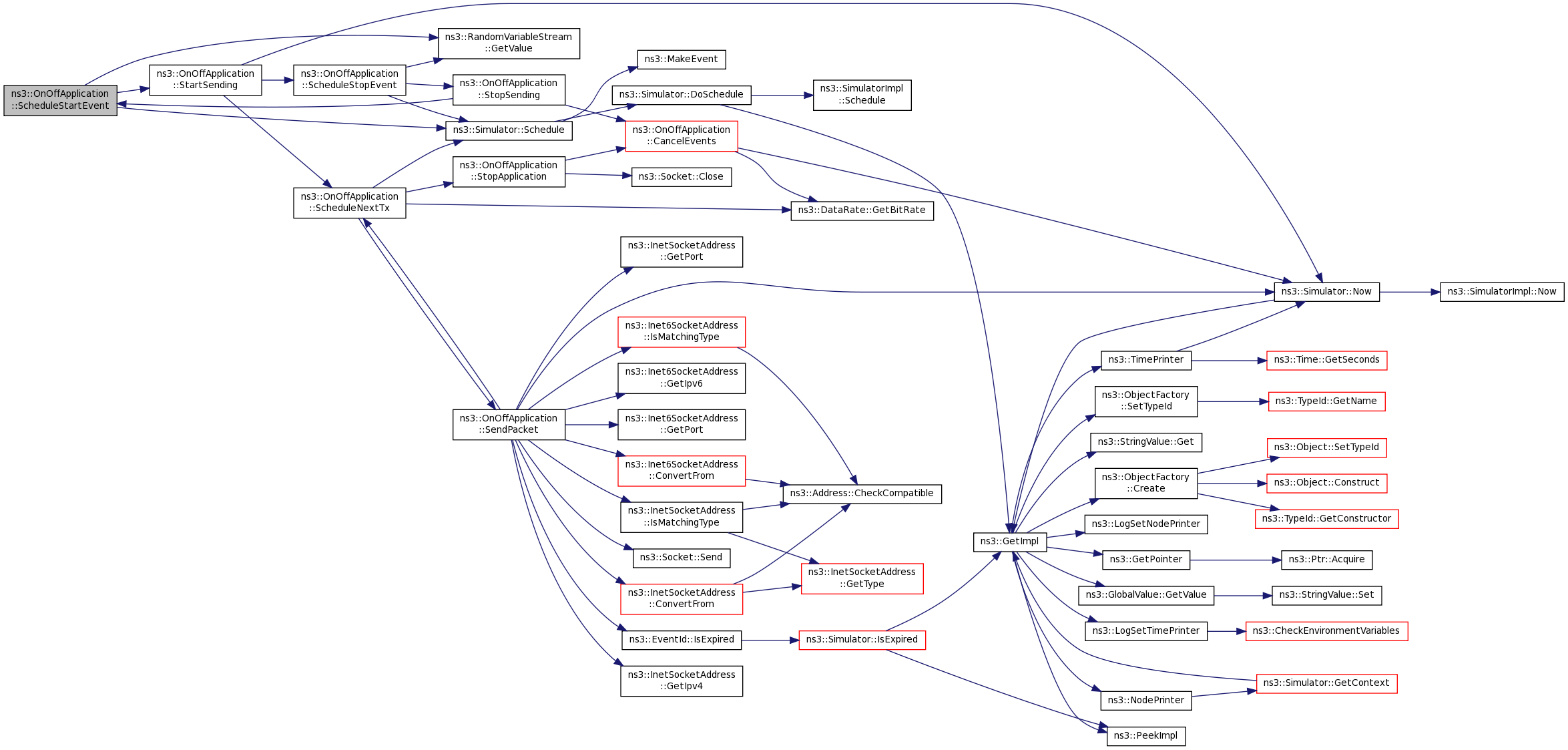

Here is the call graph for this function:

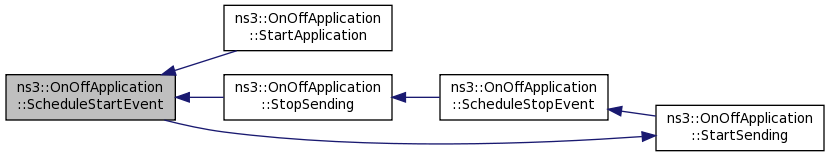

Here is the caller graph for this function:

void ns3::OnOffApplication::ScheduleStopEvent ( )

private

Definition at line 254 of file onoff-application.cc.

References ns3::RandomVariableStream::GetValue(), m_onTime, m_startStopEvent, NS_LOG_FUNCTION, NS_LOG_LOGIC, ns3::Simulator::Schedule(), and StopSending().

Referenced by StartSending().

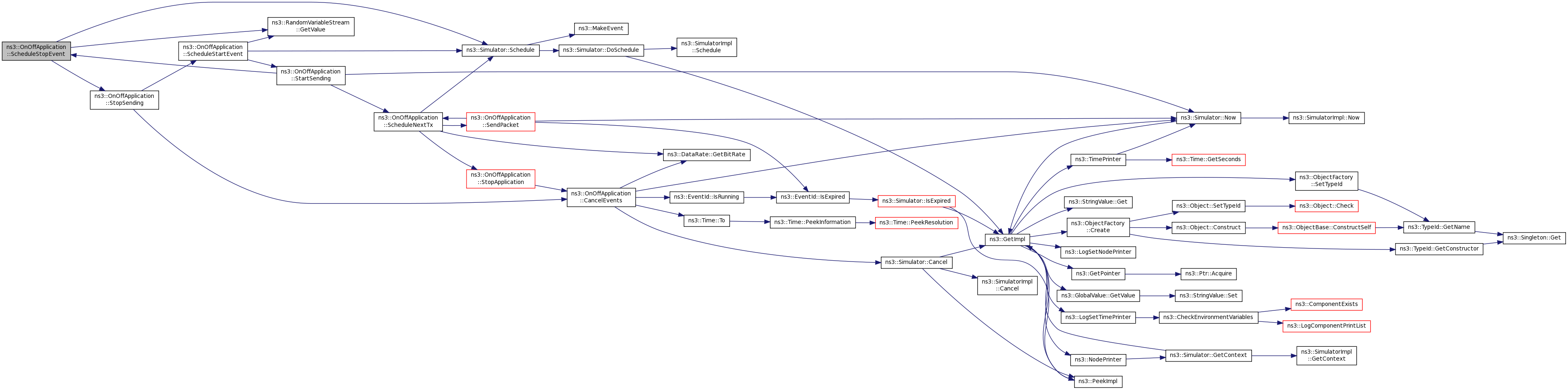

Here is the call graph for this function:

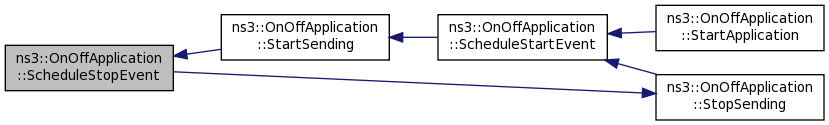

Here is the caller graph for this function:

void ns3::OnOffApplication::SendPacket ( void )

private

Definition at line 264 of file onoff-application.cc.

References ns3::InetSocketAddress::ConvertFrom(), ns3::Inet6SocketAddress::ConvertFrom(), ns3::InetSocketAddress::GetIpv4(), ns3::Inet6SocketAddress::GetIpv6(), ns3::InetSocketAddress::GetPort(), ns3::Inet6SocketAddress::GetPort(), ns3::EventId::IsExpired(), ns3::InetSocketAddress::IsMatchingType(), ns3::Inet6SocketAddress::IsMatchingType(), m_lastStartTime, m_peer, m_pktSize, m_residualBits, m_sendEvent, m_socket, m_totBytes, m_txTrace, ns3::Simulator::Now(), NS_ASSERT, NS_LOG_FUNCTION, NS_LOG_INFO, ScheduleNextTx(), and ns3::Socket::Send().

Referenced by ScheduleNextTx().

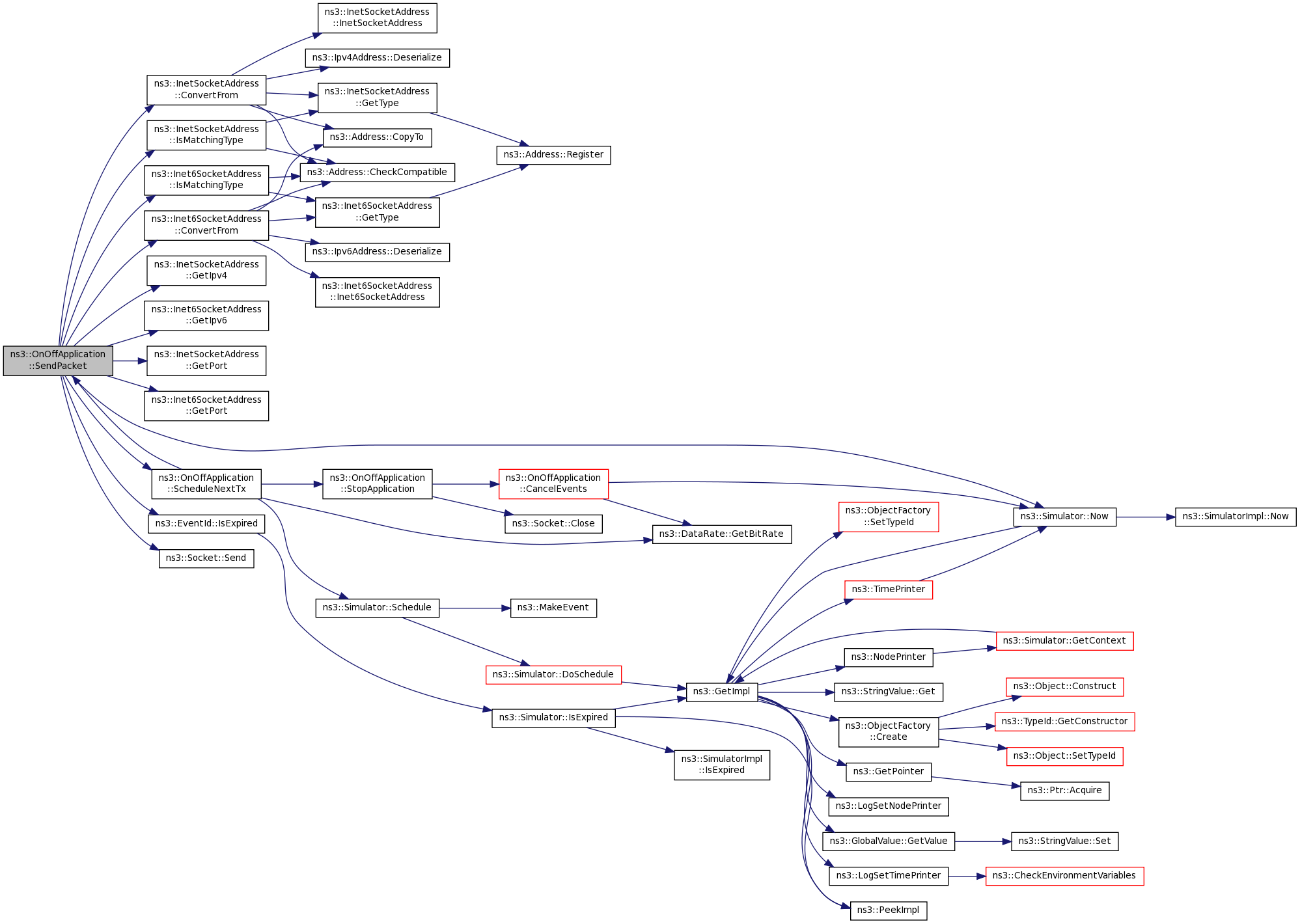

Here is the call graph for this function:

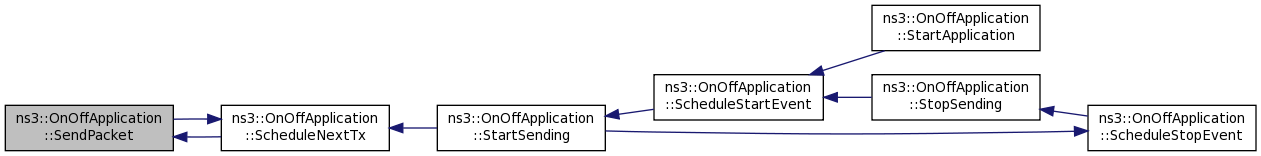

Here is the caller graph for this function:

void ns3::OnOffApplication::SetMaxBytes ( uint32_t maxBytes )

Parameters

maxBytes the total number of bytes to send

Set the total number of bytes to send. Once these bytes are sent, no packet is sent again, even in on state. The value zero means that there is no limit.

Definition at line 111 of file onoff-application.cc.

References m_maxBytes, and NS_LOG_FUNCTION.

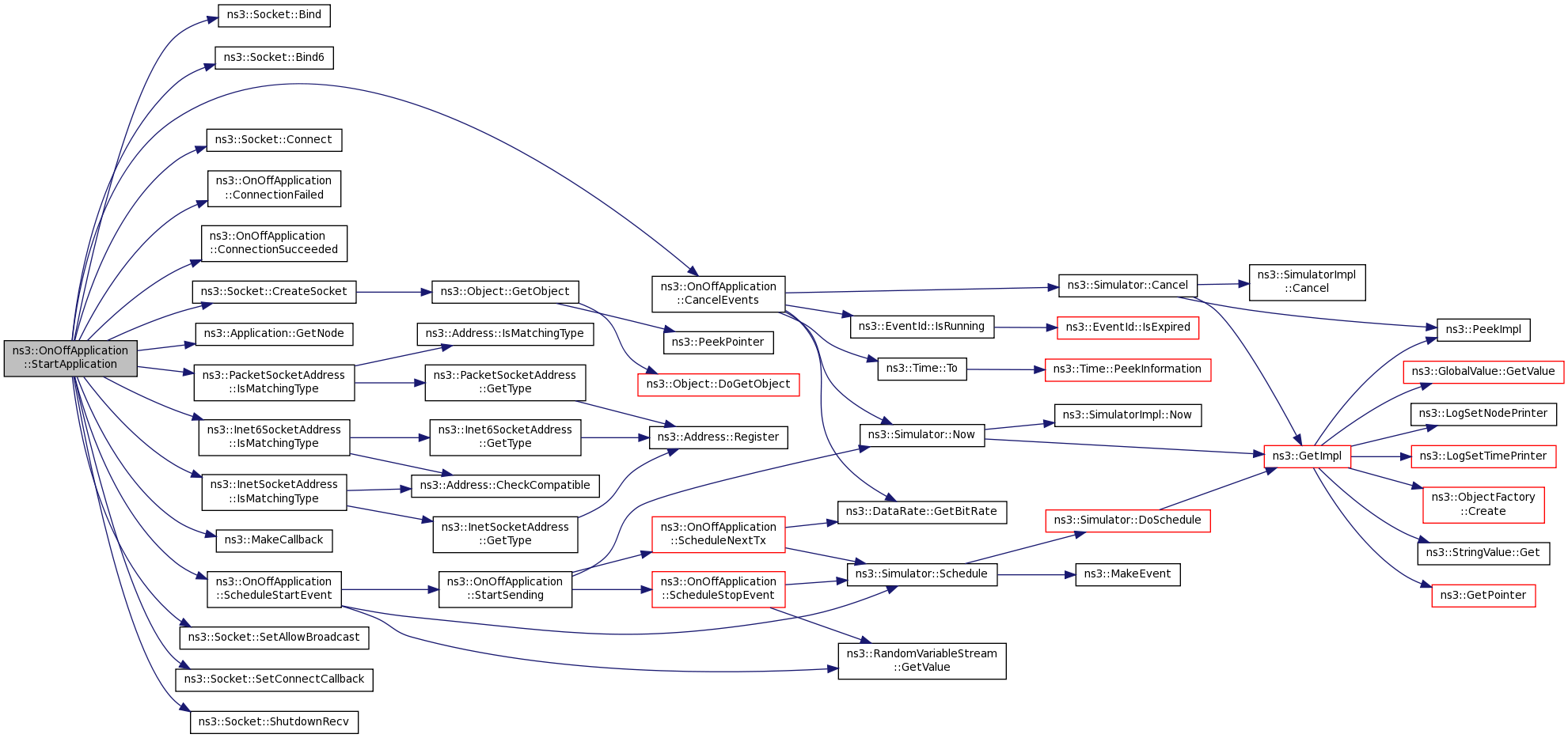

void ns3::OnOffApplication::StartApplication ( void )

privatevirtual

Application specific startup code.

The StartApplication method is called at the start time specified by Start This method should be overridden by all or most application subclasses.

Reimplemented from ns3::Application.

Definition at line 144 of file onoff-application.cc.

References ns3::Socket::Bind(), ns3::Socket::Bind6(), CancelEvents(), ns3::Socket::Connect(), ConnectionFailed(), ConnectionSucceeded(), ns3::Socket::CreateSocket(), ns3::Application::GetNode(), ns3::PacketSocketAddress::IsMatchingType(), ns3::InetSocketAddress::IsMatchingType(), ns3::Inet6SocketAddress::IsMatchingType(), m_peer, m_socket, m_tid, ns3::MakeCallback(), NS_LOG_FUNCTION, ScheduleStartEvent(), ns3::Socket::SetAllowBroadcast(), ns3::Socket::SetConnectCallback(), and ns3::Socket::ShutdownRecv().
