Takes probed values of different types and outputs the current time plus the value with both converted to doubles. More...

#include <time-series-adaptor.h>

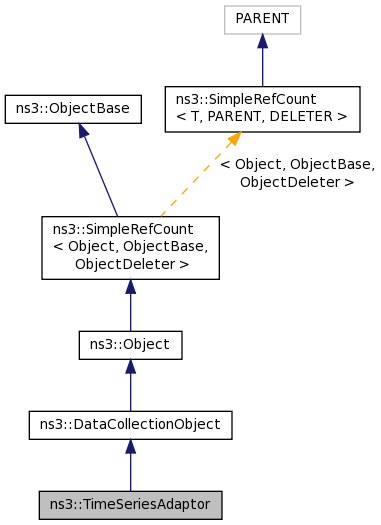

Inheritance diagram for ns3::TimeSeriesAdaptor:

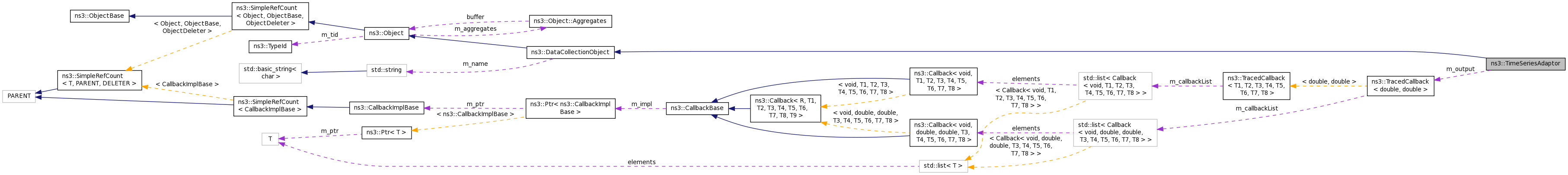

Collaboration diagram for ns3::TimeSeriesAdaptor:

Public Member Functions
	TimeSeriesAdaptor ()

virtual	~TimeSeriesAdaptor ()

void	TraceSinkBoolean (bool oldData, bool newData)
	Trace sink for receiving data from bool valued trace sources. More...

void	TraceSinkDouble (double oldData, double newData)
	Trace sink for receiving data from double valued trace sources. More...

void	TraceSinkUinteger16 (uint16_t oldData, uint16_t newData)
	Trace sink for receiving data from uint16_t valued trace sources. More...

void	TraceSinkUinteger32 (uint32_t oldData, uint32_t newData)
	Trace sink for receiving data from uint32_t valued trace sources. More...

void	TraceSinkUinteger8 (uint8_t oldData, uint8_t newData)
	Trace sink for receiving data from uint8_t valued trace sources. More...

Public Member Functions inherited from ns3::DataCollectionObject
	DataCollectionObject ()

virtual	~DataCollectionObject ()

void	Disable (void)

void	Enable (void)
	Set the status of an individual object. More...

std::string	GetName (void) const
	Get the object's name. More...

virtual bool	IsEnabled (void) const
	Check the status of an individual object. More...

void	SetName (std::string name)
	Set the object's name. All spaces are replaced by underscores. More...

Public Member Functions inherited from ns3::Object
	Object ()

virtual	~Object ()

void	AggregateObject (Ptr< Object > other)

void	Dispose (void)

AggregateIterator	GetAggregateIterator (void) const

virtual TypeId	GetInstanceTypeId (void) const

template<typename T >
Ptr< T >	GetObject (void) const

template<typename T >
Ptr< T >	GetObject (TypeId tid) const

void	Initialize (void)

Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()

	SimpleRefCount (const SimpleRefCount &o)

uint32_t	GetReferenceCount (void) const

SimpleRefCount &	operator= (const SimpleRefCount &o)

void	Ref (void) const

void	Unref (void) const

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()

void	GetAttribute (std::string name, AttributeValue &value) const

bool	GetAttributeFailSafe (std::string name, AttributeValue &attribute) const

void	SetAttribute (std::string name, const AttributeValue &value)

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)

Static Public Member Functions
static TypeId	GetTypeId (void)

Static Public Member Functions inherited from ns3::DataCollectionObject
static TypeId	GetTypeId ()

Static Public Member Functions inherited from ns3::Object
static TypeId	GetTypeId (void)

Static Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
static void	Cleanup (void)

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)

Private Attributes
TracedCallback< double, double >	m_output

Additional Inherited Members
Protected Member Functions inherited from ns3::Object
	Object (const Object &o)

virtual void	DoDispose (void)

virtual void	DoInitialize (void)

virtual void	NotifyNewAggregate (void)

Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)

virtual void	NotifyConstructionCompleted (void)

Protected Attributes inherited from ns3::DataCollectionObject
bool	m_enabled
	Object's activation state. More...

std::string	m_name
	Name of the object within the data collection framework. More...

Detailed Description

Takes probed values of different types and outputs the current time plus the value with both converted to doubles.

The role of the TimeSeriesAdaptor class is that of an adaptor class, to take raw-valued probe data of different types, and output a tuple of two double values. The first is a timestamp which may be set to different resolutions (e.g. Seconds, Milliseconds, etc.) in the future, but which presently is hardcoded to Seconds. The second is the conversion of a non-double value to a double value (possibly with loss of precision).

It should be noted that time series adaptors convert Simulation Time objects to double values in its output.

Doxygen introspection did not find any typical Config paths.
No Attributes are defined for this type.
