Cycle broadcast information for. More...

#include <uan-header-rc.h>

Inheritance diagram for ns3::UanHeaderRcCtsGlobal:

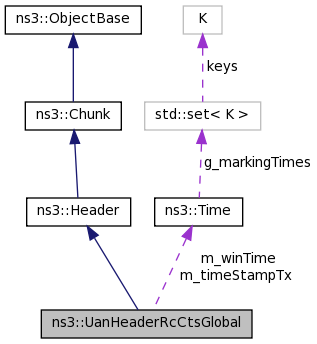

Collaboration diagram for ns3::UanHeaderRcCtsGlobal:

Public Member Functions
	UanHeaderRcCtsGlobal ()
	Create UanHeaderRcCtsGlobal with fields zeroed out. More...

	UanHeaderRcCtsGlobal (Time wt, Time ts, uint16_t rate, uint16_t retryRate)
	Create object with given window time, time stamp, rate, and retry rate. More...

	~UanHeaderRcCtsGlobal ()

virtual uint32_t	Deserialize (Buffer::Iterator start)

virtual TypeId	GetInstanceTypeId (void) const

uint16_t	GetRateNum (void) const

uint16_t	GetRetryRate (void) const

virtual uint32_t	GetSerializedSize (void) const

Time	GetTxTimeStamp (void) const

Time	GetWindowTime (void) const

virtual void	Print (std::ostream &os) const

virtual void	Serialize (Buffer::Iterator start) const

void	SetRateNum (uint16_t rate)

void	SetRetryRate (uint16_t rate)

void	SetTxTimeStamp (Time timeStamp)

void	SetWindowTime (Time t)

Public Member Functions inherited from ns3::Header
virtual	~Header ()

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()

void	GetAttribute (std::string name, AttributeValue &value) const

bool	GetAttributeFailSafe (std::string name, AttributeValue &attribute) const

void	SetAttribute (std::string name, const AttributeValue &value)

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)

Static Public Member Functions
static TypeId	GetTypeId (void)

Static Public Member Functions inherited from ns3::Header
static TypeId	GetTypeId (void)

Static Public Member Functions inherited from ns3::Chunk
static TypeId	GetTypeId (void)

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)

Private Attributes
uint16_t	m_rateNum

uint16_t	m_retryRate

Time	m_timeStampTx

Time	m_winTime

Additional Inherited Members
Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)

virtual void	NotifyConstructionCompleted (void)

Detailed Description

Cycle broadcast information for.

Doxygen introspection did not find any typical Config paths.
No Attributes are defined for this type.
No TraceSources are defined for this type.

Definition at line 176 of file uan-header-rc.h.

Constructor & Destructor Documentation

ns3::UanHeaderRcCtsGlobal::UanHeaderRcCtsGlobal ( )

Create UanHeaderRcCtsGlobal with fields zeroed out.

Definition at line 264 of file uan-header-rc.cc.

ns3::UanHeaderRcCtsGlobal::UanHeaderRcCtsGlobal	(	Time	wt,
		Time	ts,
		uint16_t	rate,
		uint16_t	retryRate
	)

Create object with given window time, time stamp, rate, and retry rate.

Parameters

wt	Window time
ts	Timestamp
rate	Rate number
retryRate	Retry rate value

Definition at line 272 of file uan-header-rc.cc.

ns3::UanHeaderRcCtsGlobal::~UanHeaderRcCtsGlobal ( )

Definition at line 282 of file uan-header-rc.cc.

Member Function Documentation

uint32_t ns3::UanHeaderRcCtsGlobal::Deserialize ( Buffer::Iterator start )

virtual

Parameters

start an iterator which points to where the header should written.

Returns: the number of bytes read.

This method is used by Packet::RemoveHeader to re-create a header from the byte buffer of a packet. The data read is expected to match bit-for-bit the representation of this header in real networks.

Implements ns3::Header.

Definition at line 362 of file uan-header-rc.cc.

References ns3::Buffer::Iterator::GetDistanceFrom(), m_rateNum, m_retryRate, m_timeStampTx, m_winTime, ns3::Buffer::Iterator::ReadU16(), ns3::Buffer::Iterator::ReadU32(), and visualizer.core::start().

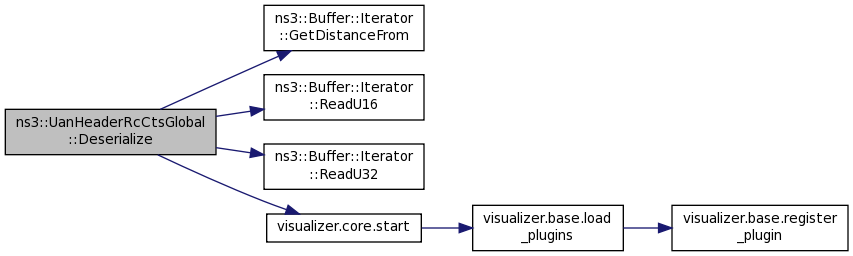

Here is the call graph for this function:

TypeId ns3::UanHeaderRcCtsGlobal::GetInstanceTypeId ( void ) const

virtual

Returns: the TypeId associated to the most-derived type of this instance.

This method is typically implemented by ns3::Object::GetInstanceTypeId but some classes which derive from ns3::ObjectBase directly have to implement it themselves.

Implements ns3::ObjectBase.

Definition at line 380 of file uan-header-rc.cc.

References GetTypeId().

Here is the call graph for this function:

uint16_t ns3::UanHeaderRcCtsGlobal::GetRateNum ( void ) const

Returns: Rate # corresponding to data rate of current cycle

Definition at line 342 of file uan-header-rc.cc.

References m_rateNum.

Referenced by ns3::UanMacRc::ReceiveOkFromPhy().

Here is the caller graph for this function:

uint16_t ns3::UanHeaderRcCtsGlobal::GetRetryRate ( void ) const

Returns: retry rate # of retry rate for current cycle

Definition at line 336 of file uan-header-rc.cc.

References m_retryRate.

Referenced by ns3::UanMacRc::ReceiveOkFromPhy().

Here is the caller graph for this function:

uint32_t ns3::UanHeaderRcCtsGlobal::GetSerializedSize ( void ) const

virtual

Returns: the expected size of the header.

This method is used by Packet::AddHeader to store a header into the byte buffer of a packet. This method should return the number of bytes which are needed to store the full header data by Serialize.

Implements ns3::Header.

Definition at line 347 of file uan-header-rc.cc.

Referenced by ns3::UanMacRc::UanMacRc(), and ns3::UanMacRcGw::UanMacRcGw().

Here is the caller graph for this function:

Time ns3::UanHeaderRcCtsGlobal::GetTxTimeStamp ( void ) const

Returns: Timestamp of CTS transmission

Definition at line 330 of file uan-header-rc.cc.

References m_timeStampTx.

Referenced by ns3::UanMacRc::ScheduleData().

Here is the caller graph for this function:

TypeId ns3::UanHeaderRcCtsGlobal::GetTypeId ( void )

static

Definition at line 288 of file uan-header-rc.cc.

References ns3::TypeId::SetParent().

Referenced by GetInstanceTypeId().

Here is the call graph for this function:

Here is the caller graph for this function:

Time ns3::UanHeaderRcCtsGlobal::GetWindowTime ( void ) const

Returns: Time duration after blocking time allowed for RTS transmissions

Definition at line 324 of file uan-header-rc.cc.

References m_winTime.

Referenced by ns3::UanMacRc::ReceiveOkFromPhy().

Here is the caller graph for this function:

void ns3::UanHeaderRcCtsGlobal::Print ( std::ostream & os ) const

virtual

Parameters

os output stream This method is used by Packet::Print to print the content of a trailer as ascii data to a c++ output stream. Although the trailer is free to format its output as it wishes, it is recommended to follow a few rules to integrate with the packet pretty printer: start with flags, small field values located between a pair of parens. Values should be separated by whitespace. Follow the parens with the important fields, separated by whitespace. i.e.: (field1 val1 field2 val2 field3 val3) field4 val4 field5 val5

Implements ns3::Header.

Definition at line 374 of file uan-header-rc.cc.

References ns3::Time::GetSeconds(), m_rateNum, m_retryRate, m_timeStampTx, and m_winTime.

Here is the call graph for this function:

void ns3::UanHeaderRcCtsGlobal::Serialize ( Buffer::Iterator start ) const

virtual

Parameters

start an iterator which points to where the header should be written.

This method is used by Packet::AddHeader to store a header into the byte buffer of a packet. The data written is expected to match bit-for-bit the representation of this header in a real network.

Implements ns3::Header.

Definition at line 353 of file uan-header-rc.cc.

References ns3::Time::GetSeconds(), m_rateNum, m_retryRate, m_timeStampTx, m_winTime, ns3::Buffer::Iterator::WriteU16(), and ns3::Buffer::Iterator::WriteU32().

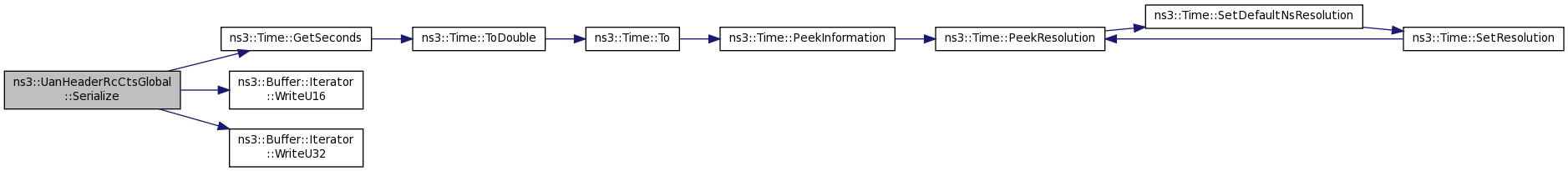

Here is the call graph for this function:
