#include <uan-helper.h>

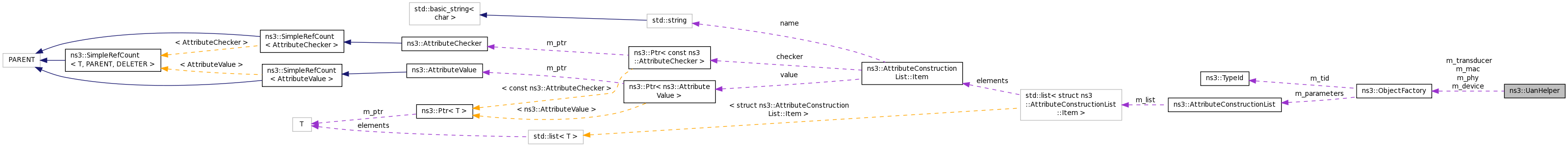

Collaboration diagram for ns3::UanHelper:

Public Member Functions
	UanHelper ()

virtual	~UanHelper ()

int64_t	AssignStreams (NetDeviceContainer c, int64_t stream)

NetDeviceContainer	Install (NodeContainer c) const

NetDeviceContainer	Install (NodeContainer c, Ptr< UanChannel > channel) const

Ptr< UanNetDevice >	Install (Ptr< Node > node, Ptr< UanChannel > channel) const

void	SetMac (std::string type, std::string n0="", const AttributeValue &v0=EmptyAttributeValue(), std::string n1="", const AttributeValue &v1=EmptyAttributeValue(), std::string n2="", const AttributeValue &v2=EmptyAttributeValue(), std::string n3="", const AttributeValue &v3=EmptyAttributeValue(), std::string n4="", const AttributeValue &v4=EmptyAttributeValue(), std::string n5="", const AttributeValue &v5=EmptyAttributeValue(), std::string n6="", const AttributeValue &v6=EmptyAttributeValue(), std::string n7="", const AttributeValue &v7=EmptyAttributeValue())

void	SetPhy (std::string phyType, std::string n0="", const AttributeValue &v0=EmptyAttributeValue(), std::string n1="", const AttributeValue &v1=EmptyAttributeValue(), std::string n2="", const AttributeValue &v2=EmptyAttributeValue(), std::string n3="", const AttributeValue &v3=EmptyAttributeValue(), std::string n4="", const AttributeValue &v4=EmptyAttributeValue(), std::string n5="", const AttributeValue &v5=EmptyAttributeValue(), std::string n6="", const AttributeValue &v6=EmptyAttributeValue(), std::string n7="", const AttributeValue &v7=EmptyAttributeValue())

void	SetTransducer (std::string type, std::string n0="", const AttributeValue &v0=EmptyAttributeValue(), std::string n1="", const AttributeValue &v1=EmptyAttributeValue(), std::string n2="", const AttributeValue &v2=EmptyAttributeValue(), std::string n3="", const AttributeValue &v3=EmptyAttributeValue(), std::string n4="", const AttributeValue &v4=EmptyAttributeValue(), std::string n5="", const AttributeValue &v5=EmptyAttributeValue(), std::string n6="", const AttributeValue &v6=EmptyAttributeValue(), std::string n7="", const AttributeValue &v7=EmptyAttributeValue())

Static Public Member Functions
static void	EnableAscii (std::ostream &os, uint32_t nodeid, uint32_t deviceid)

static void	EnableAscii (std::ostream &os, NetDeviceContainer d)

static void	EnableAscii (std::ostream &os, NodeContainer n)

static void	EnableAsciiAll (std::ostream &os)

Private Attributes
ObjectFactory	m_device

ObjectFactory	m_mac

ObjectFactory	m_phy

ObjectFactory	m_transducer

Detailed Description

Definition at line 34 of file uan-helper.h.

Constructor & Destructor Documentation

ns3::UanHelper::UanHelper ( )

Definition at line 58 of file uan-helper.cc.

References m_mac, m_phy, m_transducer, and ns3::ObjectFactory::SetTypeId().

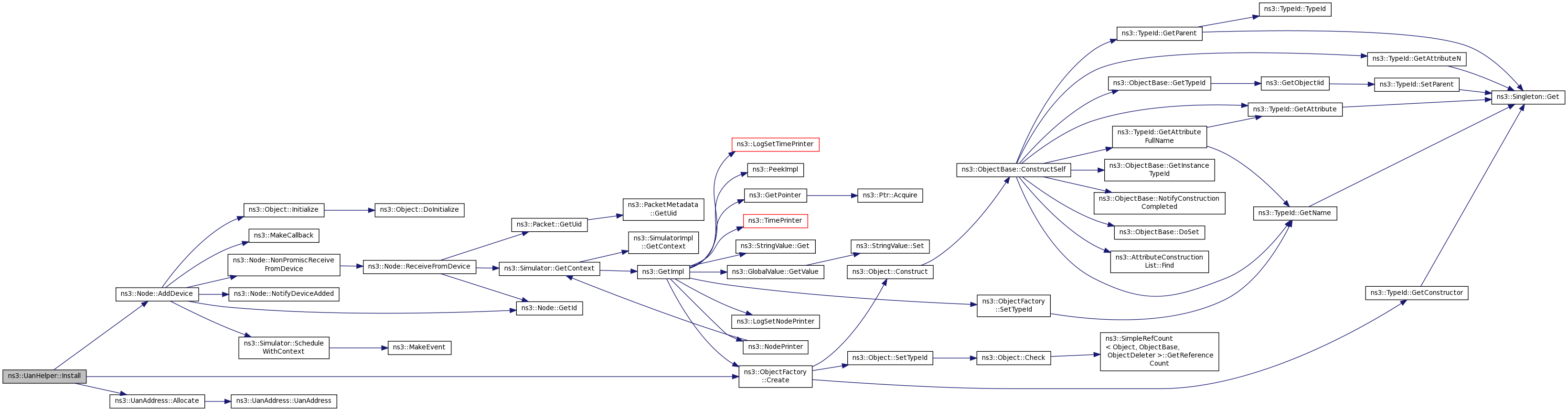

Here is the call graph for this function:

ns3::UanHelper::~UanHelper ( )

virtual

Definition at line 66 of file uan-helper.cc.

Member Function Documentation

int64_t ns3::UanHelper::AssignStreams	(	NetDeviceContainer	c,
		int64_t	stream
	)

Assign a fixed random variable stream number to the random variables used by this model. Return the number of streams (possibly zero) that have been assigned. The Install() method should have previously been called by the user.

Parameters

c	NetDeviceContainer of the set of net devices for which the UanNetDevice should be modified to use a fixed stream
stream	first stream index to use

Returns: the number of stream indices assigned by this helper

Definition at line 237 of file uan-helper.cc.

References ns3::NetDeviceContainer::Begin(), and ns3::NetDeviceContainer::End().

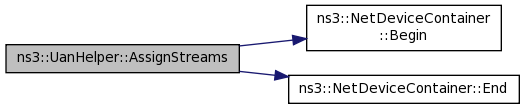

Here is the call graph for this function:

void ns3::UanHelper::EnableAscii	(	std::ostream &	os,
		uint32_t	nodeid,
		uint32_t	deviceid
	)

static

Parameters

os	output stream
nodeid	the id of the node to generate ascii output for.
deviceid	the id of the device to generate ascii output for.

Enable ascii output on the specified deviceid within the specified nodeid if it is of type ns3::UanNetDevice and dump that to the specified stdc++ output stream.

Definition at line 144 of file uan-helper.cc.

References ns3::AsciiPhyRxOkEvent(), ns3::AsciiPhyTxEvent(), ns3::Config::Connect(), ns3::Packet::EnablePrinting(), and ns3::MakeBoundCallback().

Referenced by EnableAscii(), and EnableAsciiAll().

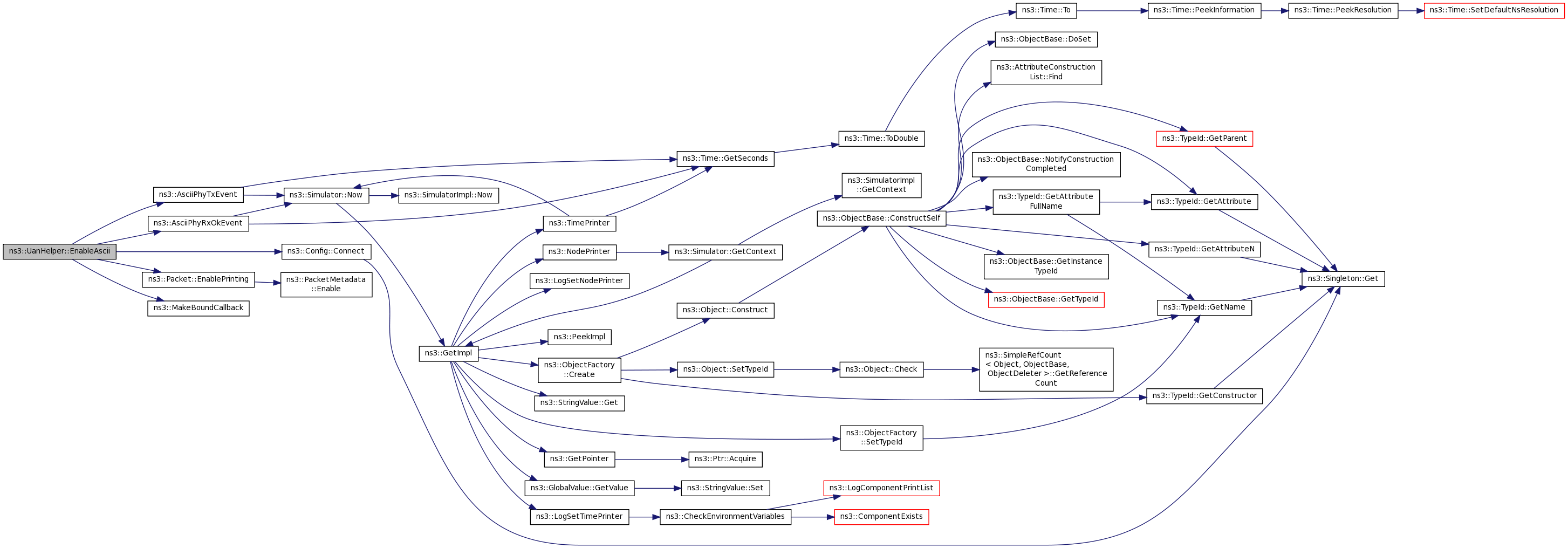

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::UanHelper::EnableAscii	(	std::ostream &	os,
		NetDeviceContainer	d
	)

static

Parameters

os	output stream
d	device container

Enable ascii output on each device which is of the ns3::UanNetDevice type and which is located in the input device container and dump that to the specified stdc++ output stream.

Definition at line 159 of file uan-helper.cc.

References ns3::NetDeviceContainer::Begin(), EnableAscii(), and ns3::NetDeviceContainer::End().

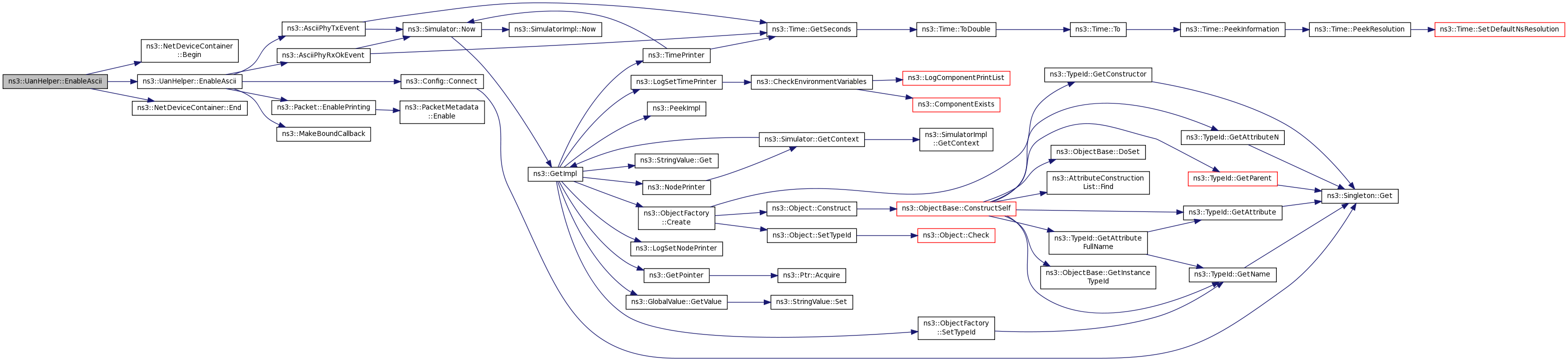

Here is the call graph for this function:

void ns3::UanHelper::EnableAscii	(	std::ostream &	os,
		NodeContainer	n
	)

static

Parameters

os	output stream
n	node container

Enable ascii output on each device which is of the ns3::UanNetDevice type and which is located in one of the input node and dump that to the specified stdc++ output stream.

Definition at line 169 of file uan-helper.cc.

References ns3::NetDeviceContainer::Add(), ns3::NodeContainer::Begin(), EnableAscii(), ns3::NodeContainer::End(), ns3::Node::GetDevice(), and ns3::Node::GetNDevices().

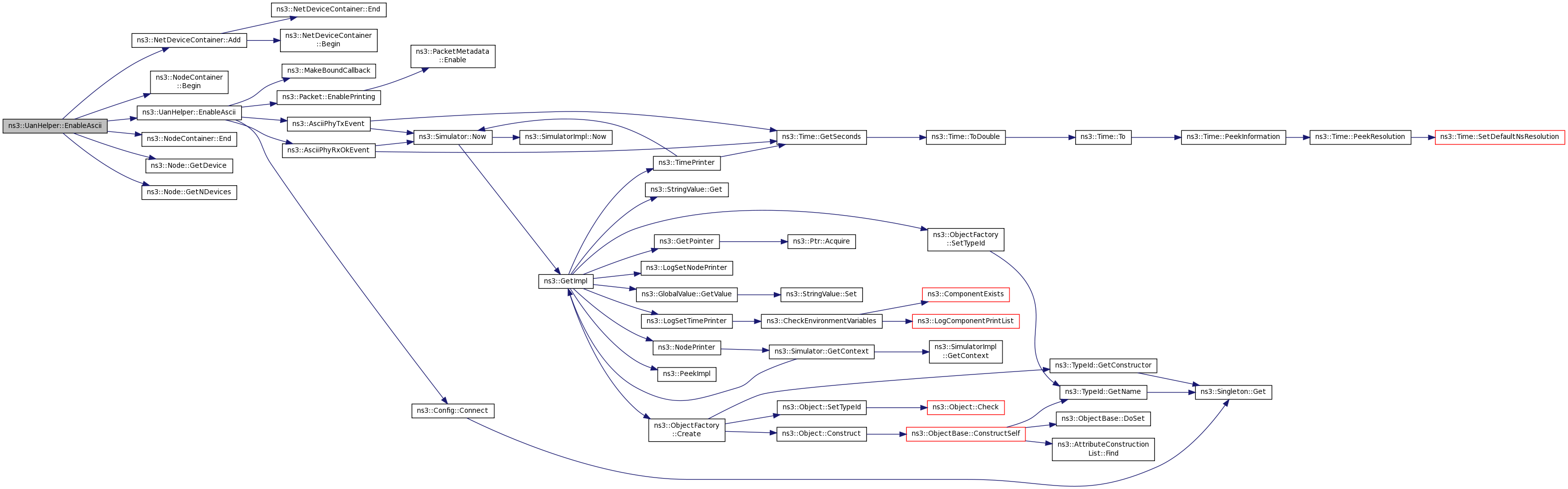

Here is the call graph for this function:

void ns3::UanHelper::EnableAsciiAll ( std::ostream & os )

static

Parameters

os	output stream

Enable ascii output on each device which is of the ns3::UanNetDevice type and dump that to the specified stdc++ output stream.

Definition at line 184 of file uan-helper.cc.

References EnableAscii(), and ns3::NodeContainer::GetGlobal().

Referenced by Experiment::Run().

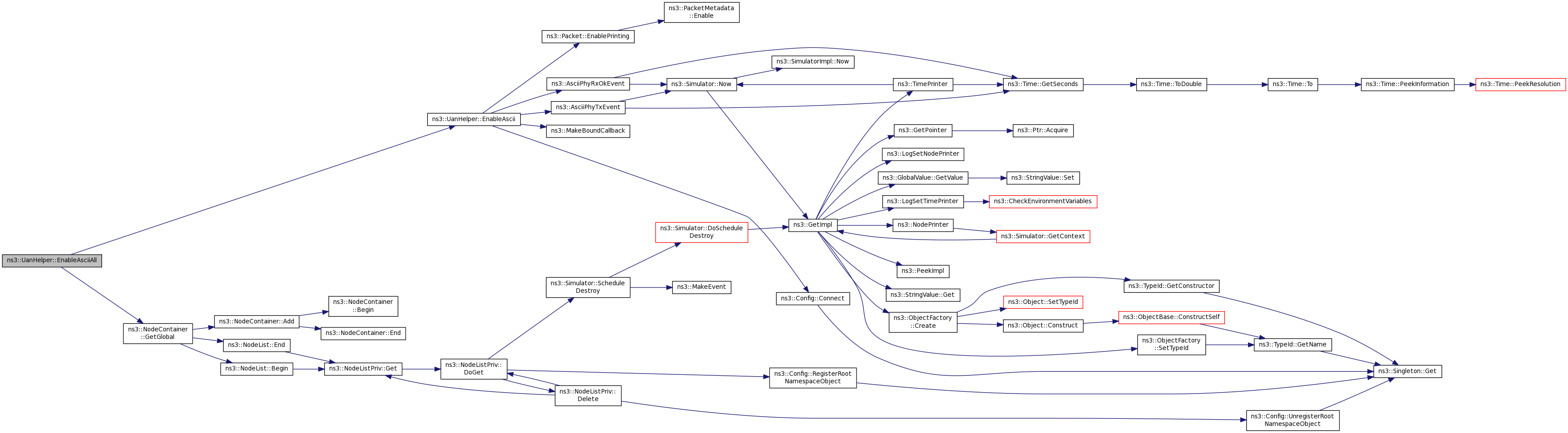

Here is the call graph for this function:

Here is the caller graph for this function:

NetDeviceContainer ns3::UanHelper::Install ( NodeContainer c ) const

Parameters

c	a set of nodes

This method creates a simple ns3::UanChannel (with a default ns3::UanNoiseModelDefault and ns3::UanPropModelIdeal) and creates, for each of the input nodes, a new ns3::UanNetDevice attached to this shared channel. Each ns3::UanNetDevice is also configured with an ns3::UanTransducerHd, ns3::UanMac, and, ns3::UanPhy, all of which are created based on the user-specified attributes specified in UanHelper::SetTransducer, UanHelper::SetMac, and, UanHelper::SetPhy.

Definition at line 190 of file uan-helper.cc.

Referenced by ns3::AcousticModemEnergyTestCase::DoRun(), ns3::AcousticModemEnergyDepletionTestCase::DoRun(), Install(), NetAnimExperiment::Run(), and Experiment::Run().

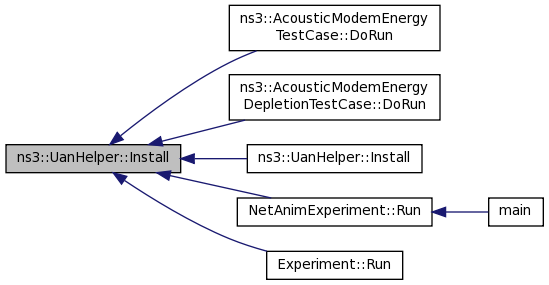

Here is the caller graph for this function:

NetDeviceContainer ns3::UanHelper::Install	(	NodeContainer	c,
		Ptr< UanChannel >	channel
	)		const

Parameters

c	a set of nodes
channel	a channel to use

For each of the input nodes, a new ns3::UanNetDevice is attached to the shared input channel. Each ns3::UanNetDevice is also configured with an ns3::UanTransducerHd, a ns3::UanMac, and ns3::UanPhy, all of which are created based on the user-specified attributes specified in UanHelper::SetTransducer, UanHelper::SetMac, and UanHelper::SetPhy.

Definition at line 201 of file uan-helper.cc.

References ns3::NetDeviceContainer::Add(), ns3::NodeContainer::Begin(), first::devices, ns3::NodeContainer::End(), ns3::Object::GetObject(), Install(), and NS_LOG_DEBUG.

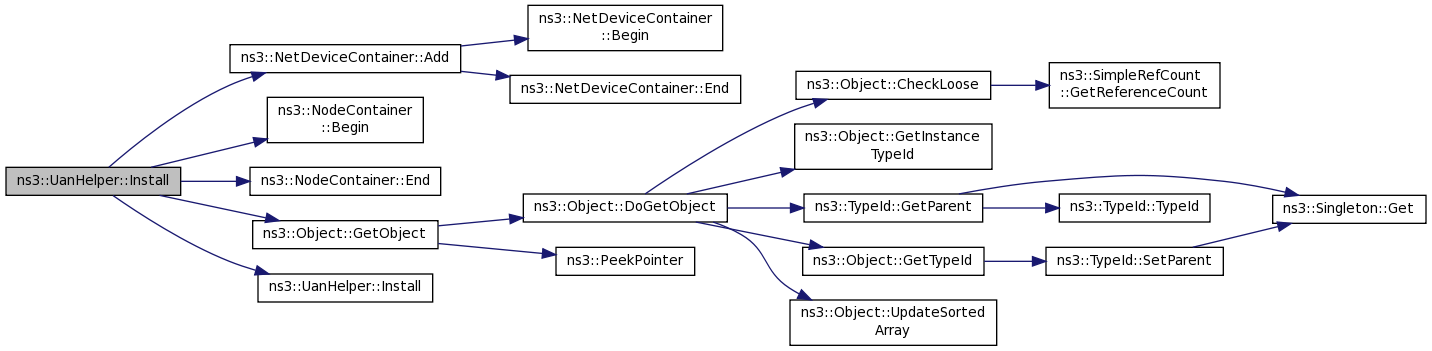

Here is the call graph for this function:

Ptr< UanNetDevice > ns3::UanHelper::Install	(	Ptr< Node >	node,
		Ptr< UanChannel >	channel
	)		const

Parameters

node	a node where to install the uan components
channel	a channel to use

Create a default uan stack with:

default channel, ideal propagation and default noise model
default physical layer, with UanPhyGen
default transducer, half duplex acoustic modem with UanTransducerHd
default MAC layer, with UanMacAloha

Channel, physical layer, transducer and mac layer are added to the UanNetDevice and then added to the node.

Definition at line 217 of file uan-helper.cc.

References ns3::Node::AddDevice(), ns3::UanAddress::Allocate(), ns3::ObjectFactory::Create(), m_mac, m_phy, and m_transducer.

Here is the call graph for this function:

void ns3::UanHelper::SetMac	(	std::string	type,
		std::string	n0 = `""`,
		const AttributeValue &	v0 = `EmptyAttributeValue ()`,
		std::string	n1 = `""`,
		const AttributeValue &	v1 = `EmptyAttributeValue ()`,
		std::string	n2 = `""`,
		const AttributeValue &	v2 = `EmptyAttributeValue ()`,
		std::string	n3 = `""`,
		const AttributeValue &	v3 = `EmptyAttributeValue ()`,
		std::string	n4 = `""`,
		const AttributeValue &	v4 = `EmptyAttributeValue ()`,
		std::string	n5 = `""`,
		const AttributeValue &	v5 = `EmptyAttributeValue ()`,
		std::string	n6 = `""`,
		const AttributeValue &	v6 = `EmptyAttributeValue ()`,
		std::string	n7 = `""`,
		const AttributeValue &	v7 = `EmptyAttributeValue ()`
	)

Parameters

type	the type of ns3::UanMac to create.
n0	the name of the attribute to set
v0	the value of the attribute to set
n1	the name of the attribute to set
v1	the value of the attribute to set
n2	the name of the attribute to set
v2	the value of the attribute to set
n3	the name of the attribute to set
v3	the value of the attribute to set
n4	the name of the attribute to set
v4	the value of the attribute to set
n5	the name of the attribute to set
v5	the value of the attribute to set
n6	the name of the attribute to set
v6	the value of the attribute to set
n7	the name of the attribute to set
v7	the value of the attribute to set

All the attributes specified in this method should exist in the requested mac.

Definition at line 73 of file uan-helper.cc.

References m_mac, ns3::ObjectFactory::Set(), and ns3::ObjectFactory::SetTypeId().

Referenced by NetAnimExperiment::Run(), and Experiment::Run().

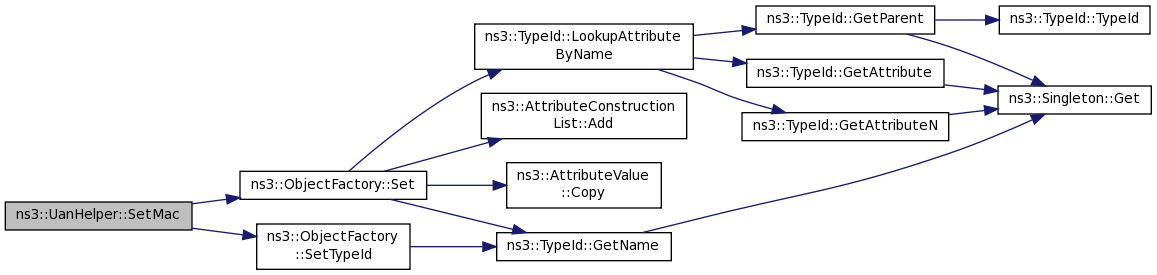

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::UanHelper::SetPhy	(	std::string	phyType,
		std::string	n0 = `""`,
		const AttributeValue &	v0 = `EmptyAttributeValue ()`,
		std::string	n1 = `""`,
		const AttributeValue &	v1 = `EmptyAttributeValue ()`,
		std::string	n2 = `""`,
		const AttributeValue &	v2 = `EmptyAttributeValue ()`,
		std::string	n3 = `""`,
		const AttributeValue &	v3 = `EmptyAttributeValue ()`,
		std::string	n4 = `""`,
		const AttributeValue &	v4 = `EmptyAttributeValue ()`,
		std::string	n5 = `""`,
		const AttributeValue &	v5 = `EmptyAttributeValue ()`,
		std::string	n6 = `""`,
		const AttributeValue &	v6 = `EmptyAttributeValue ()`,
		std::string	n7 = `""`,
		const AttributeValue &	v7 = `EmptyAttributeValue ()`
	)

Parameters

phyType	the type of ns3::UanPhy to create.
n0	the name of the attribute to set
v0	the value of the attribute to set
n1	the name of the attribute to set
v1	the value of the attribute to set
n2	the name of the attribute to set
v2	the value of the attribute to set
n3	the name of the attribute to set
v3	the value of the attribute to set
n4	the name of the attribute to set
v4	the value of the attribute to set
n5	the name of the attribute to set
v5	the value of the attribute to set
n6	the name of the attribute to set
v6	the value of the attribute to set
n7	the name of the attribute to set
v7	the value of the attribute to set

All the attributes specified in this method should exist in the requested phy.

Definition at line 96 of file uan-helper.cc.

References m_phy, ns3::ObjectFactory::Set(), and ns3::ObjectFactory::SetTypeId().

Referenced by Experiment::Run().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::UanHelper::SetTransducer	(	std::string	type,
		std::string	n0 = `""`,
		const AttributeValue &	v0 = `EmptyAttributeValue ()`,
		std::string	n1 = `""`,
		const AttributeValue &	v1 = `EmptyAttributeValue ()`,
		std::string	n2 = `""`,
		const AttributeValue &	v2 = `EmptyAttributeValue ()`,
		std::string	n3 = `""`,
		const AttributeValue &	v3 = `EmptyAttributeValue ()`,
		std::string	n4 = `""`,
		const AttributeValue &	v4 = `EmptyAttributeValue ()`,
		std::string	n5 = `""`,
		const AttributeValue &	v5 = `EmptyAttributeValue ()`,
		std::string	n6 = `""`,
		const AttributeValue &	v6 = `EmptyAttributeValue ()`,
		std::string	n7 = `""`,
		const AttributeValue &	v7 = `EmptyAttributeValue ()`
	)

Parameters

type	the type of ns3::Transducer to create
n0	the name of the attribute to set
v0	the value of the attribute to set
n1	the name of the attribute to set
v1	the value of the attribute to set
n2	the name of the attribute to set
v2	the value of the attribute to set
n3	the name of the attribute to set
v3	the value of the attribute to set
n4	the name of the attribute to set
v4	the value of the attribute to set
n5	the name of the attribute to set
v5	the value of the attribute to set
n6	the name of the attribute to set
v6	the value of the attribute to set
n7	the name of the attribute to set
v7	the value of the attribute to set
