Gateway side of RC-MAC. More...

#include <uan-mac-rc-gw.h>

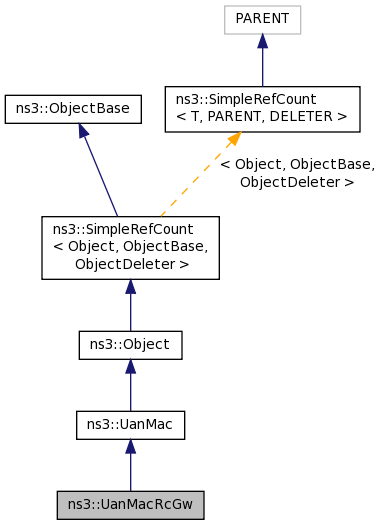

Inheritance diagram for ns3::UanMacRcGw:

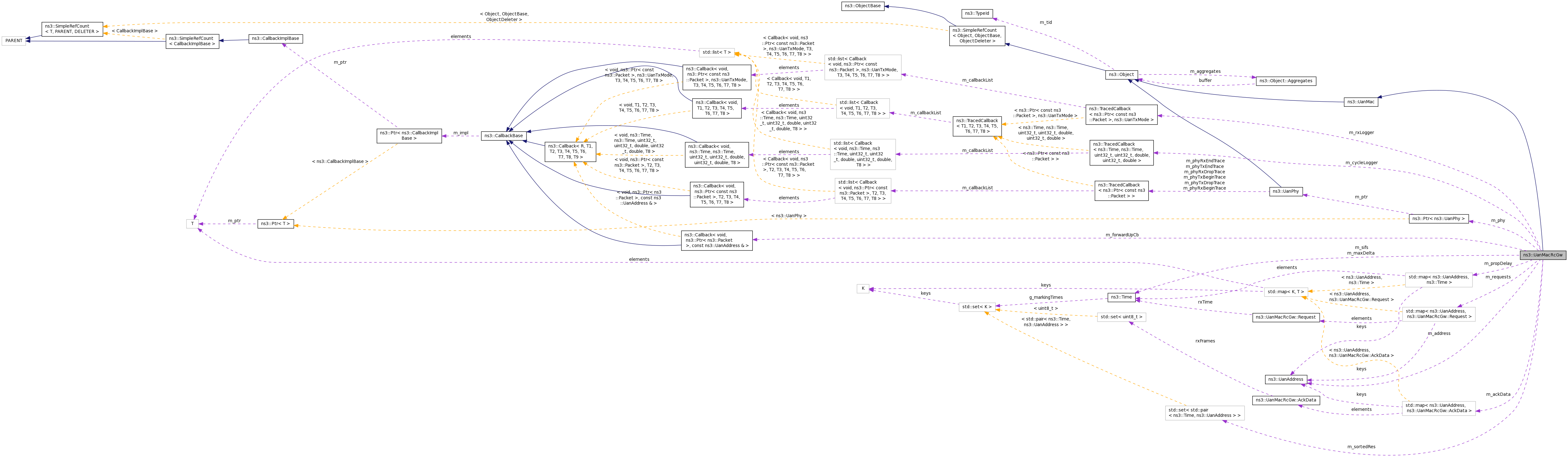

Collaboration diagram for ns3::UanMacRcGw:

Classes
struct	AckData

struct	Request

Public Member Functions
	UanMacRcGw ()

virtual	~UanMacRcGw ()

int64_t	AssignStreams (int64_t stream)

virtual void	AttachPhy (Ptr< UanPhy > phy)

virtual void	Clear (void)

virtual bool	Enqueue (Ptr< Packet > pkt, const Address &dest, uint16_t protocolNumber)

virtual Address	GetAddress (void)

virtual Address	GetBroadcast (void) const

virtual void	SetAddress (UanAddress addr)

virtual void	SetForwardUpCb (Callback< void, Ptr< Packet >, const UanAddress & > cb)

Public Member Functions inherited from ns3::Object
	Object ()

virtual	~Object ()

void	AggregateObject (Ptr< Object > other)

void	Dispose (void)

AggregateIterator	GetAggregateIterator (void) const

virtual TypeId	GetInstanceTypeId (void) const

template<typename T >
Ptr< T >	GetObject (void) const

template<typename T >
Ptr< T >	GetObject (TypeId tid) const

void	Initialize (void)

Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()

	SimpleRefCount (const SimpleRefCount &o)

uint32_t	GetReferenceCount (void) const

SimpleRefCount &	operator= (const SimpleRefCount &o)

void	Ref (void) const

void	Unref (void) const

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()

void	GetAttribute (std::string name, AttributeValue &value) const

bool	GetAttributeFailSafe (std::string name, AttributeValue &attribute) const

void	SetAttribute (std::string name, const AttributeValue &value)

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)

Static Public Member Functions
static TypeId	GetTypeId (void)

Static Public Member Functions inherited from ns3::UanMac
static TypeId	GetTypeId (void)

Static Public Member Functions inherited from ns3::Object
static TypeId	GetTypeId (void)

Static Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
static void	Cleanup (void)

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)

Protected Member Functions
virtual void	DoDispose ()

Protected Member Functions inherited from ns3::Object
	Object (const Object &o)

virtual void	DoInitialize (void)

virtual void	NotifyNewAggregate (void)

Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)

virtual void	NotifyConstructionCompleted (void)

Private Types
enum	State { IDLE, INCYCLE, CTSING }

Private Member Functions
uint32_t	CompExpMinIndex (uint32_t n, uint32_t k)

double	ComputeAlpha (uint32_t totalFrames, uint32_t totalBytes, uint32_t n, uint32_t a, double deltaK)

double	ComputeExpBOverA (uint32_t n, uint32_t a, uint32_t ldlh, std::vector< double > deltaK)

double	ComputeExpS (uint32_t a, uint32_t ld, std::vector< double > exppdk)

double	ComputeExpS (uint32_t a, uint32_t ld)

double	ComputePiK (uint32_t a, uint32_t n, uint32_t k)

void	CycleStarted (void)

void	EndCycle (void)

uint32_t	FindOptA (void)

std::vector< double >	GetExpPdk (void)

uint64_t	NchooseK (uint32_t n, uint32_t k)

void	ReceiveError (Ptr< Packet > pkt, double sinr)

void	ReceivePacket (Ptr< Packet > pkt, double sinr, UanTxMode mode)

void	SendPacket (Ptr< Packet > pkt, uint32_t rate)

void	StartCycle (void)

Private Attributes
std::map< UanAddress, AckData >	m_ackData

uint32_t	m_ackSize

UanAddress	m_address

bool	m_cleared

uint32_t	m_ctsSizeG

uint32_t	m_ctsSizeN

uint32_t	m_currentRateNum

uint16_t	m_currentRetryRate

TracedCallback< Time, Time, uint32_t, uint32_t, double, uint32_t, double >	m_cycleLogger

Callback< void, Ptr< Packet > , const UanAddress & >	m_forwardUpCb

uint32_t	m_frameSize

Time	m_maxDelta

uint32_t	m_maxRes

double	m_minRetryRate

uint32_t	m_numNodes

uint32_t	m_numRates

Ptr< UanPhy >	m_phy

std::map< UanAddress, Time >	m_propDelay

uint32_t	m_rateStep

std::map< UanAddress, Request >	m_requests

double	m_retryStep

uint32_t	m_rtsSize

TracedCallback< Ptr< const Packet >, UanTxMode >	m_rxLogger

Time	m_sifs

std::set< std::pair< Time, UanAddress > >	m_sortedRes

State	m_state

uint32_t	m_totalRate

Detailed Description

Gateway side of RC-MAC.

Config Paths

ns3::UanMacRcGw is accessible through the following paths with Config::Set and Config::Connect:

/NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Mac/$ns3::UanMacRcGw

Attributes

MaxReservations: Maximum number of reservations to accept per cycle
- Set with class: ns3::UintegerValue
- Underlying type: uint32_t 0:4294967295
- Initial value: 10
- Flags: construct write read
NumberOfRates: Number of rates per Phy layer
- Set with class: ns3::UintegerValue
- Underlying type: uint32_t 0:4294967295
- Initial value: 1023
- Flags: construct write read
MaxPropDelay: Maximum propagation delay between gateway and non-gateway nodes
- Set with class: ns3::TimeValue
- Underlying type: Time -9223372036854775808.0ns:+9223372036854775807.0ns
- Initial value: +2000000000.0ns
- Flags: construct write read
SIFS: Spacing between frames to account for timing error and processing delay
- Set with class: ns3::TimeValue
- Underlying type: Time -9223372036854775808.0ns:+9223372036854775807.0ns
- Initial value: +200000000.0ns
- Flags: construct write read
NumberOfNodes: Number of non-gateway nodes in this gateway's neighborhood
- Set with class: ns3::UintegerValue
- Underlying type: uint32_t 0:4294967295
- Initial value: 10
- Flags: construct write read
MinRetryRate: Smallest allowed RTS retry rate
- Set with class: ns3::DoubleValue
- Underlying type: double -1.79769e+308:1.79769e+308
- Initial value: 0.01
- Flags: construct write read
RetryStep: Retry rate increment
- Set with class: ns3::DoubleValue
- Underlying type: double -1.79769e+308:1.79769e+308
- Initial value: 0.01
- Flags: construct write read
TotalRate: Total available channel rate in bps (for a single channel, without splitting reservation channel)
- Set with class: ns3::UintegerValue
- Underlying type: uint32_t 0:4294967295
- Initial value: 4096
- Flags: construct write read
RateStep: Increments available for rate assignment in bps
- Set with class: ns3::UintegerValue
- Underlying type: uint32_t 0:4294967295
- Initial value: 4
- Flags: construct write read
FrameSize: Size of data frames in bytes
- Set with class: ns3::UintegerValue
- Underlying type: uint32_t 0:4294967295
- Initial value: 1000
- Flags: construct write read

TraceSources

RX: A packet was destined for and received at this MAC layer
Cycle: Trace cycle statistics

This MAC protocol assumes a network topology where all traffic is destined for a set of GW nodes which are connected via some out of band (RF?) means. UanMacRcGw is the protocol which runs on the gateway nodes.

This particular implementation assumes that there is only a single gateway.

For more information on class operation email lentr.nosp@m.acy@.nosp@m.u.was.nosp@m.hing.nosp@m.ton.e.nosp@m.du (This work is, as of yet, unpublished)

Definition at line 60 of file uan-mac-rc-gw.h.

Member Enumeration Documentation

enum ns3::UanMacRcGw::State

private

Enumerator
IDLE
INCYCLE
CTSING

Definition at line 88 of file uan-mac-rc-gw.h.

Constructor & Destructor Documentation

ns3::UanMacRcGw::UanMacRcGw ( )

Definition at line 55 of file uan-mac-rc-gw.cc.

References ns3::UanHeaderCommon::GetSerializedSize(), ns3::UanHeaderRcRts::GetSerializedSize(), ns3::UanHeaderRcCtsGlobal::GetSerializedSize(), ns3::UanHeaderRcCts::GetSerializedSize(), ns3::UanHeaderRcAck::GetSerializedSize(), m_ackSize, m_ctsSizeG, m_ctsSizeN, m_rtsSize, and NS_LOG_DEBUG.

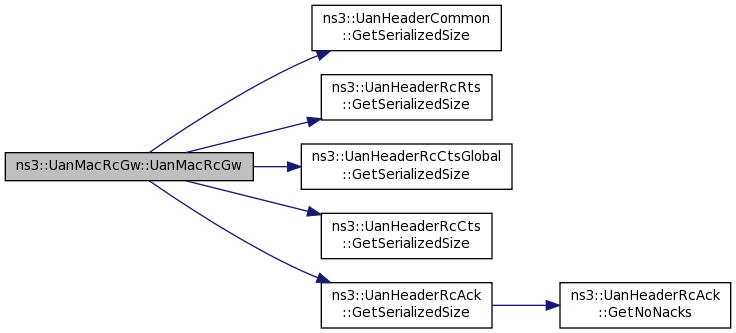

Here is the call graph for this function:

ns3::UanMacRcGw::~UanMacRcGw ( )

virtual

Definition at line 75 of file uan-mac-rc-gw.cc.

Member Function Documentation

int64_t ns3::UanMacRcGw::AssignStreams ( int64_t stream )

virtual

Assign a fixed random variable stream number to the random variables used by this model. Return the number of streams (possibly zero) that have been assigned.

Parameters

stream first stream index to use

Returns: the number of stream indices assigned by this model

Implements ns3::UanMac.

Definition at line 729 of file uan-mac-rc-gw.cc.

References NS_LOG_FUNCTION.

void ns3::UanMacRcGw::AttachPhy ( Ptr< UanPhy > phy )

virtual

Attach PHY layer to this MAC. Some MACs may be designed to work with multiple PHY layers. Others may only work with one.

Parameters

phy	Phy layer to attach to this MAC

Implements ns3::UanMac.

Definition at line 203 of file uan-mac-rc-gw.cc.

References m_phy, ns3::MakeCallback(), ReceiveError(), and ReceivePacket().

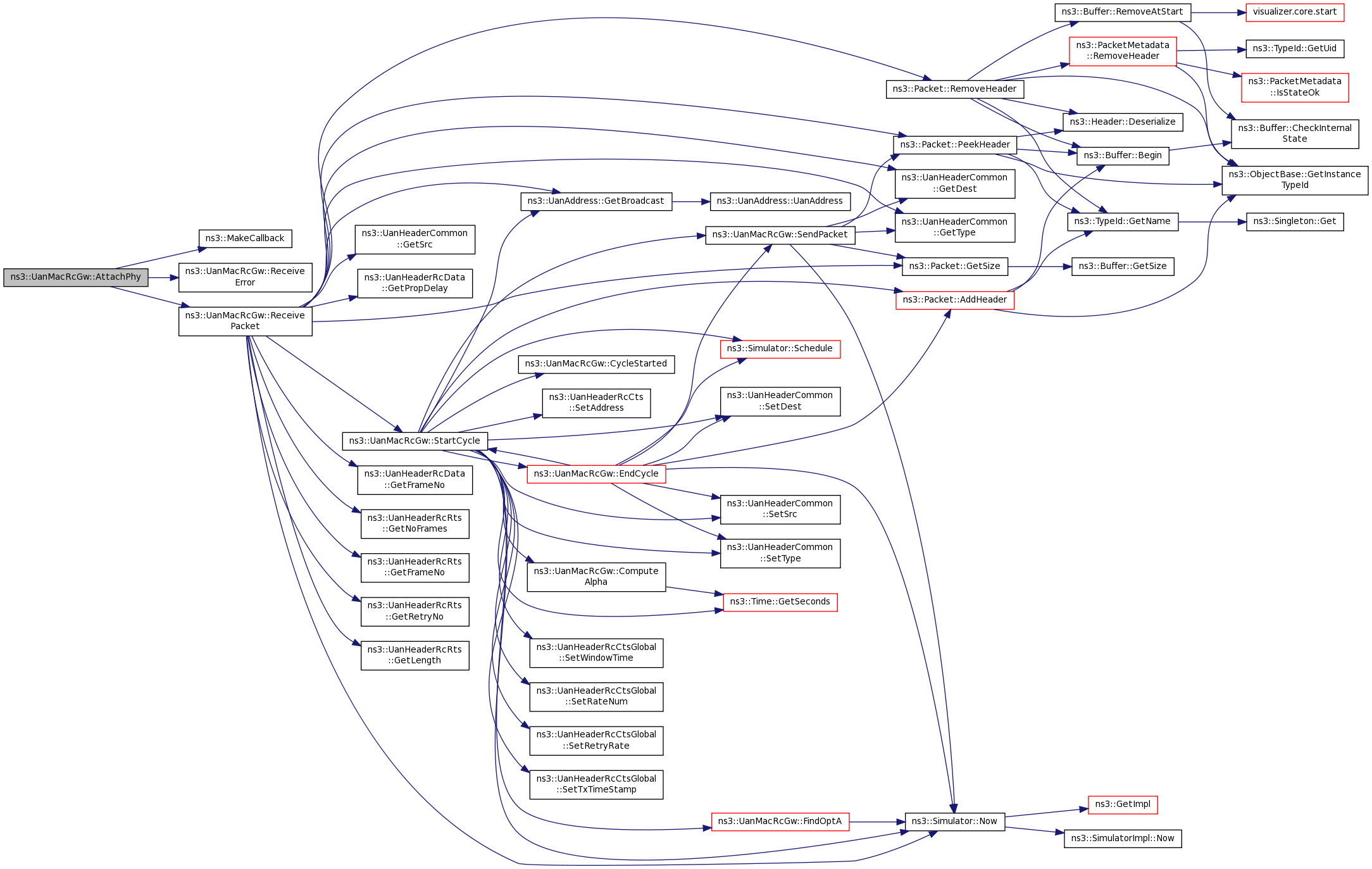

Here is the call graph for this function:

void ns3::UanMacRcGw::Clear ( void )

virtual

Clears all pointer references

Implements ns3::UanMac.

Definition at line 80 of file uan-mac-rc-gw.cc.

References m_ackData, m_cleared, m_phy, m_propDelay, m_requests, and m_sortedRes.

Referenced by DoDispose().

Here is the caller graph for this function:

uint32_t ns3::UanMacRcGw::CompExpMinIndex	(	uint32_t	n,
		uint32_t	k
	)

private

Definition at line 643 of file uan-mac-rc-gw.cc.

References NchooseK().

Referenced by GetExpPdk().

Here is the call graph for this function:

Here is the caller graph for this function:

double ns3::UanMacRcGw::ComputeAlpha	(	uint32_t	totalFrames,
		uint32_t	totalBytes,
		uint32_t	n,
		uint32_t	a,
		double	deltaK
	)

private

Definition at line 549 of file uan-mac-rc-gw.cc.

References ns3::Time::GetSeconds(), m_ctsSizeG, m_maxDelta, m_rtsSize, m_sifs, m_totalRate, NS_ASSERT_MSG, and visualizer.higcontainer::w.

Referenced by ComputeExpBOverA(), ComputeExpS(), and StartCycle().

Here is the call graph for this function:

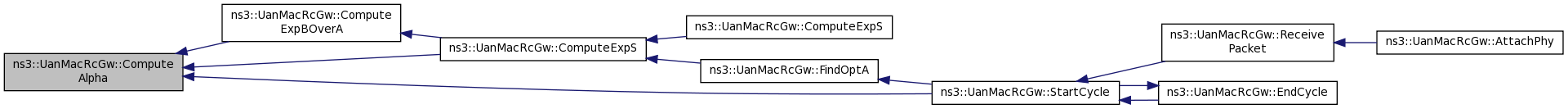

Here is the caller graph for this function:

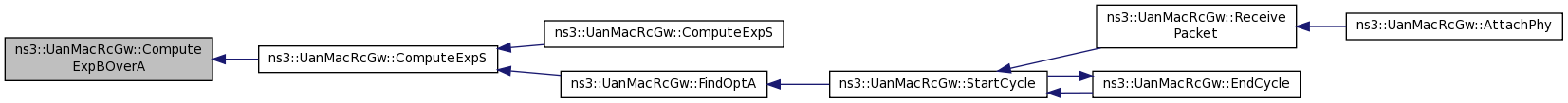

double ns3::UanMacRcGw::ComputeExpBOverA	(	uint32_t	n,
		uint32_t	a,
		uint32_t	ldlh,
		std::vector< double >	deltaK
	)

private

Definition at line 663 of file uan-mac-rc-gw.cc.

References ComputeAlpha(), ComputePiK(), m_ackSize, m_ctsSizeG, m_ctsSizeN, and m_totalRate.

Referenced by ComputeExpS().

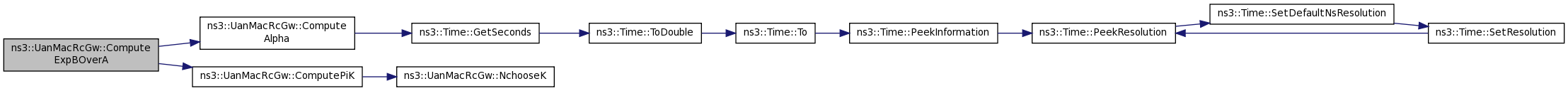

Here is the call graph for this function:

Here is the caller graph for this function:

double ns3::UanMacRcGw::ComputeExpS	(	uint32_t	a,
		uint32_t	ld,
		std::vector< double >	exppdk
	)

private

Definition at line 608 of file uan-mac-rc-gw.cc.

References ComputeAlpha(), ComputeExpBOverA(), ComputePiK(), ns3::Time::GetSeconds(), ns3::UanHeaderCommon::GetSerializedSize(), m_ctsSizeG, m_maxDelta, m_numNodes, m_rtsSize, m_sifs, m_totalRate, NS_LOG_DEBUG, and s.

Referenced by ComputeExpS(), and FindOptA().

Here is the call graph for this function:

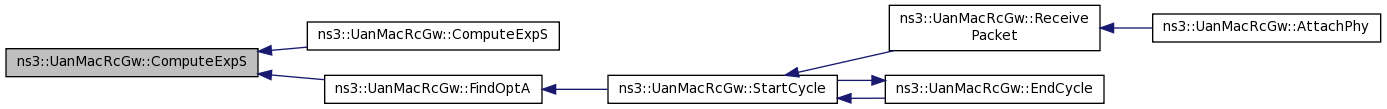

Here is the caller graph for this function:

double ns3::UanMacRcGw::ComputeExpS	(	uint32_t	a,
		uint32_t	ld
	)

private

Definition at line 637 of file uan-mac-rc-gw.cc.

References ComputeExpS(), and GetExpPdk().

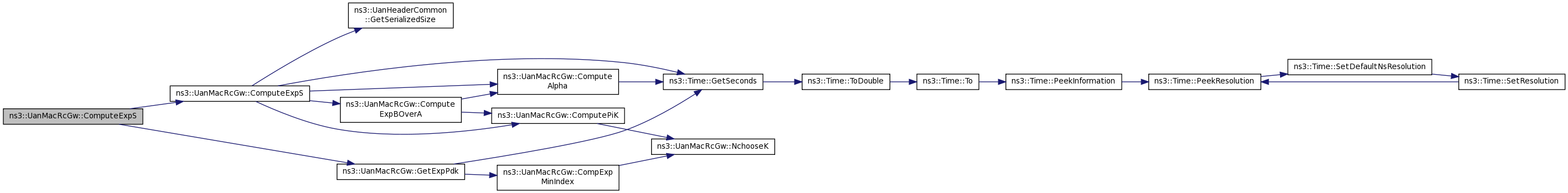

Here is the call graph for this function:

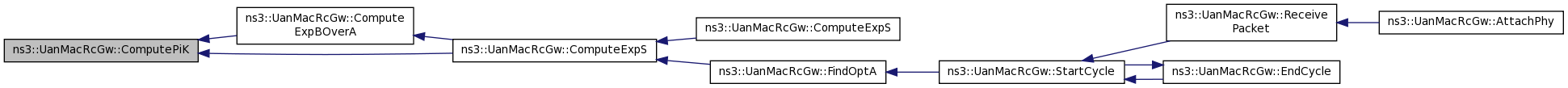

double ns3::UanMacRcGw::ComputePiK	(	uint32_t	a,
		uint32_t	n,
		uint32_t	k
	)

private

Definition at line 656 of file uan-mac-rc-gw.cc.

References NchooseK().

Referenced by ComputeExpBOverA(), and ComputeExpS().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::UanMacRcGw::CycleStarted ( void )

private

Definition at line 466 of file uan-mac-rc-gw.cc.

References INCYCLE, and m_state.

Referenced by StartCycle().

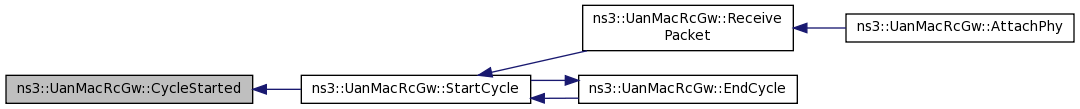

Here is the caller graph for this function:

void ns3::UanMacRcGw::DoDispose ( void )

protectedvirtual

This method is called by Object::Dispose or by the object's destructor, whichever comes first.

Subclasses are expected to implement their real destruction code in an overriden version of this method and chain up to their parent's implementation once they are done. i.e., for simplicity, the destructor of every subclass should be empty and its content should be moved to the associated DoDispose method.

It is safe to call GetObject from within this method.

Reimplemented from ns3::Object.

Definition at line 104 of file uan-mac-rc-gw.cc.

References Clear(), and ns3::Object::DoDispose().

Here is the call graph for this function:

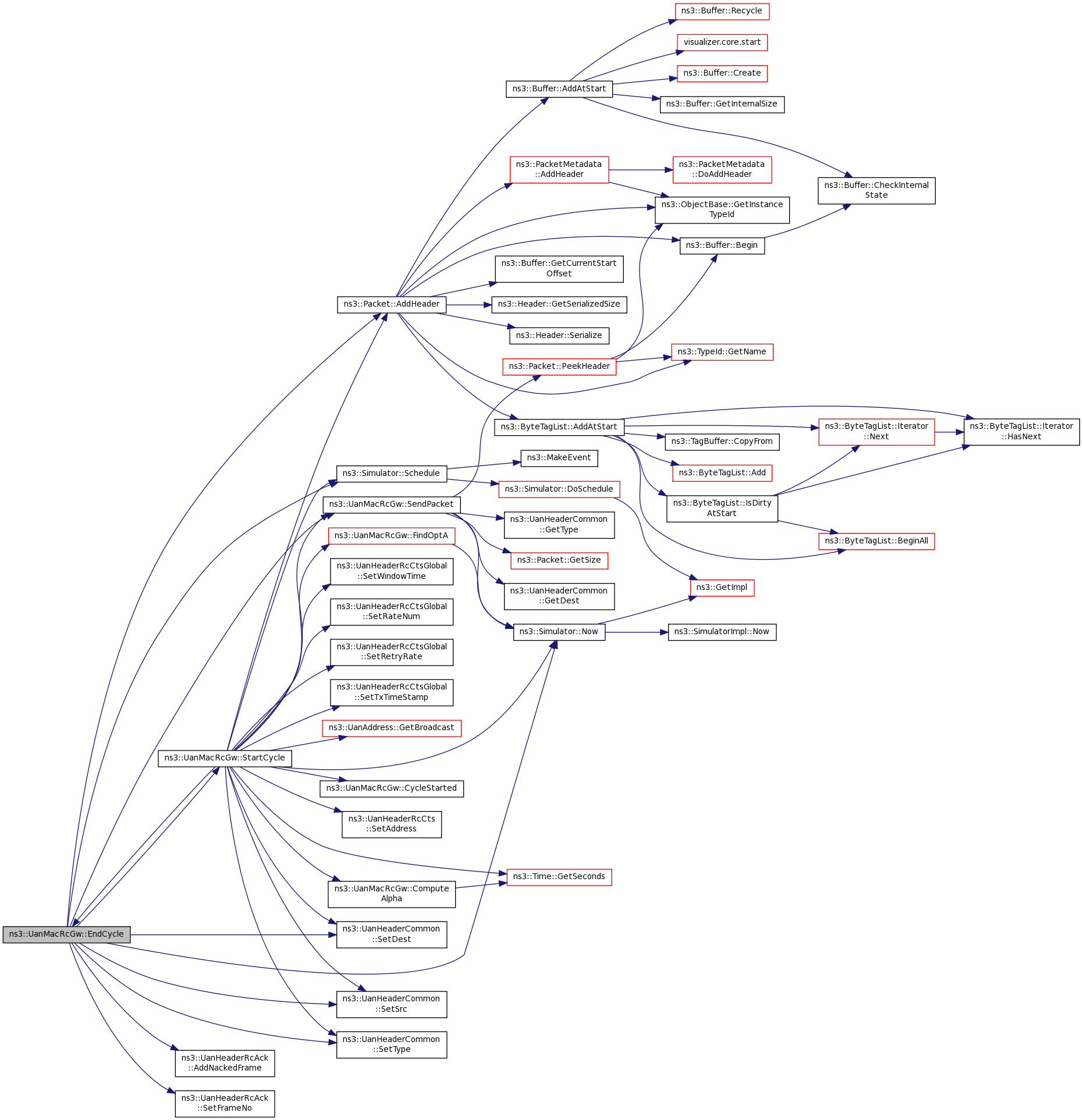

void ns3::UanMacRcGw::EndCycle ( void )

private

Definition at line 471 of file uan-mac-rc-gw.cc.

References ns3::Packet::AddHeader(), ns3::UanHeaderRcAck::AddNackedFrame(), data, ns3::UanMacRcGw::AckData::expFrames, ns3::UanMacRcGw::AckData::frameNo, m_ackData, m_ackSize, m_address, m_currentRateNum, m_phy, m_sifs, ns3::Simulator::Now(), NS_LOG_DEBUG, ns3::UanMacRcGw::AckData::rxFrames, ns3::Simulator::Schedule(), SendPacket(), ns3::UanHeaderCommon::SetDest(), ns3::UanHeaderRcAck::SetFrameNo(), ns3::UanHeaderCommon::SetSrc(), ns3::UanHeaderCommon::SetType(), StartCycle(), and ns3::UanMacRc::TYPE_ACK.

Referenced by StartCycle().

Here is the call graph for this function:

Here is the caller graph for this function:

bool ns3::UanMacRcGw::Enqueue	(	Ptr< Packet >	pkt,
		const Address &	dest,
		uint16_t	protocolNumber
	)

virtual

Enqueue packet to be transmitted

Parameters

pkt	Packet to be transmitted
dest	Destination address
protocolNumber	Protocol #. Usage varies by MAC

Implements ns3::UanMac.

Definition at line 190 of file uan-mac-rc-gw.cc.

References NS_LOG_WARN.

uint32_t ns3::UanMacRcGw::FindOptA ( void )

private

Definition at line 705 of file uan-mac-rc-gw.cc.

References ComputeExpS(), m_frameSize, ns3::Simulator::Now(), and NS_LOG_DEBUG.

Referenced by StartCycle().

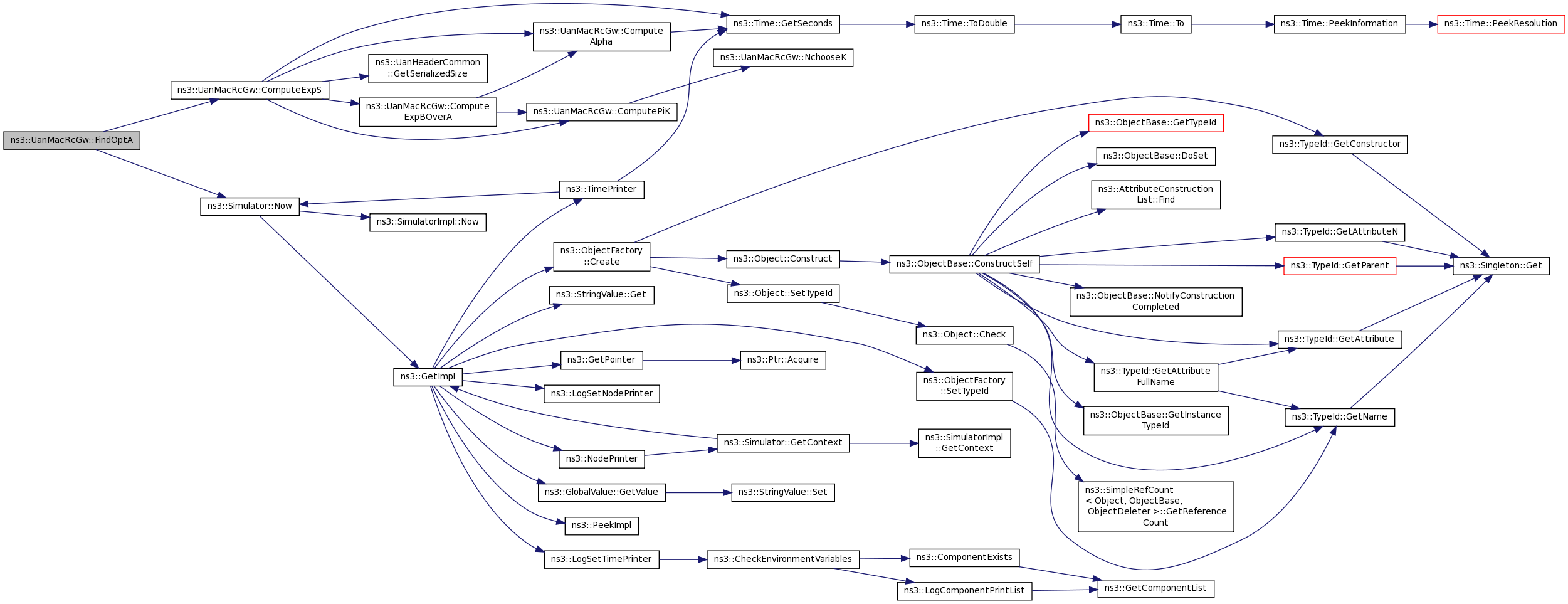

Here is the call graph for this function:

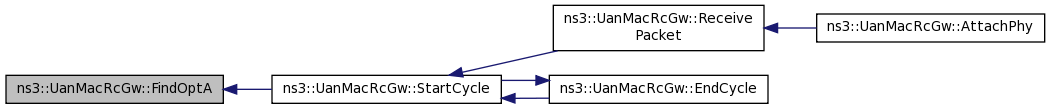

Here is the caller graph for this function:

Address ns3::UanMacRcGw::GetAddress ( void )

virtual

Returns: MAC Address

Implements ns3::UanMac.

Definition at line 178 of file uan-mac-rc-gw.cc.

References m_address.

Address ns3::UanMacRcGw::GetBroadcast ( void ) const

virtual

Returns: Broadcast address

Implements ns3::UanMac.

Definition at line 216 of file uan-mac-rc-gw.cc.

References ns3::UanAddress::GetBroadcast().

Here is the call graph for this function:

std::vector< double > ns3::UanMacRcGw::GetExpPdk ( void )

private

Definition at line 580 of file uan-mac-rc-gw.cc.

References CompExpMinIndex(), ns3::Time::GetSeconds(), m_maxDelta, m_numNodes, and m_propDelay.

Referenced by ComputeExpS().

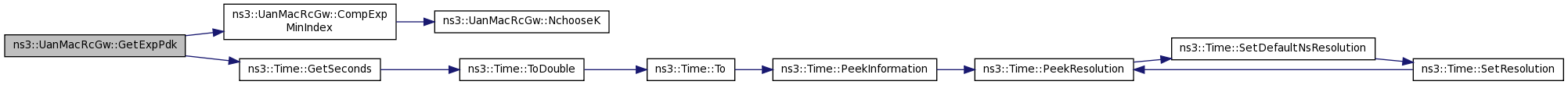

Here is the call graph for this function:

Here is the caller graph for this function:

TypeId ns3::UanMacRcGw::GetTypeId ( void )

static

Definition at line 110 of file uan-mac-rc-gw.cc.

References m_cycleLogger, m_frameSize, m_maxDelta, m_maxRes, m_minRetryRate, m_numNodes, m_numRates, m_rateStep, m_retryStep, m_rxLogger, m_sifs, m_totalRate, ns3::MakeTimeChecker(), ns3::MakeTraceSourceAccessor(), and ns3::TypeId::SetParent().

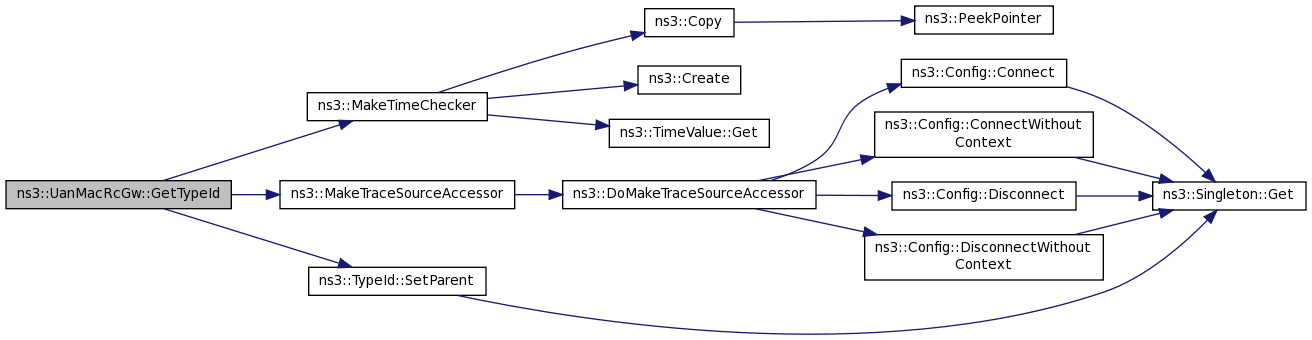

Here is the call graph for this function:

uint64_t ns3::UanMacRcGw::NchooseK	(	uint32_t	n,
		uint32_t	k
	)

private

Definition at line 682 of file uan-mac-rc-gw.cc.

Referenced by CompExpMinIndex(), and ComputePiK().

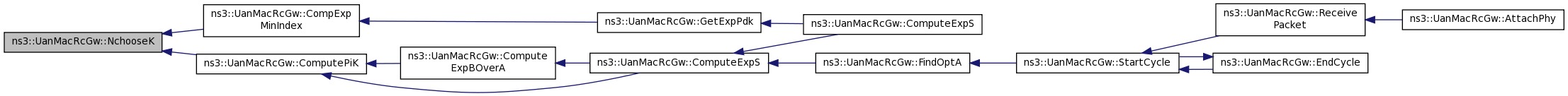

Here is the caller graph for this function:

void ns3::UanMacRcGw::ReceiveError	(	Ptr< Packet >	pkt,
		double	sinr
	)

private

Definition at line 211 of file uan-mac-rc-gw.cc.

Referenced by AttachPhy().

Here is the caller graph for this function:

void ns3::UanMacRcGw::ReceivePacket	(	Ptr< Packet >	pkt,
		double	sinr,
		UanTxMode	mode
	)

private

Definition at line 222 of file uan-mac-rc-gw.cc.

References CTSING, ns3::UanMacRcGw::Request::frameNo, ns3::UanAddress::GetBroadcast(), ns3::UanHeaderCommon::GetDest(), ns3::UanHeaderRcData::GetFrameNo(), ns3::UanHeaderRcRts::GetFrameNo(), ns3::UanHeaderRcRts::GetLength(), ns3::UanHeaderRcRts::GetNoFrames(), ns3::UanHeaderRcData::GetPropDelay(), ns3::UanHeaderRcRts::GetRetryNo(), ns3::Packet::GetSize(), ns3::UanHeaderCommon::GetSrc(), ns3::UanHeaderCommon::GetType(), IDLE, ns3::UanMacRcGw::Request::length, m_ackData, m_address, m_forwardUpCb, m_maxDelta, m_propDelay, m_requests, m_rxLogger, m_sortedRes, m_state, ns3::Simulator::Now(), NS_FATAL_ERROR, NS_LOG_DEBUG, ns3::UanMacRcGw::Request::numFrames, ns3::Packet::PeekHeader(), ns3::Packet::RemoveHeader(), ns3::UanMacRcGw::Request::retryNo, ns3::UanMacRcGw::Request::rxTime, StartCycle(), ns3::UanMacRc::TYPE_ACK, ns3::UanMacRc::TYPE_CTS, ns3::UanMacRc::TYPE_DATA, ns3::UanMacRc::TYPE_GWPING, and ns3::UanMacRc::TYPE_RTS.

Referenced by AttachPhy().

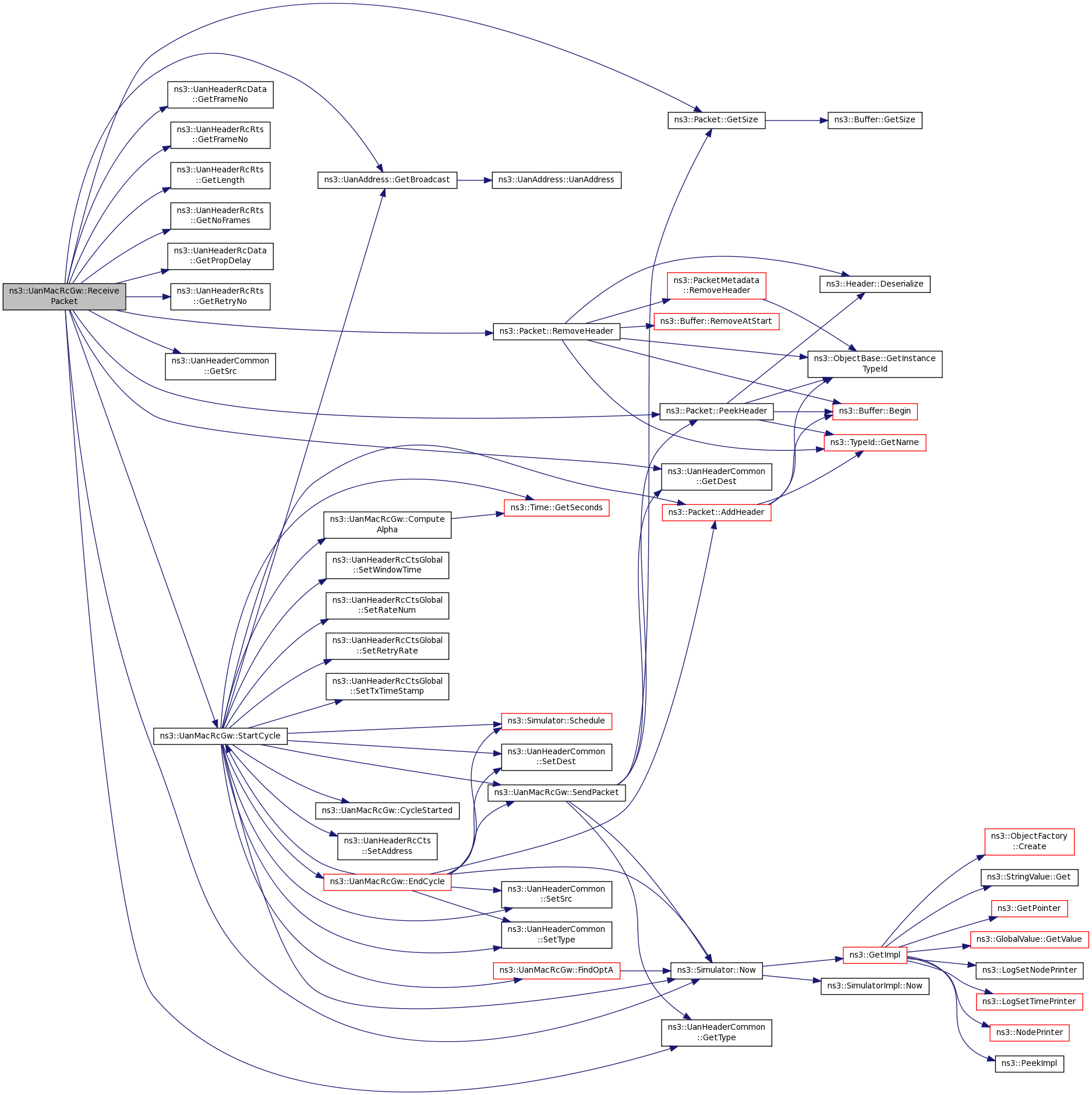

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::UanMacRcGw::SendPacket	(	Ptr< Packet >	pkt,
		uint32_t	rate
	)

private

Definition at line 517 of file uan-mac-rc-gw.cc.

References ns3::UanHeaderCommon::GetDest(), ns3::Packet::GetSize(), ns3::UanHeaderCommon::GetType(), m_phy, ns3::Simulator::Now(), NS_LOG_DEBUG, ns3::Packet::PeekHeader(), ns3::UanMacRc::TYPE_ACK, ns3::UanMacRc::TYPE_CTS, ns3::UanMacRc::TYPE_DATA, ns3::UanMacRc::TYPE_GWPING, and ns3::UanMacRc::TYPE_RTS.

Referenced by EndCycle(), and StartCycle().

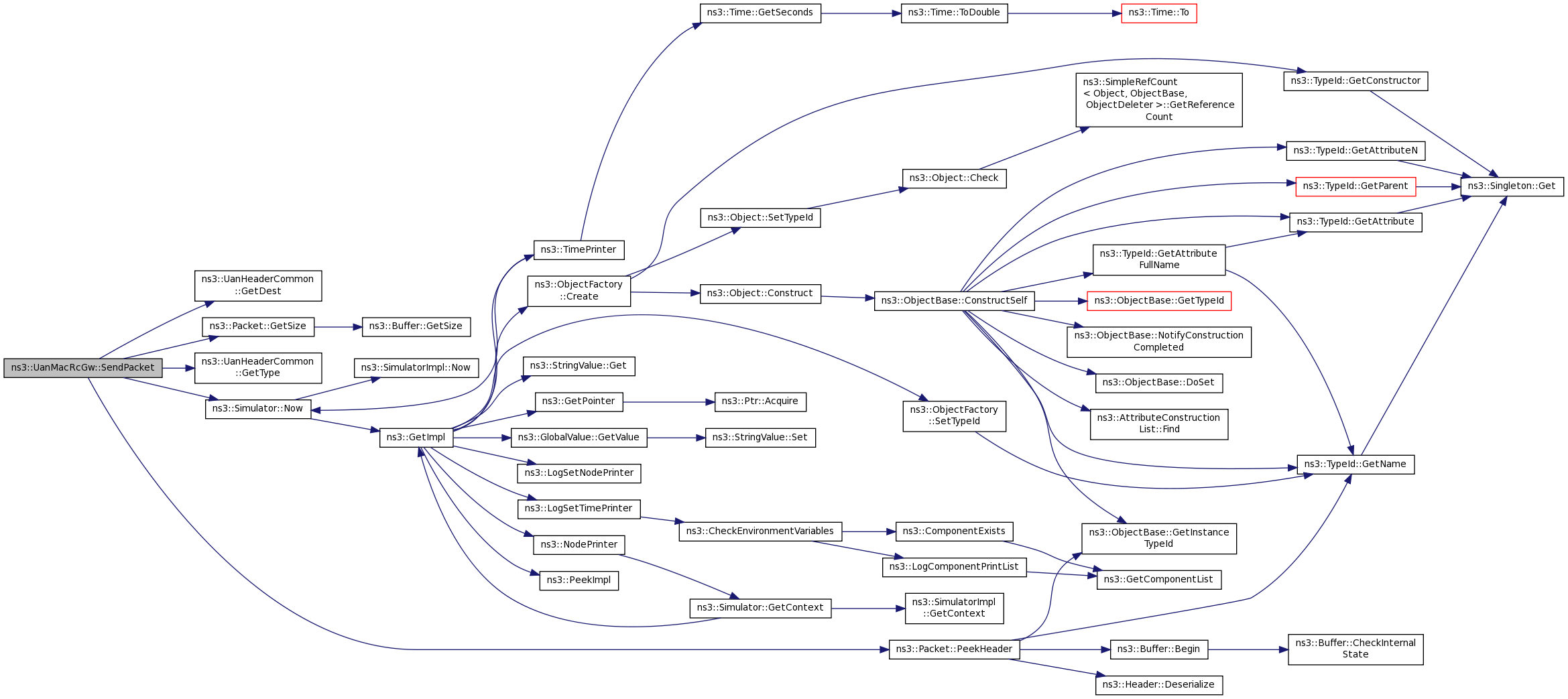

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::UanMacRcGw::SetAddress ( UanAddress addr )

virtual

Parameters

addr	UanAddress for this MAC

Implements ns3::UanMac.

Definition at line 184 of file uan-mac-rc-gw.cc.

References m_address.

void ns3::UanMacRcGw::SetForwardUpCb ( Callback< void, Ptr< Packet >, const UanAddress & > cb )

virtual

Parameters

cb	Callback to be called when a packet is forwarded up to higher layer

Implements ns3::UanMac.

Definition at line 197 of file uan-mac-rc-gw.cc.

References m_forwardUpCb.

void ns3::UanMacRcGw::StartCycle ( void )

private

Definition at line 306 of file uan-mac-rc-gw.cc.

References ns3::Packet::AddHeader(), ComputeAlpha(), CTSING, CycleStarted(), EndCycle(), ns3::UanMacRcGw::AckData::expFrames, FindOptA(), ns3::UanMacRcGw::Request::frameNo, ns3::UanMacRcGw::AckData::frameNo, ns3::UanAddress::GetBroadcast(), ns3::Time::GetSeconds(), INCYCLE, ns3::UanMacRcGw::Request::length, m_ackData, m_ackSize, m_address, m_ctsSizeG, m_ctsSizeN, m_currentRateNum, m_currentRetryRate, m_cycleLogger, m_maxDelta, m_maxRes, m_minRetryRate, m_numNodes, m_numRates, m_phy, m_rateStep, m_requests, m_retryStep, m_rtsSize, m_sifs, m_sortedRes, m_state, m_totalRate, ns3::Simulator::Now(), NS_LOG_DEBUG, NS_LOG_WARN, ns3::UanMacRcGw::Request::numFrames, ns3::UanMacRcGw::Request::retryNo, ns3::UanMacRcGw::Request::rxTime, ns3::Simulator::Schedule(), SendPacket(), ns3::UanHeaderRcCts::SetAddress(), ns3::UanHeaderCommon::SetDest(), ns3::UanHeaderRcCtsGlobal::SetRateNum(), ns3::UanHeaderRcCtsGlobal::SetRetryRate(), ns3::UanHeaderCommon::SetSrc(), ns3::UanHeaderRcCtsGlobal::SetTxTimeStamp(), ns3::UanHeaderCommon::SetType(), ns3::UanHeaderRcCtsGlobal::SetWindowTime(), and ns3::UanMacRc::TYPE_CTS.

Referenced by EndCycle(), and ReceivePacket().

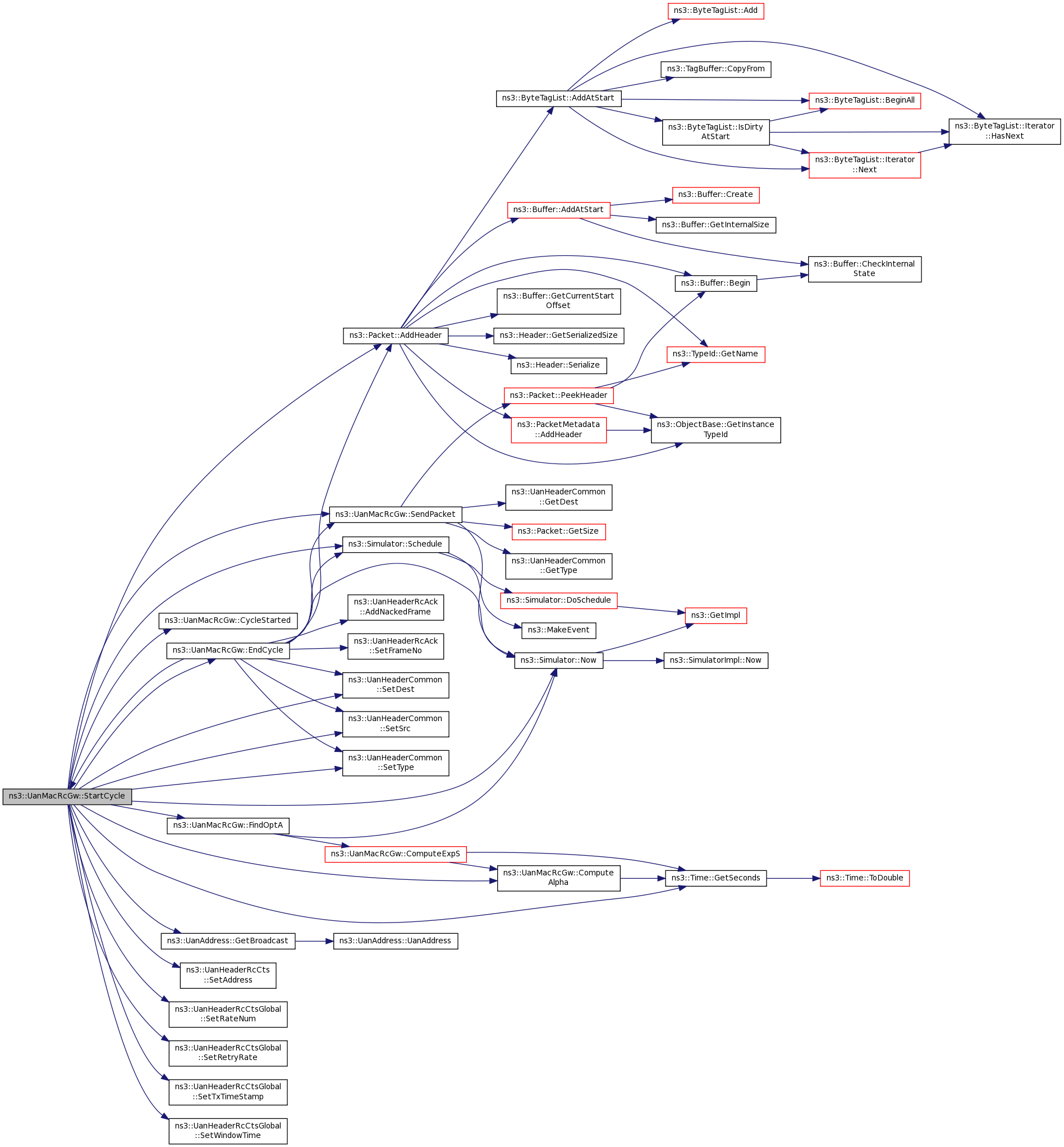

Here is the call graph for this function:

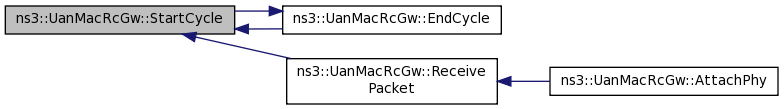

Here is the caller graph for this function:

Member Data Documentation

std::map<UanAddress, AckData> ns3::UanMacRcGw::m_ackData

private

Definition at line 131 of file uan-mac-rc-gw.h.

Referenced by Clear(), EndCycle(), ReceivePacket(), and StartCycle().

uint32_t ns3::UanMacRcGw::m_ackSize

private

Definition at line 118 of file uan-mac-rc-gw.h.

Referenced by ComputeExpBOverA(), EndCycle(), StartCycle(), and UanMacRcGw().

UanAddress ns3::UanMacRcGw::m_address

private

Definition at line 110 of file uan-mac-rc-gw.h.

Referenced by EndCycle(), GetAddress(), ReceivePacket(), SetAddress(), and StartCycle().

bool ns3::UanMacRcGw::m_cleared

private

Definition at line 137 of file uan-mac-rc-gw.h.

Referenced by Clear().

uint32_t ns3::UanMacRcGw::m_ctsSizeG

private

Definition at line 117 of file uan-mac-rc-gw.h.

Referenced by ComputeAlpha(), ComputeExpBOverA(), ComputeExpS(), StartCycle(), and UanMacRcGw().

uint32_t ns3::UanMacRcGw::m_ctsSizeN

private

Definition at line 116 of file uan-mac-rc-gw.h.

Referenced by ComputeExpBOverA(), StartCycle(), and UanMacRcGw().

uint32_t ns3::UanMacRcGw::m_currentRateNum

private

Definition at line 120 of file uan-mac-rc-gw.h.

Referenced by EndCycle(), and StartCycle().

uint16_t ns3::UanMacRcGw::m_currentRetryRate

private

Definition at line 119 of file uan-mac-rc-gw.h.

Referenced by StartCycle().

TracedCallback<Time, Time, uint32_t, uint32_t, double, uint32_t, double> ns3::UanMacRcGw::m_cycleLogger

private

Definition at line 142 of file uan-mac-rc-gw.h.

Referenced by GetTypeId(), and StartCycle().

Callback<void, Ptr<Packet>, const UanAddress& > ns3::UanMacRcGw::m_forwardUpCb

private

Definition at line 108 of file uan-mac-rc-gw.h.

Referenced by ReceivePacket(), and SetForwardUpCb().

uint32_t ns3::UanMacRcGw::m_frameSize

private

Definition at line 124 of file uan-mac-rc-gw.h.

Referenced by FindOptA(), and GetTypeId().

Time ns3::UanMacRcGw::m_maxDelta

private

Definition at line 111 of file uan-mac-rc-gw.h.

Referenced by ComputeAlpha(), ComputeExpS(), GetExpPdk(), GetTypeId(), ReceivePacket(), and StartCycle().

uint32_t ns3::UanMacRcGw::m_maxRes

private

Definition at line 113 of file uan-mac-rc-gw.h.

Referenced by GetTypeId(), and StartCycle().

double ns3::UanMacRcGw::m_minRetryRate

private

Definition at line 126 of file uan-mac-rc-gw.h.

Referenced by GetTypeId(), and StartCycle().

uint32_t ns3::UanMacRcGw::m_numNodes

private

Definition at line 121 of file uan-mac-rc-gw.h.

Referenced by ComputeExpS(), GetExpPdk(), GetTypeId(), and StartCycle().

uint32_t ns3::UanMacRcGw::m_numRates

private

Definition at line 114 of file uan-mac-rc-gw.h.

Referenced by GetTypeId(), and StartCycle().

Ptr<UanPhy> ns3::UanMacRcGw::m_phy

private

Definition at line 109 of file uan-mac-rc-gw.h.

Referenced by AttachPhy(), Clear(), EndCycle(), SendPacket(), and StartCycle().

std::map<UanAddress, Time> ns3::UanMacRcGw::m_propDelay

private

Definition at line 129 of file uan-mac-rc-gw.h.

Referenced by Clear(), GetExpPdk(), and ReceivePacket().

uint32_t ns3::UanMacRcGw::m_rateStep

private

Definition at line 123 of file uan-mac-rc-gw.h.

Referenced by GetTypeId(), and StartCycle().

std::map<UanAddress, Request> ns3::UanMacRcGw::m_requests

private

Definition at line 134 of file uan-mac-rc-gw.h.

Referenced by Clear(), ReceivePacket(), and StartCycle().

double ns3::UanMacRcGw::m_retryStep

private

Definition at line 127 of file uan-mac-rc-gw.h.

Referenced by GetTypeId(), and StartCycle().

uint32_t ns3::UanMacRcGw::m_rtsSize

private

Definition at line 115 of file uan-mac-rc-gw.h.

Referenced by ComputeAlpha(), ComputeExpS(), StartCycle(), and UanMacRcGw().

TracedCallback<Ptr<const Packet>, UanTxMode > ns3::UanMacRcGw::m_rxLogger

private

Definition at line 139 of file uan-mac-rc-gw.h.

Referenced by GetTypeId(), and ReceivePacket().

Time ns3::UanMacRcGw::m_sifs

private

Definition at line 112 of file uan-mac-rc-gw.h.

Referenced by ComputeAlpha(), ComputeExpS(), EndCycle(), GetTypeId(), and StartCycle().

std::set<std::pair<Time, UanAddress> > ns3::UanMacRcGw::m_sortedRes

private

Definition at line 135 of file uan-mac-rc-gw.h.

Referenced by Clear(), ReceivePacket(), and StartCycle().

State ns3::UanMacRcGw::m_state

private

Definition at line 91 of file uan-mac-rc-gw.h.

Referenced by CycleStarted(), ReceivePacket(), and StartCycle().

uint32_t ns3::UanMacRcGw::m_totalRate

private

Definition at line 122 of file uan-mac-rc-gw.h.

Referenced by ComputeAlpha(), ComputeExpBOverA(), ComputeExpS(), GetTypeId(), and StartCycle().

The documentation for this class was generated from the following files:

src/uan/model/uan-mac-rc-gw.h
src/uan/model/uan-mac-rc-gw.cc

Classes

Public Member Functions

Static Public Member Functions

Protected Member Functions

Private Types

Private Member Functions

Private Attributes

Detailed Description

Config Paths

Attributes

TraceSources

Member Enumeration Documentation

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation
