WHOI Micromodem like FH-FSK model. More...

#include <uan-phy-gen.h>

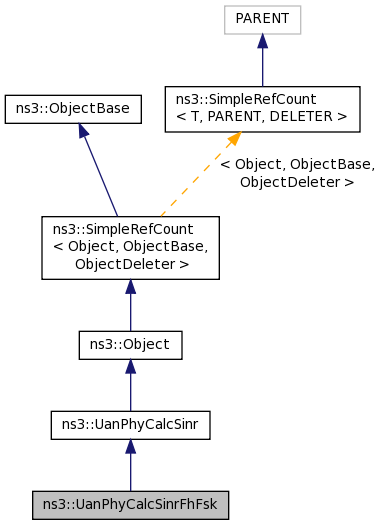

Inheritance diagram for ns3::UanPhyCalcSinrFhFsk:

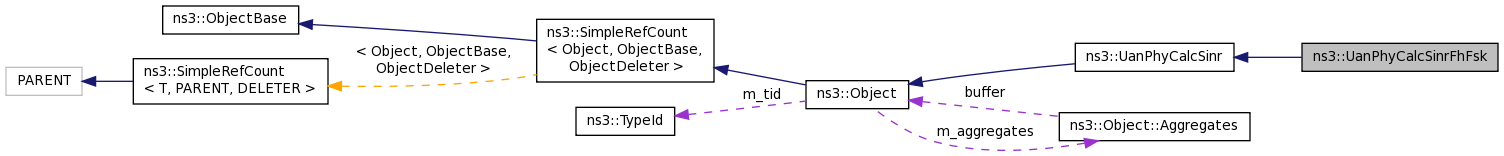

Collaboration diagram for ns3::UanPhyCalcSinrFhFsk:

Public Member Functions
	UanPhyCalcSinrFhFsk ()

virtual	~UanPhyCalcSinrFhFsk ()

virtual double	CalcSinrDb (Ptr< Packet > pkt, Time arrTime, double rxPowerDb, double ambNoiseDb, UanTxMode mode, UanPdp pdp, const UanTransducer::ArrivalList &arrivalList) const

Public Member Functions inherited from ns3::UanPhyCalcSinr
virtual void	Clear (void)

double	DbToKp (double db) const
	Converts dB re 1 uPa to kilopascals. More...

virtual void	DoDispose (void)

double	KpToDb (double kp) const
	Converts kilopascals to dB re 1 uPa. More...

Public Member Functions inherited from ns3::Object
	Object ()

virtual	~Object ()

void	AggregateObject (Ptr< Object > other)

void	Dispose (void)

AggregateIterator	GetAggregateIterator (void) const

virtual TypeId	GetInstanceTypeId (void) const

template<typename T >
Ptr< T >	GetObject (void) const

template<typename T >
Ptr< T >	GetObject (TypeId tid) const

void	Initialize (void)

Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()

	SimpleRefCount (const SimpleRefCount &o)

uint32_t	GetReferenceCount (void) const

SimpleRefCount &	operator= (const SimpleRefCount &o)

void	Ref (void) const

void	Unref (void) const

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()

void	GetAttribute (std::string name, AttributeValue &value) const

bool	GetAttributeFailSafe (std::string name, AttributeValue &attribute) const

void	SetAttribute (std::string name, const AttributeValue &value)

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)

Static Public Member Functions
static TypeId	GetTypeId (void)

Static Public Member Functions inherited from ns3::UanPhyCalcSinr
static TypeId	GetTypeId (void)

Static Public Member Functions inherited from ns3::Object
static TypeId	GetTypeId (void)

Static Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
static void	Cleanup (void)

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)

Private Attributes
uint32_t	m_hops

Additional Inherited Members
Protected Member Functions inherited from ns3::Object
	Object (const Object &o)

virtual void	DoInitialize (void)

virtual void	NotifyNewAggregate (void)

Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)

virtual void	NotifyConstructionCompleted (void)

Detailed Description

WHOI Micromodem like FH-FSK model.

Doxygen introspection did not find any typical Config paths.

Attributes

NumberOfHops: Number of frequencies in hopping pattern
- Set with class: ns3::UintegerValue
- Underlying type: uint32_t 0:4294967295
- Initial value: 13
- Flags: construct write read

No TraceSources are defined for this type.

Model of interference calculation for FH-FSK wherein all nodes use an identical hopping pattern. In this case, there is an (M-1)*SymbolTime clearing time between symbols transmitted on the same frequency. This clearing time combats ISI from channel delay spread and also has a byproduct of possibly reducing interference from other transmitted packets.

Definition at line 133 of file uan-phy-gen.h.

Constructor & Destructor Documentation

ns3::UanPhyCalcSinrFhFsk::UanPhyCalcSinrFhFsk ( )

Definition at line 98 of file uan-phy-gen.cc.

ns3::UanPhyCalcSinrFhFsk::~UanPhyCalcSinrFhFsk ( )

virtual

Definition at line 102 of file uan-phy-gen.cc.

Member Function Documentation

double ns3::UanPhyCalcSinrFhFsk::CalcSinrDb	(	Ptr< Packet >	pkt,
		Time	arrTime,
		double	rxPowerDb,
		double	ambNoiseDb,
		UanTxMode	mode,
		UanPdp	pdp,
		const UanTransducer::ArrivalList &	arrivalList
	)		const

virtual

Parameters

pkt	Packet to calculate SINR for
arrTime	Arrival time of pkt
rxPowerDb	The received signal strength of the packet in dB re 1 uPa
ambNoiseDb	Ambient channel noise in dB re 1 uPa
mode	TX Mode of pkt
pdp	Power delay profile of pkt
arrivalList	List of interfering arrivals given from Transducer.
