#include <uinteger-8-probe.h>

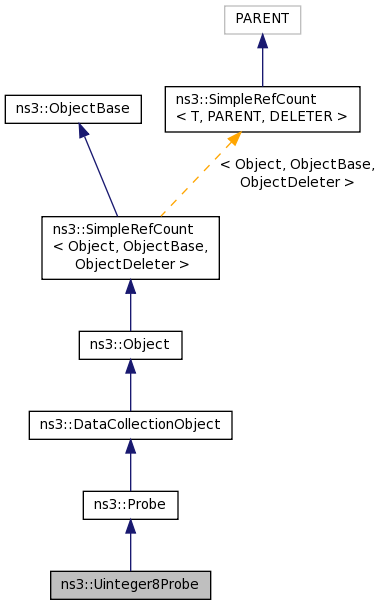

Inheritance diagram for ns3::Uinteger8Probe:

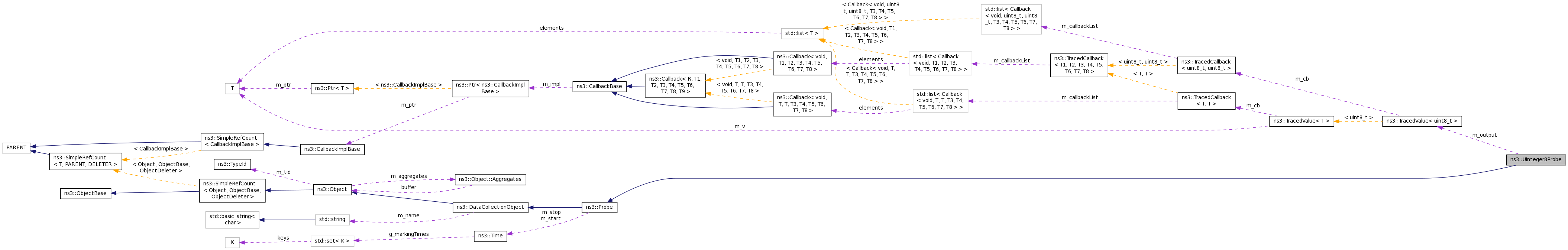

Collaboration diagram for ns3::Uinteger8Probe:

Public Member Functions
	Uinteger8Probe ()

virtual	~Uinteger8Probe ()

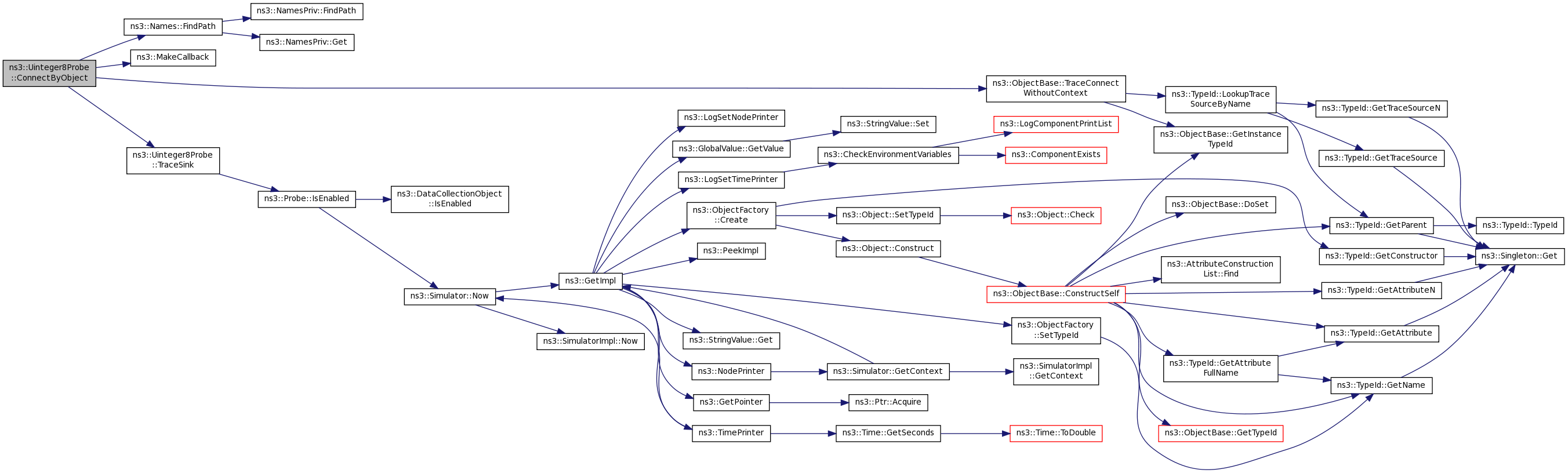

virtual bool	ConnectByObject (std::string traceSource, Ptr< Object > obj)
	connect to a trace source attribute provided by a given object More...

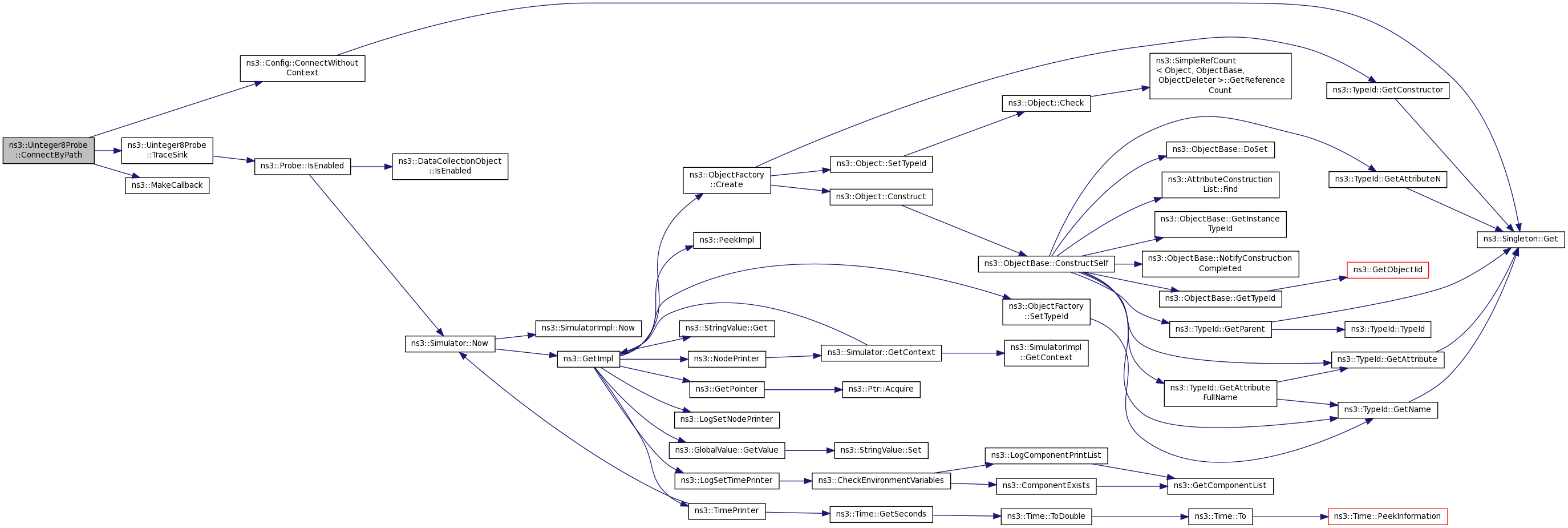

virtual void	ConnectByPath (std::string path)
	connect to a trace source provided by a config path More...

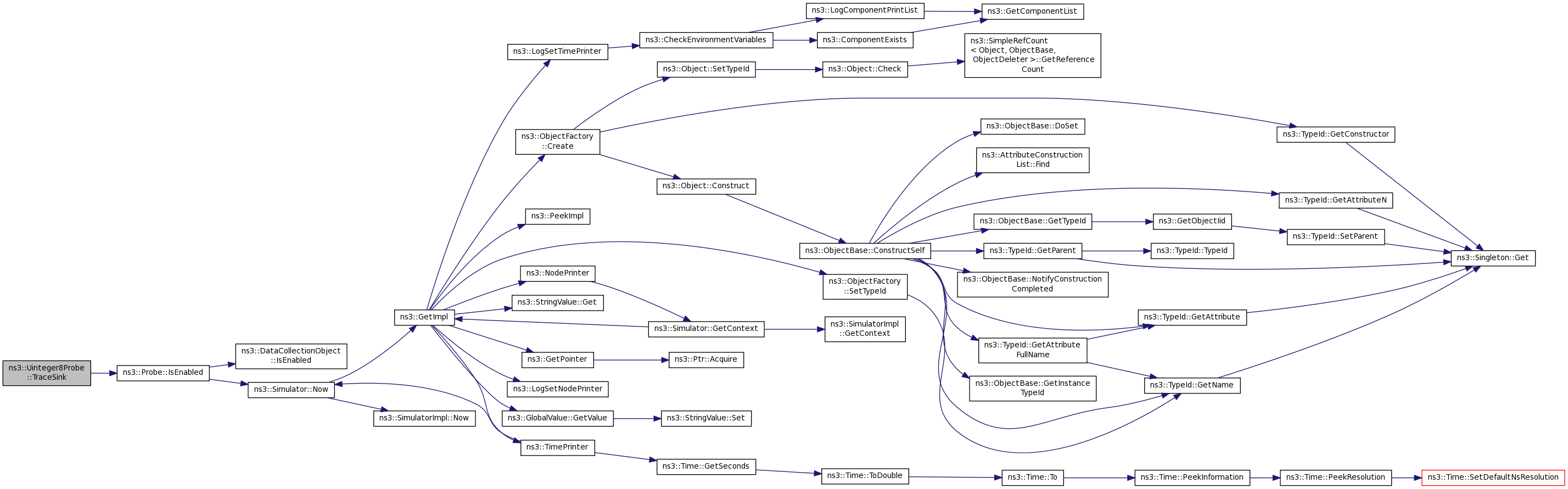

uint8_t	GetValue (void) const

void	SetValue (uint8_t value)

Public Member Functions inherited from ns3::Probe
	Probe ()

virtual	~Probe ()

virtual bool	IsEnabled (void) const

Public Member Functions inherited from ns3::DataCollectionObject
	DataCollectionObject ()

virtual	~DataCollectionObject ()

void	Disable (void)

void	Enable (void)
	Set the status of an individual object. More...

std::string	GetName (void) const
	Get the object's name. More...

void	SetName (std::string name)
	Set the object's name. All spaces are replaced by underscores. More...

Public Member Functions inherited from ns3::Object
	Object ()

virtual	~Object ()

void	AggregateObject (Ptr< Object > other)

void	Dispose (void)

AggregateIterator	GetAggregateIterator (void) const

virtual TypeId	GetInstanceTypeId (void) const

template<typename T >
Ptr< T >	GetObject (void) const

template<typename T >
Ptr< T >	GetObject (TypeId tid) const

void	Initialize (void)

Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()

	SimpleRefCount (const SimpleRefCount &o)

uint32_t	GetReferenceCount (void) const

SimpleRefCount &	operator= (const SimpleRefCount &o)

void	Ref (void) const

void	Unref (void) const

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()

void	GetAttribute (std::string name, AttributeValue &value) const

bool	GetAttributeFailSafe (std::string name, AttributeValue &attribute) const

void	SetAttribute (std::string name, const AttributeValue &value)

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)

Static Public Member Functions

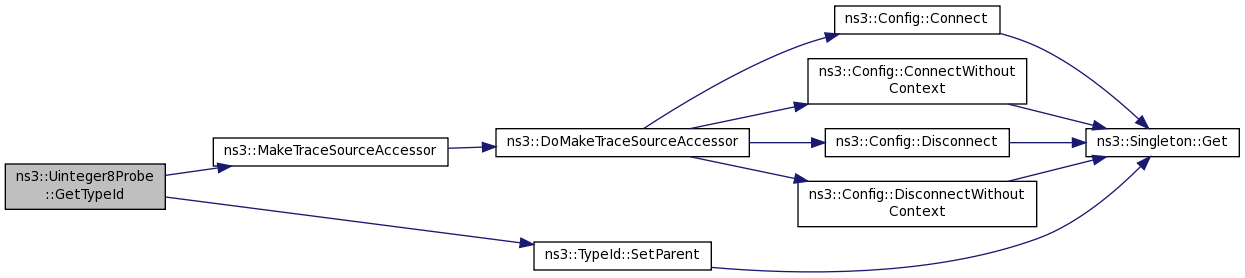

static TypeId	GetTypeId ()

static void	SetValueByPath (std::string path, uint8_t value)
	Set a probe value by its name in the Config system. More...

Static Public Member Functions inherited from ns3::Probe
static TypeId	GetTypeId ()

Static Public Member Functions inherited from ns3::DataCollectionObject
static TypeId	GetTypeId ()

Static Public Member Functions inherited from ns3::Object
static TypeId	GetTypeId (void)

Static Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
static void	Cleanup (void)

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)

Private Member Functions

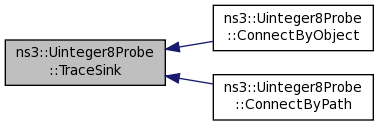

void	TraceSink (uint8_t oldData, uint8_t newData)
	Method to connect to an underlying ns3::TraceSource of type uint8_t. More...

Private Attributes
TracedValue< uint8_t >	m_output

Additional Inherited Members
Protected Member Functions inherited from ns3::Object
	Object (const Object &o)

virtual void	DoDispose (void)

virtual void	DoInitialize (void)

virtual void	NotifyNewAggregate (void)

Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)

virtual void	NotifyConstructionCompleted (void)

Protected Attributes inherited from ns3::Probe
Time	m_start
	Time when logging starts. More...

Time	m_stop
	Time when logging stops. More...

Protected Attributes inherited from ns3::DataCollectionObject
bool	m_enabled
	Object's activation state. More...

std::string	m_name
	Name of the object within the data collection framework. More...

Detailed Description

This class is designed to probe an underlying ns3 TraceSource exporting an uint8_t. This probe exports a trace source "Output" of type uint8_t. The Output trace source emits a value when either the trace source emits a new value, or when SetValue () is called.

The current value of the probe can be polled with the GetValue () method.

Doxygen introspection did not find any typical Config paths.
No Attributes are defined for this type.
