Information element vectorImplements a vector of WifiInformationElements. Information elements typically come in groups, and the WifiInformationElementVector class provides a representation of a series of IEs, and the facility for serialisation to and deserialisation from the over-the-air format. More...

#include <wifi-information-element-vector.h>

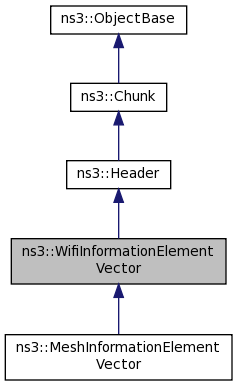

Inheritance diagram for ns3::WifiInformationElementVector:

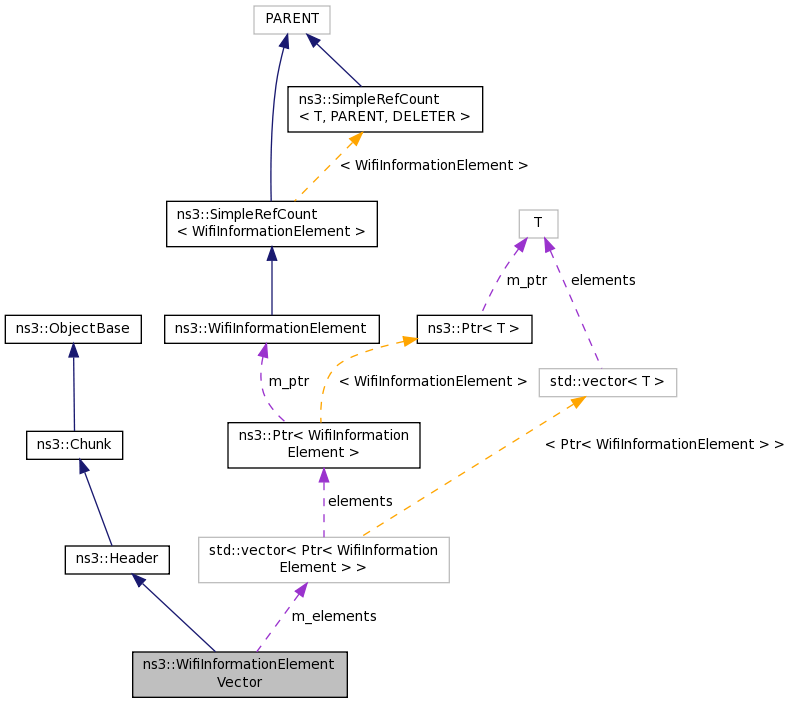

Collaboration diagram for ns3::WifiInformationElementVector:

Public Types
typedef std::vector< Ptr < WifiInformationElement > >::iterator	Iterator
	As soon as this is a vector, we define an Iterator. More...

Public Member Functions
	WifiInformationElementVector ()

	~WifiInformationElementVector ()

bool	AddInformationElement (Ptr< WifiInformationElement > element)
	add an IE, if maxSize has exceeded, returns false More...

Iterator	Begin ()
	Returns Begin of the vector. More...

virtual uint32_t	DeserializeSingleIe (Buffer::Iterator start)
	Needed when you try to deserialize a lonely IE inside other header. More...

Iterator	End ()
	Returns End of the vector. More...

Ptr< WifiInformationElement >	FindFirst (WifiInformationElementId id) const
	vector of pointers to information elements is the body of IeVector More...

virtual bool	operator== (const WifiInformationElementVector &a) const

void	SetMaxSize (uint16_t size)
	Set maximum size to control overflow of the max packet length. More...

Public Member Functions inherited from ns3::Header
virtual	~Header ()

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()

void	GetAttribute (std::string name, AttributeValue &value) const

bool	GetAttributeFailSafe (std::string name, AttributeValue &attribute) const

void	SetAttribute (std::string name, const AttributeValue &value)

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)

Protected Types
typedef std::vector< Ptr < WifiInformationElement > >	IE_VECTOR

Protected Member Functions
uint32_t	GetSize () const
	Current number of bytes. More...

Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)

virtual void	NotifyConstructionCompleted (void)

Protected Attributes
IE_VECTOR	m_elements

uint16_t	m_maxSize
	Size in bytes (actually, max packet length) More...

Inherited from Header
TypeId	GetInstanceTypeId () const

virtual uint32_t	GetSerializedSize () const

virtual void	Serialize (Buffer::Iterator start) const

virtual uint32_t	Deserialize (Buffer::Iterator start)

virtual void	Print (std::ostream &os) const

static TypeId	GetTypeId ()

Additional Inherited Members
Static Public Member Functions inherited from ns3::Header
static TypeId	GetTypeId (void)

Static Public Member Functions inherited from ns3::Chunk
static TypeId	GetTypeId (void)

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)

Detailed Description

Information element vector

Implements a vector of WifiInformationElements. Information elements typically come in groups, and the WifiInformationElementVector class provides a representation of a series of IEs, and the facility for serialisation to and deserialisation from the over-the-air format.

Doxygen introspection did not find any typical Config paths.
No Attributes are defined for this type.
No TraceSources are defined for this type.

Definition at line 43 of file wifi-information-element-vector.h.

Member Typedef Documentation

typedef std::vector<Ptr<WifiInformationElement> > ns3::WifiInformationElementVector::IE_VECTOR

protected

Definition at line 84 of file wifi-information-element-vector.h.

typedef std::vector<Ptr<WifiInformationElement> >::iterator ns3::WifiInformationElementVector::Iterator

As soon as this is a vector, we define an Iterator.

Definition at line 72 of file wifi-information-element-vector.h.

Constructor & Destructor Documentation

ns3::WifiInformationElementVector::WifiInformationElementVector ( )

Definition at line 29 of file wifi-information-element-vector.cc.

ns3::WifiInformationElementVector::~WifiInformationElementVector ( )

Definition at line 33 of file wifi-information-element-vector.cc.

References m_elements.

Member Function Documentation

bool ns3::WifiInformationElementVector::AddInformationElement ( Ptr< WifiInformationElement > element )

add an IE, if maxSize has exceeded, returns false

Definition at line 127 of file wifi-information-element-vector.cc.

References ns3::WifiInformationElement::GetInformationFieldSize(), GetSize(), m_elements, and m_maxSize.

Referenced by ns3::MeshWifiBeacon::AddInformationElement(), ns3::MeshInformationElementVectorBist::DoRun(), ns3::dot11s::HwmpProtocolMac::ForwardPerr(), ns3::dot11s::PeerManagementProtocolMac::SendPeerLinkManagementFrame(), ns3::dot11s::HwmpProtocolMac::SendPrep(), and ns3::dot11s::HwmpProtocolMac::SendPreq().

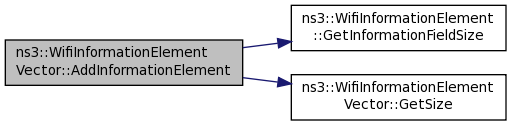

Here is the call graph for this function:

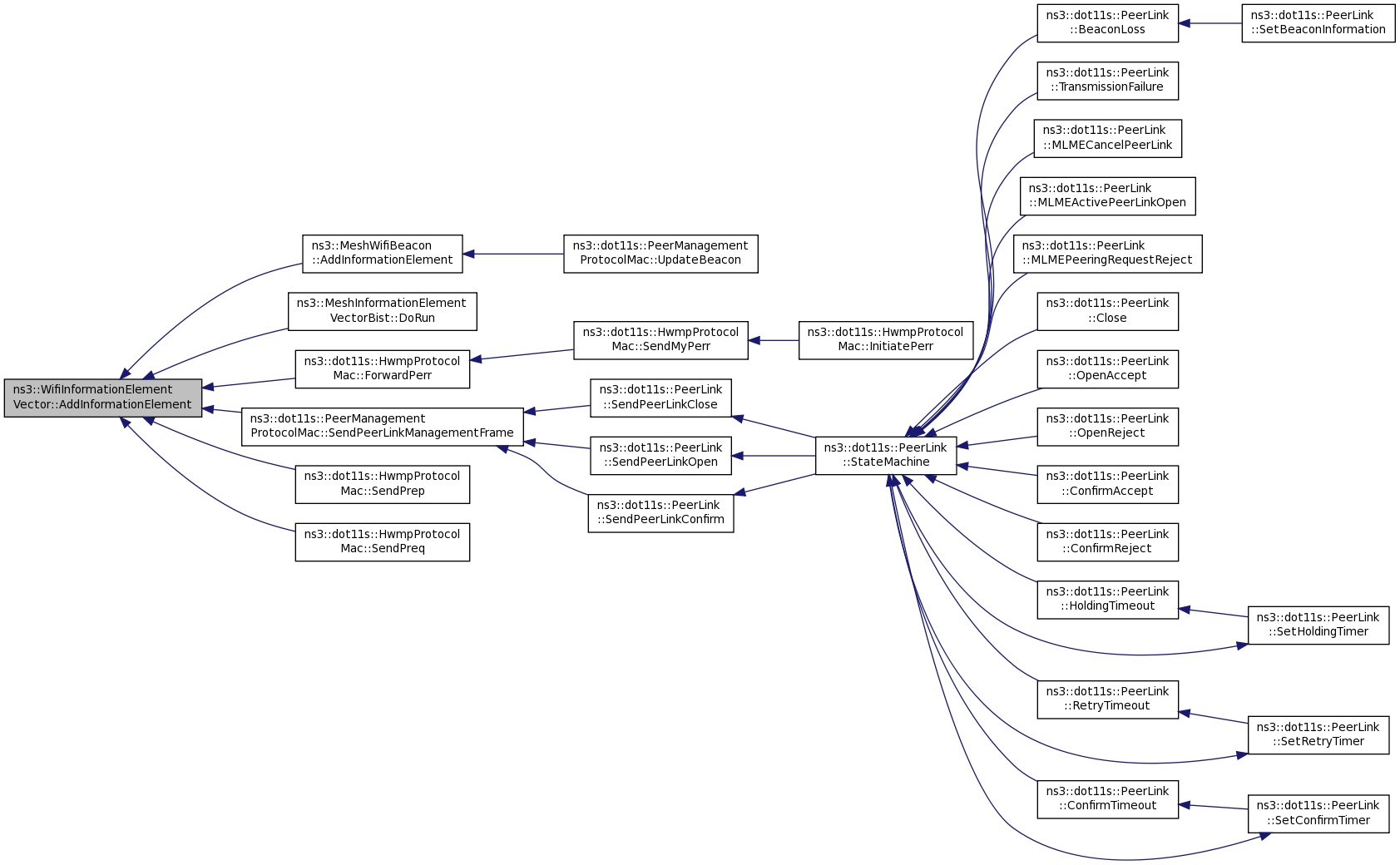

Here is the caller graph for this function:

WifiInformationElementVector::Iterator ns3::WifiInformationElementVector::Begin ( void )

Returns Begin of the vector.

Definition at line 117 of file wifi-information-element-vector.cc.

References m_elements.

Referenced by ns3::dot11s::HwmpProtocolMac::ReceiveAction().

Here is the caller graph for this function:

uint32_t ns3::WifiInformationElementVector::Deserialize ( Buffer::Iterator start )

virtual

Attention: When you use RemoveHeader, WifiInformationElementVector supposes, that all buffer consists of information elements

Parameters

start

Returns

Implements ns3::Header.

Definition at line 68 of file wifi-information-element-vector.cc.

References DeserializeSingleIe(), ns3::Buffer::Iterator::GetDistanceFrom(), ns3::Buffer::Iterator::GetSize(), ns3::Buffer::Iterator::Next(), and visualizer.core::start().

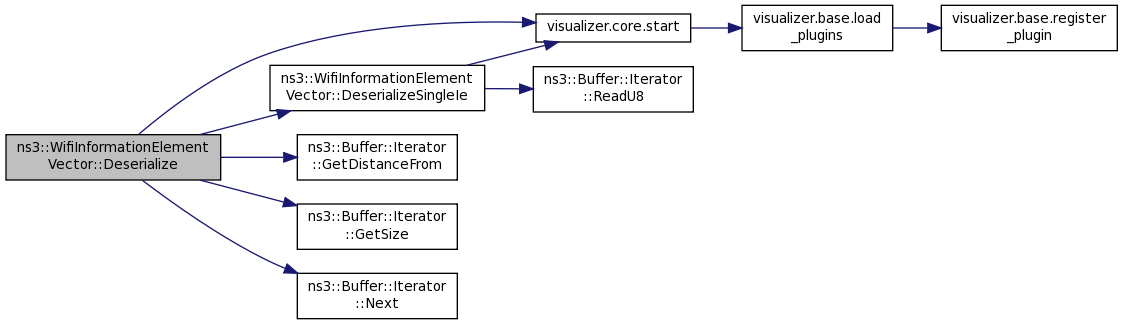

Here is the call graph for this function:

uint32_t ns3::WifiInformationElementVector::DeserializeSingleIe ( Buffer::Iterator start )

virtual

Needed when you try to deserialize a lonely IE inside other header.

Parameters

start is the start of the buffer

Returns: deserialized bytes

Reimplemented in ns3::MeshInformationElementVector.

Definition at line 81 of file wifi-information-element-vector.cc.

References NS_FATAL_ERROR, ns3::Buffer::Iterator::ReadU8(), and visualizer.core::start().

Referenced by Deserialize(), and ns3::MeshInformationElementVector::DeserializeSingleIe().

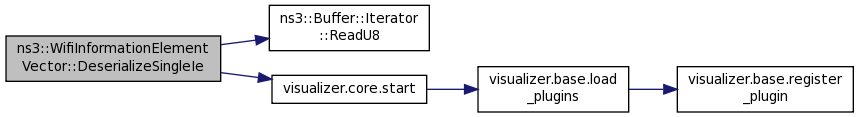

Here is the call graph for this function:

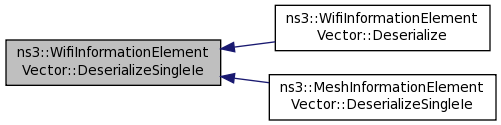

Here is the caller graph for this function:

WifiInformationElementVector::Iterator ns3::WifiInformationElementVector::End ( void )

Returns End of the vector.

Definition at line 122 of file wifi-information-element-vector.cc.

References m_elements.

Referenced by ns3::dot11s::HwmpProtocolMac::ReceiveAction().

Here is the caller graph for this function:

Ptr< WifiInformationElement > ns3::WifiInformationElementVector::FindFirst ( WifiInformationElementId id ) const

vector of pointers to information elements is the body of IeVector

Definition at line 137 of file wifi-information-element-vector.cc.

References m_elements.

Referenced by ns3::dot11s::PeerManagementProtocolMac::Receive().

Here is the caller graph for this function:

TypeId ns3::WifiInformationElementVector::GetInstanceTypeId ( void ) const

virtual

Attention: When you use RemoveHeader, WifiInformationElementVector supposes, that all buffer consists of information elements

Parameters

start

Returns

Implements ns3::ObjectBase.

Definition at line 50 of file wifi-information-element-vector.cc.

References GetTypeId().

Here is the call graph for this function:

uint32_t ns3::WifiInformationElementVector::GetSerializedSize ( void ) const

virtual

Attention: When you use RemoveHeader, WifiInformationElementVector supposes, that all buffer consists of information elements

Parameters

start

Returns

Implements ns3::Header.

Definition at line 55 of file wifi-information-element-vector.cc.

References GetSize().

Here is the call graph for this function:

uint32_t ns3::WifiInformationElementVector::GetSize ( void ) const

protected

Current number of bytes.

Definition at line 159 of file wifi-information-element-vector.cc.

References m_elements.

Referenced by AddInformationElement(), ns3::MeshInformationElementVector::DeserializeSingleIe(), and GetSerializedSize().

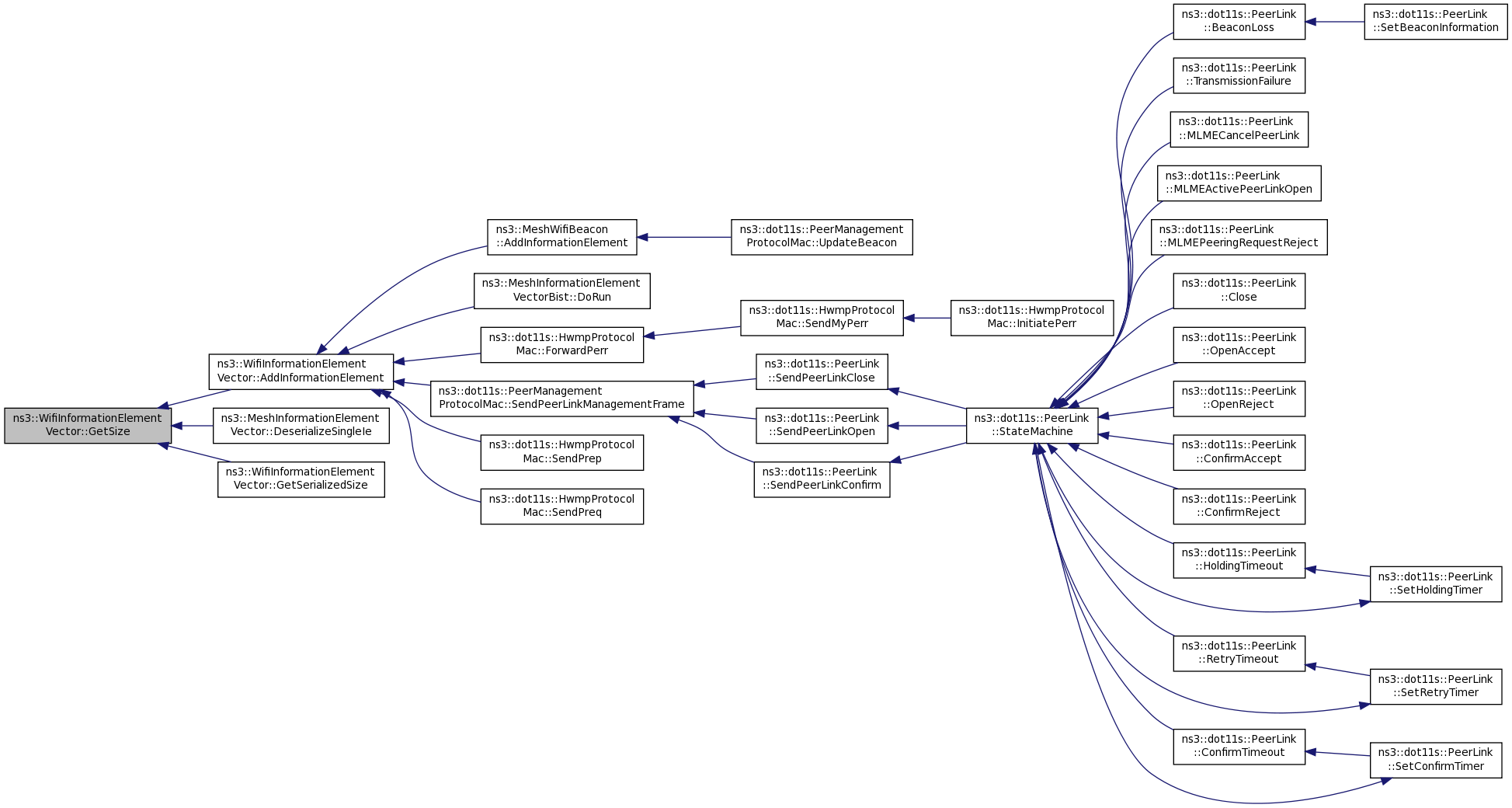

Here is the caller graph for this function:

TypeId ns3::WifiInformationElementVector::GetTypeId ( void )

static

Attention: When you use RemoveHeader, WifiInformationElementVector supposes, that all buffer consists of information elements

Parameters

start

Returns

Definition at line 42 of file wifi-information-element-vector.cc.

References ns3::TypeId::SetParent().

Referenced by GetInstanceTypeId().

Here is the call graph for this function:

Here is the caller graph for this function:

bool ns3::WifiInformationElementVector::operator== ( const WifiInformationElementVector & a ) const

virtual

Definition at line 170 of file wifi-information-element-vector.cc.

References m_elements, and NS_ASSERT.

void ns3::WifiInformationElementVector::Print ( std::ostream & os ) const

virtual

Parameters

os output stream This method is used by Packet::Print to print the content of a trailer as ascii data to a c++ output stream. Although the trailer is free to format its output as it wishes, it is recommended to follow a few rules to integrate with the packet pretty printer: start with flags, small field values located between a pair of parens. Values should be separated by whitespace. Follow the parens with the important fields, separated by whitespace. i.e.: (field1 val1 field2 val2 field3 val3) field4 val4 field5 val5
