#include <lte-spectrum-signal-parameters.h>

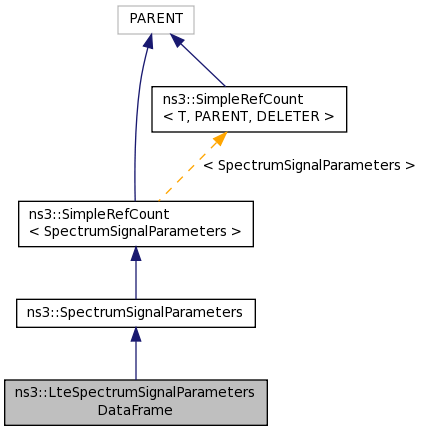

Inheritance diagram for ns3::LteSpectrumSignalParametersDataFrame:

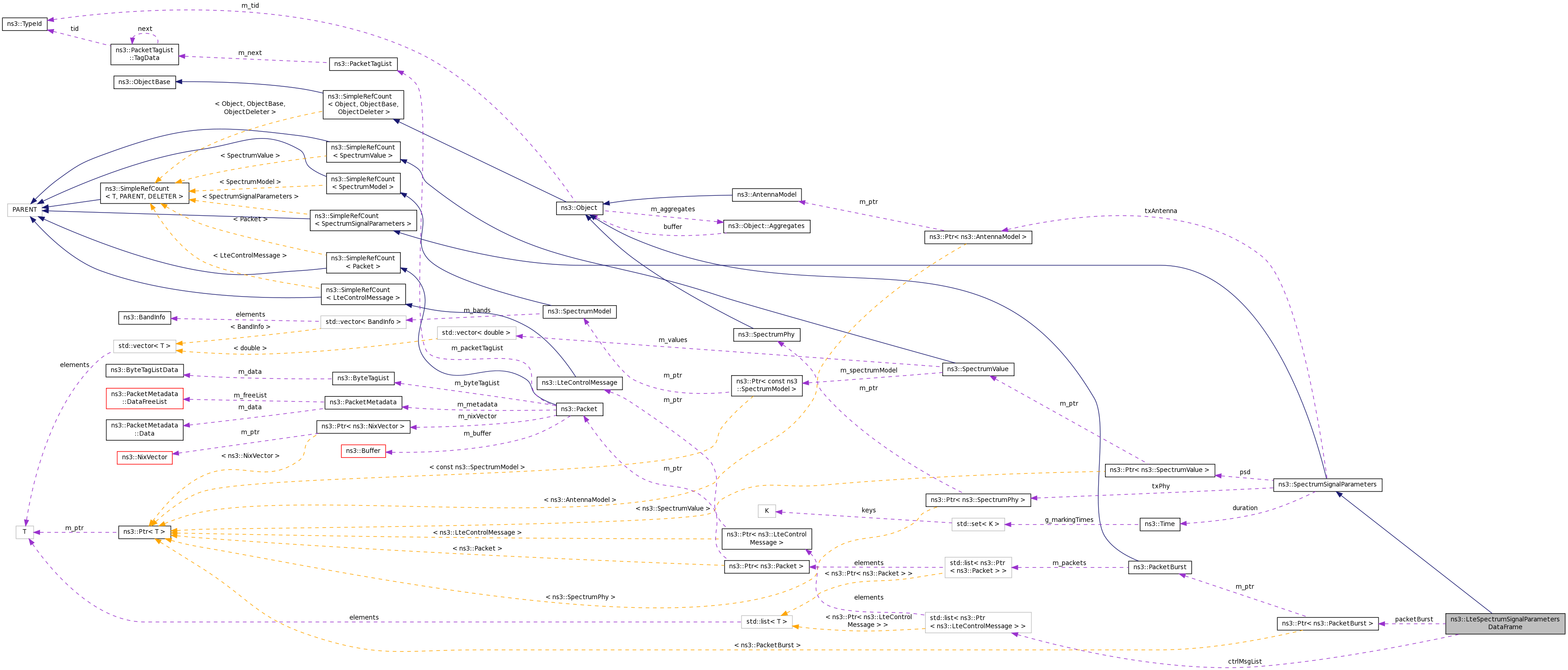

Collaboration diagram for ns3::LteSpectrumSignalParametersDataFrame:

Public Member Functions
	LteSpectrumSignalParametersDataFrame ()

	LteSpectrumSignalParametersDataFrame (const LteSpectrumSignalParametersDataFrame &p)

virtual Ptr < SpectrumSignalParameters >	Copy ()

Public Member Functions inherited from ns3::SpectrumSignalParameters
	SpectrumSignalParameters ()

	SpectrumSignalParameters (const SpectrumSignalParameters &p)

virtual	~SpectrumSignalParameters ()

Public Member Functions inherited from ns3::SimpleRefCount< SpectrumSignalParameters >
	SimpleRefCount ()

	SimpleRefCount (const SimpleRefCount &o)

uint32_t	GetReferenceCount (void) const

SimpleRefCount &	operator= (const SimpleRefCount &o)

void	Ref (void) const

void	Unref (void) const

Public Attributes
uint16_t	cellId

std::list< Ptr < LteControlMessage > >	ctrlMsgList

Ptr< PacketBurst >	packetBurst

Public Attributes inherited from ns3::SpectrumSignalParameters
Time	duration

Ptr< SpectrumValue >	psd

Ptr< AntennaModel >	txAntenna

Ptr< SpectrumPhy >	txPhy

Additional Inherited Members
Static Public Member Functions inherited from ns3::SimpleRefCount< SpectrumSignalParameters >
static void	Cleanup (void)

Detailed Description

Signal parameters for Lte Data Frame (PDSCH), and eventually after some control messages through other control channel embedded in PDSCH (i.e. PBCH)

Definition at line 69 of file lte-spectrum-signal-parameters.h.

Constructor & Destructor Documentation

ns3::LteSpectrumSignalParametersDataFrame::LteSpectrumSignalParametersDataFrame ( )

default constructor

Definition at line 61 of file lte-spectrum-signal-parameters.cc.

References NS_LOG_FUNCTION.

ns3::LteSpectrumSignalParametersDataFrame::LteSpectrumSignalParametersDataFrame ( const LteSpectrumSignalParametersDataFrame & p )

copy constructor

Definition at line 66 of file lte-spectrum-signal-parameters.cc.

References cellId, ctrlMsgList, NS_LOG_FUNCTION, and packetBurst.

Member Function Documentation

Ptr< SpectrumSignalParameters > ns3::LteSpectrumSignalParametersDataFrame::Copy ( void )

virtual

make a "virtual" copy of this class, where "virtual" refers to the fact that if the actual object is a derived class of SpectrumSignalParameters, then the copy is also a derived class of the same type. Each class inheriting from SpectrumSignalParameters should override this method and use it to call the copy constructor of the derived class.
