#include <lte-spectrum-signal-parameters.h>

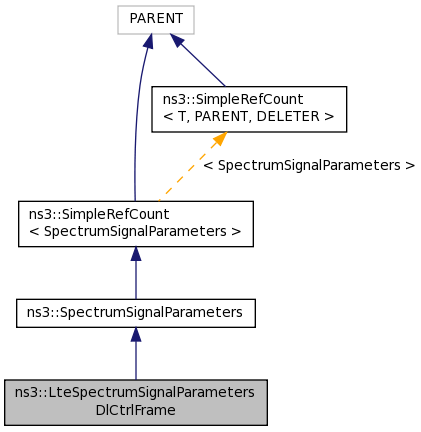

Inheritance diagram for ns3::LteSpectrumSignalParametersDlCtrlFrame:

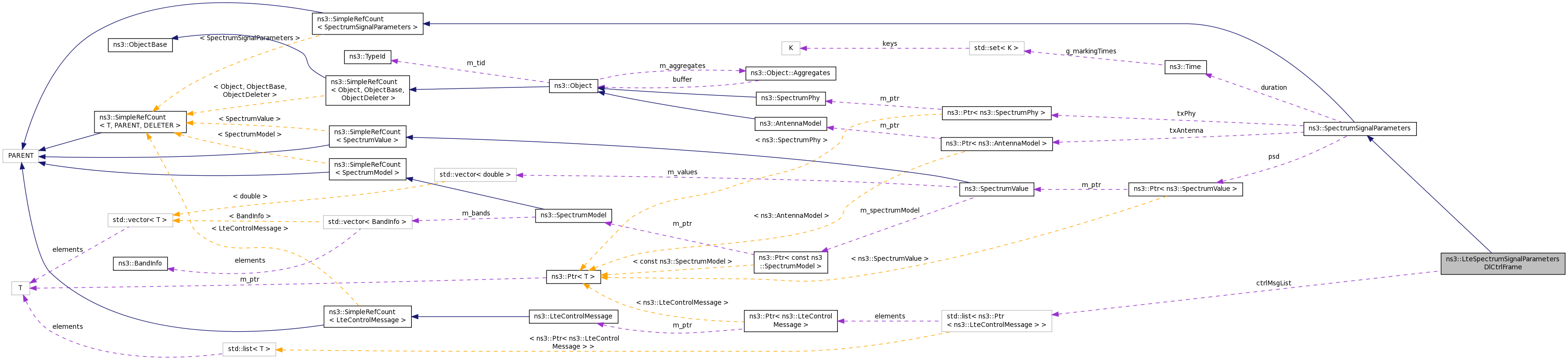

Collaboration diagram for ns3::LteSpectrumSignalParametersDlCtrlFrame:

Public Member Functions
	LteSpectrumSignalParametersDlCtrlFrame ()

	LteSpectrumSignalParametersDlCtrlFrame (const LteSpectrumSignalParametersDlCtrlFrame &p)

virtual Ptr < SpectrumSignalParameters >	Copy ()

Public Member Functions inherited from ns3::SpectrumSignalParameters
	SpectrumSignalParameters ()

	SpectrumSignalParameters (const SpectrumSignalParameters &p)

virtual	~SpectrumSignalParameters ()

Public Member Functions inherited from ns3::SimpleRefCount< SpectrumSignalParameters >
	SimpleRefCount ()

	SimpleRefCount (const SimpleRefCount &o)

uint32_t	GetReferenceCount (void) const

SimpleRefCount &	operator= (const SimpleRefCount &o)

void	Ref (void) const

void	Unref (void) const

Public Attributes
uint16_t	cellId

std::list< Ptr < LteControlMessage > >	ctrlMsgList

bool	pss

Public Attributes inherited from ns3::SpectrumSignalParameters
Time	duration

Ptr< SpectrumValue >	psd

Ptr< AntennaModel >	txAntenna

Ptr< SpectrumPhy >	txPhy

Additional Inherited Members
Static Public Member Functions inherited from ns3::SimpleRefCount< SpectrumSignalParameters >
static void	Cleanup (void)

Detailed Description

Signal parameters for Lte DL Ctrl Frame (RS, PCFICH and PDCCH)

Definition at line 101 of file lte-spectrum-signal-parameters.h.

Constructor & Destructor Documentation

ns3::LteSpectrumSignalParametersDlCtrlFrame::LteSpectrumSignalParametersDlCtrlFrame ( )

default constructor

Definition at line 94 of file lte-spectrum-signal-parameters.cc.

References NS_LOG_FUNCTION.

ns3::LteSpectrumSignalParametersDlCtrlFrame::LteSpectrumSignalParametersDlCtrlFrame ( const LteSpectrumSignalParametersDlCtrlFrame & p )

copy constructor

Definition at line 99 of file lte-spectrum-signal-parameters.cc.

References cellId, ctrlMsgList, NS_LOG_FUNCTION, and pss.

Member Function Documentation

Ptr< SpectrumSignalParameters > ns3::LteSpectrumSignalParametersDlCtrlFrame::Copy ( void )

virtual

make a "virtual" copy of this class, where "virtual" refers to the fact that if the actual object is a derived class of SpectrumSignalParameters, then the copy is also a derived class of the same type. Each class inheriting from SpectrumSignalParameters should override this method and use it to call the copy constructor of the derived class.
