ns3::AttributeConstructionList Class Reference

#include <attribute-construction-list.h>

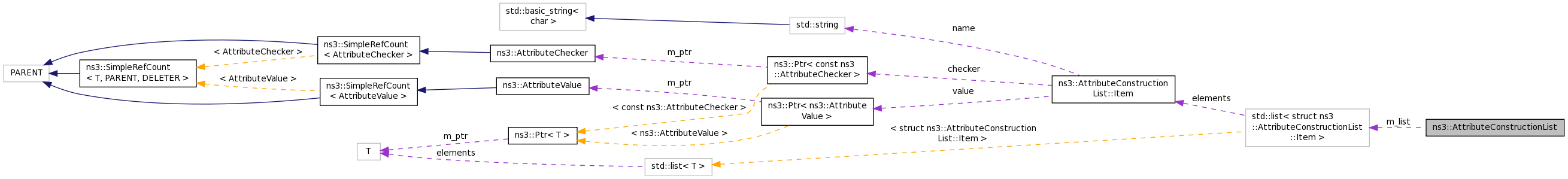

Collaboration diagram for ns3::AttributeConstructionList:

Classes
struct	Item

Public Types
typedef std::list< struct Item > ::const_iterator	CIterator

Public Member Functions
	AttributeConstructionList ()
void	Add (std::string name, Ptr< const AttributeChecker > checker, Ptr< AttributeValue > value)
CIterator	Begin (void) const
CIterator	End (void) const
Ptr< AttributeValue >	Find (Ptr< const AttributeChecker > checker) const

Private Attributes
std::list< struct Item >	m_list

Detailed Description

Definition at line 28 of file attribute-construction-list.h.

Member Typedef Documentation

typedef std::list<struct Item>::const_iterator ns3::AttributeConstructionList::CIterator

Definition at line 37 of file attribute-construction-list.h.

Constructor & Destructor Documentation

ns3::AttributeConstructionList::AttributeConstructionList

(

)

Definition at line 28 of file attribute-construction-list.cc.

References NS_LOG_FUNCTION.

Member Function Documentation

void ns3::AttributeConstructionList::Add	(	std::string	name,
		Ptr< const AttributeChecker >	checker,
		Ptr< AttributeValue >	value
	)

Definition at line 34 of file attribute-construction-list.cc.

References ns3::AttributeConstructionList::Item::checker, m_list, ns3::AttributeConstructionList::Item::name, NS_LOG_FUNCTION, and ns3::AttributeConstructionList::Item::value.

Referenced by ns3::operator>>(), and ns3::ObjectFactory::Set().

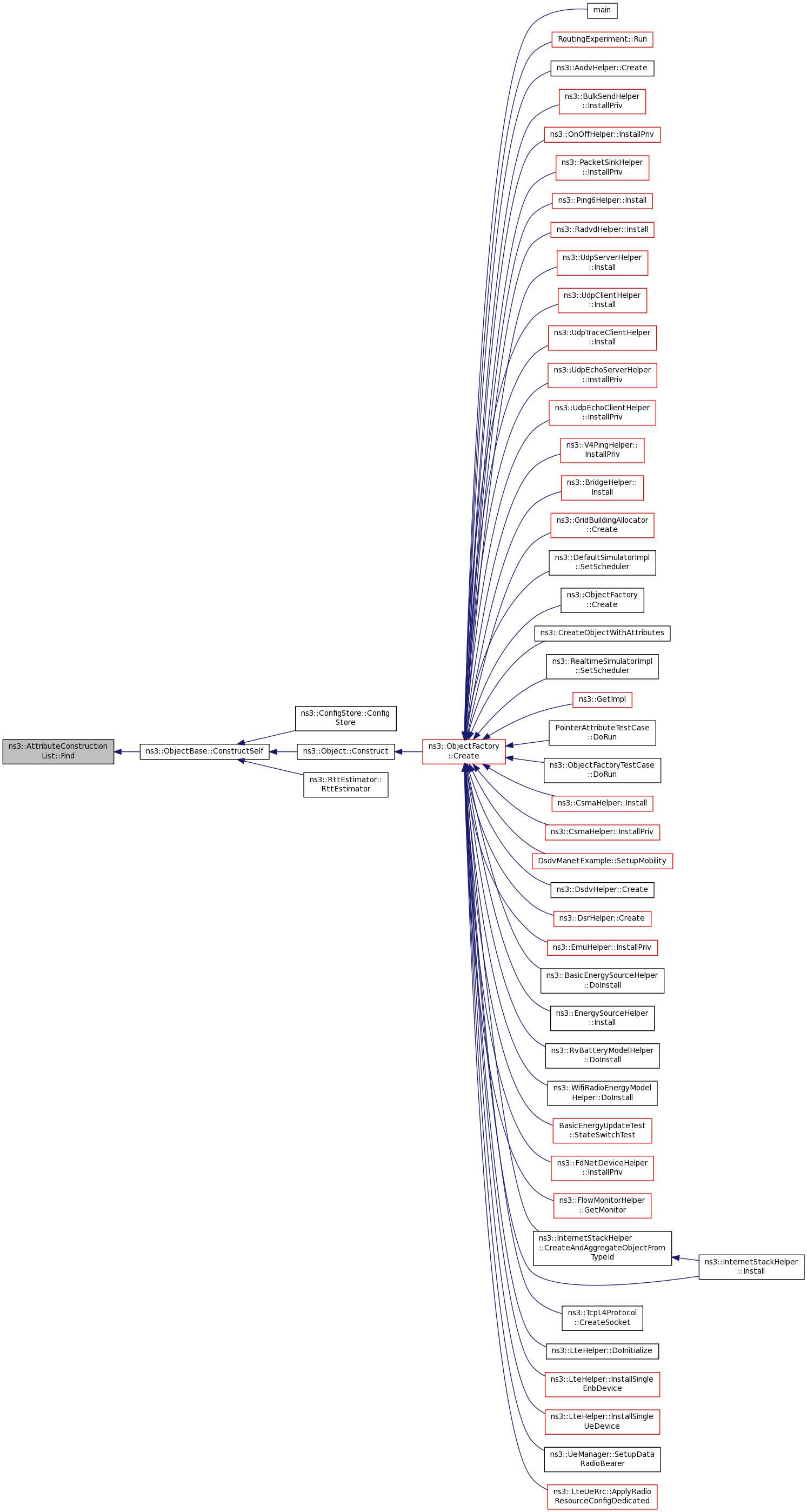

Here is the caller graph for this function:

AttributeConstructionList::CIterator ns3::AttributeConstructionList::Begin

(

void

)

const

Definition at line 72 of file attribute-construction-list.cc.

References m_list, and NS_LOG_FUNCTION.

Referenced by ns3::operator<<().

Here is the caller graph for this function:

AttributeConstructionList::CIterator ns3::AttributeConstructionList::End

(

void

)

const

Definition at line 78 of file attribute-construction-list.cc.

References m_list, and NS_LOG_FUNCTION.

Referenced by ns3::operator<<().

Here is the caller graph for this function:

Ptr< AttributeValue > ns3::AttributeConstructionList::Find

(

Ptr< const AttributeChecker >

checker

)

const

Definition at line 57 of file attribute-construction-list.cc.

References m_list, NS_LOG_DEBUG, and NS_LOG_FUNCTION.

Referenced by ns3::ObjectBase::ConstructSelf().

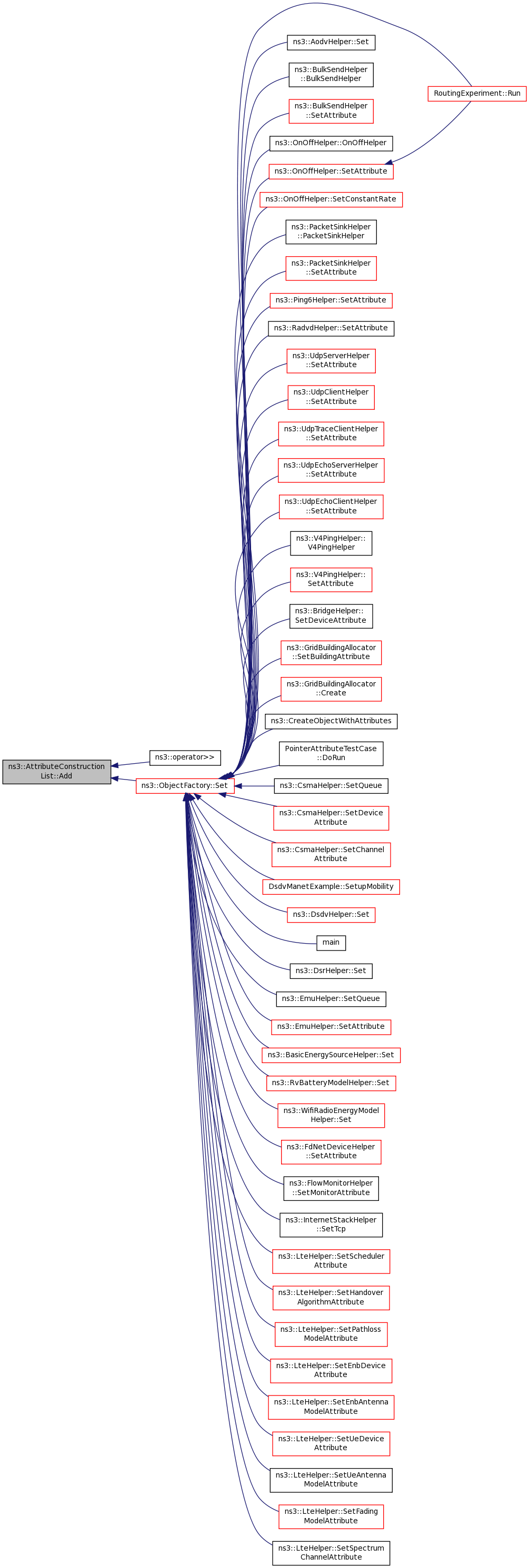

Here is the caller graph for this function:

Member Data Documentation

std::list<struct Item> ns3::AttributeConstructionList::m_list

private

Definition at line 45 of file attribute-construction-list.h.

Referenced by Add(), Begin(), End(), and Find().

---

The documentation for this class was generated from the following files:

• src/core/model/attribute-construction-list.h
• src/core/model/attribute-construction-list.cc
