The Downlink Data Control Indicator messages defines the RB allocation for the users in the downlink. More...

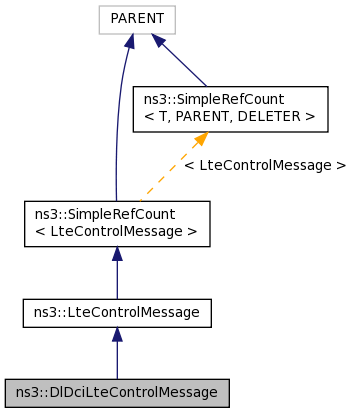

Inheritance diagram for ns3::DlDciLteControlMessage:

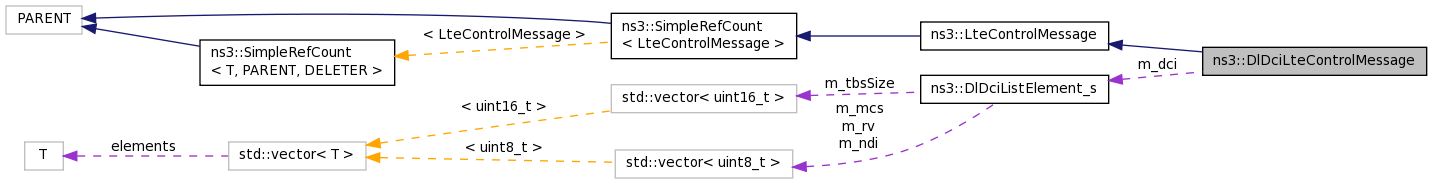

Collaboration diagram for ns3::DlDciLteControlMessage:

Public Member Functions
	DlDciLteControlMessage (void)

virtual	~DlDciLteControlMessage (void)

DlDciListElement_s	GetDci (void)
	Get dic informations. More...

void	SetDci (DlDciListElement_s dci)
	add a DCI into the message More...

Public Member Functions inherited from ns3::LteControlMessage
	LteControlMessage (void)

virtual	~LteControlMessage (void)

MessageType	GetMessageType (void)
	Get the type of the message. More...

void	SetMessageType (MessageType type)
	Set the type of the message. More...

Public Member Functions inherited from ns3::SimpleRefCount< LteControlMessage >
	SimpleRefCount ()
	Constructor. More...

	SimpleRefCount (const SimpleRefCount &o)
	Copy constructor. More...

uint32_t	GetReferenceCount (void) const
	Get the reference count of the object. More...

SimpleRefCount &	operator= (const SimpleRefCount &o)
	Assignment. More...

void	Ref (void) const
	Increment the reference count. More...

void	Unref (void) const
	Decrement the reference count. More...

Additional Inherited Members
Public Types inherited from ns3::LteControlMessage
enum	MessageType { DL_DCI, UL_DCI, DL_CQI, UL_CQI, BSR, DL_HARQ, RACH_PREAMBLE, RAR, MIB, SIB1 }
	The type of the message NOTE: The messages sent by UE are filtered by the LteEnbPhy::ReceiveLteControlMessageList in order to remove the ones that has been already handoff by the eNB for avoiding propagation of spurious messages. More...

Static Public Member Functions inherited from ns3::SimpleRefCount< LteControlMessage >
static void	Cleanup (void)
	Noop. More...

Detailed Description

The Downlink Data Control Indicator messages defines the RB allocation for the users in the downlink.

Definition at line 92 of file lte-control-messages.h.

Constructor & Destructor Documentation

ns3::DlDciLteControlMessage::DlDciLteControlMessage ( void )

Definition at line 61 of file lte-control-messages.cc.

Here is the call graph for this function:

ns3::DlDciLteControlMessage::~DlDciLteControlMessage ( void )

virtual

Definition at line 67 of file lte-control-messages.cc.

DlDciListElement_s ns3::DlDciLteControlMessage::GetDci ( void )

Get dic informations.

Definition at line 81 of file lte-control-messages.cc.

References m_dci.

void ns3::DlDciLteControlMessage::SetDci ( DlDciListElement_s dci )

add a DCI into the message

Parameters

dci the dci

Definition at line 73 of file lte-control-messages.cc.

References m_dci.

DlDciListElement_s ns3::DlDciLteControlMessage::m_dci

private

Definition at line 111 of file lte-control-messages.h.

Referenced by GetDci(), and SetDci().

The documentation for this class was generated from the following files:
