ns3::EnumValue Class Reference

hold variables of type 'enum' More...

#include <enum.h>

+ Inheritance diagram for ns3::EnumValue:

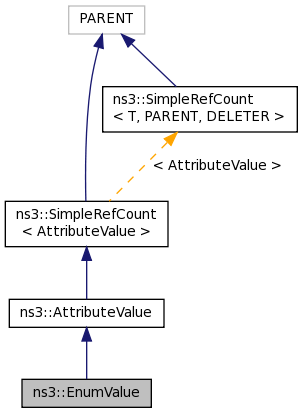

+ Collaboration diagram for ns3::EnumValue:

Public Member Functions

 EnumValue ()

 EnumValue (int v)

virtual Ptr< AttributeValueCopy (void) const

virtual bool DeserializeFromString (std::string value, Ptr< const AttributeChecker > checker)

int Get (void) const

template<typename T >
bool GetAccessor (T &v) const

virtual std::string SerializeToString (Ptr< const AttributeChecker > checker) const

void Set (int v)

- Public Member Functions inherited from ns3::AttributeValue
 AttributeValue ()

virtual ~AttributeValue ()

- Public Member Functions inherited from ns3::SimpleRefCount< AttributeValue >
 SimpleRefCount ()
 Constructor. More...

 SimpleRefCount (const SimpleRefCount &o)
 Copy constructor. More...

uint32_t GetReferenceCount (void) const
 Get the reference count of the object. More...

SimpleRefCountoperator= (const SimpleRefCount &o)
 Assignment. More...

void Ref (void) const
 Increment the reference count. More...

void Unref (void) const
 Decrement the reference count. More...


Private Attributes

int m_v


Additional Inherited Members

- Static Public Member Functions inherited from ns3::SimpleRefCount< AttributeValue >
static void Cleanup (void)
 Noop. More...


Detailed Description

hold variables of type 'enum'

This class can be used to hold variables of any kind of enum.

Definition at line 37 of file enum.h.

Constructor & Destructor Documentation

ns3::EnumValue::EnumValue ( )

Definition at line 29 of file enum.cc.

References NS_LOG_FUNCTION.

ns3::EnumValue::EnumValue ( int  v)

Definition at line 34 of file enum.cc.

References NS_LOG_FUNCTION.

Member Function Documentation

Ptr< AttributeValue > ns3::EnumValue::Copy ( void  ) const
virtual
Returns
a deep copy of this class, wrapped into an Attribute object.

Implements ns3::AttributeValue.

Definition at line 52 of file enum.cc.

References NS_LOG_FUNCTION.

bool ns3::EnumValue::DeserializeFromString ( std::string  value,
Ptr< const AttributeChecker checker
)
virtual
Parameters
valuea string representation of the value
checkera pointer to the checker associated to the attribute.
Returns
true if the input string was correctly-formatted and could be successfully deserialized, false otherwise.

Upon return of this function, this AttributeValue instance contains the deserialized value. In most cases, this method will not make any use of the checker argument. However, in a very limited set of cases, the checker argument is needed to perform proper serialization. A nice example of code which needs it is the EnumValue::SerializeToString code.

Implements ns3::AttributeValue.

Definition at line 76 of file enum.cc.

References m_v, ns3::EnumChecker::m_valueSet, NS_ASSERT, NS_LOG_FUNCTION, and ns3::PeekPointer().

+ Here is the call graph for this function:

int ns3::EnumValue::Get ( void  ) const

Definition at line 46 of file enum.cc.

References m_v, and NS_LOG_FUNCTION.

Referenced by ns3::EnumChecker::Check(), and ns3::LteHelper::InstallSingleEnbDevice().

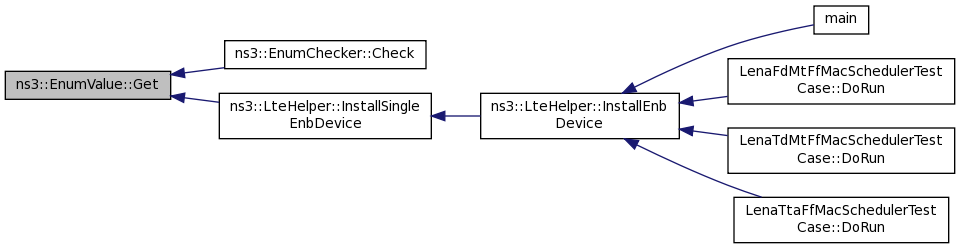

+ Here is the caller graph for this function:

template<typename T >
bool ns3::EnumValue::GetAccessor ( T &  v) const

Definition at line 56 of file enum.h.

References m_v.

std::string ns3::EnumValue::SerializeToString ( Ptr< const AttributeChecker checker) const
virtual
Parameters
checkerthe checker associated to the attribute
Returns
a string representation of this value.

In most cases, this method will not make any use of the checker argument. However, in a very limited set of cases, the checker argument is needed to perform proper serialization. A nice example of code which needs it is the EnumValue::SerializeToString code.

Implements ns3::AttributeValue.

Definition at line 58 of file enum.cc.

References m_v, ns3::EnumChecker::m_valueSet, NS_ASSERT, NS_FATAL_ERROR, NS_LOG_FUNCTION, and ns3::PeekPointer().

+ Here is the call graph for this function:

void ns3::EnumValue::Set ( int  v)

Definition at line 40 of file enum.cc.

References m_v, and NS_LOG_FUNCTION.

Member Data Documentation

int ns3::EnumValue::m_v
private

Definition at line 52 of file enum.h.

Referenced by DeserializeFromString(), Get(), GetAccessor(), SerializeToString(), and Set().


The documentation for this class was generated from the following files:
