Doxygen introspection did not find any typical Config paths. More...

#include <icmpv6-header.h>

Inheritance diagram for ns3::Icmpv6Echo:

Collaboration diagram for ns3::Icmpv6Echo:

Public Member Functions
	Icmpv6Echo ()
	Default constructor. More...

	Icmpv6Echo (bool request)
	Constructor. More...

virtual	~Icmpv6Echo ()
	Destructor. More...

virtual uint32_t	Deserialize (Buffer::Iterator start)
	Deserialize the packet. More...

uint16_t	GetId () const
	Get the ID of the packet. More...

virtual TypeId	GetInstanceTypeId () const
	Get the instance type ID. More...

uint16_t	GetSeq () const
	Get the sequence number. More...

virtual uint32_t	GetSerializedSize () const
	Get the serialized size. More...

virtual void	Print (std::ostream &os) const
	Print informations. More...

virtual void	Serialize (Buffer::Iterator start) const
	Serialize the packet. More...

void	SetId (uint16_t id)
	Set the ID of the packet. More...

void	SetSeq (uint16_t seq)
	Set the sequence number. More...

Public Member Functions inherited from ns3::Icmpv6Header
	Icmpv6Header ()
	Constructor. More...

virtual	~Icmpv6Header ()
	Destructor. More...

void	CalculatePseudoHeaderChecksum (Ipv6Address src, Ipv6Address dst, uint16_t length, uint8_t protocol)
	Calculate pseudo header checksum for IPv6. More...

uint16_t	GetChecksum () const
	Get the checksum. More...

uint8_t	GetCode () const
	Get the code field. More...

uint8_t	GetType () const
	Get the type field. More...

void	SetChecksum (uint16_t checksum)
	Set the checksum. More...

void	SetCode (uint8_t code)
	Set the code field. More...

void	SetType (uint8_t type)
	Set the type. More...

Public Member Functions inherited from ns3::Header
virtual	~Header ()

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const

bool	GetAttributeFailSafe (std::string name, AttributeValue &attribute) const

void	SetAttribute (std::string name, const AttributeValue &value)

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)

Static Public Member Functions
static TypeId	GetTypeId ()
	Get the UID of this class. More...

Static Public Member Functions inherited from ns3::Icmpv6Header
static TypeId	GetTypeId ()
	Get the UID of this class. More...

Static Public Member Functions inherited from ns3::Header
static TypeId	GetTypeId (void)

Static Public Member Functions inherited from ns3::Chunk
static TypeId	GetTypeId (void)

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)
	Get the type ID. More...

Private Attributes
uint16_t	m_id
	ID of the packet (to distinguish response between many ping program). More...

uint16_t	m_seq
	Sequence number (to distinguish response). More...

Additional Inherited Members
Public Types inherited from ns3::Icmpv6Header
enum	ErrorDestinationUnreachable_e { ICMPV6_NO_ROUTE = 0, ICMPV6_ADM_PROHIBITED, ICMPV6_NOT_NEIGHBOUR, ICMPV6_ADDR_UNREACHABLE, ICMPV6_PORT_UNREACHABLE }
	ICMPv6 error code : Destination Unreachable. More...

enum	ErrorParameterError_e { ICMPV6_MALFORMED_HEADER = 0, ICMPV6_UNKNOWN_NEXT_HEADER, ICMPV6_UNKNOWN_OPTION }
	ICMPv6 error code : Parameter Error. More...

enum	ErrorTimeExceeded_e { ICMPV6_HOPLIMIT = 0, ICMPV6_FRAGTIME }
	ICMPv6 error code : Time Exceeded. More...

enum	OptionType_e { ICMPV6_OPT_LINK_LAYER_SOURCE = 1, ICMPV6_OPT_LINK_LAYER_TARGET, ICMPV6_OPT_PREFIX, ICMPV6_OPT_REDIRECTED, ICMPV6_OPT_MTU }
	ICMPv6 Option type code. More...

enum	Type_e { ICMPV6_ERROR_DESTINATION_UNREACHABLE = 1, ICMPV6_ERROR_PACKET_TOO_BIG, ICMPV6_ERROR_TIME_EXCEEDED, ICMPV6_ERROR_PARAMETER_ERROR, ICMPV6_ECHO_REQUEST = 128, ICMPV6_ECHO_REPLY, ICMPV6_SUBSCRIBE_REQUEST, ICMPV6_SUBSCRIBE_REPORT, ICMPV6_SUBSCRIVE_END, ICMPV6_ND_ROUTER_SOLICITATION, ICMPV6_ND_ROUTER_ADVERTISEMENT, ICMPV6_ND_NEIGHBOR_SOLICITATION, ICMPV6_ND_NEIGHBOR_ADVERTISEMENT, ICMPV6_ND_REDIRECTION, ICMPV6_ROUTER_RENUMBER, ICMPV6_INFORMATION_REQUEST, ICMPV6_INFORMATION_RESPONSE, ICMPV6_INVERSE_ND_SOLICITATION, ICMPV6_INVERSE_ND_ADVERSTISEMENT, ICMPV6_MLDV2_SUBSCRIBE_REPORT, ICMPV6_MOBILITY_HA_DISCOVER_REQUEST, ICMPV6_MOBILITY_HA_DISCOVER_RESPONSE, ICMPV6_MOBILITY_MOBILE_PREFIX_SOLICITATION, ICMPV6_SECURE_ND_CERTIFICATE_PATH_SOLICITATION, ICMPV6_SECURE_ND_CERTIFICATE_PATH_ADVERTISEMENT, ICMPV6_EXPERIMENTAL_MOBILITY }
	ICMPv6 type code. More...

Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)

virtual void	NotifyConstructionCompleted (void)
	This method is invoked once all member attributes have been initialized. More...

Protected Attributes inherited from ns3::Icmpv6Header
bool	m_calcChecksum
	Checksum enable or not. More...

uint16_t	m_checksum
	The checksum. More...

Detailed Description

Doxygen introspection did not find any typical Config paths.

ICMPv6 Echo message.

No Attributes are defined for this type.
No TraceSources are defined for this type.

Definition at line 941 of file icmpv6-header.h.

Constructor & Destructor Documentation

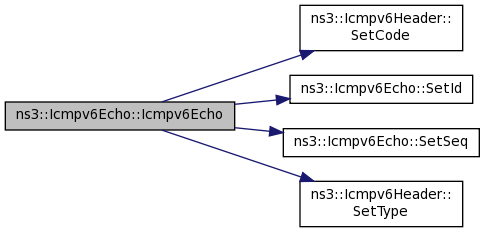

ns3::Icmpv6Echo::Icmpv6Echo ( )

Default constructor.

Definition at line 943 of file icmpv6-header.cc.

References ns3::Icmpv6Header::ICMPV6_ECHO_REQUEST, ns3::Icmpv6Header::m_checksum, NS_LOG_FUNCTION, ns3::Icmpv6Header::SetCode(), SetId(), SetSeq(), and ns3::Icmpv6Header::SetType().

Here is the call graph for this function:

ns3::Icmpv6Echo::Icmpv6Echo ( bool request )

Constructor.

Parameters

request request or reply message

Definition at line 953 of file icmpv6-header.cc.

References ns3::Icmpv6Header::ICMPV6_ECHO_REPLY, ns3::Icmpv6Header::ICMPV6_ECHO_REQUEST, ns3::Icmpv6Header::m_checksum, NS_LOG_FUNCTION, ns3::Icmpv6Header::SetCode(), SetId(), SetSeq(), and ns3::Icmpv6Header::SetType().

Here is the call graph for this function:

ns3::Icmpv6Echo::~Icmpv6Echo ( )

virtual

Destructor.

Definition at line 963 of file icmpv6-header.cc.

References NS_LOG_FUNCTION.

Member Function Documentation

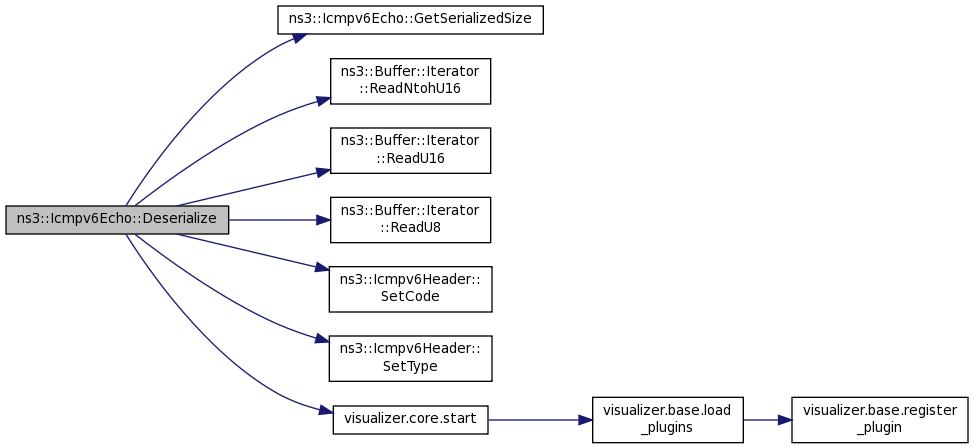

uint32_t ns3::Icmpv6Echo::Deserialize ( Buffer::Iterator start )

virtual

Deserialize the packet.

Parameters

start start offset

Returns: length of packet

Reimplemented from ns3::Icmpv6Header.

Definition at line 1029 of file icmpv6-header.cc.

References GetSerializedSize(), ns3::Icmpv6Header::m_checksum, m_id, m_seq, NS_LOG_FUNCTION, ns3::Buffer::Iterator::ReadNtohU16(), ns3::Buffer::Iterator::ReadU16(), ns3::Buffer::Iterator::ReadU8(), ns3::Icmpv6Header::SetCode(), ns3::Icmpv6Header::SetType(), and visualizer.core::start().

Here is the call graph for this function:

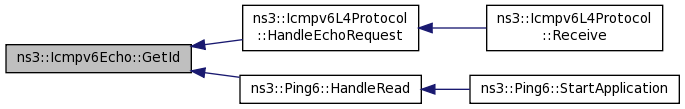

uint16_t ns3::Icmpv6Echo::GetId ( void ) const

Get the ID of the packet.

Returns: id

Definition at line 968 of file icmpv6-header.cc.

References m_id, and NS_LOG_FUNCTION.

Referenced by ns3::Icmpv6L4Protocol::HandleEchoRequest(), and ns3::Ping6::HandleRead().

Here is the caller graph for this function:

TypeId ns3::Icmpv6Echo::GetInstanceTypeId ( void ) const

virtual

Get the instance type ID.

Returns: instance type ID

Reimplemented from ns3::Icmpv6Header.

Definition at line 937 of file icmpv6-header.cc.

References GetTypeId(), and NS_LOG_FUNCTION.

Here is the call graph for this function:

uint16_t ns3::Icmpv6Echo::GetSeq ( void ) const

Get the sequence number.

Returns: sequence number

Definition at line 980 of file icmpv6-header.cc.

References m_seq, and NS_LOG_FUNCTION.

Referenced by ns3::Icmpv6L4Protocol::HandleEchoRequest(), and ns3::Ping6::HandleRead().

Here is the caller graph for this function:

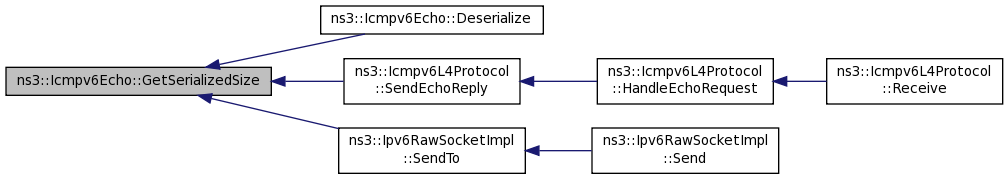

uint32_t ns3::Icmpv6Echo::GetSerializedSize ( void ) const

virtual

Get the serialized size.

Returns: serialized size

Reimplemented from ns3::Icmpv6Header.

Definition at line 1000 of file icmpv6-header.cc.

References NS_LOG_FUNCTION.

Referenced by Deserialize(), ns3::Icmpv6L4Protocol::SendEchoReply(), and ns3::Ipv6RawSocketImpl::SendTo().

Here is the caller graph for this function:

TypeId ns3::Icmpv6Echo::GetTypeId ( void )

static

Get the UID of this class.

Returns: UID

Definition at line 928 of file icmpv6-header.cc.

References ns3::TypeId::SetParent().

Referenced by GetInstanceTypeId().

Here is the call graph for this function:

Here is the caller graph for this function:

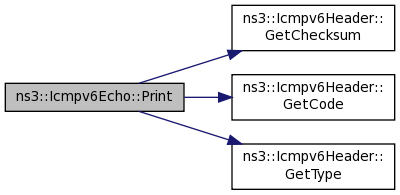

void ns3::Icmpv6Echo::Print ( std::ostream & os ) const

virtual

Print informations.

Parameters

os	output stream

Reimplemented from ns3::Icmpv6Header.

Definition at line 992 of file icmpv6-header.cc.

References ns3::Icmpv6Header::GetChecksum(), ns3::Icmpv6Header::GetCode(), ns3::Icmpv6Header::GetType(), and NS_LOG_FUNCTION.

Here is the call graph for this function:

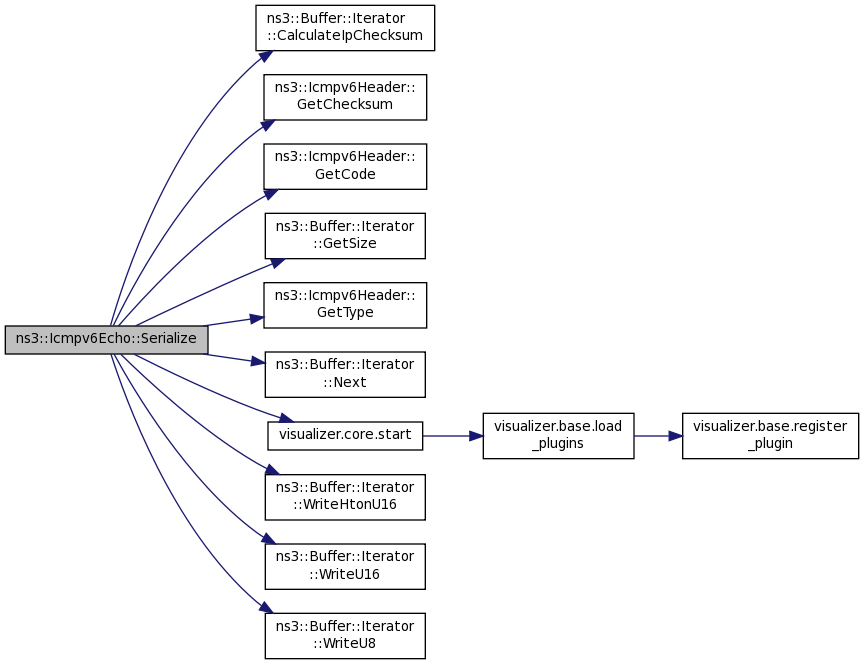

void ns3::Icmpv6Echo::Serialize ( Buffer::Iterator start ) const

virtual

Serialize the packet.

Parameters

start start offset

Reimplemented from ns3::Icmpv6Header.

Definition at line 1006 of file icmpv6-header.cc.

References ns3::Buffer::Iterator::CalculateIpChecksum(), ns3::Icmpv6Header::GetChecksum(), ns3::Icmpv6Header::GetCode(), ns3::Buffer::Iterator::GetSize(), ns3::Icmpv6Header::GetType(), ns3::Icmpv6Header::m_calcChecksum, m_id, m_seq, ns3::Buffer::Iterator::Next(), NS_LOG_FUNCTION, visualizer.core::start(), ns3::Buffer::Iterator::WriteHtonU16(), ns3::Buffer::Iterator::WriteU16(), and ns3::Buffer::Iterator::WriteU8().

Here is the call graph for this function:

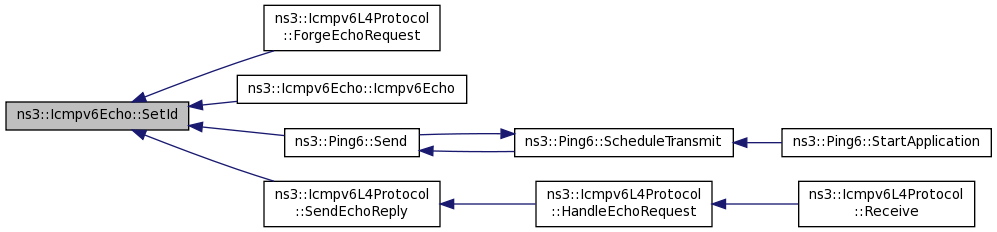

void ns3::Icmpv6Echo::SetId ( uint16_t id )

Set the ID of the packet.

Parameters

id id to set

Definition at line 974 of file icmpv6-header.cc.

References m_id, and NS_LOG_FUNCTION.

Referenced by ns3::Icmpv6L4Protocol::ForgeEchoRequest(), Icmpv6Echo(), ns3::Ping6::Send(), and ns3::Icmpv6L4Protocol::SendEchoReply().

Here is the caller graph for this function:

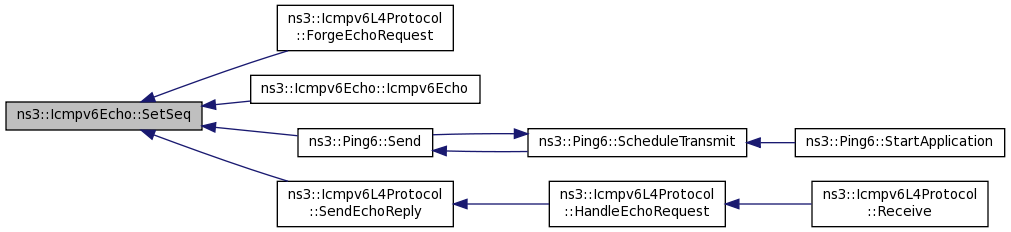

void ns3::Icmpv6Echo::SetSeq ( uint16_t seq )

Set the sequence number.

Parameters

seq	sequence to set

Definition at line 986 of file icmpv6-header.cc.

References m_seq, and NS_LOG_FUNCTION.

Referenced by ns3::Icmpv6L4Protocol::ForgeEchoRequest(), Icmpv6Echo(), ns3::Ping6::Send(), and ns3::Icmpv6L4Protocol::SendEchoReply().

Here is the caller graph for this function:

Member Data Documentation

uint16_t ns3::Icmpv6Echo::m_id

private

ID of the packet (to distinguish response between many ping program).

Definition at line 1025 of file icmpv6-header.h.

Referenced by Deserialize(), GetId(), Serialize(), and SetId().

uint16_t ns3::Icmpv6Echo::m_seq

private

Sequence number (to distinguish response).

Definition at line 1030 of file icmpv6-header.h.

Referenced by Deserialize(), GetSeq(), Serialize(), and SetSeq().

The documentation for this class was generated from the following files:

src/internet/model/icmpv6-header.h
src/internet/model/icmpv6-header.cc
