Doxygen introspection did not find any typical Config paths. More...

#include <icmpv6-header.h>

Inheritance diagram for ns3::Icmpv6OptionLinkLayerAddress:

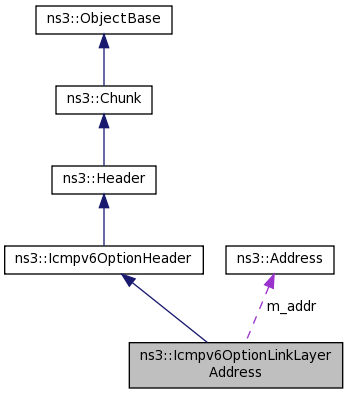

Collaboration diagram for ns3::Icmpv6OptionLinkLayerAddress:

Public Member Functions
	Icmpv6OptionLinkLayerAddress (bool source)
	Constructor. More...

	Icmpv6OptionLinkLayerAddress (bool source, Address addr)
	Constructor. More...

	Icmpv6OptionLinkLayerAddress ()
	Constructor. More...

virtual	~Icmpv6OptionLinkLayerAddress ()
	Destructor. More...

virtual uint32_t	Deserialize (Buffer::Iterator start)
	Deserialize the packet. More...

Address	GetAddress () const
	Get the hardware address. More...

virtual TypeId	GetInstanceTypeId (void) const
	Get the instance type ID. More...

virtual uint32_t	GetSerializedSize () const
	Get the serialized size. More...

virtual void	Print (std::ostream &os) const
	Print informations. More...

virtual void	Serialize (Buffer::Iterator start) const
	Serialize the packet. More...

void	SetAddress (Address addr)
	Set the hardware address. More...

Public Member Functions inherited from ns3::Icmpv6OptionHeader
	Icmpv6OptionHeader ()
	Constructor. More...

virtual	~Icmpv6OptionHeader ()
	Destructor. More...

uint8_t	GetLength () const
	Get the length of the option in 8 bytes unit. More...

uint8_t	GetType () const
	Get the type of the option. More...

void	SetLength (uint8_t len)
	Set the length of the option. More...

void	SetType (uint8_t type)
	Set the type of the option. More...

Public Member Functions inherited from ns3::Header
virtual	~Header ()

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const

bool	GetAttributeFailSafe (std::string name, AttributeValue &attribute) const

void	SetAttribute (std::string name, const AttributeValue &value)

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)

Static Public Member Functions
static TypeId	GetTypeId ()
	Get the UID of this class. More...

Static Public Member Functions inherited from ns3::Icmpv6OptionHeader
static TypeId	GetTypeId ()
	Get the UID of this class. More...

Static Public Member Functions inherited from ns3::Header
static TypeId	GetTypeId (void)

Static Public Member Functions inherited from ns3::Chunk
static TypeId	GetTypeId (void)

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)
	Get the type ID. More...

Private Attributes
Address	m_addr
	The hardware address. More...

Additional Inherited Members
Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)

virtual void	NotifyConstructionCompleted (void)
	This method is invoked once all member attributes have been initialized. More...

Detailed Description

Doxygen introspection did not find any typical Config paths.

ICMPv6 link-layer address option.

No Attributes are defined for this type.
No TraceSources are defined for this type.

Definition at line 1627 of file icmpv6-header.h.

Constructor & Destructor Documentation

ns3::Icmpv6OptionLinkLayerAddress::Icmpv6OptionLinkLayerAddress ( bool source )

Constructor.

Parameters

source source hardware address or target hardware address for the option

Definition at line 1831 of file icmpv6-header.cc.

References ns3::Icmpv6Header::ICMPV6_OPT_LINK_LAYER_SOURCE, ns3::Icmpv6Header::ICMPV6_OPT_LINK_LAYER_TARGET, NS_LOG_FUNCTION, and ns3::Icmpv6OptionHeader::SetType().

Here is the call graph for this function:

ns3::Icmpv6OptionLinkLayerAddress::Icmpv6OptionLinkLayerAddress	(	bool	source,
		Address	addr
	)

Constructor.

Parameters

source	source hardware address or target hardware address for the option
addr	hardware address

Definition at line 1843 of file icmpv6-header.cc.

References ns3::Address::GetLength(), ns3::Icmpv6Header::ICMPV6_OPT_LINK_LAYER_SOURCE, ns3::Icmpv6Header::ICMPV6_OPT_LINK_LAYER_TARGET, m_addr, NS_LOG_FUNCTION, SetAddress(), ns3::Icmpv6OptionHeader::SetLength(), and ns3::Icmpv6OptionHeader::SetType().

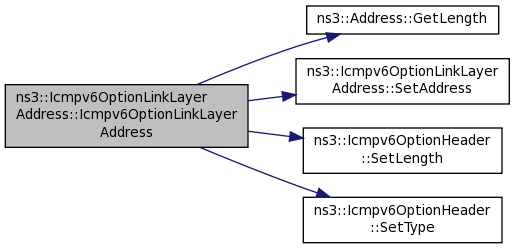

Here is the call graph for this function:

ns3::Icmpv6OptionLinkLayerAddress::Icmpv6OptionLinkLayerAddress ( )

Constructor.

Definition at line 1837 of file icmpv6-header.cc.

References ns3::Icmpv6Header::ICMPV6_OPT_LINK_LAYER_SOURCE, NS_LOG_FUNCTION, and ns3::Icmpv6OptionHeader::SetType().

Here is the call graph for this function:

ns3::Icmpv6OptionLinkLayerAddress::~Icmpv6OptionLinkLayerAddress ( )

virtual

Destructor.

Definition at line 1857 of file icmpv6-header.cc.

References NS_LOG_FUNCTION.

Member Function Documentation

uint32_t ns3::Icmpv6OptionLinkLayerAddress::Deserialize ( Buffer::Iterator start )

virtual

Deserialize the packet.

Parameters

start start offset

Returns: length of packet

Reimplemented from ns3::Icmpv6OptionHeader.

Definition at line 1905 of file icmpv6-header.cc.

References ns3::Address::CopyFrom(), ns3::Icmpv6OptionHeader::GetLength(), GetSerializedSize(), m_addr, NS_ASSERT, NS_LOG_FUNCTION, ns3::Buffer::Iterator::Read(), ns3::Buffer::Iterator::ReadU8(), ns3::Icmpv6OptionHeader::SetLength(), ns3::Icmpv6OptionHeader::SetType(), and visualizer.core::start().

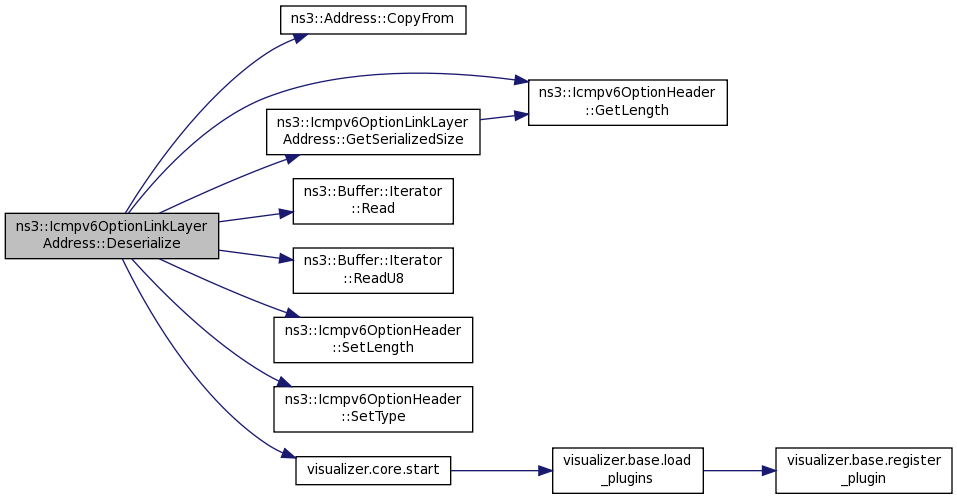

Here is the call graph for this function:

Address ns3::Icmpv6OptionLinkLayerAddress::GetAddress ( void ) const

Get the hardware address.

Returns: the hardware address

Definition at line 1862 of file icmpv6-header.cc.

References m_addr, and NS_LOG_FUNCTION.

Referenced by ns3::Icmpv6L4Protocol::HandleNA(), ns3::Icmpv6L4Protocol::HandleNS(), ns3::Icmpv6L4Protocol::HandleRedirection(), ns3::Icmpv6L4Protocol::HandleRS(), and ns3::Icmpv6L4Protocol::ReceiveLLA().

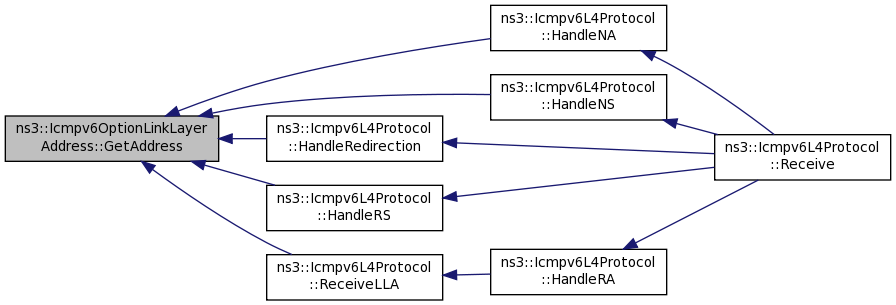

Here is the caller graph for this function:

TypeId ns3::Icmpv6OptionLinkLayerAddress::GetInstanceTypeId ( void ) const

virtual

Get the instance type ID.

Returns: instance type ID

Reimplemented from ns3::Icmpv6OptionHeader.

Definition at line 1825 of file icmpv6-header.cc.

References GetTypeId(), and NS_LOG_FUNCTION.

Here is the call graph for this function:

uint32_t ns3::Icmpv6OptionLinkLayerAddress::GetSerializedSize ( void ) const

virtual

Get the serialized size.

Returns: serialized size

Reimplemented from ns3::Icmpv6OptionHeader.

Definition at line 1880 of file icmpv6-header.cc.

References ns3::Icmpv6OptionHeader::GetLength(), and NS_LOG_FUNCTION.

Referenced by Deserialize(), and ns3::Icmpv6L4Protocol::SendRedirection().

Here is the call graph for this function:

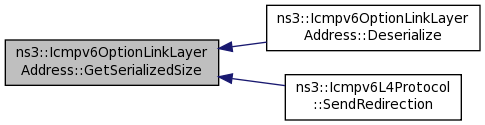

Here is the caller graph for this function:

TypeId ns3::Icmpv6OptionLinkLayerAddress::GetTypeId ( void )

static

Get the UID of this class.

Returns: UID

Definition at line 1816 of file icmpv6-header.cc.

References ns3::TypeId::SetParent().

Referenced by GetInstanceTypeId().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::Icmpv6OptionLinkLayerAddress::Print ( std::ostream & os ) const

virtual

Print informations.

Parameters

os	output stream

Reimplemented from ns3::Icmpv6OptionHeader.

Definition at line 1874 of file icmpv6-header.cc.

References ns3::Icmpv6OptionHeader::GetLength(), ns3::Icmpv6OptionHeader::GetType(), m_addr, and NS_LOG_FUNCTION.

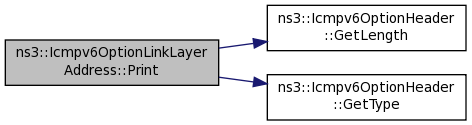

Here is the call graph for this function:

void ns3::Icmpv6OptionLinkLayerAddress::Serialize ( Buffer::Iterator start ) const

virtual

Serialize the packet.

Parameters

start start offset

Reimplemented from ns3::Icmpv6OptionHeader.

Definition at line 1887 of file icmpv6-header.cc.

References ns3::Address::CopyTo(), ns3::Address::GetLength(), ns3::Icmpv6OptionHeader::GetLength(), ns3::Icmpv6OptionHeader::GetType(), m_addr, NS_LOG_FUNCTION, visualizer.core::start(), ns3::Buffer::Iterator::Write(), and ns3::Buffer::Iterator::WriteU8().

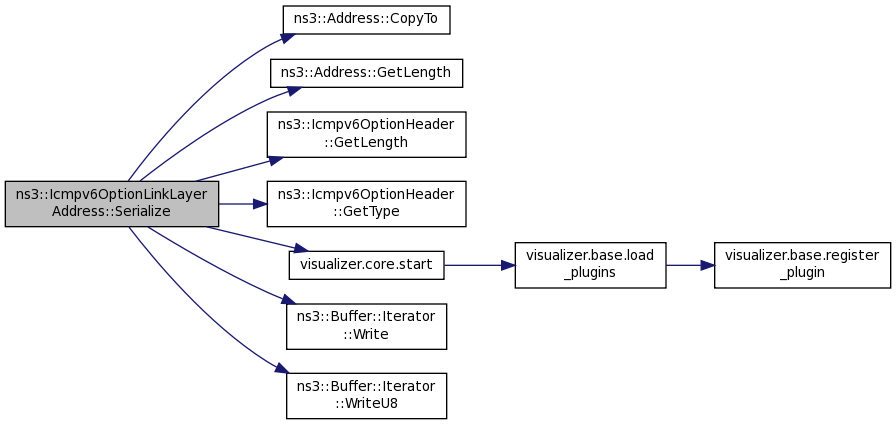

Here is the call graph for this function:

void ns3::Icmpv6OptionLinkLayerAddress::SetAddress ( Address addr )

Set the hardware address.

Parameters

addr	the address to set

Definition at line 1868 of file icmpv6-header.cc.

References m_addr, and NS_LOG_FUNCTION.

Referenced by Icmpv6OptionLinkLayerAddress(), and ns3::Icmpv6L4Protocol::SendRedirection().

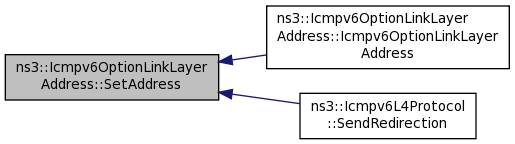

Here is the caller graph for this function:

Member Data Documentation

Address ns3::Icmpv6OptionLinkLayerAddress::m_addr

private

The hardware address.

Definition at line 1706 of file icmpv6-header.h.

Referenced by Deserialize(), GetAddress(), Icmpv6OptionLinkLayerAddress(), Print(), Serialize(), and SetAddress().

The documentation for this class was generated from the following files:

src/internet/model/icmpv6-header.h
src/internet/model/icmpv6-header.cc
