Doxygen introspection did not find any typical Config paths. More...

#include <icmpv6-header.h>

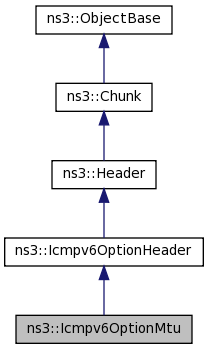

Inheritance diagram for ns3::Icmpv6OptionMtu:

Collaboration diagram for ns3::Icmpv6OptionMtu:

Public Member Functions
	Icmpv6OptionMtu ()
	Constructor. More...

	Icmpv6OptionMtu (uint32_t mtu)
	Constructor. More...

virtual	~Icmpv6OptionMtu ()
	Destructor. More...

virtual uint32_t	Deserialize (Buffer::Iterator start)
	Deserialize the packet. More...

virtual TypeId	GetInstanceTypeId () const
	Get the instance type ID. More...

uint32_t	GetMtu () const
	Get the MTU. More...

uint16_t	GetReserved () const
	Get the reserved field. More...

virtual uint32_t	GetSerializedSize () const
	Get the serialized size. More...

virtual void	Print (std::ostream &os) const
	Print informations. More...

virtual void	Serialize (Buffer::Iterator start) const
	Serialize the packet. More...

void	SetMtu (uint32_t mtu)
	Set the MTU. More...

void	SetReserved (uint16_t reserved)
	Set the reserved field. More...

Public Member Functions inherited from ns3::Icmpv6OptionHeader
	Icmpv6OptionHeader ()
	Constructor. More...

virtual	~Icmpv6OptionHeader ()
	Destructor. More...

uint8_t	GetLength () const
	Get the length of the option in 8 bytes unit. More...

uint8_t	GetType () const
	Get the type of the option. More...

void	SetLength (uint8_t len)
	Set the length of the option. More...

void	SetType (uint8_t type)
	Set the type of the option. More...

Public Member Functions inherited from ns3::Header
virtual	~Header ()

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const

bool	GetAttributeFailSafe (std::string name, AttributeValue &attribute) const

void	SetAttribute (std::string name, const AttributeValue &value)

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)

Static Public Member Functions
static TypeId	GetTypeId ()
	Get the UID of this class. More...

Static Public Member Functions inherited from ns3::Icmpv6OptionHeader
static TypeId	GetTypeId ()
	Get the UID of this class. More...

Static Public Member Functions inherited from ns3::Header
static TypeId	GetTypeId (void)

Static Public Member Functions inherited from ns3::Chunk
static TypeId	GetTypeId (void)

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)
	Get the type ID. More...

Private Attributes
uint32_t	m_mtu
	The MTU value. More...

uint16_t	m_reserved
	The reserved value. More...

Additional Inherited Members
Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)

virtual void	NotifyConstructionCompleted (void)
	This method is invoked once all member attributes have been initialized. More...

Detailed Description

Doxygen introspection did not find any typical Config paths.

ICMPv6 MTU option.

No Attributes are defined for this type.
No TraceSources are defined for this type.

Definition at line 1366 of file icmpv6-header.h.

Constructor & Destructor Documentation

ns3::Icmpv6OptionMtu::Icmpv6OptionMtu ( )

Constructor.

Definition at line 1560 of file icmpv6-header.cc.

References ns3::Icmpv6Header::ICMPV6_OPT_MTU, NS_LOG_FUNCTION, ns3::Icmpv6OptionHeader::SetLength(), SetReserved(), and ns3::Icmpv6OptionHeader::SetType().

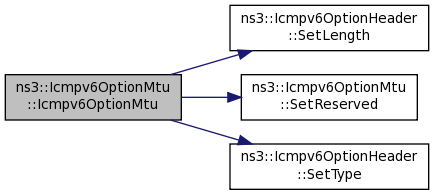

Here is the call graph for this function:

ns3::Icmpv6OptionMtu::Icmpv6OptionMtu ( uint32_t mtu )

Constructor.

Parameters

mtu MTU used.

Definition at line 1568 of file icmpv6-header.cc.

References ns3::Icmpv6Header::ICMPV6_OPT_MTU, NS_LOG_FUNCTION, ns3::Icmpv6OptionHeader::SetLength(), SetReserved(), and ns3::Icmpv6OptionHeader::SetType().

Here is the call graph for this function:

ns3::Icmpv6OptionMtu::~Icmpv6OptionMtu ( )

virtual

Destructor.

Definition at line 1577 of file icmpv6-header.cc.

References NS_LOG_FUNCTION.

Member Function Documentation

uint32_t ns3::Icmpv6OptionMtu::Deserialize ( Buffer::Iterator start )

virtual

Deserialize the packet.

Parameters

start start offset

Returns: length of packet

Reimplemented from ns3::Icmpv6OptionHeader.

Definition at line 1628 of file icmpv6-header.cc.

References GetSerializedSize(), NS_LOG_FUNCTION, ns3::Buffer::Iterator::ReadNtohU16(), ns3::Buffer::Iterator::ReadNtohU32(), ns3::Buffer::Iterator::ReadU8(), ns3::Icmpv6OptionHeader::SetLength(), SetMtu(), SetReserved(), ns3::Icmpv6OptionHeader::SetType(), and visualizer.core::start().

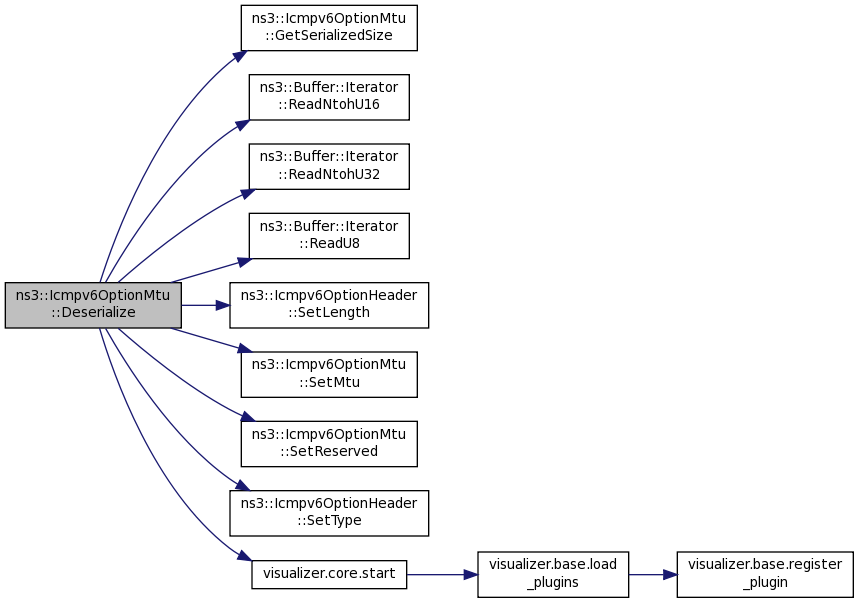

Here is the call graph for this function:

TypeId ns3::Icmpv6OptionMtu::GetInstanceTypeId ( void ) const

virtual

Get the instance type ID.

Returns: instance type ID

Reimplemented from ns3::Icmpv6OptionHeader.

Definition at line 1554 of file icmpv6-header.cc.

References GetTypeId(), and NS_LOG_FUNCTION.

Here is the call graph for this function:

uint32_t ns3::Icmpv6OptionMtu::GetMtu ( void ) const

Get the MTU.

Returns: the MTU value

Definition at line 1594 of file icmpv6-header.cc.

References m_mtu, and NS_LOG_FUNCTION.

Referenced by Serialize().

Here is the caller graph for this function:

uint16_t ns3::Icmpv6OptionMtu::GetReserved ( ) const

Get the reserved field.

Returns: the reserved value

Definition at line 1582 of file icmpv6-header.cc.

References m_reserved, and NS_LOG_FUNCTION.

Referenced by Serialize().

Here is the caller graph for this function:

uint32_t ns3::Icmpv6OptionMtu::GetSerializedSize ( void ) const

virtual

Get the serialized size.

Returns: serialized size

Reimplemented from ns3::Icmpv6OptionHeader.

Definition at line 1612 of file icmpv6-header.cc.

References NS_LOG_FUNCTION.

Referenced by Deserialize().

Here is the caller graph for this function:

TypeId ns3::Icmpv6OptionMtu::GetTypeId ( void )

static

Get the UID of this class.

Returns: UID

Definition at line 1545 of file icmpv6-header.cc.

References ns3::TypeId::SetParent().

Referenced by GetInstanceTypeId().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::Icmpv6OptionMtu::Print ( std::ostream & os ) const

virtual

Print informations.

Parameters

os	output stream

Reimplemented from ns3::Icmpv6OptionHeader.

Definition at line 1606 of file icmpv6-header.cc.

References ns3::Icmpv6OptionHeader::GetLength(), ns3::Icmpv6OptionHeader::GetType(), m_mtu, and NS_LOG_FUNCTION.

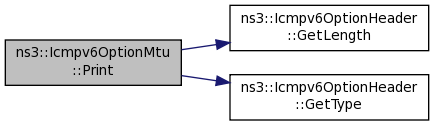

Here is the call graph for this function:

void ns3::Icmpv6OptionMtu::Serialize ( Buffer::Iterator start ) const

virtual

Serialize the packet.

Parameters

start start offset

Reimplemented from ns3::Icmpv6OptionHeader.

Definition at line 1618 of file icmpv6-header.cc.

References ns3::Icmpv6OptionHeader::GetLength(), GetMtu(), GetReserved(), ns3::Icmpv6OptionHeader::GetType(), NS_LOG_FUNCTION, visualizer.core::start(), ns3::Buffer::Iterator::WriteHtonU16(), ns3::Buffer::Iterator::WriteHtonU32(), and ns3::Buffer::Iterator::WriteU8().

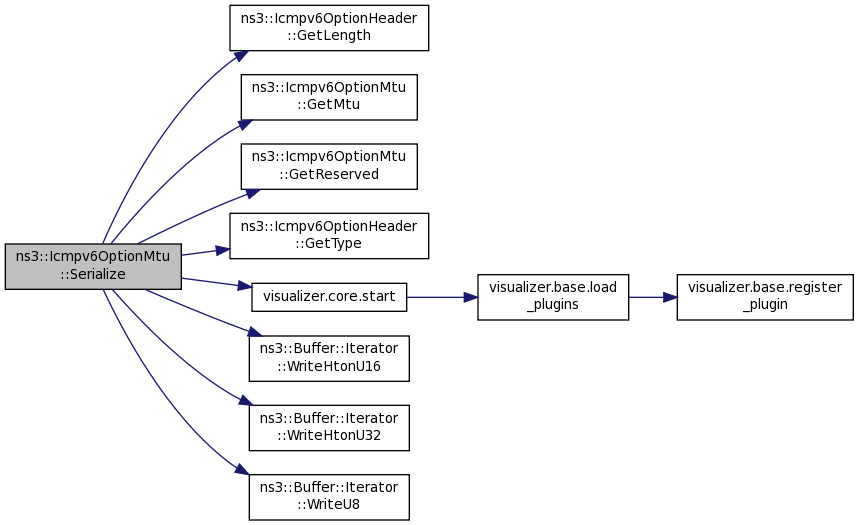

Here is the call graph for this function:

void ns3::Icmpv6OptionMtu::SetMtu ( uint32_t mtu )

Set the MTU.

Parameters

mtu	the MTU to set

Definition at line 1600 of file icmpv6-header.cc.

References m_mtu, and NS_LOG_FUNCTION.

Referenced by Deserialize().

Here is the caller graph for this function:

void ns3::Icmpv6OptionMtu::SetReserved ( uint16_t reserved )

Set the reserved field.

Parameters

reserved the reserved value

Definition at line 1588 of file icmpv6-header.cc.

References m_reserved, and NS_LOG_FUNCTION.

Referenced by Deserialize(), and Icmpv6OptionMtu().

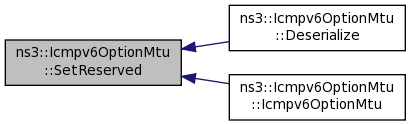

Here is the caller graph for this function:

Member Data Documentation

uint32_t ns3::Icmpv6OptionMtu::m_mtu

private

The MTU value.

Definition at line 1455 of file icmpv6-header.h.

Referenced by GetMtu(), Print(), and SetMtu().

uint16_t ns3::Icmpv6OptionMtu::m_reserved

private

The reserved value.

Definition at line 1450 of file icmpv6-header.h.

Referenced by GetReserved(), and SetReserved().

The documentation for this class was generated from the following files:

src/internet/model/icmpv6-header.h
src/internet/model/icmpv6-header.cc
