TypeId information manager. More...

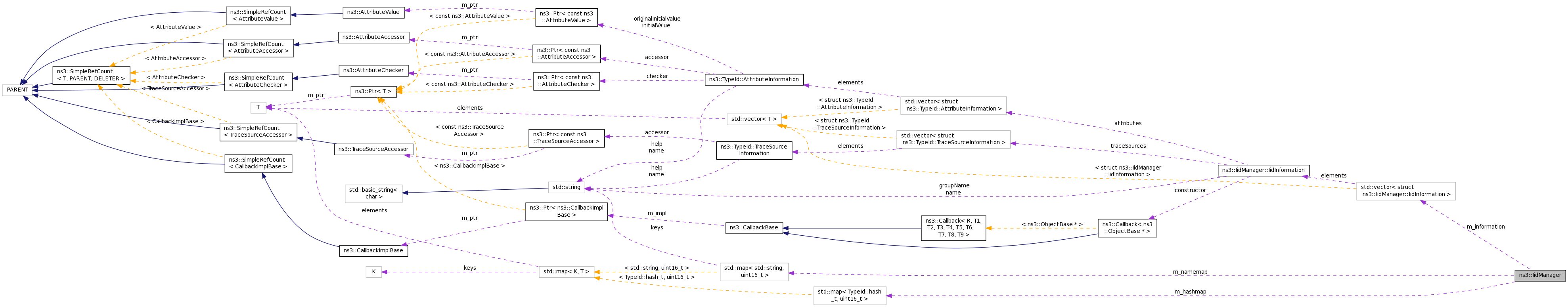

Collaboration diagram for ns3::IidManager:

Classes
struct	IidInformation

Public Member Functions
	IidManager ()

void	AddAttribute (uint16_t uid, std::string name, std::string help, uint32_t flags, Ptr< const AttributeValue > initialValue, Ptr< const AttributeAccessor > spec, Ptr< const AttributeChecker > checker)

void	AddConstructor (uint16_t uid, Callback< ObjectBase * > callback)

void	AddTraceSource (uint16_t uid, std::string name, std::string help, Ptr< const TraceSourceAccessor > accessor)

uint16_t	AllocateUid (std::string name)

struct TypeId::AttributeInformation	GetAttribute (uint16_t uid, uint32_t i) const

uint32_t	GetAttributeN (uint16_t uid) const

Callback< ObjectBase * >	GetConstructor (uint16_t uid) const

std::string	GetGroupName (uint16_t uid) const

TypeId::hash_t	GetHash (uint16_t uid) const

std::string	GetName (uint16_t uid) const

uint16_t	GetParent (uint16_t uid) const

uint16_t	GetRegistered (uint32_t i) const

uint32_t	GetRegisteredN (void) const

struct TypeId::TraceSourceInformation	GetTraceSource (uint16_t uid, uint32_t i) const

uint32_t	GetTraceSourceN (uint16_t uid) const

uint16_t	GetUid (std::string name) const

uint16_t	GetUid (TypeId::hash_t hash) const

bool	HasConstructor (uint16_t uid) const

void	HideFromDocumentation (uint16_t uid)

bool	MustHideFromDocumentation (uint16_t uid) const

void	SetAttributeInitialValue (uint16_t uid, uint32_t i, Ptr< const AttributeValue > initialValue)

void	SetGroupName (uint16_t uid, std::string groupName)

void	SetParent (uint16_t uid, uint16_t parent)

Private Types
enum	{ HashChainFlag = 0x80000000 }

typedef std::map < TypeId::hash_t, uint16_t >	hashmap_t

typedef std::vector< struct IidInformation > ::const_iterator	Iterator

typedef std::map< std::string, uint16_t >	namemap_t

Private Member Functions
bool	HasAttribute (uint16_t uid, std::string name)

bool	HasTraceSource (uint16_t uid, std::string name)

struct IidManager::IidInformation *	LookupInformation (uint16_t uid) const

Static Private Member Functions
static TypeId::hash_t	Hasher (const std::string name)

Private Attributes
hashmap_t	m_hashmap

std::vector< struct IidInformation >	m_information

namemap_t	m_namemap

Detailed Description

TypeId information manager.

Information records are stored in a vector. Name and hash lookup are performed by maps to the vector index.

Internal:: Hash Chaining

We require all types to produce distinct hashes. What if we encounter two types that produce the same hash value? As we move to a federated distribution model (the App store), it becomes increasingly likely that the core ns3 team won't discover this in test builds. Therefore, we need to handle this case explicitly.

Note, we expect this to be extremely rare. As of this writing we have ~400 < 2^9 types, so the probability of getting a collision when we introduce a new type is ~2^9/2^31 = 2^-22, assuming we reserve 31 bits for the hash, and one bit for chaining. Even with double the number of types the probability of having a collision is only 2 x 10^-4. The probability for a three-fold collision is 1 x 10^-10.

Therefore, we'll handle one collision explicitly by reserving the high order bit of the hash value, and assert on higher level collisions. The three-fold collision probability should be an acceptablly small error rate.

Definition at line 71 of file type-id.cc.

Member Typedef Documentation

typedef std::map<TypeId::hash_t, uint16_t> ns3::IidManager::hashmap_t

private

Definition at line 135 of file type-id.cc.

typedef std::vector<struct IidInformation>::const_iterator ns3::IidManager::Iterator

private

Definition at line 126 of file type-id.cc.

typedef std::map<std::string, uint16_t> ns3::IidManager::namemap_t

private

Definition at line 132 of file type-id.cc.

Member Enumeration Documentation

anonymous enum

private

Enumerator
HashChainFlag

Definition at line 141 of file type-id.cc.

Constructor & Destructor Documentation

ns3::IidManager::IidManager ( )

Definition at line 144 of file type-id.cc.

References NS_LOG_FUNCTION.

Member Function Documentation

void ns3::IidManager::AddAttribute	(	uint16_t	uid,
		std::string	name,
		std::string	help,
		uint32_t	flags,
		Ptr< const AttributeValue >	initialValue,
		Ptr< const AttributeAccessor >	spec,
		Ptr< const AttributeChecker >	checker
	)

Definition at line 389 of file type-id.cc.

References ns3::TypeId::AttributeInformation::accessor, ns3::IidManager::IidInformation::attributes, ns3::TypeId::AttributeInformation::checker, ns3::TypeId::AttributeInformation::flags, HasAttribute(), ns3::TypeId::AttributeInformation::help, ns3::TypeId::AttributeInformation::initialValue, LookupInformation(), ns3::TypeId::AttributeInformation::name, ns3::IidManager::IidInformation::name, NS_FATAL_ERROR, NS_LOG_FUNCTION, and ns3::TypeId::AttributeInformation::originalInitialValue.

Here is the call graph for this function:

void ns3::IidManager::AddConstructor	(	uint16_t	uid,
		Callback< ObjectBase * >	callback
	)

Definition at line 259 of file type-id.cc.

References ns3::IidManager::IidInformation::constructor, ns3::IidManager::IidInformation::hasConstructor, LookupInformation(), ns3::IidManager::IidInformation::name, NS_FATAL_ERROR, and NS_LOG_FUNCTION.

Here is the call graph for this function:

void ns3::IidManager::AddTraceSource	(	uint16_t	uid,
		std::string	name,
		std::string	help,
		Ptr< const TraceSourceAccessor >	accessor
	)

Definition at line 472 of file type-id.cc.

References ns3::TypeId::TraceSourceInformation::accessor, HasTraceSource(), ns3::TypeId::TraceSourceInformation::help, LookupInformation(), ns3::TypeId::TraceSourceInformation::name, ns3::IidManager::IidInformation::name, NS_FATAL_ERROR, NS_LOG_FUNCTION, and ns3::IidManager::IidInformation::traceSources.

Here is the call graph for this function:

uint16_t ns3::IidManager::AllocateUid ( std::string name )

Definition at line 158 of file type-id.cc.

References GetUid(), ns3::IidManager::IidInformation::groupName, ns3::IidManager::IidInformation::hasConstructor, ns3::IidManager::IidInformation::hash, HashChainFlag, Hasher(), LookupInformation(), m_hashmap, m_information, m_namemap, ns3::IidManager::IidInformation::mustHideFromDocumentation, ns3::IidManager::IidInformation::name, NS_ASSERT, NS_ASSERT_MSG, NS_LOG_ERROR, NS_LOG_FUNCTION, NS_LOG_LOGIC, and ns3::IidManager::IidInformation::parent.

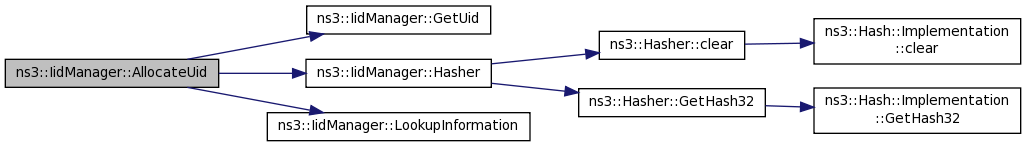

Here is the call graph for this function:

struct TypeId::AttributeInformation ns3::IidManager::GetAttribute	(	uint16_t	uid,
		uint32_t	i
	)		const

Definition at line 435 of file type-id.cc.

References NS_ASSERT, and NS_LOG_FUNCTION.

uint32_t ns3::IidManager::GetAttributeN ( uint16_t uid ) const

Definition at line 428 of file type-id.cc.

References ns3::IidManager::IidInformation::attributes, LookupInformation(), and NS_LOG_FUNCTION.

Here is the call graph for this function:

Callback< ObjectBase * > ns3::IidManager::GetConstructor ( uint16_t uid ) const

Definition at line 328 of file type-id.cc.

References ns3::IidManager::IidInformation::constructor, ns3::IidManager::IidInformation::hasConstructor, LookupInformation(), ns3::IidManager::IidInformation::name, NS_FATAL_ERROR, and NS_LOG_FUNCTION.

Here is the call graph for this function:

std::string ns3::IidManager::GetGroupName ( uint16_t uid ) const

Definition at line 320 of file type-id.cc.

References ns3::IidManager::IidInformation::groupName, LookupInformation(), and NS_LOG_FUNCTION.

Here is the call graph for this function:

TypeId::hash_t ns3::IidManager::GetHash ( uint16_t uid ) const

Definition at line 306 of file type-id.cc.

References ns3::IidManager::IidInformation::hash, LookupInformation(), and NS_LOG_FUNCTION.

Here is the call graph for this function:

std::string ns3::IidManager::GetName ( uint16_t uid ) const

Definition at line 299 of file type-id.cc.

References LookupInformation(), ns3::IidManager::IidInformation::name, and NS_LOG_FUNCTION.

Here is the call graph for this function:

uint16_t ns3::IidManager::GetParent ( uint16_t uid ) const

Definition at line 313 of file type-id.cc.

References LookupInformation(), NS_LOG_FUNCTION, and ns3::IidManager::IidInformation::parent.

Here is the call graph for this function:

uint16_t ns3::IidManager::GetRegistered ( uint32_t i ) const

Definition at line 354 of file type-id.cc.

References NS_LOG_FUNCTION.

uint32_t ns3::IidManager::GetRegisteredN ( void ) const

Definition at line 348 of file type-id.cc.

References m_information, and NS_LOG_FUNCTION.

struct TypeId::TraceSourceInformation ns3::IidManager::GetTraceSource	(	uint16_t	uid,
		uint32_t	i
	)		const

Definition at line 498 of file type-id.cc.

References NS_ASSERT, and NS_LOG_FUNCTION.

uint32_t ns3::IidManager::GetTraceSourceN ( uint16_t uid ) const

Definition at line 491 of file type-id.cc.

References LookupInformation(), NS_LOG_FUNCTION, and ns3::IidManager::IidInformation::traceSources.

Here is the call graph for this function:

uint16_t ns3::IidManager::GetUid ( std::string name ) const

Definition at line 272 of file type-id.cc.

References m_namemap, and NS_LOG_FUNCTION.

Referenced by AllocateUid().

Here is the caller graph for this function:

uint16_t ns3::IidManager::GetUid ( TypeId::hash_t hash ) const

Definition at line 286 of file type-id.cc.

References m_hashmap.

bool ns3::IidManager::HasAttribute	(	uint16_t	uid,
		std::string	name
	)

private

Definition at line 361 of file type-id.cc.

References ns3::IidManager::IidInformation::attributes, LookupInformation(), NS_LOG_FUNCTION, and ns3::IidManager::IidInformation::parent.

Referenced by AddAttribute().

Here is the call graph for this function:

Here is the caller graph for this function:

bool ns3::IidManager::HasConstructor ( uint16_t uid ) const

Definition at line 340 of file type-id.cc.

References ns3::IidManager::IidInformation::hasConstructor, LookupInformation(), and NS_LOG_FUNCTION.

Here is the call graph for this function:

TypeId::hash_t ns3::IidManager::Hasher ( const std::string name )

staticprivate

Definition at line 151 of file type-id.cc.

References ns3::Hasher::clear(), and ns3::Hasher::GetHash32().

Referenced by AllocateUid().

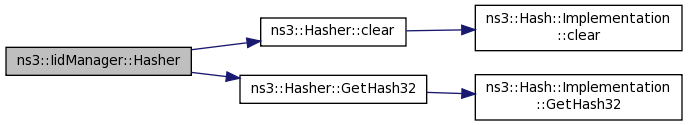

Here is the call graph for this function:

Here is the caller graph for this function:

bool ns3::IidManager::HasTraceSource	(	uint16_t	uid,
		std::string	name
	)

private

Definition at line 444 of file type-id.cc.

References LookupInformation(), NS_LOG_FUNCTION, ns3::IidManager::IidInformation::parent, and ns3::IidManager::IidInformation::traceSources.

Referenced by AddTraceSource().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::IidManager::HideFromDocumentation ( uint16_t uid )

Definition at line 251 of file type-id.cc.

References LookupInformation(), ns3::IidManager::IidInformation::mustHideFromDocumentation, and NS_LOG_FUNCTION.

Here is the call graph for this function:

struct IidManager::IidInformation * ns3::IidManager::LookupInformation ( uint16_t uid ) const

private

Definition at line 228 of file type-id.cc.

References m_information, NS_ASSERT, and NS_LOG_FUNCTION.

Referenced by AddAttribute(), AddConstructor(), AddTraceSource(), AllocateUid(), GetAttributeN(), GetConstructor(), GetGroupName(), GetHash(), GetName(), GetParent(), GetTraceSourceN(), HasAttribute(), HasConstructor(), HasTraceSource(), HideFromDocumentation(), MustHideFromDocumentation(), SetAttributeInitialValue(), SetGroupName(), and SetParent().

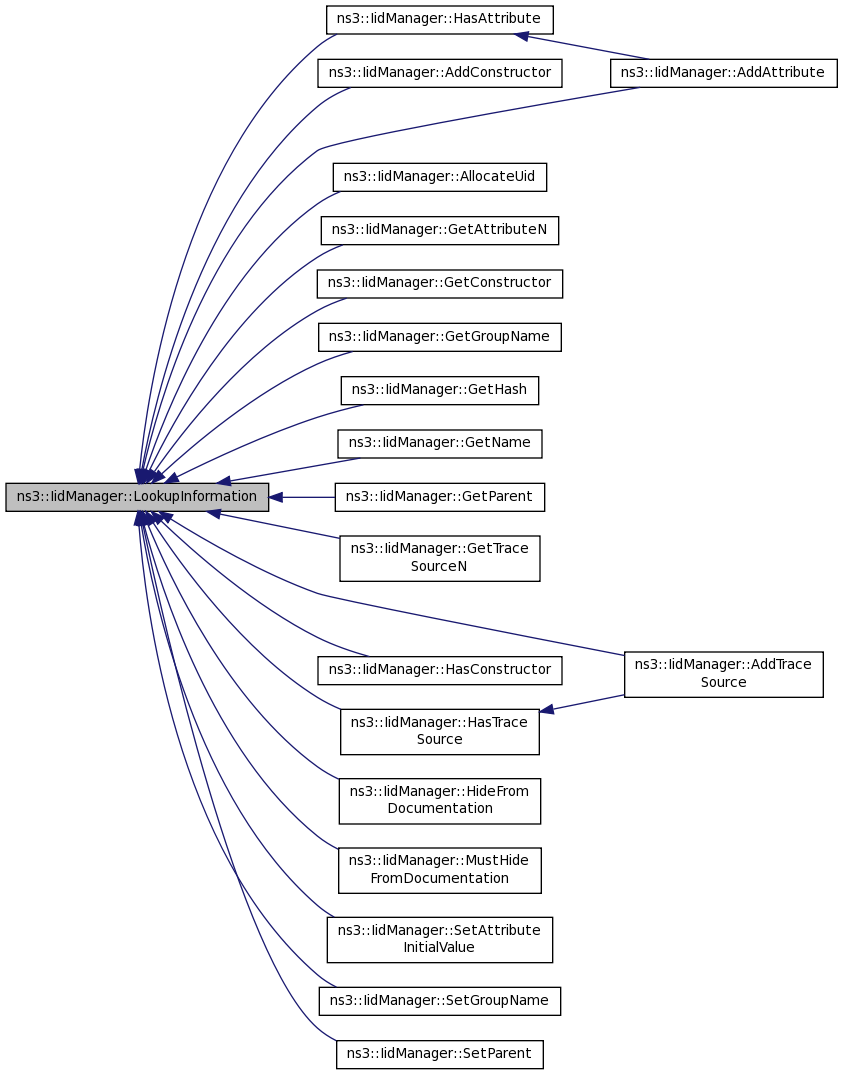

Here is the caller graph for this function:

bool ns3::IidManager::MustHideFromDocumentation ( uint16_t uid ) const

Definition at line 506 of file type-id.cc.

References LookupInformation(), ns3::IidManager::IidInformation::mustHideFromDocumentation, and NS_LOG_FUNCTION.

Here is the call graph for this function:

void ns3::IidManager::SetAttributeInitialValue	(	uint16_t	uid,
		uint32_t	i,
		Ptr< const AttributeValue >	initialValue
	)

Definition at line 415 of file type-id.cc.

References ns3::IidManager::IidInformation::attributes, LookupInformation(), NS_ASSERT, and NS_LOG_FUNCTION.

Here is the call graph for this function:

void ns3::IidManager::SetGroupName	(	uint16_t	uid,
		std::string	groupName
	)

Definition at line 244 of file type-id.cc.

References ns3::IidManager::IidInformation::groupName, LookupInformation(), and NS_LOG_FUNCTION.

Here is the call graph for this function:

void ns3::IidManager::SetParent	(	uint16_t	uid,
		uint16_t	parent
	)

Definition at line 236 of file type-id.cc.

References LookupInformation(), m_information, NS_ASSERT, NS_LOG_FUNCTION, and ns3::IidManager::IidInformation::parent.

Here is the call graph for this function:

Member Data Documentation

hashmap_t ns3::IidManager::m_hashmap

private

Definition at line 136 of file type-id.cc.

Referenced by AllocateUid(), and GetUid().

std::vector<struct IidInformation> ns3::IidManager::m_information

private

Definition at line 130 of file type-id.cc.

Referenced by AllocateUid(), GetRegisteredN(), LookupInformation(), and SetParent().

namemap_t ns3::IidManager::m_namemap

private

Definition at line 133 of file type-id.cc.

Referenced by AllocateUid(), and GetUid().

The documentation for this class was generated from the following file:

src/core/model/type-id.cc
