Ipv4 addresses are stored in host order in this class. More...

#include <ipv4-address.h>

Public Member Functions
	Ipv4Address ()

	Ipv4Address (uint32_t address)
	input address is in host order. More...

	Ipv4Address (char const *address)
	Constructs an Ipv4Address by parsing a the input C-string. More...

Ipv4Address	CombineMask (Ipv4Mask const &mask) const
	Combine this address with a network mask. More...

uint32_t	Get (void) const
	Get the host-order 32-bit IP address. More...

Ipv4Address	GetSubnetDirectedBroadcast (Ipv4Mask const &mask) const
	Generate subnet-directed broadcast address corresponding to mask. More...

bool	IsBroadcast (void) const

bool	IsEqual (const Ipv4Address &other) const
	Comparison operation between two Ipv4Addresses. More...

bool	IsLocalMulticast (void) const

bool	IsMulticast (void) const

bool	IsSubnetDirectedBroadcast (Ipv4Mask const &mask) const
	Generate subnet-directed broadcast address corresponding to mask. More...

	operator Address () const
	Convert an instance of this class to a polymorphic Address instance. More...

void	Print (std::ostream &os) const
	Print this address to the given output stream. More...

void	Serialize (uint8_t buf[4]) const
	Serialize this address to a 4-byte buffer. More...

void	Set (uint32_t address)
	input address is in host order. More...

void	Set (char const *address)
	Sets an Ipv4Address by parsing a the input C-string. More...

Static Public Member Functions
static Ipv4Address	ConvertFrom (const Address &address)

static Ipv4Address	Deserialize (const uint8_t buf[4])

static Ipv4Address	GetAny (void)

static Ipv4Address	GetBroadcast (void)

static Ipv4Address	GetLoopback (void)

static Ipv4Address	GetZero (void)

static bool	IsMatchingType (const Address &address)

Private Member Functions
Address	ConvertTo (void) const

Static Private Member Functions
static uint8_t	GetType (void)

Private Attributes
uint32_t	m_address

Friends
bool	operator!= (Ipv4Address const &a, Ipv4Address const &b)

bool	operator< (Ipv4Address const &addrA, Ipv4Address const &addrB)

bool	operator== (Ipv4Address const &a, Ipv4Address const &b)

Detailed Description

Ipv4 addresses are stored in host order in this class.

Definition at line 38 of file ipv4-address.h.

Constructor & Destructor Documentation

ns3::Ipv4Address::Ipv4Address ( )

Definition at line 187 of file ipv4-address.cc.

References NS_LOG_FUNCTION.

Referenced by CombineMask(), and GetSubnetDirectedBroadcast().

Here is the caller graph for this function:

ns3::Ipv4Address::Ipv4Address ( uint32_t address )

explicit

input address is in host order.

Parameters

address The host order 32-bit address

Definition at line 192 of file ipv4-address.cc.

References first::address, m_address, and NS_LOG_FUNCTION.

ns3::Ipv4Address::Ipv4Address ( char const * address )

Constructs an Ipv4Address by parsing a the input C-string.

Input address is in format: hhh.xxx.xxx.lll where h is the high byte and l the low byte

Parameters

address C-string containing the address as described above

Definition at line 197 of file ipv4-address.cc.

References ns3::AsciiToIpv4Host(), m_address, and NS_LOG_FUNCTION.

Here is the call graph for this function:

Member Function Documentation

Ipv4Address ns3::Ipv4Address::CombineMask ( Ipv4Mask const & mask ) const

Combine this address with a network mask.

This method returns an IPv4 address that is this address combined (bitwise and) with a network mask, yielding an IPv4 network address.

Parameters

mask	a network mask

Definition at line 223 of file ipv4-address.cc.

References Get(), ns3::Ipv4Mask::Get(), Ipv4Address(), and NS_LOG_FUNCTION.

Referenced by ns3::IpcsClassifierRecord::CheckMatchDstAddr(), ns3::IpcsClassifierRecord::CheckMatchSrcAddr(), ns3::Ipv4L3Protocol::GetInterfaceForPrefix(), ns3::Ipv4L3Protocol::LocalDeliver(), ns3::Ipv4EndPointDemux::Lookup(), ns3::Ipv4StaticRouting::NotifyAddAddress(), ns3::Ipv4StaticRouting::NotifyRemoveAddress(), ns3::GlobalRouter::ProcessBridgedBroadcastLink(), ns3::GlobalRouter::ProcessSingleBroadcastLink(), ns3::Ipv4L3Protocol::SelectSourceAddress(), ns3::Ipv4L3Protocol::Send(), ns3::Ipv4StaticRouting::SourceAddressSelection(), ns3::GlobalRouteManagerImpl::SPFAddASExternal(), ns3::GlobalRouteManagerImpl::SPFIntraAddStub(), and ns3::GlobalRouteManagerImpl::SPFIntraAddTransit().

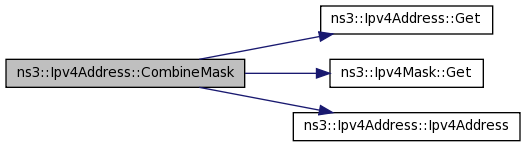

Here is the call graph for this function:

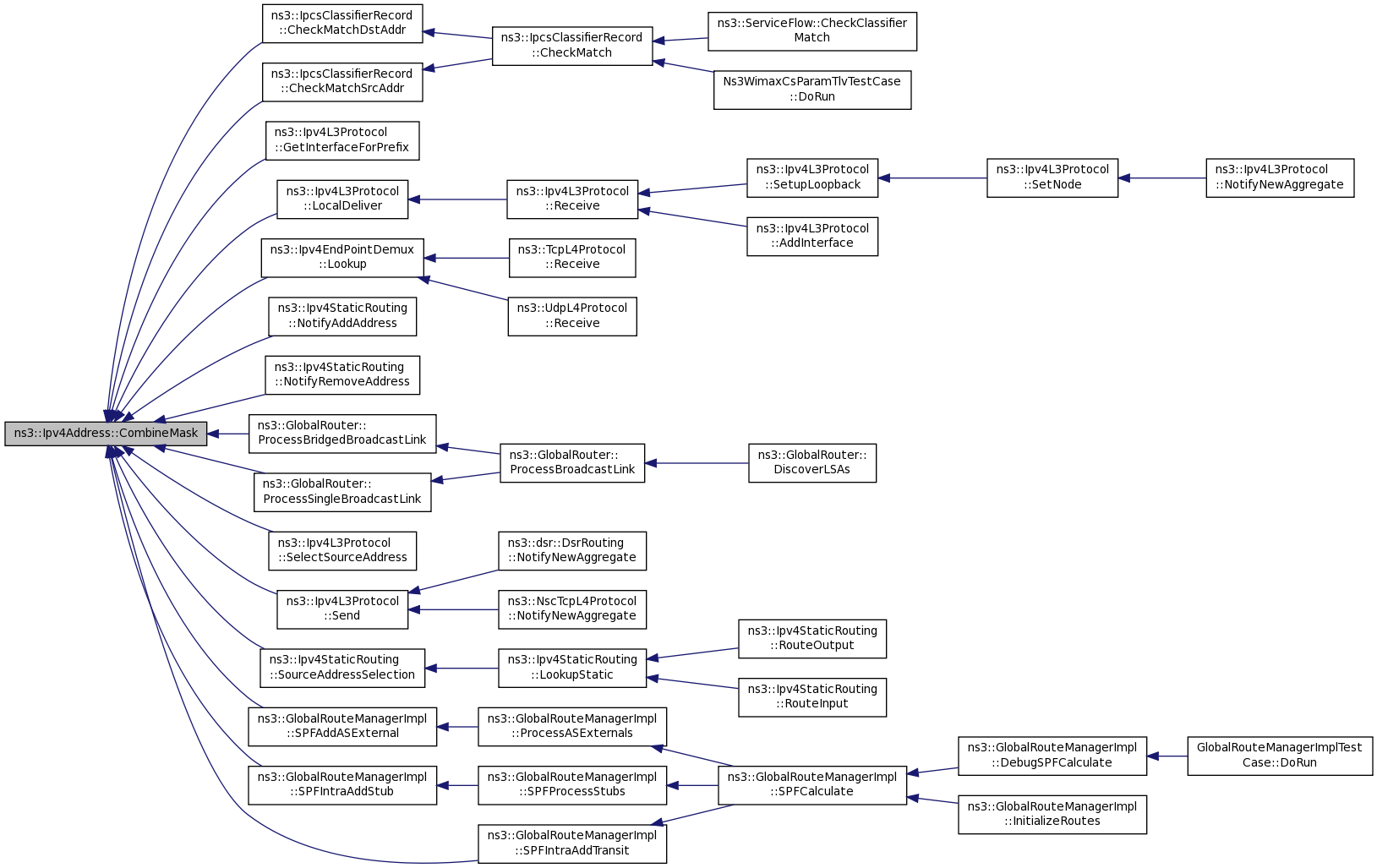

Here is the caller graph for this function:

Ipv4Address ns3::Ipv4Address::ConvertFrom ( const Address & address )

static

Parameters

address a polymorphic address

Returns: a new Ipv4Address from the polymorphic address

This function performs a type check and asserts if the type of the input address is not compatible with an Ipv4Address.

Definition at line 335 of file ipv4-address.cc.

References ns3::Address::CheckCompatible(), ns3::Address::CopyTo(), Deserialize(), GetType(), NS_ASSERT, and NS_LOG_FUNCTION.

Referenced by ns3::UdpSocketImpl::DoSendTo(), ns3::PbbAddressBlockIpv4::PrintAddress(), ns3::PbbMessageIpv4::PrintOriginatorAddress(), ns3::UdpClient::Send(), ns3::UdpEchoClient::Send(), ns3::UdpTraceClient::SendPacket(), ns3::PbbAddressBlockIpv4::SerializeAddress(), ns3::PbbMessageIpv4::SerializeOriginatorAddress(), ns3::UdpClient::StartApplication(), ns3::UdpTraceClient::StartApplication(), and ns3::UdpEchoClient::StartApplication().

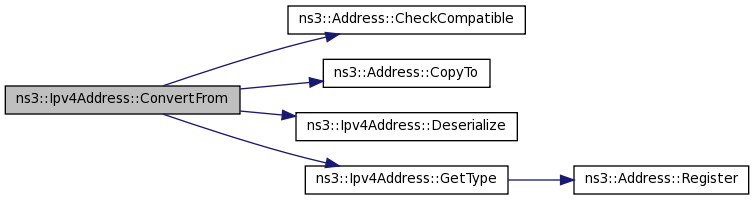

Here is the call graph for this function:

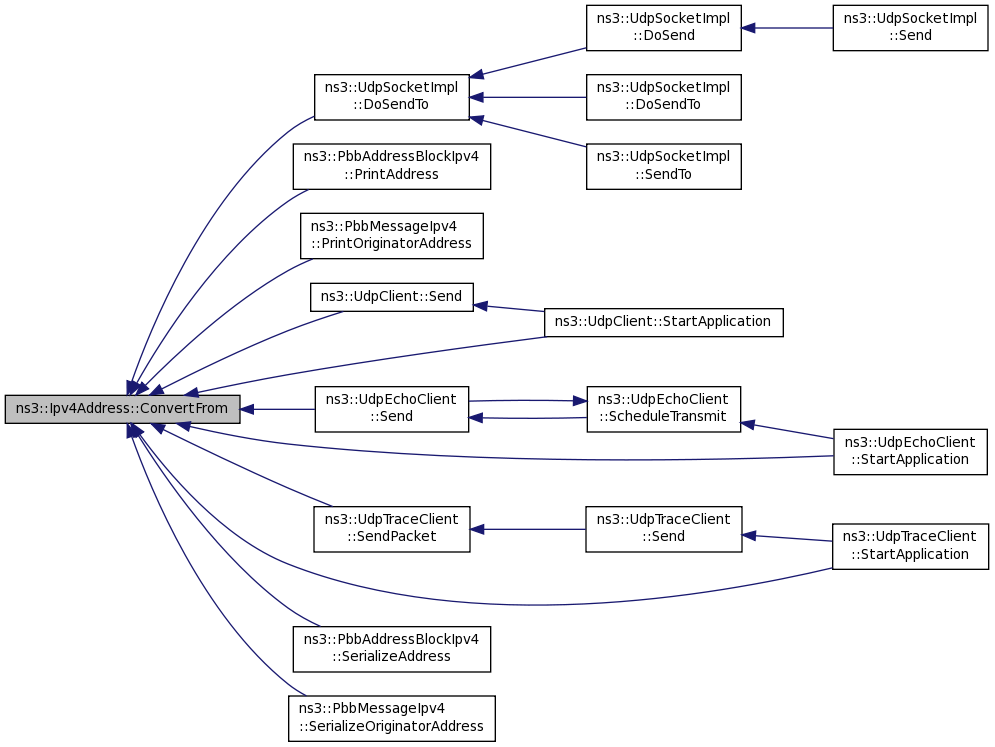

Here is the caller graph for this function:

Address ns3::Ipv4Address::ConvertTo ( void ) const

private

Definition at line 326 of file ipv4-address.cc.

References GetType(), NS_LOG_FUNCTION, and Serialize().

Here is the call graph for this function:

Ipv4Address ns3::Ipv4Address::Deserialize ( const uint8_t buf[4] )

static

Parameters

buf	buffer to read address from

Returns: an Ipv4Address

The input address is expected to be in network byte order format.

Definition at line 289 of file ipv4-address.cc.

References m_address, and NS_LOG_FUNCTION.

Referenced by ns3::NscTcpSocketImpl::CompleteFork(), ns3::NscTcpSocketImpl::ConnectionSucceeded(), ns3::InetSocketAddress::ConvertFrom(), ConvertFrom(), ns3::Ipv4PacketInfoTag::Deserialize(), ns3::dsr::DsrOptionRreqHeader::Deserialize(), ns3::dsr::DsrOptionRrepHeader::Deserialize(), ns3::dsr::DsrOptionSRHeader::Deserialize(), ns3::PbbAddressBlockIpv4::DeserializeAddress(), ns3::PbbMessageIpv4::DeserializeOriginatorAddress(), and ns3::Ipv6Address::GetIpv4MappedAddress().

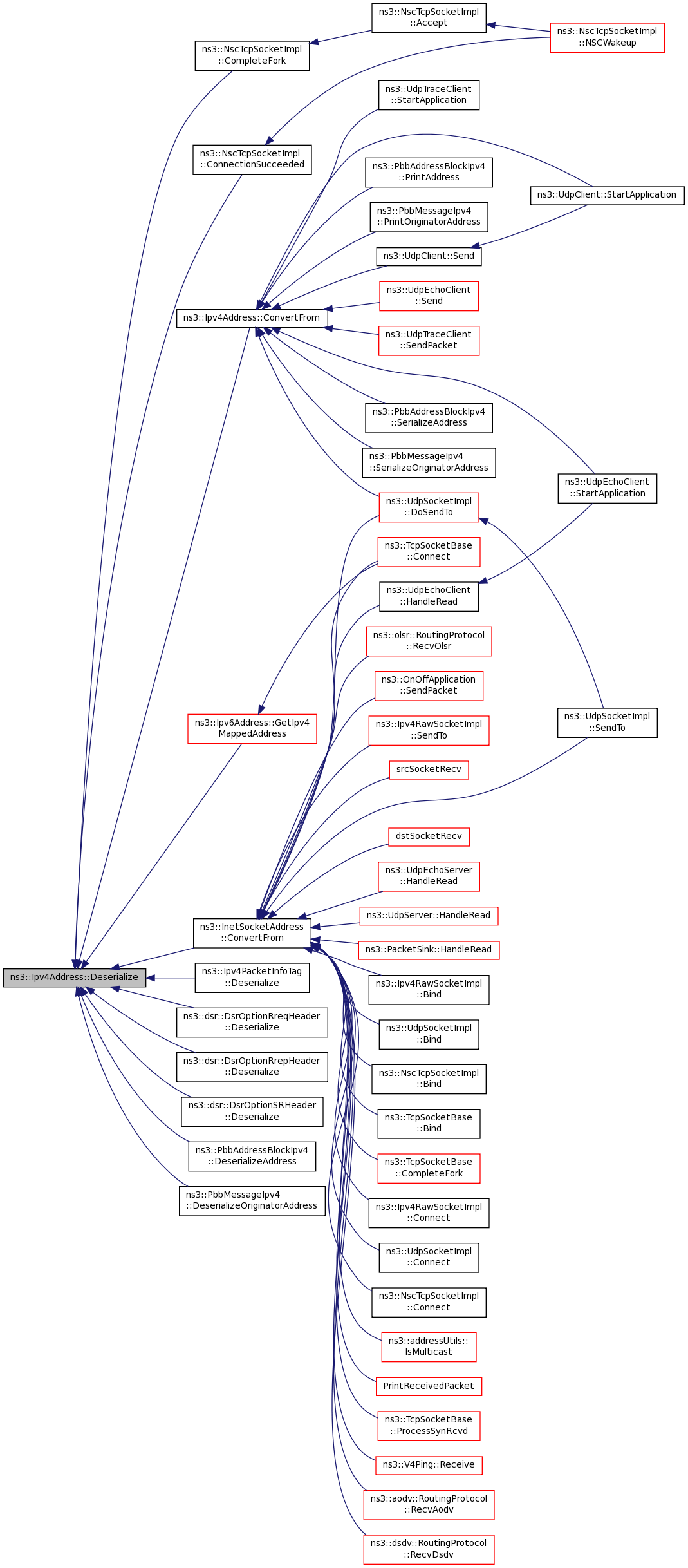

Here is the caller graph for this function:

uint32_t ns3::Ipv4Address::Get ( void ) const

Get the host-order 32-bit IP address.

Returns: the host-order 32-bit IP address

Definition at line 204 of file ipv4-address.cc.

References m_address, and NS_LOG_FUNCTION.

Referenced by ns3::Ipv4AddressGeneratorImpl::AddAllocated(), CombineMask(), SwitchFlowTableTestCase::DoRun(), GetSubnetDirectedBroadcast(), ns3::Ipv4AddressGeneratorImpl::Init(), ns3::Ipv4AddressGeneratorImpl::InitAddress(), ns3::Ipv4InterfaceAddress::Ipv4InterfaceAddress(), ns3::Ipv4Mask::IsMatch(), IsSubnetDirectedBroadcast(), ns3::Ipv4AddressHash::operator()(), ns3::Ipv4L3Protocol::ProcessFragment(), ns3::olsr::MessageHeader::Serialize(), ns3::Ipv4Header::Serialize(), ns3::Ipv4AddressHelper::SetBase(), ns3::GlobalRouteManagerImpl::SPFIntraAddStub(), and ns3::WriteTo().

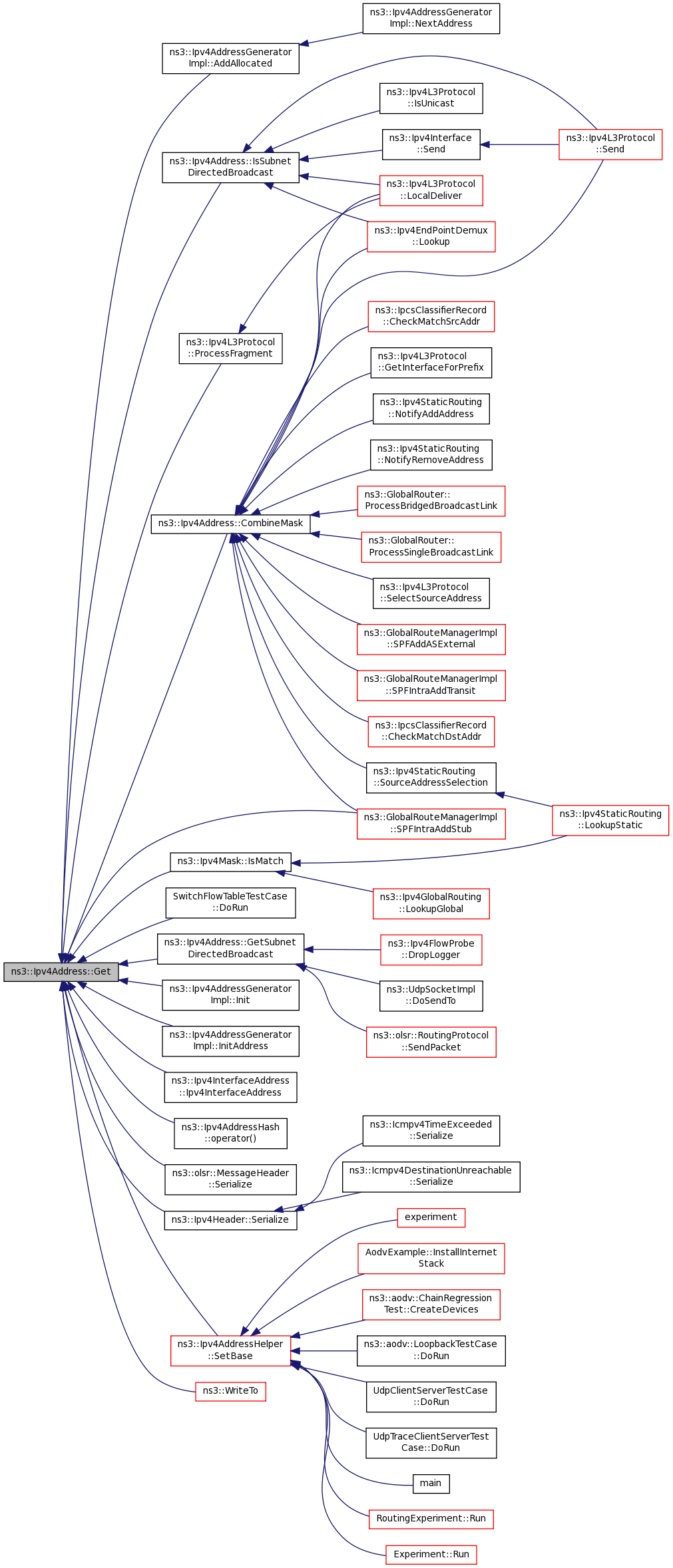

Here is the caller graph for this function:

Ipv4Address ns3::Ipv4Address::GetAny ( void )

static

Returns: the 0.0.0.0 address

Definition at line 360 of file ipv4-address.cc.

References NS_LOG_FUNCTION_NOARGS.

Referenced by ns3::Ipv4EndPointDemux::Allocate(), ns3::Ipv4RawSocketImpl::Bind(), ns3::UdpSocketImpl::Bind(), ns3::NscTcpSocketImpl::Bind(), ns3::TcpSocketBase::Bind(), BuildAppsTest(), ns3::aodv::Bug772ChainTest::CreateDevices(), ns3::LenaTdTbfqFfMacSchedulerTestCase1::DoRun(), ns3::LenaFdTbfqFfMacSchedulerTestCase1::DoRun(), ns3::LenaPssFfMacSchedulerTestCase1::DoRun(), ns3::LteX2HandoverTestCase::DoRun(), ns3::LenaPssFfMacSchedulerTestCase2::DoRun(), ns3::LenaTdTbfqFfMacSchedulerTestCase2::DoRun(), ns3::LenaFdTbfqFfMacSchedulerTestCase2::DoRun(), ns3::EpcS1uDlTestCase::DoRun(), ns3::LteX2HandoverMeasuresTestCase::DoRun(), ns3::LteEpcE2eDataTestCase::DoRun(), ns3::BriteTopologyFunctionTestCase::DoRun(), ns3::EpcS1uUlTestCase::DoRun(), ns3::UdpSocketImpl::DoSendTo(), ns3::Ipv4RawSocketImpl::ForwardUp(), ns3::Ipv4L3Protocol::IpMulticastForward(), ns3::Ipv4RawSocketImpl::Ipv4RawSocketImpl(), ns3::Ipv4EndPointDemux::Lookup(), main(), ns3::aodv::RoutingProtocol::NotifyAddAddress(), ns3::dsdv::RoutingProtocol::NotifyAddAddress(), ns3::aodv::RoutingProtocol::NotifyInterfaceUp(), ns3::dsdv::RoutingProtocol::NotifyInterfaceUp(), ns3::aodv::RoutingProtocol::NotifyRemoveAddress(), ns3::dsdv::RoutingProtocol::NotifyRemoveAddress(), ns3::PointToPointEpcHelper::PointToPointEpcHelper(), RunSimulation(), ns3::Ipv4RawSocketImpl::SendTo(), ns3::Ipv4EndPointDemux::SimpleLookup(), ns3::UdpEchoServer::StartApplication(), ns3::V4Ping::StartApplication(), ns3::UdpServer::StartApplication(), and Tunnel::Tunnel().

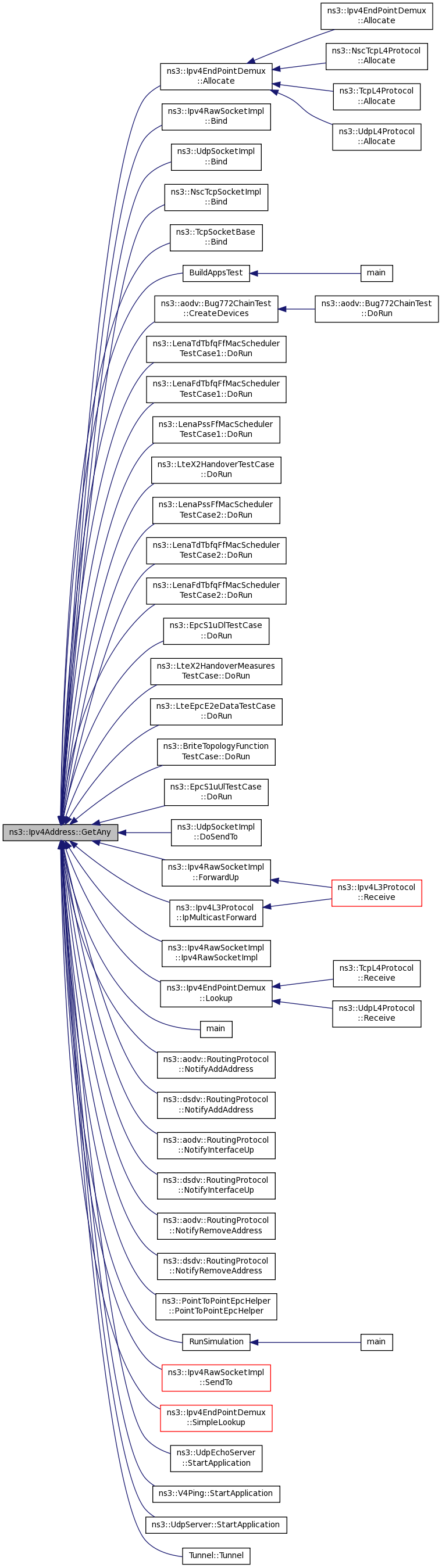

Here is the caller graph for this function:

Ipv4Address ns3::Ipv4Address::GetBroadcast ( void )

static

Returns: the 255.255.255.255 address

Definition at line 367 of file ipv4-address.cc.

References NS_LOG_FUNCTION_NOARGS.

Referenced by ns3::Ipv4FlowClassifier::Classify(), and main().

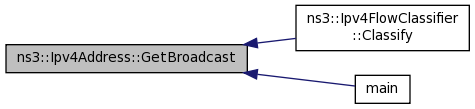

Here is the caller graph for this function:

Ipv4Address ns3::Ipv4Address::GetLoopback ( void )

static

Returns: the 127.0.0.1 address

Definition at line 374 of file ipv4-address.cc.

References NS_LOG_FUNCTION_NOARGS.

Referenced by ns3::aodv::LoopbackTestCase::DoRun(), ns3::Ipv4L3ProtocolTestCase::DoRun(), ns3::Ipv4Interface::RemoveAddress(), ns3::Ipv4L3Protocol::RemoveAddress(), RunSimulation(), ns3::aodv::RoutingProtocol::SetIpv4(), ns3::dsdv::RoutingProtocol::SetIpv4(), and ns3::Ipv4L3Protocol::SetupLoopback().

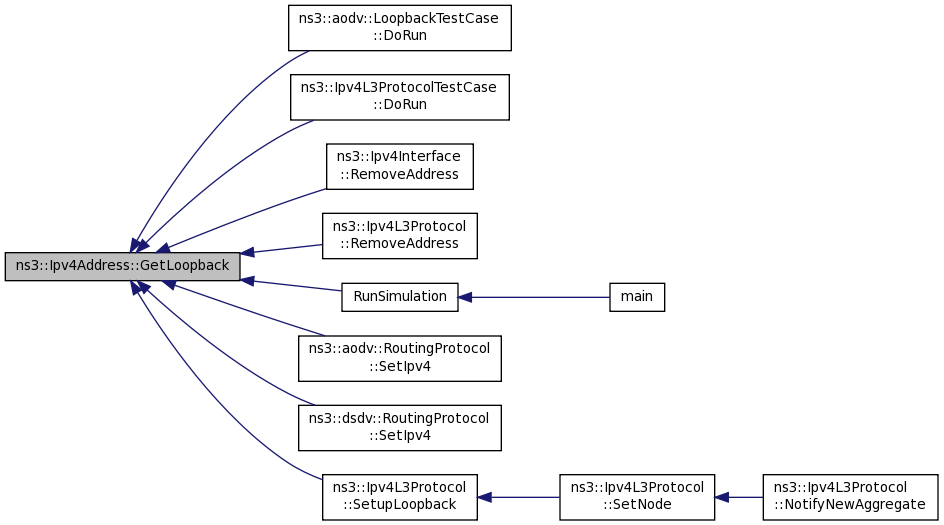

Here is the caller graph for this function:

Ipv4Address ns3::Ipv4Address::GetSubnetDirectedBroadcast ( Ipv4Mask const & mask ) const

Generate subnet-directed broadcast address corresponding to mask.

The subnet-directed broadcast address has the host bits set to all ones. If this method is called with a mask of 255.255.255.255, (i.e., the address is a /32 address), the program will assert, since there is no subnet associated with a /32 address.

Parameters

mask	a network mask

Definition at line 230 of file ipv4-address.cc.

References Get(), ns3::Ipv4Mask::GetInverse(), ns3::Ipv4Mask::GetOnes(), Ipv4Address(), NS_ASSERT_MSG, and NS_LOG_FUNCTION.

Referenced by ns3::UdpSocketImpl::DoSendTo(), ns3::Ipv4FlowProbe::DropLogger(), and ns3::olsr::RoutingProtocol::SendPacket().

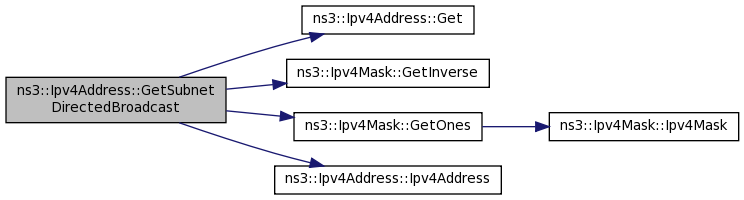

Here is the call graph for this function:

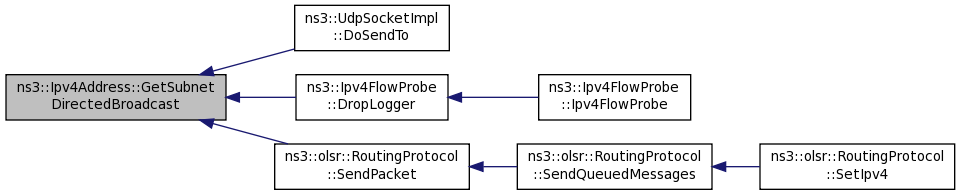

Here is the caller graph for this function:

uint8_t ns3::Ipv4Address::GetType ( void )

staticprivate

Definition at line 345 of file ipv4-address.cc.

References NS_LOG_FUNCTION_NOARGS, and ns3::Address::Register().

Referenced by ConvertFrom(), ConvertTo(), and IsMatchingType().

Here is the call graph for this function:

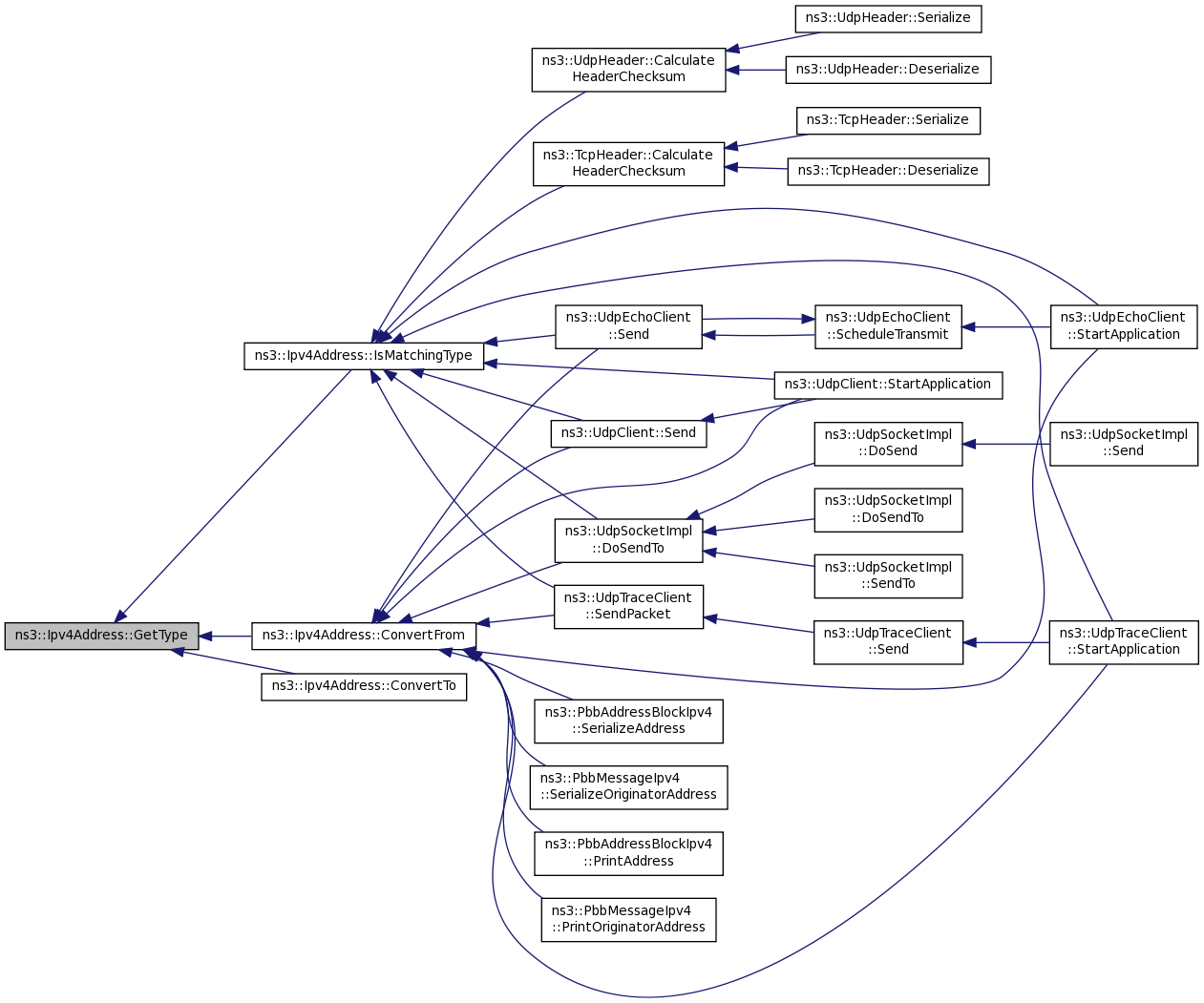

Here is the caller graph for this function:

Ipv4Address ns3::Ipv4Address::GetZero ( void )

static

Returns: the 0.0.0.0 address

Definition at line 353 of file ipv4-address.cc.

References NS_LOG_FUNCTION_NOARGS, and zero.

Referenced by ns3::Ipv4RoutingTableEntry::CreateDefaultRoute(), ns3::Ipv4FlowClassifier::FindFlow(), ns3::UdpSocketImpl::GetSockName(), ns3::TcpSocketBase::GetSockName(), ns3::Ipv4RoutingTableEntry::IsDefault(), ns3::Ipv4RoutingTableEntry::IsGateway(), ns3::Ipv4StaticRouting::LookupStatic(), ns3::TcpSocketBase::RecvFrom(), and ns3::GlobalRouteManagerImpl::SPFNexthopCalculation().

Here is the caller graph for this function:

bool ns3::Ipv4Address::IsBroadcast ( void ) const

Returns: true if address is 255.255.255.255; false otherwise

Definition at line 254 of file ipv4-address.cc.

References m_address, and NS_LOG_FUNCTION.

Referenced by ns3::TapBridge::CreateTap(), ns3::UdpSocketImpl::DoSendTo(), ns3::Ipv4L3Protocol::IsDestinationAddress(), ns3::Ipv4L3Protocol::LocalDeliver(), ns3::Ipv4EndPointDemux::Lookup(), ns3::dsr::RouteCache::RebuildBestRouteTable(), ns3::dsr::DsrRouting::Receive(), ns3::aodv::RoutingProtocol::RouteInput(), ns3::dsdv::RoutingProtocol::RouteInput(), ns3::Ipv4StaticRouting::RouteInput(), ns3::Ipv4GlobalRouting::RouteInput(), ns3::Ipv4Interface::Send(), and ns3::Ipv4L3Protocol::Send().

Here is the caller graph for this function:

bool ns3::Ipv4Address::IsEqual ( const Ipv4Address & other ) const

inline

Comparison operation between two Ipv4Addresses.

Parameters

other address to which to compare this address

Returns: True if the addresses are equal. False otherwise.

Definition at line 81 of file ipv4-address.h.

References m_address.

Referenced by ns3::Ipv4RoutingTableEntry::IsDefault(), ns3::Ipv4RoutingTableEntry::IsGateway(), ns3::ArpL3Protocol::Receive(), ns3::Ipv4StaticRouting::RouteInput(), ns3::Ipv4GlobalRouting::RouteInput(), and ns3::Ipv4L3Protocol::SendRealOut().

Here is the caller graph for this function:

bool ns3::Ipv4Address::IsLocalMulticast ( void ) const

Returns: true only if address is in local multicast address scope, 224.0.0.0/24

Definition at line 272 of file ipv4-address.cc.

References m_address, and NS_LOG_FUNCTION.

Referenced by ns3::Ipv4StaticRouting::LookupStatic(), and ns3::Ipv4L3Protocol::Send().

Here is the caller graph for this function:

bool ns3::Ipv4Address::IsMatchingType ( const Address & address )

static

Parameters

address an address to compare type with

Returns: true if the type of the address stored internally is compatible with the type of the input address, false otherwise.

Definition at line 315 of file ipv4-address.cc.

References ns3::Address::CheckCompatible(), GetType(), and NS_LOG_FUNCTION.

Referenced by ns3::UdpHeader::CalculateHeaderChecksum(), ns3::TcpHeader::CalculateHeaderChecksum(), ns3::UdpSocketImpl::DoSendTo(), ns3::UdpClient::Send(), ns3::UdpEchoClient::Send(), ns3::UdpTraceClient::SendPacket(), ns3::UdpClient::StartApplication(), ns3::UdpTraceClient::StartApplication(), and ns3::UdpEchoClient::StartApplication().

Here is the call graph for this function:

Here is the caller graph for this function:

bool ns3::Ipv4Address::IsMulticast ( void ) const

Returns: true only if address is in the range 224.0.0.0 - 239.255.255.255

Definition at line 261 of file ipv4-address.cc.

References m_address, and NS_LOG_FUNCTION.

Referenced by ns3::dsr::DsrOptionRerr::DoSendError(), ns3::UdpSocketImpl::DoSendTo(), ns3::Ipv4L3Protocol::IsDestinationAddress(), ns3::addressUtils::IsMulticast(), ns3::Ipv4L3Protocol::IsUnicast(), ns3::Ipv4L3Protocol::LocalDeliver(), ns3::dsr::DsrOptionSR::Process(), ns3::dsr::DsrRouting::Receive(), ns3::aodv::RoutingProtocol::RouteInput(), ns3::dsdv::RoutingProtocol::RouteInput(), ns3::Ipv4StaticRouting::RouteInput(), ns3::Ipv4ListRouting::RouteInput(), ns3::Ipv4GlobalRouting::RouteInput(), ns3::Ipv4StaticRouting::RouteOutput(), ns3::Ipv4GlobalRouting::RouteOutput(), and ns3::Ipv4Interface::Send().

Here is the caller graph for this function:

bool ns3::Ipv4Address::IsSubnetDirectedBroadcast ( Ipv4Mask const & mask ) const

Generate subnet-directed broadcast address corresponding to mask.

The subnet-directed broadcast address has the host bits set to all ones. If this method is called with a mask of 255.255.255.255, (i.e., the address is a /32 address), the program will assert, since there is no subnet associated with a /32 address.

Parameters
