a factory to create ns3::Ipv4RoutingProtocol objects More...

#include <ipv4-routing-helper.h>

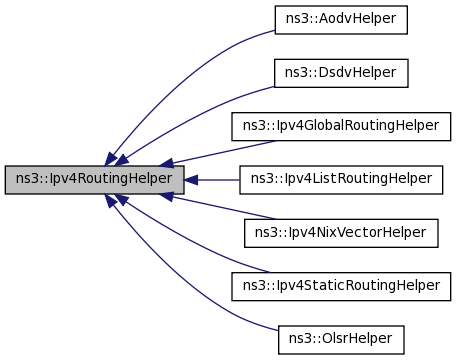

Inheritance diagram for ns3::Ipv4RoutingHelper:

Public Member Functions
virtual	~Ipv4RoutingHelper ()

virtual Ipv4RoutingHelper *	Copy (void) const =0
	virtual constructor More...

virtual Ptr< Ipv4RoutingProtocol >	Create (Ptr< Node > node) const =0

void	PrintRoutingTableAllAt (Time printTime, Ptr< OutputStreamWrapper > stream) const
	prints the routing tables of all nodes at a particular time. More...

void	PrintRoutingTableAllEvery (Time printInterval, Ptr< OutputStreamWrapper > stream) const
	prints the routing tables of all nodes at regular intervals specified by user. More...

void	PrintRoutingTableAt (Time printTime, Ptr< Node > node, Ptr< OutputStreamWrapper > stream) const
	prints the routing tables of a node at a particular time. More...

void	PrintRoutingTableEvery (Time printInterval, Ptr< Node > node, Ptr< OutputStreamWrapper > stream) const
	prints the routing tables of a node at regular intervals specified by user. More...

Static Public Member Functions
template<class T >
static Ptr< T >	GetRouting (Ptr< Ipv4RoutingProtocol > protocol)
	Request a specified routing protocol <T> from Ipv4RoutingProtocol protocol. More...

Private Member Functions
void	Print (Ptr< Node > node, Ptr< OutputStreamWrapper > stream) const
	prints the routing tables of a node. More...

void	PrintEvery (Time printInterval, Ptr< Node > node, Ptr< OutputStreamWrapper > stream) const
	prints the routing tables of a node at regular intervals specified by user. More...

Detailed Description

a factory to create ns3::Ipv4RoutingProtocol objects

For each new routing protocol created as a subclass of ns3::Ipv4RoutingProtocol, you need to create a subclass of ns3::Ipv4RoutingHelper which can be used by ns3::InternetStackHelper::SetRoutingHelper and ns3::InternetStackHelper::Install.

Definition at line 43 of file ipv4-routing-helper.h.

Constructor & Destructor Documentation

ns3::Ipv4RoutingHelper::~Ipv4RoutingHelper ( )

virtual

Definition at line 30 of file ipv4-routing-helper.cc.

Member Function Documentation

virtual Ipv4RoutingHelper* ns3::Ipv4RoutingHelper::Copy ( void ) const

pure virtual

virtual constructor

Returns: pointer to clone of this Ipv4RoutingHelper

This method is mainly for internal use by the other helpers; clients are expected to free the dynamic memory allocated by this method

Implemented in ns3::Ipv4ListRoutingHelper, ns3::Ipv4StaticRoutingHelper, ns3::OlsrHelper, ns3::Ipv4NixVectorHelper, ns3::DsdvHelper, ns3::Ipv4GlobalRoutingHelper, and ns3::AodvHelper.

Referenced by ns3::Ipv4ListRoutingHelper::Add(), ns3::InternetStackHelper::InternetStackHelper(), ns3::InternetStackHelper::operator=(), and ns3::InternetStackHelper::SetRoutingHelper().

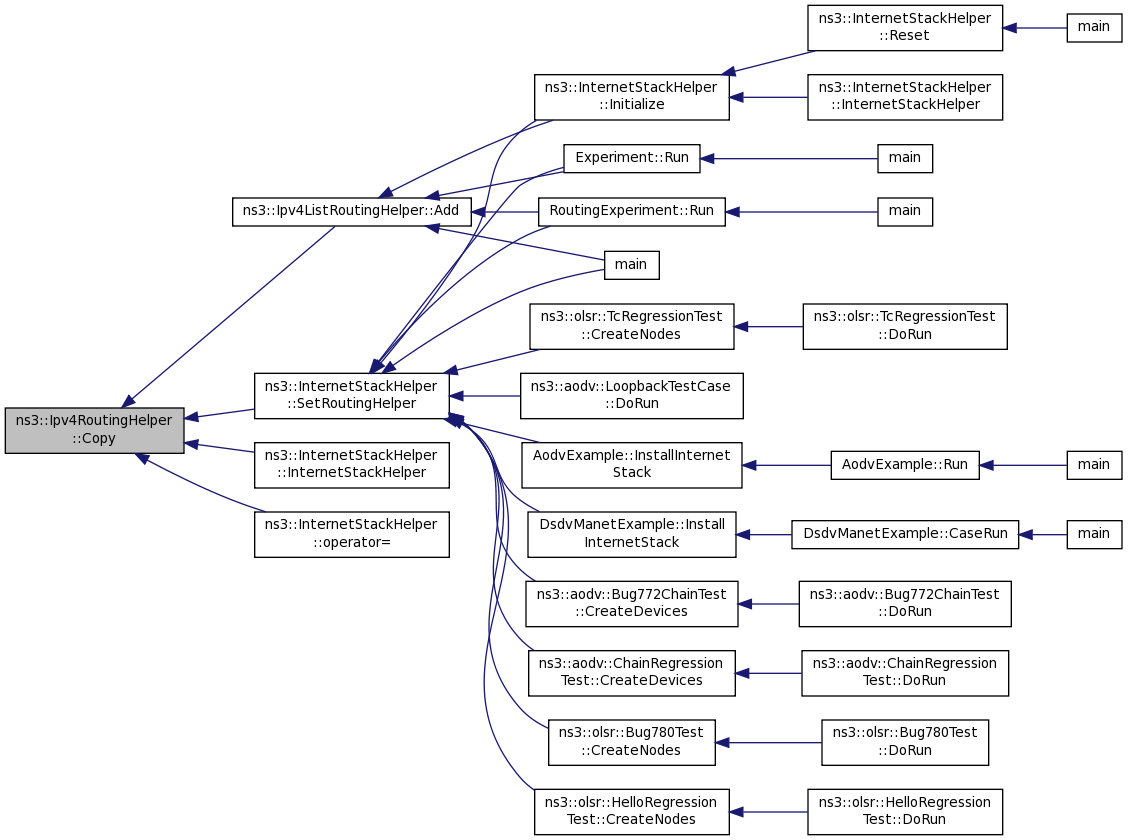

Here is the caller graph for this function:

virtual Ptr<Ipv4RoutingProtocol> ns3::Ipv4RoutingHelper::Create ( Ptr< Node > node ) const

pure virtual

Parameters

node	the node within which the new routing protocol will run

Returns: a newly-created routing protocol

Implemented in ns3::Ipv4ListRoutingHelper, ns3::OlsrHelper, ns3::Ipv4StaticRoutingHelper, ns3::DsdvHelper, ns3::Ipv4NixVectorHelper, ns3::Ipv4GlobalRoutingHelper, and ns3::AodvHelper.

Referenced by ns3::InternetStackHelper::Install().

Here is the caller graph for this function:

template<class T >

Ptr< T > ns3::Ipv4RoutingHelper::GetRouting ( Ptr< Ipv4RoutingProtocol > protocol )

static

Request a specified routing protocol <T> from Ipv4RoutingProtocol protocol.

If protocol is Ipv4ListRouting, then protocol will be searched in the list, otherwise a simple DynamicCast will be performed

Parameters

protocol Smart pointer to Ipv4RoutingProtocol object

Returns: a Smart Pointer to the requested protocol (zero if the protocol can't be found)

Definition at line 164 of file ipv4-routing-helper.h.

void ns3::Ipv4RoutingHelper::Print	(	Ptr< Node >	node,
		Ptr< OutputStreamWrapper >	stream
	)		const

private

prints the routing tables of a node.

Internal:

Parameters

node	The node ptr for which we need the routing table to be printed
stream	The output stream object to use

This method calls the PrintRoutingTable() method of the Ipv6RoutingProtocol stored in the Ipv6 object; the output format is routing protocol-specific.

Definition at line 67 of file ipv4-routing-helper.cc.

References ns3::Object::GetObject(), and NS_ASSERT.

Referenced by PrintRoutingTableAllAt(), and PrintRoutingTableAt().

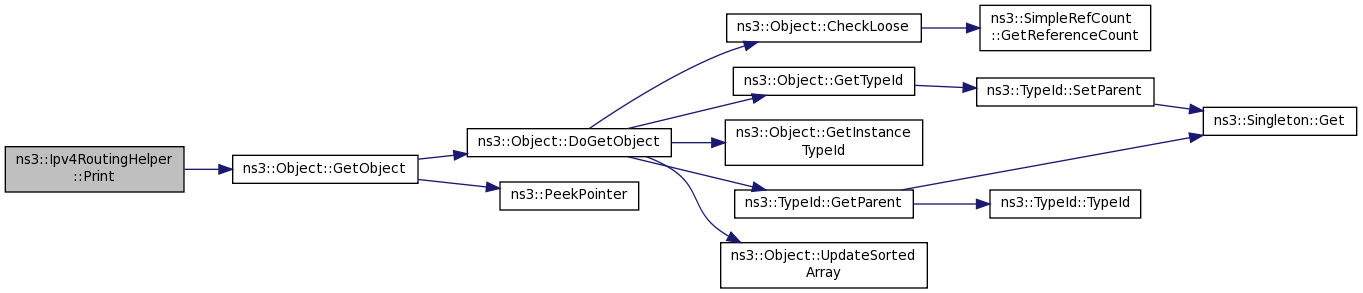

Here is the call graph for this function:

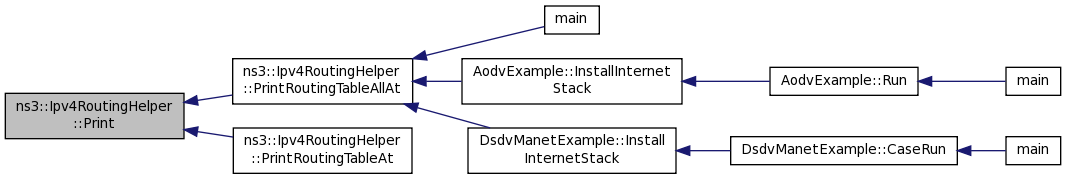

Here is the caller graph for this function:

void ns3::Ipv4RoutingHelper::PrintEvery	(	Time	printInterval,
		Ptr< Node >	node,
		Ptr< OutputStreamWrapper >	stream
	)		const

private

prints the routing tables of a node at regular intervals specified by user.

Internal:

Parameters

printInterval	the time interval for which the routing table is supposed to be printed.
node	The node ptr for which we need the routing table to be printed
stream	The output stream object to use

This method calls the PrintRoutingTable() method of the Ipv6RoutingProtocol stored in the Ipv6 object, for the selected node at the specified interval; the output format is routing protocol-specific.

Definition at line 76 of file ipv4-routing-helper.cc.

References ns3::Object::GetObject(), NS_ASSERT, and ns3::Simulator::Schedule().

Referenced by PrintRoutingTableAllEvery(), and PrintRoutingTableEvery().

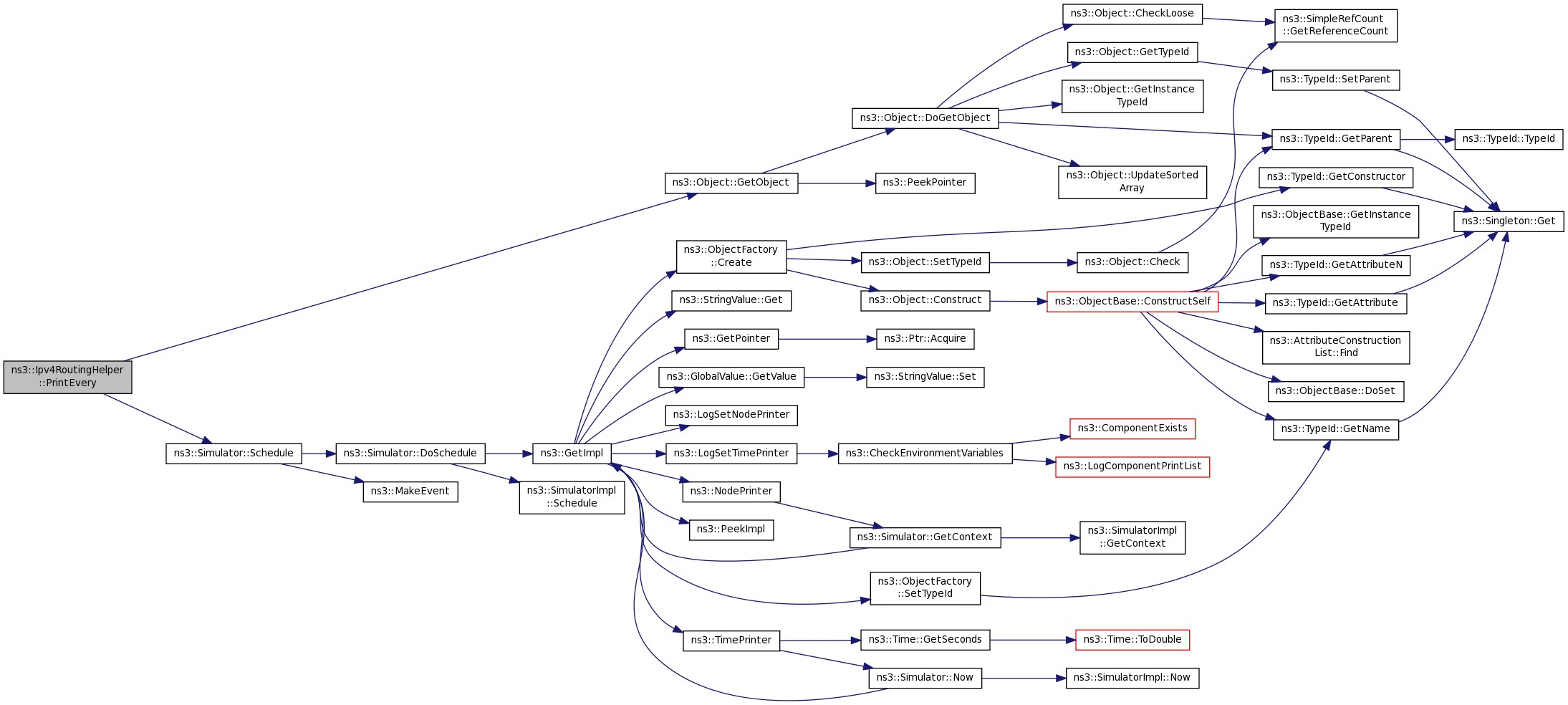

Here is the call graph for this function:

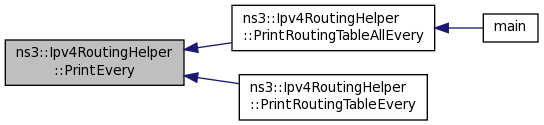

Here is the caller graph for this function:

void ns3::Ipv4RoutingHelper::PrintRoutingTableAllAt	(	Time	printTime,
		Ptr< OutputStreamWrapper >	stream
	)		const

prints the routing tables of all nodes at a particular time.

Parameters

printTime	the time at which the routing table is supposed to be printed.
stream	The output stream object to use

This method calls the PrintRoutingTable() method of the Ipv4RoutingProtocol stored in the Ipv4 object, for all nodes at the specified time; the output format is routing protocol-specific.

Definition at line 35 of file ipv4-routing-helper.cc.

References ns3::NodeList::GetNNodes(), ns3::NodeList::GetNode(), Print(), and ns3::Simulator::Schedule().

Referenced by AodvExample::InstallInternetStack(), DsdvManetExample::InstallInternetStack(), and main().

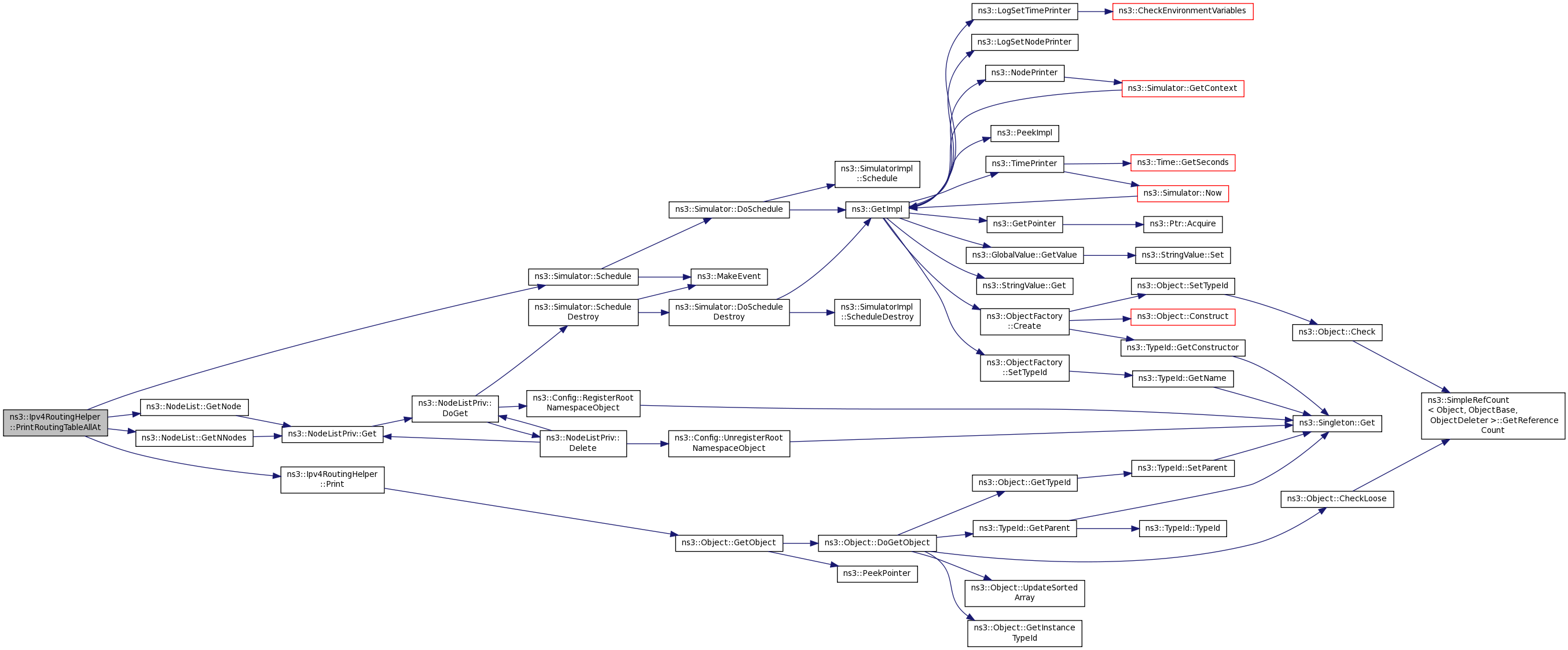

Here is the call graph for this function:

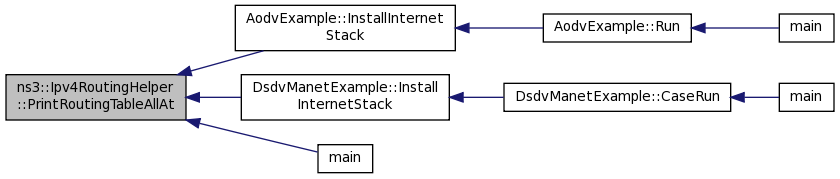

Here is the caller graph for this function:

void ns3::Ipv4RoutingHelper::PrintRoutingTableAllEvery	(	Time	printInterval,
		Ptr< OutputStreamWrapper >	stream
	)		const

prints the routing tables of all nodes at regular intervals specified by user.

Parameters

printInterval	the time interval for which the routing table is supposed to be printed.
stream	The output stream object to use

This method calls the PrintRoutingTable() method of the Ipv4RoutingProtocol stored in the Ipv4 object, for all nodes at the specified time interval; the output format is routing protocol-specific.

Definition at line 45 of file ipv4-routing-helper.cc.

References ns3::NodeList::GetNNodes(), ns3::NodeList::GetNode(), PrintEvery(), and ns3::Simulator::Schedule().

Referenced by main().

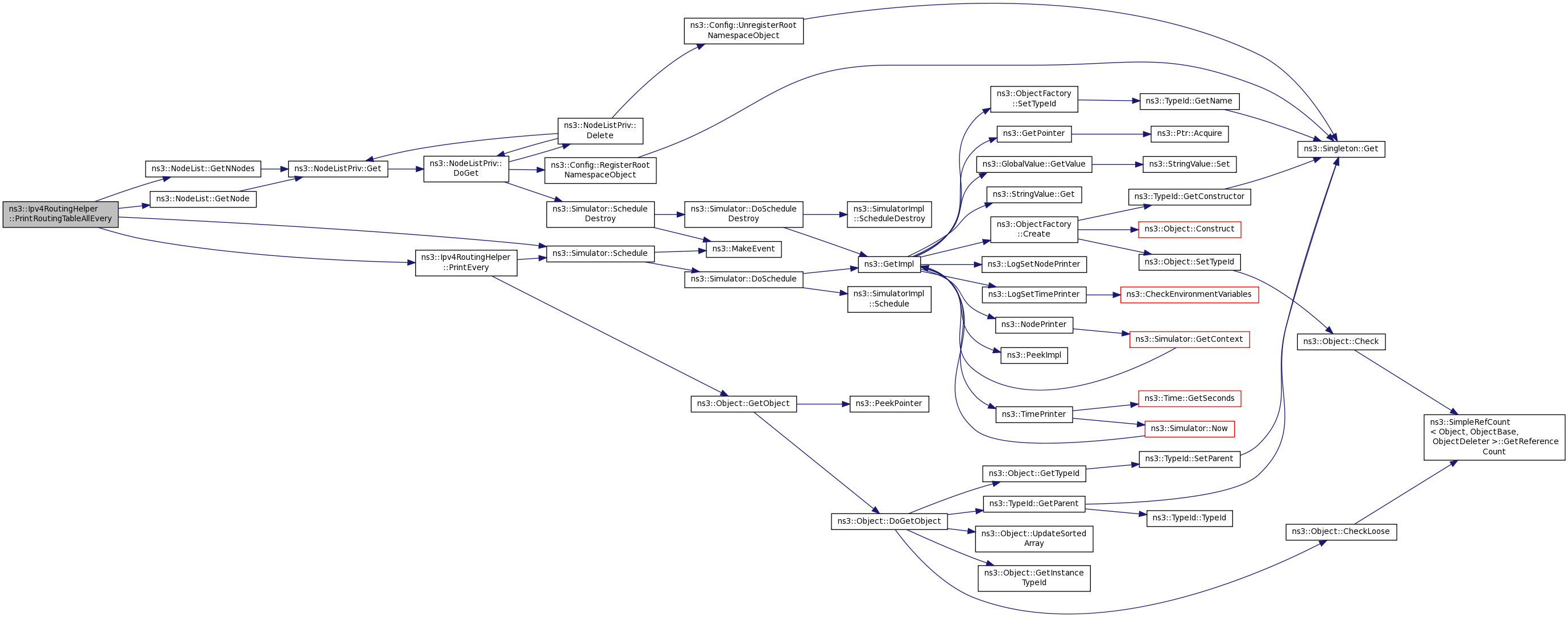

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::Ipv4RoutingHelper::PrintRoutingTableAt	(	Time	printTime,
		Ptr< Node >	node,
		Ptr< OutputStreamWrapper >	stream
	)		const

prints the routing tables of a node at a particular time.

Parameters

printTime	the time at which the routing table is supposed to be printed.
node	The node ptr for which we need the routing table to be printed
stream	The output stream object to use

This method calls the PrintRoutingTable() method of the Ipv4RoutingProtocol stored in the Ipv4 object, for the selected node at the specified time; the output format is routing protocol-specific.

Definition at line 55 of file ipv4-routing-helper.cc.

References Print(), and ns3::Simulator::Schedule().

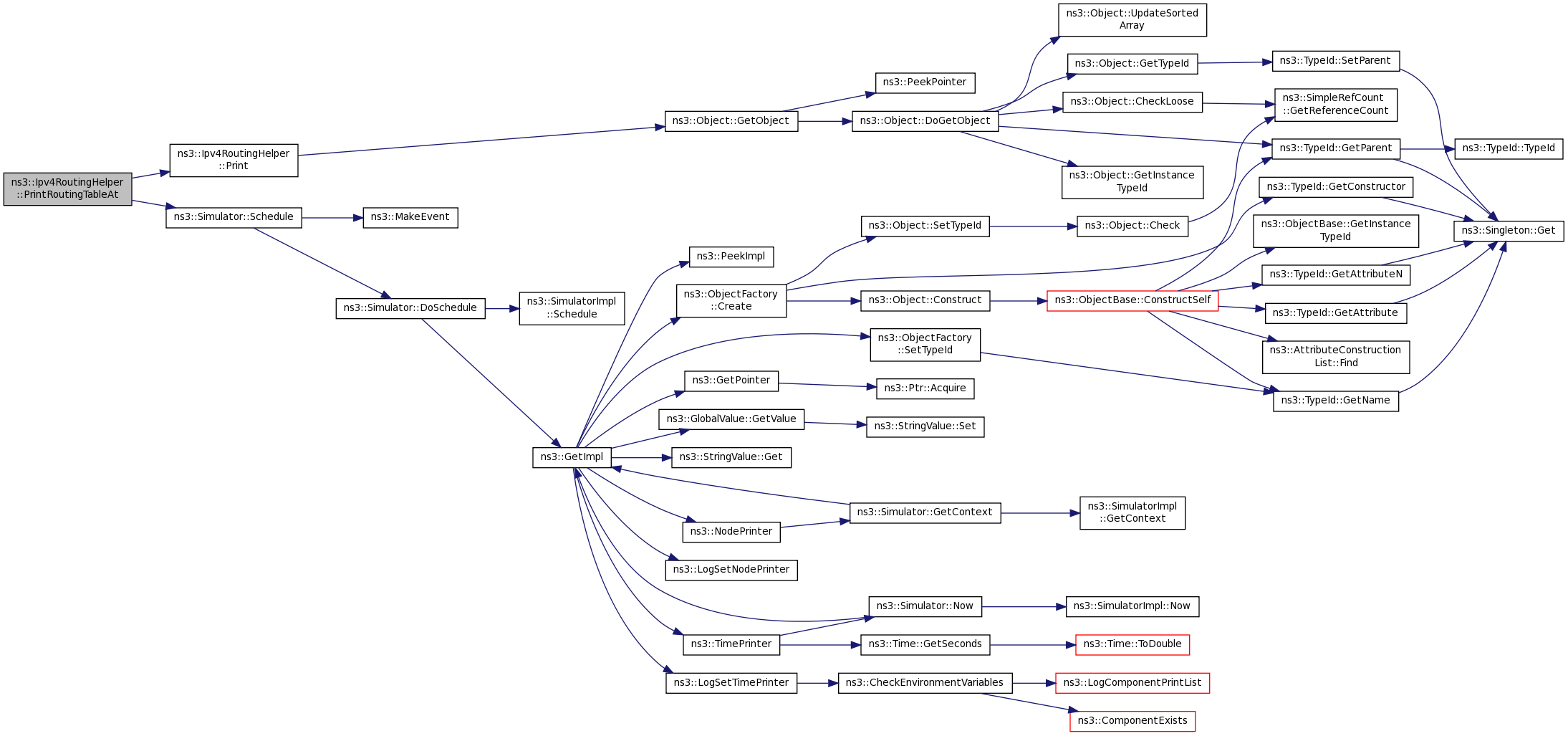

Here is the call graph for this function:

void ns3::Ipv4RoutingHelper::PrintRoutingTableEvery	(	Time	printInterval,
		Ptr< Node >	node,
		Ptr< OutputStreamWrapper >	stream
	)		const

prints the routing tables of a node at regular intervals specified by user.

Parameters

printInterval	the time interval for which the routing table is supposed to be printed.
node	The node ptr for which we need the routing table to be printed
stream	The output stream object to use

This method calls the PrintRoutingTable() method of the Ipv4RoutingProtocol stored in the Ipv4 object, for the selected node at the specified interval; the output format is routing protocol-specific.

Definition at line 61 of file ipv4-routing-helper.cc.

References PrintEvery(), and ns3::Simulator::Schedule().

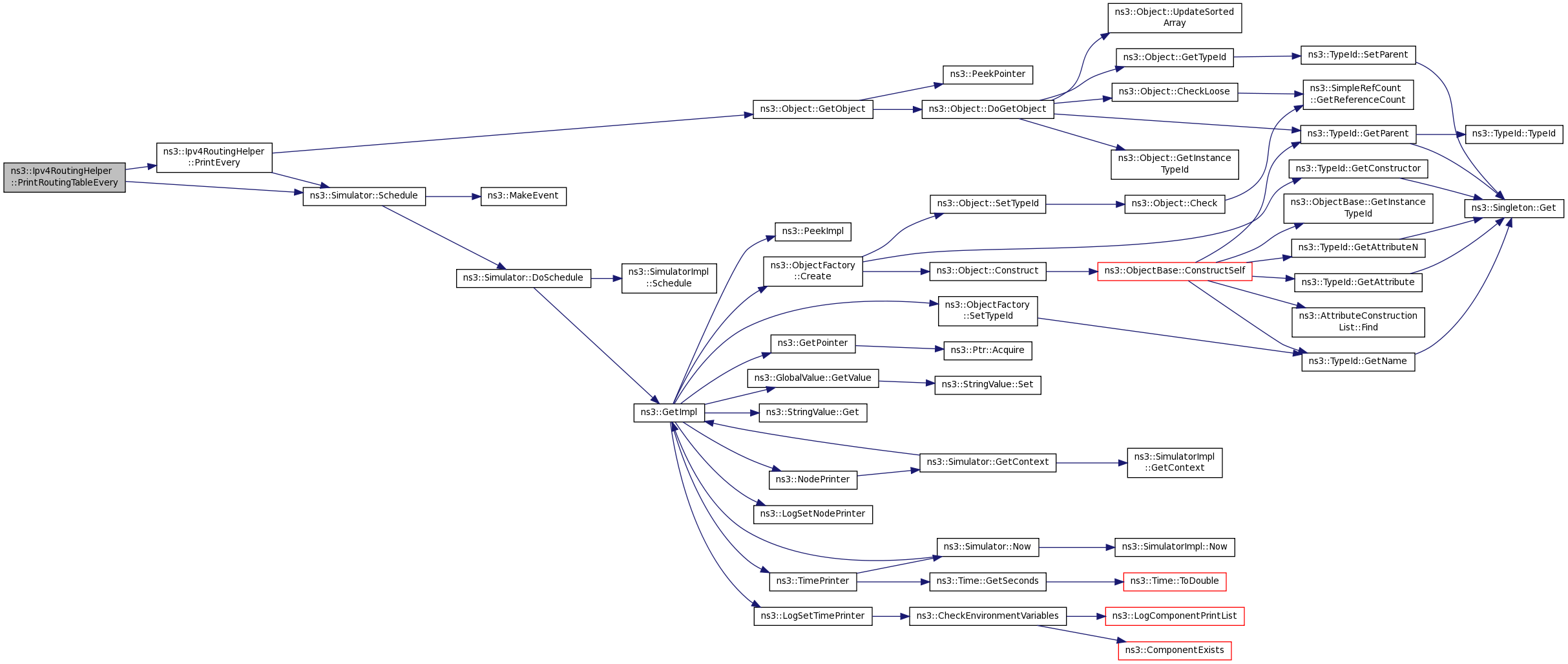

Here is the call graph for this function:

The documentation for this class was generated from the following files:

src/internet/helper/ipv4-routing-helper.h
src/internet/helper/ipv4-routing-helper.cc
