A Set of Fragment. More...

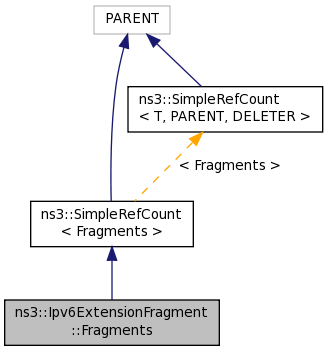

Inheritance diagram for ns3::Ipv6ExtensionFragment::Fragments:

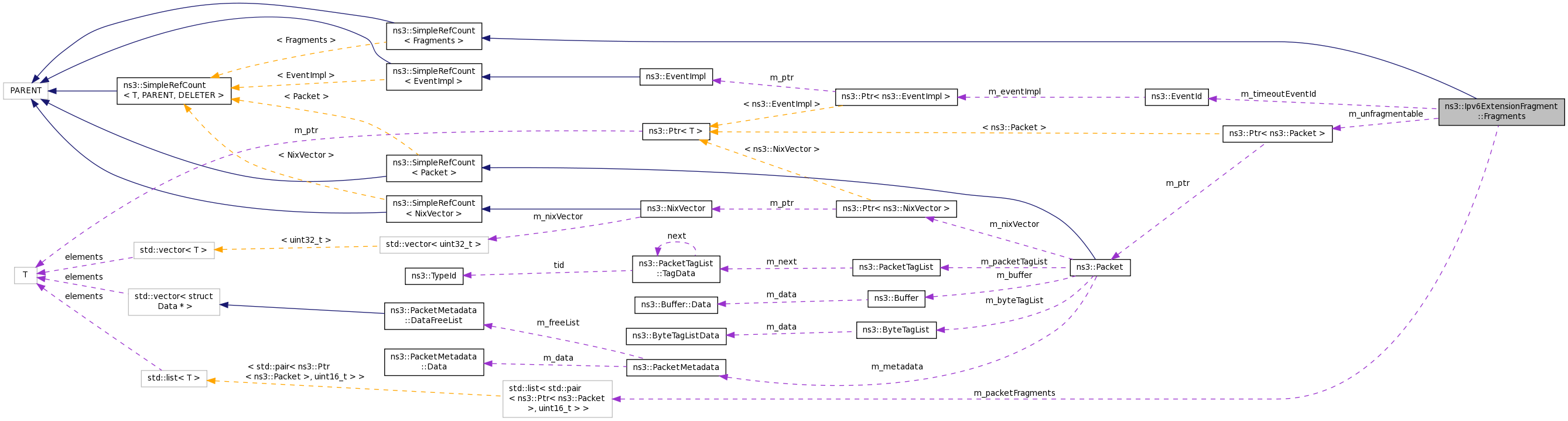

Collaboration diagram for ns3::Ipv6ExtensionFragment::Fragments:

Public Member Functions
	Fragments ()
	Constructor. More...

	~Fragments ()
	Destructor. More...

void	AddFragment (Ptr< Packet > fragment, uint16_t fragmentOffset, bool moreFragment)
	Add a fragment. More...

void	CancelTimeout ()
	Cancel the timeout event. More...

Ptr< Packet >	GetPacket () const
	Get the entire packet. More...

Ptr< Packet >	GetPartialPacket () const
	Get the packet parts so far received. More...

bool	IsEntire () const
	If all fragments have been added. More...

void	SetTimeoutEventId (EventId event)
	Set the Timeout EventId. More...

void	SetUnfragmentablePart (Ptr< Packet > unfragmentablePart)
	Set the unfragmentable part of the packet. More...

Public Member Functions inherited from ns3::SimpleRefCount< Fragments >
	SimpleRefCount ()
	Constructor. More...

	SimpleRefCount (const SimpleRefCount &o)
	Copy constructor. More...

uint32_t	GetReferenceCount (void) const
	Get the reference count of the object. More...

SimpleRefCount &	operator= (const SimpleRefCount &o)
	Assignment. More...

void	Ref (void) const
	Increment the reference count. More...

void	Unref (void) const
	Decrement the reference count. More...

Private Attributes
bool	m_moreFragment
	If other fragments will be sent. More...

std::list< std::pair< Ptr < Packet >, uint16_t > >	m_packetFragments
	The current fragments. More...

EventId	m_timeoutEventId
	Timeout handler event. More...

Ptr< Packet >	m_unfragmentable
	The unfragmentable part. More...

Additional Inherited Members
Static Public Member Functions inherited from ns3::SimpleRefCount< Fragments >
static void	Cleanup (void)
	Noop. More...

Detailed Description

A Set of Fragment.

Definition at line 303 of file ipv6-extension.h.

Constructor & Destructor Documentation

ns3::Ipv6ExtensionFragment::Fragments::Fragments ( )

Constructor.

Definition at line 600 of file ipv6-extension.cc.

ns3::Ipv6ExtensionFragment::Fragments::~Fragments ( )

Destructor.

Definition at line 605 of file ipv6-extension.cc.

Member Function Documentation

void ns3::Ipv6ExtensionFragment::Fragments::AddFragment	(	Ptr< Packet >	fragment,
		uint16_t	fragmentOffset,
		bool	moreFragment
	)

Add a fragment.

Parameters

fragment	the fragment
fragmentOffset	the offset of the fragment
moreFragment	the bit "More Fragment"

Definition at line 609 of file ipv6-extension.cc.

void ns3::Ipv6ExtensionFragment::Fragments::CancelTimeout ( )

Cancel the timeout event.

Definition at line 703 of file ipv6-extension.cc.

Ptr< Packet > ns3::Ipv6ExtensionFragment::Fragments::GetPacket ( ) const

Get the entire packet.

Returns: the entire packet

Definition at line 657 of file ipv6-extension.cc.

References ns3::Packet::AddAtEnd(), ns3::Packet::Copy(), and list.

Here is the call graph for this function:

Ptr< Packet > ns3::Ipv6ExtensionFragment::Fragments::GetPartialPacket ( ) const

Get the packet parts so far received.

Returns: the partial packet

Definition at line 669 of file ipv6-extension.cc.

References ns3::Packet::AddAtEnd(), ns3::Packet::Copy(), and list.

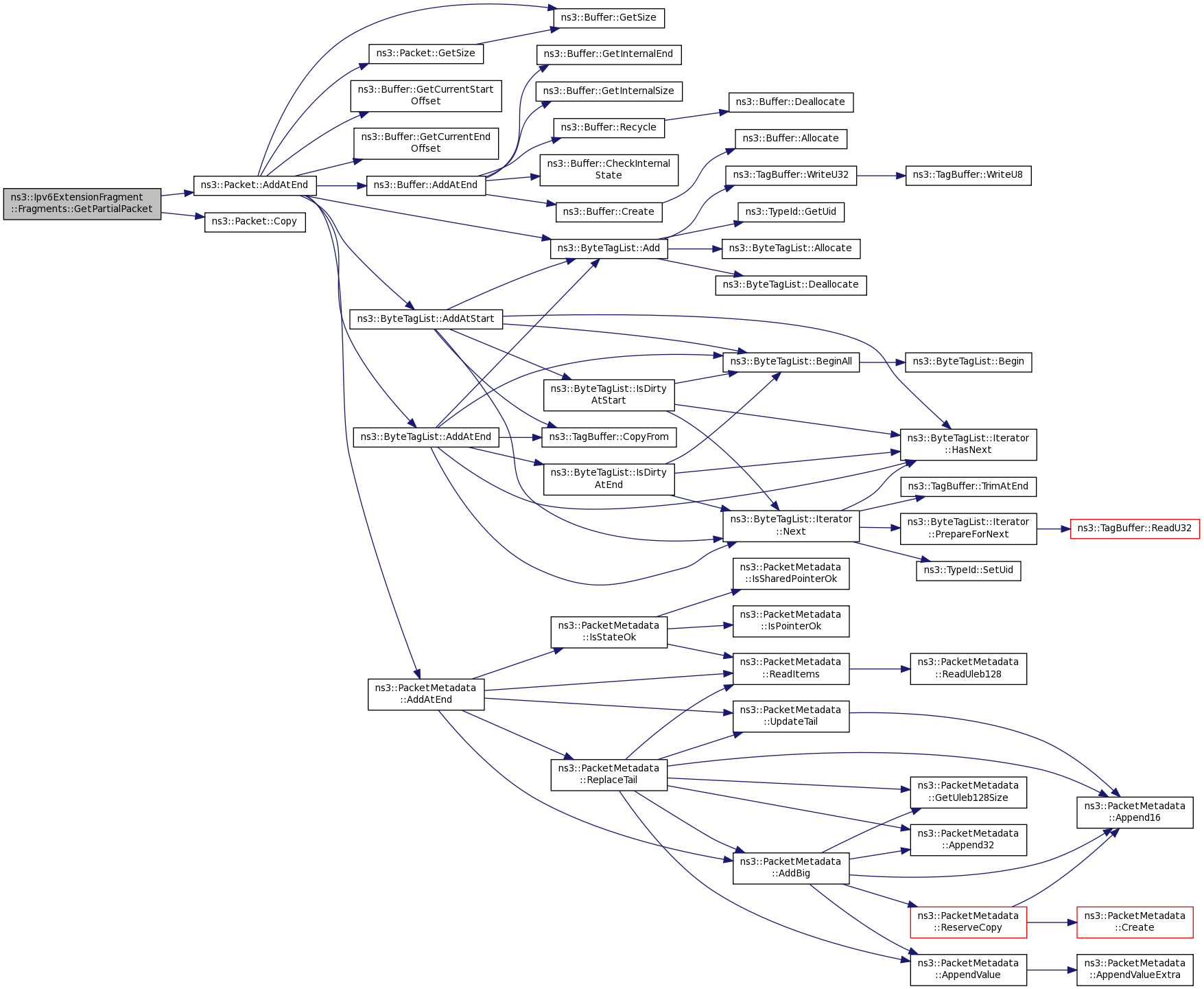

Here is the call graph for this function:

bool ns3::Ipv6ExtensionFragment::Fragments::IsEntire ( ) const

If all fragments have been added.

Returns: true if the packet is entire

Definition at line 634 of file ipv6-extension.cc.

References list.

void ns3::Ipv6ExtensionFragment::Fragments::SetTimeoutEventId ( EventId event )

Set the Timeout EventId.

Definition at line 697 of file ipv6-extension.cc.

void ns3::Ipv6ExtensionFragment::Fragments::SetUnfragmentablePart ( Ptr< Packet > unfragmentablePart )

Set the unfragmentable part of the packet.

Parameters

unfragmentablePart the unfragmentable part

Definition at line 629 of file ipv6-extension.cc.

Member Data Documentation

bool ns3::Ipv6ExtensionFragment::Fragments::m_moreFragment

private

If other fragments will be sent.

Definition at line 362 of file ipv6-extension.h.

std::list<std::pair<Ptr<Packet>, uint16_t> > ns3::Ipv6ExtensionFragment::Fragments::m_packetFragments

private

The current fragments.

Definition at line 367 of file ipv6-extension.h.

EventId ns3::Ipv6ExtensionFragment::Fragments::m_timeoutEventId

private

Timeout handler event.

Definition at line 377 of file ipv6-extension.h.

Ptr<Packet> ns3::Ipv6ExtensionFragment::Fragments::m_unfragmentable

private

The unfragmentable part.

Definition at line 372 of file ipv6-extension.h.

The documentation for this class was generated from the following files:

src/internet/model/ipv6-extension.h
src/internet/model/ipv6-extension.cc
